1. Contents 2

1. Contents Page

2. Assembly, putting into operation, connection 3

3. Control elements 4

4. Display 4

5. Factory setting 5

6. Changing settings 6

6.1 Time and day of the week 6

6.2 Calendar month and day 7

6.2.1 AU = Automatic changeover 7

6.2.2 cHA = Weekday-related time change 8 - 9

6.2.3 no = no changeover 10

7. Standard switching commands 11

8. Weekday block formation 12 - 13

9. Read – change – delete – reset 14 - 15

10. Hand switch 16

11. Technical data 17

2. Assembly, putting into operation, connection 3

2.1 Assembly

Fit the time switch

• on a DIN rail

• optional wall surface-mounting

Surface-mounting set for 2 and

3 module spacings

Article No. 03.53.0083.2

2.2 Putting into operation

The time and date are set at the factory.

The time switch is in Energy-saving mode.

Only the colon flashes.

Press any key:

• The time switch is actived

•

It displays the time (day of the week)

2.3 Connection

See information on the unit!

Press any key to activate the time switch

• the time and date is displayed

Note:

If no key is pressed the time switch is

automatically activated after approx

1 - 2 minutes.

Safety instruction:

•

When operating the clock safety low

voltage, only safety low voltage may

be connected.

•

When operating the clock with function

low voltage, mains voltage (230 ~) or

function low voltage may be connected.

The connection of safety low voltage is

not admissible in this case.

+–

3. Control elements 4

4. Display

Start program input

Set time,

end program input

Select day(s)

of the week

Delete switching time

Set hours, day, year

Hand switch

Enter pulse/

cycle

Reset

Set minutes, month, year

Summer time/winter time switchover

Date

Summer time

display

AM/PM

display

DCF 77

reception

Channel 1

Channel 2

Switching state

Automatic mode

1234567 =

days of the week

1 = Monday

Hours - current time

Calendar day

- current date

- start/end

summer time

Minutes - current time

Month - current date

- start/end

summer time

Year - day/month

Pulse/cycle

Continuous operation

Manual operation

5. Factory setting

The selections correspond to Central European Time. The time

switch offers 3 Operating modes. The date and time, and also

the Operating mode AU are set.

Operating modes:

•AU Automatic summer time controller switchover

see 6.2.1

The switchover occurs on the dates defined by

the legislator.

•cHA Weekday-related summer time controller

switchover, see 6.2.2

You enter the start and end dates of summer time

which applies to your location/country.

e. g. The first Sunday in April of the current year

(start of summer time)

The last Sunday in October of the year

(end of summer time)

In the following years, changeover always occurs

on the right day of the week in the correct calendar

week.

•no No changeover, see 6.2.3

AM/PM switch-over

Switch clock is in current operating mode

1. Press h and keep pressed

2. – Press Res once

– all segments are displayed

–

after approx. 1 second the following appears:

AM, 12.00 and 3 (Wednesday)

Operating mode AU is active = works setting

3. Release h

Select operating mode as required, see 6.2.1 or 6.2.2 or 6.2.3

5. Set the current time of day and weekday, see 6.1

6. Changing settings

Press the key once

Set the time:

With the h key – hours

With the m key – minutes

Note for weekly time switch:

If the Operating mode

no = no change

- see 6.2.3

was selected, the day of the

week must now be set.

With the Day

1 - Monday

key select: 2 - Tuesday

Wednesday

7 - Sunday

Press the key once.

The input is ended.

6.1 Time and day of the week

Note:

You can exit/conclude any adjustments, changes you make

at any time with the key .

6.2

Calendar month and day – Select the Operating mode

6.2.1

AU = Automatic changeover

Press the key once

Press the + 1h key 1 once,

AU appears

Press the Prog key once

Set the current year:

With the m key or the h key

Confirm with the Prog key

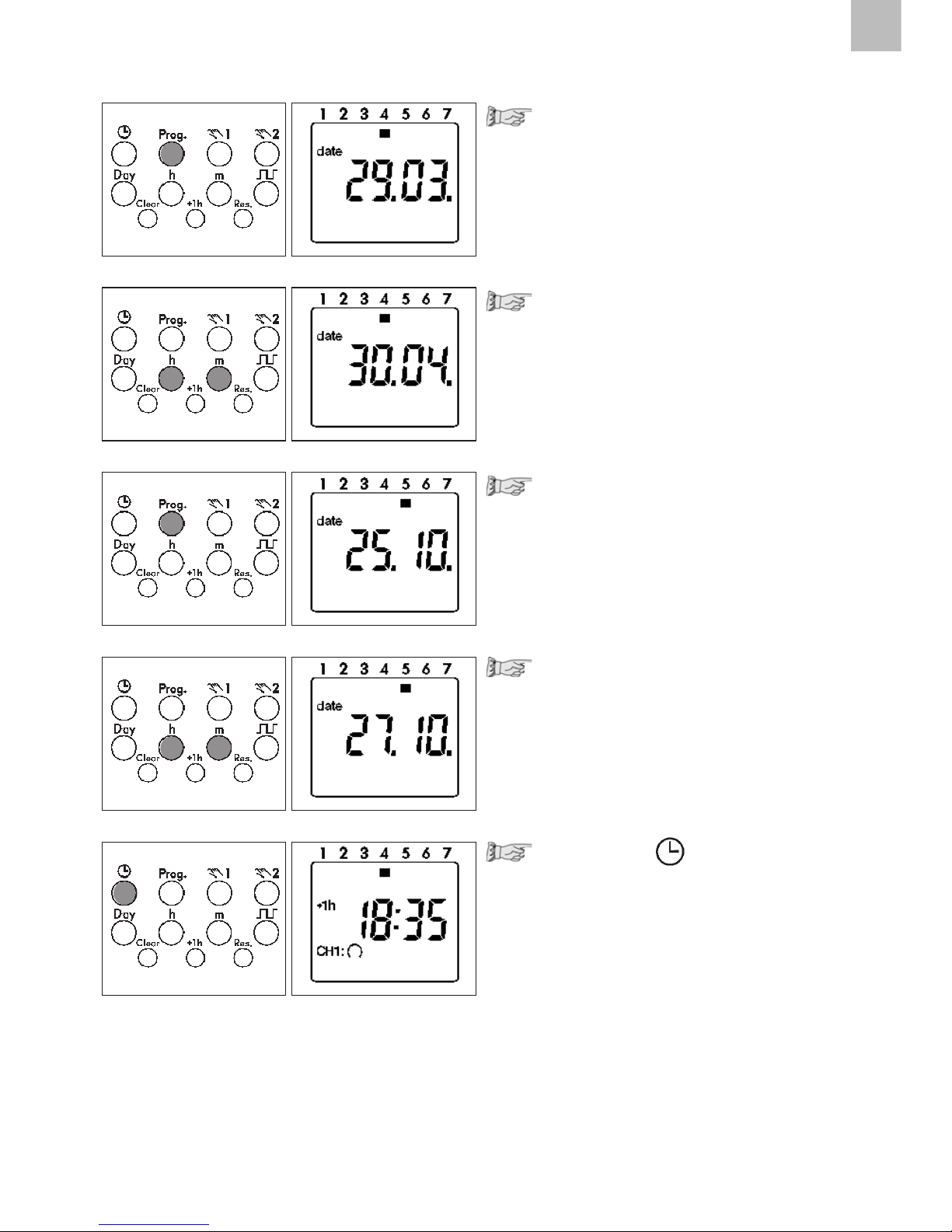

Set the current month and day:

With the m key – calendar month

With the h key – calendar day

Note:

With the Prog key (press once or

twice), read the date for the start

e.g. 29.03. and end e.g. 25.10.

of summer time.

Press the key once.

The input is ended.

6.2.1 AU or 6.2.2 cHA or 6.2.3 no

6.2.2 cHA = Weekday – related time change

Press the key once

Press the + 1h key as often as

necessary until cHA appears

Press the Prog key once

Set the current year:

With the m key or the h key

Confirm with the Prog key

Set the current month

and day:

With the m key – calendar month

With the h key – calendar day

Confirm with the Prog key

The start of summer time is

displayed.

Set the individual

summer time start:

With the m key – month

With the h key – day

Confirm with the Prog key

Set individual

summer time end:

With the m key – month

With the h key – day

Press the key once.

The input is ended.

6.2.3 no = no changeover – only weekly time switch

Press the key once

Press the + 1h as often as

necessary until no appears.

The time switch operators

without a date!

Press the key once.

The input is ended.

Note:

Select day of the week

see 6.1

Select free memory location:

Press the Prog key as often as

necessary until – –:-– – appears.

Set the switching times:

With the m key – minutes

With the h key – hours

For weekday adjustment, see:

Block formation of weekdays, Point 8

You determine the switching times and the switching state for the relevant

switching output (channel.)

Symbol:

CH1: (ON) = Channel 1

CH2: (OFF) = Channel 2

These assignments are possible:

• Switching commands only for channel 1

• Switching commands only for channel 2

• The same switching commands for channel 1 and channel 2

(the switching time and switching state are identical)

• The same switching time for channel 1 and channel 2 but with a

different switching state.

7. Standard switching commands

Set the switching state:

With the key

(ON) or (OFF)

Note:

The switching state for CH1 or

CH2 can be deactivated.

No symbol – no switching.

Press the Prog key once. The input has

ended. A free memory location is

displayed – for other settings or

Press the key once. The input

is ended.

The display shows the current time.
