Great Canadian Systems IQ 2000 P Bedienungsanleitung

Manual PN 105193

Issued 0299 IQ 2000 P

OPERATION MANUAL

•Installation, Setup and

Operating Instructions.

•Troubleshooting Guide.

•Wiring Diagram.

GREAT CANADIAN SYSTEMS, INC.

1-800-267-3555

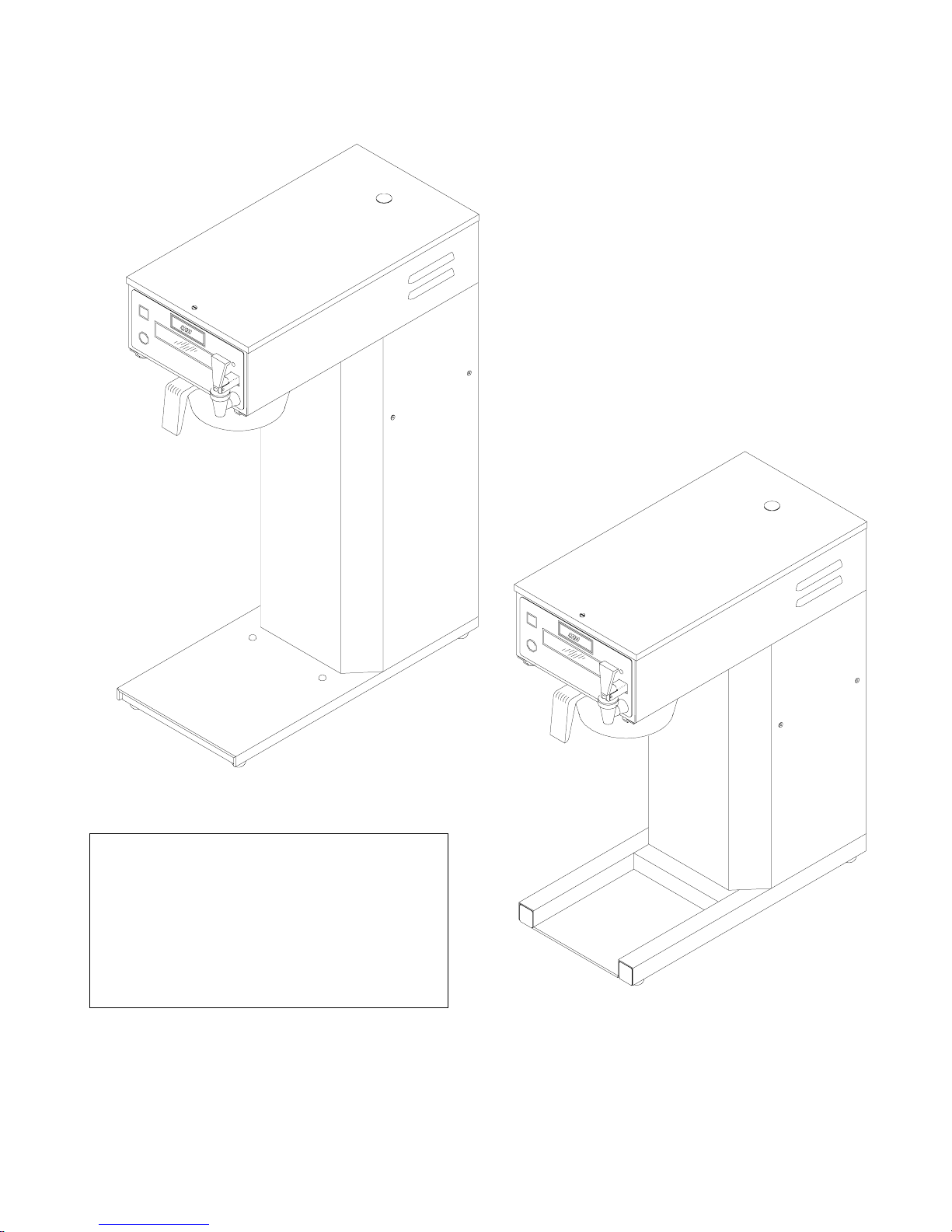

IQ-D

IQ-LD

- 2 -

Installation Instructions

WARNING: - Read and follow installation / setup instructions before plugging or wiring in machine to electrical

circuit. Warranty will be void if machine is connected to any voltage other than that specified on the name plate.

PLUMBER'S INSTALLATION INSTRUCTIONS

CAUTION: Power to brewer must be OFF before proceeding with plumbing installation.

1) Plumb brewer in to water supply using 1/4 inch copper or plastic tubing. Flush water line before installing

brewer to remove sediment. Brewer should be connected to COLD WATER LINE for best operation.

2) Water pressure should be at least 20 lbs. For less than a 25 ft. run, use 1/4" tubing and connect to 1/2" or

larger water line. The inlet water fitting extending from the solenoid valve on the back of the brewer is a

1/4" compression type fitting.

3) Once the brewer is pressurized plug the brewer into a 120 volt power supply.

Brewer Fill Program

Programming is done through the 4 hidden buttons located under the display. Prior to accessing the

program or service mode you will need to attach a service template to the faceplate of the unit in order to locate

the buttons. Attach one of the self stick templates to the faceplate aligning it with the display window edges and

bottom border as shown in Fig 1 below.

Turn the main ON/OFF switch located on the lower left front of brewer column to the OFF position.

Depress and hold down both the Brew and Cancel buttons located on the brewer face plate (See Fig 1 below).

Continue to hold the two buttons in while turning the ON/OFF switch to the ON position. The brewer display will

indicate to "Please Wait" as it initializes the Program/Service mode. Continue holding the brew and the cancel

button until the brewer enters the Program/Service main menu (approximately 5 seconds).

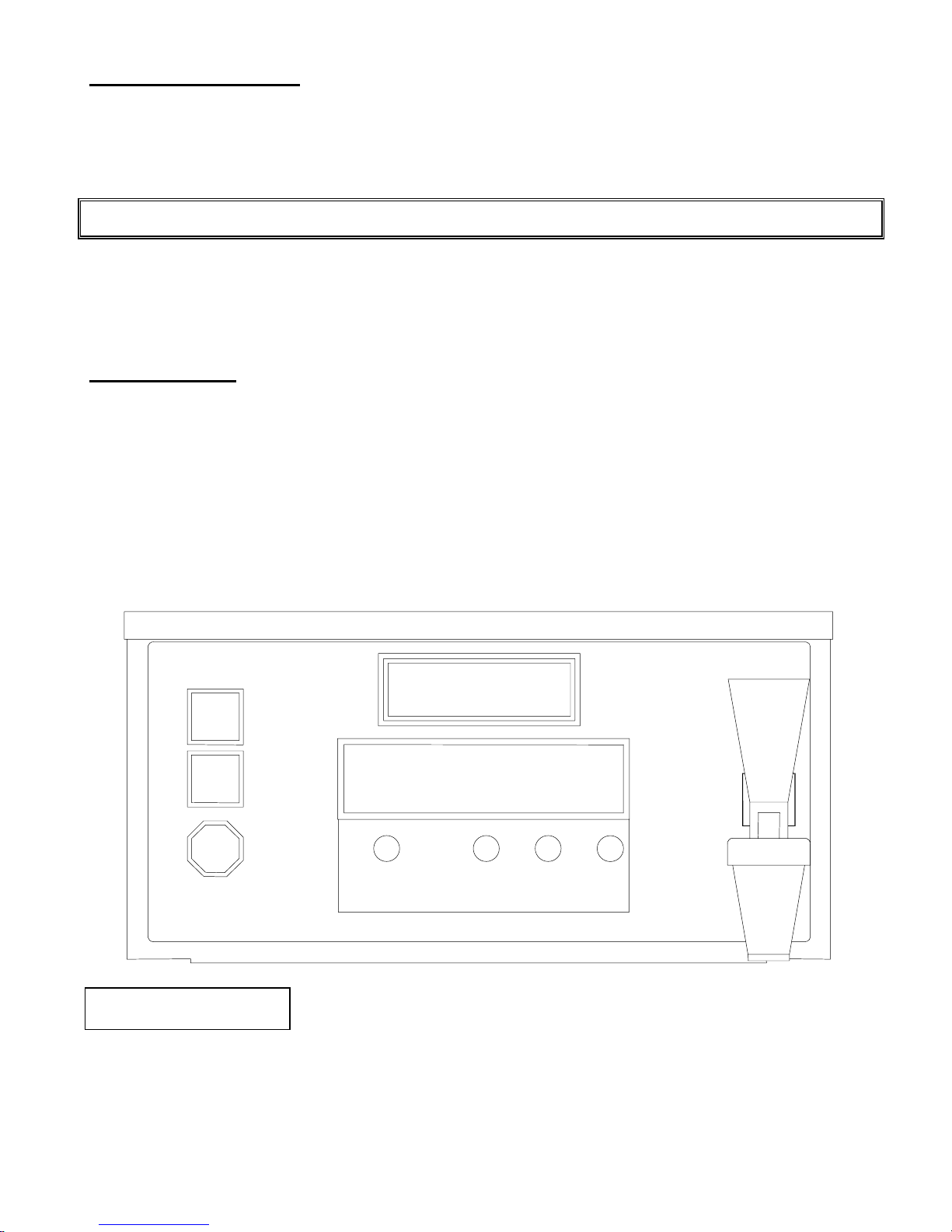

Figure 1 - Faceplate

This is the Program/Service main menu. Use the Select key to choose the service

mode. Continue to depress the Select button until you reach the "Fill Tank Press

Brw1" message. Depress the Brew switch and the brewer filling process will begin.

The brewer fill process will take between 4 and 5 minutes. The tank heater in the brewer will automatically turn on

when the water makes contact with the heater safety probe. This will prevent damage to the tank heater from

turning on the element to early. The brewer will continue to fill until the water level in the tank reaches the upper

probe. The Tank Fill Program does not have a maximum run time to provide overfill protection. The brewer

heating system will take approximately 15 minutes to reach the preset temperature of 205 degrees.

Select Mode

Program Service

CANCEL

BREW

HALF

BREW

Service Template

ENTER

IQ SELECT -

IQ2000

HOT WATER

- 3 -

Initial Setup Instructions

1) Once the brewer tank has been filled the brew time and temperature may be checked and adjusted as

required. Place a suitable decanter in place below the brew basket to catch water. The IQ features a dump valve

system so brewing begins immediately when the Brew switch is depressed, providing the water level in the tank is

up to the upper water probe. Note: the tank also contains a second longer probe which is a heater safety probe.

This probe will tell the control board when the water level is high enough to supply power to the tank element. It

also will call for power to be shut off to the element should the water level fall below it.

2) Depress the start switch to run a brew cycle and check the volume of water delivered into the container. If

the tank temperature is up to the preset level or if the auto arm feature has been disabled the unit will begin

brewing immediately. Otherwise the brewer will go into the auto arm mode and the display will indicate "Brew

Cycle Activated" to indicate that the unit is in the brew mode but is not up to temperature (Note: To accelerate the

set up time auto arm may be disabled as noted in the Program Options section on the following page). When the

tank reaches the preset temperature the fill portion of the brew cycle will begin. The tank lid must be in place for

proper unit operation. The brew cycle may be canceled by depressing the Cancel button if desired.

3) Allow water to finish draining from the unit. Note that the "Coffee Brewing" message should continue to

display until all liquid has finished draining from the unit. If not you will need to adjust the Buzzer Delay. After the

brew cycle has finished check volume of water in the container. Empty the decanter and replace below brew

basket. If the volume is short it will be necessary to increase the brew time. Decrease the brew time if to much

fluid is obtained. Adjust the brew time and buzzer delay as described in the Program Options section on the

following page.

4) Allow the water in the tank to heat to brewing temperature (relay will click off and heating noise will stop).

Run one brew cycle to check for the proper temperature setting with an accurate thermometer. Take the

temperature of this water at a point below the brew basket opening, at the start of the brew cycle and when the

decanter is half full. Recommended temperature of the water is approximately 195 F. The actual tank water

temperature may also be taken by removing the plug on the brewer top cover and inserting a thermometer through

the Silicone plug in the tank lid. The brewer features an electronic temperature control circuit and the temperature

may be adjusted with the control board as explained in the Program Options section on the following page.

5) In higher altitude locations (5000 feet above sea level) the tank temperature may have to be adjusted

lower to prevent boiling.

6) CAUTION: The water faucet will dispense hot water when the handle is pulled.

Coffee Preparation Procedures

1) Place filter into brew basket.

2) Put the proper amount of coffee into the filter.

3) Slide the brew basket into holder.

4) Place the appropriate empty decanter into position below the brew basket. For airpots first open lid and

remove pump stem. For other dispensers remove the lid unless it is a brew through design.

5) Press Brew button.

6) If the auto arm feature is enabled and the brewer is not up to temperature the "Brew Cycle Activated"

message will display indicating that the brewer is heating and will begin to brew immediately after the

heating cycle is complete. Do not remove decanter. Brew cycle may be canceled by depressing the

Cancel button. Display will return to "Ready To Brew" and other programmed messages.

7) Hot water will be delivered through the sprayhead. This distributes the hot water evenly over the coffee

bed within the brew basket. The coffee brew will drain from the brew basket into the decanter below.

8) The "Coffee Brewing" message should continue to display until all the liquid has finished flowing from the

brew basket. Do not remove decanter until the brewing process has stopped and all liquid has stopped

flowing from the brewbasket.

9) The resultant coffee brew should be crystal clear and have the desired properties attainable through

excellent extraction.

10) To clean brew basket simply remove from brew rails and dump filter into waste basket. The brewing

process, as described above, can now be started again.

- 4 -

Program and Service Mode Functions

Programming is done through the 4 hidden buttons located on the brewer faceplate under the display.

Prior to accessing the program or service mode you will need to attach a service template to the faceplate of the

unit in order to locate the buttons. Attach one of the self stick templates to the faceplate aligning it with the display

window edges and bottom border as shown in Fig 1 on page 2.

To enter either the Program or Service Mode:

Turn the main ON/OFF switch located on the lower left front of brewer column to the OFF position.

Depress and hold down both the Brew and Cancel Buttons located on the brewer face plate. (See Fig 1, Page 2).

Continue to hold while turning the ON/OFF switch to the ON position. The brewer display will indicate to please

wait as it initializes the program/service mode. Continue holding the brew and the cancel button until the brewer

enters the Program/Service main menu (approximately 5 seconds).

This is the Program/Service main menu. Use the Select key to choose either the

Program or Service mode. The program mode is used to set custom settings such

as brew times, buzzer type, tank temperature, enable power save or auto arm, etc.

The service mode is used for initial brewer fill, to display and clear error messages, to view total brew cycles, and

to view/reset the brew cycles since service.

An explanation of the various features for both modes is outlined in the following sections. Note that if at

any point after entering this menu the brewer detects that there has been no activity on the keypad for 1 minute it

will exit to the ready/standby mode. It will then be necessary to follow steps outlined above to return to the program

or service mode. If an option or feature has been changed without pressing enter prior to this occurring the change

will be lost.

Program Options

Table 1 - Summary of Program Mode Options/Features

Option Program Options/Value Range Factory

Setting Description

Brew Time #1 10 Sec - 5 Min, 20 Sec 3:25 Dump valve open time for brew 1.

Brew #2 Enable Yes, No No Optional second brew setting using hidden key.

Brew Time #2 10 Sec - 5 Min, 20 Sec 1:30 Dump valve open time for brew 2.

Buzzer Delay 10 Sec - 2 Min 1:00 Drain time from basket for brews 1 and 2.

Auto Arm Enable Yes, No Yes Ensures optimum brew temperature.

Brew Time Remaining Yes, No Yes Display time remaining during the brew cycle.

Temperature Setpoint 170° F - 212°F 205 Water holding temperature in tank.

Power Save Enable Yes, No Time is factory set at

2 hours. May not be changed. Yes Drops tank temperature to 170° F during

periods (2 hours) of non use to save energy.

Buzzer Type Burst, None, Steady, Single Pulse, Double

Pulse Steady Signal for the completion of the brew cycle.

Keypad Beep Enable Yes, No Yes Audible tone to ensure keys are fully

depressed.

Service Cycles 0 - 65535 500 Brew Cycles to run before displaying the Call

For Service Message for routine maintenance.

Exit Pgm/Srv Mode Yes, No N/A Exit from programing mode to "Ready To

Brew".

This is the length of time which the dump valve will remain open to allow water to

flow over the coffee grounds. It is the active portion of the brew cycle. The Select

key may be used to choose a numeral in the displayed time to change and the "-"

or "+" keys may be used to change the selected numeral up or down as required to obtain the desired brew time.

Note that when setting brew time the display changes by 1 numeral each time the button is depressed. The

minimum time which may be programmed is 10 seconds and the maximum time is 5 minutes and 20 seconds.

Depress enter to save the programmed brew time.

This option allows a second brew function to be programmed thereby giving the

user multiple volume brewing capability. Brew #2 is the brew cycle which would be

Select Mode

Program Service

Brew Time #1

3:30

Brew #2 Enable

Yes No

- 5 -

initiated by depressing the hidden brew button labeled in fig 1, page 2 as HALF BREW. If this feature is desired

use the Select button to choose "Yes". Select "No" to disable Brew #2.

If you answered yes to the previous option you will be asked to set the brew time

for this function. Follow the steps previously outlined for Brew Time #1 above. The

minimum and maximum program times are the same as noted for Brew #1.

This function is to set the delay for the buzzer which indicates that the coffee is

finished brewing. This delay is intended to account for the time from which the

dump valve shuts off until the coffee finishes dripping from the brew basket. This is

the second portion of the brew cycle. The minimum buzzer delay time is 10 seconds and the maximum is 2

minutes. If a buzzer is not desired it may be turned off by selecting "None" under Buzzer Type below. Note that

Brew #1 and Brew #2 both use the same buzzer delay time so the longer delay time should be used.

The auto arm function will not allow the brew cycle to start until the water

temperature is at the preset temperature level. If the brew button is pressed while

the tank is heating the display will indicate "Brew Cycle Activated" to aid in

preventing the decanter from being removed prematurely. When the tank reaches the preset temperature level the

brew cycle will begin and the display will indicate "Coffee Brewing".

Answering yes enables the brew time remaining to be displayed during the brew

cycle. The Brew Time and the Buzzer Delay are added together for the total brew

time. Coffee Brewing and Time Remaining will display throughout the brew cycle.

This is the method for controlling the water temperature in the tank. It is similar to

the function of a thermostat knob. Use the "-" or "+" keys to move the * (asterisk)

back and forth between the "-" (decrease) and the "+" (increase) symbols in the

display window to decrease or increase the tank temperature as desired. The temperature at the low end of the

range is approximately 170 degrees and at the upper end is approximately 212 degrees.

When power save is enabled the brewer will allow the tank temperature to drop to

the standby temperature of approximately 170 degrees after a period of inactivity in

order to reduce power consumption. On previous models it was necessary to turn

the switch on the column to the OFF position when power save was to be activated. Power save is based on the

brewing activity. When the brewer has not been used for a period of 2 hours the unit will go into Power Save

mode. When this feature is not enabled the tank temperature will be maintained at the brew set point temperature.

(The switch on the column now turns off power to the brewer disabling all brewer functions.)

There are 5 possible selections for the buzzer type indicating the end of a brew

cycle. They are Burst (a series of burst), None, Steady, Single Pulse or Double

Pulse. Use the select key to make your selection. Select None to disable the

buzzer function.

When enabled this option allows a short audible tone to be sounded whenever a

key is depressed to provide audible reassurance that the button was indeed

pressed and the function initiated. Select Yes to enable and No to disable this

function.

This feature allows you to program in the number of brew cycles which you want to

run before the brewer automatically displays the "* Call For Service *" message so

that routine maintenance may be performed. The brewer will continue to oper-ate

even though this message is displayed. Note that the name and telephone number which will be displayed may be

programmed as outlined in the Custom Message Programing Section under message number "SRV".

After programing the Service Cycles this message will prompt you to exit the

program/service mode. Select Yes to exit the program mode. If you select No you

will be returned to the Program/Service menu at which time you may select

Program and go back through the program items listed above or you may select Service and review or set those

items. Use the select button to choose Yes or No and then depress Enter. If the brewer detects that there has

been no activity on the keypad for 1 minute it will exit to the ready/standby mode by itself.

Brew Time #2

1:45

Buzzer Delay

0:40

Auto Arm Enable

Yes No

Brew Time Remaining

Yes No

Temperature Setpoint

- * +

Power Save Enable

Yes No

Buzzer Type

Burst

Keypad Beep Enable

Yes No

Service Cycles

00800

Exit Pgm/Srv Mode

Yes No

- 6 -

Service Options and Troubleshooting

Table 2 - Summary of Service Mode Options/Messages

Message Service Function/Message Description

Fill Tank Press Brw1 Press BREW key to fill tank when

displayed. No maximum run time. Use for initial setup to fill tank.

Cycles Since Service Depress '-' and '+' key to clear. Displays the brew cycles since message was last

cleared.

Total Cycles Information only. Can not change. Cumulative brewer cycles.

Error Messages Depress '-' and '+' key to clear.

Err: Fill Probe

Err: Safety Probe

Err: Open Tmp Sensor

Err: Shrt Tmp Sensor

Err: Bad Heater Elem

Err: Faucet Timeout

Cause:

Fill solenoid runs more than 5 consecutive min.

Water has fallen below heater safety probe.

Thermistor circuit break.

Thermistor circuit short.

Element heating time exceeded 30 minutes.

Faucet open for more than 4 consecutive min.

This function is for the initial tank fill cycle as explained in the Brewer Fill Program

section on page 1. There is no maximum run time to fill the tank in this mode.

This is the number of brew cycles which the unit has seen since the message was

last cleared. If the "* Call For Service *" message appears and the brewer

continues to operate then the Cycles Since Service has reached or exceeded the

value set in Service Cycles as outlined above. To clear the number press and hold both the "-" and "+" keys

simultaneously until the number is cleared (approximately 5 seconds).

This number is the cumulative brewer cycles and can not be altered.

This area is for the display of error messages which have triggered the * Call For

Service * message and disabled the brewer from normal operation. To clear the

error message press and hold both the "-" and "+" keys simultaneously until the

message is cleared (approximately 5 seconds). Error messages and their description are noted below.

Error Messages and Troubleshooting

CAUTION: Disconnect power to brewer before servicing.

This message will display under 2 conditions. Condition one occurs when the

Cycles Since Service has reached the programmed value for service cycles. The

brewer will continue to operate normally. Condition two occurs when an error is

present. Error Messages are outlined below. Use the procedures outlined in the previous section to display the

error. In all cases which produce one of the outlined errors the brewer will be disabled until the condition is

corrected and the error is reset. To clear the error message press and hold both the "-" and "+" keys

simultaneously until the message is cleared (approximately 5 seconds).

This error occurs when the fill solenoid, in a normal brew, has exceeded the

maximum fill valve run time with out the water level in the tank making contact with

the water level probe. The problem usually is the result of poor water supply.

Check your water supply up to the brewer to see that you are receiving adequate flow. If yes shutoff water to the

brewer and loosen the cap on the inlet of the water solenoid. Check to see if there is debris blocking the opening.

If the water flow and valve appear to be normal it may be necessary to change the flow washer located internally in

the solenoid. In some instances because of Low Water Pressure we recommend increasing the size of the flow

washer to .75 or 1 gallon per minute to increase the flow rate to the brewer. If the hot water faucet is being used

Fill Tank Press Brw1

Cycles Since Service

00150

Total cycles

01140

Error Messages

* Call For Service *

Error Messages

Err: Fill Probe

- 7 -

heavily you may need to restrict the flow rate out of the faucet. Note: The maximum run time for the fill solenoid is

5 minutes.

This error occurs when the water level probe senses water and the heater safety

probe does not. 3 conditions can normally produce this error. These conditions

are: The probe has scaled over; the water level probe and the heater safety probes

are wired in reverse; or there is a break in the wiring to the safety probe from the board. If the problem is the result

of lime insulating the metal surface of the probe, clean or replace probe. If the problem persist, Check the wiring to

the probes. The water level probe is the shorter probe mounted in the sidewall of the water tank and is connected

to the board with a yellow wire. The heater safety probe is mounted in the tank lid and extends further down into

the tank then the water level probe does. It is connected to the board by a yellow wire with a red stripe. If the

correct colors appear to be going to the corresponding probe use the wiring diagram, Fig 3, Page 11, to ensure

that the wires are terminated in the correct spot on the board connector. If the connections appear okay check the

continuity between the connector end on the board of the probe wire and the quick connect terminal on the probe.

This message displays when the thermistor (temperature sensor) has failed to

provide feedback to the control board due to a break in the thermistor circuit.

Check the thermistor in the tank and the wiring to the thermistor. To check the

thermistor (temperature sensor) you will need to remove the top cover and rear panel of the brewer. Loosen the

wire nuts to the thermistor and use a continuity tester to check for continuity between the 2 wire thermistor leads. If

there is no continuity the sensor needs to be replaced.

This message displays when the thermistor (temperature sensor) has failed to

provide feedback to the control board due to a short in the thermistor circuit. Check

the thermistor in the tank and the wiring to the thermistor. To check the thermistor

you will need to remove the top cover and rear panel of the brewer. Loosen the wire nuts to the thermistor and

using a continuity tester check for continuity between each of the 2 wire thermistor leads and the tank. If there is

continuity between either of the wires and the tank the sensor needs to be replaced.

This message displays when the brewer has tried to heat the tank to the preset

temperature for a period of time exceeding 30 minutes. There are 3 areas which

should be checked. Unplug the brewer and remove the top cover and rear panel.

With a continuity meter check to see if the tank element and the safety limit thermostat have continuity. If a manual

reset safety thermostat is installed in the brewer check to make sure the red button is pushed in. If both of these

components check out okay, then you will need to replace the heater relay. The relay is located in the lower rear of

the brewer mounted on a bracket to the side of the brewer column.

This message displays when the faucet has been open for a period exceeding four

minutes. The brewer is inoperative until the condition is corrected and the error is

reset to prevent possible flooding. Close the faucet to correct error. If faucet was

closed when error was generated check the wiring connections on faucet microswitch and verify microswitch

operation (opens and closes circuit as it should) using a continuity tester.

Other Errors or Problems

Brewer Display Will Not Light Up

The brewer may not be receiving power. Check for the correct voltage at the electrical receptacle. The brewer

serial tag will indicate the correct voltage for the unit. If voltage is present there are 3 other areas which should be

checked in the following sequence.

Unplug brewer and remove top cover as well as the rear back panel.

1. Check the fuse located on the upper display board located behind the front control panel of the brewer.

If fuse is blown replace.

2. Check the ON/Off power switch for continuity which is located at the front of the brewer. Access to the

switch is through the rear back panel. If the switch does not make & break contact , replace switch.

3. Check transformer. Transformer output should be 16-24 volts.

Error Messages

Err: Safety Probe

Error Messages

Err: Open Tmp Sensor

Error Messages

Err: Shrt Tmp Sensor

Error Messages

Err: Bad Heater Elem

Error Messages

Err: Faucet Timeout

- 8 -

Section continued on next page

Solenoid Noise

The noise level of the solenoid valve opening and closing during a brew cycle can be annoying. This usually is the

result of high water pressure or running the brewer off of a hot water supply. The common solutions are either

incorporating a pressure regulator or a water arrestor in the incoming water line before the brewer. Newco also

has an optional adjustable flow valve called the PDS valve. These devices will reduce the noise level .

Water Keeps Running/Dripping

If water drips or continuously flows from the brew basket the outlet dump valve may need to be replaced due to

Liming. The valve may also be disassembled and cleaned and a repair kit is available. To see if the brewer is

overfilling internally unplug the brewer and remove the top cover to gain access to the tank. Remove the tank lid

and check to see if the water level in the tank is above the overflow tube. This would indicate that the fill valve is

leaking and would need to be replaced.

Brew Start Irregularities

If the brewer either operates without depressing the brew switch or will abort the brew cycle when the brew switch

is depressed, their may be a defective switch which is stuck closed on the faceplate overlay.

To check, Refer to Pg 2 under the instructions for the Brewer Fill Program, Place a Service Template

under the display window and following the steps to place brewer in the program mode, Select Program and scroll

down to Key Pad Beep. If not in the yes mode select yes and depress the mode switch. Next depress each area

on the face plate where a switch is located. As you depress you should hear a beep. If a beep does not occur you

may need to replace the overlay.

To replace faceplate overlay proceed as follows. Unplug the brewer and remove top cover. Place a

suitable container below faucet and open faucet to drain water to a level below faucet line. Disconnect the water

line from the faucet and remove the faucet and the screw which retains the microswitch bracket. Disconnect the

ribbon cable from the display board. The old overlay may now be removed. Install the new overlay by reversing the

procedure outlined above. It may be necessary to loosen or remove display board to remove/insert the ribbon

cable to the overlay.

Heater Continuously Heats

The relay will require replacement if the brewer continuously heats and is not able to be adjusted by the

temperature control. The relay is a wear part which is operating approximately 45,000 times a year. To replace,

disconnect the wires and remove the screws holding the relay to the bracket.

Other Brewer Message's and Custom Message Programing Instructions

The following messages appear throughout the normal operation of the brewer. The display of these

messages is factory set and they may not be altered.

This message will be displayed while the brewer is not in use along with any

custom messages which have been programmed and enabled as outlined in the

Custom Message Programming section.

When a brew cycle is initiated, whether the brewer is up to temperature or not, this

message will appear until the actual brew cycle has started.

Once the brew cycle starts this message will continue to display throughout the

brew cycle.

This optional feature (Brew Time Remaining) will display simultaneously with

Coffee Brewing. It will countdown the time remaining before the brew cycle is

completed when it has been enabled as outlined in programing options above.

Ready to Brew

Brew Cycle Activated

Coffee Brewing

Time Remaining 2:45

- 9 -

This message will display momentarily after the completion of the brew cycle. Time

Remaining will display only if it has been enabled.

This message will display for 5 seconds and an audible signal will sound to alert

the user that the brew cycle has been terminated prematurely when the cycle is

cancelled before the total brew time has elapsed. The Time Remaining at the time

the cycle was canceled will be displayed if this feature has been enabled.

Custom Message Programing Instructions

The IQ 2000P may be programmed with up to 60 custom messages of 2 lines of 20 characters each.

These messages may then be individually enabled allowing them to scroll onto the display, pause for 5 seconds

and then scroll off as the next message in sequence scrolls onto the display. Other messages not currently in use

are conveniently stored in the memory of the control board for later use. Additionally the message appearing when

service is required may also be customized as desired.

The messages are programmed using any AT style computer keyboard (requires interface cable) or mini

PS-2 keyboard. Characters used in the messages may be comprised of any combination of letters, numbers,

punctuation and most other symbols found on a standard computer keyboard (i.e. $, #, *, <, >, etc.).

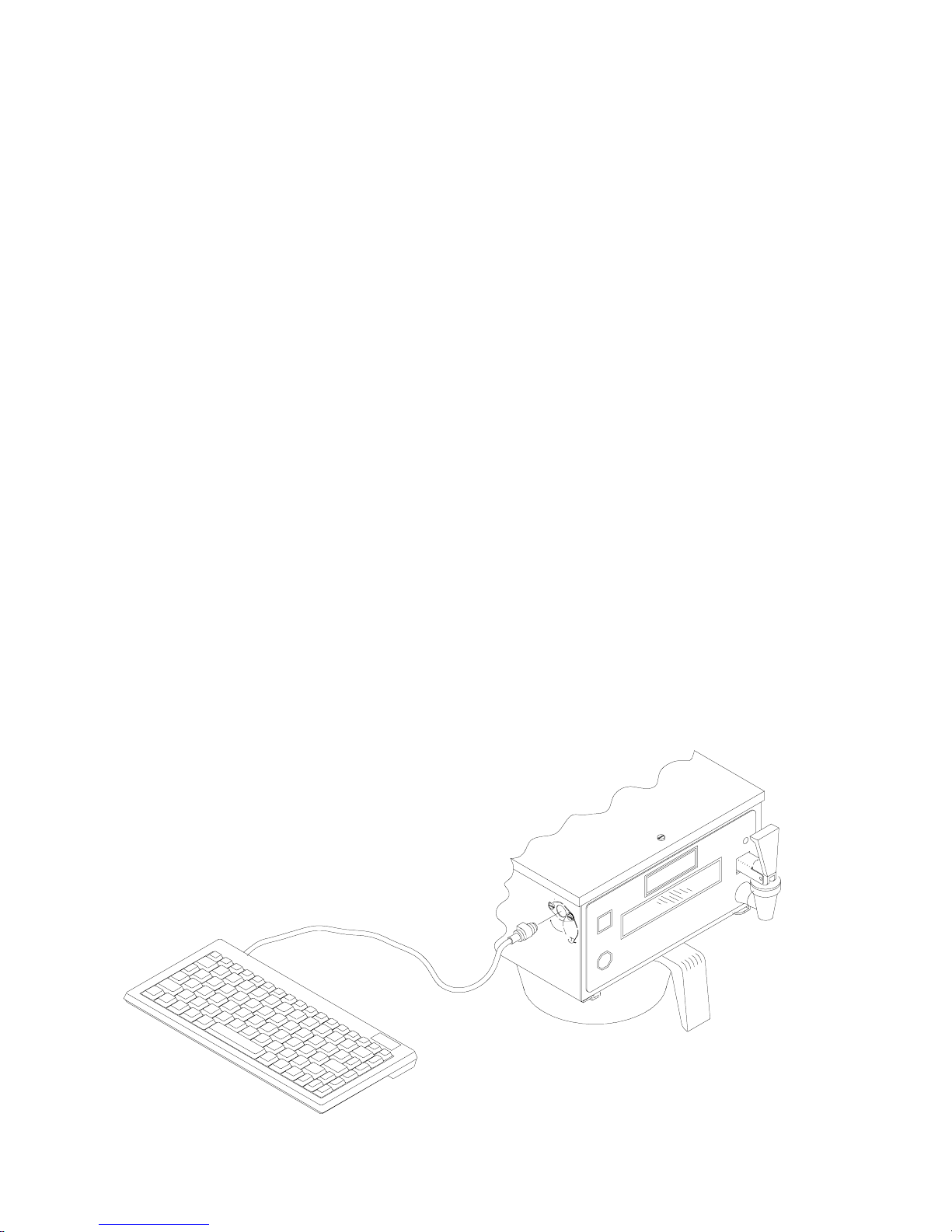

To connect keyboard to brewer loosen the 2 screws securing the keyboard cover plate on the left front

side of the brewers upper wrapper See Fig 2, Page 10. Access plate will swivel away from opening. Carefully plug

keyboard into the exposed port. Note orientation of connector in relation to port to avoid misalignment. Do not

force plug into port.

To enter the custom message programming mode press the 'Esc' key. Custom message programing

requires a password be entered for any functions. When prompted, enter the password. The factory set password

is "java". If the password has been changed enter the new password. Note: the brewer software is not case

sensitive. A window similar to the following will appear.

To change the password press the F1 key at this screen. This puts you into the

edit password menu. To begin creating or modifying messages skip the next

paragraph.

Edit the password by typing over or deleting the password shown. When you are

satisfied with the changes, press the enter key and the new password will be

stored. You will also be returned to the ready/standby mode. Follow the steps

outlined beginning above to create or modify custom messages or message status. Be sure to keep your

password written down in a safe and secure place.

Use the up arrow and down arrow to select the message you wish to create or modify. The message

number is represented above by #01, indicating message number 1. Modification may consist of entering a new

message, editing the content of an existing message, or activating/deactivating an existing message. Note:

Messages may not be erased but may be written over by other characters such as spaces and may be prevented

from displaying by deactivation. The 'E' in the display window after the message number indicates that the

message is enabled or active.

When the message number to be edited is displayed in the window press 'Enter' to view and/or edit the

message. Each message consist of 2 lines of 20 characters each. The following briefly describes the function of

certain keyboard keys for use in programing messages:

Home - This will move the cursor to the beginning of the current line.

End - This will move the cursor to the end of the current line.

Insert - This will toggle between insert mode and type-over modes. In insert mode text is pushed to the right as

new characters are entered. Note: Characters pushed out of view on the display are erased. In type-over mode

text is overwritten as new text is typed. Insert mode is denoted by a flashing underline cursor and type-over mode

is indicated by a flashing character sized rectangular cursor.

Coffee Ready

Time Remaining 0:00

Brew Cycle Canceled

Time Remaining 0:35

Select Message #01 E

Arrow Up/Dn, <E>nable

Edit Password:

JAVA

- 10 -

Delete - This will erase the character at the cursor position and pull all characters following to the left to fill its

space.

Backspace - This will erase the character to the left of the cursor while moving all characters (from the cursor to

the right) to the left to fill the deleted characters space.

Arrow Keys - This will move the cursor in the respected direction (left, right, up or down).

Note that if you continue to type when the cursor has reached the end of the line that the text will not

automatically wrap to the next line. Use the arrow keys to move between lines. Also note that to center a message

in the display it is best to type in the complete message first and then move to the beginning of the message lines

and move the text by inserting or deleting spaces in front of the text until the desired effect is achieved. The

backspace key will drag line content from the current cursor position and to the right to the left. Characters on the

left will be deleted as the text or blank spaces are drug over it. Once the message is satisfactory press 'Enter' to

store the message.

After storing the message press 'E' to enable the message. An E as noted on previous page indicates that

the message has been enabled. Only enabled messages will be displayed when exiting the custom message

programming mode. Other messages are retained in memory for later display however.

The custom service message, SRV, is located before message #01 and after Message #60. This

message will display as appropriate and may be modified as outlined above.

If at anytime during the programming process outlined above, there is no keyboard activity for a period of

1 minute the brewer will return to normal operation mode. While modifying a message, before pressing 'Enter', if

you wish to restore the message to its premodified content simply press 'Esc' to exit the message. When re-

entering the message it will appear as before. Once all messages have been modified and enabled as desired

press 'Esc' to exit the custom message programming mode and return the brewer to normal operation. If message

have been enabled or disabled and there is no keyboard activity for a period of 1 minute the brewer will return to

normal operation mode and changes to message status will be in effect.

When the brewer is idle it will initially display "Ready to Brew". The brewer will then cycle through all

messages which have been enabled displaying each for approximately 5 seconds before scrolling off the display

while the next message scrolls on to it. After completing the display of all selected messages the process will

begin again with "Ready to Brew".

Figure 2 - Keyboard and Keyboard Port Access

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Great Canadian Systems Kaffeemaschine Handbücher

Great Canadian Systems

Great Canadian Systems IQ2000 Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

DeLonghi

DeLonghi DC300 Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Philips

Philips HL3844N Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung
