Great Stage Light GLM015 Bedienungsanleitung

90W SPOT MOVING HEAD

USER MANUAL

TABLE OF CONTENTS

1．BEFORE YOU BEGIN

WHAT IS INCLUDED

UNPACKING NSTRUCTIONS

MANUAL CONVENTIONS

ICONS

SAFETY INSTRUCTIONS

2．INSTRODUCTION

TECHNICAL SPECIFICATION

PRODUCT DIMENSIONS

PRODUCT OVERVIEW

3．SETUP

AC POWER

POWER LINKING

SIGNAL LINKING（DMX）

FUSE REPLACEMENT

MOUNTING ORIENTATION RIGGING

4. OPERATING INSTRUCTIONS

CONFIGURING THE STARTING ADDRESS

CONTROL PANEL FUNCTIONS

MENU MAP

DMX CHANNEL VALUES

5. APPENDIX

DMX PRIMER

GENERAL MAINTENANCE

FIXTURE LINKING

DATA CABLING

DMX DATA CABLE

CABLE CONNECTORS

3-PIN TO 5-PIN CONVERSION CHART

SETTING UP A DMX SERIAL DATA LINK

SETTING THE STARTING ADDRESS

GENERAL TROUBLESHOOTING

1. BEFORE YOU BEGIN

What is included

1 x Spot

1 x Mounting bracket and screws

1 x Power cable

1 x User Manual

Unpacking Instructions

Immediately upon receiving a fixture, carefully unpack the carton, check the

contents to ensure that all parts are present, and have been received in good

condition. Notify the shipper immediately and retain packing material for

inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the

event that a fixture must be returned to the factory, it is important that the

fixture be returned in the original factory box and packing.

Manual Conventions

manuals use the following conventions to differentiate certain types of

information from the regular text.

Icons

This manual uses the following icons to indicate information that requires

special attention on the part of the user.

CONVENTION

MEANING

[10]

A LCD display to be configured

<Menu>

A key to be pressed on the fixture’s control panel

1~512

A range of values

50/60

A set of values of which only one can be chosen

Settings

A menu option not to be modified (for example,

showing the operating mode/current status)

MENU >Settings

A sequence of menu options to be followed

A value to be entered or selected

Safety Instructions

● Please keep this User Manual for future consultation. If you sell the unit

to another user, be sure that they also receive this instruction booklet.

● Always make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the

decal or rear panel of the fixture.

● This product is intended for indoor use only! To prevent risk of fire or

shock, do not expose fixture to rain or moisture.

● Make sure there are no flammable materials close to the unit while

operating.

● The unit must be installed in a location with adequate ventilation, at least

20 in (50 cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

● Always disconnect from power source before servicing or replacing fuse

and be sure to replace with same fuse source.

● Secure fixture to fastening device using a safety chain.

● Maximum ambient temperature (Ta) is 104° F (40° C). Do not operate

fixture at temperatures higher than this.

● In the event of a serious operating problem, stop using the unit

immediately.

Never try to repair the unit by yourself. Repairs carried out by unskilled

people can lead to damage or malfunction. Please contact the nearest

ICONS

MEANING

This paragraph contains critical installation, configuration or

operation information. Failure to comply with this

information may render the fixture partially or completely

inoperative, cause damage to the fixture or cause harm to

the user.

This paragraph contains important installation or

configuration information. Failure to comply with this

information may prevent the fixture from functioning

correctly.

This paragraph reminds you of useful, although not critical,

information

authorized technical assistance center.

● Never connect the device to a dimmer pack.

● Make sure the power cord is never crimped or damaged.

● Never disconnect the power cord by pulling or tugging on the cord.

● Never carry the fixture directly from the cord. Always use the

hanging/mounting bracket.

● Avoid direct eye exposure to the light source while it is on.

● Never carry the fixture by holding the head. Always use the carrying

handle.

2. INTRODUCTION

Technical Specification

1) Voltage: 100-240V,50-60Hz

2) Power consumption: 110W

3) LED: ultra bright 90W LED

4) LED color wheel: Basic 7 colors+ white, can adjust speed rainbow effect

5) Fixed gobo: 8 gobos+ white, Gobo rotating CW and CCW from slow to

fast), gobo shaking

6) Rotation gobo: 6 gobos + white, can bidirectional speed change

rotation, gobo shaking

7) Dimmer/Strobe: Dimmer, 1-20t/s

8) Focus: Electronic Focus

9) Pan::540° Tilt: 270

10) Control: DMX 512, 14/16 /11CHs

11) Working mode: Stand-alone mode, Controller mode, Master/Slave

synchronization mode

12) Other function: Pan/Tilt speed adjustable

Housing: High temperature resistant engineering plastic + aluminum

alloy.

13) Weight: 6.5KG

14) Product Size: 240*240*370mm

15) Packing Size: 350*340*375mm

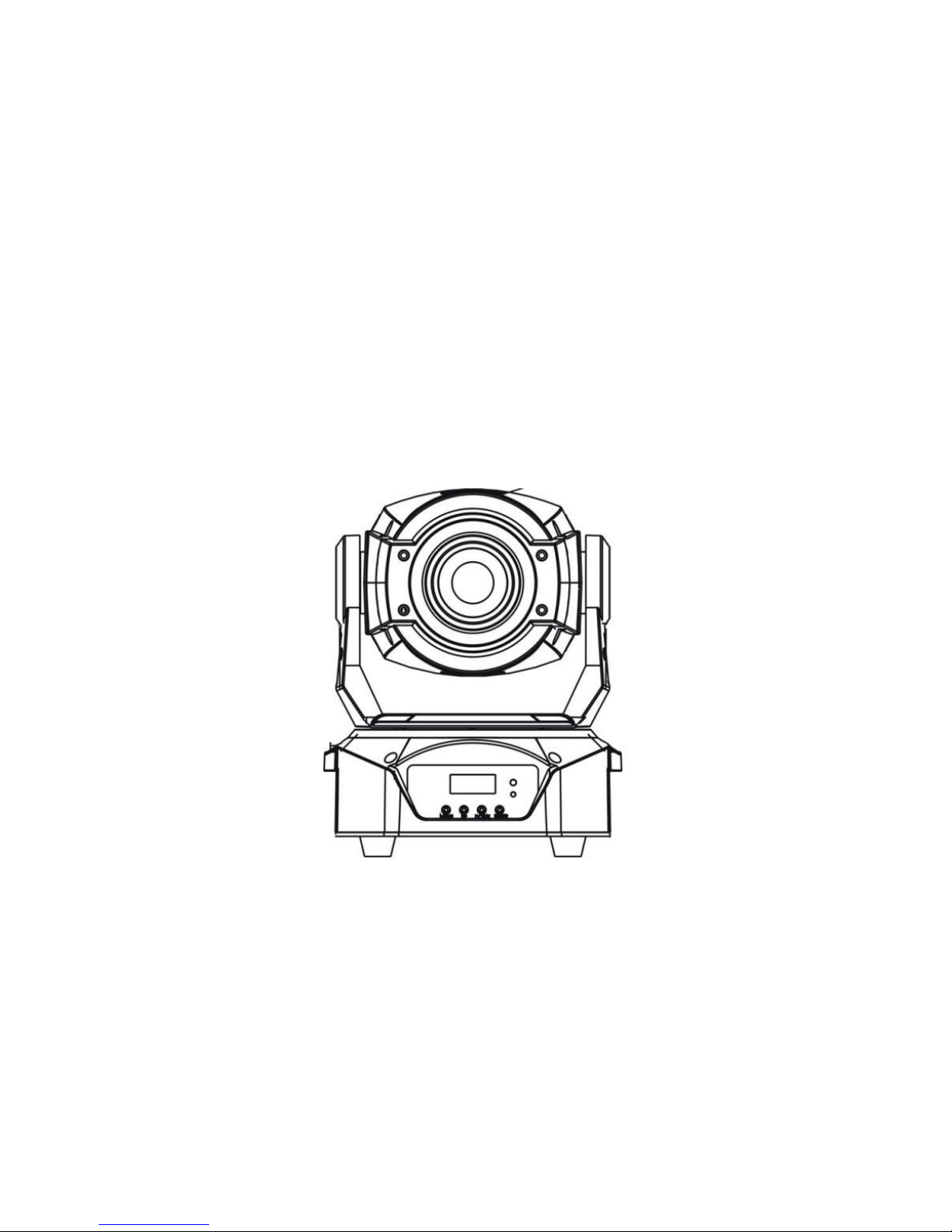

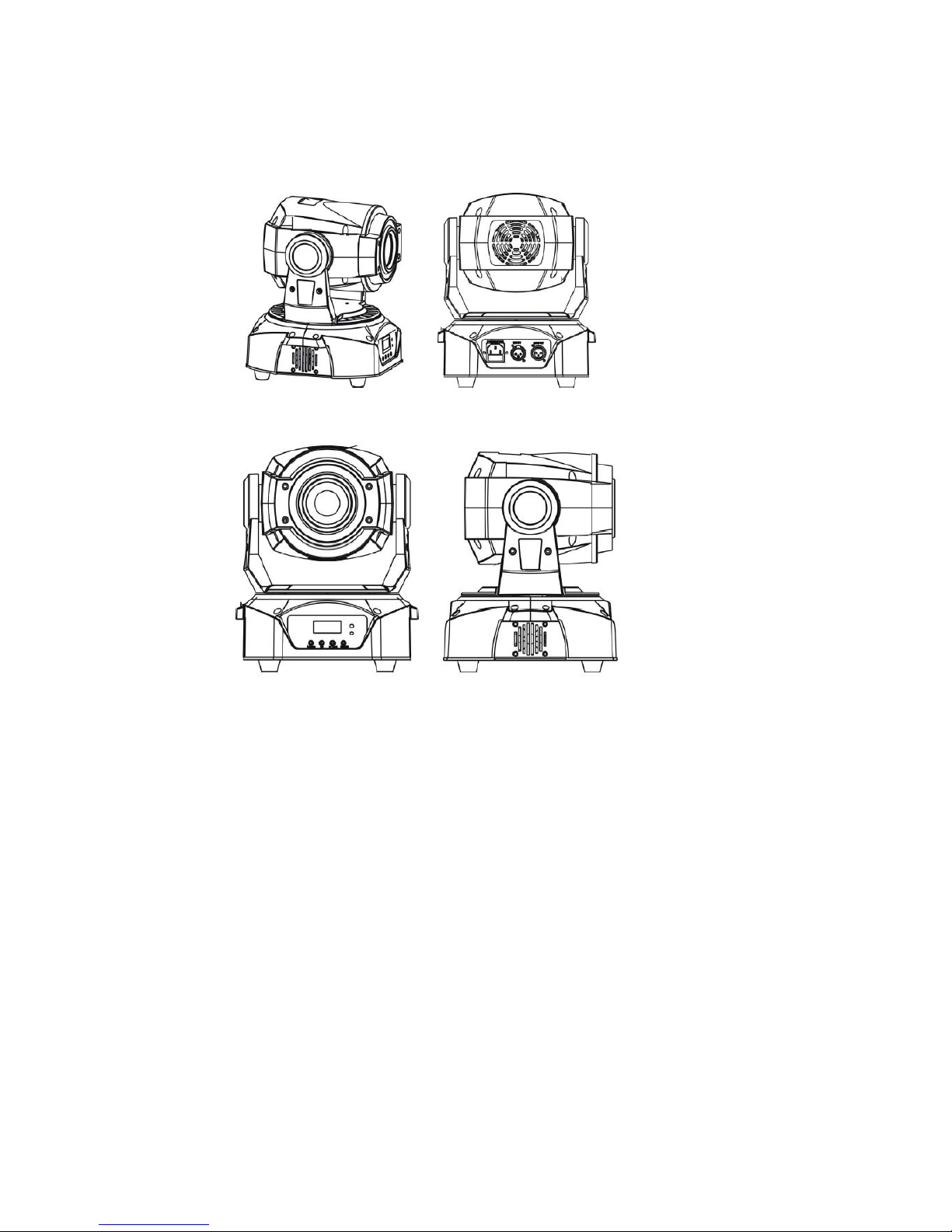

Product Dimensions

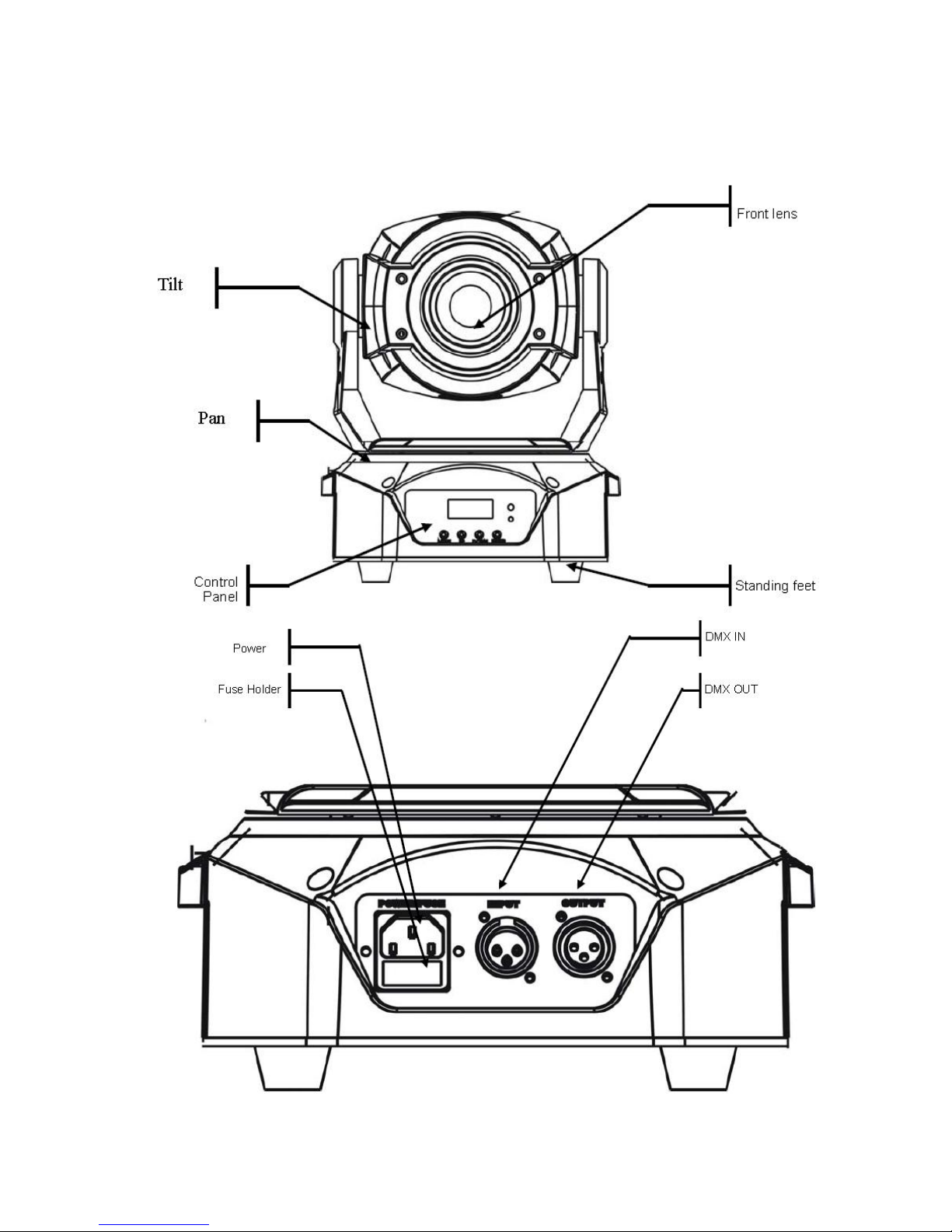

Product Overview

3. SET UP

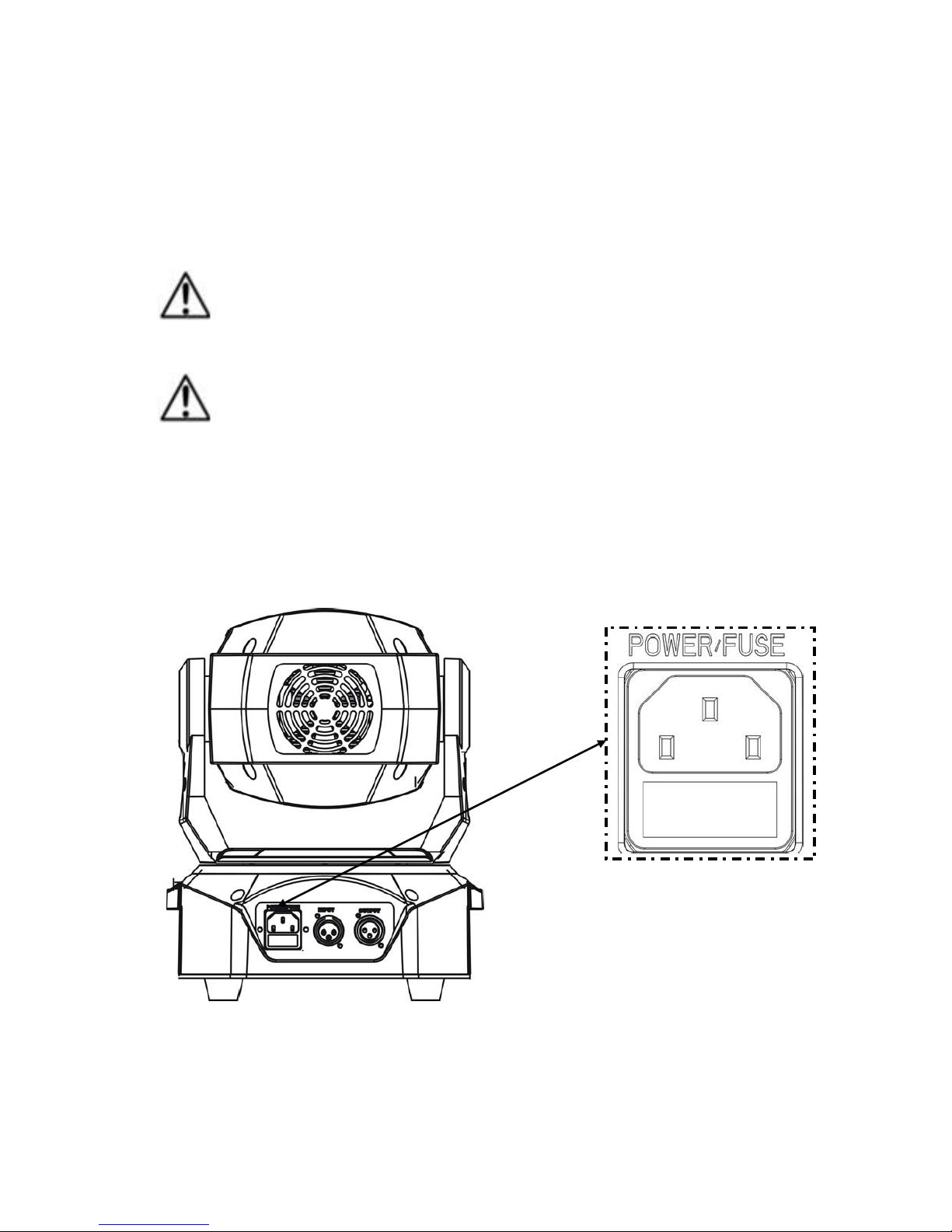

AC Power

This fixture runs on 100-240VAC, 50/60 Hz. This fixture used switch power

supply, it can transform by itself when user input power.

Always connect the fixture to a switched circuit. Never connect

the fixture to a rheostat (variable resistor) or dimmer circuit, even if the

rheostat or dimmer channel is used only as a 0 to 100% switch.

Always connect the fixture to a circuit with a suitable electrical

ground.

The maximum quantity of fixtures that may be linked is 4.

Power Linking

This fixture contains power linking via the outlet located in front of the power

input cable. Please see the diagram below for further explanation.

Signal Linking (DMX)

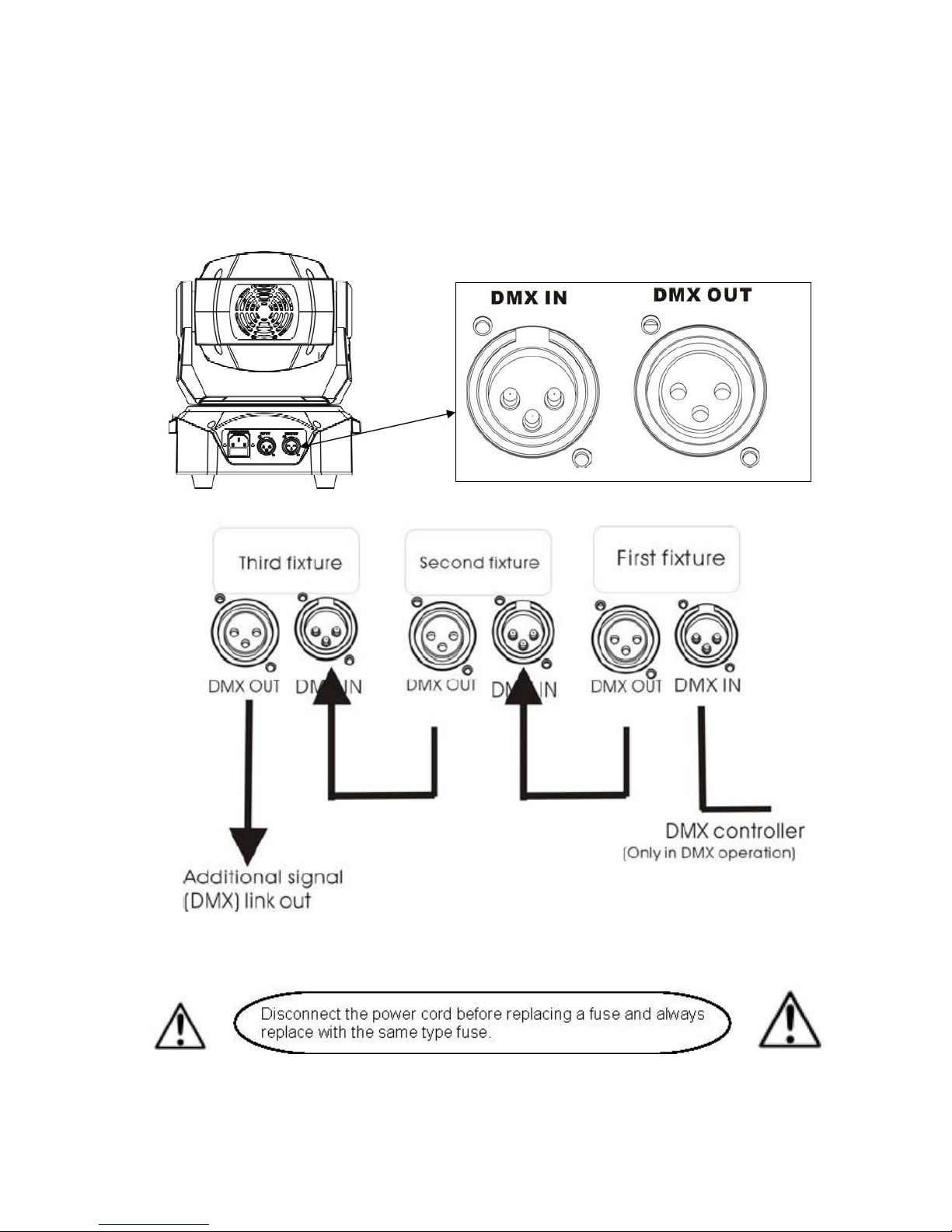

The diagrams below illustrate the signal (DMX) linking for this fixture. This is

used both in DMX mode and when operating the fixtures in Master/Slave

mode. Please see the diagram below for further explanation.

Fuse Replacement

With a flat head screwdriver unscrew the fuse holder out of its housing,

turning counter-clockwise. Remove the damaged fuse from its holder and

replace with exact same type fuse. Insert the fuse holder back in its place and

reconnect power.

Mounting

Orientation

The Spot may be mounted in any safe position provided there is adequate

room for ventilation.

Rigging

Be sure that the structure can support 10 times the weight of the fixture.

Please see the “Technical Specifications” section of this manual for a detailed

weight listing. Mount the fixture securely. Two hanging clamps for truss

mounting may be used, or nuts and bolts for permanent installation may be

used. The holes in each bracket are 13 mm in size. When rigging, consider

routine maintenance and control panel access. Please see the following steps

for installation.

●If the power link out is intended to be used with multiple fixture, take into

account the length of each power cable, and mount the fixtures close

enough to one another to accommodate for this.

●Attach both included bolts in the locations indicated below, using a metric

8 mm Allen wrench.

●Attached 2 hanging clamps to the bracket in each of the two locations

indicated below

●Safety cables must always be used.
