Green Panther GP-3TFF Bedienungsanleitung
Note: Please read the following instructions before use. This book contains important information on SAFETY, ASSEMBLY, OPERATION
& DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
GP-3TFF
Mini Mist Fogger
Professional Fogger
USER MANUAL
2
1. SAFETY PRECAUTIONS
1) Always wear protective clothing when using the machine. (mask, gloves, long sleeves and
etc.)
2) Do not use this machine in enclosed room or the places where foods or inflammables exist.
3) Do not spray directly to people or animals.
4) Do not use this machine in strong wind weather.
5) Be careful of burning accident by the shield of the burner.
6) Wait until the machine cools down before refill of chemicals or diesel/water or change of
butane gas.
7) After work, wait until the machine cools down completely and then store it in a dry, cool place
out of reach of children.
Warning signs
Read the manual Use a mask
Wear protective clothing Use gloves
Wash after work Caution! Risk of burning
Safety warnings Caution! Risk of fire
3
ATTENTIONS
1) This product has separated chemical tank and water/diesel tank. Do not put other materials
into water tank except water, diesel and dispersing agent.
Agricultural chemicals, pesticides and disinfectants should be put into the chemical tank.
The coil would be clogged if chemicals are mixed in the water tank according to the usual
method.
2) When mixing the chemical in the chemical tank, please read the instructions about the mixing
ratio of the chemical on the chemical container. Overuse of chemicals may cause dizziness,
headache and vomiting.
3) Chemicals must be in liquid form.
(Powder or solid chemicals are not allowed to use)
4) After work, continue to push the pump handle at least 5 times to spray out the undiluted
chemical before disassemble the water tank.
5) Please be sure of ventilation when working in confined spaces.
6) Inhalation of combusted gas from the combustion section might cause dizziness, headache
and vomiting, so please keep away from the combustion section in the protection shield
during work.
7) Excess concentration of chemicals might kill plants. Proper mixture proportion must be
complied with.
8) Spray to plant or object away from about 1.5 meters.
4

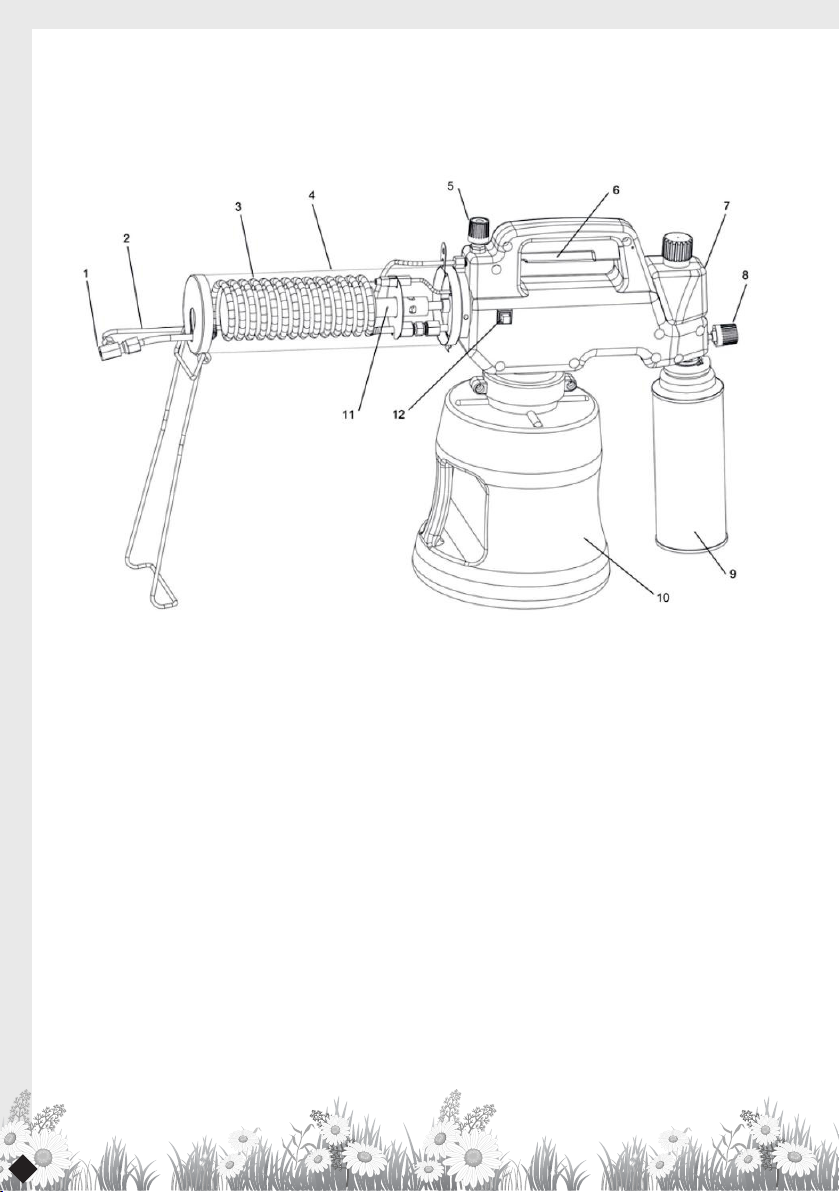

3. PART NAMES
1.
Nozzle
2. Chemical pipe
3. Coil
4. Protection shield
5. Chemical control knob
6.
Pump handle
7. Chemical tank
8. Gas control knob
9. Gas container
10. Water tank
11. Burner
12. Ignition switch
5
4. OPERATION DIRECTIONS
WATER TANK
1) Put diesel or water or water +
dispersing agent into water tank.
Put diesel for fogging, and put water or
water + dispersing agent for misting.
2) Except diesel, water and dispersing
agent, do not put other liquids into
water tank.
Other liquids like chemicals should be
put into the chemical tank. Chemical
tank is installed in the upper case of
the machine.
3) Suggested working ways.
Outdoor Fog - water tank (diesel)
- chemical tank (diesel + chemicals)
Indoor: Mist - water tank (water)
- chemical tank (water + chemicals)
Semi-fog - water tank (water +
dispersing agent)
chemical tank (water + dispersing
agent + chemicals)
CHEMICAL TANK
1) Make sure the chemical control valve is
closed.
2) Put the mixture of chemicals and diesel
(water) into the chemical tank. Please
keep in mind that the mixing ratio of
each chemical must comply with the
instruction stated on the chemical
container.
3) Check the liquid volume according to the
marks on the chemical tank. Maximum
6
capacity of chemical tank is 350ml.
Please do not overfill.
4) Close the lid of the chemical tank.
* Overuse of chemicals may cause
dizziness, headache, nausea and
vomiting.
* Do not put water into the
chemical tank if there is an
object which is apt to rust in
work place. Recommendation:
water tank - water chemical tank
- diesel + chemicals.
IGNITION
1) Make sure the gas control valve is
closed initially.
2) Assemble the butane gas container.
3) Put the machine on an even place
where without inflammables.
4) Open the gas control valve by turning
the knob counterclockwise to supply
gas. Push the ignition switch to start
the machine.
* Wind may cause malfunction
of ignition, so try to ignite in a
place of no wind.
* In case, the machine could not
be activated after pushing of 5 or
6 times, turn off the gas control
valve and wait about 20 seconds
and then repeat the above
procedures.
5) After ignition, let the machine preheat
10 seconds for misting, or preheat
40~60 seconds for fogging.
7
SPRAYING APPLICATION
1) After preheating, open the chemical
control valve by turning the knob
counterclockwise, repeat pushing and
releasing the pump handle to start
spray (misting or fogging).
Spray to the plant or object away from
about 1-2 meters.
* When used as misting, open the
gas valve more if the particle
size is large, or close it a little if
the particle size is small.
* When used as fogging, it is
difficult to check the discharged
particles with eyes, so please
check the level of liquid in the
chemical tank.
2) The discharge volume of chemical can
be controlled by turning the chemical
control knob.
3) The frequency of pumping action is 1
time in every 3-4 seconds.
If fire is sprayed out, stop pumping
immediately and close the gas valve.
Put the machine on an even place and
wait the fire stops.
* for your safety, be care
of keeping away from the
discharged fog or mist. Do not
spray against the wind.
* keep a distance from the shield
of the burner to avoid burning
your skin or clothes.
* After ignition of the machine,
do not leave it aside without
operation.
* If need refill of chemical or
water/diesel, stop the machine
and wait until it cools down.
8
STOP WORK
1) Stop pumping of the handle. After the
spray stopped completely, turn off the
gas control valve (clockwise) .
2) Turn off the chemical control valve
(clockwise) completely.
3) Repeat pushing the pump handle at
least 5 times to spray out the undiluted
chemical while the coil cools down.
4) Remove the gas container from the
machine and put it in a cool place with
ventilation.
* For long term storage, wash the
water tank and chemical tank
and put clean diesel into both
tanks and assemble the machine
well. Then store it in a dry and
cool location with ventilation
and out of reach of children.
SHOULDER STRAP
Attach and use the shoulder strap to carry
the machine during work if needed.
9
Name Mini Mist Fogger
Model GP 3TFF
Dimension (L x W x H) 630x190x365mm
Net weight 2.0Kg
Fuel Liquid butane gas
Fuel consumption 1EA / 30min
Starting method Press the ignition switch
Ignition system Piezoelectric ceramic ignitor
Water tank
(Capacity 2.0L)
Fog Diesel
Mist Water
Semi fog Water + dispersing agent
Chemical tank
(Capacity 350cc)
Fog Diesel + chemical
Mist Water + chemical
Semi fog Water + dispersing agent +
chemical
Water/Diesel output 2 Liter / hr
Chemical output 1~1.5 Liter / hr
5.SPECIFICATION
10
6. ADVANTAGES OF THIS NEW TYPE FOGGING MACHINE
1) This machine has separated spray coil and chemical pipe. There is no carbonization of
chemicals and so it does not have problem of clogging in the coil.
2) It is not necessary to keep the water tank and equipment separately to prevent corrosion
of the pump, because it has separated chemical tank and water tank.
3) Chemical utilization is maximized because the chemical goes to the discharge nozzle
directly without vaporizing by heat.
4) The machine has versatile uses. Since there is no chemical change by heating, it can
spray more kinds of chemicals and as well as water.
5) The user can secure good sight of the misting by water and is safe.
