1. Your GreenIQ Smart Garden Hub
Thank you for purchasing the GreenIQ
Smart Garden Hub. GreenIQ allows
you to easily control your garden's
irrigation and lighting, and save money
on your water and electricity bills. Your
GreenIQ:
Automatically adjusts irrigation
scheduling based on current and
forecasted weather.
Controls your landscape lighting
based on sunrise and sunset
schedule.
Connects to the Internet wirelessly
or via an Ethernet cable.
Connects to weather, soil moisture,
fertilizer-content and flow sensors.
2. GreenIQ’s Mobile Apps
Please use one of the following mobile
apps to setup and control your Hub:
iOS: http://apple.co/1s9clEw
Android: http://bit.ly/1VhOvSs
Web: https://greeniq.net
EN
You can download GreenIQ’s mobile
app by scanning one of the following
QR codes:
iOS
Android
Web app
EN
3. Setting up your GreenIQ Smart
Garden Hub
Please read the latest setup
instructions in the following link:
http://support.greeniq.co
GreenIQ Support
In this link you’ll find useful resources
for setting up your GreenIQ,
connecting to sensors, connecting to
your landscape lighting and integrating
with popular home automation
platforms such as IFTTT, Amazon
Echo and many more.
EN

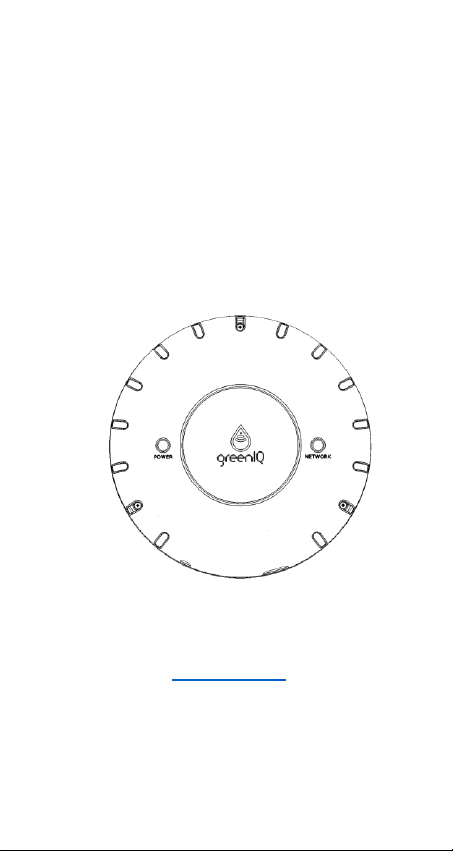

4. Your GreenIQ Smart Garden Hub
1. Cover
2. Power Indicator
3. Network Indicator
4. Cover Screws (x3)
5. Mounting Holes (x2)
6. Cable 1 Port
7. Cable 2 Port
8. Ethernet Port (RJ-45)
9. Power Adapter Port
EN
5. Installation Instructions
Warnings
Incorrect installation might damage
the device, and even cause serious
injuries or death from electrical
shock.
Do not plug or apply power to the
unit until you have compiled and
checked all wiring connections.
Before connecting or disconnecting
wires to the unit, disconnect the unit
from main supply by carefully
pulling the power adapter from the
mains inlet.
When completing installation, make
sure that there are no exposed wire
ends.
Never use Ethernet cable for
outdoor installations.
Make sure not to swap Cable-1 and
Cable-2. Swapping cables might
cause permanent damage to your
Smart Garden Hub.
Always use the provided GreenIQ
power adapter.
Never open the device’s enclosure.
Do not attempt to link two or more
units using a single power adapter.
EN
To prevent damage to the unit,
connect only one valve to each
open zone wire.
Always use water-tight connectors
for all wires splice connections.
Selecting a Location
The unit’s location should meet the
following criteria:
1. The unit’s operating temperature
range is 0°C to 40°C (32°F to
104°F). Please avoid exposing the
unit to direct sunlight or other heat
sources.
2. If you plan to use the unit in Wi-Fi
or 3G Mode, you have to make
sure that there is a good wireless
signal reception at the unit’s
location.
3. Make sure that all the connections
are available at the unit’s location:
electrical outlet, irrigation valve
wires, and Ethernet cable with
Internet connection (for Wired-
Mode only).
4. The electrical outlet shall be
located near the GreenIQ Hub and
shall be easily accessible.
EN
Mounting
1. Make sure that the unit’s cover is
not in place.
2. Place the unit against the wall, and
mark the location of the mounting
holes on the wall. You may use the
supplied GreenIQ ruler to mark the
holes’location on the wall.
3. Use the two screws and the two
plastic anchors from the mounting
kit to mount the unit to the wall.
4. Connect the power jack to the
unit’s Power Adapter Port.
5. If you are using Ethernet Cable to
connect to the Internet, you need
to break the Ethernet Port sealing
tab on the unit’s cover, and plug
the Ethernet Cable to the unit’s
Ethernet Port. After breaking the
Ethernet Port sealing tab, the unit
will stop being water resistant.
6. Place the cover on the unit. Use
the GreenIQ Screwdriver and the
three cover screws from the
mounting kit to tighten the cover to
the unit. The cover is an essential
part of the unit’s water resistance.
EN
Connecting the unit to the irrigation
valves
There are several types of irrigation
valves in the market. The GreenIQ
Smart Garden Hub supports only
24VAC valves.
Warning: Never shortcut a GreenIQ
wire with other GreenIQ wire.
Tip:Before replacing your old irrigation
controller, you can use the supplied
sticker kit to mark the existing wires.
Wiring example
