GreenWorks PA891K Bedienungsanleitung

BSG301

FR MANUEL DE L’UTILISATEUR

PULVÉRISATEUR EN SAC À DOS

EN OPERATOR MANUAL

BACKPACK SPRAYER

ES MANUAL DEL OPERADOR

ROCIADOR TIPO MOCHILA

P0803844-01,Rev B

PA891

PA891K

1 Description.........................................4

1.1 Purpose.............................................................. 4

1.2 Product overview...............................................4

1.3 Packing list........................................................ 4

2 General backpack sprayer

safety warnings..................................4

3 Symbols on the product.................... 5

4 Risk levels...........................................5

5 Recycle................................................6

6 Proposition 65....................................6

7 Installation......................................... 6

7.1 Unpack the machine.......................................... 6

7.2 Install the spray gun...........................................6

7.3 Install the tank lid.............................................. 7

7.4 Install the battery pack.......................................7

7.5 Remove the battery pack................................... 7

7.6 Adjust the harness..............................................7

8 Operation........................................... 8

8.1 Use the spray gun.............................................. 8

8.2 Lock the spray gun trigger.................................9

8.3 Unlock the spray gun trigger............................. 9

8.4 Change the spray tip.......................................... 9

8.5 Spray tip type...................................................10

8.6 Add solution.................................................... 10

8.7 Start and stop the machine...............................10

8.8 Pump-free spraying..........................................10

9 Maintenance ....................................10

10 Troubleshooting............................... 11

11 Technical data.................................. 11

12 Limited warranty............................ 11

13 Exploded view..................................12

English EN

1 DESCRIPTION

1.1 PURPOSE

The machine is used to spray your yard for invasive plants

and pests. By taking on this task yourself, you have control

over the herbicides and pesticides that you use in your yard

and around your house

For residential use only, not for professional use, and for

operation at temperature above 32°F (0°C).

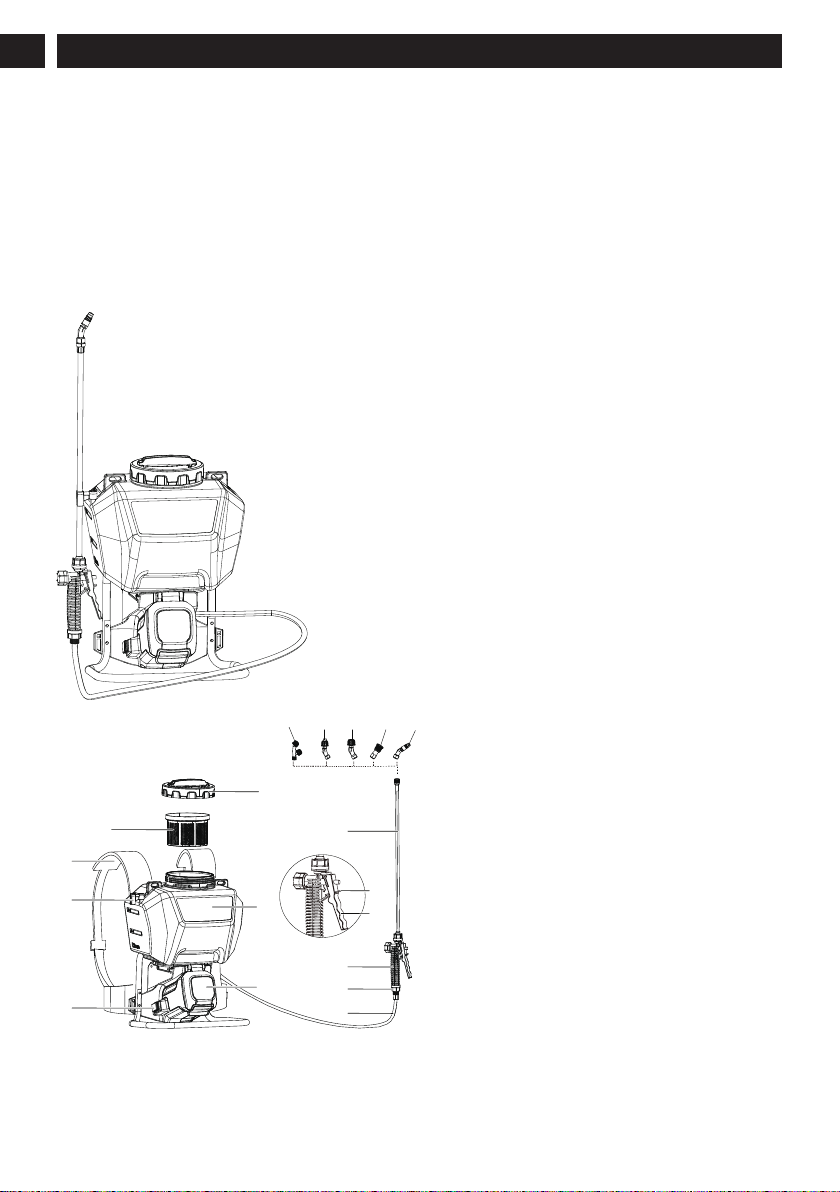

1.2 PRODUCT OVERVIEW

8a 8b 8c 8d 8e

1Tank Lid

2Tank

3Battery Door

4On/Off Power Switch

5Wand Storage

6Backpack

7Strainer

8a Double Head Spray

Tip

8b Fan Spray Tip

8c Single Head Spray

Tip

8d Four Hole Spray Tip

8e Adjustable Spray Tip

9Gun Wand

10 Lock-out Lever

11 Trigger

12 Trigger Handle

13 Water Inlet

14 Hose

1.3 PACKING LIST

• Sprayer

• Spray tips

• Spray gun wand

• Backpack harness

2 GENERAL BACKPACK

SPRAYER SAFETY WARNINGS

• Read all the instructions before using the product.

• To reduce the risk of injury, close supervision is

necessary when a product is used near children.

• Know how to stop the product and bleed pressure quickly.

Be thoroughly familiar with the controls.

• Stay alert – watch what you are doing.

• Do not operate the product when fatigued or under the

influence of alcohol or drugs.

• Keep operating area clear of all persons.

• Do not overreach or stand on unstable support. Keep

good footing and balance at all times.

• Follow the maintenance instructions specified in the

manual.

• Risk of Injection or Injury– DO NOT DIRECT

DISCHARGE STREAM AT PERSONS.

• Do not come in contact or interfere with moving parts, or

liquids being sprayed from wand.

• Only use attachments recommended or sold by the

manufacturer.

• To reduce the risk of electrical shock, do not put in water

or other liquid.

• Do not place or store backpack sprayer where it can fall

or be pulled into a tub or sink. Do not submerge in water

or other liquids.

• Replace damaged or worn parts with replacement parts

listed on "Replacements list".

•

• Read all safety warnings and instructions. Failure to

follow the warnings and instructions may result in electric

shock, fire and/or serious injury.

• Prevent unintentional starting. Ensure the switch is in the

off-position before connecting to battery pack, picking up

or carrying the appliance. Carrying the appliance with

your finger on the switch or energizing appliance that

have the switch on invites accidents. Remove your finger

English

from the on/off switch before carrying or moving the

backpack sprayer.

• Disconnect the battery pack from the appliance before

making any adjustments, changing accessories, or storing

appliance. Such preventive safety measures reduce the

risk of starting the appliance accidentally.

• For use only with BAG701/BAG702/BAG708/BAG709/

BAG710/BAG711/BAG714/BAG715/29842/2902702

battery and other BAG series.

• For use only with 29972/2903102/CAG801/CAG817/

CAG812 charger and other CAG series.

• When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws

or other small metal objects, that can make a connection

from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

• Do not use a battery pack or appliance that is damaged or

modified. Damaged or modified batteries may exhibit

unpredictable behavior resulting in fire, explosion or risk

of injury.

• Do not expose a battery pack or appliance to fire or

excessive temperature. Exposure to fire or temperature

above 265°F may cause explosion.

• Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range

specified in the instructions. Charging improperly or at

temperatures outside of the specified range may damage

the battery and increase the risk of fire.

• Have servicing performed by a qualified repair person

using only identical replacement parts .This will ensure

that the safety of the product is maintained.

• Do not modify or attempt to repair the appliance or the

battery pack (as applicable) except as indicated in the

instructions for use and care.

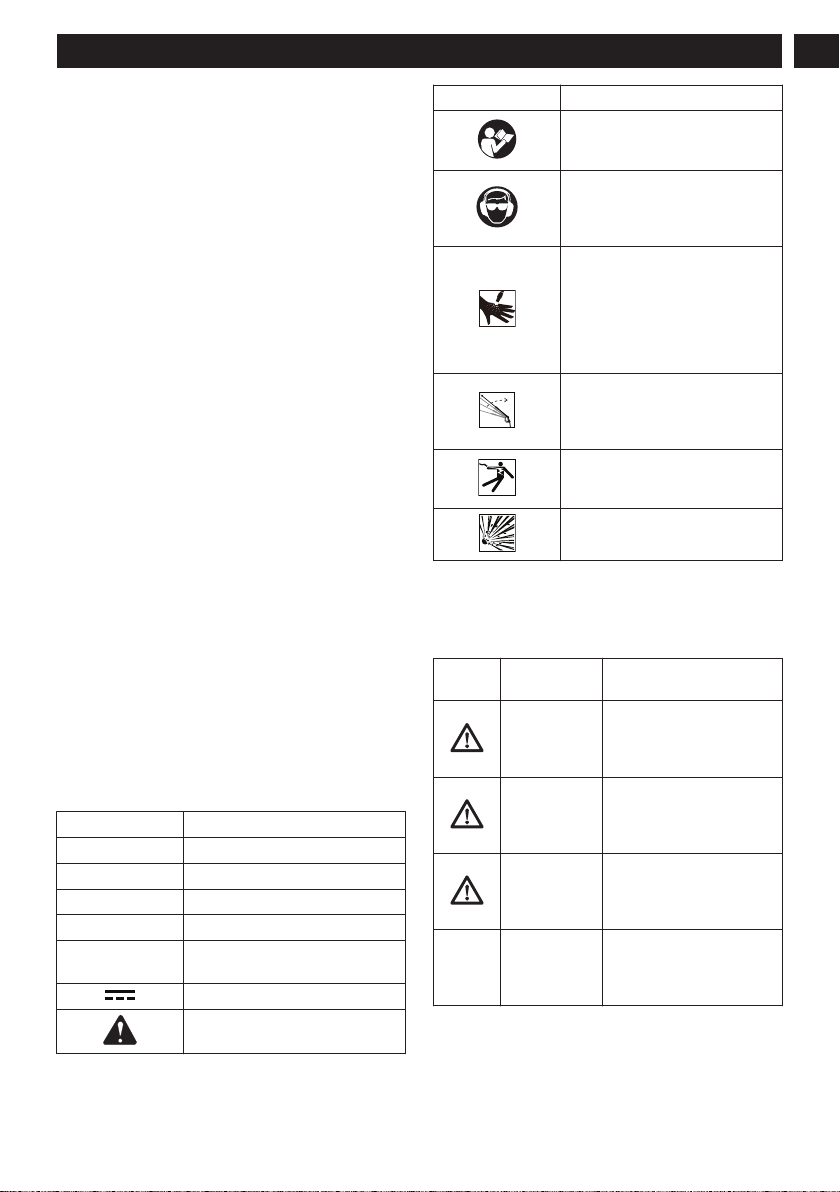

3 SYMBOLS ON THE PRODUCT

Some of the following symbols may be used on this tool.

Please study them and learn their meaning. Proper

interpretation of these symbols will allow you to operate the

tool better and safer.

Symbol Explanation

V Voltage

A Current

Hz Frequency (cycles per second)

W Power

/min Revolutions, strokes, surface speed,

orbits, etc., per minute

Type or a characteristic of current

Precautions that involve your safety.

Symbol Explanation

To reduce the risk of injury, user must

read and understand operator’s man-

ual before using this product.

Always wear safety goggles or safety

glasses with side shields and, as nec-

essary, a full face shield when operat-

ing this product.

To reduce the risk of injection or in-

jury, never direct a water stream to-

wards people or pets or place any

body part in the stream. Leak ing ho-

ses and fittings are also capable of

causing injection injury. Do not hold

hoses or fittings.

To reduce the risk of injury from

kickback, hold the spray lance se-

curely with both hands when the ma-

chine is on.

Failure to use in dry conditions and to

observe safe practices can result in

electric shock.

Fuel and its vapours are explosive

and can cause severe burns or death.

4 RISK LEVELS

The following signal words and meanings are intended to

explain the levels of risk associated with this product.

SYM-

BOL

SIGNAL MEANING

DANGER Indicates an imminently haz-

ardous situation, which, if not

avoided, will result in death

or serious injury.

WARNING Indicates a potentially hazard-

ous situation, which, if not

avoided, could result in death

or serious injury.

CAUTION Indicates a potentially hazard-

ous situation, which, if not

avoided, may result in minor

or moderate injury.

CAUTION (Without Safety Alert Sym-

bol) Indicates a situation that

may result in property dam-

age.

English EN

5 RECYCLE

Separate collection. You must not discard

with usual household waste. If it is necessa-

ry to replace the machine, or if it is no more

use to you, do not discard it with household

waste.

Separate collection of used machine and

packaging let you recycle materials and use

them again. Use of the recycled materials

helps prevent environmental pollution and

decreases the requirements for raw materi-

als.

At the end of their useful life, discard batter-

ies with a precaution for our environment.

The battery contains material that is danger-

ous to you and the environment. You must

remove and discard these materials separate-

ly at a location that accepts lithium-ion bat-

teries.

6 PROPOSITION 65

WARNING

This product contains a chemical known to the state of

California to cause cancer, birth defects or other

reproductive harm. Some dust created by power sanding,

sawing, grinding, drilling, and other construction activities

contains chemicals known to cause cancer, birth defects or

other reproductive harm. Some examples of these chemicals

are:

• Lead from lead-based paints;

• Crystalline silica from bricks and cement and other

masonry products;

• Arsenic and chromium from chemically treated lumber.

Your risk of exposure to these chemicals varies depending

on how often you do this type of work. To reduce your

exposure to these chemicals, work in a well-ventilated area,

and work with approved safety equipment, such as dust

masks that are specially designed to filter out microscopic

particles.

7 INSTALLATION

7.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine before

use.

WARNING

• If parts of the machine are damaged, do not use the

machine.

• If you do not have all the parts, do not operate the

machine.

• If parts are damaged or missing, contact the service

center.

1. Open the package.

2. Read the documentation provided in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and packing material in compliance with

local regulations.

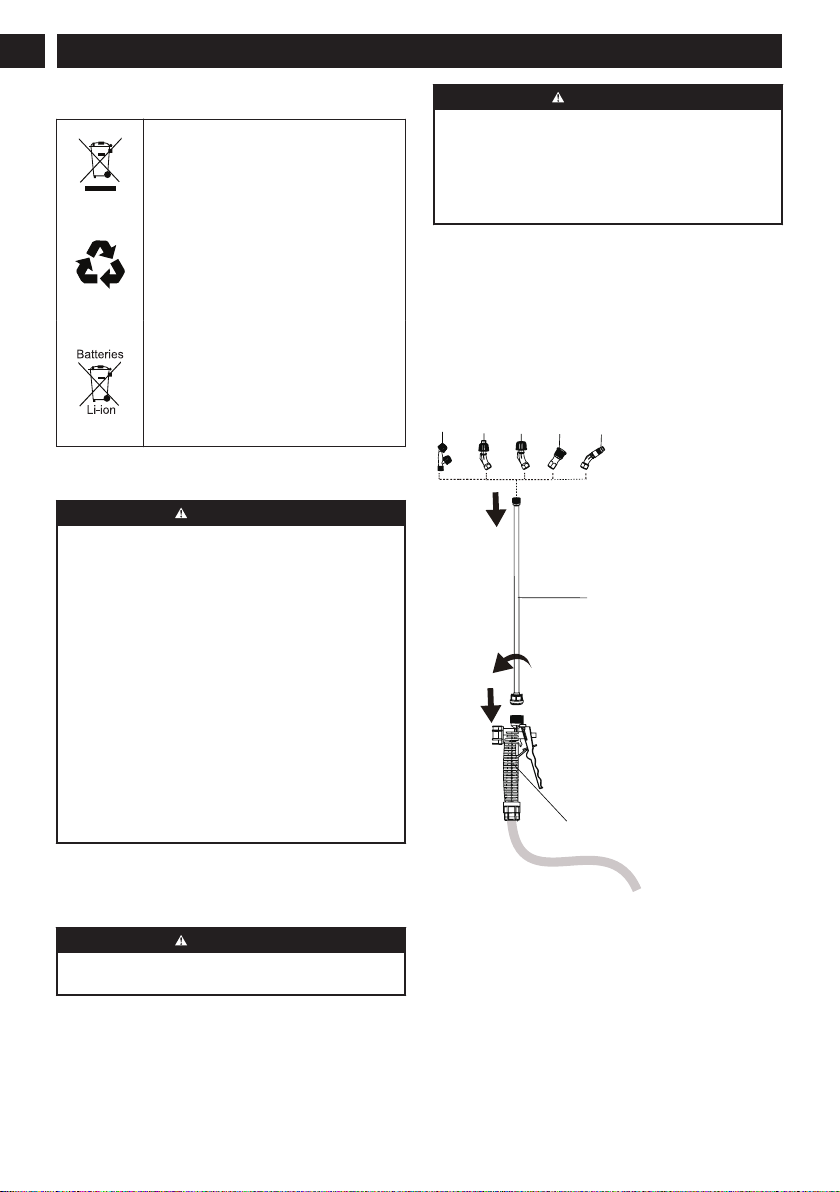

7.2 INSTALL THE SPRAY GUN

8a 8b 8c

8d 8e

1. Connect the nozzle (8a - 8b) to the wand (3), turn

clockwise until the tabs lock into place to ensure leak-free

connection.

2. Connect the wand (9) to the gun handle (12), turn

clockwise until the tabs lock into place to ensure a leak-

free connection.

English

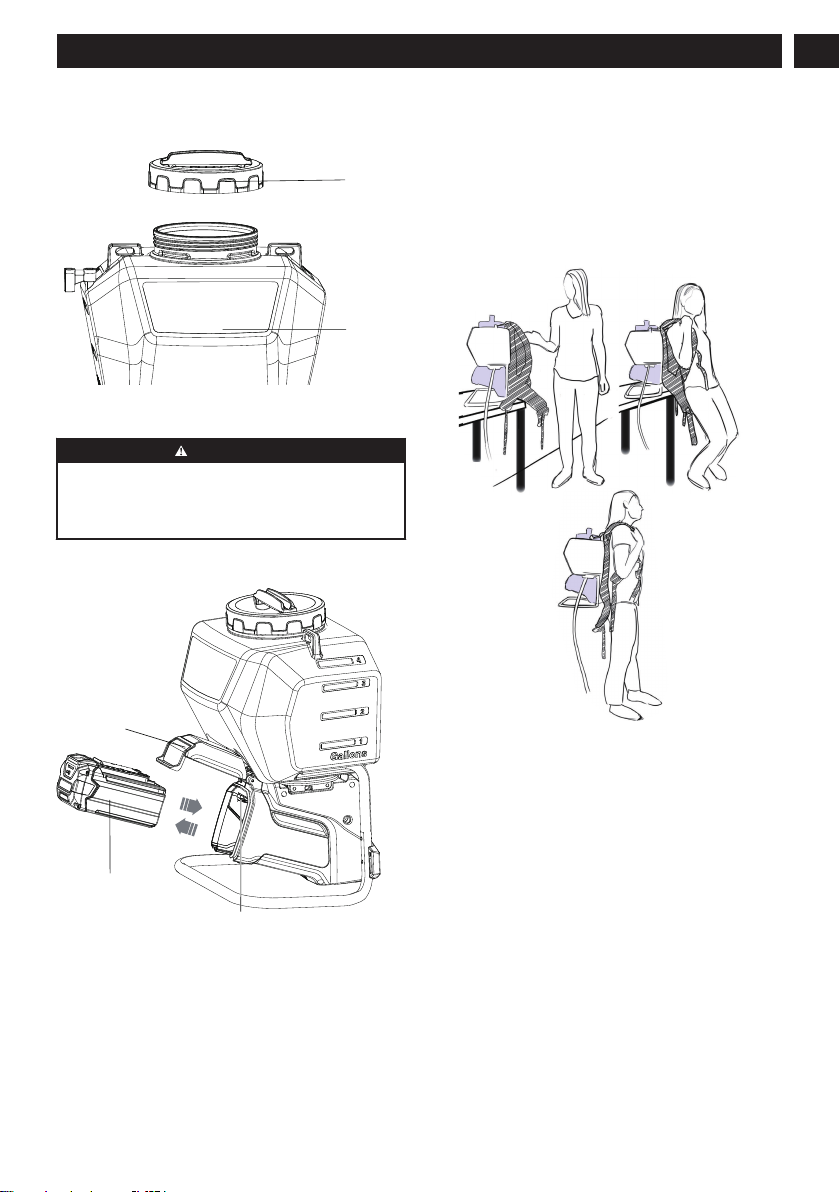

7.3 INSTALL THE TANK LID

• Connect the tank lid (1) to the tank (2) , turn clockwise

until the tabs lock into place.

WARNING

Do not move the sprayer by carrying the tank lid handle

when the tank is full with solution! Only lift the lid handle

when the tank is empty. It is recommended to wear harness

to transport the sprayer.

7.4 INSTALL THE BATTERY PACK

Battery pack

Battery

release button

1. Open the battery door (3).

2. Align the lift ribs on the battery pack with the grooves in

the battery compartment.

3. Push the battery pack into the battery compartment until

the battery pack locks into place.

4. When you hear a click, the battery pack is installed.

7.5 REMOVE THE BATTERY PACK

1. Open the battery door.

2. Push and hold the battery release button.

3. Remove the battery pack from the machine.

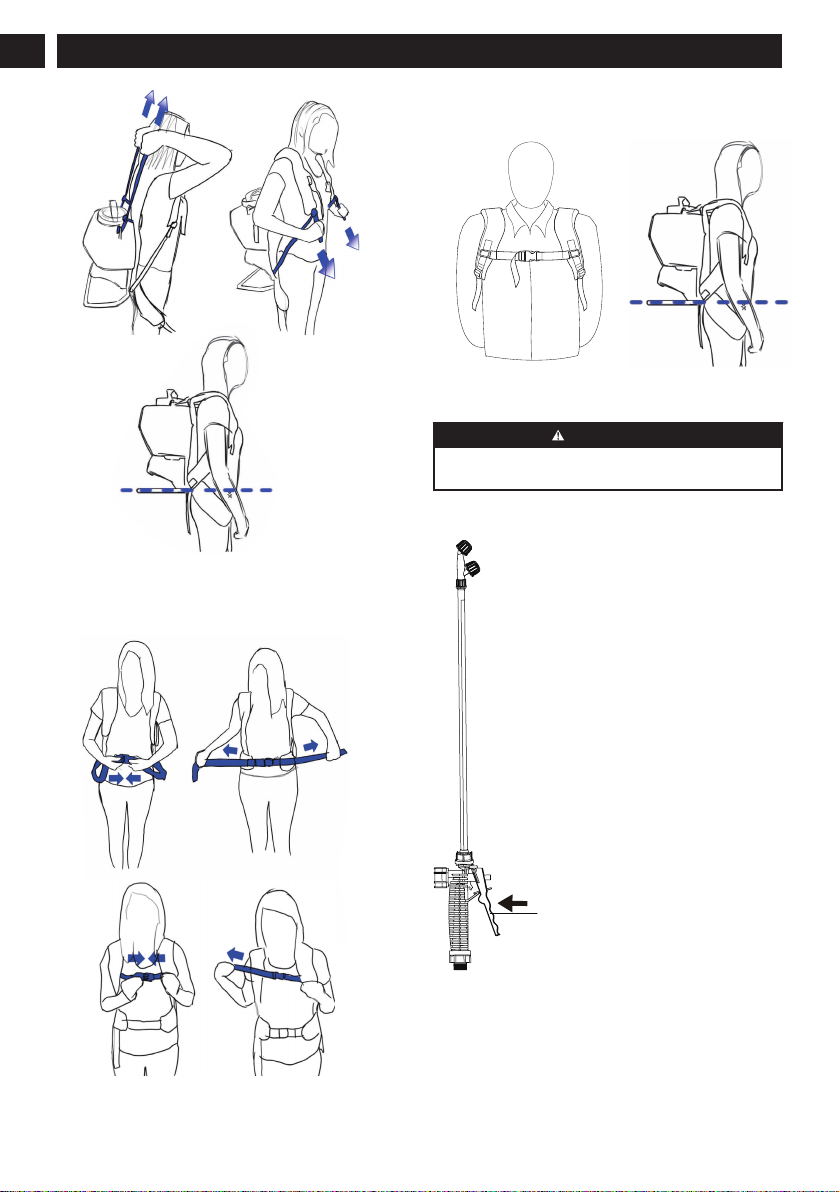

7.6 ADJUST THE HARNESS

1. Place the sprayer on an elevated surface.

2. Fit the sprayer onto your back loosely.

3. Tighten the upper straps first.

4. Then tighten the lower straps to get the weight above

your waist.

English EN

5. Tighten both sides of the waist belt until the weight of the

sprayer is on your hips.

6. Tighten the chest strap the keep the weight close to your

back.

7. Install the back pad against your back tightly and safely.

8. The sprayer should sit above your waist and the tank

should be close to the user’s back.

8 OPERATION

WARNING

Make sure that all the connections are tight and have no

leakage before operation.

8.1 USE THE SPRAY GUN

1. Pull and hold the spray gun trigger (11) to start the

machine.

2. Release the spray gun trigger (11) to stop water flow

through the spray tip.

English

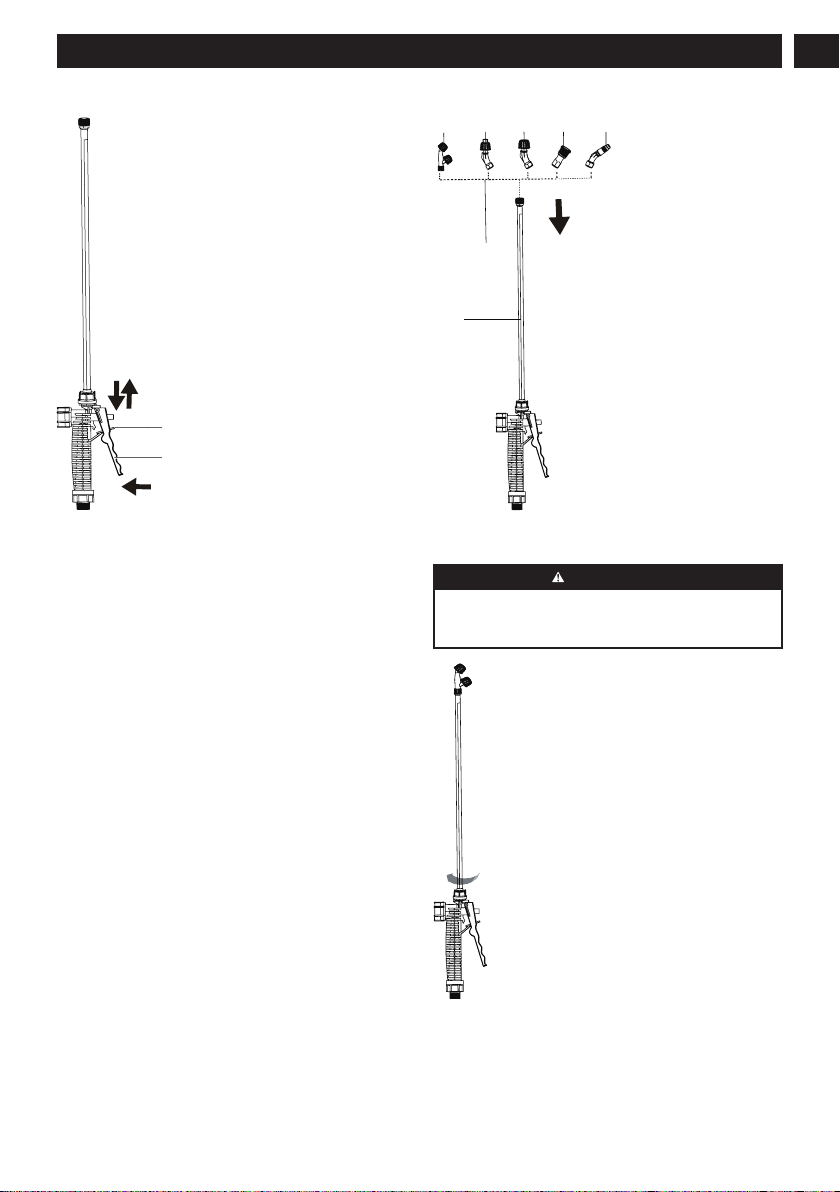

8.2 LOCK THE SPRAY GUN TRIGGER

1. Press the trigger (11) and push forward the trigger safety

lock-out (10) to lock the gun trigger.

2. Release the spray gun trigger (11) to stop water flow

through the spray tip.

8.3 UNLOCK THE SPRAY GUN

TRIGGER

1. Pull backwards on the trigger safety lock-out (10) to

unlock the gun trigger.

8.4 CHANGE THE SPRAY TIP

8a 8b

8c 8d 8e

1. Insert any of the spray tips (8a - 8e) onto the spray wand

(9).

WARNING

After changing the spray tip, if the angle of the spray tip is

not appropriate, adjust the joint between the gun wand and

the triggle handle and tighten it again.

English EN

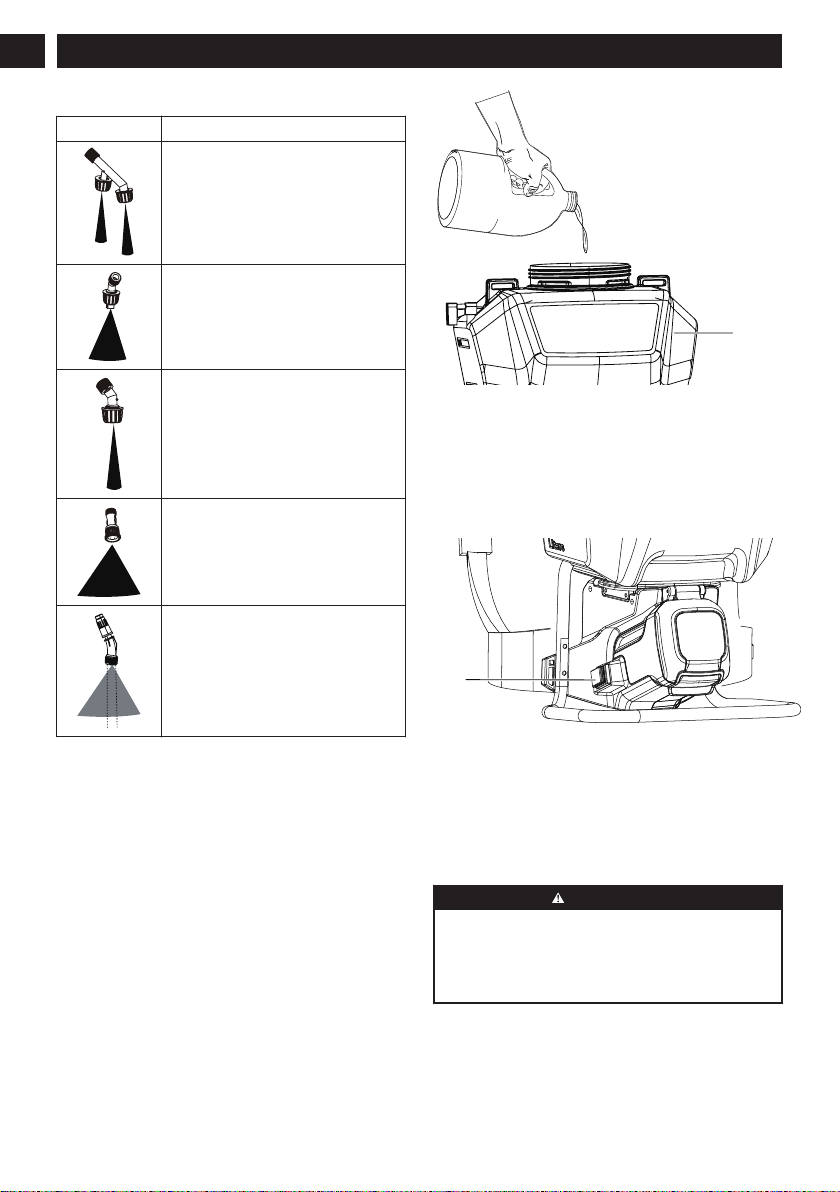

8.5 SPRAY TIP TYPE

Spray tip APPLICATION

Double head spray tip sprays water from

both tips at the same time.

Fan spray tip, also known as "fan" tip

creates the widest area of spraying.

Single head spray tip provides the highest

versatility.

Four hole spray tip covers a wide area of

spraying and strong pressure.

Adjustable spray tip allows the user to

adjust the tip to the desired spraying tech-

nique.

8.6 ADD SOLUTION

1. Open the tank lid on the tank (2).

2. Pour solution into tank (2).

3. Reattach tank lid to the tank (2).

8.7 START AND STOP THE MACHINE

To start:

• Press the switch (4) to turn the machine ON (I).

To stop:

• Press the switch (4) to turn the machine OFF (O).

8.8 PUMP-FREE SPRAYING

The battery-powered sprayer keeps fluid continously cycling

through the tank to allow pump-free spraying.

9 MAINTENANCE

WARNING

Always depressurize the sprayer, remove all chemical

solution, and clean the sprayer before making repairs.

Replacement parts may be purchased at the store where you

bought the sprayer. For a list of replacement parts refer to

<Replacement parts>.

Cleaning and maintaining the machine

After each use, clean the tank thoroughly. If spray solution

remains, properly dispose of it and drain the tank completely.

Follow recommendations from the chemical manufacturer for

English

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere GreenWorks Spritzpistole Handbücher

GreenWorks

GreenWorks BPS40B00 Bedienungsanleitung

Beliebte Spritzpistole Handbücher anderer Marken

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Bedienungsanleitung

Graco

Graco 246737 Gebrauchs- und Pflegehandbuch

Binks

Binks SV100 Bedienungsanleitung

Fimco

Fimco LG-4-3-1 Bedienungsanleitung

AG SPRAY

AG SPRAY FS-ATV-25BL Bedienungsanleitung

Nordson

Nordson MicroMax 2 Bedienungsanleitung

Bonide

Bonide 051 Bedienungsanleitung

zogics

zogics Z-DAS Bedienungsanleitung

KISANKRAFT

KISANKRAFT KK-KBS-165 Bedienungsanleitung

Matrix

Matrix SG 650 Bedienungsanleitung

Anest Iwata

Anest Iwata SGA-3 Kurzanleitung

paasche

paasche VV Datenblatt

Carlisle

Carlisle DeVilbiss JGA-510 Bedienungsanleitung

Gardena

Gardena 11120 Bedienungsanleitung

Conrad

Conrad Hobby Airbrush K3 Bedienungsanleitung

wiwa

wiwa 14025 R/F Bedienungsanleitung

Graco

Graco EM 390 Bedienungsanleitung

DeVilbiss

DeVilbiss LUNA2i Bedienungsanleitung
