GreenWorks 21182 Bedienungsanleitung

Electric Grass Trimmer

21182

Read all safety rules and instructions carefully before operating this tool.

Owner’s Manual

TOLL-FREE HELPLINE:

Model

1-888-90WORKS (888.909.6757)

GENERAL SAFETY RULES.....................................................................................3-4

SPECIFIC SAFETY RULES.........................................................................................

SYMBOLS....................................................................................................................6

ELECTRICAL INFORMATION..................................................................................7-9

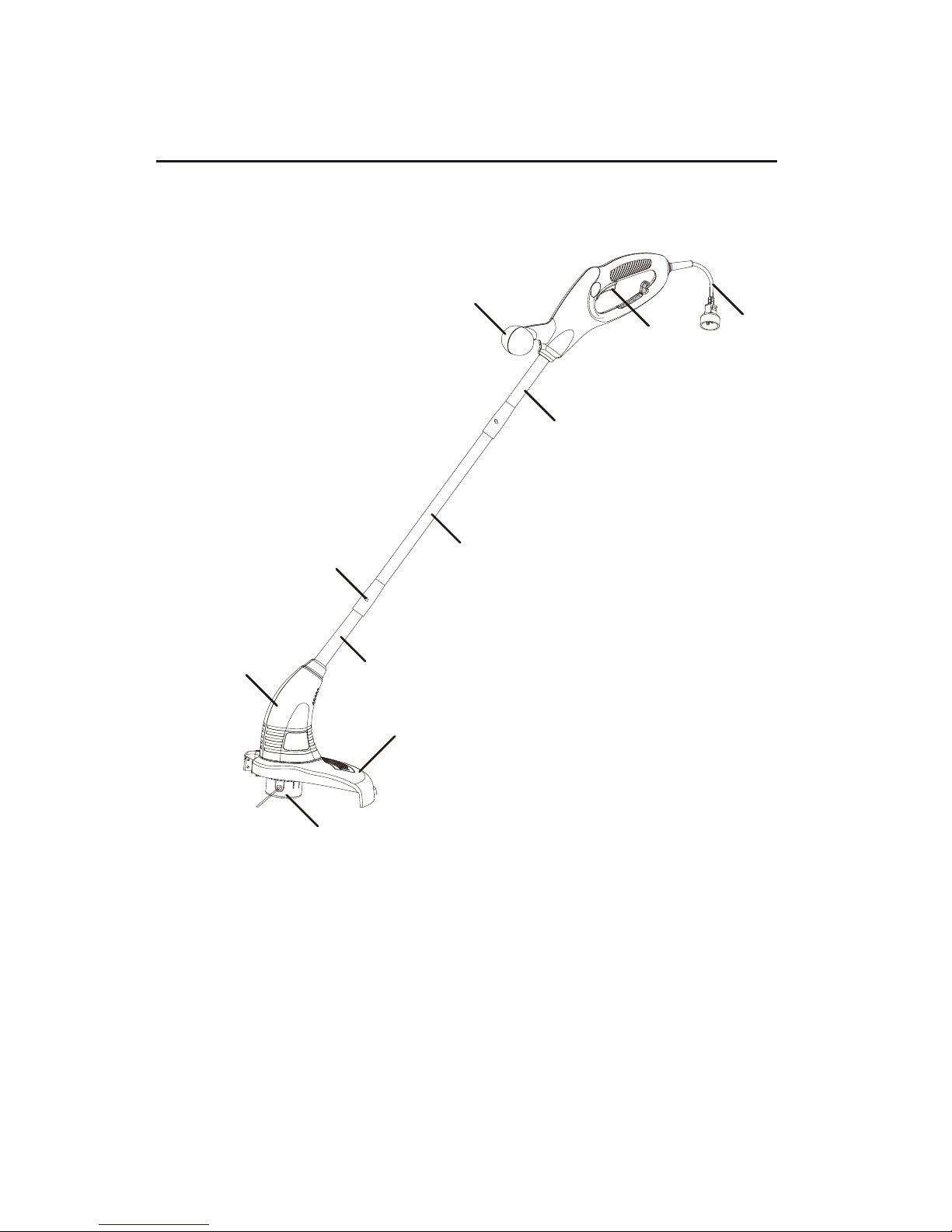

KNOW YOUR ELECTRIC GRASS TRIMMER...........................................................10

ASSEMBLY AND ADJUSTMENTS.......................................................................11-15

OPERATION.........................................................................................................16-18

MAINTENANCE..........................................................................................................19

WARRANTY...............................................................................................................20

PARTS LIST..........................................................................................................21-22

CONTENTS................................................................................................................. 2

TECHNICAL DATA...................................................................................................... 2

Contents

ELECTRIC GRASS TRIMMER

Model Number.......................................................................................................21182

Motor..........................................................................................120 V AC, 60 Hz, 2.2 A

Speed..........................................................................................................13,500 RPM

Trimmer Line..........................................1/16" (1.65 mm) diameter monofilament nylon

Power cord..................................................................9 in (22.9 cm), 2-prong polarized

Cutting circle diameter ................................................................................9" (22.8 cm)

Overall trimmer length.................................................................................45" (115 cm)

Double insulated.......................................................................................................Yes

Weight..............................................................................................3 lb 10 oz (1.64 kg)

Technical Data

WARNING

Safety is a combination of common sense, staying alert, and knowing how to use

your Electric Grass Trimmer.

1. READ and become familiar with this entire instruction manual. LEARN the tool’s

applications, limitations, and possible hazards.

2. AVOID DANGEROUS CONDITIONS. DO NOT use power tools in wet or damp

areas or expose them to rain.

3. DO NOT use power tools in the presence of flammable liquids or gases.

4. ALWAYS keep your work area clean, uncluttered, and well lit. DO NOT work on

floor surfaces that are slippery with sawdust or wax, or water.

5. KEEP BYSTANDERS A MINIMUM 50’ AWAY FROM the work area, when the

tool is operating. NEVER allow children near the tool.

6. DO NOT FORCE THE TOOL to do a job for which it was not designed.

7. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or jewellery

(rings, watches) when operating tool. They can get caught and draw you into moving

parts.

8. Wear safety glasses or goggles that are marked to comply with ANSI Z87.1 standard

when operating this unit.

9. ALWAYS remove the power cord plug from the electric outlet when making

adjustments, changing parts, cleaning or working on the tool.

10.AVOID ACCIDENTAL STARTUPS. Make sure the power switch is in the OFF

position before plugging in the power cord.

11.DO NOT abuse the power cord. Do not use it to carry the tool. Keep cord away

from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately;

they may create a shock or fire hazard.

12.NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to

OFF. Do not leave the tool until it has come to a complete stop.

13.DO NOT OVERREACH. Keep proper fo

14.To avoid overloading, use the tool as it was intended to be used.

oting and balance at all times. Wear

oil-resistant, rubber-soled footwear.

SAVE THESE SAFETY RULES

TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO NOT PLUG

IN THE ELECTRIC GRASS TRIMMER UNTIL THE FOLLOWING STEPS HAVE

BEEN READ AND UNDERSTOOD.

General Safety Rules

15.MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working

order.

16.CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, binding,

breakage, or any other conditions that may affect the tool’s operation. Any part that is

damaged should be properly repaired or replaced before use.

17.DO NOT operate tool if you are under the influence of any drugs, alcohol or

medication that could affect your ability to use the tool properly.

18.KEEP THE HANDLE DRY, CLEAN, AN

PROPOSITION 65

Some dust created by power sanding, sawing, grinding, drilling, and other construction

activities contains chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

· lead from lead-based paints

· crystalline silica from bricks and cement and other masonry products

· arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this type of work.

To reduce your exposure to these chemicals: work in a well ventilated area, and work with

approved safety equipment, such as those dust masks that are specially designed to filter

out microscopic particles.

D FREE FROM OIL AND GREASE.

Always use a clean cloth when cleaning. Do not use solvents, brake fluids, gasoline,

or other petroleum products to clean the tool, they may damage plastic parts.

SAVE THESE SAFETY RULES

ALWAYS WEAR EYE PROTECTION.

An Electric Grass Trimmer can throw foreign objects into your eyes,

which could cause permanent eye damage. ALWAYS wear safety

goggles (not glasses). Ordinary eyeglases have only

impact-resistant lenses that comply with ANSI Z87.1.

General Safety Rules

1. IF YOU ARE NOT thoroughly familiar with the operation of the Electric Grass Trimmer,

obtain advice from a qualified person.

2. MAKE SURE wiring codes and recommended electrical connections are followed.

The Electric Grass Trimmer is double insulated. When servicing, use only identical

replacement parts.

3. DO NOT grasp the spool, line or the guard when picking up or holding the trimmer.

The line and line trimming blade can cause severe injury to hands and fingers.

4. AVOID UNINTENTIONAL STARTING. Don’t carry plugged-in Electric Grass Trimmer

with finger on switch. Be sure switch is OFF when plugging in.

5. DO NOT FORCE THE ELECTRIC GRASS TRIMMER. It will do the job better and

with less likelihood of a risk of injury at the rate for which it was designed.

6. DO NOT OVERREACH. Keep proper footing and balance at all times.

7. STORE the Electric Grass Trimmer indoors. When not in use, trimmers should be

stored indoors in dry, high, or a locked-up place, out of the reach of children.

8. MAKE all adjustments with the power OFF and the Electric Grass Trimmer

disconnected from the power source.

9. ALWAYS use accessories provided or recommended by the manufacturer of the

Electric Grass Trimmer. Do not substitute.

10. KEEP guards in place and in working order. Keep the line trimming blade sharp.

Keep hands and feet away from cutting areas.

11. WHEN LENGTHENING NEW CUTTING LINE, be careful of the line cutter on the

guard, it is sharp.

12. KEEP VENTILATION OPENINGS clear of debris.

13. Before using the Electric Grass Trimmer, remove any stones, sticks, debris or

objects that could become entangled or thrown by the trimmer.

WARNING

NEVER REACH UNDER THE ELECTRIC GRASS TRIMMER (CUTTING LINE AREA)

UNTIL IT HAS COMPLETELY STOPPED. THE ELECTRIC GRASS TRIMMER WILL

CONTINUE TO ROTATE FOR A FEW SECONDS AFTER IT IS SWITCHED OFF.

SAVE THESE SAFETY RULES

Specific Safety Rules

Symbols

SYMBOL SIGNAL MEANING

The following signal words and meanings ar

e intended to explain the levels of risk associated with

this product.

DANGER Indicates an imminently hazardous situation, which, if not avoided,

will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided,

may result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that may

result in property damage.

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

Safety Alert Indicates a potential personal injury hazard.

Read The Operator’s Manual

To reduce the risk of injury, user must read and

understand operator’s manual before using this

product.

Eye Protection Always wear eye protection with side shields marked

to comply with ANSI Z87.1.

Wet Conditions Alert Do not expose to rain or use in damp locations.

Keep Bystanders Away Keep all bystanders at least 50 ft. away.

Ricochet Thrown objects can ricochet and result in personal

injury or property damage.

No Blade Do not install or use any type of blade on a product

displaying this symbol.

VVolts Voltage

AAmperes Current

Hz Hertz Frequency (cycles per second)

WWatt Power

min Minutes Time

Alternating Current Type of current

Direct Current Type or a characteristic of current

Class II Tool Double-insulated construction

SYMBOL NAME DESIGNATION/EXPLANATION

DOUBLE INSULATED

This Electric Grass Trimmer has a plug that looks like the one shown in Fig. A.

The Electric Grass Trimmer is double insulated to provide a double thickness of

insulation between you and the tool’s electrical system. All exposed metal parts are

isolated from the internal metal motor components with protecting insulation.

WARNING

TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR

DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR LAWN

TRIMMER IS WIRED AT THE FACTORY FOR 120 V AC OPERATION. CONNECT

TO A 120 V, 15 A CIRCUIT AND USE A 15 A TIME DELAY FUSE OR CIRCUIT

BREAKER. TO AVOID SHOCK OR FIRE WHEN THE POWER CORD IS WORN,

CUT, OR DAMAGED IN ANYWAY, REPLACE IT IMMEDIATELY.

WARNING

TO AVOID INJURY, WHEN SERVICING THE ELECTRIC GRASS

TRIMMER, USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING

DOUBLE INSULATION DOES NOT TAKE THE PLACE OF

NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS TOOL.

WARNING

TO AVOID ELECTROCUTION:

1. Use only identical replacement parts when servicing a tool with double

insulation. Servicing should be performed by a qualified technician.

2. Do not use in wet or damp areas or expose to rain.

SAVE THESE SAFETY RULES

Electrical Information

1. 2-prong plug 2. Properly-grounded outlet

Fig. A

GROUNDING INSTRUCTIONS

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the

path of least resistance for electric current and reduces the risk of electricshock. This

tool is equipped with an electric cord that has a POLARIZED plug.The plug MUST be

plugged into a matching outlet that is properly installed and grounded in accordance

with ALL local codes and ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper

outlet installed by a qualified electrician.

CAUTION!

IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION

IS PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A CERTIFIED

ELECTRICIAN CHECK THE RECEPTACLE.

WARNING

THIS ELECTRIC GRASS TRIMMER IS FOR OUTDOOR USE

ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.

SAVE THESE SAFETY RULES

Electrical Information

SAVE THESE SAFETY RULES

Electrical Information

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good

condition. When using an extension cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized cord will cause overheating. The

table below shows the correct size to use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge

number, the heavier the cord.

Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified person

before using it. Protect your extension cords from sharp objects, excessive heat and

damp or wet areas.

Use a separate electrical circuit for your tools. This circuit should not be less than #14

wire and should be protected with a 15 A time-delay fuse. Before connecting the

motor to the power line, make sure the switch is in the OFF position and the electric

current is rated the same as the current stamped on the motor nameplate. Running at

a lower voltage will damage the motor.

Minimum Gauge for Extension Cords (AWG)

(when using 120 V only)

Ampere Rating Total Length of Cord in Feet (metres)

More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)

0 6 18 16 16 14

6 10 18 16 14 12

10 12 16 16 14 12

12 16 14 12 Not Recommended

ALTHOUGH THIS TOOL IS DOUBLE INSULATED, THE

EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED WHILE IN

USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.

WARNING

Know Your Electric Grass Trimmer

910

1. Motor housing

2. Spool head

3. Guard

4. Lower shaft

5. Middle shaft

6. Upper shaft

7. Locking knob

8. Auxiliary grip

9. Trigger switch

10. Cord

Inhaltsverzeichnis

Andere GreenWorks Trimmer Handbücher

GreenWorks

GreenWorks STG308 Bedienungsanleitung

GreenWorks

GreenWorks Elite ST-120-T Bedienungsanleitung

GreenWorks

GreenWorks 2200907AU Bedienungsanleitung

GreenWorks

GreenWorks G48ST8 Bedienungsanleitung

GreenWorks

GreenWorks GD60HT66 Bedienungsanleitung

GreenWorks

GreenWorks HTG302 Bedienungsanleitung

GreenWorks

GreenWorks G40LT Bedienungsanleitung

GreenWorks

GreenWorks GD40BC Bedienungsanleitung

GreenWorks

GreenWorks PH80L00 Bedienungsanleitung

GreenWorks

GreenWorks 21062 Bedienungsanleitung

GreenWorks

GreenWorks 22232 Bedienungsanleitung

GreenWorks

GreenWorks 21272 Bedienungsanleitung

GreenWorks

GreenWorks 21227 Bedienungsanleitung

GreenWorks

GreenWorks STF457 Bedienungsanleitung

GreenWorks

GreenWorks 2100207 Bedienungsanleitung

GreenWorks

GreenWorks PSPH24B210 Bedienungsanleitung

GreenWorks

GreenWorks STF305 Bedienungsanleitung

GreenWorks

GreenWorks GD48BCB Bedienungsanleitung

GreenWorks

GreenWorks G40PSH Bedienungsanleitung

GreenWorks

GreenWorks G24HT56X Bedienungsanleitung

GreenWorks

GreenWorks HT24B01 Bedienungsanleitung

GreenWorks

GreenWorks ST40B01 Bedienungsanleitung

GreenWorks

GreenWorks HTF313 Bedienungsanleitung

GreenWorks

GreenWorks G40HT Bedienungsanleitung

Beliebte Trimmer Handbücher anderer Marken

MTD

MTD HT 51 E Bedienungsanleitung

McCulloch

McCulloch T22 LS Bedienungsanleitung

COCKRAFT

COCKRAFT PRO HL36-S Bedienungsanleitung

Grizzly

Grizzly CT 1800 Li Bedienungsanleitung

Peco

Peco Z Trimmer ZT-3000 Bedienungsanleitung

Solo

Solo 116 Bedienungsanleitung

Stiga

Stiga ST 1200 Bedienungsanleitung

Echo

Echo GT-225 - 10-09 Bedienungsanleitung

RedMax

RedMax BT17 Bedienungsanleitung

Parkside

Parkside PHSL 900 A3 Bedienungsanleitung

Gardeo

Gardeo PRO GPTHT2560 Bedienungsanleitung

Park

Park DT-810870 Bedienungsanleitung

Worx

Worx WG209 Bedienungsanleitung

Gardenline

Gardenline 43671/HTKS26 Bedienungsanleitung

Makita

Makita 3710 Bedienungsanleitung

Champion

Champion 100683 Bedienungsanleitung

Stihl

Stihl FS 311 Bedienungsanleitung

Efco

Efco STARK 38 Handbuch
