Grill'D Air Max Einrichtungshandbuch

Assembly and

installaon manual

Air Max

decorave screen

Read this manual carefully before

commencing assembly and installation.

Air Max decorave screen

1. APPLICATION

Decorative screen is designed to frame the combustion channel and the door

of Grill’D brand bathhouse heaters. It complements aesthetic appearance of

the heater, and the premise of its installation as a whole. It is indispensable

for implementation of design solutions in bathhouse complexes.

After installation, the screen can be filled with non-combustible, waterproof

decorative material, for example, bath and sauna stone (talcum peach,

dolerite, etc.).

IMPORTANT! The decorative screen is intended for Long Window Max

heater version only.

2. DESIGN AND MATERIALS USED

Decorative screen represents a dimensional meshy structure. It is fabricated

of quality construction steel, painted with thermal-resistant enamel.

3. TECHNICAL DATA

The estimated mass of stones with sizes from 20 to 40 mm to fill the screen is 45 kg.

745

750

105

4. DELIVERY PACKAGE, ASSEMBLY AND INSTALLATION

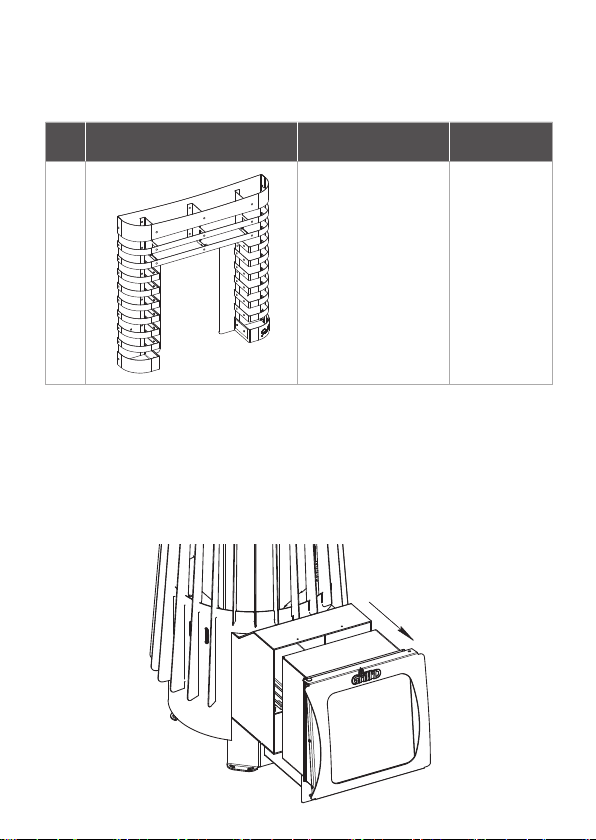

4.1 Delivery package

No TypeName Contents of

delivery

1Ready-assembled

Air decorative

screen

1 pce

4.2 Assembly and installation procedure

IMPORTANT! The works shall be carried out in an extremely careful way,

eliminating the possibility of damage to the paint coating.

1) Take the telescopic part of the heating flue out.

1 5

3 4

2) Install the heater

and the screen on the

place of permanent

operation. The screen

shall rest on the floor

or on the support in

such a way, that the

heater legs and the

bottom surface of the

screen lie in the same

plane.

1 5

3 4

1 5

3 4

3) Insert the telescopic

part of the heating flue

into the fixed part to the

necessary depth (so that

the screen is pressed

against the wall with the

door frame), fasten.

4) Fasten the

screen to the wall

through the holes

with the help of

fastening elements

(for example, self-

tapping screws,

bolts, etc., not

included into

delivery package).

1 5

3 4

5) Fill it with a non-

combustible water-

resistant decorative

material, for example,

bathhouse and sauna

stone (talcum peach,

dolerite, etc.).

5. WARRANTY

The warranty period for the Product is 1 year. The warranty is valid from the

date of purchase of the Product by the Consumer. If the Consumer detects a

non- compliance of the Product with the specified properties, the Consumer

has the right to address a claim to the Company that sold the Product.

However, the Company has the right to contact the Manufacturer to resolve

issues regarding the Claim. The Manufacturer undertakes to improve the entire

Product or its part (as decided by the Manufacturer) free of charge, replace the

entire Product, its components, parts, compensate for the damage in any other

way (as agreed with the Consumer), if the defect occurred during the warranty

period or due to the Manufacturer’s fault.

Should the Consumer make alterations to the entire Product, its component(s),

part, then warranty obligations do not apply to the Product. Thereafter, the

warranty does not apply to elements that are subject to periodic replacement

during operation.

The Product warranty is not provided in case of violation by the Consumer of

the requirements specified in the Operation Manual, technical requirements

for installation and operation of the Product. The above violations by the

Consumer release the Manufacturer from responsibility.

Notes

IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a

store stamp.

QCD mark: ______________________________________________________

(Name, signature, stamp)

Date of sale: _____________________________________________________

(Date, Seller’s signature, store stamp)

I have read and understood this manual: ____________________________

(Buyer’s signature)
