GRNLITE Batten 3-54 Bedienungsanleitung
GRN Baen 3-54 v5.4
GRNlite.com
Warnings .........................................................................................................1
About the GRN Baen 3-54 ............................................................................2
Power input and Voltage adjustment ..............................................................3
Data input .......................................................................................................4
Fixture Placement, Hanging & Maintenance ...................................................5
Fixture Menu Opons .....................................................................................6
Cell Conguraon for DMX Channel Modes....................................................7
DMX Channel Mode Break down ...............................................................8-11
Technical Specicaons.................................................................................12
Menu Tree ....................................................................................................13
GRN Baen 3-54 v5.4
GRNlite.com
WARNING: This xture is intended for use by qualied personnel only
Always disconnect xture from AC power before aempng any service .
For use only with electrical power that meets all local and naonal codes.
Fixture must be electrically grounded. Do not aempt to operate this xture without a
proper electrical ground!
Fixture is rated IP22 and is for indoor use only.
This xture produces intense opcal radiaon which can damage the rena permanently.
Use extreme cauon when servicing the xture or when in close proximity to the powered
xture. Never look directly into the front of the xture when it is connected to electrical
power!
Do not aempt to modify the xture or add unapproved lenses, ngs, or other electronic
devices.
This xture should not be operated in ambient temperatures above 104ºF (40ºC)
The xture must have a minimum clearance of six inches from the surface of the xture.
Never aempt to wrap the xture with any covering, or aempt any cosmec modicaon
of the xture.
The xture has no user serviceable parts.
Page 1
GRN Baen 3-54 v5.4
GRNlite.com

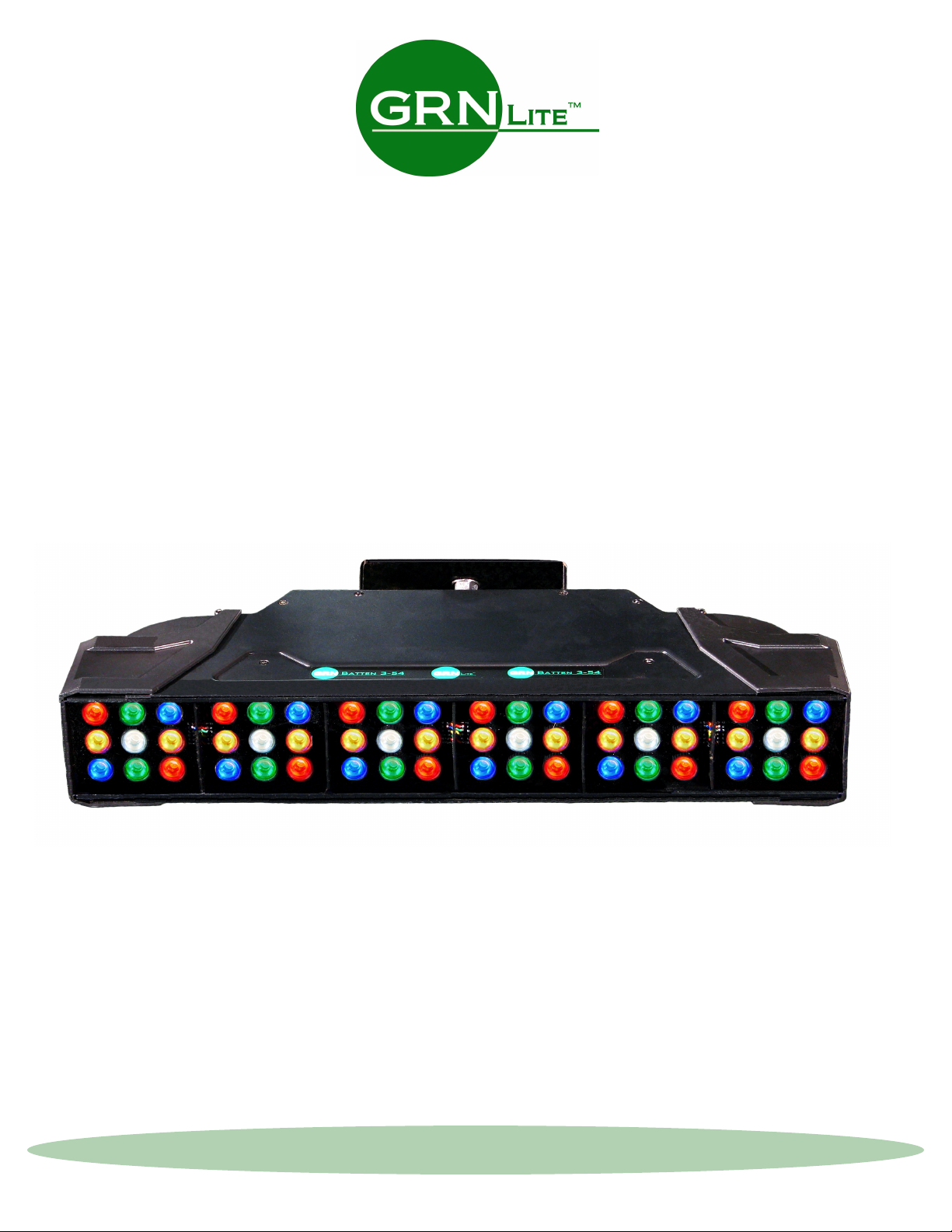

GRN Baen 3-54
The GRN Batten 3-54 is a high performance LED fixture that gives a multitude of advantages unique to
LED technology. The RGBAW LEDs give a much wider color gamut than the usual RGB systems, and
with dramatically increased power efficiency over older technologies like Quartz lamps. The LED
fixtures eliminate the need for dimmers, gels, and large mains power feeds.
Page 2
GRN Baen 3-54 v5.4
GRNlite.com
Power Input
The GRN Baen 3-54 uses a Neutrik PowerCon inlet rated at 20A, 250V as standard. The Fixture will
operate at 120VAC or 220VAC See below for voltage adjustment instrucons.
NOTE: Disconnect power before adjusng the input voltage
Fuse – 4A, 250V Fuse must be replaced with the proper type and rang
Page 3
- Open the boom of the xture to expose the Power supply
-Remove Yoke
-Remove 4 screws on plasc end caps
-Remove 6 screws on boom cover plate

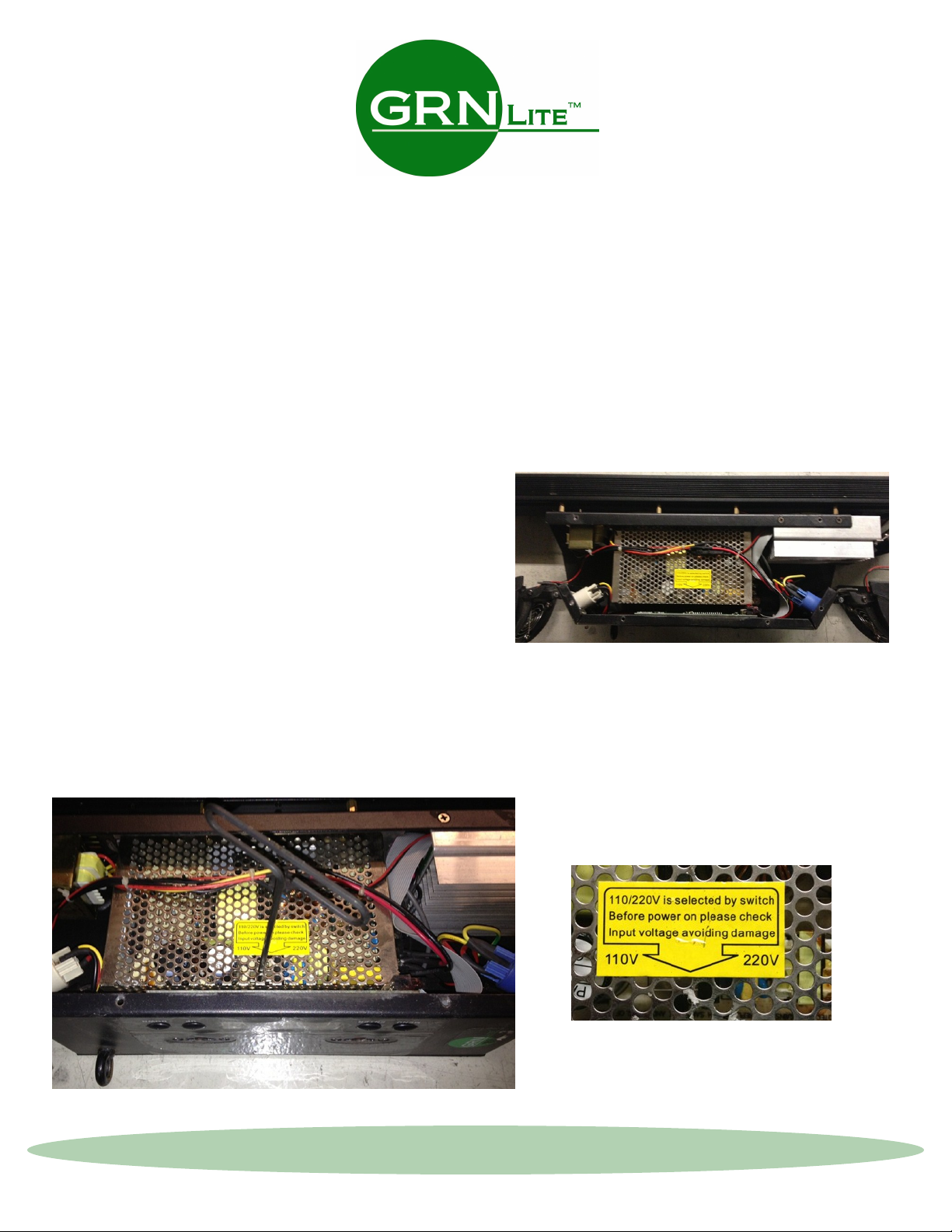

To Adjust your input voltage
- Insert a small screwdriver or similar tool through the PCU grate and toggle the switch making note of
the posion in relaon to the yellow voltage scker. If the scker is missing toggle switch to the le
posion for 110v and to the right posion for 220V
GRN Baen 3-54 v5.4
GRNlite.com

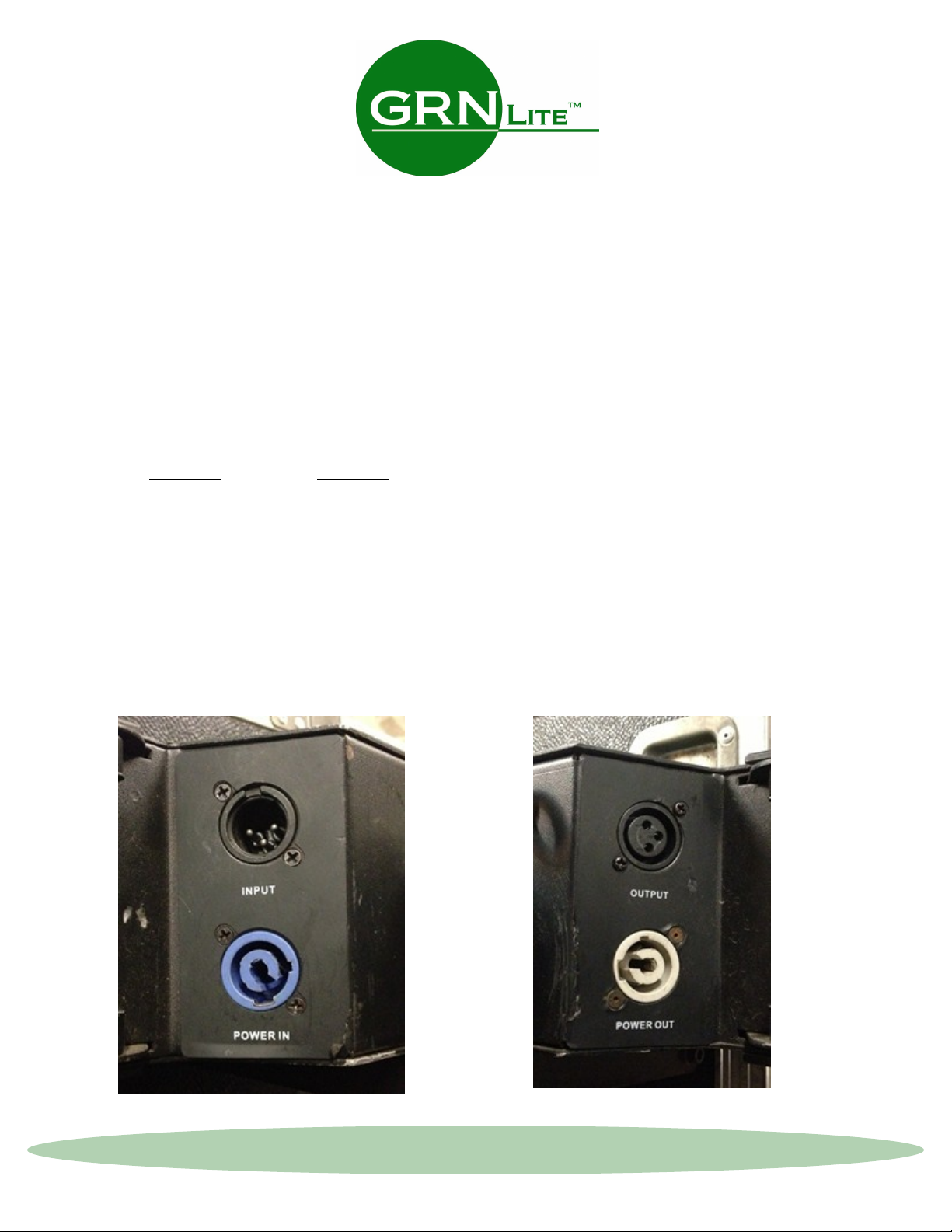

Data Input
The xture uses standard DMX and has a 3-pin XLR for DMX data input and thru.
The Data connecons for 3 pin XLR are as follows:
Pin 1 = GND/Shield
Pin 2 = Data (-)
Pin 3 = Data (+)
Adapng a 5-pin XLR data feed to 3-pin XLR is as follows:
5-pin XLR 3-pin XLR
Pin 1 - Pin 1
Pin 2 - Pin 2
Pin 3 - Pin 3
Pin 4 - N/C
Pin 5 - N/C
Page 4
GRN Baen 3-54 v5.4
GRNlite.com

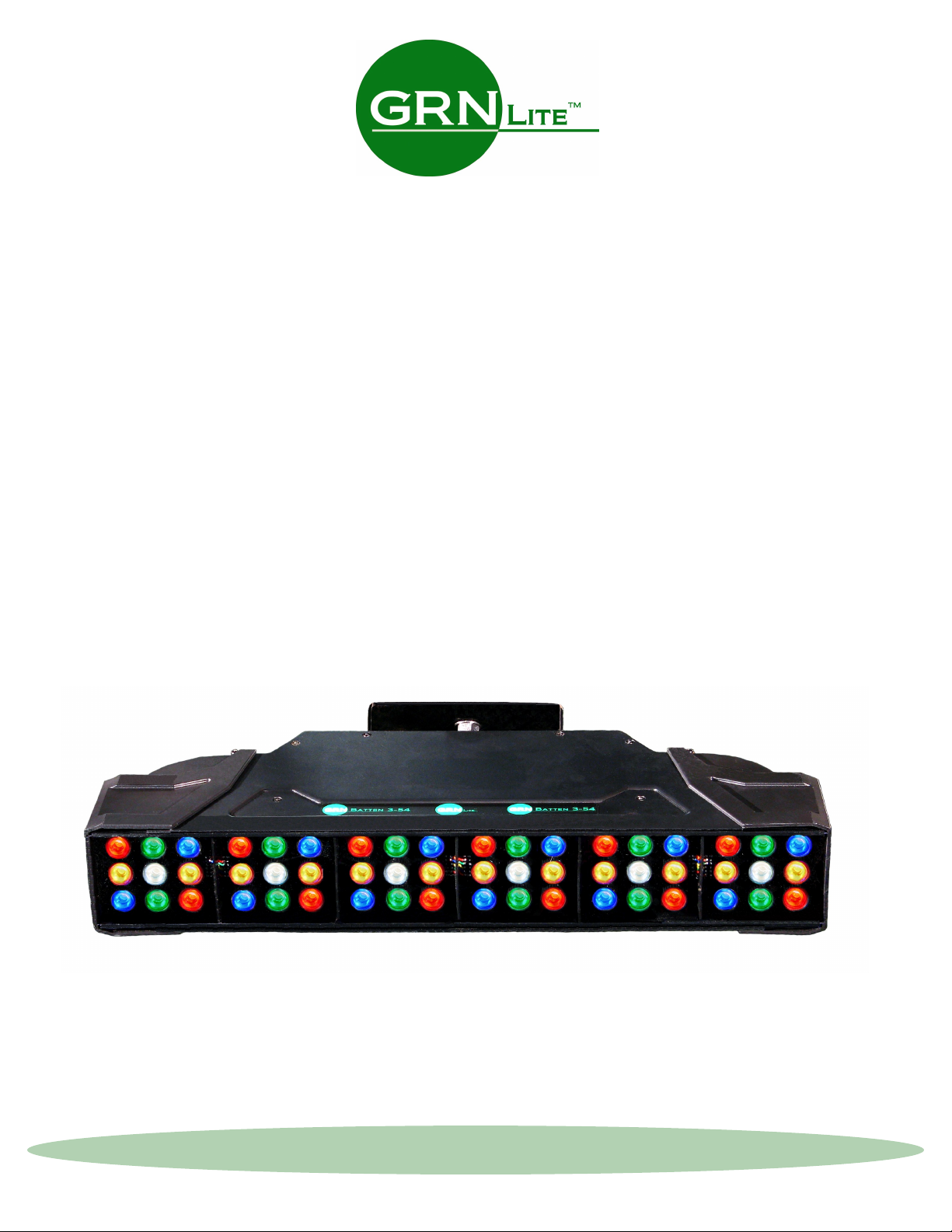

Fixture placement & hanging
The xture uses a special yoke/stand for aachments. Special brackets for aaching half-couplers and
pipe clamps are also available. Half-couplers or Pipe clamps should be used for hanging the xture from
standard truss. The built-in ground support should be weighted for added stability. The yoke clutches
should be loosened (rotate handle counter clockwise) before aempng to rotate the xture in the
yoke. Rotate the clutch handle clockwise to reghten.
A safety cable should be used for every xture other than those that use ground support.
NOTE: The GRN Baen xtures may be mounted in any orientaon as long as the aachment is secure.
Allow a minimum of 3-inches of clearance from all xture surfaces to insure adequate airow.
Maintenance
There is no standard maintenance required for the GRN Baen xture. Even though all hardware is
secured with threadlocker or locking hardware, it is always a good idea to look for any loose or missing
hardware and ghten or replace as needed.
NOTE: All repairs of electronic or structural issues should be done by qualied personnel.
Page 5
GRN Baen 3-54 v5.4
GRNlite.com
Fixture Menu opons
NOTE: Be aware that DMX is only acve in “DMX Channels” mode (when the DMX
start address is displayed) and DMX is not acve in any other mode of operaon.
Page 6
Mode Funcon
Run Mode DMX on/o, Slav = ON/O
FADE Mode Preprogrammed single fade chase, Speed adjustable only
FLOW Mode Preprogrammed ow chases 0-9, adjustable
Sound Mode Uses ambient sound to drive strobe or chase (DISABLED)
RGBAW Preprogrammed stac looks 00-25
DMX Channels Addr: 001-512, channel modes 5,9,14,15,30
GRN Baen 3-54 v5.4
GRNlite.com
Fixture Mode / DMX Channel Funcon break down
Page 8
DMX CH Cells Ch Funcon Funcon Descripon
1Red 0-255 ProporonalAll Cells
2Green 0-255 ProporonalAll Cells
3Blue 0-255 ProporonalAll Cells
4Amber 0-255 ProporonalAll Cells
5White 0-255 ProporonalAll Cells
Chs mode 5
DMX CH Cells Ch Funcon Funcon Descripon
1Red 0-255 ProporonalAll Cells
2Green 0-255 ProporonalAll Cells
3Blue 0-255 ProporonalAll Cells
4Amber 0-255 ProporonalAll Cells
5All Cells White 0-255 Proporonal
6All Cells Strobe Preprogrammed Strobes
7All Cells Strobe Speed Strobe Speed— 0-255 (0=Slowest, 255=Fastest)
8All Cells Chase Preprogrammed chases
9Chase Speed Chase Speed—0-255 (0=Slowest, 255=Fastest)All cells
Chs mode 9
NOTE: Be aware that while running the internal chases & Macros the xture may of may not be
aected by intensity control from the DMX Console.
