3.2 Basic Installation Requirement
ØThe Battery HUB can be installed indoors and outdoors. The following conditions
are allowed:
3.3 Installation Required Tools
The following tools are required to install the Battery HUB:
Drill Screw Driver Wrench Pencil
Tap Measure Multimeter 5mm Allen key
It is recommended to wear the following safety gear when dealing with the PACK.
Insulated Glove Safety Goggle Safety Shoes
3.4 Installation Procedures
Pre-installation Check
Check the Battery HUB package before open it. If any abnormity
is detected, do not open the Package and contact your distributor.
Check the quantity of all parts inside according to the package
list. If there is any part missing or damaged, please contact your
distributor.
Check Packing List
Battery HUB
Terminal X2
Installation
Step 1: Please make sure that the thickness of the wall for Battery HUB installations
is more than 120mm.
Step 2: Hold the Battery HUB against the wall and choose two suitable points for hole
drilling, then mark the points.
Step 3: Drill a hole at the marked points with a depth of 55mm at the mark with a drill
ofφ8.
Step 4: Put the Battery HUB against the wall and install the safety screws on both
sides of Battery HUB.
Fig 3.2: Acceptable wall mounted installation

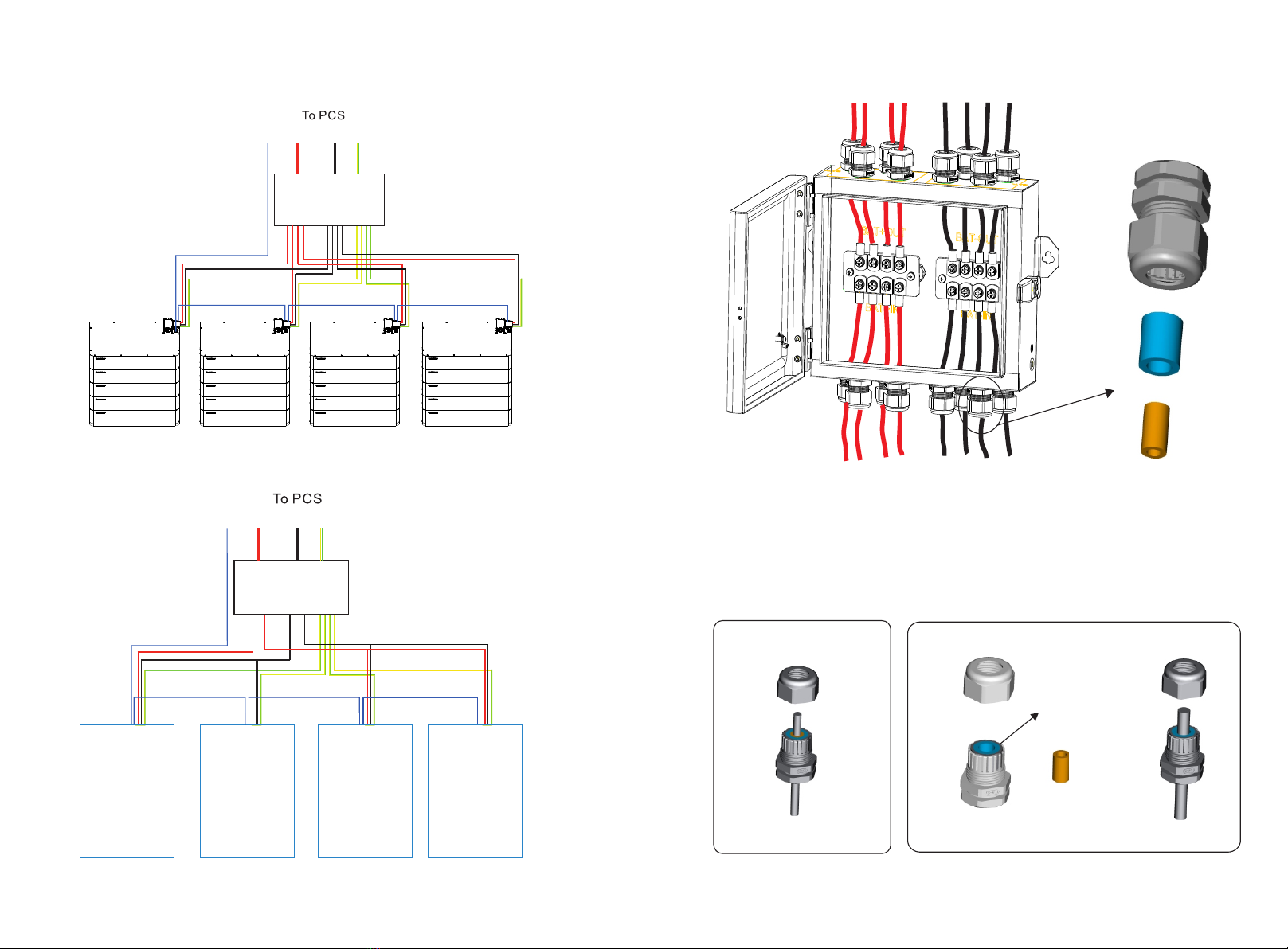

Fig 3.3: Multiple Battery HUB installation process
Key X2
Operation Manual X1
Operation
Manual
