GrowSpan 113463H Bedienungsanleitung

Revision date: 08.27.19

is prohibited without permission.

GrowSpan™Roll-Up Low Pro Tunnel

STK# DIMENSIONS

113463H (B & C) 20' W x 5' H x 24' L

113464H (B & C) 20' W x 5' H x 36' L

113465H (B & C) 20' W x 5' H x 48' L

Actual building design and dimensions may differ from example shown.

2113463_64_65HBC Revision date: 08.27.19

Important Information

READ THIS DOCUMENT BEFORE YOU BEGIN ASSEMBLY

Thank you for purchasing this GrowSpan Roll-Up Pro Tunnel. When

properly assembled and maintained, this product will provide years of

reliable service. These instructions include helpful hints and important

information needed to safely assemble and properly maintain the tunnel.

Please read these instructions before you begin.

If you have any questions during the assembly, contact Customer Service

at 1-800-245-9881 for assistance.

SAFETY PRECAUTIONS

• Wear eye protection.

• Wear head protection.

• Wear gloves when handling metal tubes.

• Use a portable GFCI (Ground Fault Circuit Interrupter) when working

with power tools and cords.

• Do not climb on tunnel or framing during or after construction.

• Do not occupy tunnel or attempt to install cover during high winds,

tornadoes, or hurricanes.

• Never attempt to install end panels during windy or stormy conditions.

• Assemble and anchor tunnel frame before installing cover or panels.

• Do not store hazardous materials in tunnel.

• Provide proper ingress and egress to prevent entrapment.

ANCHORING INSTRUCTIONS

Prior to assembling this high tunnel, please read the MUST READ

document included with the shipment.

WARNING: Anchor assembly is an integral part of the high tunnel

construction. Improper anchoring may cause tunnel instability. Failing

to anchor tunnel properly may void manufacturer’s warranty and may

cause serious injury and damage.

LOCATION

Choose the proper location for best results. The following suggestions and

precautions will help determine whether the selected location is the best

location.

• Never erect structure under power lines.

• Identify whether underground cables and pipes are present before site

preparation or anchoring structure.

• Location should be away from structures that could cause snow to drift

on or around tunnel.

• Do not position tunnel where large loads such as snow and ice, large

tree branches, or other overhead obstacles could fall.

• Always check local building codes before you begin.

SITE

After choosing a location, prepare the site. The following site characteristics

will help ensure best results.

• A level site is required. Site must be level to properly and safely erect

and anchor structure.

• Drainage: Water draining off structure and from areas surrounding

the tunnel should drain away from tunnel to protect tunnel and tunnel

contents.

WARNING: The individuals assembling this structure are responsible

for designing and furnishing all temporary bracing, shoring, and support

needed during assembly. For safety reasons, those who are not familiar

with recognized construction methods and techniques must seek the

help of a qualified contractor.

Revision date: 08.27.19 113463_64_65HBC

Important Information

ASSEMBLY PROCEDURE

Following the instructions as presented will help ensure proper tunnel

assembly. Failing to follow these steps may result in an improperly

assembled and anchored high tunnel and may void all warranty and

protection the owner is entitled. Steps outlining assembly are as follows:

1. Verify all parts are included in shipment. Notify Customer Service for

questions or concerns.

2. Read these instructions, the Must Read document, and all additional

documentation included with shipment before you begin.

3. Gather tools, bracing, ladders (and lifts), and assistance needed to

assemble high tunnel.

4. Check weather before you install roof cover and any panels. Do not

install covers or panels on a windy or stormy day.

5. Re-evaluate location and site based on information and precautions

presented earlier.

6. Prepare site (if applicable).

7. Assemble frame components in the order presented.

8. Assemble frame.

9. If used, attach customer-supplied baseboards boards.

10. Attach the 115287 stabilizer bars along frame sides. Consult these

instructions and all drawings for additional details.

11. Consult MUST READ document and properly anchor the frame. If

frame is anchored in concrete continue with next procedure.

12. Install, tighten, and secure end panels.

13. Install, tighten, and secure main cover.

14. Read care and maintenance information.

15. Complete and return all warranty information as instructed.

REQUIRED TOOLS

The following list identifies the main tools needed to assemble the shelter.

Additional tools and supports may be needed.

• Tape measure or measuring device and marker to mark locations on

the pipes and rafters.

• Variable speed drills and impact drivers. (Cordless with extra batteries

works best.)

• Metal-cutting saws or tools to cut pipe and aluminum.

• Drill bit set

• Wrenches and impact socket set, hammer, and gloves.

• Adjustable pliers and self-locking pliers.

• Ladders, work platforms, and other machinery for lifting designed to

work safely at the height of the frame.

• Safety equipment to protect head, eyes, hands and feet.

UNPACK AND IDENTIFY PARTS

The following steps help ensure all necessary parts are present before

beginning.

1. Unpack contents of the shipment and place where you can easily

inventory the parts. Refer to the Bill of Materials/Spec Sheets.

2. Verify that all parts listed on the Bill of Materials/Spec Sheets are

present. If anything is missing or you have questions, consult the

Pictorial Parts Guide and all diagrams for clarification, or contact

Customer Service.

NOTE: Do not open plastic bags containing smaller parts such as

fasteners or washers at this time. Simply verify quantity.

4113463_64_65HBC Revision date: 08.27.19

SHELTER CARE AND MAINTENANCE

Proper care and maintenance of the low pro tunnel is important. Check the

following items periodically to properly maintain the shelter:

• Regularly check cover to ensure it remains tight and in proper repair.

• Replace all damaged or broken components immediately.

• Check connections and all fasteners to verify they remain tight and in

good condition.

• Do not climb or stand on frame at anytime.

• Inspect the anchoring system to verify all components remain tight and

in good condition.

• Verify that end panels are in good condition and secured properly.

• Do not allow cover to remain open for extended time. Periodically,

unroll cover for cleaning and to allow it to dry.

• Remove debris and objects that accumulate on cover. Use tools that

will not damage cover when removing debris.

• Remove snow to prevent excess accumulation. Use tools that will not

damage the cover when removing snow.

• Check contents of tunnel to verify that nothing is touching cover that

could cause damage.

• If tunnel is dismantled and moved, inspect all parts and connections

before using and reassembly.

• For replacement or missing parts, call 1-800-245-9881 for assistance.

NOTE: With the exception of truss buildings and other engineered

structures, shelters and buildings do not have any tested loading criteria

unless otherwise specified.

Space below is reserved for customer notes.

Shelter Care and Maintenance

Revision date: 08.27.19 113463_64_65HBC

Important Information

The following graphics will help identify the different parts.

(Some parts are not shown.)

100442 Magnetic

Nut Setter

QH1400C Spin Handle Support & Lock

115287 Stabilizer Bar FA4110 & FA4115 Hook & Loop Fasteners

FA4110 FA4115

102856

End Clamp

102197

Aluminum

U-Channel

102548

Cross Connector

FA4472B Tek

Screw

103395 Spin Handle 103396 Universal Joint CC6212 Fabric Clip

CC6213 Fabric Clip

104642

A-Angle Bracket

FAMF01B

Fender Washer

102198 Spring for Aluminum

U-Channel

(Film Cover only)

110155 Aluminum Bar

(Black/Silver Cover only)

6113463_64_65HBC Revision date: 08.27.19

Prepare and Square Building Site

PREPARE BUILDING SITE

A level site is required to accurately and safely construct building. Consult

the services of a qualified contractor to properly grade and prepare site.

Site should slope away from building for proper water drainage.

After site is prepared, mark locations of frame corners to square frame

position. Taking these steps before shelter assembly begins saves time and

ensures that structure is square and positioned as desired.

The following procedures are suggested methods. Their use depends on

shelter size, shelter use, footings (if applicable), and the method used to

anchor the shelter.

When in doubt, consult the services of a qualified contractor experienced

with the construction of similar structures.

Ground Posts

Ground posts can be set in concrete as described within this manual. Or,

anchor building frame as described in the MUST READ document.

SQUARE SITE: GENERAL STEPS

1. Identify a corner where a ground post will be set, drive a stake, and

string a line the building width. Stake in place. (Width of frame is

measured from center-to-center of ground posts.)

2. After placing first corner stake, string a line the frame width (center-to-

center of ground posts) and drive second corner stake.

3. String a line longer than the building 90° from the line between the first

and second stakes.

NOTE: A transit can be used to ensure an accurate 90° angle, or the

3-4-5 rule can be used. Refer to diagram. Using multiples of 3-4-5 such

as 6-8-10 or 12-16-20 helps to maintain an accurate 90° angle.

4. After squaring frame position, measure length and drive the third corner

stake.

5. Repeat the same step to set last corner stake.

NOTE: The distance measured diagonally between corner stakes must

be equal for building to be square.

SET GROUND POSTS IN CONCRETE

Sandy or loose soil requires setting ground posts in concrete. Review

the layout diagrams for additional details. Follow all local and regional

building codes during construction.

Enlist the services of a professional and competent contractor to

prepare site and set ground posts.

Failing to secure ground posts in concrete as required may result in

damage to frame, frame contents, and surrounding property and may

void warranty.

Shelter width is measured from ground post center to ground post center.

Length is also measured ground post center-to-center.

Revision date: 08.27.19 113463_64_65HBC

on-center

Set Ground Posts

Drawing may show layout of a different length. Refer to

Quick Start section located at back of these instructions for

on-center measurements and post layout for your frame.

MARK SITE AND DIG POST HOLES FOR CONCRETE

These steps describe marking all ground post locations and digging holes. For some sites, it may not be

possible to complete the procedure in this manner. An alternative procedure such as working from one end

of the building toward the other may be necessary. Determine the best procedure based on site and other

factors and proceed as needed.

NOTE: Refer to Quick Start Section located near the back of these instructions for Side Profile and

related diagrams.

If you are not setting ground posts in concrete and are anchoring frame as described in the MUST

READ document, do not auger holes for ground posts. Instead, follow the steps to mark ground

post locations and drive posts into the ground at those locations. See information below and on

next page.

Complete these steps:

1. Stake building outline using string line and batter boards. Set batter boards 3' back from the

building corners. Check to ensure that building layout is square. Cover or panels (if equipped)

will not install properly if frame is not square once assembled.

2. Consult diagrams in Quick Start section to verify frame length and width dimensions and to

accurately position ground posts.

3. Guided by string line, use a flag or stake to mark each ground post hole location.

4. Move string line and dig a post hole a minimum of two

feet (2') deep or to a depth that is below geographic frost

line. Consult local building codes. A power auger works

best. Minimum hole diameter is 12".

5. After digging all holes, reattach string line to batter

boards and use it as a guide to set and align ground

posts.

8113463_64_65HBC Revision date: 08.27.19

SET GROUND POSTS

Required parts and equipment:

• Ground Posts

• Equipment to level and brace posts

NOTE: Concrete (customer-supplied) is required to secure all ground post in the holes. Set all posts the same height for proper assembly. Position all mounting

holes to point toward the inside/outside of frame. Use holes in ground posts to attach post to customer-supplied framing when setting posts.

Consult the services of a qualified contractor if needed to properly set posts. Here are the basic steps:

1. Take one ground post, measure 24" from the end opposite bolt holes, and mark the location on ground post. Repeat to mark all ground posts.

2. With assistance, brace all posts in place. See diagram below. All posts to be plumb before adding concrete. Use mounting holes in posts and customer-

supplied fasteners and stakes to hold posts in place.

3. Add concrete to anchor posts in holes. Fill hole so concrete remains below finished grade.

ATTENTION: Ground posts include pre-drilled rafter mounting bolt holes and

holes to attach baseboards. Position holes to point outside/inside the frame.

Set Ground Posts

ATTENTION: Whether driving posts or anchoring

in concrete, set top of posts at the same height.

Drive or set posts in concrete 24" below nished

grade. Top of post is 12" above grade.

Use customer-supplied materials

to construct braces.

String line showing top

of all ground posts.

Stake Ground Posts for Concrete

Finished Grade

String line showing top

of all ground posts.

NOTE: Layout above shows how to brace ground

posts when setting posts in concrete.

Outside Frame

Inside Frame

Revision date: 08.27.19 113463_64_65HBC

Assemble Rafters

ASSEMBLE RAFTER

After site is prepared and an inventory of parts is complete,

continue with rafter assembly.

NOTE: All rafter assemblies include rafter tubes and purlin clamps. Consult

rafter diagrams in Quick Start section before and during assembly.

• Assistance is required for easier rafter and frame assembly.

• Secure all splices using Tek screws.

• Wrap screws and slices with duct tape.

Gather parts:

• Rafter pipes: LPT166ES1W20, LPT166PS1W20, & 166S0755

• FA4472B Tek screws

• 100442 magnetic nut setter

• Duct tape

STEP 1: Select rafter pipes to

assemble one rafter. See diagram

above and in Quick Start section. A

at, level surface works best.

STEP 3: Secure each rafter joint

using two (2) Tek screws. Install

screws in a location that will not

contact cover when installed.

STEP 2: Slide individual pipe sec-

tions together.

STEP 4: Wrap splice and Tek

screws with duct tape to protect

cover.

166S0755166S0755

LPT166PS1W20

LPT166ES1W20LPT166ES1W20

10 113463_64_65HBC Revision date: 08.27.19

Assemble Frame

FRAME ASSEMBLY

Use the diagrams and information that follows to assemble

the main frame.

ATTENTION: Rafters are heavy. Move rafter with assistance or using a small lift to prevent damage and injury. Determine best way to move rafters into

position and to set them onto each set of ground posts. Do not set rafters into position until ground post concrete has set (if applicable).

Gather parts:

• Assembled rafters, 102856 end clamps, & 102548 cross connectors

• FAG336B (5/16” x 2-1/2”) bolts & FALB02B (5/16”) nuts

• 1.315" Pipe: 131S075 & 131P0xxx (where x represent length of last pipe)

Complete these steps:

1. Slide one end clamp (102856) onto each end of a rafter as shown in detail

above and in Quick Start diagrams.

2. Set first end rafter in place and anchor to top mounting hole in ground

posts using 5/16" bolts and nuts. Add braces for support if needed or have

an assistant hold until next rafter is added and connected with purlins.

3. Set next rafter in place and secure using 5/16" bolts and nuts.

ATTENTION: Only the two end rafters use 102856 end clamps as shown.

All interior rafters use 102548 cross connectors to secure purlins to rafters.

See details in Quick Start section for additional diagrams.

4. Using side profile diagram in Quick Start section for your building length,

attach first purlin pipe on each side between the two rafters. Do not

tighten clamps at this time.

5. Add next rafter and connect using next purlin pipe. See side profile

diagram for pipe identification.

NOTE: Set purlin height on each side just below rafter bend as shown in

diagrams. Purlin runs should be at same location on each side of frame.

For accuracy, stretch a string line end-to-end to keep purlins aligned. See

diagram above.

6. Check on-center spacing of rafters before clamps are tightened.

7. Using a long level or the string line (if present), ensure purlin pipes are

level and tighten cross connectors and end clamps.

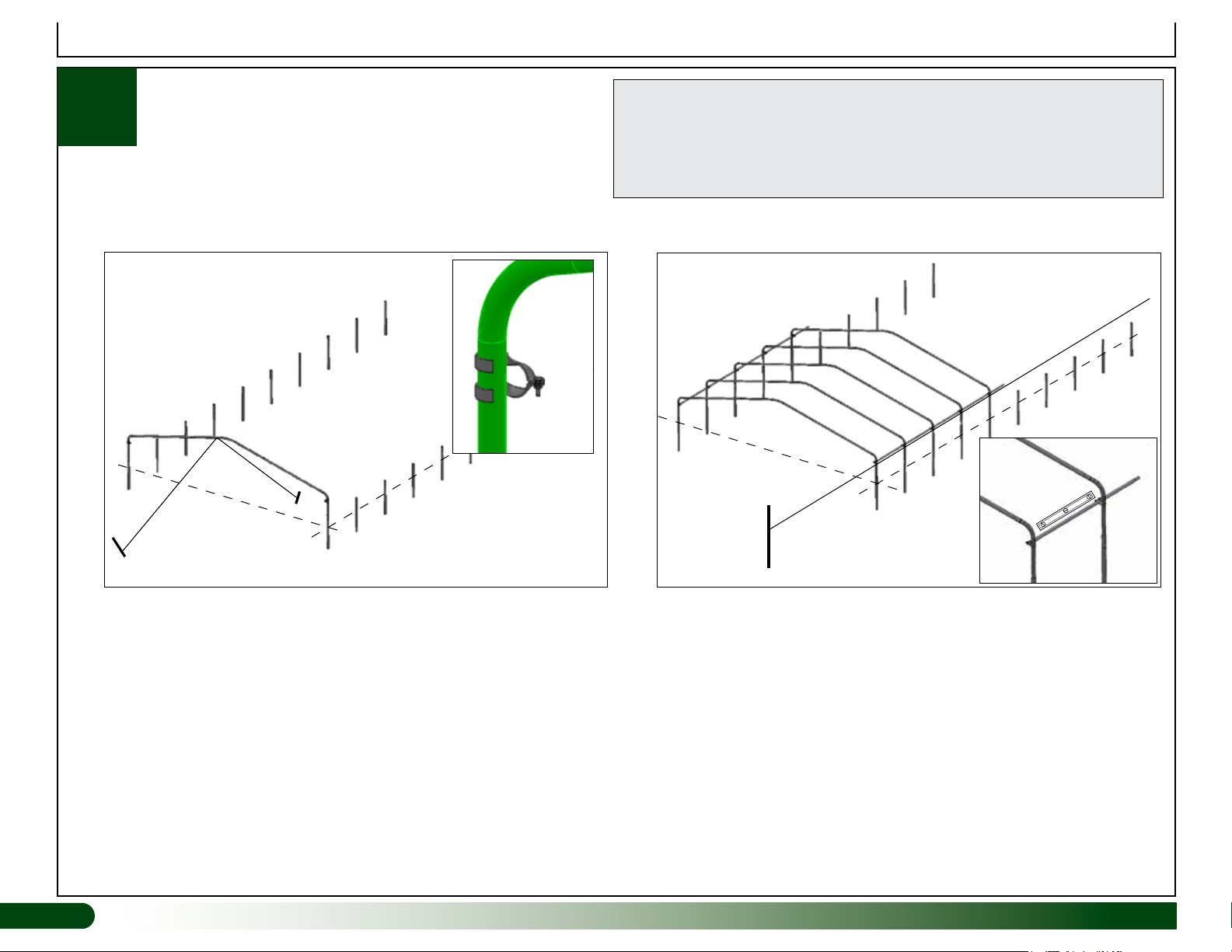

Ground Level

String Line

Level

Step 1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GrowSpan Gewächshaus-Bausatz Handbücher

GrowSpan

GrowSpan 106205 Bedienungsanleitung

GrowSpan

GrowSpan 106265 Bedienungsanleitung

GrowSpan

GrowSpan 104176 Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

GrowSpan

GrowSpan 500 Cold Frame 30' Wide Series Bedienungsanleitung

GrowSpan

GrowSpan PB01670R6 Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

GrowSpan

GrowSpan Gothic Premium 108185H Bedienungsanleitung

GrowSpan

GrowSpan 113469H Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

GrowSpan

GrowSpan Gothic Pro Bedienungsanleitung

GrowSpan

GrowSpan Canopy-Top Cold Frame Series Bedienungsanleitung

GrowSpan

GrowSpan Gothic Cold Frame Series Bedienungsanleitung

GrowSpan

GrowSpan Gothic Premium 108179H Bedienungsanleitung

GrowSpan

GrowSpan 2000 Series Bedienungsanleitung

GrowSpan

GrowSpan Gothic Premium 108190H Bedienungsanleitung

GrowSpan

GrowSpan 105148 Bedienungsanleitung

GrowSpan

GrowSpan Flip-Top Cold Frame Bedienungsanleitung

GrowSpan

GrowSpan 106363 Bedienungsanleitung

GrowSpan

GrowSpan PGFLSAXXFCW0063 Bedienungsanleitung

GrowSpan

GrowSpan Twist-of-the-Wrist Bedienungsanleitung

GrowSpan

GrowSpan 103103 Bedienungsanleitung

Beliebte Gewächshaus-Bausatz Handbücher anderer Marken

ACD PRESTIGE

ACD PRESTIGE MR3 H Bedienungsanleitung

Vitavia

Vitavia VA0040-TRP Bedienungsanleitung

VegTrug

VegTrug Nursery Bedienungsanleitung

Riverstone Networks

Riverstone Networks Monticello 041315V Bedienungsanleitung

STC

STC Easy Grow 6x12 Greenhouse Bedienungsanleitung

CLIMA POD

CLIMA POD Spirit V7 Series Bedienungsanleitung

Vitavia

Vitavia GAIA JUMBO Bedienungsanleitung

Palram

Palram Harmony 6'x4' Bedienungsanleitung

ClearSpan

ClearSpan Storage Master 104598 Bedienungsanleitung

Sproutwell

Sproutwell GRANGE - 5 Bedienungsanleitung

ACD

ACD Piccolo 03 Bedienungsanleitung

Growhouse

Growhouse Lean To 6 x 8 Bedienungsanleitung

Riverstone Networks

Riverstone Networks Grower's 181010V Bedienungsanleitung

Robinsons

Robinsons 5ft Wide LEAN-TO Bedienungsanleitung

Botanica

Botanica E Bedienungsanleitung

PNI

PNI SP6000 Bedienungsanleitung

Hortus

Hortus 211-203 Programmierhandbuch

Robinsons

Robinsons 6' Lean-To Bedienungsanleitung
