DVD PLAYER GDV 120________________________________________

Special features of your DVD player

Your DVD player gives you perfect digital video playback in studio quality.

It also provides superb cinema-quality audio playback - in stereo or with digital

multi-channel sound – depending on the type of DVD and the HiFI system or

stereo television.

Other features of DVD video include the choice of audio channel and language,

choice of subtitle language, and various camera recording angles.

In addition to DVDs, your DVD player can also play all other video

and audio CDs. DVDs and CDs can be identified by one of the logos shown to

the left.

Your DVD player is designed for DVDs with region code 2.

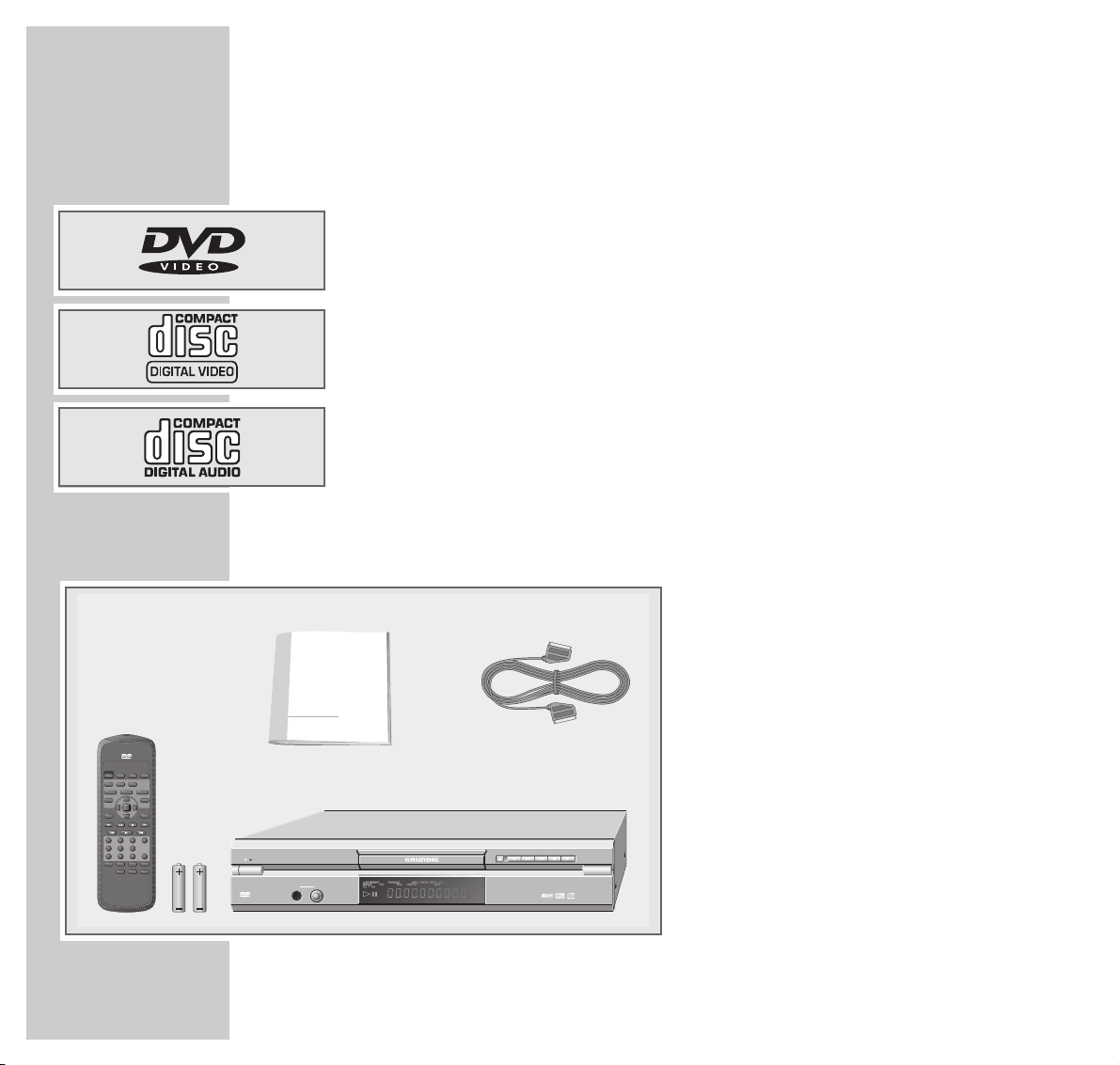

Packing contents

1DVD player GDV 120

22 Batteries, 1.5 V, type AA

3Remote control

4Operating manual

5EURO-AV cable

DVD-PLAYER

8/ON PICTURE

MODE LAST MEMO

OSD SUBTITLE AUDIO

TITLE MENU ZOOM

SET UP RETURN

VIRTUAL

SURROUND

PROGRAM

SEARCH MODE

ANGLE

ANGLE REPLAY

BOOKMARK REPEAT A-B REPEAT

VIDEO

TELE PILOT 82V

1 2 3 C

456

7890

CLEAR

DVD VIDEO CD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N/

GDV 120

VIRTUAL

SURROUND

4 5

ENGLISH

SET-UP AND SAFETY______________________________________________

°C2h

°C

DVD VIDEOCD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N/

GDV120

VIRTUAL

SURROUND

GDV120

VIRTUAL

SURROUND

To ensure that this high-quality, easy-to-use DVD player provides you with

lasting satisfaction and enjoyment, please observe the following instructions

when setting it up.

This DVD player set is designed to play audio and video signals from compact

discs (DVD and CD).

Any other use is expressly prohibited.

When the DVD player is subject to extreme variations in temperature,

for example during transportation from a cold area to a warm one, connect it to

the mains supply and let it stand for at least two hours before you insert a DVD.

The DVD player is designed for use in dry rooms. If, however, you use it in the

open, it is essential to ensure that it is protected from moisture (rain, lawn

sprinklers).

Place the combined DVD player on an even and solid surface. Do not place any

objects (newspapers, for example) on the DVD player or any cloth or similar

articles underneath it.

Do not place the DVD player close to heating units or in direct sunlight, as this

will impair cooling.

Do not insert foreign objects in the air vents or the disc compartment.

Never open the DVD player casing under any circumstances. The manufacturer

accepts no liability for damage resulting from improper handling.

Do not place any containers filled with liquids (vases or similar) on the DVD

player. The container could fall over and the liquid may present an electrical

safety risk.

DVD VIDEO CD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N/

GDV 120

VIRTUAL

SURROUND

Krieg im Balkan

DVD VIDEO CD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N/

GDV 120

VIRTUAL

SURROUND

DVD VIDEO CD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N/

GDV 120

VIRTUAL

SURROUND

SET-UP AND SAFETY_________________________________________________________________

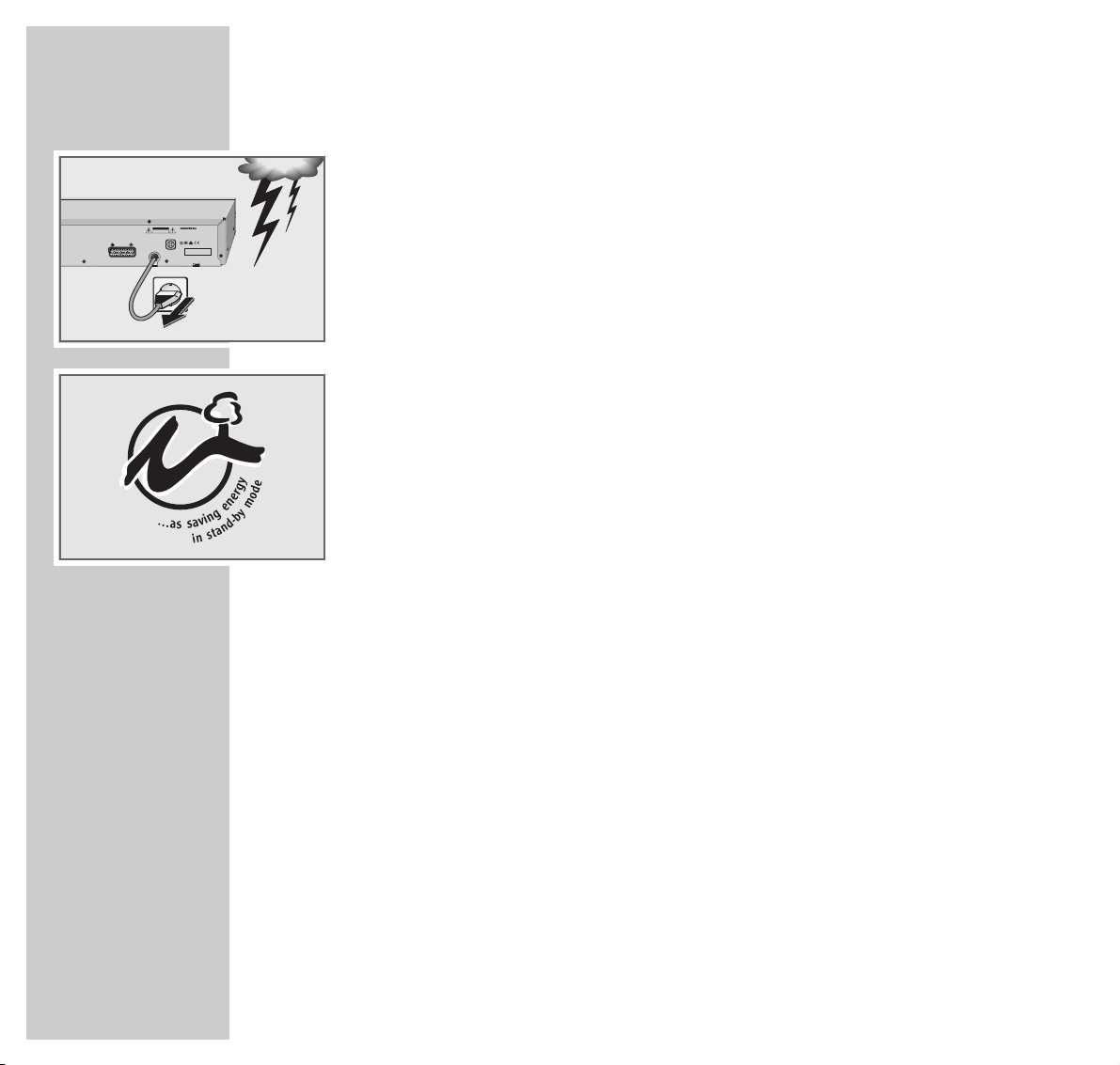

Thunderstorms present a danger to all electrical devices. Even if the DVD player

is switched off, it can be damaged by a lightning strike to the mains. Always

remove the mains plug during an electrical storm.

If the DVD player is unable to scan DVDs or CDs perfectly, use a standard

commercial cleaning CD to clean the laser optics. Other cleaning methods may

damage the laser optics.

Always keep the disc compartment closed to prevent dust from collecting on the

laser optics.

This DVD player successfully fuses technology and environmental friendliness

into a coherent package. Only ecologically compatible, high quality materials

have been used. The batteries included are free of mercury and cadmium.

The range of materials used has been deliberately reduced to a minimum and

all the larger plastic parts have been labelled to enable effective recycling at the

end of the system´s service life. This DVD player is easily disassembled to make

servicing easier and optimise recycling.

GDV 120

G.MI 50-00

220-240V~ 50/60Hz

titane

PAG-Code

Madefor Grundig in P.R. China

AVEURO CONNECTOR

RGBOUT

AVIS:RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.

CAUTION

RISKOF ELECTRIC SHOCK

DONOT OPEN

ENGLISH

OVERVIEW________________________________________________________________________

9Switches the DVD player to and from Stand-by mode.

Switching the DVD player off does not completely separate it from

the mains.

•Stand-by display.

PHONE Headphone socket for connecting a stereo headphone set with a

jack plug (ø 6.3 mm).

LEVEL Adjusts the volume for headphones connected to the »PHONE«

socket.

Compartment for DVDs/CDs.

Display.

•Indicator light for Virtual Surround function.

.Opens and closes the disc compartment.

!Freeze-frame for DVDs and video CDs; pause for audio CDs.

3Selects the previous title or section during playback.

4Selects the next title or section during playback.

7Interrupts the current, switches to ”STOP”.

8Starts playback.

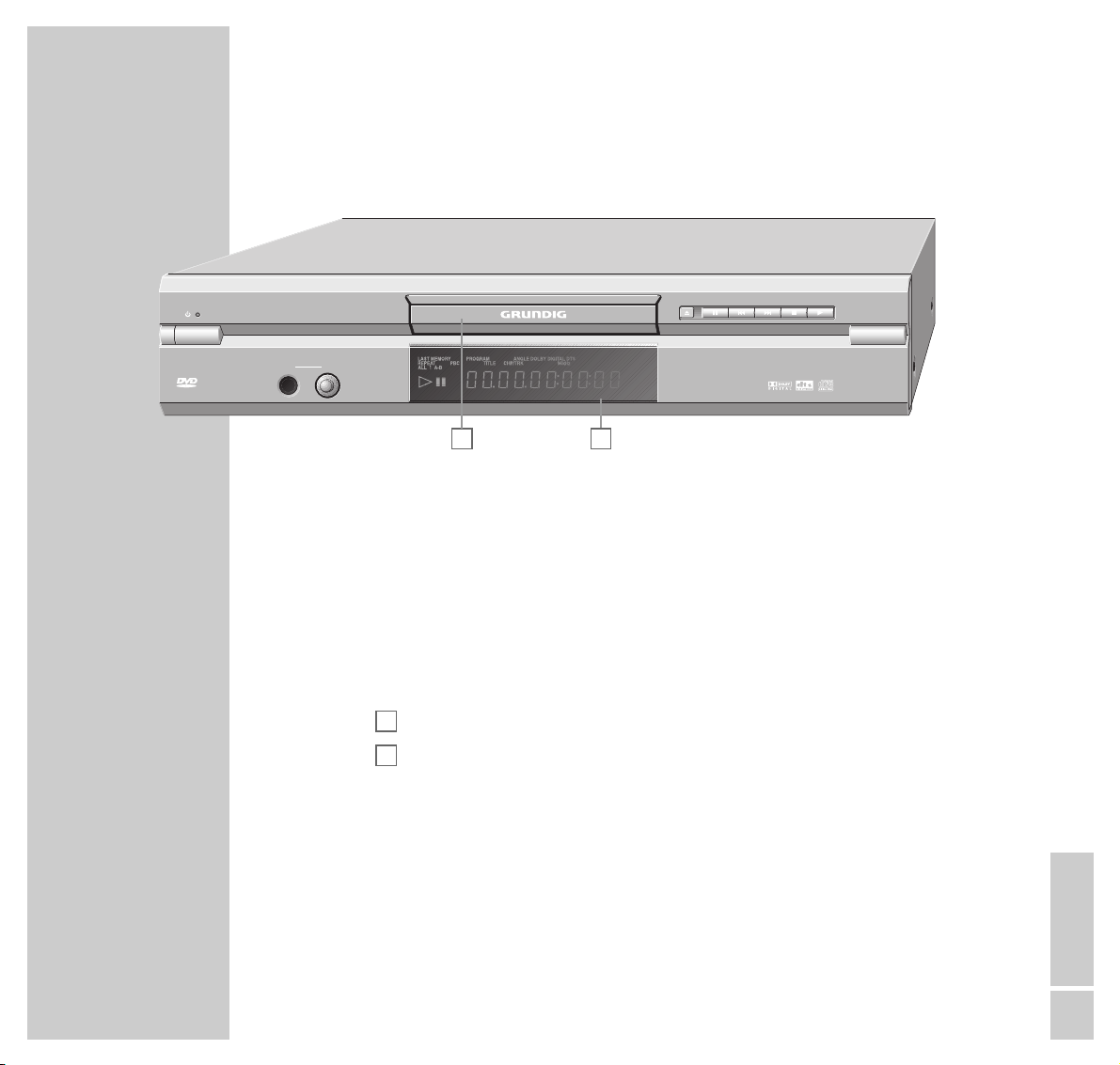

The front of the DVD player

DVD VIDEO CD CD PLAYER

LEVEL

MIN.

PHONE

MAX.

0N /

GDV 120

VIRTUAL

SURROUND

A B

OVERVIEW__________________________________________________________________________________

The DVD player display

»LAST MEMORY« Function is activated.

»PBC« Video CD in use.

»PROGRAM« Function is activated.

TITLE« Number of the title of a DVD.

CHP/TRK« Number of the chapter (CHP) on a DVD or CD, or number of the

title (TRK) on a DVD, or number of the track on a CD.

»ANGLE« Angle function is activated.

»DOLBY DIGITAL« The DVD provides a Dolby Digital audio signal.

»DTS« The DVD provides a DTS audio signal.

»96 kHz« Audio clock frequency 96 kHz.

00:00:00

« Total or elapsed playing time in hours, minutes and seconds.

»REPEAT ALL 1 A-B«One of the Repeat functions is activated.

»!«Pause/Freeze-Frame.

»EE« Playback.

LAST MEMORY

REPEAT

ALL 1 A-B PBC PROGRAM

TITLE ANGLE DOLBY DIGITAL DTS

CHP/TRK 96kHz

ENGLISH

OVERVIEW__________________________________________________________________________________

OPT. DIGITAL OUT Audio output socket (optical) for PCM/MPEG2/AC3/DTS

signals, for connecting to a digital HiFi system.

R AUDIO OUT L Audio output sockets (right/left channel) for connecting a HiFi

system.

VIDEO OUT Video output socket for connecting a television with a video

socket.

TV SYSTEM For specifying the TV system (PAL or NTSC).

PAL NTSC

S-VIDEO OUT Video output socket for connecting a television

with S-VHS socket.

VIDEO OUT SELECT Switches the video output signal to the »A/V EURO

S RGB CONNECTOR« or »S-VIDEO OUT« socket.

A/V EURO Video/audio output socket for connecting a tele-

CONNECTOR vision.

ÜÜMains cable.

Caution:

Do not connect any devices while the DVD player is switched on.

Never touch the inside of the sockets and plugs of the connecting cables.

An electrostatic discharge can damage the DVD player.

GDV 120

G.MI 50-00

220-240V~ 50/60Hz

titane

PAG-Code

Made for Grundig in P.R. China

VIDEO OUTAUDIO OUT

R L

OPT.

DIGITAL

OUT

Apparatus Claims of U.S.Patent Nos. 4,631,603,

4,577,216 4,819,098, and 4,907,093 licensed for

limited viewing uses only.

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks

of Dolby Laboratories.

Confidential Unpublished Works.

S-VIDEO OUT

TV SYSTEM

PAL NTSC VIDEO OUT SELECT

RGBS

AV EURO CONNECTOR

RGB OUT

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The back of the DVD player

The remote control

9 ON Switches the DVD player to and from Stand-by mode.

The display on the DVD player is red in Stand-by mode.

PICTURE MODE For adjusting the picture during playback.

LAST MEMO Selects a position on the DVD during playback.

VIRTUAL Activates the Virtual Surround function.

SURROUND

OSD Displays/conceals the menus on the television screen.

SUBTITLE Displays subtitles during DVD playback.

AUDIO Switches between original and dubbed langage during

DVD playback.

TITLE Calls up the main menu during DVD/video CD playback

(depends on DVD).

MENU Calls up the DVD/video CD title menu during playback.

ZOOM Enlarges freeze-frames.

SETUP Calls up the DVD player’s »main« menu

(in STOP mode).

asAS Select various functions in the menus.

OK Confirms menu entries.

RETURN Calls up the previous DVD menu.

OVERVIEW__________________________________________________________________________________

8/ON PICTURE

MODE LAST MEMO

OSD SUBTITLE AUDIO

TITLE MENU ZOOM

SET UP RETURN

VIRTUAL

SURROUND

PROGRAM

SEARCH MODE

ANGLE

ANGLE REPLAY

BOOKMARK REPEAT A-B REPEAT

VIDEO

TELE PILOT 82V

1 2 3 C

4 5 6

7 8 9 0

CLEAR

Andere Handbücher für GDV 120

Inhaltsverzeichnis

Andere Grundig DVD-Player Handbücher

Grundig

Grundig GDP 3560 Bedienungsanleitung

Grundig

Grundig GDRH 5625 Bedienungsanleitung

Grundig

Grundig GDP 3760 Bedienungsanleitung

Grundig

Grundig XENARO GDP 5100/2 Bedienungsanleitung

Grundig

Grundig GDP 2750 Bedienungsanleitung

Grundig

Grundig Sevilla SE 8105 Hifi Bedienungsanleitung

Grundig

Grundig GDP1620HD Bedienungsanleitung

Grundig

Grundig GDV 200 Bedienungsanleitung

Grundig

Grundig GDP 1400 Bedienungsanleitung

Grundig

Grundig GDP 3800 Bedienungsanleitung

Grundig

Grundig GDV 110 Bedienungsanleitung

Grundig

Grundig VIVANCE GV 3100 VPS/1 Bedienungsanleitung

Grundig

Grundig CINIO GDP 5240 Bedienungsanleitung

Grundig

Grundig GDP 2200 Bedienungsanleitung

Grundig

Grundig GDP 3300/2 Bedienungsanleitung

Grundig

Grundig GDP 7700 Bedienungsanleitung

Grundig

Grundig GDV 100 D/002 Bedienungsanleitung

Grundig

Grundig GDP 2850 Bedienungsanleitung

Grundig

Grundig LIVANCE GDP 3200 Bedienungsanleitung

Grundig

Grundig GDP1610HD Bedienungsanleitung

Grundig

Grundig GDP 2550/2 Bedienungsanleitung

Grundig

Grundig GDP 9550 Bedienungsanleitung

Grundig

Grundig GDR 5400/1GMK2400 Bedienungsanleitung

Grundig

Grundig XENARO GDP 6150/1 Bedienungsanleitung

Beliebte DVD-Player Handbücher anderer Marken

Sony

Sony DVP-F11 Bedienungsanleitung

Philips

Philips DVP3560K/F8 Bedienungsanleitung

LENCO

LENCO DVP-740 X2 Bedienungsanleitung

JVC

JVC XV-N650BEU Bedienungsanleitung

Aiwa

Aiwa XD-DV370 Bedienungsanleitung

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Bedienungsanleitung

Denon

Denon DVM-1805 - DVD Changer Bedienungsanleitung

Toshiba

Toshiba SD-3815 Bedienungsanleitung

Tevion

Tevion 44330 Bedienungsanleitung

Samsung

Samsung DVD-HD860 Bedienungsanleitung

Sylvania

Sylvania DP170SL8 Bedienungsanleitung

Toshiba

Toshiba SD-P1200 Bedienungsanleitung

JVC

JVC XV-D9000E Bedienungsanleitung

Dolby Laboratories

Dolby Laboratories CP650 Bedienungsanleitung

Philips

Philips DVD737K/931 Bedienungsanleitung

Denon

Denon DVD-5900 Bedienungsanleitung

Philips

Philips DVD 951 Bedienungsanleitung

Philips

Philips DVDR3460 Bedienungsanleitung
