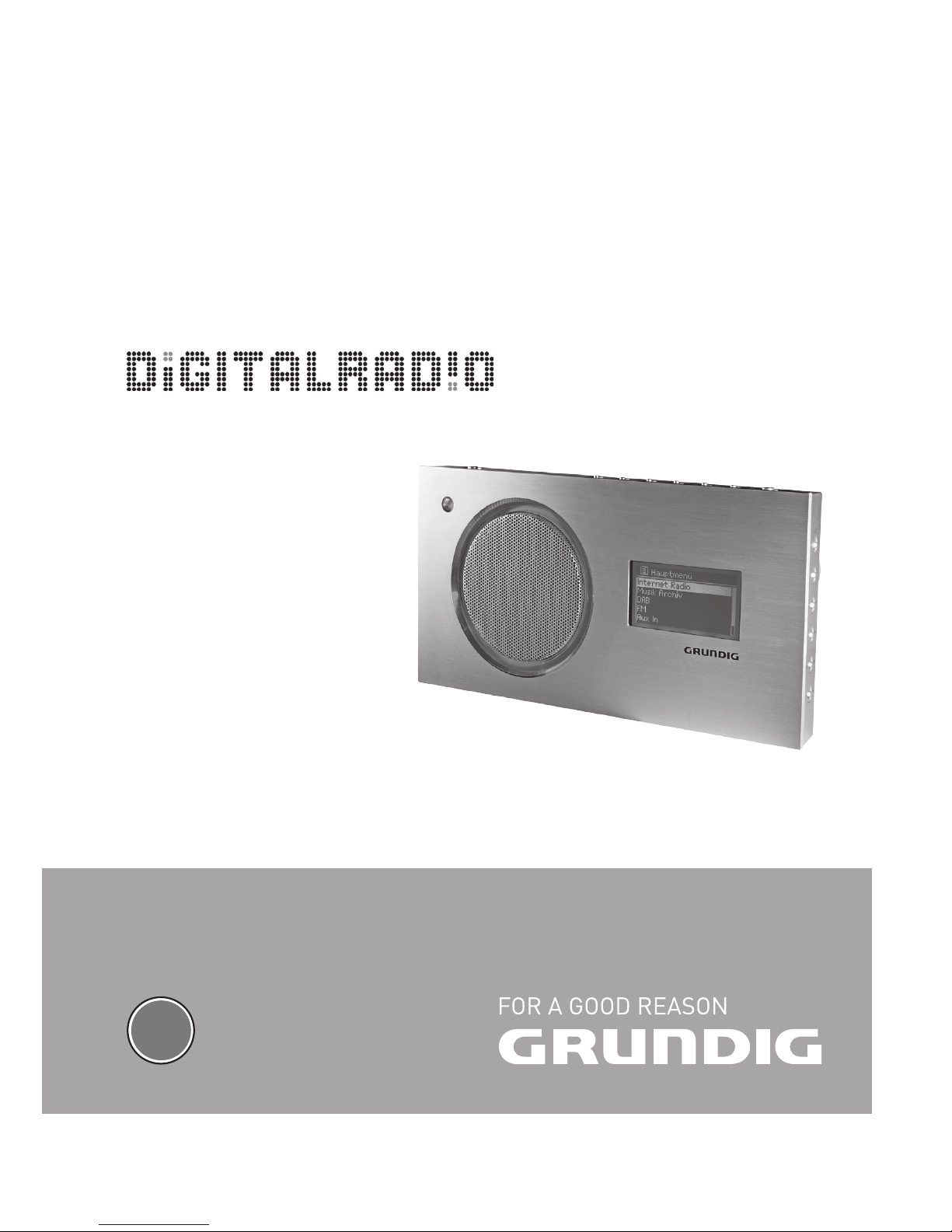

Grundig Cosmopolit 7 WEB Bedienungsanleitung

PORTABLE

INTERNET RADIO

Cosmopolit 7 A WEB

ENGLISH

CONTENTS

----------------------------------------------------------------------------------------------------------------------------------

4 COSMOPOLIT 7 A WEB

4 Special features

4 Packing contents

4 CE declaration

5 SET-UP AND SAFETY

6 OVERVIEW

6 Controls

8 The remote control

9 CONNECTION AND PREPARATION

13 SETTINGS

13 Menu navigation

13 First Installation using the installation

assistant “Wizard”

16 Searching for and saving DAB stations

17 Searching for and saving FM

stations

18 Setting the sound effect “My EQ”

18 Setting the contrast of the display

18 Setting the brightness of the display

19 GENERAL FUNCTIONS

19 Switching on and off

19 Selecting the input source

19 Adjusting the volume

19 Listening with headphones or earphones

19 Select the sound effects

19 Displaying information

20 INTERNET RADIO MODE

20 Listening to an Internet radio station

20 Selecting the internet radio stations’ input

source

20 Selecting Internet radio stations according

to search criteria

22 Storing Internet radio stations on presets

22 Opening preset Internet stations

23 Displaying information about Internet

radio stations

23 Listening to a Podcast

24 INTERNET RADIO TUNING SERVICE

24 Registering on the GRUNDIG homepage

24 Creating lists of favourites

26 Searching for radio stations that are not

provided by V-Tuner

27 SHARED MEDIA MODE

27 Shared media server (audio streaming)

27 Selecting the shared media input source

27 Other playback functions

27 Playlist

28 Playback of media and "remote control"

of Cosmopolit via the PC

29 Play using the "Play to ..." function in the

Windows Media Player

29 Play using the "Play to ..." function without

the Windows Media Player

29 Display information

30 USB MODE

30 Playing the contents of a USB memory

stick

31 Playing tracks in random order

32 DAB MODE

32 Selecting the DAB input source

32 Selecting a DAB station – from the station

list

32 Selecting a DAB station – from presets

32 Displaying DAB station information

33 FM MODE

33 Selecting the FM input source

33 Selecting stations – from presets

33 Stereo and mono reception

33 Displaying RDS station information

34 AUX MODE

34 Listening to an external source

35 TIMER MODE

35 Switch-on timer

36 Sleep timer

37 Reminder timer

ENGLISH

CONTENTS

----------------------------------------------------------------------------------------------------------------------------------

38 SPECIAL SETTINGS

38 Displaying Software and ID information

38 Displaying information and network status

38 Installing an additional network

39 Setting the WLAN region

39 Deleting servers which cannot be

accessed

40 Registering the device with the WLAN

router with individual network settings

41 Setting the time, time zone and date

manually

42 Enter the PIN code for the "remote

control"

42 "Keeping" the connection to the router

43 Deleting a network which cannot be

accessed

43 Changing the menu language

43 Restoring the default settings (reset)

44 INFORMATION

44 Glossary

46 Licence conditions

50 Cleaning the device

50 Environmental note

50 Technical data

51 Troubleshooting

ENGLISH

COSMOPOLIT 7 A WEB

------------------------------------------------------------------------------------

Special features

Your device provides access to numerous inter-

net radio stations via a router. You can connect

the device to the internet using a LAN cable or

WLAN.

For Internet operation, a DSL connection and

DSL ﬂat rate are recommended.

Music titles archived on a PC or hard drive (NAS

- Network Attached Storage) can be played on

the device using a UPnP server or enabled fold-

ers via LAN or WLAN (audio streaming).

Your device supports the industry standard

DLNA (Digital Living Network Alliance) 1.5 digi-

tal media renderer.

This allows you to "Play To" other devices

around your home and combine media stream-

ing with controlling a connected media receiver

while streaming content to it from another Win-

dows 7 PC on a home network.

As well as internet radio stations, the device can

receive DAB and FM radio stations.

The MP3 and WMA music data formats can

also be played back via the USB input using a

USB memory stick or an MP3 player.

Use the Aux input to connect any other audio

sources.

Packing contents

Cosmopolit 7 A WEB

Remote control

1 lithium battery 3 V, CR 2025

Operating manual

D9 V, 1500 mA mains adapter

CE declaration

You can ﬁnd the CE declaration for Cosmopolit

7 A WEB in the form of a pdf ﬁle on the en-

closed CD-ROM or on the Grundig Homepage

www.grundig.com/downloads/doc.

ENGLISH

SET-UP AND SAFETY

-----------------------------------------------------------------------------------------------

Please note the following instructions when set-

ting up the system:

The device is designed for the playback of

audio signals. Any other use is expressly pro-

hibited.

If you want to set up the device on wall

shelves or in cupboards, please ensure that

it is adequately ventilated. There must be at

least 10 cm of space at the side, above and

behind the device.

Do not cover the device with newspapers,

table cloths, curtains, etc.

When setting up the device, remember that

furniture is often coated with various types of

varnish and plastic, which often contain chemi-

cal additives. These additives may cause cor-

rosion to the feet of the unit. This may leave

stains on the surface of the furniture which can

be diﬃcult or impossible to remove.

If the device is exposed to sudden changes in

temperature, for example when taken from the

cold into a warm room, wait at least two hours

before using it.

The device is designed for use in dry rooms.

If you do use it outdoors, make sure it is pro-

tected from moisture such as dripping or

splashing water.

Only use the device in a moderate climate.

Do not place the device close to heating units

or in direct sunlight, as this will impair cooling.

Do not place any vessels containing liquids,

such as vases, on the device.

Do not place any objects such as burning can-

dles on the device.

Do not use any cleaning agents as they may

damage the housing. Clean the device with a

clean dry cloth.

Thunderstorms are a danger to all electrical

devices. Even if the device is switched oﬀ, it

can be damaged by a lightning strike to the

mains or the antenna cable. Always discon-

nect the mains during a storm.

Continuous use at high volume level

can cause damage to the user’s

hearing.

If malfunctions occur due to static electricity

charges or brief mains voltage surges, reset

the device. To do this, pull out the mains

adapter and connect it again after a few sec-

onds.

Do not open the device casing under any cir-

cumstances. Warranty claims are excluded for

damage resulting from improper handling.

Make sure the power plug is freely accessible.

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

● Infrared sensor for remote con-

trol signals.

Display Multifunction display.

ON/OFF Switches the device in and out

of standby mode.

Antenna Telescopic antenna for DAB

and FM reception.

i Displays information about the

Internet, DAB and FM radio

stations.

MENU Opens the menu.

In the menus: moves cursor down.

In radio mode: starts the FM

search.

In the menus: moves cursor up.

In radio mode: starts the FM

search.

Selects options and menu

pages in reverse.

Selects options and menu

pages forwards.e 1I6 In

radio mode: station button 1/6.

In music archive mode: starts

playback of a track.

SNOOZE/OK

In the menu: selects and

confirms options.

In alarm mode: interrupts the

alarm signal.

+ C – Adjust the volume.

M Switches between the Internet

radio, music archive, DAB, FM

and Aux input sources.

e 1I6 In radio mode: station button

1/6.

In music archive mode:

starts playback of a track.

II 2I7 In radio mode: station button

2/7.

In music archive mode: pauses

playback.

Controls

Display

●

ON/OFF

Antenna

OK/SNOOZE

+ C –

8 7

7 II

6 e

ENGLISH

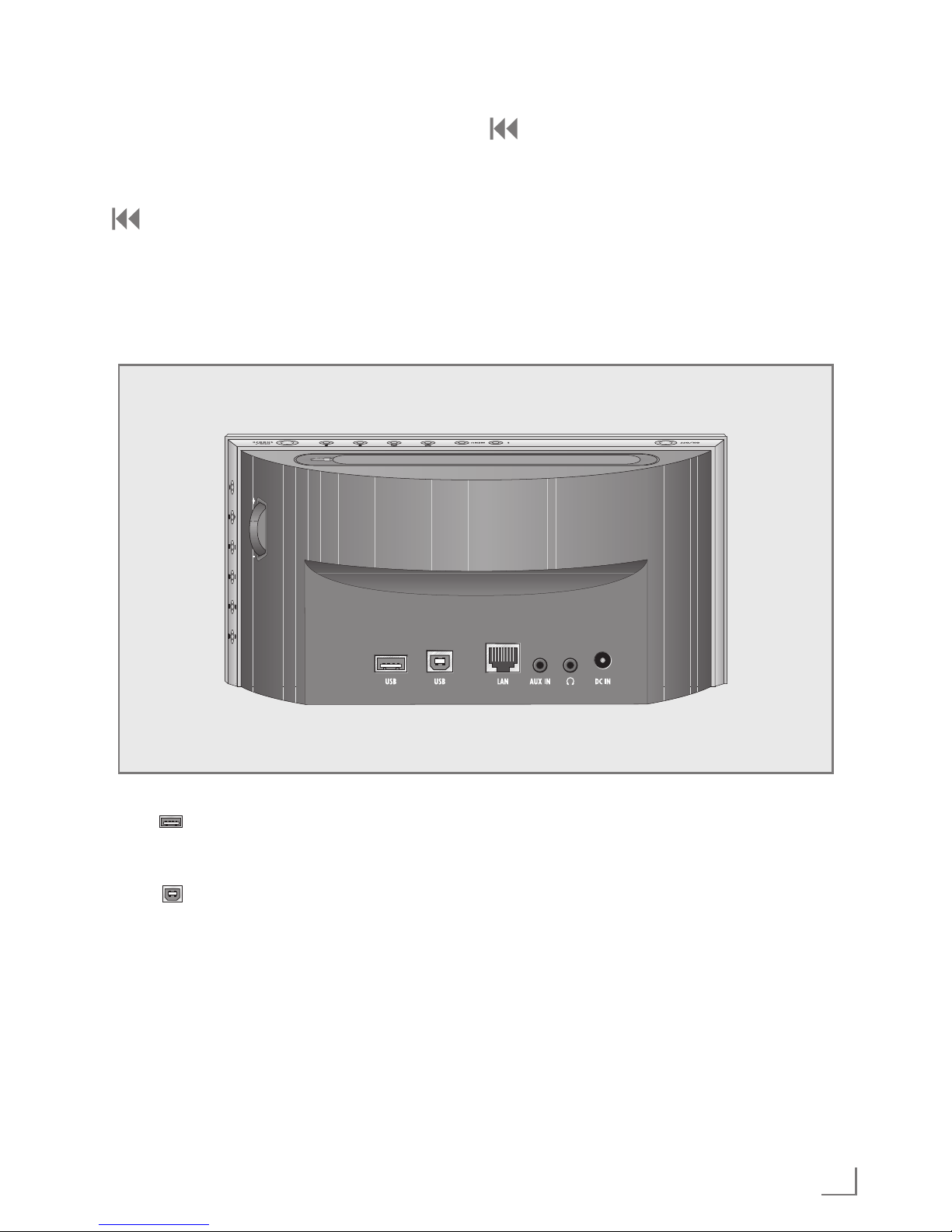

The back of the device

USB USB port type A.

For connecting a USB memory

stick or an MP3 player.

USB USB port type B.

Only for software upgrades.

LAN Socket for connecting to the

Ethernet network via LAN

cable.

AUX IN Audio signal input (stereo/

mono) for connecting an

external device.

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

U Headphone jack for connecting

a stereo headphone set with a

jack plug (3.5 mm).

The loudspeaker of the device is

automatically switched off.

DC IN Socket for the mains adapter

cable.

The only way to completely

disconnect the device from the

mains is to unplug the mains

cable.

7 3I8 In radio mode: station button

3/8.

In music archive mode: ends

playback.

4I9 In radio mode: station button

4/9.

In music archive mode: selects

the previous track

5I10 IIn radio mode: station button

5/10.

In music archive mode: selects

the next track.

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

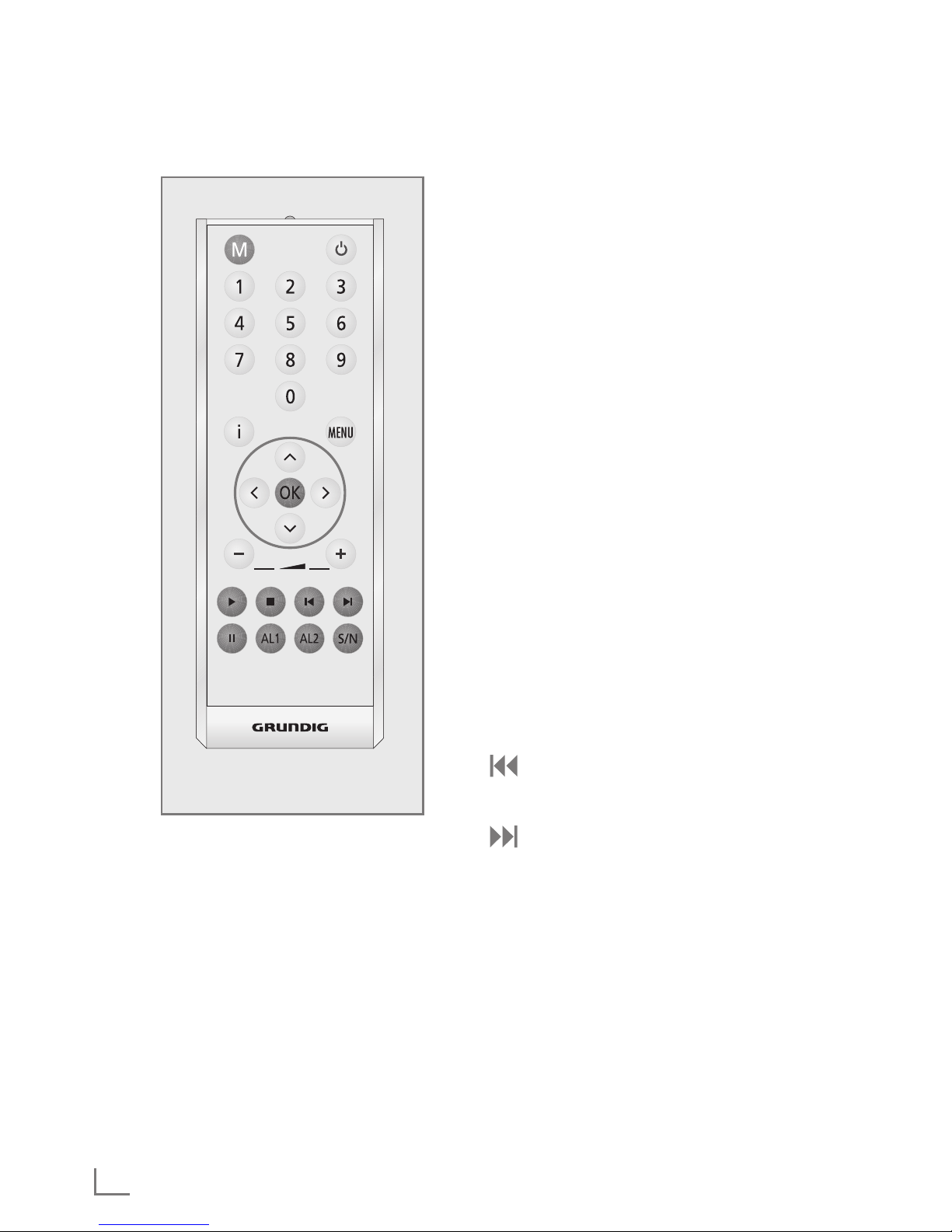

The remote control i Displays information about the

Internet, DAB and FM radio

stations and about the music

archive.

MENU Switches between the Internet

radio, music archive, DAB, FM

and Aux input sources.

In the menus: moves cursor up.

In radio mode: starts the FM

search.

In the menus: moves cursor

down.

In radio mode: starts the FM

search.

Switches in the menu one step

forwards.

Switches in the menu one step

backwards.

OK In the menus: Confirms selected

options.

Interrupts the alarm signal.

–

+ Adjusts the volume.

e In music archive and USB mode:

starts playback of a track.

7 In music archive and USB mode:

ends playback.

In music archive and USB

mode: selects the previous

track.

In music archive and USB

mode: selects the next track.

II In music archive and USB mode:

pauses playback.

AL1 Activates the setting for alarm

time 1.

AL2 Activates the setting for alarm

time 2.

S/N Sets the sleep timer.

Press and hold down: activates

the reminder timer (NAP)

settings.

8 Switches the device to standby

mode and from standby mode to

the last input source selected.

M Switches between the Internet

radio, music archive, DAB, FM

and Aux input sources.

1 ... 0 Number buttons for various

inputs.

In radio mode: Selects Internet,

DAB and FM stations stored on

preset channels 1 to 10.

ENGLISH

CONNECTION AND PREPARATION ---------------------------------------

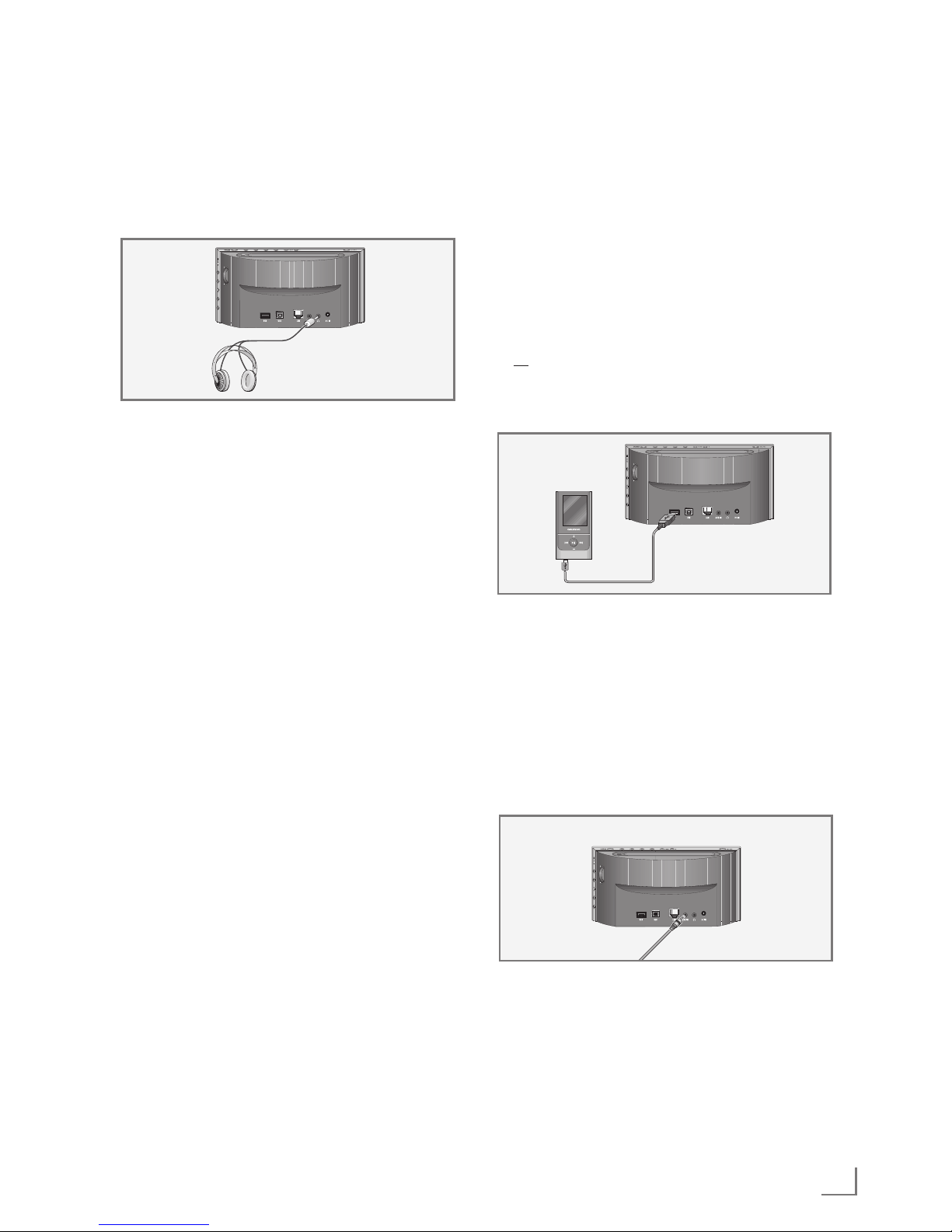

Connecting the headphones

1 Insert the headphone plug (3.5 mm) into the

»U« socket on the device.

– The loudspeaker of the device is switched

off.

Important:

Excessive volume levels when using

headphones or earphonescan damage

your hearing.

Note:

You can also use the »U« socket to connect

the device to a hi-fi system.

Connecting an MP3 player or a

USB memory stick

Important:

The device must be switched off while the

USB connection is being made. If it is not

switched off, data can be lost.

1 Connect the USB interface of the MP3 player

to the »USB« (type A) socket on the device

using a standard USB cable

Insert the USB plug of the USB memory stick in

the USB socket »USB« (type A) on the device.

Connecting an external device

Note:

Switch the device off before you connect

external devices.

1 Use standard audio cables to connect the

audio outputs of the external device to the

»AUX IN« socket on the device.

ENGLISH

CONNECTION AND PREPARATION ---------------------------------------

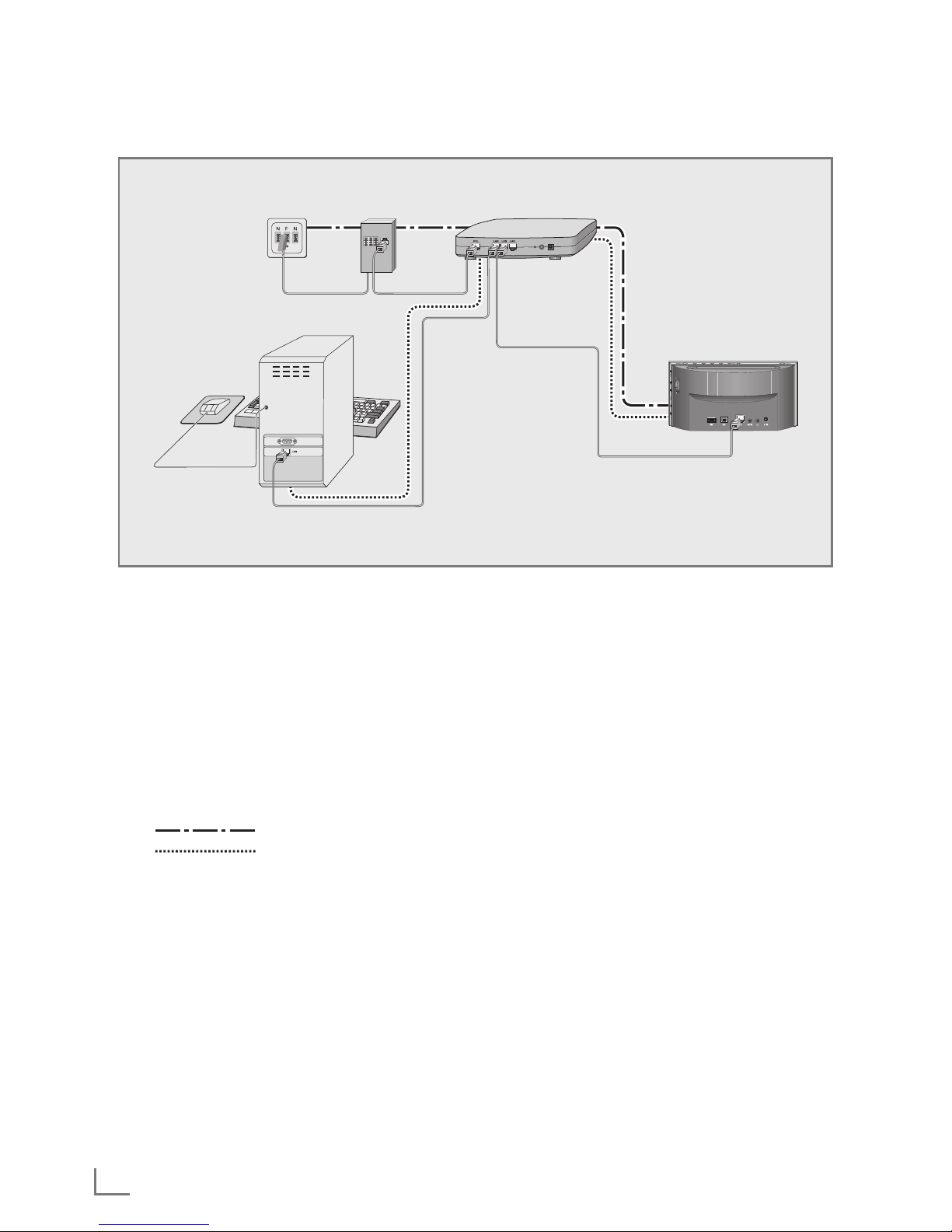

LAN connection to the Internet

Note:

Switch the device off before you connect it

to the internet.

1 Connect the Ethernet socket of the modem/

router to the »LAN« socket of the device using

a standard network cable (Twistedpair, RJ45

plug).

– The data throughput level is 10/100 MBIT.

Note:

The lines represent the function.

Internet radio

Music archive (audio

streaming)

Splitter

Cosmopolit 7 A WEB

Music archive on the computer

Modem/routerTelephone socket

Andere Handbücher für Cosmopolit 7 WEB

Inhaltsverzeichnis

Andere Grundig Radio Handbücher

Grundig

Grundig World Receiver G-2000A Bedienungsanleitung

Grundig

Grundig WORLD RECEIVER Bedienungsanleitung

Grundig

Grundig GRUNDIG MINI 100PE Bedienungsanleitung

Grundig

Grundig TOUGH ENOUGH GS350DL Bedienungsanleitung

Grundig

Grundig DTR 5000 Bedienungsanleitung

Grundig

Grundig 01M-GIR1140-4320-01 Bedienungsanleitung

Grundig

Grundig DTR 5000 2.0 BT DAB+ WEB Bedienungsanleitung

Grundig

Grundig Music 6000 DAB+ Bedienungsanleitung

Grundig

Grundig Music 5000 DAB+ Bedienungsanleitung

Grundig

Grundig SATELLIT 600 PROFESSIONAL Bedienungsanleitung

Grundig

Grundig GDR730DABSOL Bedienungsanleitung

Grundig

Grundig DKR 1000 Bedienungsanleitung

Grundig

Grundig RR 316 Bedienungsanleitung

Grundig

Grundig Sonoclock 895 WEB DAB+ Bedienungsanleitung

Grundig

Grundig Sonoclock 50 Technisches Handbuch

Grundig

Grundig Eaton G4000A Bedienungsanleitung

Grundig

Grundig MINI400 Bedienungsanleitung

Grundig

Grundig GRUNDIG S350 Bedienungsanleitung

Grundig

Grundig DKR 2000 Bedienungsanleitung

Grundig

Grundig Sonoclock 890 A WEB Bedienungsanleitung

Grundig

Grundig DTR 6000 2.1 BT DAB+ WEB Bedienungsanleitung

Grundig

Grundig GRUNDIG YB300 Bedienungsanleitung

Grundig

Grundig Sonoclock 30 SC 3340 LW Technisches Handbuch

Grundig

Grundig E100 Bedienungsanleitung

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
