Grundig DPS 5200 Bedienungsanleitung

HIFI LOUDSPEAKERS

DPS 5200

______________________________________________________________________________________________________

4 Sicherheit 7 Bedienelemente des Subwoofers

4 Pflege 7 Subwoofer einstellen

4 Lieferumfang 8 Störungen selbst beheben

5 Lautsprecher aufstellen 8 Technische Daten

6 Impedanz der Lautsprecher 55 Service

einstellen

6 Lautsprecher anschließen

9 Safety 13 Operating controls of the

9 Cleaning subwoofer

9 Packing contents 13 Setting the subwoofer

10 Setting up the loudspeakers 14 Rectifying minor problems

11 Setting the impedance 14 Technical data

of the loudspeakers 55 Service

11 Connecting the loudspeakers

12 Additional information for

units (subwoofer) sold in UK.

15 Sécurité 18 Eléments de commande du

15 Entretien subwoofer

15 Volume de livraison 18 Réglage du subwoofer

16 Installation des haut-parleurs 19 Remédier soi-même aux pannes

17 Réglage de l’impédance des 19 Caractéristiques techniques

haut-parleurs 55 Service

17 Raccordement des haut-parleurs

20 Sicurezza 23 Elementi di comando del

20 Cura subwoofer

20 Volume di consegna 23 Regolazione del subwoofer

21 Installazione degli altoparlanti 24 Come eliminare i disturbi

22 Regolazione dell’impedenza 24 Dati tecnici

degli altoparlanti 55 Service

22 Collegamento degli altoparlanti

25 Segurança 28 Elementos de comando do

25 Conservação subwoofer

25 Material fornecido 28 Regular o subwoofer

26 Colocação dos altifalantes 29 Problemas de solução fácil

27 Regular a impedância 29 Dados técnicos

dos altifalantes 55 Service

27 Conectar os altifalantes

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

PORTUGUÊS

______________________________________________________________________________________________________

ESPAÑOL

NEDERLANDS

DANSK

SVENSKA

SUOMI

30 Seguridad 33 Mandos del subwoofer

30 Cuidado 33 Ajustar el subwoofer

30 Volumen de suministro 34 Problemas de fácil solución

31 Colocar los altavoces 34 Datos técnicos

32 Ajustar la impedancia de 55 Service

los altavoces

32 Conectar los altavoces

35 Veiligheid 38 Bedieningselementen van de

35 Onderhoud subwoofer

35 Omvang van de levering 38 Subwoofer instellen

36 Luidsprekers opstellen 39 Storingen zelf verhelpen

37 Impedantie van de luidsprekers 39 Technische gegevens

instellen 55 Service

37 Luidsprekers aansluiten

40 Sikkerhed 43 Subwooferens betjeningselementer

40 Vedligeholdelse 43 Indstilling af subwooferen

40 Indeholdt i leveringen 44 Afhjælpning af fejl

41 Opstilling af højtalerne 44 Tekniske data

42 Indstilling af højtalernes 55 Service

impedans

42 Tilslutning af højtalerne

45 Säkerhet 48 Reglage på subwoofern

45 Skötsel 48 Ställa in subwoofern

45 Leveransinnehåll 49 Åtgärda störningar

46 Ställa upp högtalarna 49 Tekniska data

47 Ställa in högtalarnas 55 Service

impedans

47 Ansluta högtalarna

50 Turvallisuus 53 Subwooferin käyttölaitteet

50 Hoito 53 Subwooferin säätäminen

50 Toimituskokonaisuus 54 Häiriöiden poistaminen

51 Kovaäänisten sijoittaminen 54 Tekniset tiedot

52 Kovaäänisten impedanssin 55 Service

säätäminen

52 Kovaäänisten liittäminen

ENGLISH

DPS 5200 HIFI LOUDSPEAKERS________________

The DPS 5200 HiFi loudspeakers are designed for operation with your Grundig

AV receiver, which is in turn connected to your Grundig television or to other

external devices.

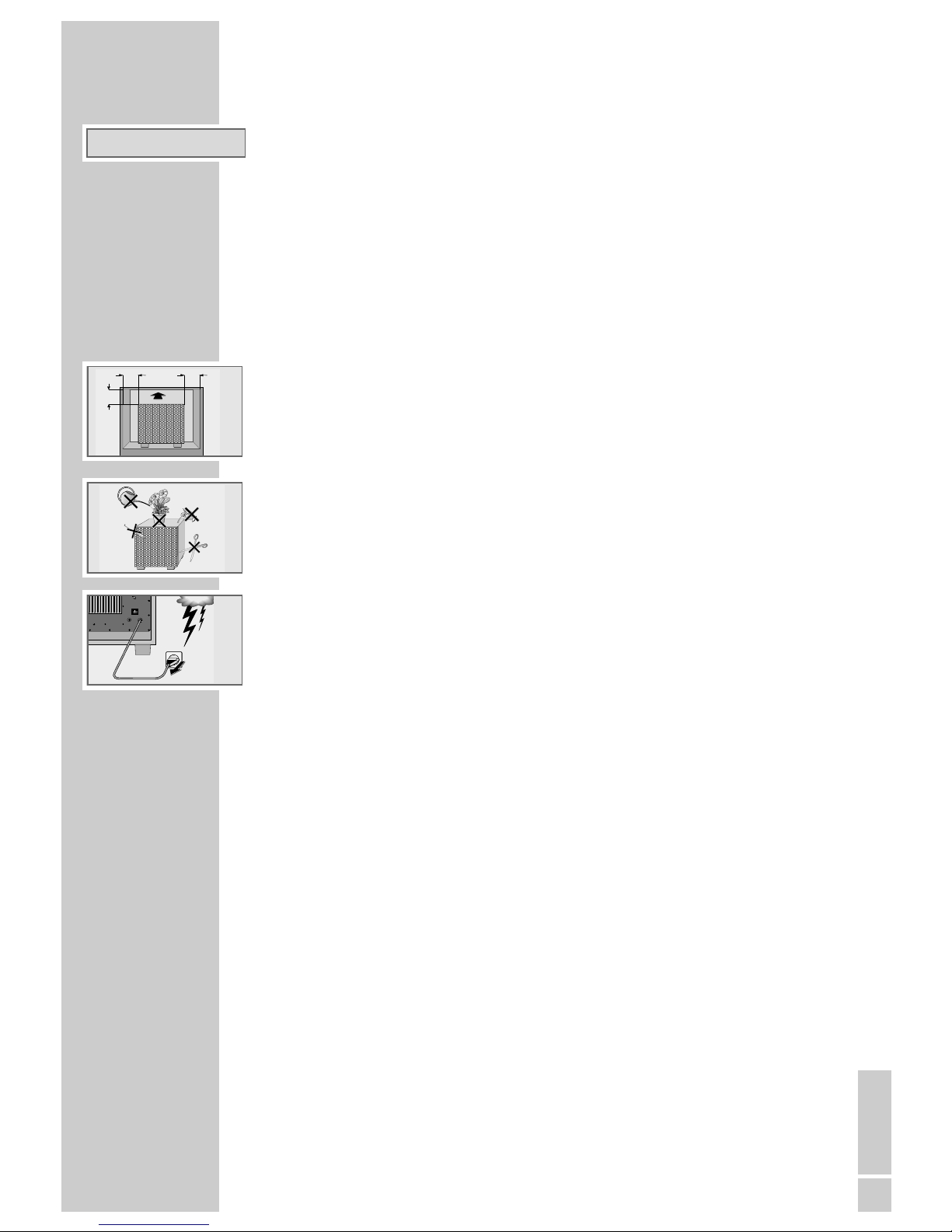

Safety

To ensure that your loudspeakers provide you with long-term satisfaction and

enjoyment, please observe the following instructions.

These loudspeakers are designed for the playback of audio signals in your

home. Any other use is expressly prohibited.

When setting up the subwoofer, make sure that there is at least 20 cm of space

at the side, above and at the back of the device.

The loudspeakers are designed for use in dry rooms. You must make sure that

the device is protected from moisture such as rain or splashing water. Do not set

up the loudspeakers near a heater or in direct sunlight.

Do not place any vessels containing fluids such as vases on the loudspeakers.

These may be knocked over and spill fluid on the electrical components, thus

presenting a safety risk. Do not place any objects such as burning candles on

the loudspeakers.

Do not open the loudspeaker casing under any circumstances. The manufacturer

will not accept any liability for damage resulting from improper handling.

Thunderstorms are a danger to all electrical devices. Even if the subwoofer is

switched off, it can be damaged by a lightning strike to the mains. Always

remove the mains plug before an electrical storm.

Cleaning

Clean the loudspeaker casing with a clean, moist leather cloth. Do not use any

cleaning agent, as this may damage the casing.

Packing contents

12 front loudspeakers

22 surround loudspeakers

3Centre loudspeaker

4Subwoofer

5Audio connection cable for the subwoofer

65 loudspeaker cables

72 x 12 rubber stoppers for loudspeakers

8Operating manual

! SERVICE !! SERVICE !! SERVICE !

AUDIOINPUT

ON/ OFF

FUSE/T3.15AL 230˜50/60 Hz

ENGLISH

DPS 5200 HIFI LOUDSPEAKERS_____________________________________________

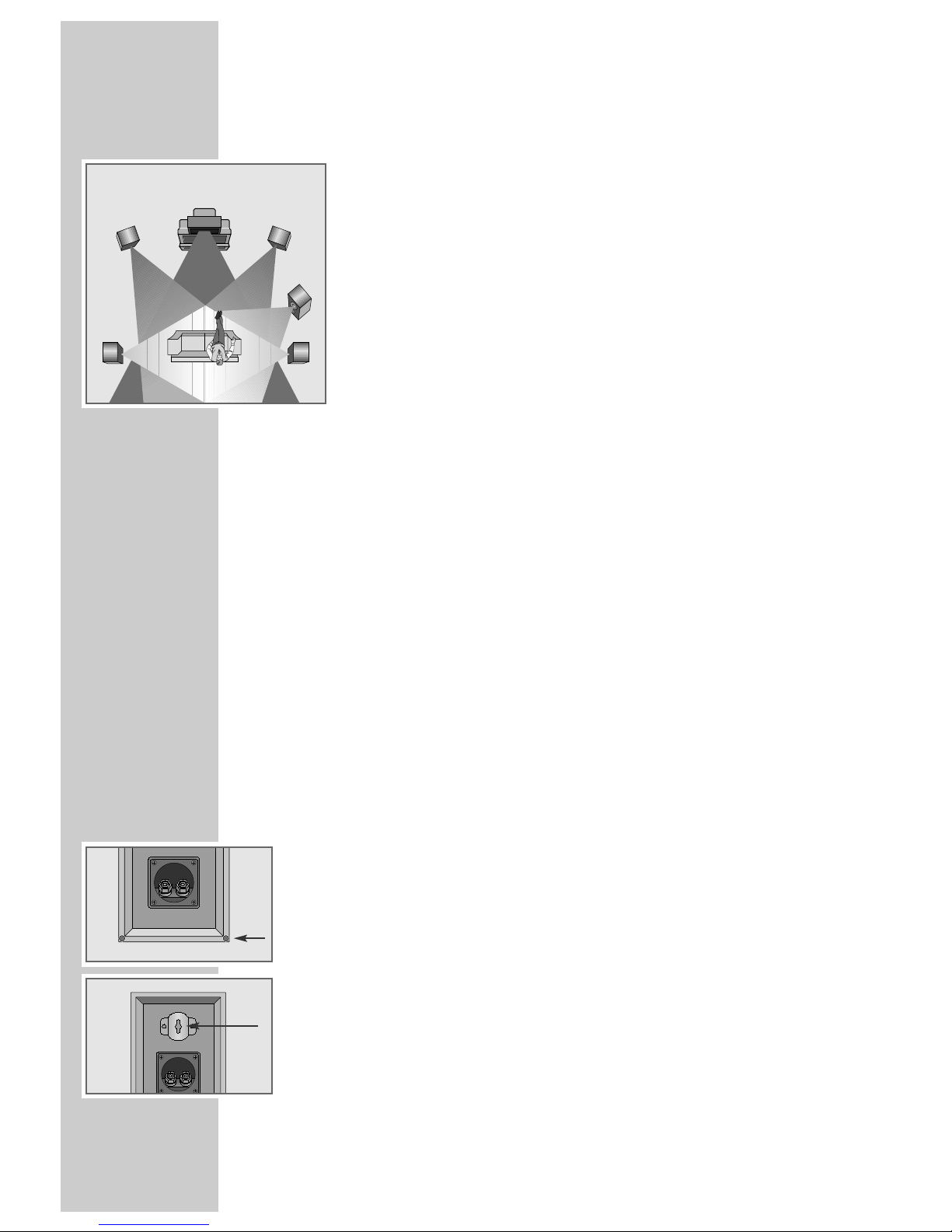

Setting up the loudspeakers

As far as possible, set up the front loudspeakers in a line with the TV set, angled

slightly towards the listener. The listener and the speakers should form an equila-

teral triangle. You thus achieve the best stereo effect.

The surround loudspeakers should be angled slightly towards one another at a

sufficient distance behind the listener to the left and right. They should be posi-

tioned at ear-height, even when wall-mounted.

Set up the centre loudspeaker at the midpoint between the two front speakers,

e.g. above or below the TV set. The best height for the centre loudspeaker is at

the ear-height of the seated listener.

To achieve an optimal bass tone sound, we recommend that you set up the sub-

woofer to the left or right of the front loudspeakers, in such a way that the sound

traverses the room along its diagonal.

When you are in the centre of the room, you may not be able to pick up the

bass tone of the subwoofer sufficiently. This is caused by what are called stan-

ding waves, which occur between parallel walls. In this case, you just have to

position the subwoofer facing the wall at an angle, or perhaps switch the phase

over.

Avoid placing the loudspeakers in a corner, because this over-amplifies the bass

tones.

Objects/curtains in front of the loudspeakers significantly impair the treble tones

and the stereo effect.

Note:

Depending on where you position the speakers (e.g. on top of furniture), use

the rubber stoppers included for the front, centre and surround speakers.

Please note that furniture surfaces are coated with many different types

of varnish and plastic, most of which contain chemical additives. These

additives can corrode the device supports, leaving residues on the furniture

surfaces which can be difficult or impossible to remove.

Wall mounting of the surround loudspeakers

Fasten the wires of the loudspeaker cables to the input sockets of the surround

loudspeakers before you wall-mount them.

1Stick the rubber stoppers included (2 x ø 6 mm) to the two lower corners on

the back of the surround loudspeakers.

2Drill two holes, push in two wall plugs and screw in the screws so that the

heads are jutting out approx. 6 mm.

3Hang up the surround loudspeakers by means of the holes in the brackets.

Front L

Surround L Surround R

Front R

Center

Subwoofer

ENGLISH

DPS 5200 HIFI LOUDSPEAKERS_____________________________________________

Setting the impedance of the loudspeakers

All the loudspeakers in the DPS 5200 speaker set have a rated impedance of

4Ω. Before you connect the loudspeakers to the AV receiver, this value must be

set on the AV receiver.

Connecting the loudspeakers

You must not touch the loudspeaker connections indicated with the symbol on

the left during operation. To connect the loudspeakers, switch off the AV receiver

and disconnect the mains.

Do not remove the insulation from too long a section of the loudspeaker cable

wires, and twist them together properly before connecting them. Do not let any

strands stick out, as this can cause short circuits.

To connect the loudspeaker cables, loosen the appropriate terminal screw on the

back of the device and insert the wire into the opening provided. Then tighten

the terminal screw again.

Note:

Check that the connection is secure by pulling lightly on the loudspeaker

cable.

1Use the loudspeaker cables included to connect the input sockets of the front

loudspeakers with the output sockets of the receiver, observing the polarity.

Note:

Connect the loudspeaker cable with the coloured marking to the »+« inputs

and outputs, and the unmarked cable to the »–«. Connect the loudspeaker

cable with the coloured marking to the red output socket of the AV receiver,

and the unmarked cable to the black socket.

2Use the loudspeaker cables included to connect the input sockets of the cent-

re loudspeaker with the output sockets of the receiver, observing the polarity.

3Use the loudspeaker cables included to connect the input sockets of the surro-

und loudspeakers with the output sockets of the receiver, observing the pola-

rity.

4Use the audio cable included to connect the »AUDIO INPUT« socket of the

subwoofer with the »SUBWOOFER OUT« socket of the receiver.

5Insert the subwoofer power cord plug into the socket.

Note:

Only connect the subwoofer to the mains when all the other system compo-

nents have been completely connected.

min. max.

AUDIO INPUT

FUSE/T3.15AL 230 ˜50/60 Hz

AKER

DPS 5200 HIFI LOUDSPEAKERS_____________________________________________

Additional information for units (subwoofer)

sold in the UK.

Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply.

The range of multi-system receivers is built to work in most European countries. However, the mains plug and

socket system for the UK differs from many European countries.

This appliance has been supplied with a fitted, non-removable, approved converter plug for use in the UK. This

converter plug is fitted with a 5A rated fuse.

In case this appliance is supplied with a moulded 2-pin Euro plug only, which is unsuitable for UK operation, this

must be cut off and immediately disposed of. An approved 13A, 3-pin UK plug should then be fitted by a

qualified electrician.

Note:

The severed Euro plug must be destroyed to avoid a possible shock hazard should it be inserted into a socket

elsewhere.

If a non-rewireable 3-pin plug or a rewireable 13A (BS1363) 3-pin plug is used, it must be fitted with a 5A ASTA

or BSI approved BS1362 fuse. If any other type of plug is used it must be protected by a 5A fuse either in the

plug, or at the distribution board. If this type of plug becomes defective, ensure that the fuse is removed before

disposal, to eliminate potential shock hazard.

If it is necessary to change the fuse in the non-rewireable plug, the correct type and rating (5A ASTA or BSI

approved BS1362) must be used and the fuse cover must be refitted. If the fuse cover is lost or damaged, the lead

and plug must not be used until a replacement is obtained. Replacement fuse covers should be obtained from

your dealer.

Important:

The wires in the mains lead are colour coded in accordance with the following code:

BLUE – NEUTRAL

BROWN – LIVE

As the colours of the wires in the mains lead of your appliance may not correspond with the coloured marking

identifying terminals in your plug, proceed as follows:

Connect the BLUE coloured wire to plug terminal marked with the letter “N” or coloured black.

Connect the BROWN coloured wire to the plug terminal marked with the letter “L” or coloured red.

In no circumstance must any of the wires be connected to the terminal marked with the letter “E”, earth symbol

“z”, coloured green, or green & yellow.

Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer

Relations (01788 570088)

Moulded 3-pin lead set, suitable for UK use:

Ref: Leadset UK 8290-991-224

Moulded 2-pin Euro lead set, not suitable for UK use:

Ref: Leadset Euro 8290-991-316

ENGLISH

DPS 5200 HIFI LOUDSPEAKERS_____________________________________________

Operating controls of the subwoofer

I O ON/OFF Switches the subwoofer on and off (on back of device).

When you switch it on, the operating indicator on the

subwoofer lights up red.

AUTO ON/OFF Switches the automatic activation of the subwoofer on

and off (on back of device).

»ON«: The subwoofer switches on automatically when

it receives audio signals. If it does not receive any audio

signals, it switches off automatically after 5 to 6 minu-

tes.

PHASE 0° 180° Phase switch (on back of device).

VOLUME Adjusts the volume (on back of device).

AUDIO INPUT Audio signal input (on back of device).

230V~50/60 Hz Mains cable (on back of device).

Operating indicator (on front of device). Lights up red

when the subwoofer is switched on, and green during

operation.

Setting the subwoofer

When the system is connected, the volume of the subwoofer must be adjusted to

that of the other loudspeakers. The subwoofer must be switched off.

1Turn the »VOLUME« knob of the subwoofer to the middle.

2Switch on all the other system components.

3Switch on the subwoofer with »I O ON/OFF«.

4Set the receiver – in tuner mode, for example – to the desired volume level.

5Adjust the volume of the subwoofer step by step to match the volume of the

other loudspeakers.

6If necessary, switch over the phase with »PHASE 0° 180°«.

Note:

The phase is usually determined by the amplifier. Depending on the position

of the subwoofer and the distance to the listener, switching over the phase

can improve the quality of the bass playback.

AUTO PHASE

OFF 0

180

VOLUME

min. max.

AUDIO INPUT

ON / OFF

FUSE/T3.15AL 230 ˜50/60 Hz

AUTO PHASE

OFF 0

180

VOLUME

min. max.

AUDIO INPUT

ON / OFF

FUSE/T3.15AL 230 ˜50/60 Hz

1414

DPS 5200 HIFI LOUDSPEAKERS_____________________________________________

Rectifying minor problems

Possible cause

The loudspeaker cables are not connec-

ted correctly

The loudspeaker cables are connected

with the wrong polarity

The mains cable is not plugged in

correctly

The volume is turned down to the

minimum

The subwoofer is switched off with

»I O ON/OFF«

The »AUTO ON/OFF« switch is set

to »OFF«

The audio input signal is too weak

Remedy

Check the connections of the loudspea-

ker cables

Check the polarity of the connections

Check the mains connection

Turn up the volume with the

»VOLUME« knob

Set the »I O ON/OFF« switch

to »ON«

Set the »AUTO ON/OFF« switch

to »ON«

Turn up the volume of the receiver

Fault

No sound

The sound effect is inadequate

No power supply, although the subwo-

ofer is switched on

No sound from the subwoofer

The subwoofer does not switch on auto-

matically

If the remedies given below do not work, please consult an authorised GRUNDIG dealer. Please bear in mind

that malfunctions can also be caused by external devices such as video recorders or satellite receivers.

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and

93/68/EEC.

These devices conform to the safety regulation DIN EN 60065 (VDE 0860) and

therefore the international safety regulation IEC 60065.

Never open up the loudspeakers. The manufacturer will not accept any liability

for damage resulting from improper handling.

General information

Mains voltage:

Subwoofer: 230V ~, 50/60 Hz

Maximum power consumption:

Subwoofer:

Operating: ≤405 W, standby: ≤2 W

Ambient temperature:

+10°C to +35°C

Loudspeakers

Music/rated load:

Music:

5 x 100 W (4 Ω) (front, centre, surround), 1 x 120 W

(subwoofer)

Nominal:

5 x 65 W (4 Ω), 1 x 80 W (subwoofer)

Rated impedance:

5 x 4 Ω, 1 x > 10 kOhm (subwoofer)

Frequency range:

Front and surround loudspeakers:

100 ... 20,000 Hz

Subwoofer:

40 ... 200 Hz

System:

5 x 2-way (magnetically shielded)

Subwoofer: bass reflex system

Dimensions:

Front and surround loudspeakers:

W x H x L: 122 x 172 x 141 mm

Centre loudspeaker:

W x H x L: 360 x 105 x 165 mm

Subwoofer:

W x H x L: 360 x 355 x 360 mm

Weight:

Front and surround loudspeakers: 1.4 kg

Centre loudspeaker: 2.8 kg

Subwoofer: 13.4 kg

Technical and design modifications reserved.

_________________________________________________________

GRUNDIG Service

GRUNDIG Kundenberatungszentrum

Haben Sie Fragen?

Unser Kundenberatungszentrum steht Ihnen werktags stets von

8.00 – 19.00 Uhr zur Verfügung.

Haben Sie Fragen zur Umweltverträglichkeit unserer Geräte,

wenden Sie sich an die GRUNDIG

Öko-Technologie,

Fax: 0911/703-9213.

Grundig Kundenberatungszentrum

Montags bis Freitags

von 8.00 bis 19.00 Uhr

Deutschland: 0180 / 530 21 22*

Österreich: 0800 / 700 600*

*gebührenpflichtig

GRUNDIG BELUX N.V.

Deltapark, Weihoek 3, Unit 3G

B-1930 Zaventem

+32/2-7 16 04 00

GRUNDIG UK LTD.

Elstree Way, Borehamwood, Herts, WD6 1RX

GB Großbritannien/Great Britain

+44/1 81-3 24 94 00

Technical Service

Unit 35, Woodside Park, Wood Street

Rugby, Warwickshire, CV21 2NP

Großbritannien/Great Britain

+44/1 78-8 57 00 88

GRUNDIG IRELAND LTD.

2 Waverley Office Park, Old Naas Road

EIR Dublin 12

+3 53/1-4 50 97 17

GRUNDIG FRANCE S.A.

5 Boulevard Marcel Pourtout

F-92563 Rueil Malmaison Cedex

+33/1-41 39 26 26

GRUNDIG SCHWEIZ AG

Steinacker Straße 28

CH 8302 Kloten

+41/1-8 15 81 11

GRUNDIG PORTUGUESA

Comércio de Artigos Electrónicos, Lda.

Rua Bento de Jesus Caraça 17

P-1495 Cruz Quebrada, Lisboa

+3 51/1-4 19 75 70

GRUNDIG ESPAÑA S.A.

Solsonés, 2 planta baja B3

Edificio Muntadas (Mas Blau)

E-08820 El Prat De Llobregat (Barcelona)

+34/93-4 79 92 00

GRUNDIG Deutschland

Ihre regionale Kundendienst-Stelle in Deutschland erreichen Sie unter:

Telefon 0180/523 18 52* • Telefax 0180/5 23 18 46*

*gebührenpflichtig

GRUNDIG NORGE A.S.

Glynitveien 25, Postboks 234

N-1401 Ski

+47/64 87 82 00

GRUNDIG DANMARK A/S

Lejrvej 19

DK-3500 Værløse

+45/44 48 68 22

GRUNDIG OY

Luoteisrinne 5

SF-02271 Espoo

+3 58/9-8 04 39 00

GRUNDIG SVENSKA AB

Albygatan 109 d, Box 4050

S-17104 Solna

+46/8-6 29 85 30

GRUNDIG POLSKA SP.Z.O.O.

Ul. Czéstochowska 140

PL-62800 Kalisz

+48/62-7 66 77 70

GRUNDIG AUSTRIA Ges.m.b.H.

Breitenfurter Straße 43-45

A-1120 Wien

+43/1-81 11 70

GRUNDIG NEDERLAND B.V.

Gebouw Amstelveste

Joan Muyskenweg 22

NL-1096 CJ Amsterdam

+31/20-5 68 15 68

GRUNDIG ITALIANA S.P.A.

Via G.B. Trener, 8

I-38100 Trento

+39/4 61-89 31 11

Andere Handbücher für DPS 5200

Inhaltsverzeichnis

Andere Grundig Sprecher Handbücher

Grundig

Grundig GSB 710 Bedienungsanleitung

Grundig

Grundig BLUEBEAT GSB 500 Bedienungsanleitung

Grundig

Grundig GSB 120 Bedienungsanleitung

Grundig

Grundig PSW 5000 Bedienungsanleitung

Grundig

Grundig BLUEBEAT GSD 300 Bedienungsanleitung

Grundig

Grundig Audiorama 9000 Bedienungsanleitung

Grundig

Grundig Band 360 Bedienungsanleitung

Grundig

Grundig GSB 720 Bedienungsanleitung

Grundig

Grundig PartyHit Bedienungsanleitung

Grundig

Grundig GSB 910 SW Bedienungsanleitung

Grundig

Grundig Bluebeat GSB 110 Bedienungsanleitung

Grundig

Grundig Sonoclock 360 Bedienungsanleitung

Grundig

Grundig GSB 800 Bedienungsanleitung

Grundig

Grundig PSW 5000 Bedienungsanleitung

Grundig

Grundig Sonoclock 360 Bedienungsanleitung

Grundig

Grundig GSB 750 Bedienungsanleitung

Grundig

Grundig GSB 200 NFC Bedienungsanleitung

Grundig

Grundig GSB 600 NFC Bedienungsanleitung

Grundig

Grundig GSB 2000 Bedienungsanleitung

Grundig

Grundig SOLO-GBT Bedienungsanleitung

Grundig

Grundig FineArts MR 8000 Bedienungsanleitung

Grundig

Grundig CLUB Bedienungsanleitung

Grundig

Grundig Sonoclock 360 Bedienungsanleitung

Grundig

Grundig RS-Set 2 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
