CONTENTS

----------------------------------------------------------------------------------------------------------------------------------

3 SET-UP AND SAFETY

4 OVERVIEW

4 The hi-fi system controls

6 The remote control

7 The hi-fi system displays

8 CONNECTION AND PREPARATION

8 Connecting the loudspeakers

8 Connecting external devices

8 Connecting an MP3 player or a USB

memory stick

9 Inserting a memory card

9 Removing the memory card

9 Connecting the headphones

10 Connecting to the mains supply

10 Putting batteries in the remote control

11 SETTINGS

11 Setting the clock

11 Switch off or on the RDS time

synchronisation

11 Tuning and storing radio stations

12 GENERAL FUNCTIONS

12 Switching on and off

12 Automatic shutdown

12 Selecting the input source

12 Adjusting the volume

12 Selecting sound settings

12 Switching the Ultra Bass System on and

off

12 Muting

12 Displaying the time

13 TUNER MODE

13 Selecting the tuner input source

13 Selecting presets

13 Stereo/mono reception

13 RDS information

14 CD MODE

14 Selecting the CD input source

14 Inserting and playing CDs

15 Pausing and resuming playback

15 Repeat actual track

15 Selecting another track

15 Searching for a passage within a track

15 Repeating a track (Repeat One)

15 Repeating all tracks of a CD (Repeat All)

15 Repeating all files in an album (MP3/

WMA only)

15 Playing tracks in random order

16 MP3/WMA displays

16 Programming track numbers

17 USB AND SD/SDHC/MMC MODE

17 Playing the contents of an MP3 player or

a USB memory stick

17 Playing the contents of an SD/SDHC/

MMC memory card

18 CASSETTE MODE

18 Selecting the cassette input source

18 Playback

18 Fast forward and reverse search

18 Recording onto cassette

19 Synchro recording

19 Recording from the radio

19 AUX MODE

19 Listening to an external source

20 TIMER MODE

20 Timer

20 Sleep Timer

21 INFORMATION

21 Cleaning the device

21 Cleaning the CD unit

21 Cleaning the tape drive

21 Technical data

22 Environmental note

22 General information on laser devices

23 Troubleshooting

ENGLISH

SET-UP AND SAFETY

-----------------------------------------------------------------------------------------------

Please note the following instructions when set-

ting up the system:

The hi-ﬁ system is designed for the playback

of audio signals. Any other use is expressly

prohibited.

If you want to set up the hi-ﬁ system on wall

shelves or in cupboards, please ensure that

it is adequately ventilated. There must be at

least 10 cm of space at the side, above and

behind the hi-ﬁ system.

Do not cover the hi-ﬁ system with newspapers,

table cloths, curtains, etc.

When setting up the hi-ﬁ system, remember

that furniture is often coated with various types

of varnish and plastic, which often contain

chemical additives. These additives may cause

corrosion to the feet of the unit. This may leave

stains on the surface of the furniture which can

be diﬃcult or impossible to remove.

If the hi-ﬁ system is exposed to sudden changes

in temperature, for example when taken from

the cold into a warm room, wait at least two

hours before using it.

The hi-ﬁ system is designed for use in dry

rooms. If you do use it outdoors, make sure it

is protected from moisture such as dripping or

splashing water.

Only use the hi-ﬁ system in a moderate climate.

Do not place the hi-ﬁ system close to heating

units or in direct sunlight, as this will impair

cooling.

Do not place any vessels containing liquids,

such as vases, on the hiﬁ system. Do not insert

any foreign objects in the CD compartment.

Do not place any objects such as burning can-

dles on the hi-ﬁ system.

Do not open the hi-ﬁ system casing under any

circumstances. Warranty claims are excluded

for damage resulting from improper handling.

Thunderstorms are a danger to all electrical

devices. Even if the hi-ﬁ system is switched oﬀ,

it can be damaged by a lightning strike to the

mains. Always disconnect the mains plug dur-

ing a storm.

7 Excessive sound pressure from

the earphones or headphones

can cause hearing loss.

Note:

7 Do not connect any other equipment while

the device is switched on. Switch off the oth-

er devices as well before connecting them.

7 Only plug the device into the mains socket

after you have connected the external de-

vices. Make sure the power plug is freely

accessible.

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The hi-fi system controls

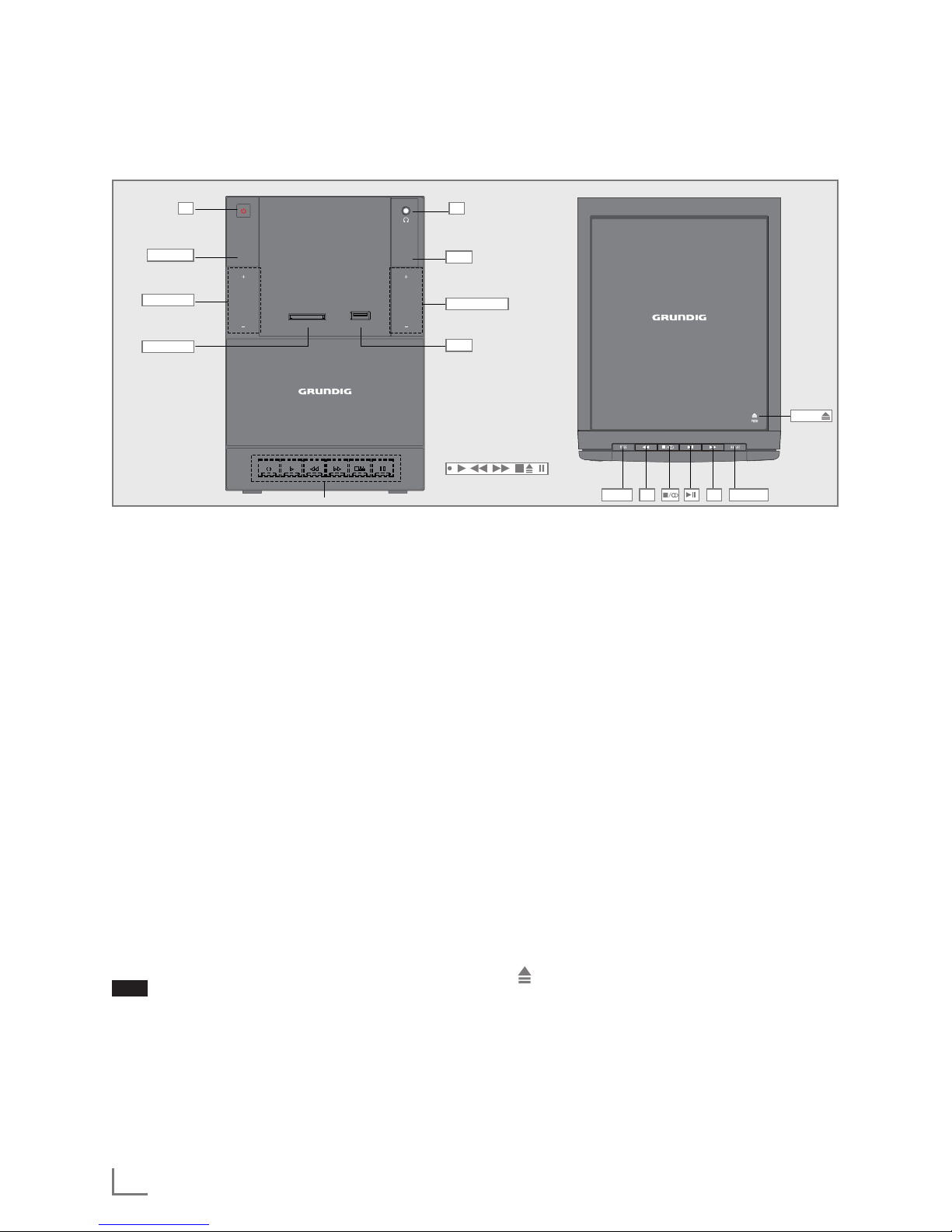

The front of the device

8 Switches the hi-ﬁ system to and

from standby mode.

The only way to fully disconnect

the hi-ﬁ system from the mains is

to pull out the plug.

SOURCE Switches on the system.

Selects the respective sound

source for CD, TUNER (FM and

AM), SD, USB, CASS and AUX.

+ PRESET - In radio mode: selects a preset

radio station.

In CD/USB/SD mode: selects

the album.

SD CARD Card slot for inserting a memory

card (SD, SDHC, MMC).

USB USB socket for connecting MP3

player, a USB memory stick or

a card-reading device.

Display of the hi-ﬁ system,

for more details, please see

the section “The hi-ﬁ system

displays”.

• Infra-red sensor for remote

control signals.

U Headphone socket for

connecting a stereo headphone

set with a jack plug (ø 3.5 mm).

This automatically switches oﬀ

the loudspeakers.

UBS Switches the ultra bass system

on and oﬀ.

+ VOLUME - Adjusts the volume.

Under the front flap (in tape mode)

• Starts recording.

e Starts playback.

3 Revinds the tape to the beginning.

4 Fast forwards the tape to the

end.

7 Ends playback/recording of

the tape and opens the tape

compartment.

II Pauses recording and

playback.

SOURCE

PRESET VOLUME

UBS

OPEN

UMS 2020

SD CARD USB

SOURCE

+ PRESET -

SD CARD

+ VOLUME -

UBS

USB

8 U

PROG REPEAT

PUSH

ENGLISH

The back of the device

FM Antenna Wire antenna for FM reception.

AUX In Audio signal input for connect-

ing an external source (ø 3.5

mm).

LEFT+/– Terminals for connecting the

loudspeaker cable, left channel.

On the top

PROG In tuner mode: stores radio sta-

tions.

In CD/USB/SD mode: pro-

grammes tracks and reviews the

playlist.

3 4 In tuner mode: tunes radio sta-

tions;

press brieﬂy to change the fre-

quency backwards or forwards

in steps.

In CD/USB/SD mode: skips to

the beginning of the current/

next track.

Fast searches back and forward

within a track.

In clock/timer mode: adjusts the

hours and minutes for the clock/

timer function.

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

RIGHT+/– Terminals for connecting the

loudspeaker cable, right chan-

nel.

Ü Mains cable.

Note

7 The only way to fully disconnect the hi-fi sys--

tem from the mains is to pull out the plug.

7/ In tuner mode: switches

between FM stereo and mono

reception.

In CD/USB/SD mode: stops

the playback or erases a CD

programme.

In CD /USB/SD mode: starts

and pauses playback.

REPEAT Repeats a track/disc/album/all

programmed tracks.

PUSH Opens or closes the CD

compartment.

FM Antenna

AUX In

LEFT+/–

RIGHT+/–

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The remote control

Switches the loudspeakers of the

hi-fi system to mute and back on

again.

8 Switches the hi-fi system to standby

mode and from standby mode to

the last input source selected.

CD Selects the sound source for CD

mode.

USB Selects the sound source for the

USB mode.

SD CARD Selects the sound source for the SD

mode.

TUNER Selects the sound source for Tuner

mode.

TIMER

ON/OFF Switches the timer on or off.

TIMER SET Sets the timer.

AUX Selects the sound source for

external devices.

CASS Selects the sound source for Cass

mode.

EQ Selects the preset sound settings

ROCK, POP, JAZZ and CLASSIC.

UBS Switches the ultra bass system on

and off.

In tuner mode: selects a preset

radio station.

In CD/USB/SD mode: selects the

album.

‒ + Adjusts the volume.

In CD/USB/SD mode: starts and

pauses playback.

SLEEP Setting the sleep time.

DISPLAY In tuner mode: changes the RDS

informations.

In CD/USB/SD mode: displays the

current track number and remaining

time during playback.

56 In CD/USB/SD mode: skips to the

beginning of the current/previous

track.

In stand by/timer mode: adjusts the

hours and minutes for the clock/

timer function.

3 4 In tuner mode: tunes radio stations

manually;

press briefly to change the fre-

quency backwards or forwards in

steps.

In CD/USB/SD mode: starts the fast

searches back and forward within a

track.

PROG In tuner mode: stores radio stations.

In CD/USB/SD mode: programmes

tracks and reviews the programme.

In stand by mode: sets the clock.

REP In tuner mode: starts the PTY search.

In CD/USB/SD mode: repeats a

track/disc/album/all programmed

tracks.

RAND Plays tracks in random order.

7/ In tuner mode: switches between

mono and stereo reception.

In CD/USB/SD mode: stops

playback.

TUNERSD CARDUSB

AUX CASS

DISPLAYSLEEP

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

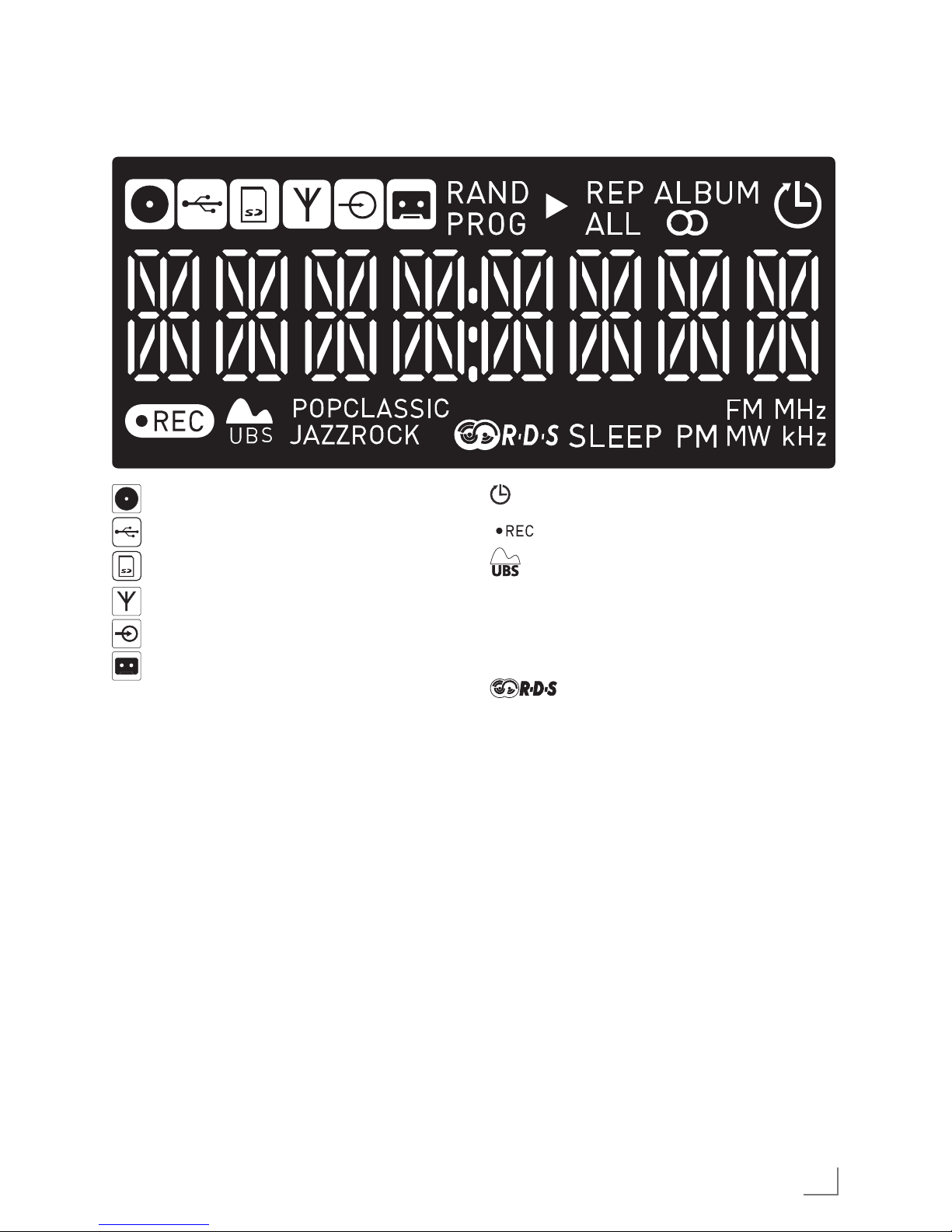

The hi-fi system displays

The CD source is selected.

The USB source is selected.

The CARD source is selected.

The TUNER source is selected.

The AUX source is selected.

The CASS source is selected.

RAND In CD/USB/SD mode: all

tracks are played in random

order.

PROG In CD/USB/SD mode: tracks

are programmed.

In tuner mode: preset is

selected.

8 In CD/USB/SD mode:

playback. Flashes in pause.

REP In CD/USB/SD mode: current

track is repeated.

REP ALL In CD/USB/SD mode: all

tracks are repeated.

ALBUM In CD/USB/SD mode: all

files in the current album are

repeated.

! In tuner mode: a stereo station

is being received.

Timer is activated.

In tape mode: recording.

The ultra bass system is

activated.

POP/CLASSIC

JAZZ/ROCK

The sound setting is selected

using »EQ« on the remote

control.

The hi-fi system is receiving an

RDS station.

SLEEP The sleep timer is activated.

PM In clock mode: shows PM if

12H is selected.

FM/ MW In tuner mode: FM or MW

station is received.

MHz/ kHz In tuner mode: the frequency

of station in MHz or kHz.

ENGLISH

CONNECTION AND PREPARATION ---------------------------------------

Connecting the loudspeakers

1 Insert the wires of the loudspeaker cable into

the terminals »RIGHT+/–« and »LEFT+/–«.

– Connect the cables marked in red to the red

terminals.

Connecting external devices

Note:

Switch the hi-fi system off before you connect

external devices.

1 Use standard audio adapter to connect the

audio outputs of the external device to the

»AUX In« (ø 3.5 mm) socket on the back of

the hi-ﬁ system.

Connecting an MP3 player or a

USB memory stick

The hi-ﬁ system supports most MP3 players and

USB memory sticks.

Caution:

The hi-fi system must be switched off while

the USB connection is being made. If it is not

switched off, data can be lost.

SOURCE

PRESET VOLUME

UBS

OPEN

UMS 2020

SD CARD USB

1 Switch oﬀ the hi-ﬁ system by pressing »8«.

2 Connect the USB interface of the MP3 player

to the »USB« socket on the hi-ﬁ, using a stan-

dard USB cable;

insert the USB plug of the USB memory stick in

the »USB« socket on the hi-ﬁ system.

Notes:

To remove the MP3 player or the USB mem-

ory stick, switch off the hi-fi system and pull

out the cable for the data medium.

The USB socket on the hi-fi system does not

support a connection for a USB extension

cable and is not designed for directly con-

necting to a computer.

ENGLISH

CONNECTION AND PREPARATION ---------------------------------------

Inserting a memory card

The hi-ﬁ system supports SD/SDHC and MMC

memory cards.

Caution:

The hi-fi system must be switched off while

the memory card is being inserted. If it is not

switched off, data can be lost.

SOURCE

PRESET VOLUME

UBS

OPEN

UMS 2020

SD CARD USB

1 Switch oﬀ the hi-ﬁ system by pressing »8«.

2 Insert the card carefully into the »SD« card slot

until it latches into place.

Notes:

Do not use excessive force when inserting

the memory card. Only apply slight pres-

sure.

The memory cards are resistant to dirt and

moisture, but may only be inserted into the

hi-fi system in a dry and clean condition.

Never remove memory cards during opera-

tion. This can damage the memory card.

This type of damage will invalidate your

warranty.

Removing the memory card

Caution:

The hi-fi system must be switched off while

the memory card is removed. If it is not

switched off, data can be lost.

1 Remove the memory card from the card slot by

pressing the card inwards slightly until the latch

is released. Then pull out the card.

Connecting the headphones

SOURCE

PRESET VOLUME

UBS

OPEN

UMS 2020

SD CARD USB

1 Insert the headphone plug (ø 3.5 mm) into

the »U« socket on the front side of the hi-ﬁ

system.

– The loudspeakers of the hi-fi system are

switched off.

Note:

Excessive sound pressure from the ear-

phones or headphones can cause hearing

loss.

ENGLISH

CONNECTION AND PREPARATION ---------------------------------------

Connecting to the mains supply

Notes:

Check that the mains voltage on the type

plate (on the back of the hi-fi system) cor-

responds to your local mains supply. If this is

not the case, contact your specialist dealer.

7 Before connecting the AC power cord to the

wall socket, ensure that all other connec-

tions have been made.

1 Plug the power cord into the wall socket.

Caution:

The hi-fi system is connected to the mains

with the power cord. Pull out the power plug

if you want to completely disconnect the hi-fi

system from the mains.

Make sure the power plug is easily acces-

sible during operation and not hindered by

other objects.

Putting batteries in the remote

control

1 Open the battery compartment by pressing

down on the catch and then remove the lid.

2 Observe the polarity marked on the base of

the battery compartment when inserting the

batteries (micro batteries, 2 x 1.5 V, R 03 /

UM 4/AAA).

3 Close the lid of the battery compartment.

Notes:

Do not expose the batteries to extreme heat,

caused for example by direct sunlight, heat-

ers or fire.

Remove the batteries when they are flat or

when you know that the hi-fi system will not

be used for a long period of time. The man-

ufacturer accepts no liability for damage

caused by leaking batteries.

Environmental note:

Batteries, including those which do not con-

tain heavy metal, should not be disposed

of with household waste. Always dispose

of used batteries in accordance with local

environmental regulations.

Inhaltsverzeichnis

Andere Grundig Stereoanlage Handbücher

Grundig

Grundig VERTIGA UMS 6300 Bedienungsanleitung

Grundig

Grundig CDS 5000 DEC Bedienungsanleitung

Grundig

Grundig CMS 5000 BT DAB+ WEB Bedienungsanleitung

Grundig

Grundig M 100-CDC Bedienungsanleitung

Grundig

Grundig CMS 5000 Bedienungsanleitung

Grundig

Grundig Ovation CDS 6380 S Bedienungsanleitung

Grundig

Grundig CDS 3000 DEC Bedienungsanleitung

Grundig

Grundig Ovation 2i CDS 9000 WEB Bedienungsanleitung

Grundig

Grundig Ovation 3 CDS 8000 Bedienungsanleitung

Grundig

Grundig CDM 900 Bedienungsanleitung

Grundig

Grundig CMS 4000 BT DAB+ Bedienungsanleitung

Grundig

Grundig VARIXX UMS 4810 SPCD Bedienungsanleitung

Grundig

Grundig VERTIGA UMS 5100 Bedienungsanleitung

Grundig

Grundig UMS 100 Bedienungsanleitung

Grundig

Grundig Varixx UMS 4401 SPCD Bedienungsanleitung

Grundig

Grundig SPACE FIDELITY PA 6 Bedienungsanleitung

Grundig

Grundig FREAXX 40 RRCD 4204 PLL Bedienungsanleitung

Grundig

Grundig MS240 Bedienungsanleitung

Grundig

Grundig UMS 555 Bedienungsanleitung

Grundig

Grundig CIRFLEXX UMS 4100 Bedienungsanleitung

Grundig

Grundig Cinemo DR 5400 DD Bedienungsanleitung

Grundig

Grundig SPACE FIDELITY PA 3 Bedienungsanleitung

Grundig

Grundig UMS 200 Bedienungsanleitung

Grundig

Grundig KM 13 Bedienungsanleitung

Beliebte Stereoanlage Handbücher anderer Marken

LG CM3330B Bedienungsanleitung

Sony

Sony SS-CEP50 Bedienungsanleitung

Cetacea Sound

Cetacea Sound CVS-II Bedienungsanleitung

Aiwa

Aiwa XR-H66MD Bedienungsanleitung

Denon

Denon UCD-250 Bedienungsanleitung

Sanyo

Sanyo DC-MX41i Bedienungsanleitung

Sharp

Sharp CD-ES600V Bedienungsanleitung

Exibel

Exibel BDX600-UK Bedienungsanleitung

Sanyo

Sanyo DC-F320 Bedienungsanleitung

Philips

Philips FWM583X Bedienungsanleitung

Sharp

Sharp CD-C462 Bedienungsanleitung

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Bedienungsanleitung

Aiwa

Aiwa XR-EM70 Bedienungsanleitung

Cyrus

Cyrus Lyric Bedienungsanleitung

Philips

Philips MCM159/98 Bedienungsanleitung

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Bedienungsanleitung

RCA

RCA RS3965SB Bedienungsanleitung

Sharp

Sharp XL-UH240 Bedienungsanleitung
