SET-UP AND SAFETY -----------------------------------------------------------------------------------

About your TV set

7 With your TV set, you can receive and watch

digital TV programmes over DVB-S, DVB-T

and DVB-C, along with analogue TV.

Intended use

7 The TV set is designed for use in dry rooms.

7 Use the TV set with the supplied stand or

a suitable VESA bracket.

7 The TV set is primarily intended for the

playback of TV programmes, streaming

content and audio/video material from

external devices. Any other use is strictly

prohibited.

It is not intended as an information display or

for predominant use as a computer monitor.

If a still image or a non-full-format image is

displayed for an extended period, visible

traces may remain on the screen for some

time.

This is not a defect that can be used as the

basis for a warranty claim.

Safety

WARNING

Risk of electrical accident

7 Do not open the TV set. Safety risk may arise

and also the guarantee of the product can be

void if the television set is opened.

7 The TV set can only be operated with the

power cable or the AC/DC adapter supplied

with the product.

7 Do not operate the TV set with a damaged

power cord/AC/DC adaptor (if supplied).

7 For products supported with 32” battery

If you use an 12V battery to supply power to

the TV, you should use a suitable cable with a

minimum support of 6A. If you use it with an

external adapter, you should use a 12V (min. 6A)

adapter.

7 For products with 24” internal adapter:

If you use an 12V battery to supply power to

the TV, you should use a suitable cable with a

minimum support of 3.5A.

7 If the plug on the TV set has an earthing

contact, only insert the plug into a socket with

an earthing contact.

7 Plug the TV set into the mains socket only after

you have connected the external devices and

the antenna.

7 Protect the TV set from moisture. Do not place

any vessels filled with water (such as vases)

on the TV.

Fire hazard

7 To prevent the spread of fire,

keep candles or other open

flames away from this product at

all times.

7 Do not cover the ventilation slots on the TV set.

7 Always unplug the power plug and antenna

plug during a thunderstorm.

7 Keep candles or other open flames away

from the TV set.

7 Do not expose the batteries to extreme heat

such as sunshine, fire or the like.

7 Only use batteries of the same type (brand,

size, properties). Do not use used and new

batteries together.

ENGLISH

SET-UP AND SAFETY -----------------------------------------------------------------------------------

WARNING

Injuries caused by falling TV set

Never place the TV set on an unstable surface.

The TV set may fall, causing serious injury,

possibly leading to death in isolated cases.

Observe the following precautions:

7 Only use the manufacturer’s recommended

cabinets or stands.

7 Only use furniture that can safely support the

TV set.

7 Make sure that the TV set does not protrude

beyond the dimensions of the furniture on

which it is resting.

7 Do not place the TV set on tall furniture (such

as kitchen cabinets, bookshelves) without

securely anchoring the furniture and TV set.

7 Do not place the TV set on fabric or other

materials located between the TV set and

furniture.

7 Instruct children that there is danger

associated with climbing on furniture when the

TV set is to be reached.

NOTICE

Shortened service life due to high

operating temperature

7 Do not place the TV set next to heating units

or in direct sunlight.

7 To ensure adequate ventilation, maintain

clearance of at least 10 cm around the TV set.

Discolouration of furniture due to

rubber feet

7 Some furniture surfaces may discolour when

they come in contact with rubber. To protect

furniture, you can place a sheet made of glass

or plastic under the stand. Do not use textile

underlays or mats such as doilies.

Environmental information

7 Do not dispose of batteries in

the household waste. Used

batteries must be returned to

retail stores or public collection points. You

help to protect the environment in this way.

7 Be sure to dispose of packaging materials

for your product separately according to the

guidelines of local authorities so that they

can be recycled in an environmentally safe

manner.

If you are not using your TV set for a while,

turn it to standby mode. In standby mode, the

TV set uses very little energy (≤ 0.5 W).

If you do not use the TV set for an extended

period, turn it off with the power switch or

unplug the power cord from the socket.

7 Select a location for the TV set so that no

direct sunlight falls on the screen. This allows

a lower backlight to be selected, which saves

energy.

7 Do not dispose of the product

along with normal household

waste at the end of its service

life. Take it to a recycling centre

for electrical and electronic equipment.

Electromagnetic noise

Devices connected to the product (satellite

receiver, DVD player, and etc.) or signal

emitting devices (router and etc.) close to the

product may cause disturbance in the image

and noise in the sound.

Connection cables used on the product must

be shorter than 3 m.

If the product cannot perform its function due

to electrostatic discharge, the user may need

to switch off and then switch on the product.

A shielded, HDMI-certified and ferrite cable

must be used with the product.

ENGLISH

Special features of your

television set

Your television set enables you to receive and

watch digital stations (via DVB-S, DVB-T and

DVB-C), including the High Definition (HD)

ones. At present, reception for these digital

television stations in High Definition is only

possible in some countries in Europe.

Although this television meets the current

DVB-S, DVB-T and DVB-C standards as of

August 2012, its compatibility with future

DVB-S digital satellite broadcasts, DVB-T

digital terrestrial broadcasts and DVB-C

digital cable broadcasts is not guaranteed.

This television can receive and process all

analogue and all unencrypted digital stations.

This television set has an integrated digital

and analogue receiver. The digital receiver

unit converts the signals from digital stations to

provide outstanding audio and picture quality.

The TV guide (only for digital stations) tells

you of any schedule changes at short notice,

and provides an overview of all the stations’

schedules for the next few days.

You can connect various data media, for

example, an external hard drive, a USB

memory stick or a digital camera to the USB

sockets. Using the file browser, you can then

select and play the file formats you want (for

example, MP4, MP3 or JPEG data).

GENERAL INFORMATION -------------------------------------------------------------------

Receiving digital stations

To receive digital satellite stations (DVB-S) you

need a satellite antenna.

To receive digital stations (DVB-T) you need a

digital rooftop or indoor antenna.

The antenna cable of the cable TV network

that broadcast in DVB-C must be plugged into

TV in order to receive the DVB-C broadcasts.

Unlike analogue broadcasting, not every

station has its own transmission frequency.

Instead, several stations are grouped into

what are known as bouquets on a regional or

national level.

You can find the current transmission

information on teletext from various

broadcasters, or look in a TV guide or on the

Internet.

Various digital television stations from private

broadcasters are encrypted (DVB-S, DVB-T

and DVB-C). Watching these stations and the

recording and playback functions are only

possible with the appropriate CI module and

a SmartCard. Ask your specialist dealer.

GRUNDIG SCR System

Your TV supports SCR system (Single Channel

Router). With SCR satellite system, several users

can individually receive all signals from the

satellite simultaneously.

ENGLISH

GENERAL INFORMATION -------------------------------------------------------------------

Important notes on environmen-

tal protection

Those items mentioned below will help you

reduce the consumption of natural resources as

well as save your money by reducing electricity

bills.

If you will not be using the TV set for several

days, it should be disconnected from the

mains for environmental and safety reasons.

TV will not consume energy in this condition.

If the TV set has main switch, it will be enough

to turn the TV off via main switch. TV will

reduce energy consumption almost to Zero

Watt.

TV consumes less energy on stand by mode.

However, some TV sets may have features

such as on timer, that require the TV set to be

left in standby to work correctly.

TV consumes less energy when brightness is

reduced.

Notes on still images

Watching the same image for a long time on

the screen may cause a still image remain

feebly on the background. Feeble image(s) on

the background is originated from LCD/LED

technology and does not require any action

under guarantee. To avoid such cases and/or

minimize the impact, you may observe the tips

below.

Do not allow the same TV channel to stay on

the screen for a very long time. Channel logos

may cause this situation.

Do not allow the images, which are not full

screen, to constantly stay on the screen; if

not streamed in full screen format by the

broadcaster, you can convert the images to

full screen by changing picture formats.

Higher brightness and/or contrast values will

lead this impact to appear faster; therefore,

you are recommended to watch your TV in

the lowest brightness and contrast levels.

ENGLISH

PACKING CONTENTS -------------------------------------------------------------------------------

Standart accessory

1 TV

2 Stand

3 Remote control

4 Batteries for remote controls

5 Screws and mounting instructions for stand

6 Brief Instruction

Optional accessory

Easy-Use Remote Control

Batteries for Easy-Use remote controls

Screws for VESA bracket

User

Manual

ENGLISH

CONNECTION/PREPARATION -----------------------------------------------------

Connecting the antenna and power cord

1 To receive digital satellite channels (DVB-S),

connect the satellite antenna cable to the

antenna socket SATELLITE on the television

set;

and / or

2a To receive terrestrial digital broadcasters

(DVB-T) connect the cable for the rooftop or

indoor antenna to the antenna socket ANT

IN on the television set;

2b To receive digital cable channels (DVB-C)

connect the cable for the rooftop antenna

to the antenna socket ANT IN on the televi-

sion set;

2c To receive analogue TV channels, connect

the cable for the rooftop antenna to the

antenna socket ANT IN on the television

set.

Note:

When connecting an indoor antenna you

may have to try it out at different positions

until you get the best reception.

3 Plug the power cord into the AC IN jack..

4 Plug the power cord into the wall socket.

Note:

Only plug the device into the mains socket

after you have connected the external

devices and the antenna.

Do not use an adapter plug or extension

cable which does not meet the applicable

safety standards. Do not make changes on

the power cord.

1 2

ENGLISH

CONNECTION/PREPARATION -----------------------------------------------------

Setting up or hanging

Select a location so that no direct sunlight falls

on the screen.

Setting up with stand

To mount the stand, refer to the installation

instructions included.

Place the television set on a hard, level

surface.

Preparing for mounting on the VESA

bracket

You will need:

A pair of scissors,

A crosstip screwdriver.

Follow the installation instructions for the VESA

bracket.Place the television set in the film on a

smooth surface with the screen facing down.

1 Cut open the film on the back side using the

scissors.

2 Connect the required cables to the connec-

tors on the television set. See the “Connec-

tion/Preparation” section in this manual.

3 Tie the cables so they do not hang down

onto the floor.

4 Screw the VESA bracket onto the television

set and mount it according to its installation

instructions.

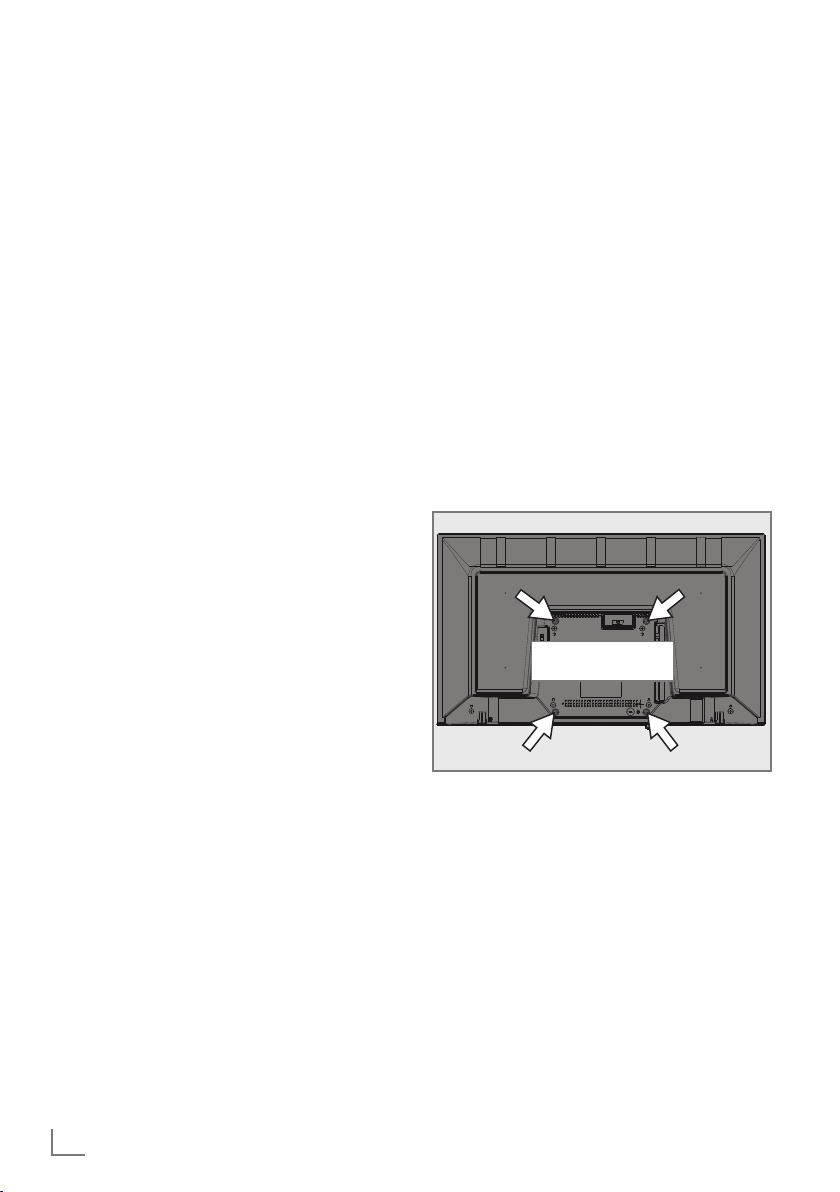

VESA

Inhaltsverzeichnis

Andere Grundig Fernseher Handbücher

Grundig

Grundig 32 GFW 6820 Bedienungsanleitung

Grundig

Grundig 50 GHU 7912B Bedienungsanleitung

Grundig

Grundig 43 GFB 6621 Bedienungsanleitung

Grundig

Grundig 32 GFH 6933B Bedienungsanleitung

Grundig

Grundig 32 GLX 3023 Bedienungsanleitung

Grundig

Grundig 32 GFB 6626 Bedienungsanleitung

Grundig

Grundig 40 VLE 5520 WG Bedienungsanleitung

Grundig

Grundig ST 55-800 text Bedienungsanleitung

Grundig

Grundig M 63-105 iDTV Bedienungsanleitung

Grundig

Grundig PlanaVision 50 PXW 130-8620 Dolby Bedienungsanleitung

Grundig

Grundig CUC 1832 Bedienungsanleitung

Grundig

Grundig AMIRA32HDBLK Bedienungsanleitung

Grundig

Grundig 65 GHQ 8990 Bedienungsanleitung

Grundig

Grundig APOLLO 42 PW 110-7510 TOP Bedienungsanleitung

Grundig

Grundig 32GFB6629 Bedienungsanleitung

Grundig

Grundig 43 GUT 8960 Bedienungsanleitung

Grundig

Grundig 28 VLE 5500 BG Bedienungsanleitung

Grundig

Grundig 75 GHU 7970 B Bedienungsanleitung

Grundig

Grundig CUC 7303 FR Montage- und Bedienungsanleitung

Grundig

Grundig 49GUB9772 Bedienungsanleitung

Grundig

Grundig 40 GFB 6826 Bedienungsanleitung

Grundig

Grundig Vision 4 26-4931 T Bedienungsanleitung

Grundig

Grundig 32 VLE 595 BG Bedienungsanleitung

Grundig

Grundig TVR 3730R Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
