Grundig 40 VLE 7630 WP Bedienungsanleitung

40 VLE 7630 WP

ENGLISH

TABLE OF CONTENTS ---------------------------------------------------------------------------------

5 SET-UP AND SAFETY

7 GENERAL INFORMATION

7 Special features of your television set

8 Receiving digital stations

8 GRUNDIG SCR System

8 Important notes on environmental protec-

tion

8 Notes on still images

9 PACKING CONTENTS

9 Standart accessory

9 Optional accessory

10 CONNECTION/PREPARA-

TION

10 Connecting the antenna and power cord

11 Setting up or hanging

12 Inserting batteries in the remote control

13 OVERVIEW

13 Connections on the television set

14 Control buttons on the TV

14 Control elements

15 Remote control - main functions

16 Remote control - all functions

17 INITIAL SET-UP

17 Settings for connecting to the home net-

work

17 Tuning channels

18 Initial set-up – overview

19 Arrange Initial set-up

23 Changing the Channel Editor for the

digital channels

27 PICTURE /SOUND SETTINGS

27 Picture settings

28 Restore default settings

28 Concluding the settings

29 Sound settings

30 Restore default settings

30 Concluding the settings

31 TV OPERATION – BASIC FUNC-

TIONS

31 Switching on and off

31 Selecting the operating mode

31 Selecting channels

31 Selecting stations from lists

31 Selecting AV channels

31 Adjusting the volume

31 Muting

31 Displaying information

32 Audio language

32 Subtitles

32 Zap function

33 TV OPERATION – ADDITIONAL

FUNCTIONS

33 Sleep timer

33 Zoom function

33 Changing the picture format

34 Audio settings

34 Picture settings

35 ELECTRONIC TV GUIDE

35 Changing the font size of the channel

guide

36 HBBTV MODE

36 What is HbbTV?

37 Using HbbTV

37 Additional functions for video indexes

37 Deactivate and activate HbbTV

37 Deactivate and activate digital teletext

38 TELETEXT MODE

38 TOP text or FLOF text mode

38 Normal text mode

38 Additional functions

39 USB RECORDING

39 Information on recording and playing

television programmes

39 Possible limitations when using an exter-

nal data medium

40 Connecting external data media

41 USB recording settings

42 Time shift – ″ Pausing”

programmes

43 Recording programmes

ENGLISH

TABLE OF CONTENTS ---------------------------------------------------------------------------------

43 One-touch programme recording

43 Recording a programme from the channel

list

44 Programme setting for recording

45 Editing the timer

45 Deleting a timer

46 Playback

46 Deleting programmes from the recorded

files menu

47 USB OPERATION

47 File formats for USB operating

48 Connecting external data media

48 Removing the external data

media

49 The file browser

49 Settings in the USB setup menu

51 Playback basic functions

52 Additional playback functions

53 Playing the video, music and image files

with home network connection

53 Selecting the digital media server

54 Playback

54 Other playback options

55 SMART INTER@CTIVE TV 4.0

55 Agreements of Terms & Conditions and

Confidentiality

55 First run and operations

55 Displaying the Terms & Conditions and

Confidentiality content accepted by the

user and removing the acceptance

56 SMART inter@ctive TV 4.0 internet ap-

plications

56 USB keyboard and mouse

56 Getting Started with Smart Inter@ctive TV

58 Navigation on the application portal

main screen

58 Application Portal Main Screen

59 WEB BROWSER

59 Web browser menu

59 Web browser applications

60 LANGUAGE SETTINGS

60 Changing the menu language

60 Changing the audio language

60 Changing the subtitle language

60 Changing the keyboard

language

61 ACCESSIBLE FUNCTIONS

61 Subtitle Mode

61 Audio description (audio subtitles)

62 ADVANCED SETTINGS

62 Auto sleep

62 Store logo view

62 Power LED brightness

63 Power save mode

64 TIMER FUNCTIONS

64 Sleep timer

64 On timer (Auto On)

65 Off timer (Auto Off)

66 PARENTAL SETTINGS

66 Parental Guidance

66 Locking the menus

67 Blocking the multifunction switch

67 Changing the PIN code

67 Blocking a television channel

68 Watching a blocked television channel

68 Resetting PIN code

69 DATE AND TIME SETTINGS

69 Auto tuning

69 Manual tuning

70 SOFTWARE OF THE DEVICE

70 Product information

70 Software update (OAD)

70 Software update (Internet)

70 Software update (USB)

71 ACCESSORIES

72 RESET FUNCTIONS

72 Resetting the television to its original state

72 Deleting channel history

73 USING EXTERNAL DEVICES

73 DIGI LINK

73 The Digi Link functions of the television

ENGLISH

TABLE OF CONTENTS ---------------------------------------------------------------------------------

74 Device Control

74 Switching the device to standby

75 High definition

75 Connection options

76 Connecting an external device

77 Using a DVD recorder, DVD player, video

recorder or set-top box

77 Headphones

77 Hi-fi system

78 Playing the audio signal via the HiFi

system

79 Wireless screen share (Liveshare)

79 What is LIVESHARE?

79 Screen share with Liveshare connection

80 OPERATION WITH COMMON IN-

TERFACE

80 What is common interface?

80 Inserting the CA module

80 Access control for CA module and smart

cards

81 NETWORK SETUP

81 Network connection

81 Wired network

82 Wired network settings

84 Wireless network

84 Wireless network settings

88 Change TV Name

89 Connecting the TV to a “hidden” network

90 SETTING FURTHER CHAN-

NELS

90 Searching for all digital channels from a

satellite automatically

91 Searching for digital channels from a

satellite manually on a transponder

92 Antenna settings and searching for digital

channels from a satellite automatically

93 Antenna settings, SCR system and search-

ing for digital channels from a satellite

automatically

94 Antenna settings for DiSEqC 1.0/1.1 and

searching digital channels from a satellite

automatically

96 Motor antenna setup (DiSEqC 1.2)

97 Searching for digital channels from the

cable provider automatically

98 Searching for digital channels from the

cable provider manually

98 Searching for digital terrestrial TV chan-

nels automatically

99 Searching for digital terrestrial TV chan-

nels manually

100 Automatic service update

100 Tuning analogue television

channels

102 Changing stored analogue

channels

103 Displaying signal information

104 Service information for dealers

104 Notes for WLAN reception

105 Network interfaces

105 Disposing of the packaging

105 Environmental note

105 Explanation of the symbols which may be

present on back side of the television set

106 Troubleshooting

108 GLOSSARY

113 INDEX

ENGLISH

SET-UP AND SAFETY -----------------------------------------------------------------------------------

About your TV set

7 With your TV set, you can receive and watch

digital TV programmes over DVB-S, DVB-T

and DVB-C, along with analogue TV.

7 Many features of the TV set require an Inter-

net connection. The TV set is equipped with

WLAN and a LAN port.

The TV set can record programmes. For this

feature you need a USB storage device, such

as an external hard drive (not included). Re-

corded programmes can only be played on

the same TV set. After the TV st is repaired, it

is possible that recorded programmes may no

longer be able to be played back.

Intended use

7 The TV set is designed for use in dry rooms.

7 Use the TV set with the supplied stand or

a suitable VESA bracket.

7 The TV set is primarily intended for the play-

back of TV programmes, streaming content

and audio/video material from external de-

vices. Any other use is strictly prohibited.

It is not intended as an information display or

for predominant use as a computer monitor. If

a still image or a non-full-format image is dis-

played for an extended period, visible traces

may remain on the screen for some time.

This is not a defect that can be used as the

basis for a warranty claim.

Safety

WARNING

Risk of electrical accident

7 Do not open the TV set. Safety risk may arise

and also the guarantee of the product can be

void if the television set is opened.

7 The TV set can only be operated with the

power cable or the AC/DC adapter supplied

with the product.

7 Do not operate the TV set with a damaged

power cord/AC/DC adaptor (if supplied).

7 If the plug on the TV set has an earthing con-

tact, only insert the plug into a socket with an

earthing contact.

7 Plug the TV set into the mains socket only after

you have connected the external devices and

the antenna.

7 Protect the TV set from moisture. Do not place

any vessels filled with water (such as vases)

on the TV.

Fire hazard

7 To prevent the spread of fire,

keep candles or other open

flames away from this product at

all times.

7 Do not cover the ventilation slots on the TV

set.

7 Always unplug the power plug and antenna

plug during a thunderstorm.

7 Keep candles or other open flames away

from the TV set.

7 Do not expose the batteries to extreme heat

such as sunshine, fire or the like.

7 Only use batteries of the same type (brand,

size, properties). Do not use used and new

batteries together.

ENGLISH

SET-UP AND SAFETY -----------------------------------------------------------------------------------

WARNING

Injuries caused by falling TV set

Never place the TV set on an unstable surface.

The TV set may fall, causing serious injury, pos-

sibly leading to death in isolated cases.

Observe the following precautions:

7 Only use the manufacturer’s recommended

cabinets or stands.

7 Only use furniture that can safely support the

TV set.

7 Make sure that the TV set does not protrude

beyond the dimensions of the furniture on

which it is resting.

7 Do not place the TV set on tall furniture (such

as kitchen cabinets, bookshelves) without

securely anchoring the furniture and TV set.

7 Do not place the TV set on fabric or other

materials located between the TV set and

furniture.

7 Instruct children that there is danger associ-

ated with climbing on furniture when the TV

set is to be reached.

NOTICE

Shortened service life due to high

operating temperature

7 Do not place the TV set next to heating units

or in direct sunlight.

7 To ensure adequate ventilation, maintain

clearance of at least 10 cm around the TV set.

Discolouration of furniture due to

rubber feet

7 Some furniture surfaces may discolour when

they come in contact with rubber. To protect

furniture, you can place a sheet made of glass

or plastic under the stand. Do not use textile

underlays or mats such as doilies.

Environmental information

7 Do not dispose of batteries in

the household waste. Used bat-

teries must be returned to retail

stores or public collection points. You help to

protect the environment in this way.

7 Be sure to dispose of packaging materials

for your product separately according to the

guidelines of local authorities so that they

can be recycled in an environmentally safe

manner.

If you are not using your TV set for a while,

turn it to standby mode. In standby mode, the

TV set uses very little energy (≤ 0.5 W).

If you do not use the TV set for an extended

period, turn it off with the power switch or

unplug the power cord from the socket. If you

turn off the device or disconnect it from the

power supply, the switch-on timer and pro-

grammed recordings will not work.

7 Select a location for the TV set so that no

direct sunlight falls on the screen. This allows

a lower backlight to be selected, which saves

energy.

7 Do not dispose of the product

along with normal household

waste at the end of its service

life. Take it to a recycling centre

for electrical and electronic equipment.

ENGLISH

Special features of your

television set

Your television set enables you to receive and

watch digital stations (via DVB-S, DVB-T and

DVB-C), including the High Definition (HD)

ones. At present, reception for these digital

television stations in High Definition is only

possible in some countries in Europe.

Although this television meets the current DVB-

S, DVB-T and DVB-C standards as of August

2012, its compatibility with future DVB-S

digital satellite broadcasts, DVB-T digital ter-

restrial broadcasts and DVB-C digital cable

broadcasts is not guaranteed.

This television can receive and process all

analogue and all unencrypted digital stations.

This television set has an integrated digital

and analogue receiver. The digital receiver

unit converts the signals from digital stations to

provide outstanding audio and picture quality.

The TV guide (only for digital stations) tells

you of any schedule changes at short notice,

and provides an overview of all the stations’

schedules for the next few days.

You can connect various data media, for

example, an external hard drive, a USB

memory stick or a digital camera to the USB

sockets. Using the file browser, you can then

select and play the file formats you want (for

example, MP4, MP3 or JPEG data).

With the Time Shift function, you can eas-

ily stop and resume a programme with the

remote control in a fast and simple way.

Programme is recorded to the external data

medium.

GENERAL INFORMATION -------------------------------------------------------------------

You can record any digital TV channel you

have chosen, if no limitation has been im-

posed by the broadcaster.

TV channel is transformed by your television

and saved to a USB external data medium.

You can recall and play saved programs from

the archive.

While a recording is in progress, you can

select and watch another recording from the

archive.

For detailed information about saving and

playing TV programs, please see page 39.

SMART inter@ctive TV 4.0 provides your TV

with Internet applications when your TV is

connected to Internet.

Wireless USB keyboard and mouse support in

the Web browsing of your television facilitates

surfing through the internet pages for the user.

DLNA feature allows you to use a wired or

wireless (with wireless USN network device)

local network to access your content that

were recorded with DLNA compatible devices

we use at our daily lives such as a PC, mobile

phone or NAS (Network Attached Storage)

which are operated as DMS (Digital Medial

Server). While watching TV, you can play any

content you like at any time by using DMC

applications on your mobile device or PC

without starting DLNA application.

A DLNA compatible device such as a PC,

mobile phone, NAS or a NAS-like (Network

attached storage) device which operates as

a DMS (Digital Media Server) is required in

order to use home network.

ENGLISH

GENERAL INFORMATION -------------------------------------------------------------------

Important notes on environmen-

tal protection

Those items mentioned below will help you

reduce the consumption of natural resources as

well as save your money by reducing electricity

bills.

If you will not be using the TV set for several

days, it should be disconnected from the

mains for environmental and safety reasons.

TV will not consume energy in this condition.

If the TV set has main switch, it will be enough

to turn the TV off via main switch. TV will

reduce energy consumption almost to Zero

Watt.

TV consumes less energy on stand by mode.

However, some TV sets may have features

such as on timer, that require the TV set to be

left in standby to work correctly.

TV consumes less energy when brightness is

reduced.

Notes on still images

Watching the same image for a long time on the

screen may cause a still image remain feebly on

the background. Feeble image(s) on the back-

ground is originated from LCD/LED technology

and does not require any action under guaran-

tee. To avoid such cases and/or minimize the

impact, you may observe the tips below.

Do not allow the same TV channel to stay on

the screen for a very long time. Channel logos

may cause this situation.

Do not allow the images, which are not full

screen, to constantly stay on the screen; if not

streamed in full screen format by the broad-

caster, you can convert the images to full

screen by changing picture formats.

Higher brightness and/or contrast values will

lead this impact to appear faster; therefore,

you are recommended to watch your TV in

the lowest brightness and contrast levels.

Receiving digital stations

To receive digital satellite stations (DVB-S) you

need a satellite antenna.

To receive digital stations (DVB-T) you need

a digital rooftop or indoor antenna (passive

or active indoor antenna with its own power

supply).

The antenna cable of the cable TV network

that broadcast in DVB-C must be plugged into

TV in order to receive the DVB-C broadcasts.

Unlike analogue broadcasting, not every

station has its own transmission frequency.

Instead, several stations are grouped into

what are known as bouquets on a regional or

national level.

You can find the current transmission informa-

tion on teletext from various broadcasters, or

look in a TV guide or on the Internet.

Various digital television stations from private

broadcasters are encrypted (DVB-S, DVB-T

and DVB-C). Watching these stations and the

recording and playback functions are only

possible with the appropriate CI module and

a SmartCard. Ask your specialist dealer.

GRUNDIG SCR System

Your TV supports SCR system (Single Channel

Router). With SCR satellite system, several us-

ers can individually receive all signals from the

satellite simultaneously.

ENGLISH

PACKING CONTENTS -------------------------------------------------------------------------------

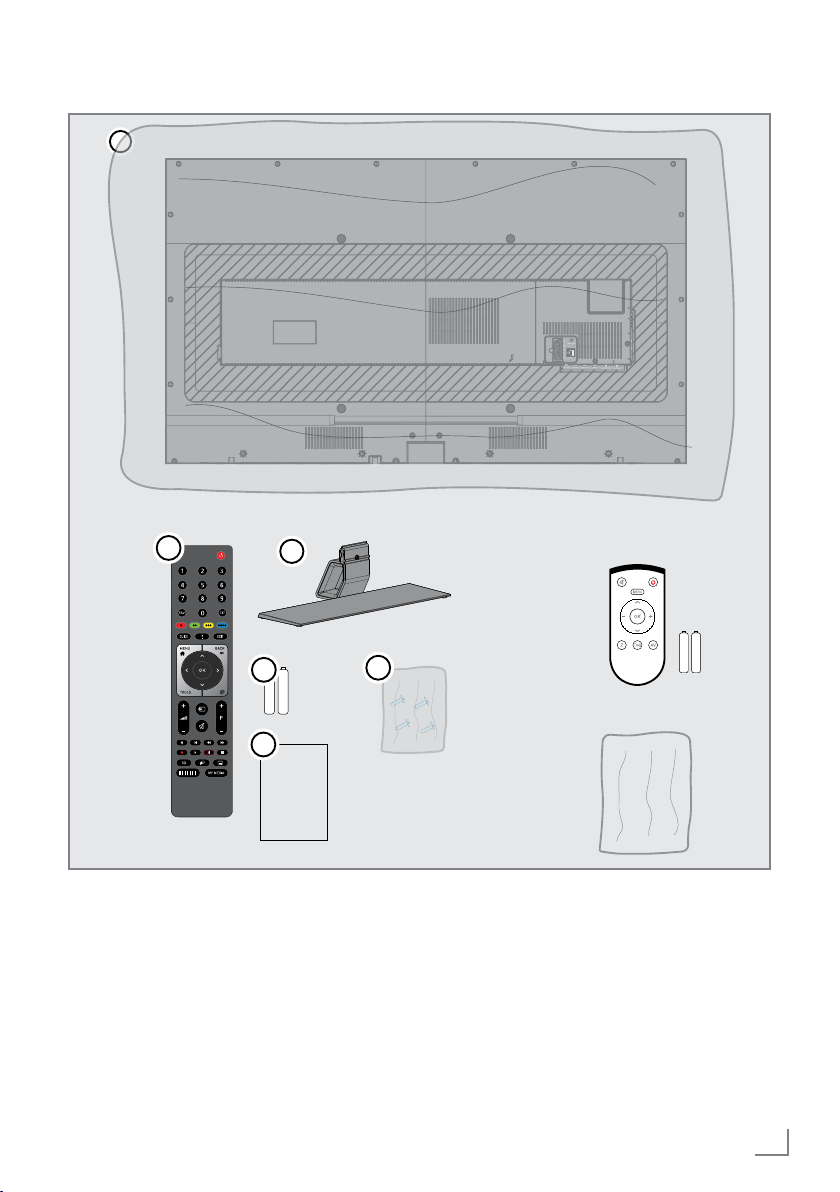

Standart accessory

1 TV

2 Stand

3 Remote control

4 Batteries for remote controls

5 Screws and mounting instructions for stand

6 Brief Instruction

Optional accessory

Easy-Use Remote Control

Batteries for Easy-Use remote controls

Cleaning cloth

Screws for VESA bracket

User

Manual

AV/ S-VHS/COMPONENT

SERVICE

LAN

SATELLITE

13/18Vmax. 500mA

ANT-IN

5Vmax. 50mA

OpticOut USB(HDD) HDMI3(ARC) HDMI2

ENGLISH

CONNECTION/PREPARATION -----------------------------------------------------

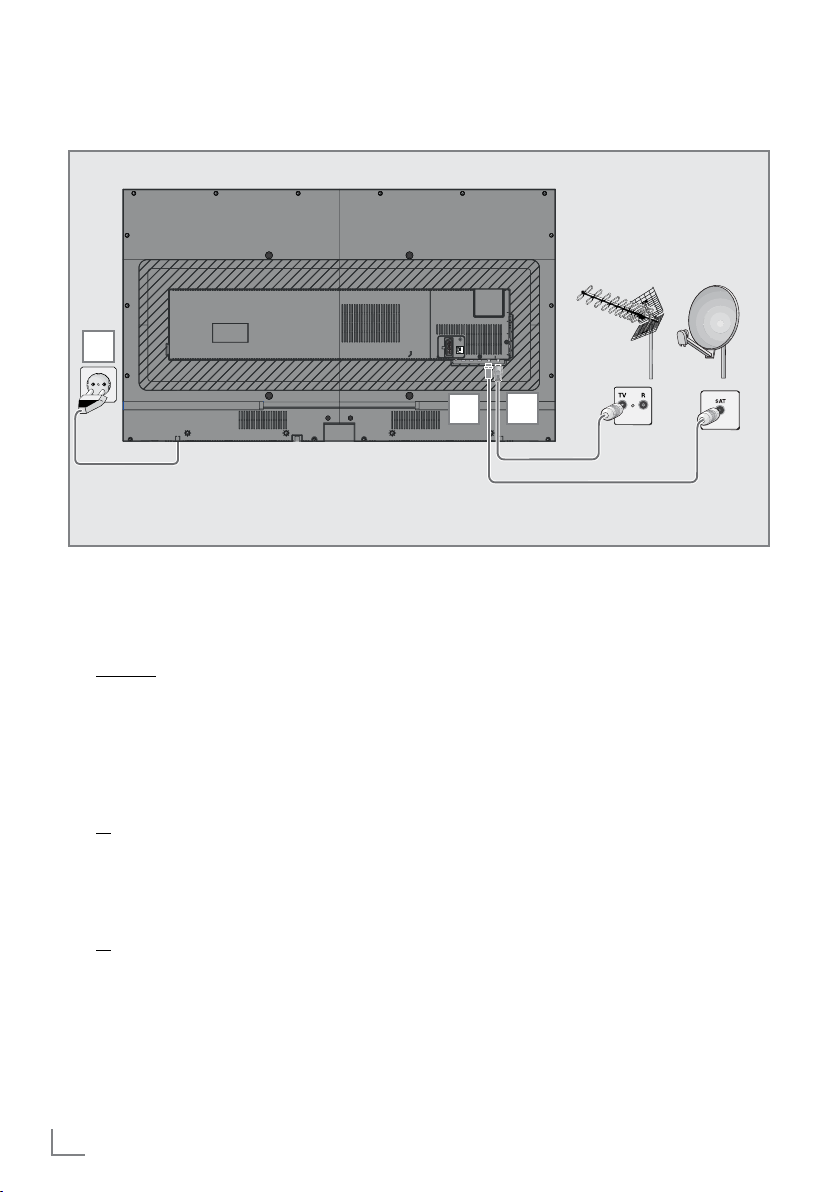

Connecting the antenna and power cord

1 To receive digital satellite channels (DVB-S),

connect the satellite antenna cable to the

antenna socket SATELLITE on the television

set;

and / or

2a To receive terrestrial digital broadcasters

(DVB-T) connect the cable for the rooftop

or indoor antenna (passive or active indoor

antenna with its own power supply) to the

antenna socket ANT IN on the television

set;

2b To receive digital cable channels (DVB-C)

connect the cable for the rooftop antenna

to the antenna socket ANT IN on the televi-

sion set;

2c To receive analogue TV channels, connect

the cable for the rooftop antenna to the

antenna socket ANT IN on the television

set.

Note:

When connecting an indoor antenna you

may have to try it out at different positions

until you get the best reception.

3 Plug the power cord into the wall socket.

Note:

Only plug the device into the mains socket

after you have connected the external

devices and the antenna.

Do not use an adapter plug or extension

cable which does not meet the applicable

safety standards. Do not make changes on

the power cord.

AV/ S-VHS/COMPONENT

SERVICE

LAN

SATELLITE

13/18Vmax.500mA

ANT-IN

5Vmax.50mA

OpticOut USB(HDD) HDMI3(ARC) HDMI2

Inhaltsverzeichnis

Andere Grundig Fernseher Handbücher

Grundig

Grundig 55 GHU 8590 Bedienungsanleitung

Grundig

Grundig 32 GFB 5622 Bedienungsanleitung

Grundig

Grundig VENTI II series Bedienungsanleitung

Grundig

Grundig CUC 1822 Bedienungsanleitung

Grundig

Grundig 65 VLX 7730 BP Bedienungsanleitung

Grundig

Grundig 55 GOB 9089 Bedienungs- und Wartungshandbuch

Grundig

Grundig 43 GFB 6621 Bedienungsanleitung

Grundig

Grundig FINEARTS 55 3D DL Bedienungsanleitung

Grundig

Grundig P 37-070 P 37-730 text/ICN Bedienungsanleitung

Grundig

Grundig VISION 7 47-7850 Bedienungsanleitung

Grundig

Grundig 26 LXW 68-8600 DL Bedienungsanleitung

Grundig

Grundig APOLLO 42 PW 110-7510 TOP Bedienungsanleitung

Grundig

Grundig GREENVILLE 7008/5 TOP Bedienungsanleitung

Grundig

Grundig 40 VLE 827 S Bedienungsanleitung

Grundig

Grundig 22 VLE 5720 SG Bedienungsanleitung

Grundig

Grundig CUC 6360 Bedienungsanleitung

Grundig

Grundig CUC 1894 Bedienungsanleitung

Grundig

Grundig Vision 6 Bedienungsanleitung

Grundig

Grundig ST 55-906 FR/DOLBY Bedienungsanleitung

Grundig

Grundig CUC 1826 Bedienungsanleitung

Grundig

Grundig 65FOC9880 Bedienungsanleitung

Grundig

Grundig 75 GHU 8790 Bedienungsanleitung

Grundig

Grundig M 72-105/9 iDTV Bedienungsanleitung

Grundig

Grundig TVR 5100 series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
