CONTENTS____________________________________________

3-4 Set-up and safety

5-6 Connection/Preparation

5-6 Connecting the antenna and the mains cable

6Adjusting the inclination of the screen

7-9 Overview

7Operating controls on the television

7Connections on the television

8-9 The remote control

10-13 Settings

10 Setting television channels automatically

10-11 Changing stored channels

12 Picture settings

12-13 Audio settings

14-15 Television operation

14 Basic functions

15 Changing the picture format

15 Zap function

16-17 Teletext mode

16 TOP text or FLOF text mode

16 Normal text mode

16-17 Additional functions

18 Convenience functions

18 Convenience functions with the »FEATURES« menu

19-21 Using external devices

19 Video recorder, DVD player or SET-TOP box

20 Decoder or satellite receiver

20 Headphones

21 Camcorder

21 HiFi system

22 Operation as a PC Monitor

22 Connecting a PC

22 Selecting the channel position for the PC

22 Settings for the PC

23-25 Special settings

23-25 Setting television channels

26-28 Information

26 Technical data,

26 Service information for dealers

26 Environmental note

27 Troubleshooting

28 Additional Information for units sold in the UK.

ENGLISH

SET-UP AND SAFETY___________________________

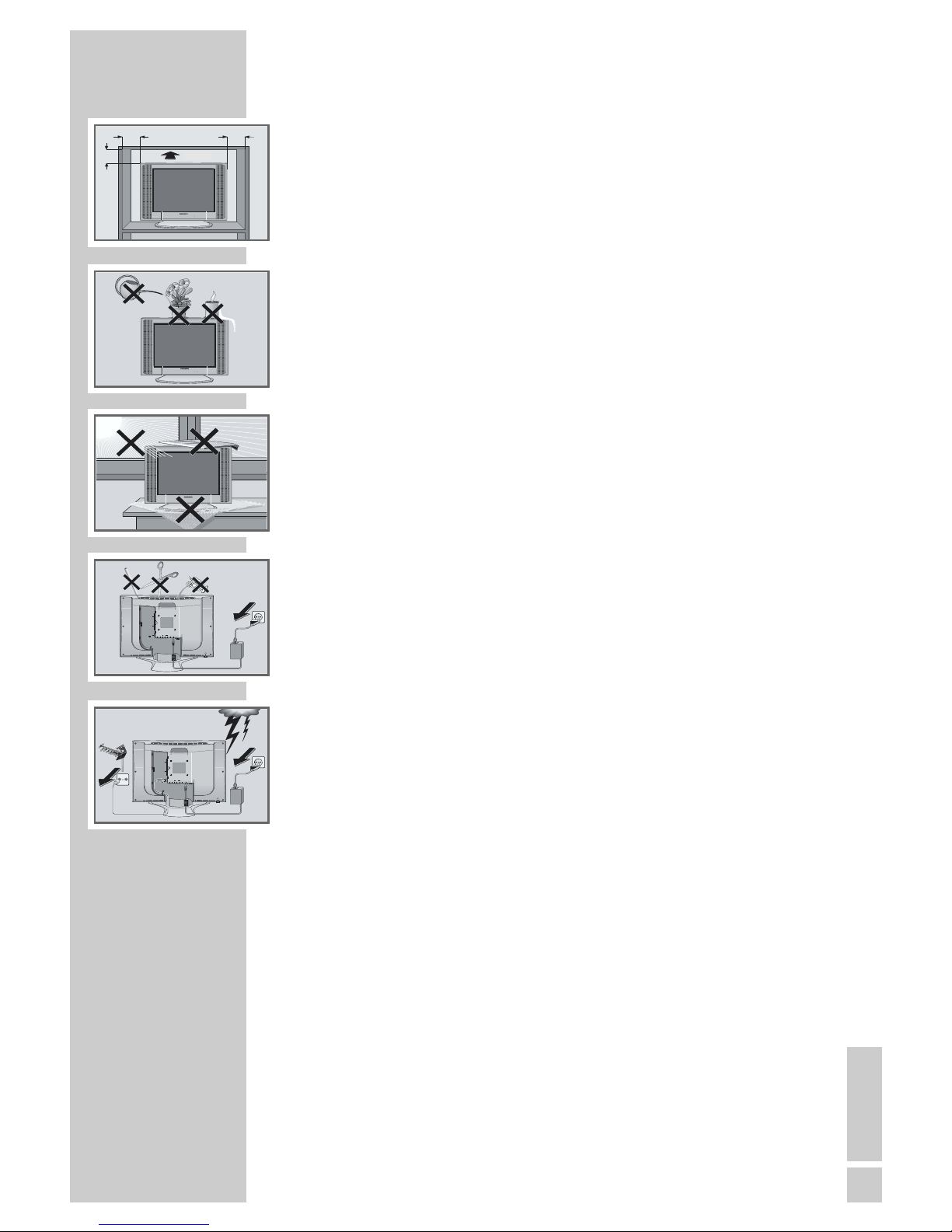

Please note the following information when setting up your television set.

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

Ensure sufficient clearance between the TV and the wall cabinet.

The television set is designed for use in dry rooms. If you do use it in the

open, please ensure that it is protected from moisture, such as rain or

splashing water. Do not expose the television set to any moisture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar items

beneath it.

Do not place the television set close to heating units or in direct sunlight,

as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of the

television set. For reasons of safety, have a specialist remove any dirt

deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Ensure that the mains cable and the mains adapter are not damaged.

The television set may only be operated with the mains cable/adapter

supplied.

Thunderstorms are a danger to all electrical devices. Even if the tele-

vision set is switched off, it can be damaged by a lightning strike to the

mains or the antenna cable. Always disconnect the mains and antenna

plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Note:

Do not connect any other equipment while the device is switched on.

Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the

external devices and the antenna.

cm 10

20 cm

mira

Krieg am Golf

AV1

AV2

ANTIN

AUDIOOUT

PCINPUT

LVideoR

AV3

S-VHS DC15V

! SERVICE !! SERVICE !

! SERVICE !

AV1

AV2

ANTIN

AUDIOOUT

PCINPUT

LVideoR

AV3

S-VHS DC15V

TV R

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be difficult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds specified by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as defined

by the warranty.

SET-UP AND SAFETY___________________________

ENGLISH

CONNECTION/PREPARATION __________

Connecting the antenna and the mains cable

1Take off the cover (A).

2Plug the antenna cable of the rooftop antenna into the

»ANT IN Ä« antenna socket on the television.

3Plug the mains cable supplied into the mains socket of the

power unit.

4Plug the power pack into the »DC 12 V« socket (Amira 15

and

Amira 17) or the »DC 15 V« socket (Amira 20) on the tele-

vision.

5Plug the power cord plug into an earthed safety socket.

Note:

Only connect the television using the power cord supplied

to a suitable earthed safety socket.

Do not use an adapter plug or extension lead which does

not meet the applicable safety standards. Do not tamper

with the power cord.

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

6Put on the cover (A).

AV 1

AV 2

ANT IN AUDIO OUT

PC INPUT

LVideoR

AV 3

S-VHS DC 15V

TV R

AV 1

AV 2

ANT IN AUDIO OUT

PC INPUT

LVideoR

AV 3

S-VHS DC 15V

Inserting batteries in the remote control

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or

AA, 2x1,5V). Observe the polarity (marked on the base

of the battery compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote

control commands, the batteries may be flat. Be sure to

remove used batteries.

The manufacturer accepts no liability for damage re-

sulting from used batteries.

Environmental note

Batteries, including those which contain no heavy metal,

may not be disposed of with household waste. Please

dispose of used batteries in an environmentally sound

manner. Find out about the legal regulations which apply

in your area.

Adjusting the inclination of the screen

1Hold the television stand.

2Carefully tilt the screen forward or back.

CONNECTION/PREPARATION __________

Amira

ENGLISH

Controls on the television

•Operation indicator.

+P– Switches the television on from

standby;

Channel selection.

TV/AV Selects the AV channels and the

most recently viewed television

channel.

MENU Opens the »INFO« menu.

+ z–Adjusts the volume.

IO Switches the television into and

out of standby mode.

Connections on the television set

AV 1 Euro/AV socket (FBAS, RGB).

AV 2 Euro/AV (FBAS) socket – Amira 17/20 only.

ANT IN Ä Antenna socket.

AUDIO OUT L R Audio output.

AV 3 L R VIDEO Audio/video input.

S-VHS S-VHS video input.

yHeadphone connection (3.5 mm ø jack).

PC INPUT VGA connection for PC.

DC 12 V Power pack connection socket (Amira 15/17).

DC 15 V Power pack connection socket (Amira 20).

OVERVIEW____________________________________________

Amira

AV 1

AV 2

ANT IN AUDIO OUT

PC INPUT

LVideoR

AV 3

S-VHS DC 15V

AV 1

AV 2

ANT IN Ä

PC INPUT

AUDIO OUT L R

DC 12 V Amira 15/17

DC 15 V Amira 20

AV 3 L R VIDEO S-VHS

–

TV/AV

–

OVERVIEW____________________________________________

The remote control

ǼSwitches off the television set (stand-by).

PIP Key has no function.

ESwitches between picture formats.

-/-- Switches to the PC channel position;

switches to double character size in teletext mode.

1...0 Switches the television on from standby mode;

selects channels directly.

dSound on/off (mute).

iOpens and closes the »INFO« menu;

closes all menus.

ZZap function.

P+, P- Switches the television on from standby;

selects stations step by step;

moves the cursor in the menus up and down.

ǸǷ Adjusts the volume;

moves the cursor left/right.

OK Calls up the preset channels;

activates various functions.

TXT Switches between teletext and TV modes.

AV Selects the AV channels and the most recently viewed

television channel.

SCAN Reveals answers in teletext mode.

PAP Page stop in teletext mode.

SIZE Selects the sub-pages in teletext mode.

POS Updates a page in teletext mode.

Tele Pilot 160 C

VCR DVD

SAT

TXT

PIP

POS

SIZEPAP

SCAN

ENGLISH

OVERVIEW____________________________________________

zSelects various picture settings;

scrolls back a page in teletext mode

ȄTime on;

scrolls to the next page in teletext mode.

ǷǷSelects the desired chapter in teletext mode.

FSelects various audio settings∞

selects the desired topic in teletext mode.

VCR, SAT Switches to operating a GRUNDIG video

DVD recorder, a GRUNDIG satellite receiver or

a GRUNDIG DVD player.

Keep the relevant buttons (»VCR«, »SAT«, »DVD«)

pressed down. Then press the button you require.

Note:

The functions available to you depend on the model of

the device you are using.

Just try it out.

Tele Pilot 160 C

VCR DVD

SAT

TXT

PIP

POS

SIZEPAP

SCAN

Setting television channels automatically

The television set is equipped with an automatic channel search

system.

You start the search and can then sort the television channels into

your order of preference.

99 preset positions are provided, to which you can assign television

channels from the antenna or from the cable connection.

1Switch on the television with »IO« on the television set, then

press »P+«on the remote control.

– The »SPRACHE« (LANGUAGE) menu appears when the tele-

vision is first switched on.

Hint:

If the »SPRACHE« (LANGUAGE) menu does not appear on the

screen,

then set it in accordance with the chapter on resetting all tele-

vision channels on page 25.

2Select language with »P+«, »P-«, »Ǹ« or »Ƿ« and press

»OK« to confirm.

– The »COUNTRY SELECTION« menu appears.

3Press »P+«, »P-«, »Ǹ«or »Ƿ«to select the country and

»OK«to confirm.

– A warning message appears.

4Press »OK«to start the search.

– The search begins. It may last a few minutes, depending on

the number of television stations found.

– After the search the television switches to channel position 1

and the »PROGRAM TABLE« menu appears.

Changing stored channels

You can delete channels that have been stored more than once

during the automatic search. You can also store channels in a diffe-

rent preset position, change or enter the name of a channel as well

as skip channels.

Selecting the station list

1Press »i« to open the »INFO« menu.

– The »INFO« menu appears.

2Select »SETUP« with »P+« or »P-« and confirm with »OK«.

– The »SETUP« menu appears.

3Select »PROGRAM TABLE« with »P+« or »P-« and confirm

with »OK«.

Note:

Further operation is explained in the following sections.

SETTINGS ______________________________________________

SPRACHE

DEUTSCH MAGYAR

DANSK POLSKI

ESPAÑOL TÜRKÇE

FRANÇAIS EΛΛHNIKA

ENGLISH ССК

ITALIANO SUOMI

NORSK âESKY

NEDERLANDS ROMÂNESTE

PORTUGUÊS УССК

SLOVENSKO HRVATSKI

SVENSKA БЛГ

AUSWÄHLEN ENDE

UND BESTÄTIGEN ZURÜCK

●

COUNTRY SELECTION

BELGIUM NETHERLANDS

CZECH REP. NORWAY

DENMARK POLAND

FINLAND PORTUGAL

FRANCE SPAIN

GERMANY SWEDEN

GREECE SWITZERLAND

HUNGARY TURKEY

IRELAND UK

ITALY –––

SELECT EXIT

AND CONFIRM BACK

●

INFO

SOUND


SETUP

FEATURES

SELECT EXIT

AND OPEN

●

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Grundig Fernseher Handbücher

Grundig

Grundig THARUS 38 LCD 38-9210 TOP Bedienungsanleitung

Grundig

Grundig 50 GHU 7912B Bedienungsanleitung

Grundig

Grundig 43 VLE 6910 BP Bedienungsanleitung

Grundig

Grundig 48 VLE 5520 BN Bedienungsanleitung

Grundig

Grundig PlanaVision 42 PW 110-8610 TOP Bedienungsanleitung

Grundig

Grundig CUC 7303 Bedienungsanleitung

Grundig

Grundig 40 VLE 7630 WP Bedienungsanleitung

Grundig

Grundig 28 VLE 5700 SN Bedienungsanleitung

Grundig

Grundig 48 VLE 565 BG Bedienungsanleitung

Grundig

Grundig CUC 7350 Bedienungsanleitung

Grundig

Grundig PW 110-8110/9 Bedienungsanleitung

Grundig

Grundig CUC 6360 Bedienungsanleitung

Grundig

Grundig 65 GUB 7060 Fire TV Edition Bedienungsanleitung

Grundig

Grundig 32 GFB 6060 Bedienungsanleitung

Grundig

Grundig CUC 1952 Bedienungsanleitung

Grundig

Grundig 22 VLE 5720 SG Bedienungsanleitung

Grundig

Grundig Arcance 72 Flat MF 72-2015 Top Bedienungsanleitung

Grundig

Grundig 43 GFT 6820 Bedienungsanleitung

Grundig

Grundig 55 GUB 8688 A Bedienungs- und Wartungshandbuch

Grundig

Grundig 43 VLE 5730 BN Bedienungsanleitung

Grundig

Grundig TVR 3735 FR/TOP Bedienungsanleitung

Grundig

Grundig 49GFB6625 Bedienungsanleitung

Grundig

Grundig 32VLE7040 C Bedienungsanleitung

Grundig

Grundig 26 VLC 4010 C Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
