CONTENTS____________________________________________

3-4 Set-up and safety

5 Connection/Preparation

5 Connecting the antenna and the mains cable

5 Inserting batteries in the remote control

6-9 Overview

6 Connections on the television

7 Controls on the television

8-9 The remote control

10-13 Settings

10 Setting television channels automatically

10-11 Changing stored channels

11 Picture settings

12-13 Audio settings

14-18 Television operation

14-15 Basic functions

15 Zap function

16 Zoom function

17 Changing the picture format

18 PIP mode

19-20 Teletext mode

19 TOP text or FLOF text mode

19 Normal text mode

19-20 Additional functions

21 Convenience functions

21 Convenience functions with the »Features« menu

22-27 Using external devices

22-25 DVD player, DVD recorder, video recorder or set-top box

25 Headphones

26 Decoder or satellite receiver

27 Camcorder

27 Hi-fi system/AV receiver

28 PC Monitor Mode

28 Connecting a PC

28 Selecting the channel position for the PC

28 Settings for the PC

29-31 Special settings

29-31 Setting television channels

32-34 Information

32 Technical data,

32 Service information for dealers

32 Environmental note

33 Troubleshooting

34 Additional Information for units sold in the UK.

ENGLISH

SET-UP AND SAFETY___________________________

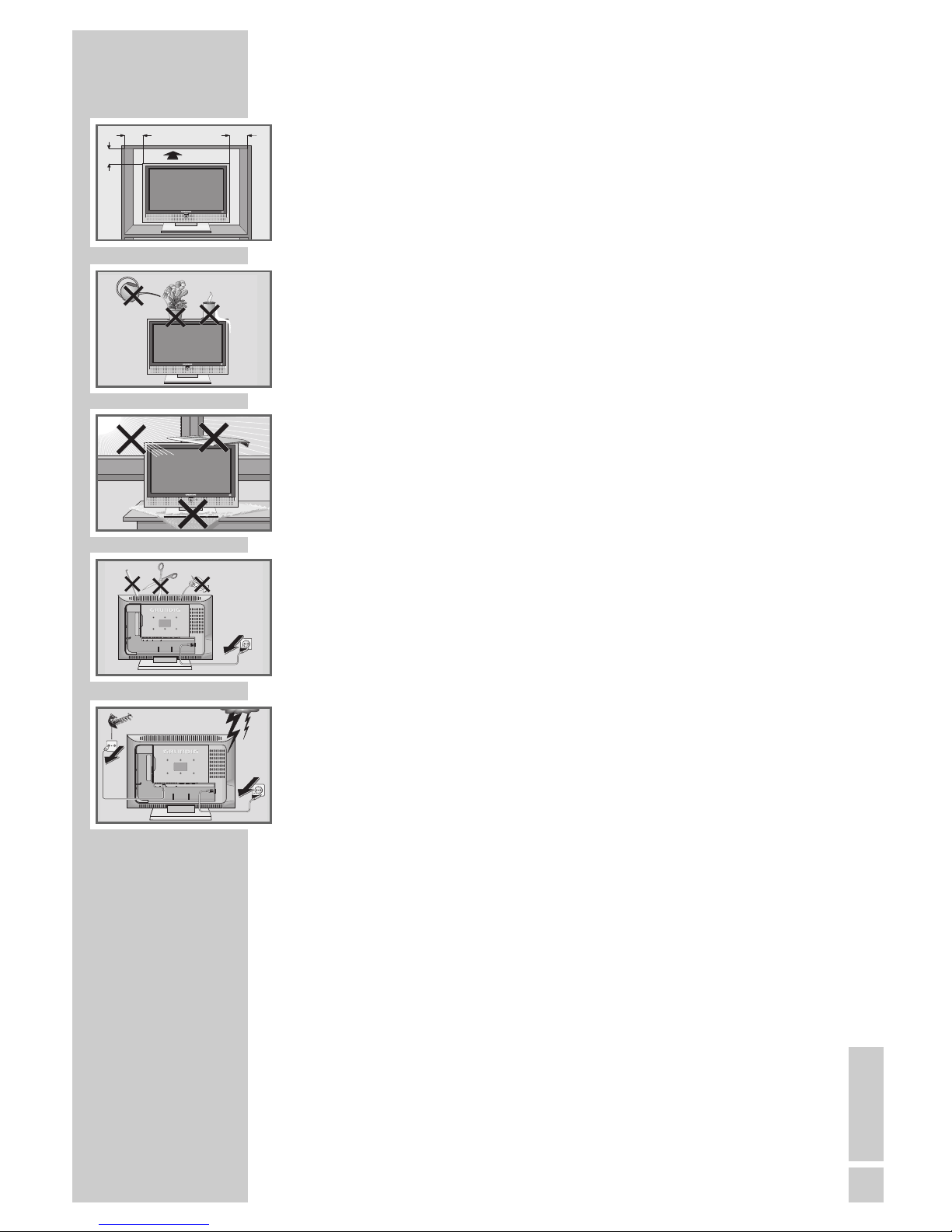

Please note the following information when setting up your television set.

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

To assure sufficient ventilation make sure there is enough space

around it in the wall unit.

The television set is designed for use in dry rooms. If you do use it in the

open, please ensure that it is protected from moisture, such as rain or

splashing water. Do not expose the television set to any moisture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar items

beneath it.

Do not place the television set close to heating units or in direct sunlight,

as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of the

television set. For reasons of safety, have a specialist remove any dirt

deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Make sure the power cord or the power supply unit (if provided) are not

damaged.

The television set may only be operated with the mains cable/adapter

supplied.

Thunderstorms are a danger to all electrical devices. Even if the tele-

vision set is switched off, it can be damaged by a lightning strike to the

mains or the antenna cable. Always disconnect the mains and antenna

plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Note:

Do not connect any other equipment while the device is switched on.

Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the

external devices and the antenna.

cm 10

20 cm

Lenaro

KriegamGolf

PC-INDVI-D PC-DVI

AUDIO-IN

COMPONENTVIDEOINPUT

AUDIO

ANTIN

ACIN

AV2

AV1

AVOUT

LRVHDMI

YPbPr

! SERVICE !! SERVICE !

! SERVICE !

PC-INDVI-D PC-DVI

AUDIO-IN

COMPONENTVIDEOINPUT

AUDIO

ANTIN

ACIN

AV2

AV1

AVOUT

LRVHDMI

YPbPr

TV R

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be difficult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds specified by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as defined

by the warranty.

SET-UP AND SAFETY___________________________

ENGLISH

CONNECTION/PREPARATION __________

Connecting the antenna and the mains cable

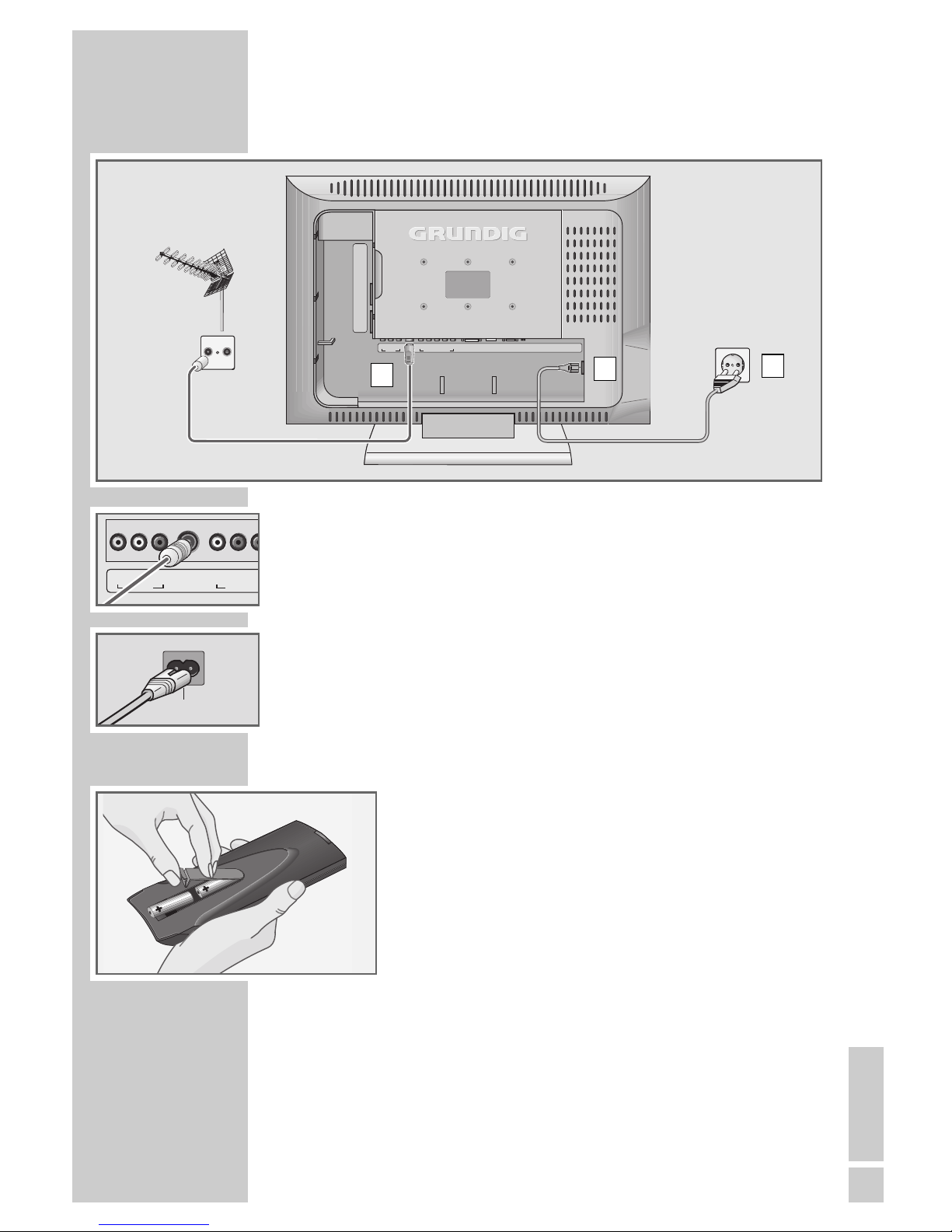

1Plug the antenna cable of the rooftop antenna into the »ANT IN« anten-

na socket on the television.

2Plug the mains cable supplied into the »AC IN« mains socket of the tele-

vision.

3Plug the mains cable into the wall socket.

Note:

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

Inserting batteries in the remote control

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or

AA, 2x1,5V). Observe the polarity (marked on the base

of the battery compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote

control commands, the batteries may be flat. Be sure to

remove used batteries.

The manufacturer accepts no liability for damage re-

sulting from used batteries.

Environmental note

Batteries, including those which contain no heavy metal,

may not be disposed of with household waste. Please

dispose of used batteries in an environmentally sound

manner. Find out about the legal regulations which apply

in your area.

PC-INDVI-D PC-DVI

AUDIO-IN

COMPONENT VIDEO INPUT

AUDIO

ANT IN

AC IN

AV 2

AV 1

AV OUT

LRVHDMI

YPbPr

TV R

123

COMPONEN

AUDIO

ANT IN

AV OUT

LRV

AC IN

OVERVIEW____________________________________________

Connections on the television

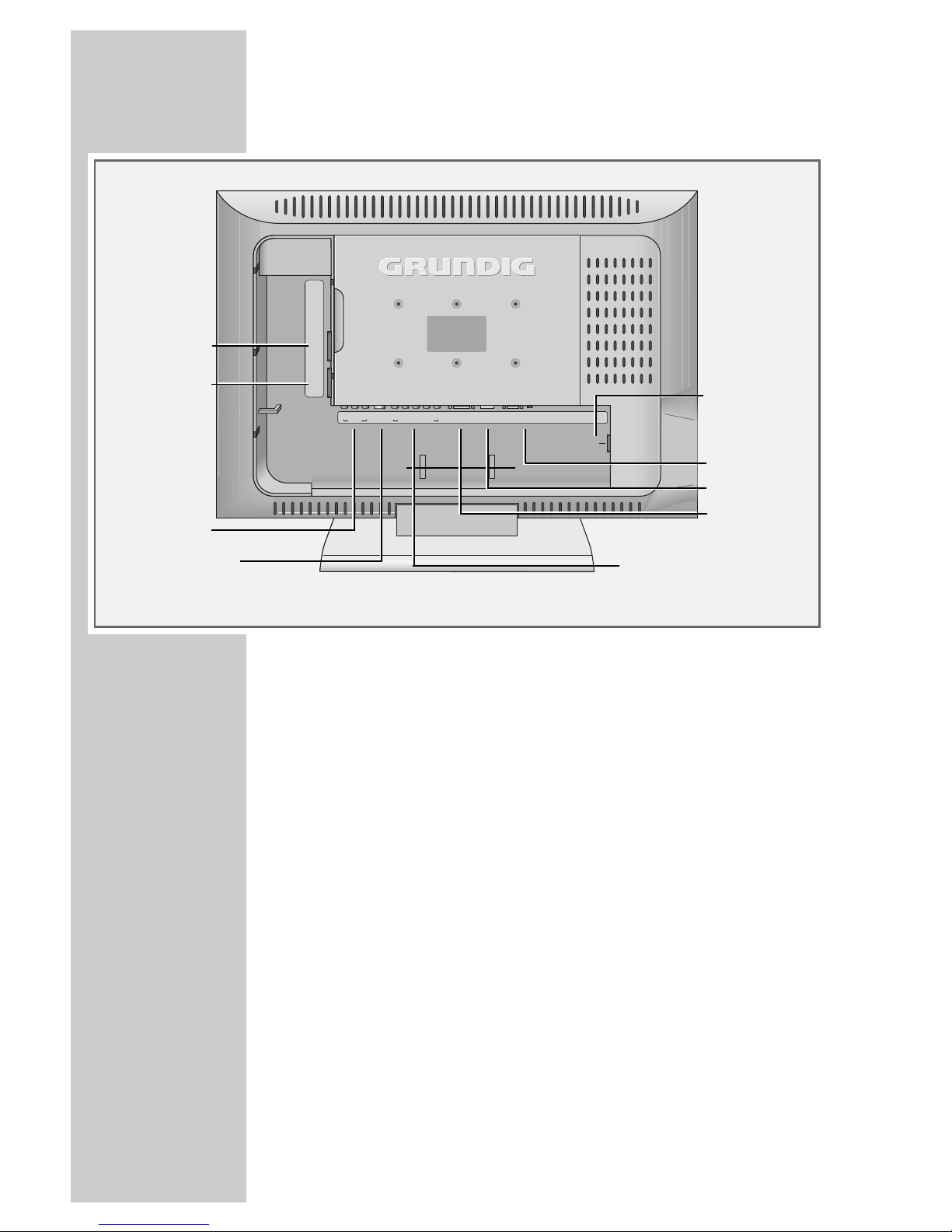

AV 2 Euro/AV socket (FBAS signal).

AV 1 Euro/AV socket (FBAS signal,

RGB signal).

AV OUT V L R Audio and video output.

ANT-IN Antenna socket.

COMPONENT VIDEO INPUT

AUDIO LR Audio signal input (YUV signal).

Y Pb Pr Video signal input (YUV signal).

DVI-D DVI-D socket, video signal input for

PC (DVI).

HDMI HDMI socket, audio/video signal

input (HDMI).

PC-IN VGA socket, video signal input

for PC.

PC-DVI AUDIO IN Audio signal input for PC.

AC IN Socket for the mains cable.

PC-INDVI-D PC-DVI

AUDIO-IN

COMPONENT VIDEO INPUT

AUDIO

ANT IN

AC IN

AV 2

AV 1

AV OUT

LRVHDMI

YPbPr

AV 2

HDMI

AC IN

AV OUT V L R DVI-D

AV 1

COMPONENT VIDEO INPUT

AUDIO LR Y Pb Pr

ANT IN

PC-DVI

AUDIO IN

ENGLISH

Controls on the television

ȂPower switch, switches the device to and from standby

mode.

–P+ Switch the television on from standby.

Channel selection.

Select a function in the menu.

TV/AV Opens the pre-selection for AV channels.

Select within the menu with »P +« or »– P«,

confirm with »– z«.

MENU Opens the »MAIN MENU« menu.

Press »–P+« to select an item.

Press »TV/AV« to activate a function.

Press »– z+« to set a function.

Press »MENU« to close the menu.

– z+Adjust the volume.

Select menu functions.

Video (AV 3) Video signal input for camcorder.

L AUDIO R Audio signal input for camcorder.

S-VHS Video signal input for S-Video camcorder.

yHeadphone connection (3.5 mm jack).

OVERVIEW____________________________________________

Lenaro

TV/AV

Lenaro

S-VHS

Video

OVERVIEW____________________________________________

The remote control

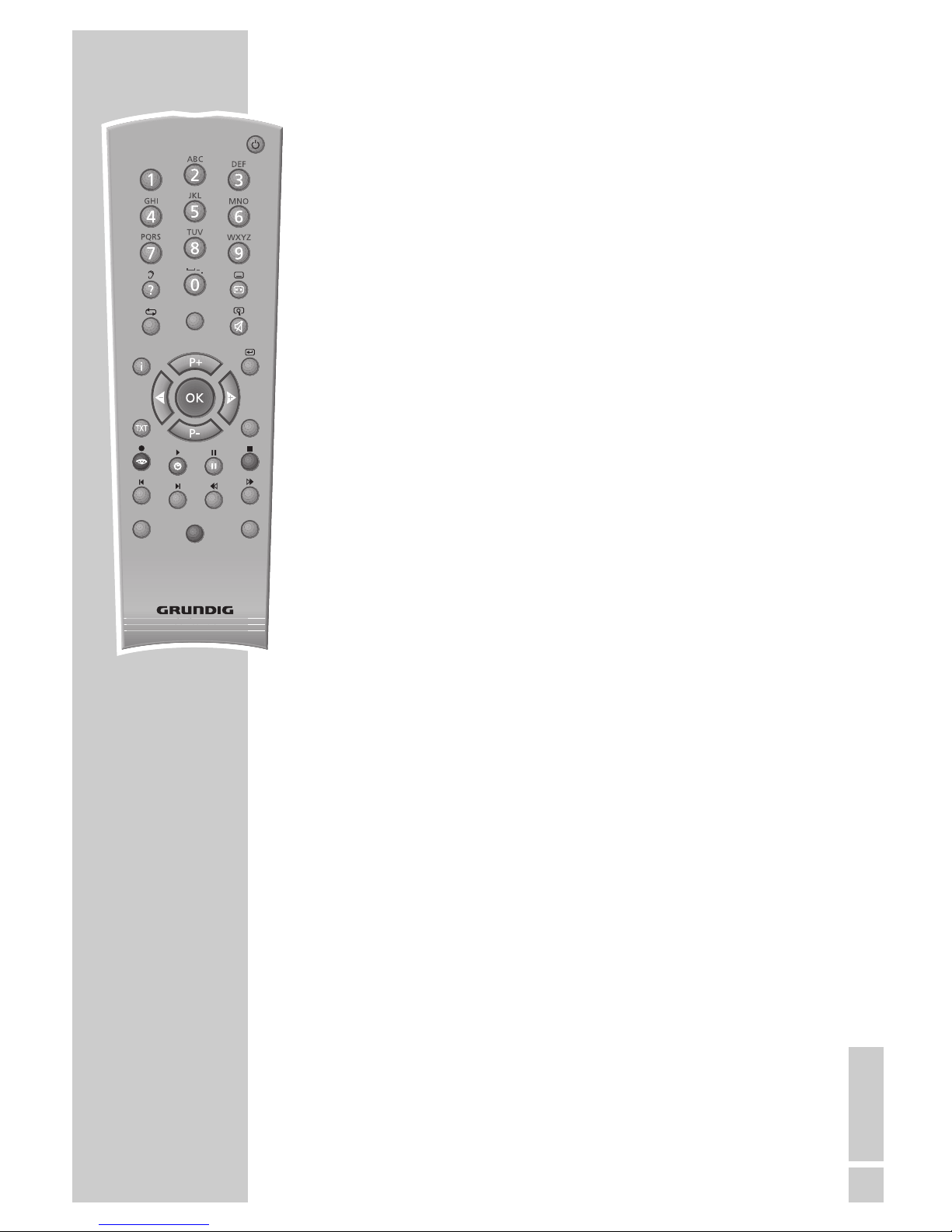

ǼSwitches off the television set (stand-by).

1...0 Switches the television on from standby mode

Selects channels directly.

?Displays the number and name of a station.

Switches to double character size in teletext mode.

ESwitches between picture formats.

Page stop in teletext mode.

PIP Shows an inset picture;

activates the double window function (two different

TV programmes on separate halves of the screen);

switches back to normal size.

AV Opens the pre-selection for AV channels.

Then selection with P+ or P-.

dSound on/off (mute).

iCalls up the »Main menu«.

ZZap function.

P+, P- Switches the television on from standby;

selects stations step by step;

moves the cursor in the menus up and down.

ǸǷ Adjusts the volume;

moves the cursor left/right.

OK Calls up the preset channels;

activates various functions.

TXT Switches between teletext and TV modes

TV-G Key has no function.

zSelects various picture settings;

scrolls back a page in teletext mode.

ȄDisplays the time;

selects the next page in teletext mode.

ǷǷFreeze-frame;

selects the desired chapter in teletext mode.

FSelects various audio settings;

selects the desired topic in teletext mode.

PIP

TV-G

Tele Pilot 170 C

SCAN

PAT SP

DVD

AUX

TOP

PIP

TV-G

Tele Pilot 170 C

SCAN

PAT SP

DVD

AUX

TOP

ENGLISH

OVERVIEW____________________________________________

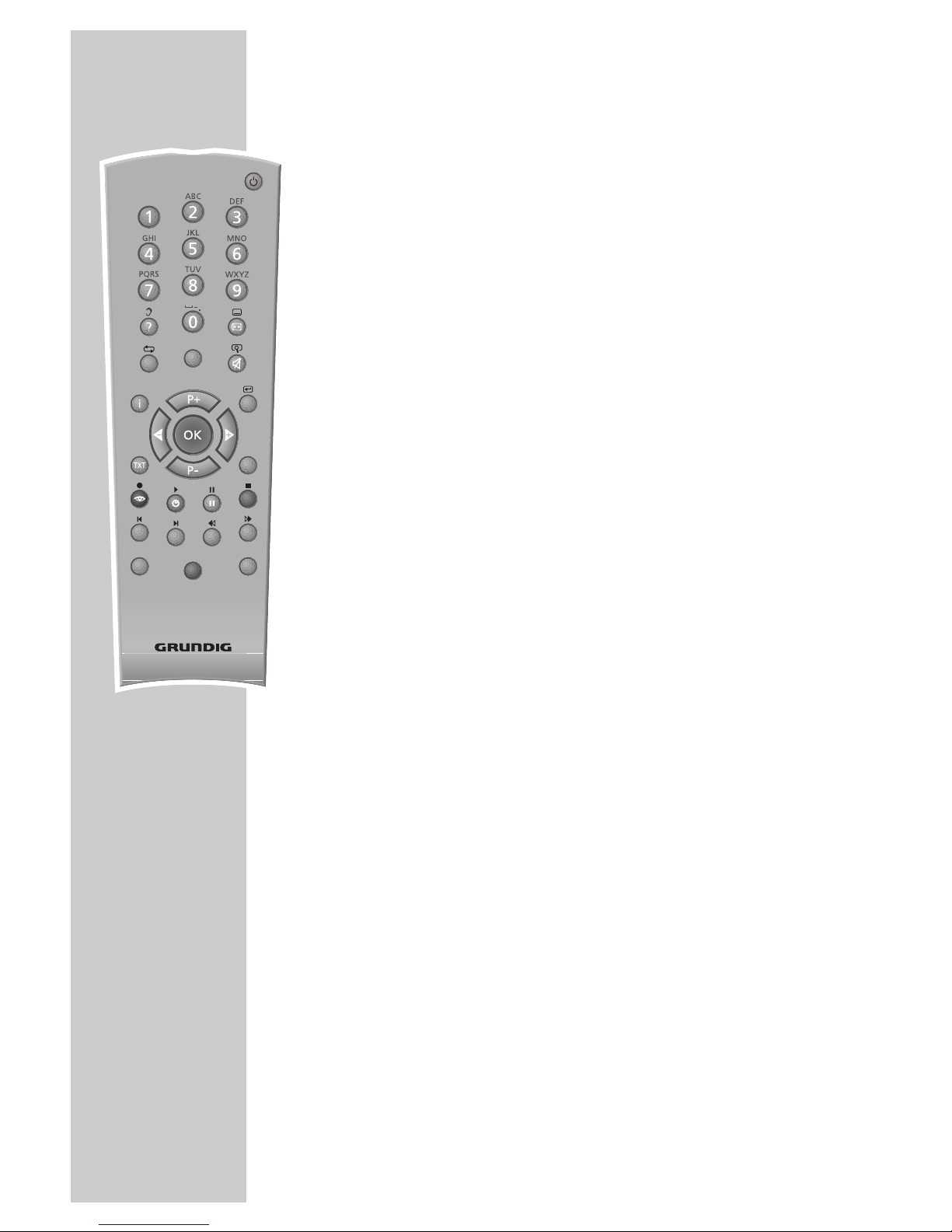

SCAN Reveals answers in teletext mode.

PAT Selects the Double Window function.

SSelects the sub-pages in teletext mode.

PUpdates a page in teletext mode.

DR, DVD Switches to operation of a GRUNDIG digital receiver,

GRUNDIG digital receiver with hard disk (PDR),

GRUNDIG DVD player or GRUNDIG DVD recorder.

Keep the appropriate button (»DR«, »DVD«) pressed

down. Then press the appropriate button.

Note:

The »DR« button has been programmed for operating

a GRUNDIG digital receiver (remote control level 1).

The »DVD« button has been programmed for

operating a GRUNDIG DVD player.

You can change this programming, see »AUX« button.

The functions available depend on the model of the

device you are using.

Just try it out.

AUX Programming the remote control for the operation of

external devices.

Press »AUX« and hold it down and press three

numerical buttons to enter the appropriate code:

»1«, »2«, »3« for a GRUNDIG DVD player.

»4«, »5«, »6« for a GRUNDIG DVD recorder.

»1«, »4«, »7« for a GRUNDIG digital receiver

(remote control level 1).

»2«, »5«, »8« for a GRUNDIG digital receiver

(remote control level 2).

»3«, »6«, »9« for a GRUNDIG digital receiver with

hard disk (PDR).

PIP

TV-G

Tele Pilot 170 C

SCAN

PAT SP

DVD

AUX

TOP

PIP

TV-G

Tele Pilot 170 C

SCAN

PAT SP

DVD

AUX

TOP

Setting television channels automatically

The television set is equipped with an automatic channel search

system.

You start the search and can then sort the television channels into

your order of preference.

99 preset positions are provided, to which you can assign television

channels from the antenna or from the cable connection.

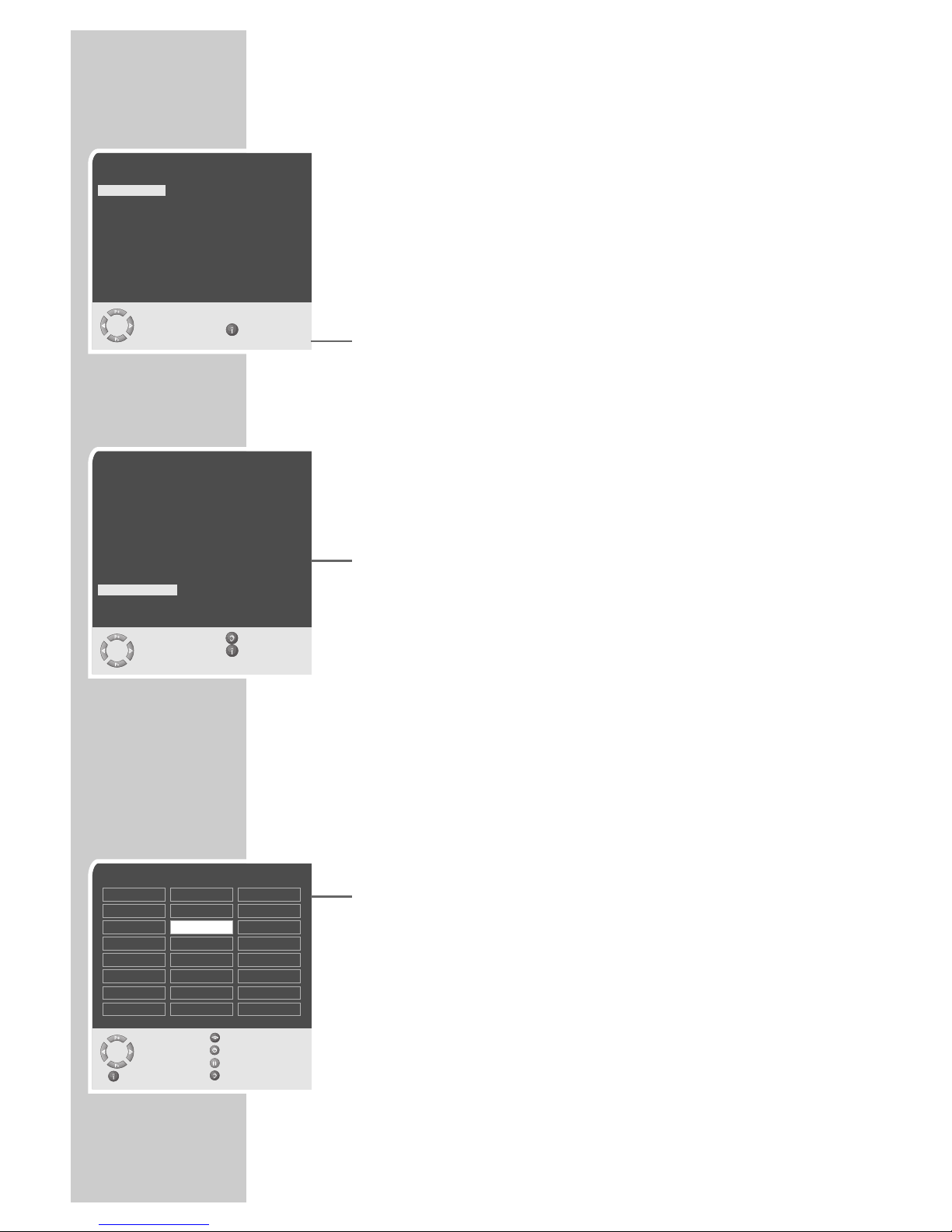

1Switch on the television with »Ȃ« on the television set, then

press »P+«on the remote control.

– The »Sprache« (Menu language) menu appears when the

television is first switched on.

Hint:

If the »Sprache« (Menu language) menu does not appear on

the screen, then set it in accordance with the chapter on reset-

ting all television channels on page 31.

2Select language with »P+«, »P-«, »Ǹ« or »Ƿ« and press

»OK« to confirm.

– The »Country« menu appears.

3Press »P+«, »P-«, »Ǹ« or »Ƿ« to select the country and

»OK« to confirm.

– The search begins. It may last a few minutes, depending on

the number of television stations found.

– After the search the television switches to channel position 1

and the »Program table« menu appears.

Changing stored channels

You can delete channels that have been stored more than once

during the automatic search. You can also store channels in a diffe-

rent preset position, change or enter the name of a channel as well

as skip channels.

Deleting channels

1In the »Program table« menu, select the station to be deleted

with »P+«, »P-«, »Ǹ« or »Ƿ«.

2Highlight the channel with »ǷǷ« (yellow).

3Press »ǷǷ« (yellow) to delete the channel.

Note:

To delete other stations, repeat steps 1and 3.

SETTINGS ______________________________________________

Program Table

Skip

Select

Move

Delete

Exit Name

01 ARD

02 ZDF

03 BR

04 RTL

05 SAT 1

06 PRO 7

07 BR

08 TEL5

11 S

12 ---- S

13 ---- S

14 ---- S

15 ---- S

16 ---- S

17 ---- S

18 ---- S

19 ---- S

20 ---- S

21 ---- S

22 ---- S

23 ---- S

24 ---- S

Sprache

Deutsch Português Türkçe

Dansk Svenska Eλληvικά

Español Suomi Hrvatski

Français âesky Pyccк

English Sloven‰cina Româna

Italiano Slovensko Cск

Norsk Magyar Блгapск

Dutch Polski

Auswählen

und bestätigen Ende

●

Country

Germany Greece Romania

Austria Hungary Slovakia

Belgium Iceland Slovenia

Bulgaria Ireland Spain

Croatia Italy Sweden

Czech Luxembourg Switzerland

Denmark Netherlands Turkey

United Kingtom Norway Yugoslavia

Finland Poland

France Portugal

Select Back

and confirm Exit

●

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Grundig Fernseher Handbücher

Grundig

Grundig Meglio series Bedienungsanleitung

Grundig

Grundig DIGI 100 CUC 1838 Bedienungsanleitung

Grundig

Grundig Xentia 70 Flat MFW 70-490/8 GB/Dolby Bedienungsanleitung

Grundig

Grundig VISION 4 32-4940 T Bedienungsanleitung

Grundig

Grundig Vision 7 Bedienungsanleitung

Grundig

Grundig 43 GFB 6722 Bedienungsanleitung

Grundig

Grundig 40 VLE 522 BG Bedienungsanleitung

Grundig

Grundig ARCANCE 70 Flat Bedienungsanleitung

Grundig

Grundig CUC 1952 Bedienungsanleitung

Grundig

Grundig 32GFB6629 Bedienungsanleitung

Grundig

Grundig M 72-400 DOLBY Bedienungsanleitung

Grundig

Grundig 22 XLE 3220 BA Bedienungsanleitung

Grundig

Grundig 50 GUB 7340 Bedienungsanleitung

Grundig

Grundig 55GUB9772 Bedienungsanleitung

Grundig

Grundig DIGI 100 CUC 1807 Bedienungsanleitung

Grundig

Grundig APOLLO 42 PW 110-7510 TOP Bedienungsanleitung

Grundig

Grundig 28 VLE 5500 WG Bedienungsanleitung

Grundig

Grundig XENTIA 72 Bedienungsanleitung

Grundig

Grundig CUC 7350 Bedienungsanleitung

Grundig

Grundig AMIRA32HDBLK Bedienungsanleitung

Grundig

Grundig 40 GFT 6820 Bedienungsanleitung

Grundig

Grundig XEPHIA 42 PW 110-6605 TOP Bedienungsanleitung

Grundig

Grundig ARCANCE 55 Flat MF 55-2401/5 TOP Bedienungsanleitung

Grundig

Grundig 32 VLE 6100 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
