Grundig SEDANCE 72 Bedienungsanleitung

COLOR TELEVISION

SEDANCE 72

M 72- 2110 MV/DOLBY

ENGLISH

21990-941.1500

;

SEDANCE 72 M72-2110 MV/DOLBY__________

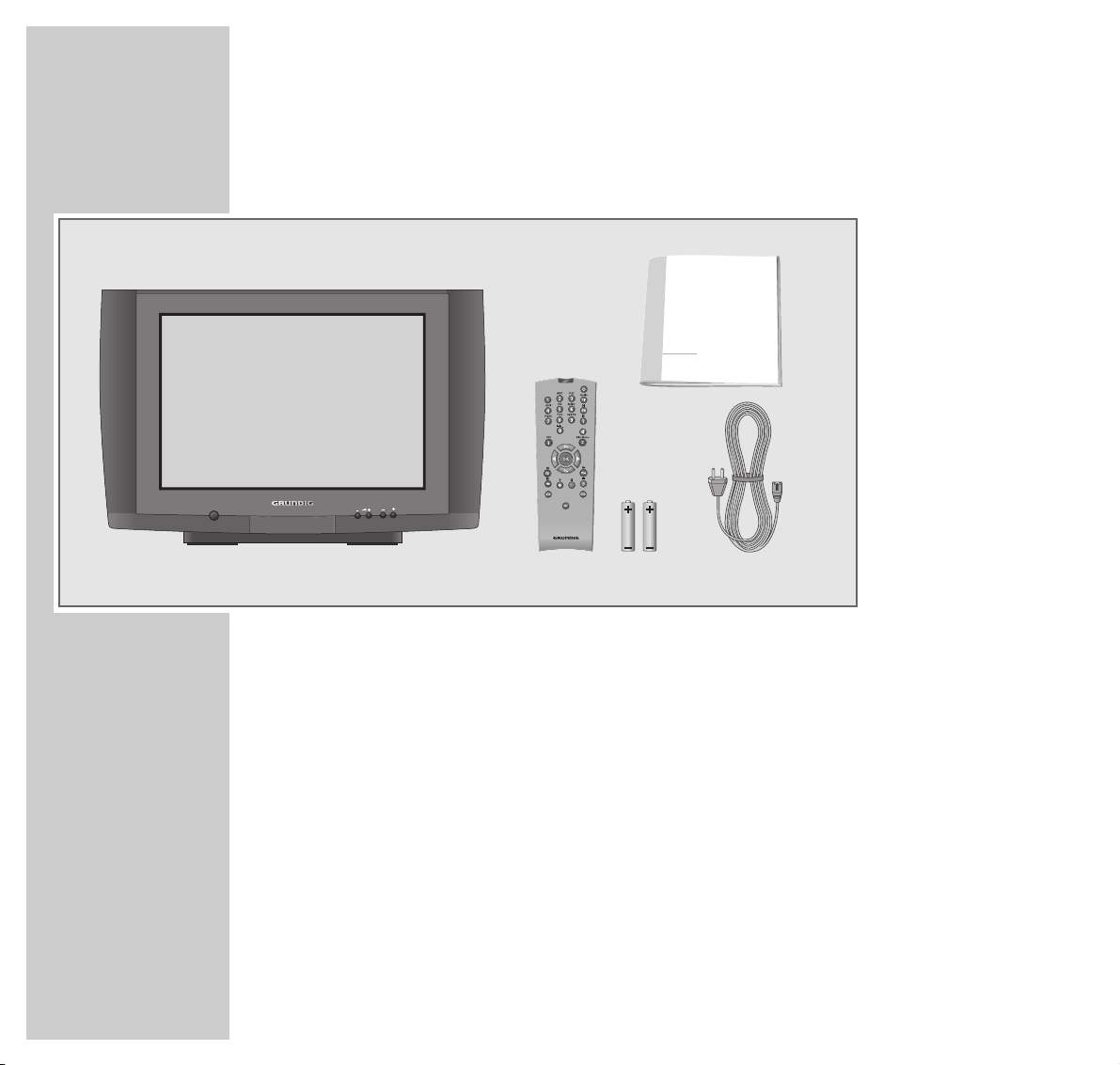

Scope of delivery

1TV set 4User manual

2Remote control 5Mains cable

32 batteries, 1.5 V–, Mignon type

Contents

3Special Features

Easy Dialog System

4Installation and Safety

Additional Functions

6At a Glance

Customer Information

8Connection and Preparations

Correcting Problems Yourself

9Settings

Customer information

COLOR TELEVISION

Tele Pilot 150C

ENGLISH

SPECIAL FEATURES _______________________________________________________

Technology

72 cm colour picture tube (visible picture: 68 cm);

100 Hertz technology.

GRUNDIG Megalogic

Megalogic possibilities:

– Perfect communication with a Megalogic video recorder. No troublesome

programming of channel positions.

– By starting playpack on the video recorder, the video programme position on

the TV set will be automatically selected.

Equipment

Virtual Dolby Surround *;

Megatext level 2.5;

Easy Dialog System;

TV-Guide;

Alphanumeric channel position selection.

Retrofit options

VGA interface for connecting a PC;

PIP - picture-in-picture;

internal satellite receiver.

* Under license from Dolby Laboratories Licensing Corporation.

DOLBY and the double-D symbol ĳare trademarks of Dolby Laboratories Licensing

Corporation.

INSTALLATION AND SAFETY _______________________________

In order to assure that this high-quality and easy-to-use TV set will be able to

provide you with good service and pleasure for a long time to come, it is impor-

tant that you observe the following points when installing the set.

This set has been designed for the reception and reproduction of picture and

sound signals.

Any other use is explicitly forbidden.

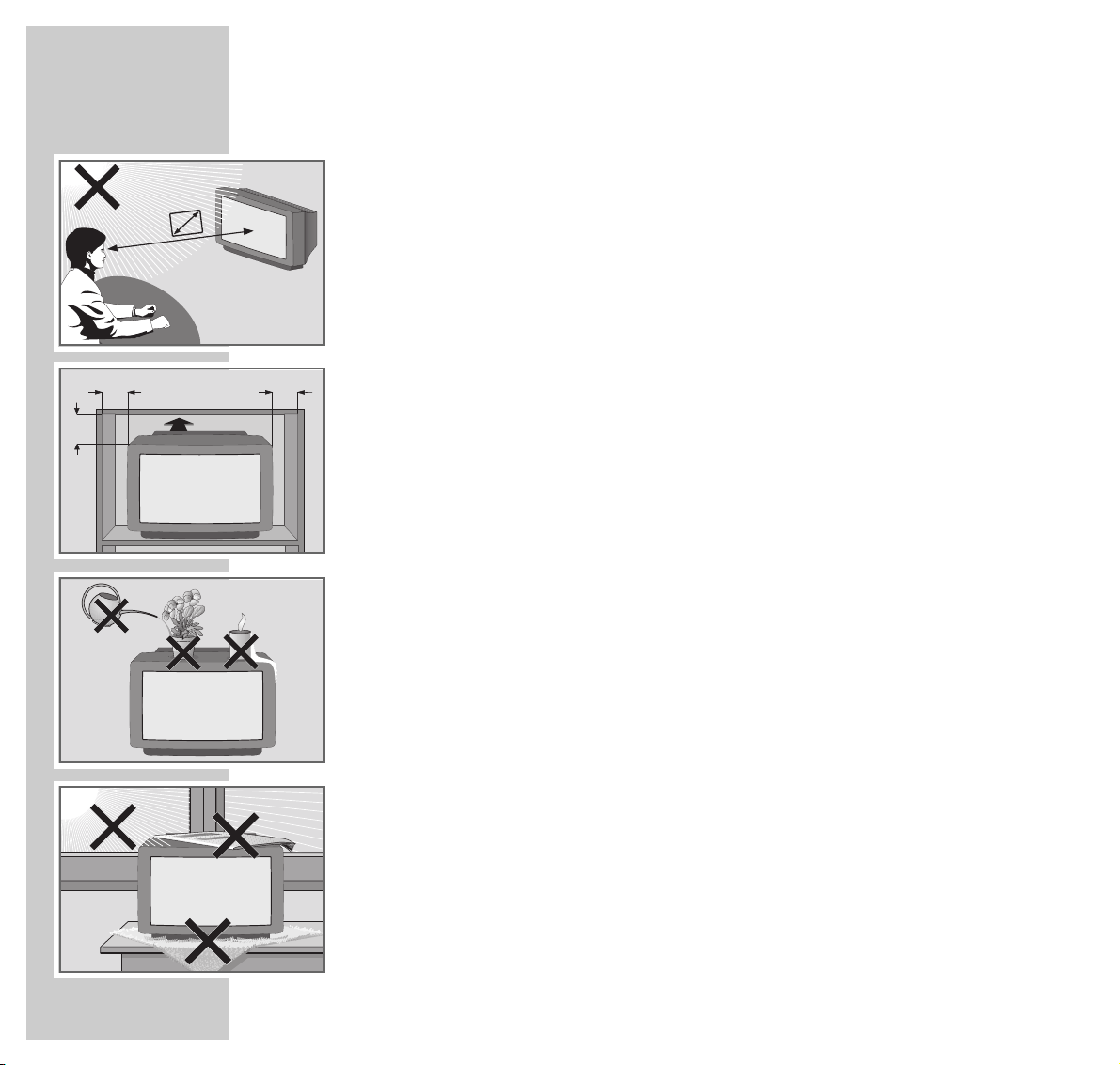

The ideal viewing distance from the screen is 5 times the diagonal width of the

screen.

External light shining on the screen adversely affects picture quality.

Assure that there is enough space inside a cabinet.

The TV set is designated for operation in dry rooms. Should you nevertheless

operate it outside, make absolutely sure that it is protected against dampness

(rain, water splashes). Never expose the TV set to any sort of moisture.

Do not place vessels filled with fluid (vases or similar things) on the TV set.

The vessel may tip over and the fluid may adversely affect electrical safety.

Put the TV set on an even and hard surface. Do not place objects (for example,

newspapers) on the TV set or place the set on a cloth cover, etc.

Do not place the TV set close to the heating or in direct sunshine as it could

overheat.

Heat build-up can be dangerous and is detrimental to the service life of the

equipment. From time to time, have a technician come to clean the inside of the

set.

Keep the TV set away from magnetic fields (for example stereo speakers).

20 cm

Krieg am Golf

5 x

ENGLISH

INSTALLATION AND SAFETY___________________________________________________

Do not open the TV set under any circumstance. The manufacturer will offer no

liability for damage resulting from unauthorized tampering.

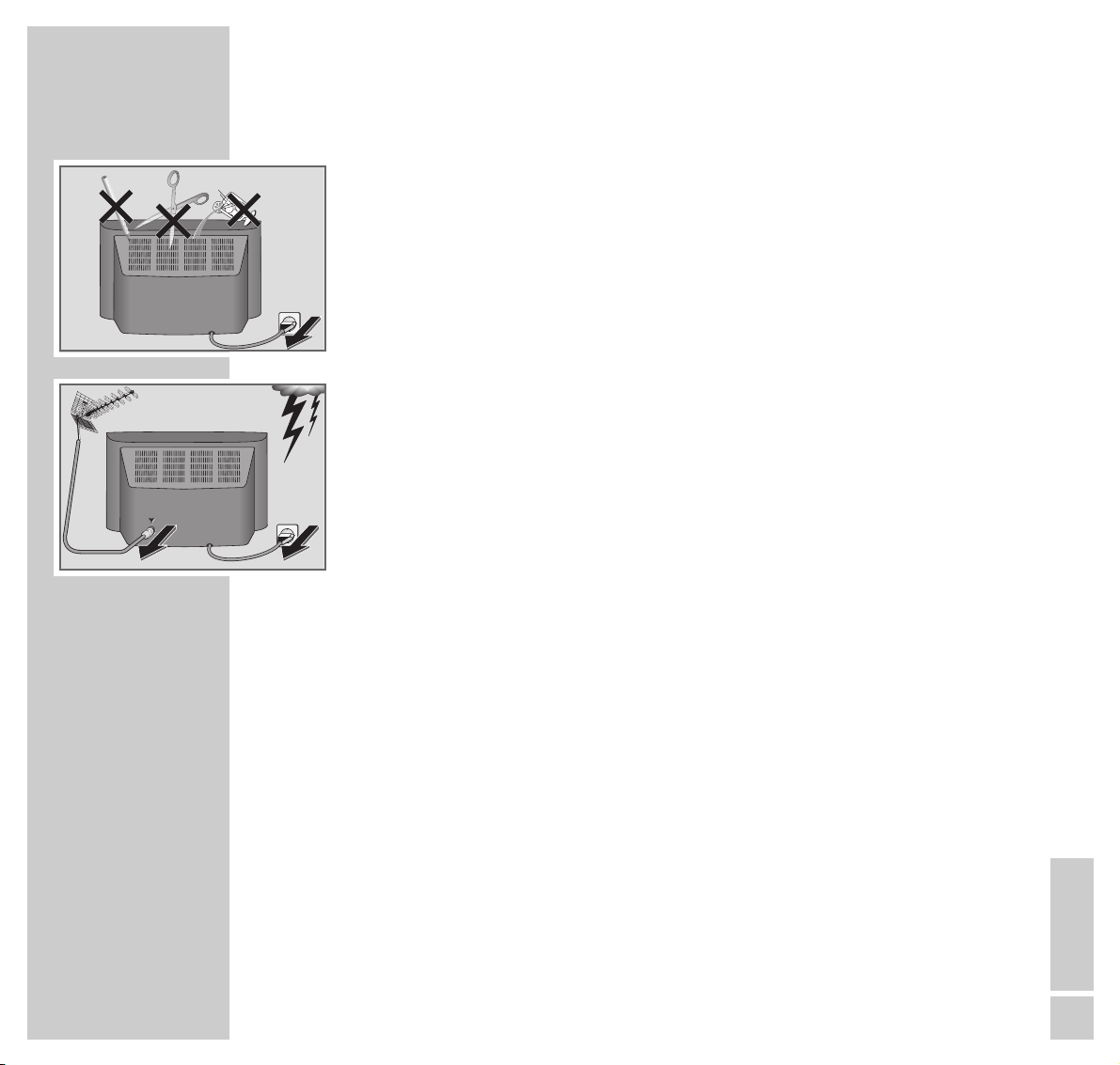

Be sure that the mains cable is not damaged at any time.

Storms represent a danger for every type of electrical device. Even if the set is

switched off, it could be damaged by a lightning strike hitting the mains and/or

the aerial lead. Therefore, always disconnect the mains plug and aerial plug

when there is a storm.

When cleaning the screen, use only a soft, damp cloth. Use only clean water.

This TV set combines technology and ecology in a well thought-out overall con-

cept. Only ecologically high-quality materials are used. The packaging is made

almost entirely of 100% recycled paper, and the portion of plastic has been

reduced to a minimum. The batteries supplied have no mercury or cadmium.

The number of plastic types has been reduced in order to ensure high-quality

recycling when the set is put out of use – all larger plastic parts are marked.

To facilitate maintenance work and recycling, this TV set is easy to disassemble.

! SERVICE !! SERVICE !! SERVICE !

AT A GLANCE ___________________________________________________________________

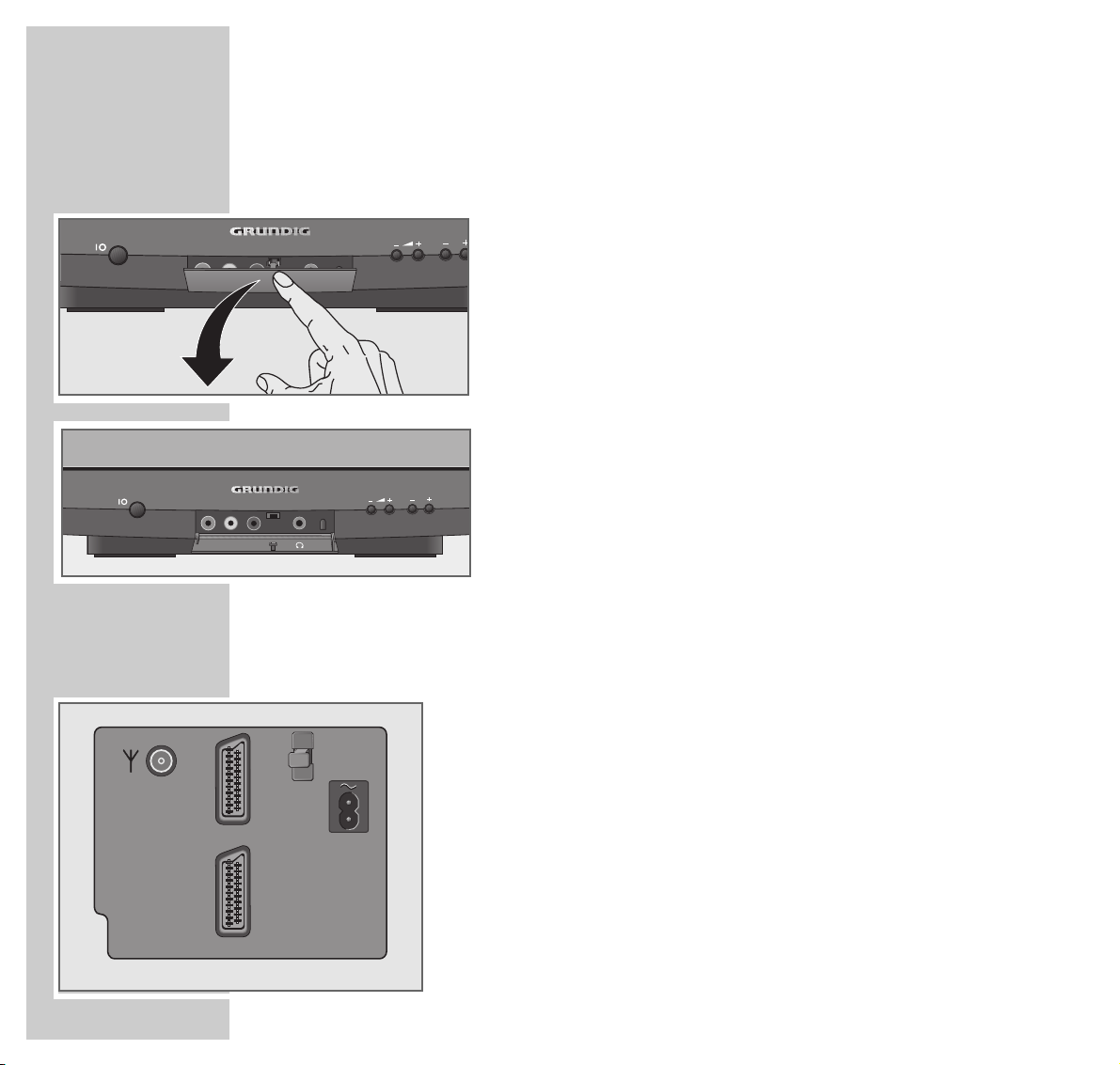

The front of the TV set

IO Switches the TV set on/off.

An LED indicates the current operating mode.

Green = Operation.

Yellow = Standby (TV-GUIDE mode,

copy mode, Timer mode).

Red = Standby (power saving mode,

timer programmed).

–zz+Volume

–P+Channel selection

VIDEO IN Video signal input

L AUDIO IN R Audio signal input

yyHeadphones connector

The connectors at the rear of the TV set

ÉAerial socket

AV 1 Euro/AV socket

AV 2 Euro/AV socket

ʋʋMains cable to wall outlet

Service socket for the specialized dealer

(below the cover.)

AV1

AV2

VIDEO

AUDIO

ENGLISH

AT A GLANCE_____________________________________________________________________________

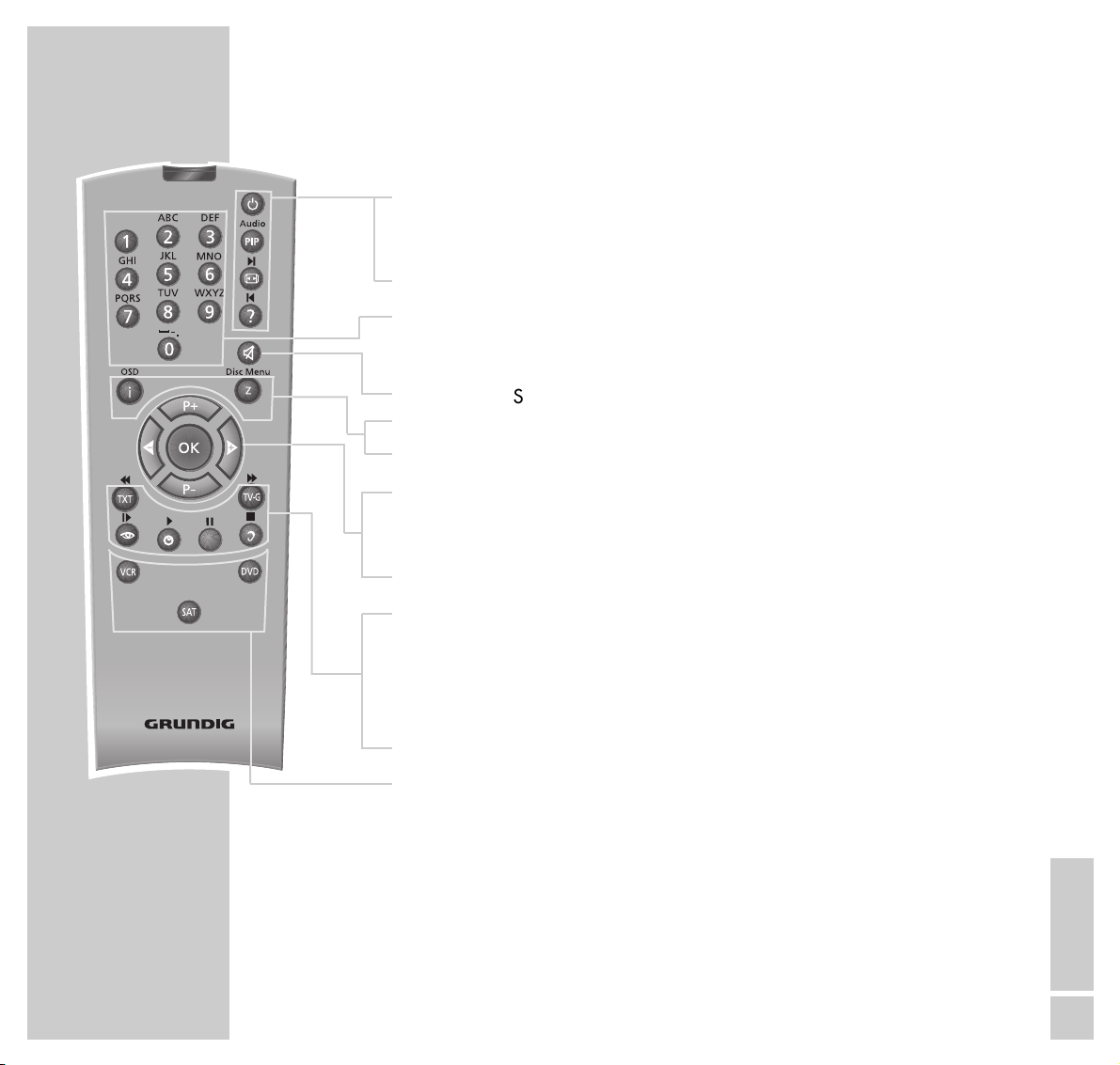

The remote control

ǼǼSwitches the TV set off (standby).

PIP TV picture in teletext mode.

EPicture format switching.

DDisplays the index A-Z.

1 … 0 Channel selection and switching on from standby,

alphanumeric channel selection (see page 12),

entry of teletext page numbers.

ĭĭ

Sound on/off (mute)

iCalls up the »Easy Dialog« menu.

ZZap function (see page 11).

P+, P- Switching on from standby,

step-by-step channel selection, cursor up/down.

ǸǷ Volume, cursor to the left/right.

OK Changes and activates various functions.

TXT Teletext mode/TV mode.

TV-G TV-Guide, info about current programme.

zzCalls up the »PICTURE« menu.

ȄȄClock time and channel position information on/off.

ǷǷStill picture.

FFCalls up the »SOUND« menu.

VCR/SAT/ To operate a GRUNDIG video recorder, satellite receiver,

DVD DVD player press the »»VCR«, »SAT« resp. »DVD« button and

hold it down. Then press the desired button.

Which functions can actually be controlled depends of course of

the equipment of the connected unit. Just try it out.

Tele Pilot 150 C

CONNECTION AND PREPARATION_______________

Putting batteries into the remote control

1Open the battery compartment by pulling off the cover.

2Insert the batteries (Mignon, e.g. UM 3 or AA, 2x 1.5V) observing correct

polarity.

Note:

If your television does not react to the remote control commands correctly,

then the batteries could be used up. Remove empty batteries. There is no

liability for damage caused by leaking batteries.

Environmental note:

The batteries – even those free of heavy metals – cannot be disposed of in

normal household rubbish. Used batteries must be disposed of in used

battery collection containers in businesses or be taken to public waste

disposal facilities.

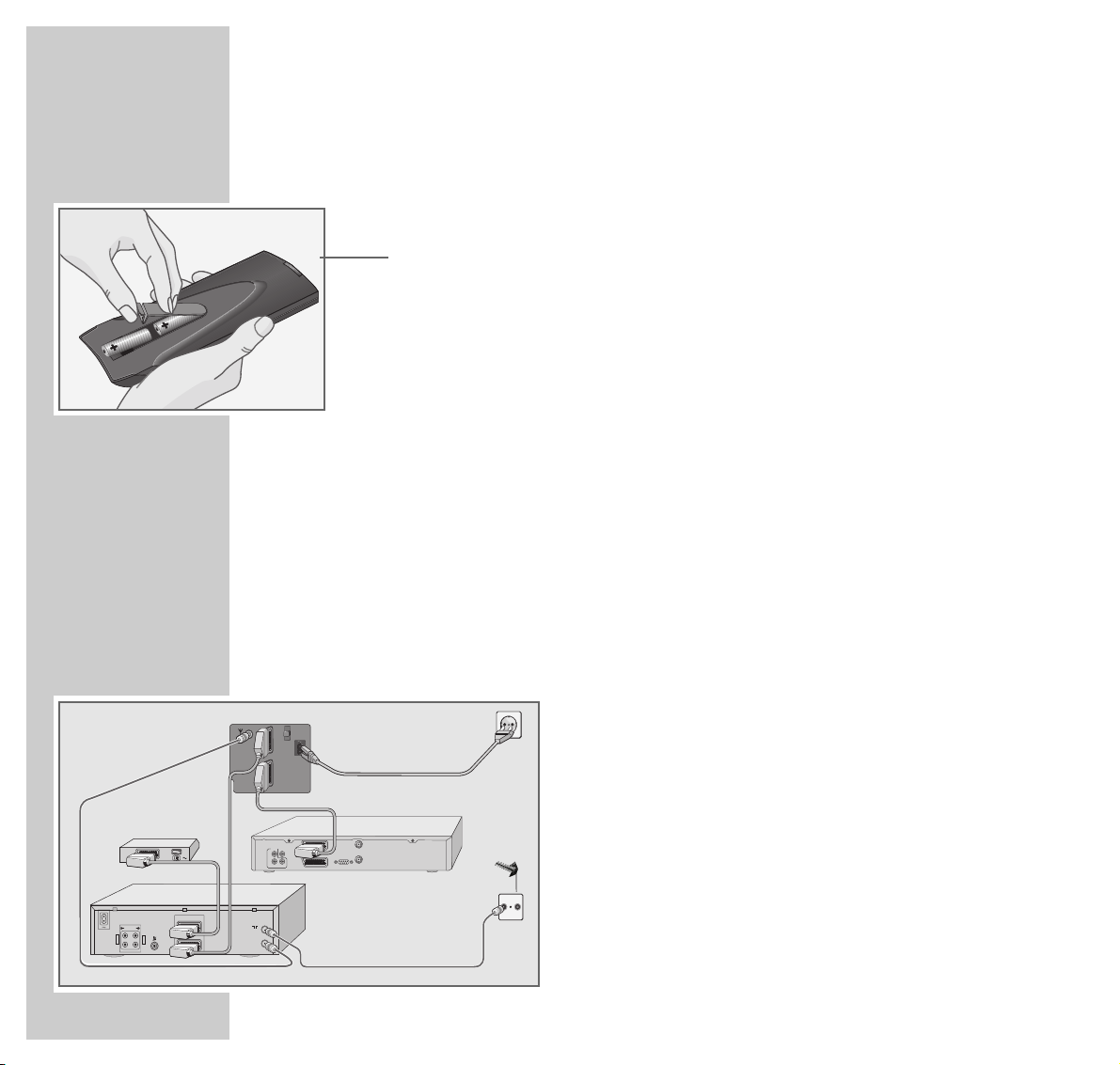

Sample connection with video recorder,

DVD player and decoder

Note:

The units to be conneccted must be set up in the »Installati-

on« menu under the »Decice sockets« menu item.

See page 10 and onwards to see how to use the Easy

Dialog System.

If your video recorder is equipped with Megalogic

functions, it must be connected to the »AV 1« socket of the

TV set with the AV-EURO cable which was included with the

video recorder.

AV1

AV2

AUDIO

2 EXTERNAL / DEC. - AV 2

1 EXTERNAL / EURO - AV 1

VCR

AUX

VIDEO

DIGITAL

AUDIO

950-2150MHz

14/18V max 500mA

22kHz

IF INPUT DIGITAL

IF OUTPUT

DATAI/0

PAY-TV

TV R

DVD player

Decoder

Video recorder

ENGLISH

SETTINGS______________________________________________________________________________

Programming TV channels

The TV set is equipped with the automatic tuning system “ATS euro plus” which

carries out the channel position assignment for you.

1After switching on the TV set, select the »English« dialog language with

»P+, P-« then confirm with »OK«.

2Select your country (place of installation) with »P+, P-« then confirm with

»OK«.

The automatic tuning system is started. Depending on the number of

channels which can be received, the search can take one minute and more.

3When the automatic allocation of the channel positions is completed, the

»Easy Dialog tips« menu appears. Via this menu you may learn how to ope-

rate your TV set.

4Select the desired menu item with »P-« then press »OK« to call it up.

5To switch the set to TV mode, select »TV» with »P+, P-« then confirm with

»OK«.

EASY DIALOG SYSTEM _____________________________________________

The Easy Dialog System

Your TV set is equipped with the »GRUNDIG Easy Dialog System«.

That means that operating instructions are not, as is usual, in a printed manual,

but rather appear on the screen as dialogue fields.

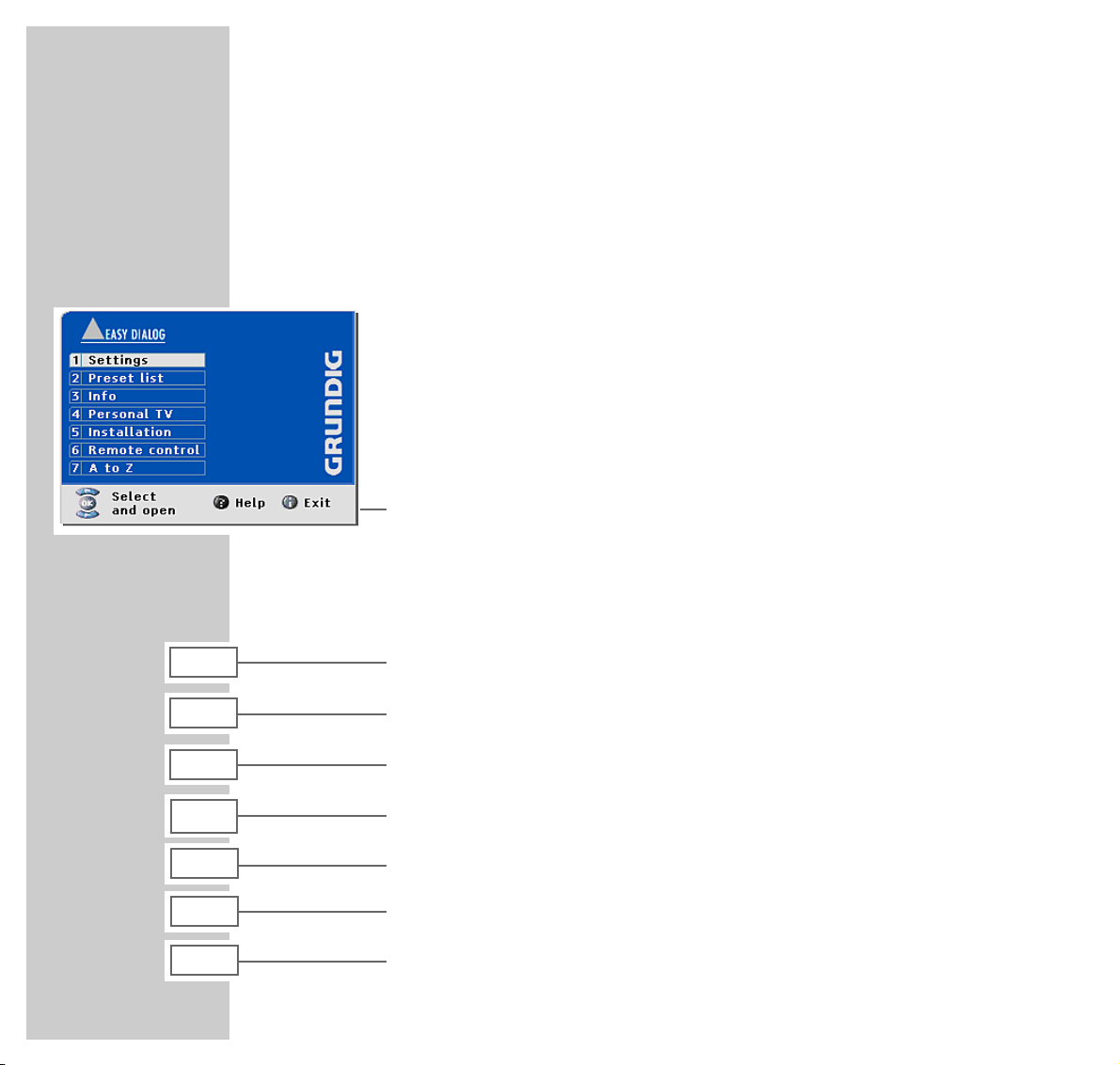

The »Easy Dialog« menu

The »Easy Dialog« menu is the control centre for your TV set.

Here you can make a variety of settings, call up information, and get specific

help for operating your television (e.g. info about the remote control, a list of

key words A-Z).

Just try it out. You can’t do anything wrong.

– At every step of operation, the dialog box shows which buttons can be used to

carry out particular functions.

Using the Easy Dialog system

Call up and exit the Easy Dialog.

Direct call of menu items.

Select menu items up/down.

Change settings.

Call up functions or confirm the selected function.

Call up help text.

Return to preceding menu.

1 … 0

P+, P -

ǸǷ
