INSTALLATION & OPERATION

INSTRUCTIONS

60cm Ceramic

Cooktop Model No.

MCC604TG

V2 June22

Thank you

Thank you for choosing Mistral Appliances.

Mistral appliance carry a 2year In Home warranty,

be sure to retain your installation and user manual and

receipt.

For all warranty and technical queries please contact

Australia 1300 373 199

New Zealand 0800 764 912

GSM Retail Australia Pty Ltd ABN: 53 007 582 475

For Warranty and technical queries: Australia 1300 373 199

For Warranty and technical queries: New Zealand 0800 764 912

www.mistral.com.au

Content

Safety instructions----------------------------- 2

Product description---------------------------- 4

Installation----------------------------------------5

Start using your appliance--------------------8

Maintenance ------------------------------------11

Warranty------------------------------------------ 12

Important Safeguards

When using electrical appliances, in

order to reduce the risk of ﬁre, electric

shock and/or injury, these basic safety

precautions should always be followed:

For Your Safety

Read all instructions carefully, even if you are

quite familiar with the appliance.

•Do not position this cooktop immediately below

or in front of a socket outlet.

•NEVER INSERT A KNIFE OR ANY OTHER

UTENSIL INTO THE HOB. This may damage

the mechanism and cause a safety hazard.

Contact with elements could result in electrical

shock.

•Take care not to burn hands on upper

elements when removing items from the Hob.

•To protect against the risk of electric shock DO

NOT IMMERSE of this appliance in water or

any other liquid.

•CAUTION: The temperature of cooktop or the

outer surface may be high when the appliance

is in operation.

•Switch off and remove the plug from the power

outlet before cleaning or when not in use.

•Do not operate any appliance with a damaged

cord or plug; after the appliance malfunctions,

or is dropped or damaged in any manner.

•Allow the appliance to cool before cleaning.

•Do not use the appliance for anything other

than its intended use. This product is intended

for household use only.

•Ensure the power cord does not touch the

cooker housing when in use.

•Dispose of packaging properly keeping plastic

bags away from babies and young children.

•Do not use outdoors.

•Do not attempt to repair or disassemble the

appliance. There are no user serviceable

parts.

•The appliance should not be covered or

operated near or underneath ﬂammable

material such as curtains or drapes or other

combustible materials when in operation.

•This appliance is not intended for use by

persons (including children) with reduced

physical, sensory and mental capabilities, or

lack of experience and knowledge, unless they

have been given supervision or instruction

concerning use of the appliance by a person

responsible for their safety.

•Young children should be supervised

to ensure that they do not play with the

appliance.

•Do not operate in the presence of ﬂammable or

explosive materials.

•Store the appliance indoors in a dry location.

•Metallic objects such as knives, forks, spoons

and lids should not be placed on the hob

surface since they can get hot.

•The plug should be accessible after installation

•This appliance is not intended to be operated

by means of an external timer or separate

remote-control system.

•This appliance is designed for domestic

household use and for the cooking and frying of

domestic foodstuffs.

•IMPORTANT: The adjacent furniture and all

materials used in the installation must be able to

withstand a minimum temperature of 95°C

above the ambient temperature of the room it is

located in, whilst in use.

•Certain types of vinyl or laminate kitchen

furniture are particularly prone to heat damage

or discolouration at temperatures below the

guidelines given above.

•Any damage caused by the appliance being

installed in contravention of this temperature

limit, will be the liability of the owner.

•You should not use this appliance to store items

on or as a work surface.

•You should not store or place ﬂammable or

highly ﬂammable liquids/materials on top

or near the appliance. Items made from

aluminum, plastic or plastic ﬁlm should also be

kept away from the appliance, as they may

fuse to the surface.

•You should not allow the electrical connection

cables to come into contact with the hob

surface when it is hot or any hot cookware.

• Make sure that all of the cooking zones are

switched off after use.

•Always keep children away from the cooktop.

•While in operation direct contact with the

cooktop may cause burns!

•Ensure that small items of household

equipment, including connection leads, do

not touch the hob as the insulation material of

this equipment is usually not resistant to high

temperatures.

•Do not allow the hob to get soiled and prevent

liquids from boiling over onto the surface of the

hob, any spillages should be cleaned up as

they happen.

•Do not place pans with a wet bottom on the

warmed up heating zones as this can cause

irreversible changes to the hob(irremovable

stains).

•Do not switch on the hob until a pan has been

placed on it.

•Do not put pans weighing over 25kg on the

hob.

•Do not use the cooker in the event of a

technical fault. Any faults must be ﬁxed by an

appropriately qualiﬁed and authorized person.

•The cooker should not be cleaned using steam

equipment or steam cleaner.

•WARNING - Accessible parts may become

hot during use. To avoid burn, young children

should be kept away.

•This cooking range must be connected to

the supply by a supply cord ﬁtted with an

appropriately rated plug that is compatible with

the socket-outlet ﬁtted to the ﬁnal sub-circuit in

the ﬁxed wiring that is intended to supply this

cooking range.

•CAUTION: The surface temperature exceeds

95°C. To avoid a hazard, underbench access

must be restricted. Refer to the installation

instructions.

•DO NOT USE THE HOB IF THE SURFACE

BECOMES BROKEN OR CRACKED.

Compulsory Warning

If the supply cord is damaged, the cord must be

replaced by the manufacturer, its service agent

or similarly qualiﬁed persons in order to avoid a

hazard.

This product has not been designed for any uses

other than those speciﬁed in this booklet.

Save These Instructions

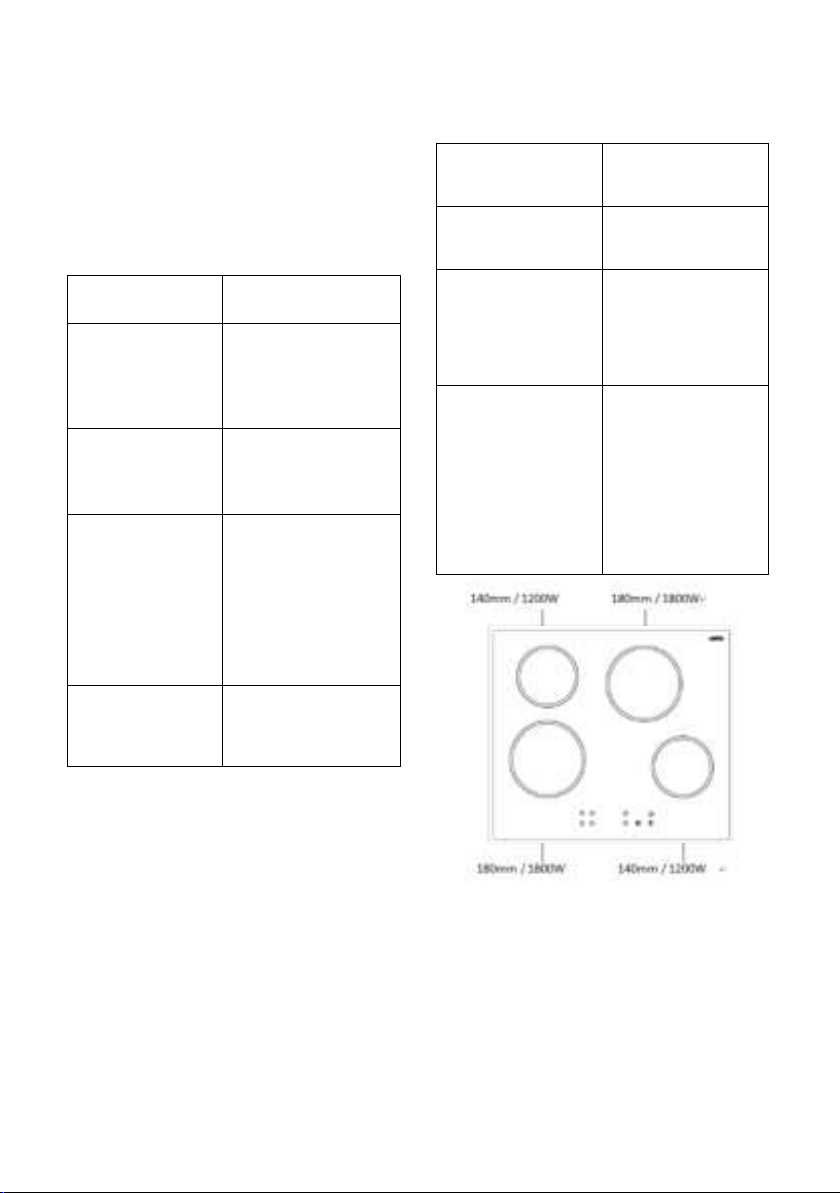

Features of Your Hob

Heating Plate

Touch control pad

Getting to Know Your

Hob

Congratulations on the purchase of your new

Mistral Hob.

Before using your new Cooker, it is most

important that you read and follow the instructions

in this use and care booklet, even if you feel you

are familiar with this type of appliance.

Your attention is drawn particularly to the section

dealing with IMPORTANT SAFEGUARDS.

Find a safe and convenient place to keep this

booklet handy for future reference.

This appliance has been designed to operate

from a standard domestic power outlet. It is not

intended for industrial or commercial use.

How to Save Energy

Using energy in a responsible way not only saves

money but also helps the environment. So let’s

save energy! And this is how you can do it:

•Use proper pans for cooking. Pans with thick,

ﬂat bases can save up to 1/3 on electric

energy. Remember to cover pans if possible

otherwise you will use four times as much

energy!

•Match the size of the saucepan to the surface

of the heating plates. A saucepan should

never be smaller than a heating plate.

•Ensure heating plates and pan bases are

clean. Soils can prevent heat transfer-and

repeatedly burnt -on spillages can often only

be removed by products which cause damage

to the environment.

•Do not uncover the pan too often (a watched

pot never boils!).

•Do not install the cooker in the direct vicinity

of refrigerators/freezers. Otherwise energy

consumption increases unnecessarily.

Installation

Positioning

This appliance must be correctly installed by a

suitably qualiﬁed person,

To avoid damaging your appliance.

•Cast iron and cast aluminium cookware with

damaged bases may scratch the hob surface if

they are dragged across it.

•Pans should be lifted on and off the hob

surface and not dragged.

•Cooking zones should not be switched on

without cookware placed on it. Also the

cookware should not be empty.

The adjacent furniture must be able

to withstand a minimum temperature

rise of 95°C above the ambient

temperature of the room it is located

in, during periods of use.

Theappliance is to be built into a kitchen unit

(depending on size) or 600 mm worktop, providing

the following minimum distances are allowed:

•700 mm between the hob surface and the

underside of any horizontal surface above it.

•50 mm clearance around the appliance and

between the hob surface and any combustible

materials.

MODEL A B C D E

BCT604TG-F 580 510 560 490 53

Unpacking the appliance

When unpacking the appliance please check

that the following items are contained within the

packaging:

1 Ceramic hob

1 Installation and instruction manual

4 Fixing screws & clips

4 Clamps

1 Sealing strip

1 Cleaning kit

Installing the appliance

•Do not leave a gap in the sealing agent or

overlap the thickness.

•IMPORTANT: Do not use a silicon sealant to

seal the appliance against the aperture. This

will make it difﬁcult to remove the hob from the

aperture in future, particularly if it needs to be

serviced.

Sealing strip

Hob and Aperture Dimensions

4x clip &

ﬁxing screw

Installation Step

4x clamp 1 Cleaning kit

Firstly, insert the clip into the slot from side as ﬁg

a,b &c.

•Cut a hole in the worktop that corresponds

with the drawings shown above.

•IMPORTANT: You must have a gap of at

least 25 mm between the underneath of the

appliance and any surface that is below it.

•Carefully turn the hob upside down and place

it on a cushioned mat.

•Apply the sealing strip provided around the

edge of the appliance.

•The protective covering must be removed from

both sides.

Secondly, place the clamp (B) over the holes that

match the size of the screws. There are one set

of screw holes in each corner of the hob. Slightly

tighten a screw (C) through the clamp (B) to which

the clamp is attached to the hob by the clips so

that you can still adjust the position of it as ﬁg.D &

E ﬁnish other clamp & clip as same method.

Then, Carefully turn the hob back over and then

gently lower it into the aperture hole that you

have cut out.

Finally, on the underneath of the hob, adjust the

clamps into a position that is suitable for your

worktop. Then fully tighten the screws (C) to

secure the hob into position as ﬁg e.

Fig. A

Fig. B

Fig. C (rear view)

Fig. D

Fig. E

Electrical connection

This appliance must be

installed by a qualiﬁed person.

Before connecting the appliance, make sure that

the supply voltage marked on the rating plate

corresponds with your mains supply voltage.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

•This appliance must be wired into a double

pole switched fused spur outlet, having 3 mm

contact separation and placed in an easily

accessible position adjacent to the appliance.

It should not be located above the appliance

and no more than 1.25m away from it.

•The spur outlet must still be accessible even

when your cooker is located in its operating

position.

Connecting the mains supply cable

•The mains terminal block is located on the

underside of the hob and the terminals are

accessible by removing the terminal block

cover by removing the cover screw.

•The cable connections must be in accordance

with the diagram located on the bottom of the

hob.

Replacing the mains supply cable

If the mains supply cable is damaged, then it

must be replaced by an appropriate replacement.

The mains supply cable should be replaced in

accordance with the following instructions:

•Switch the appliance off at the control switch.

•Open the terminal block on the underside of

the hob.

•Unscrew the terminal screws ﬁxing the cable.

•Replace the cable with one of the same length

and in accordance with the speciﬁcation given

above.

(A) Sealing strip

(B) Clamp

Hard Wired Appliances :

When making the mains supply conductor connections to

the terminal block within the terminal box , please ensure

that minimum clearances are being maintained between

individual conductors and conductors/connectors to the

adjacent metal surfaces of the terminal box itself , where

possible add heat shrink sleeves to any bare conductor

end/connectors prior to securing.

Product dimensions:

L: x W: x H( mm)

580X510X55

Aperture

dimensions: L: x W:

x H( mm)

560X490

Product speciﬁcations:

4 Ceramic elements

2 x 1.8kw,

2 x 1.2kw

Electrical details

220-240 Vac 50 Hz

30 A (double pole

switched fused outlet

with 3mm contact gap)

Max Rated Inputs:

see the content on

rating label.

Mains Supply Lead:

H05RR-F 3 core x

2.5MM2 (not supplied)

Problems

Possible Cause and

solve

The cooking

zones are not

functioning or

will not switch

on.

Check that the mains

electrical supply to the

appliance is correct

and working. Check the

mains fuse.

A humming

sound is heard

when a cooking

zone is selected.

This is normal; the

sound will disappear

when the zone heats up

The cooking

zones have

become

discoloured

This maybe caused

by burnt on remnants

of food. This will not

affect the working of the

appliance. However you

should make sure that

the cleaning instructions

are being followed

regularly.

Only two of the

zones on my hob

are working

You should recheck

that the terminal screws

are all fully tightened

between the links.

•The “green-yellow” earth wire must be

connected to the terminal marked. It must be

about 10 mm longer than the live and neutral

wires.

•The “blue” neutral wire must be connected to

the terminal marked with letter (N) - the live

wire must be connected to the terminal marked

with letter (L).

Troubleshooting Guide

How to Use Your Hob

Product speciﬁcation

IMPORTANT: If your appliance appears not

to be operating correctly, then you should

disconnect it from your mains supply and

then contact the Service Department.

DO NOT ATTEMPT TO REPAIR THE

APPLIANCE YOURSELF. Plate layout

Before ﬁrst use

IMPORTANT: You should clean the hob surface

and solid plates (see “Cleaning and maintenance”

section).

•You should switch on one cooking zone at a

time, for 5 minutes at the maximum setting.

This will help to eliminate any new smell that

exists and evaporate any humidity that has

formed on the heating elements during transit.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GSM Kochfeld Handbücher

GSM

GSM Bellini BST601X-F Montageanleitung

Beliebte Kochfeld Handbücher anderer Marken

Bonnet

Bonnet OPTIMUM 700 Betriebsanleitung

Jenn-Air

Jenn-Air JGCP430 Bedienungsanleitung

Frigidaire

Frigidaire FES367FCC Kurzanleitung

Ztove

Ztove EZ2 DUO Bedienungsanleitung

Kleenmaid

Kleenmaid cooking GCTK9011 Installationsanleitung

Casselin

Casselin CSASRE24 Bedienungsanleitung

Jenn-Air

Jenn-Air JGC2536EB00 Bedienungsanleitung

Waldorf

Waldorf RN8603E-B Bedienungsanleitung

Whirlpool

Whirlpool SMP658CNEIXL Bedienungsanleitung

Wolf

Wolf CI243C/B Bedienungsanleitung

Fulgor Milano

Fulgor Milano F5PGK305S1 Bedienungsanleitung

GE JP389 Bedienungsanleitung

Wells

Wells WV-2HFG Bedienungsanleitung

IKEA

IKEA Lagan HGA4K Bedienungsanleitung

Samsung

Samsung NA36N9755 Bedienungsanleitung

Miele

Miele KM 404 Bedienungsanleitung

Lacor

Lacor 69562 Technisches Datenblatt

Keating Of Chicago

Keating Of Chicago MG-2 Bedienungsanleitung

GSM mistral MCC604TG Montageanleitung

Beliebte Kochfeld Handbücher anderer Marken
