GTD FOS Hydor Profile Bedienungsanleitung

FOS Hydor Profile

User’s Manual

are subject to change without notice. FOS TECHNOLOGIES logo and identifying product names and numbers

herein are trademarks of FOS TECHNOLOGIES. Copyright protection claimed includes all forms and matters of

copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product

names used in this document may be trademarks or registered trademarks of their respective companies and are

hereby acknowledged. All non-FOS TECHNOLOGIES brands and product names are trademarks or registered

trademarks of their respective companies.

FOS TECHNOLOGIES and all affiliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss

associated with the use or reliance of any information contained within this document, and/or as a result of the

improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

Table of contents

1. Safety instructions ..........................................................................................................................................1

2. Product introductions ....................................................................................................................................3

2.1 Dimensions .................................................................................................................................................3

2.2 Fixture overview .........................................................................................................................................4

2.3 Accessories .................................................................................................................................................4

3. Packing and shipping .....................................................................................................................................5

3.1 Protection lock ............................................................................................................................................5

3.2 Unpacking ..................................................................................................................................................5

3.3 Packing after use .........................................................................................................................................5

4. Installation ......................................................................................................................................................6

4.1 Clamps installation.....................................................................................................................................6

4.2 Device installation ......................................................................................................................................6

5. Power / Control connection ...........................................................................................................................7

5.1 Power connection........................................................................................................................................7

5.2 Control connection......................................................................................................................................7

5.3 Testing ........................................................................................................................................................7

6. Control panel ..................................................................................................................................................8

6.1 Panel instruction.........................................................................................................................................8

7. Technical specification ...................................................................................................................................9

8. Gobos and colors...........................................................................................................................................12

8.1 Gobo specification....................................................................................................................................12

8.2 Gobos........................................................................................................................................................12

8.3 Colors........................................................................................................................................................13

9. Menu structure .............................................................................................................................................14

10. DMX protocol .............................................................................................................................................16

11. System wiring diagram ..............................................................................................................................21

12. Maintenance and Troubleshooting ...........................................................................................................23

12.1 Cleaning and maintenance ......................................................................................................................23

12.2 Troubleshooting......................................................................................................................................24

13. Spare parts list ............................................................................................................................................25

1. Safety instructions

Before using the fixture, read the latest version of the product user manual, paying particular attention to

the safety instructions. Please check www.FOS Technologies-lighting.com for the latest revision/update of the user

manual.

The manufacture of this fixture, are not responsible for damages, resulting from misuse of this

fixture, due to the disregard of the information printed in this user manual.

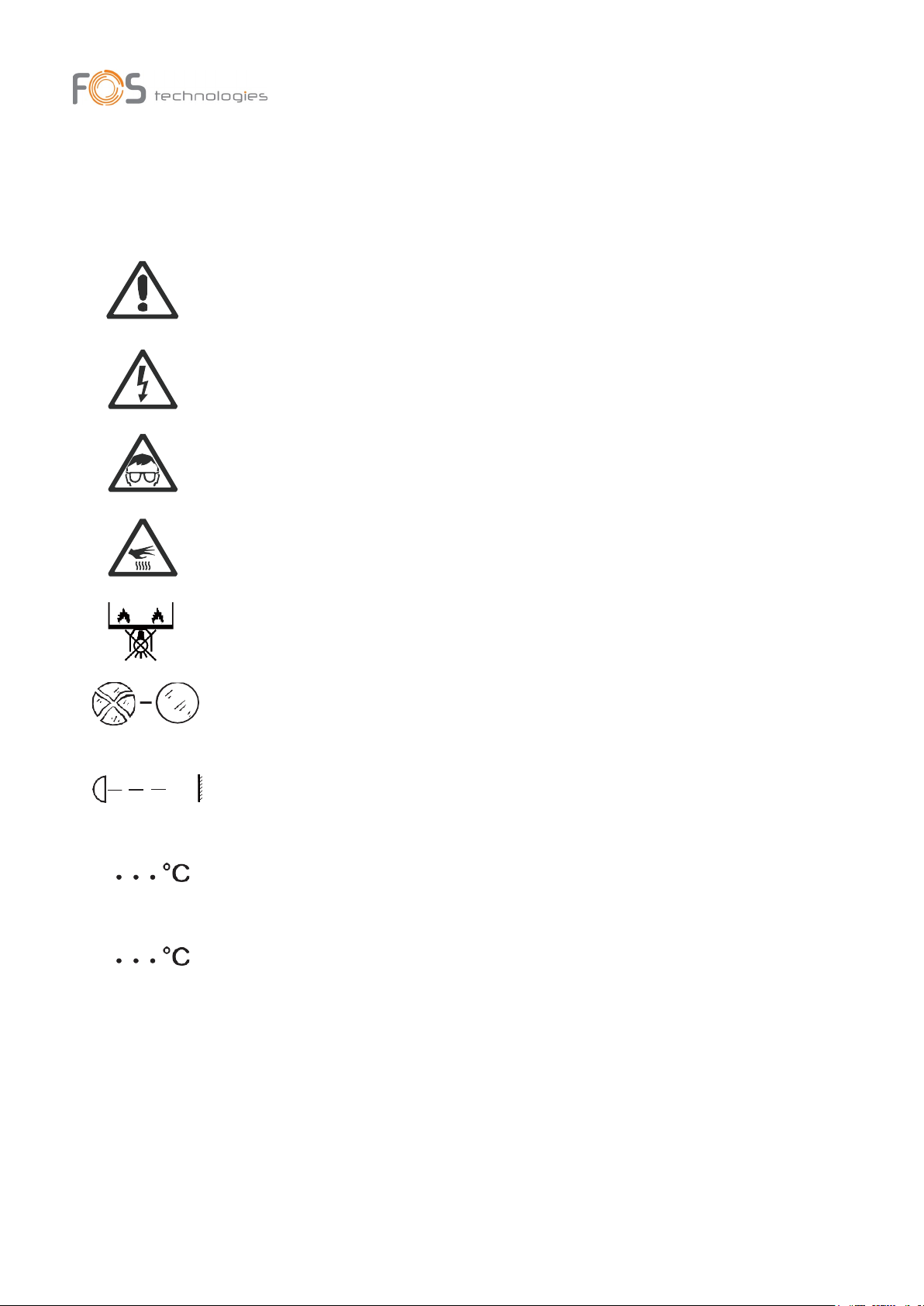

DANGER!

Hazardous voltage. Risk of lethal or severe electric shock

WARNING!

Wear protective eyewear. Never look directly into the light source.

WARNING!

Burn hazard. Hot surface. Do not touch.

Only to direct mounting on non-combustible surfaces.

Replace all cracked glass shields.

m Minimum distance to lighted objects.

ta Maximum ambient temperature.

tc Maximum temp of the external surface.

General guidelines



This product has a protection rating of IP66.



Never open this fixture while in use.



The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid

contact with chemical liquid.



Minimum distance to lighted objects must be 16.4feet (5m).



Maximum temp of the external surface 194˚F (90˚C).



Maximum ambient temperature 113˚F (45˚C).



Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).



Lamp should be changed if damaged or distorted in shape due to extreme heat.



Cover, prism or OLED Menu Function Display with visible damages such as cracks or scratches must be

replaced to ensure performance of the fixture.



Disconnect the fixture from power before changing any parts or accessories.



Basic insulation should be maintained between the controllable device and the product power supply.



Make sure that the installation area can hold a minimum point load of 10 times the weight of allinstalled



fixtures, clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged.

Certified safety cables must always be used when installing the fixture.



The fixture is only intended for installation, operation and maintenance by qualified professional.

Instructions stated in the manual must be complied.



The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the

fans or ventilation openings are unblocked.



Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified

local distributors or the manufacturer to ensure operational safety.



Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than FOS

TECHNOLOGIES manufactured parts.



For questions regarding safety operation, please contact our technical personnel or call the service hotline

+8620 61808296.

2.1 Dimension

2. Production instructions

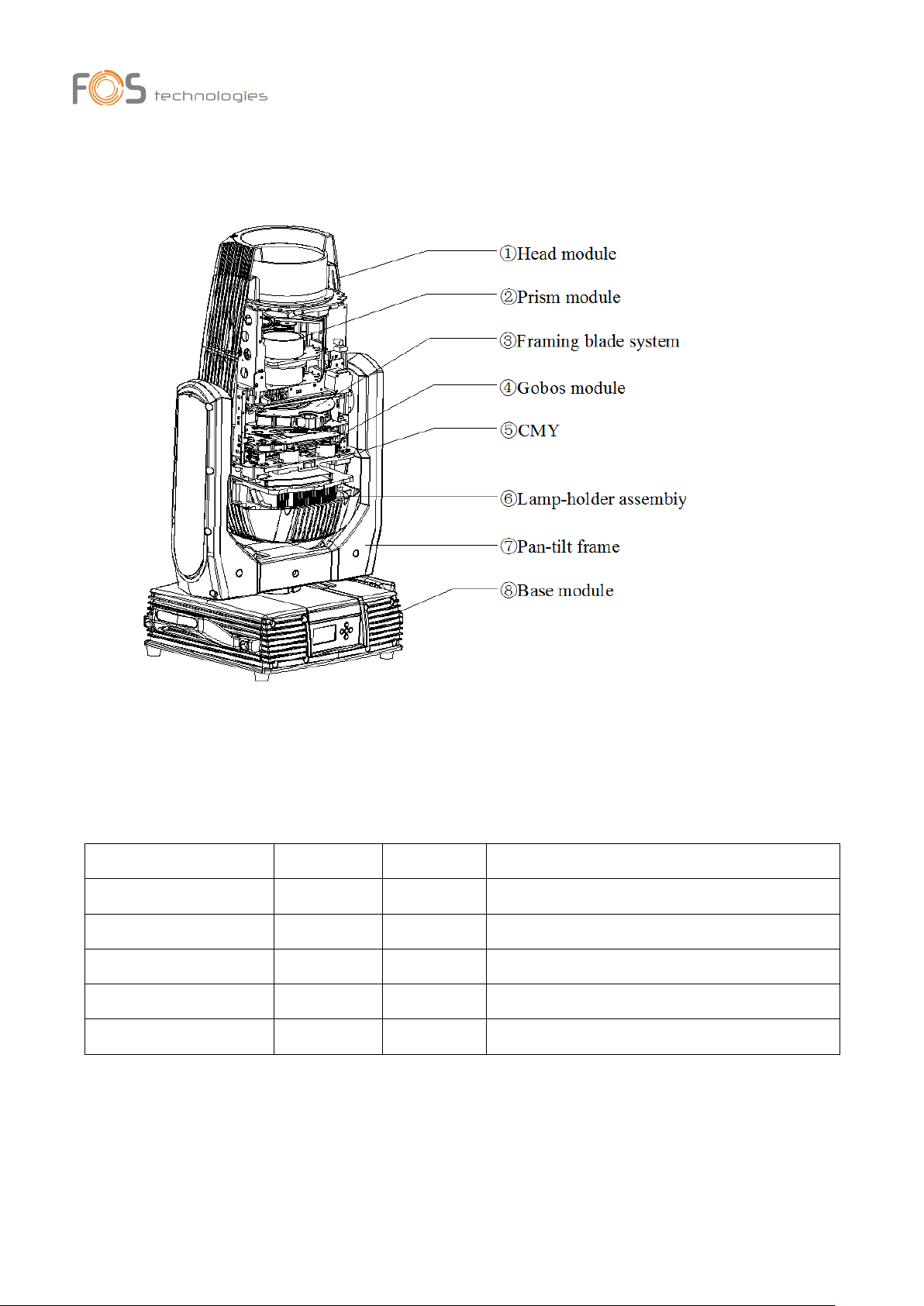

2.2 Fixture overview

2.3 Accessories

Item Qty Unit Remark

User Manual 1 Pc --

Clamps 2 Set 02A+21A 42-52mm Load weight 200KG

Safety cable 2 Pc Φ5*60cm 7*19 pc with hook Material：Steel

3-pins signal line 1 Set --

Power cord 1 Set 1.5m 2.5mm2

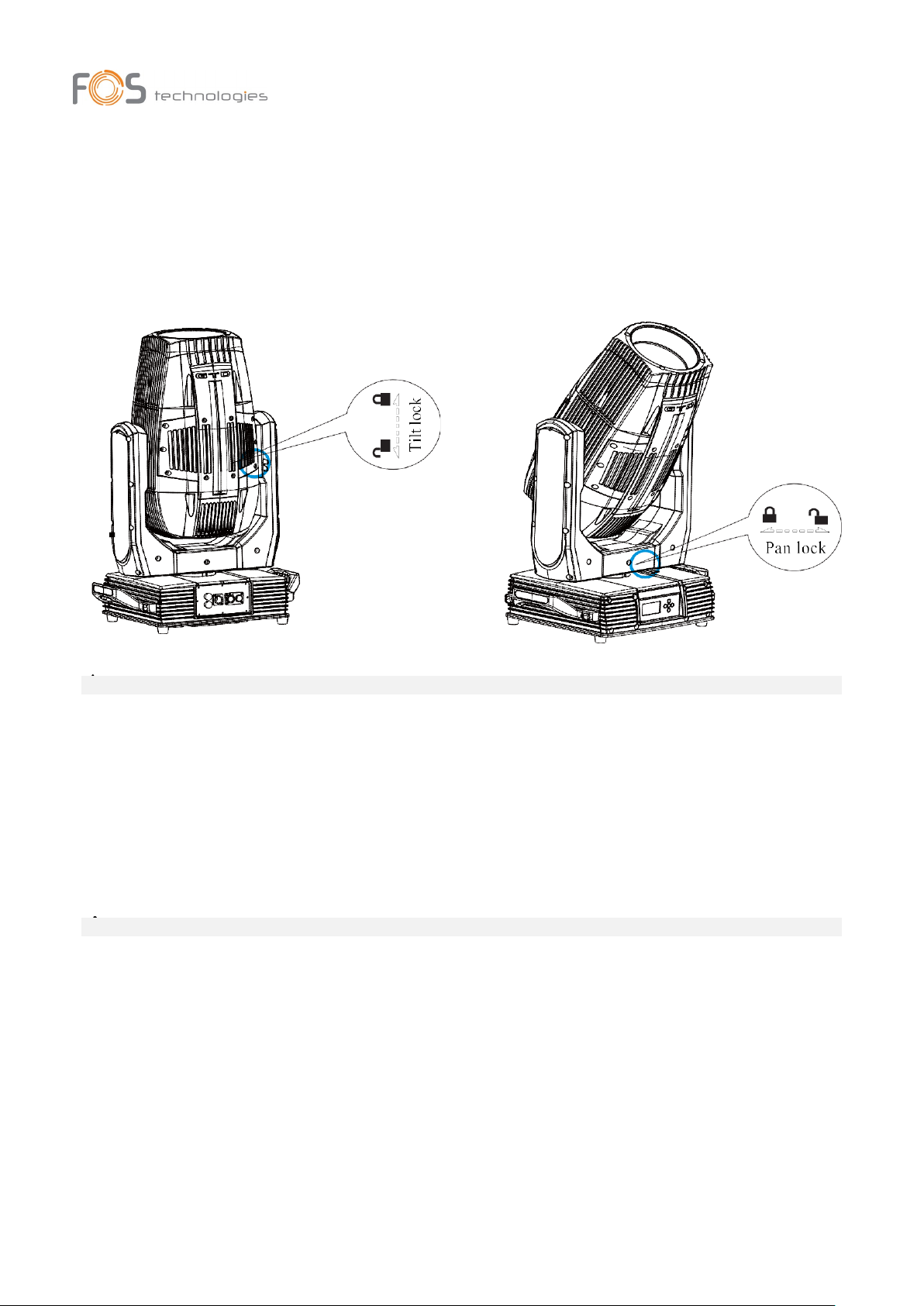

3.1 Protection lock

3. Packing and shipping

Pan and tilt locks are equipped to ensure safe transportation.

PAN: 4 lock positions are located evenly on the Pan.

TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.

3.2 Unpacking

Notes

All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture

is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

Photographic evidence of the damage must be provided.

Flight-Case：Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture

firmly and take it out carefully.

Cardboard box：Open the box and take out the whole set of packaging foam which contains both the fixture and

its accessories. Remove the foam from the top, put away the accessories, and then take out the fixture wrapped in

the plastic bag.

Notes

Check if the pan and tilt are unlocked before connecting the fixture to power.

3.3 Packing after use

1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the

fixture for at least 15 minutes before packing.

2. Lock pan and tilt.

3. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight

case along with all the accessories. Close the cover. Only 3 layers are allowed when piling up the flight cases.

Do not upside down.

4. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories.

Place the other set of packaging foam on top then carefully put it inside the cardboard box.

4.1 Clamps installation

4. Installation

The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting

position on the base of the fixture.

Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise

to lock. Always remember to use the safety cable which goes through the mounting hole on the base. Do not attach

the safety cable on the handle.

4.2 Device installation

1. Make sure there is no damage on the clamps or safety cables before installation.

2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the

chassis. Fasten the clamp tightly by a 1/4 turn clockwise. Fix another clamp in the same way.

3. Check if pan and tilt are unlocked before connecting the unit to AC power.
