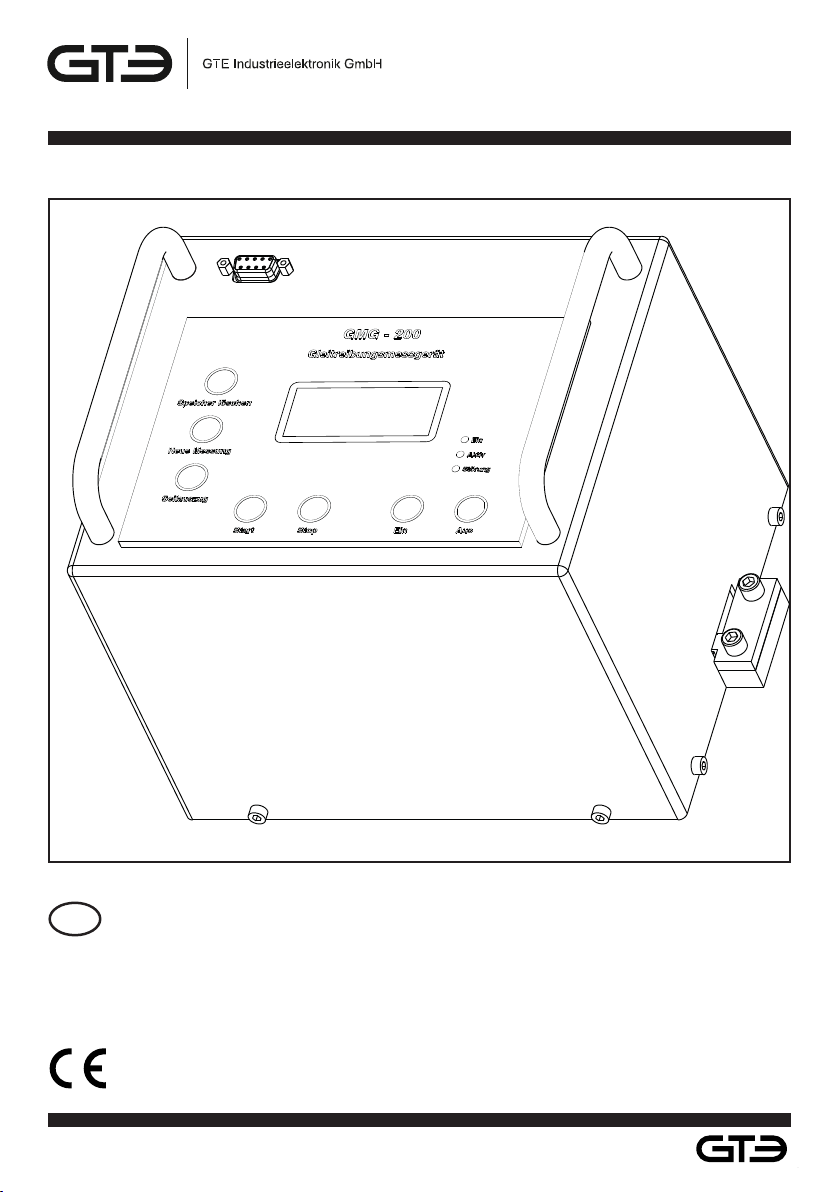

GTE GMG-200 Bedienungsanleitung
GMG-200
Operating Manual
GTE Industrieelektronik GmbH
Helmholtzstr. 21, 38-40 | D-41747 Viersen, GERMANY | [email protected] | +49(0)2162 / 3703-0 | www.gte.de
Sliding Friction Tester GMG-200
310-2310-001 EN20
EN
GTE D-Viersen
GMG 200
Instrument for
Slide Measuring
Sliding Friction Tester GMG-200 Operating Manual
Document version: 310-2310-001 EN20
– Translation from German –
Manufacturer:
GTE Industrieelektronik GmbH
Helmholtzstr. 21, 38-40
41747 Viersen
Support hotline: +49 (0)2162 /3703-0
E-mail: [email protected]
© 2021 GTE Industrieelektronik GmbH – This document and all illustrations contained herein are protect-
ed by copyright and may not be copied and pasted, modified or distributed without the express consent of
the manufacturer!
Technical data is subject to change without notice!
I
GMG-200 310-2310-001 EN20
BRIEF DESCRIPTION
Brief Description
The GMG-200 is a mobile device for measuring the coefficient of sliding friction of floor cov-
erings conforming to DIN 51131, DIN EN 13893 and DIN CEN/TS 16165.
The device has a traction cable that allows it to draw itself across the flooring to be tested
by an integrated motor. The electronic component of the GMG-200 records the friction and
evaluates it.
The scope of delivery includes a foot plate to which the traction cable is attached. The foot
plate serves as the anchor point during pulling.
To be able to reproducibly evaluate the frictional forces, the GMG-200 is equipped with
sliders that comply with the applicable standards. The sliders are attached to a changeable
slider assembly on the bottom of the device. The slider assembly can be changed as needed
for the respective type of flooring. A sensor incorporated into the slider assembly enables the
GMG-200 to automatically detect the material of the attached sliders and to include it in the
evaluation.
All of the measured values and the signal patterns are automatically placed in the device’s data
memory, which can record up to 90 measurements. The integrated LCD guides the operator
and displays relevant information. The intuitive control panel provides direct access to all of
the core features.
Integrated batteries supply energy to the device; a power supply (battery charger) is included
in the scope of delivery.
A serial data interface in conjunction with the optional Windows software GMG-VD enables
the measured values to be transmitted to a laptop or PC to be evaluated, logged and stored.
TABLE OF CONTENTS
II GMG-200310-2310-001 EN20
Table of Contents
1 About this Manual .......................................... 1
1.1 Objective ........................................... 1
1.2 Explanation of Symbols .................................. 1
1.3 Abbreviations......................................... 2
1.4 Storing this Manual ..................................... 3
1.5 Standards and Regulations ................................ 3
2 For your Safety ............................................ 3
2.1 Intended Use ......................................... 4
2.2 Qualification Required of Personnel .......................... 4
2.3 Modifications......................................... 4
2.4 Accessories and Spare Parts ............................... 4
3 Scope of Delivery .......................................... 5
4 Design and Functioning....................................... 7
4.1 Overview ........................................... 7
4.2 Control Panel ......................................... 8
4.3 Measurement Mechanism................................. 9
5 Preparing for Operation ......................................10
5.1 Charging Battery ......................................10
5.2 Attaching Slider Plate....................................11
5.3 Changing Slider Plate ...................................12
5.4 Cleaning Sliders .......................................12
5.5 Changing Sliders ......................................12
6 Operation ...............................................14
6.1 Preparing Measuring Surface ..............................14
6.2 Preparing for Strap Extraction ..............................14
6.3 Preparing for Measuring Run ...............................16
6.4 Starting Measurement Process ..............................16
6.5 Ending Measurement Process ..............................17
6.6 Querying Measurement Result ..............................17
6.7 Evaluating Measuring Run.................................17
6.8 Canceling a Measuring Run ...............................18
6.9 New Measuring Run ....................................18
7 Measuring Series ...........................................18
8 Measured Value Memory .....................................19
8.1 Reading Out Measured Value Memory ........................19
8.2 Resetting Measured Value Memory...........................20
9 Logging .................................................20
III
GMG-200 310-2310-001 EN20
TABLE OF CONTENTS
10 Checking Zero Point of Force Measurement .........................21
11 Errors...................................................22
12 Maintenance..............................................23
12.1 Cleaning............................................23
12.2 Storage.............................................24
12.3 Transport............................................24
12.4 Trolley .............................................25
12.5 Calibration ..........................................25
13 Disposal.................................................25
14 Technical Data ............................................26
ABOUT THIS MANUAL
1GMG-200310-2310-001 EN20
1 About this Manual
1.1 Objective
This manual describes the requirements for proper operation of the Sliding Friction Tester
GMG-200.
It is intended to be used only by properly qualified personnel (–› Chap. 2, For your Safety).
1.2 Explanation of Symbols
This manual follows a certain structure to make it easy to work with and understand. The
following designations are used throughout.
Operational objectives
Operational objectives specify the result to be achieved by following the subsequent instruc-
tions. Operational objectives are shown in bold print.
Instructions
Instructions are the steps to be taken in order to achieve the previously stated operational
objective.
Instructions appear like this:
►Indicates a single instruction
1 First of a series of instructions
2 Second of a series of instructions
3 etc.
Intermediate states
When it is possible to describe intermediate states or events resulting from the instruction steps
(e.g. screens, internal function steps, etc.), they are shown like this:
ZIntermediate state
2
GMG-200 310-2310-001 EN20
ABOUT THIS MANUAL
Warnings
The following types of notes are used throughout this manual.
DANGER!
This combination of symbol and signal word indicates an immediately dangerous
situation which could lead to death or severe injuries if it is not avoided.
WARNING!
This combination of symbol and signal word indicates a possibly dangerous
situation which could lead to death or severe injuries if it is not avoided.
CAUTION!
This combination of symbol and signal word indicates a possibly dangerous
situation which could lead to minor injuries if it is not avoided.
NOTICE!
This combination of symbol and signal word indicates a possibly dangerous
situation which could lead to property damage if it is not avoided.
TIPS AND RECOMMENDATIONS
This type of note provides information that is directly relevant for the further
operation of the device.
1.3 Abbreviations
Abbr. Meaning
GTE GTE Industrieelektronik GmbH
GMG Sliding Friction Tester
FForce
CF Friction coefficient
MMeasurement
SC Scan
NNewton
FOR YOUR SAFETY
3GMG-200310-2310-001 EN20
1.4 Storing this Manual
Store this manual near the device, in a place where it can easily be accessed when needed
for reference.
1.5 Standards and Regulations
The following standards and directives are particularly important when working with the GMG-
200:
Regulation Description
DIN 51131 Testing of floor coverings - Determination of the anti-slip property -
Method for measurement of the sliding friction coefficient
DIN EN 13893 Resilient, laminate and textile floor coverings - Measurement of dynam-
ic sliding friction coefficient on dry floor surfaces
DIN CEN/TS 16165 Determination of slip resistance of pedestrian surfaces - Methods of
evaluation
2 For your Safety
WARNING!
The traction mechanism of the GMG-200 is pulled with increased force during
measurement and can cause squashing.
−Do not touch the traction mechanism during pulling!
−Steel strap must move easily!
WARNING!
The steel strap on the GMG-200 may have sharp edges, thus posing a risk of
cuts.
−Do not touch the steel strap!
CAUTION!
Operating errors can cause injury as well damage to the device.
−Read the entire manual and follow the instructions!
−Do not open the device!
4
GMG-200 310-2310-001 EN20
FOR YOUR SAFETY
2.1 Intended Use
The GMG-200 is used to measure the sliding friction of floor coverings. It is operated by plac-
ing the device on the floor with the sliders on the underside, pulling out the strap and attaching
it to the foot plate. When the foot plate is braced by a foot and the strap is kept tensed, the
GMG-200 moves along the floor and performs measurement.
CAUTION!
Unintended use can lead to injuries as well as to damage to the device.
2.2 Qualication Required of Personnel
WARNING!
Only properly trained persons may operate the GMG-200.
2.3 Modications
WARNING!
All kinds of unauthorized modifications or additions to the equipment
are expressly prohibited!
−Do not open the device!
−When in doubt, consult the manufacturer!
2.4 Accessories and Spare Parts
The following accessories are available for the GMG-200:
Art. no. Description
310-2304-001 Evaluation software GMG-VD
310-2003-013 GMG-200 leather slider plate
310-2003-011 GMG-200 rubber slider plate
310-2003-017 GMG-200 standard sanding block
310-3000-317 Standard sandpaper (10 pieces/unit)
310-4304-007 Calibration certificate
90-01-03954 USB/RS-232 converter
SCOPE OF DELIVERY
5GMG-200310-2310-001 EN20
WARNING!
Only original spare parts and accessories provided by the manufacturer may
be used!

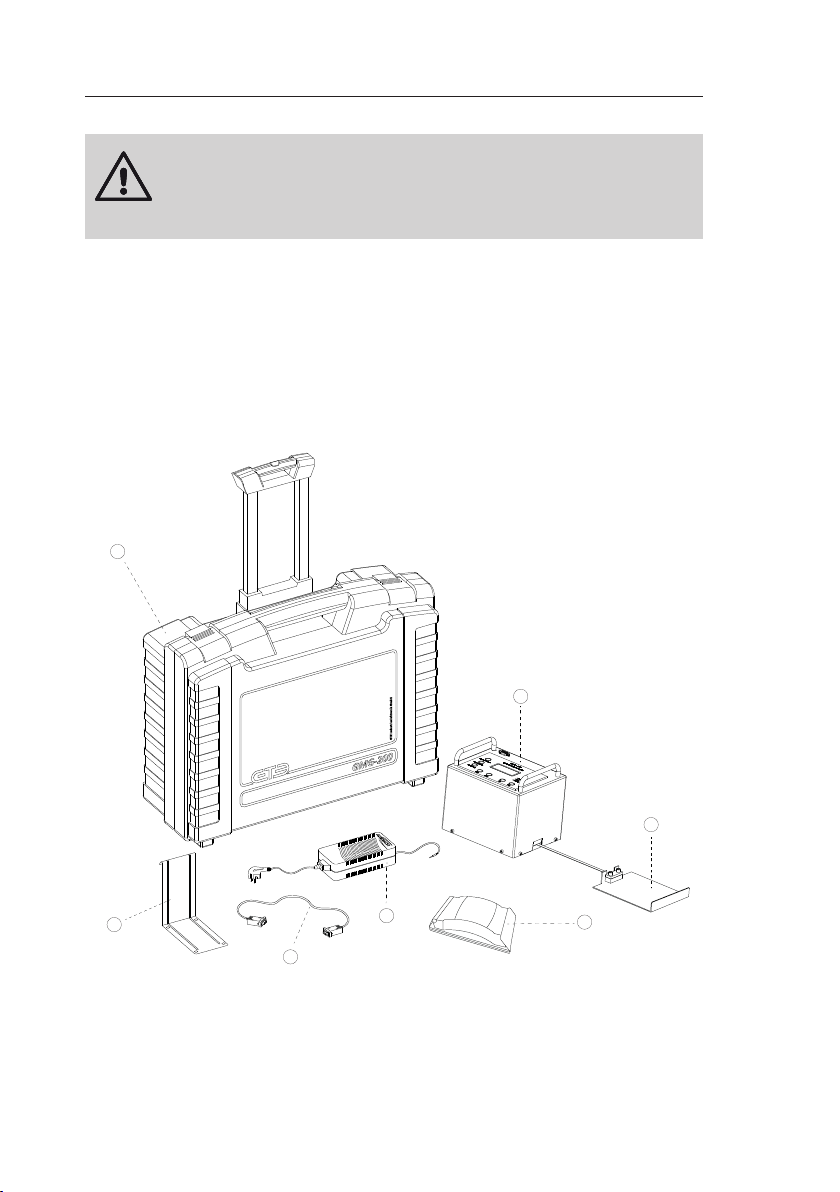

3 Scope of Delivery
Delivery of the GMG-200 includes the following components:
2
1
3
4
5
6
7
