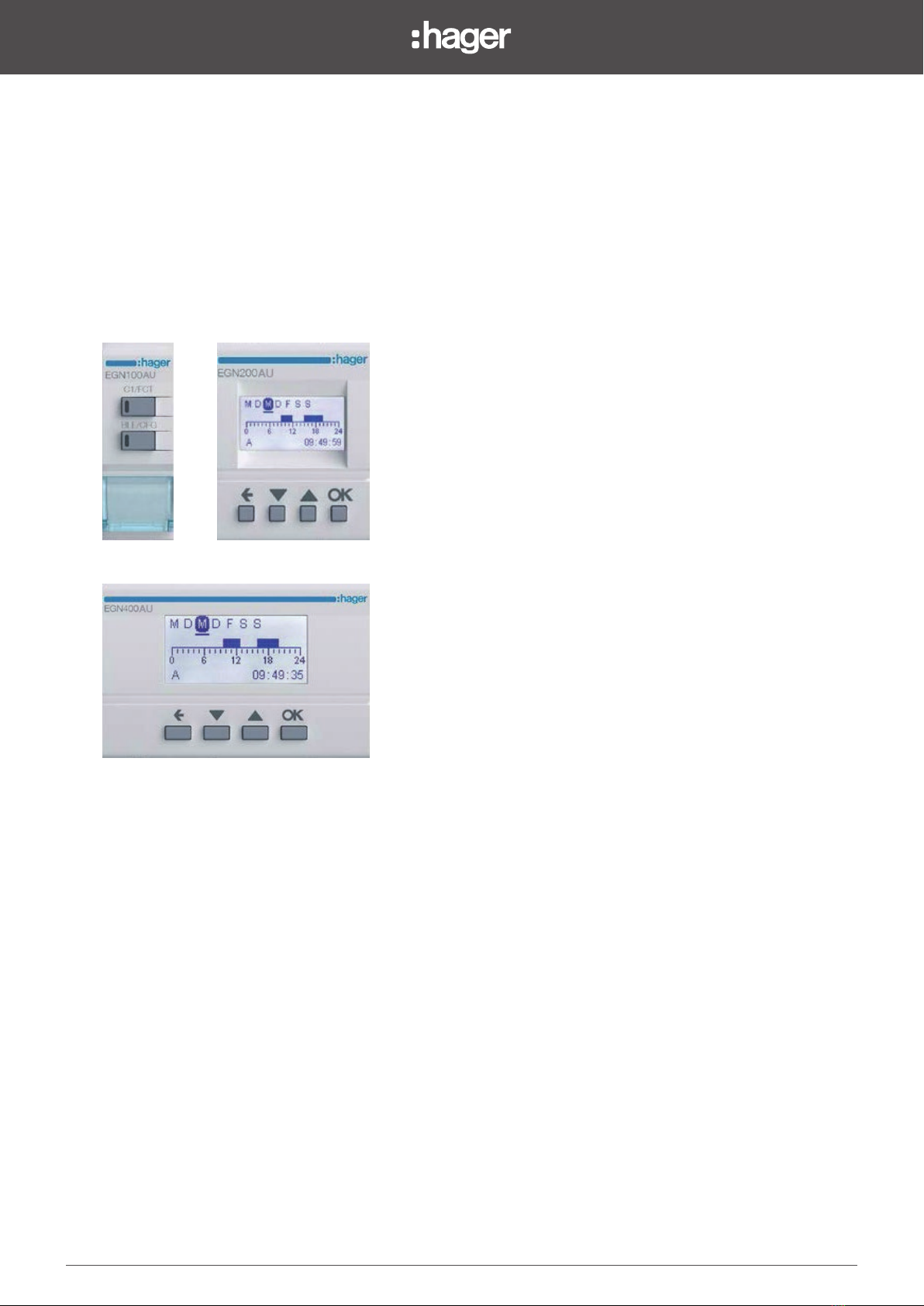

hager EGN100AU Bedienungsanleitung
6LE007476B
EGN100AU / EGN200AU /
EGN400AU
quick start guide
Time switches
1 channel / 2 channel / 4 channel
Bluetooth®multifunction
with the Hager Mood app
2
1. Introduction......................................................................................... 2
2. Setting up your installation ............................................................... 2
3. Connecting a time switch
(EGN100AU/200AU/400AU) for the first time.................................. 4
4. Creating a new program ................................................................... 6
5. Loading a program from the app to the
clock key (EGN103 and EGN003) ..................................................... 7
6. Adding program steps....................................................................... 9
7. The "AND" logical operator (EGN100AU/200AU/400AU) ............ 11
8. Programming the photoelectric cell .............................................. 12
9. Updating device firmware............................................................... 15
Contents
Our EGN100AU, EGN200AU and EGN400AU electronic time switches feature weekly and yearly cycles for automatic control
of dierent lighting loads.
Examples of applications: public lighting, illuminated signs, shop windows, monuments, facades etc.
• Built-in astronomical clock allows lighting times to be synched to sunset and sunrise.
• Connects to an EEN002/EEN003 photoelectric cell (optional), allowing lighting to be controlled according to the level of
ambient brightness.
1. Introduction
2. Setting up your installation
Download the free Hager Mood app to your mobile device:
for Android for Windows
for IOS
Make sure the Bluetooth, Location and Mobile Data settings are enabled:
Tap the Settings icon on your mobile
device, select Apps, then Hager Mood:
Swipe downwards and then tap
Bluetooth to enable it.
1
2
Available on
Hager
Mood
Available on
for Android for Windows
3
Log in to your myHager account (or enter in Guest
mode), or Create an account. Then confirm .
Select Time switches and hit confirm.
Assign a name and location to the new installation,
then hit Next.
You are now in the home screen of your installation.
3
5
4
6
4
1Connect the time switch to the mains power supply.
2On the home screen, touch +to add a device.
Accept the pairing of your mobile terminal with the time switch.
Touch the icon of the discovered device to connect to
the time switch.
1
3
2
3. Connecting a time switch (EGN100AU/200AU/400AU) for the first time
Having trouble connecting?
• Check Notifications and follow the instructions.
Otherwise:
• Go to the Bluetooth Settings on your mobile
device:
1disable then re-enable Bluetooth and wait for the
scan to complete
2check the settings of your time switch and make it
visible for discovery if necessary; then wait a few
seconds
3return to the app and tap the icon of the
discovered device.
5
Press any button on the time switch.
The device has been identified.
Touch the arrow key, give a
name to the product if necessary,
and then confirm.
To return to the home screen,
double-tap the Xkey (or tap the
+key to create a new program: see
next section).
The device has now been added
to the home screen.
4
5 6 7
4
OK
28 / 03 / 2020
15 : 18 : 04
AU
6
On the home screen, tap the icon of the device you
wish to programme.
Tap + to add a new program. You can now choose
whether to enter the program settings one by one, or
select a template. Then confirm.
Tap View programs.
Select the output(s) available for programming and
then tap the arrow (to add program steps, see section 6).
To create a new program (custom or template):
1
3
2
4
4. Create a new program
7
Connect the EGN003 Bluetooth® clock key to the
EGN103 time switch.
1To create a new program: on the home screen,
touch the clock key icon and enter the program
settings one by one, or use a clock key template
(see section 4).
2
To add steps to a program, see section 6.
Once the key has been discovered, pair it to your
mobile device using the Hager Mood app.
Load the program onto the clock key.
1
3
2
4
Bluetooth®
clock key
3
auto
On
24
1812
60
ok menu
+
3
5. Loading a program from the app to the clock key (EGN103 and EGN003)
8
The program is now stored on the key.
The program will run as configured for as long as the key remains in the time switch.
Before removing the key from the time switch, you must manually load it onto the EGN103 time switch as described below.
To load the program contained in the key onto the EGN103 time switch:
1press the menu button, select LOAD mode then press OK to confirm
2press OK again to load the program
3remove the key and check the program is present in the EGN103 time switch.
5
6
1
3
auto
On
24
1812
60
ok menu
+
3
2
3
auto
ok menu
+
ok
3
Program
3
auto
On
24
1812
60
ok menu
+
3
3
Program
3
auto
On
24
1812
60
ok menu
+
3
9
1Create a new program (see section 4).
2Click on +to add a program step.
To select an action:
1 tap + to add an action
2 select one of the actions below, adjust its setting as required, then tap the confirm button.
Actions available per device and setting:
• EGN003
Example: Pulse On for 60 seconds
• EGN100AU/200AU/400AU
For each new step, you must define an action plus a
trigger, and the days you want the step to be executed,
as applicable:
1
2
6. Adding program steps
Action Setting
On
O
On
For a limited time
(pulse)
1 to 60 seconds
O
For a limited time
(pulse)
1 to 60 seconds
Action
On
O
10
To select a trigger:
1tap +to add a trigger
2select one of the triggers listed below, then tap the blue arrow
3use the + and - buttons to set the trigger values, then tap OK to confirm if necessary, followed by the blue arrow
to continue.
Trigger available by device and setting:
• EGN003
• EGN100AU/200AU/400AU
3
Trigger Setting
Time Hours and minutes
Sunset/Sunrise
At sunset
or
At sunrise
Brightness
Lower than
or
Higher than
value between
1 and 2000 lux
Trigger Setting
Time Hours and minutes
To select the days:
The step is executed on every day with a white circle
around it.
Tap the days to select them, then confirm.
Once the program is synchronized with the device, you need to implement AND logical operators between the
steps: see next section for instructions.
The step is programmed. Tap +to add another
step to the program.
(After the final step: confirm your settings, assign a
name to the program, then synchronize it with the device
- see example in section 8)
4
6
5
