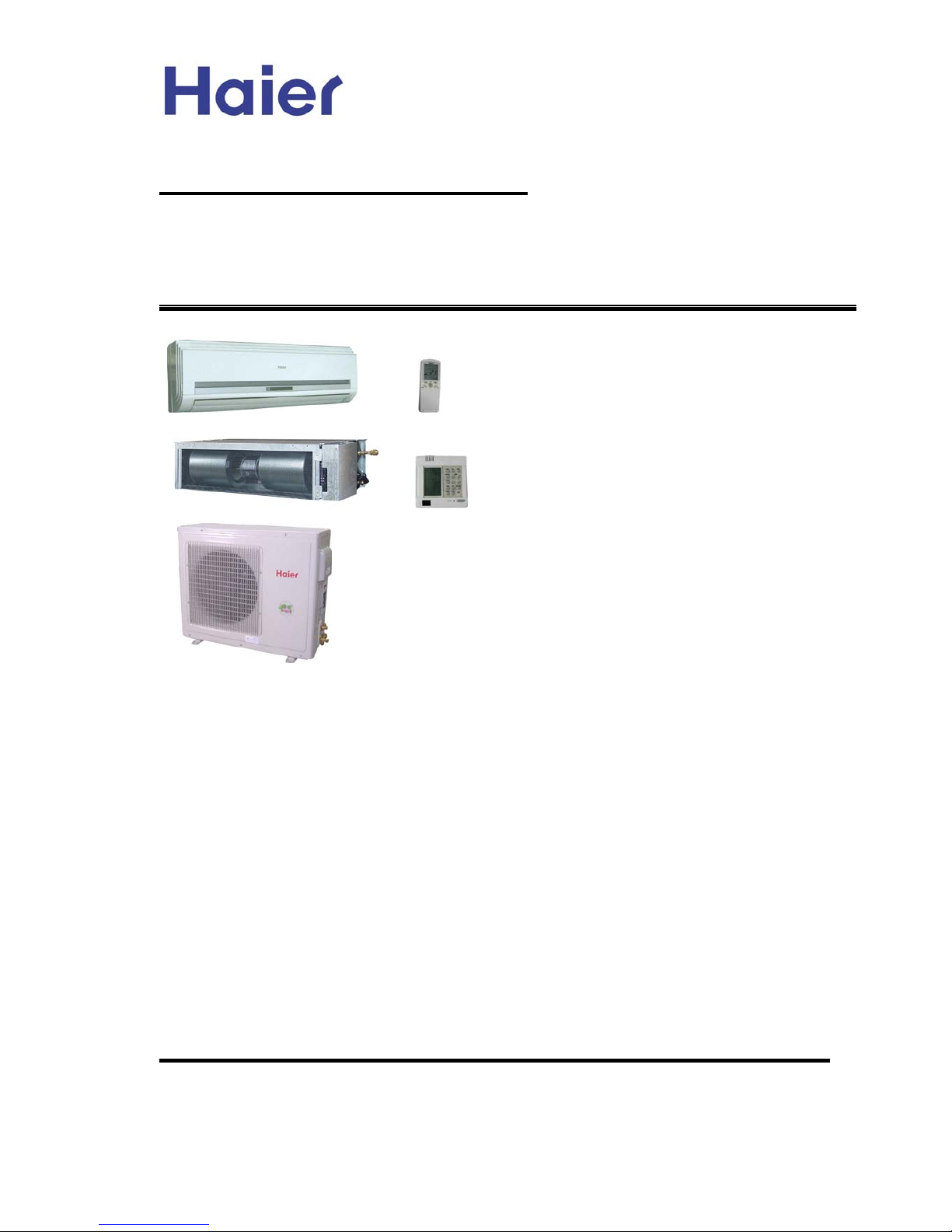

Haier AD182AMERA Bedienungsanleitung

Commercial Air Conditioning

SERVICE MANUAL

Models

AD182AMERA

AS182AVERA

AU182AFERA

 Features

 High energy efficiency class-A

 Newly designed V-appearance for wall mounted unit

 Two optional control tpyes for duct type unit

 Can be connected with the universal outdoor unit AU182AFERA

 Infrared control type or wired control type

 Central control and full automation, if connected with a central controller

 Low ambient cooling kit (optional) and low ambient heating kit (optional)

 New friendly refrigerant R410a, environment protection

 Advanced technology, DC inverter control function

 Weekly timer (standard)

 Group control function

 Negative ion function for wall mounted unit

 Auto restart function

 Room card function for the unit except for wall mounted unit

Manual code: SYJS-010-05REV.1 Edition: 2007-02-03

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

CONTENTS

Contents………………………………………………………....2

1. Description of products& features………………………...3

2. Specification………………………………………………….7

3. Safety precaution……………………………………………10

4. Net dimension………………………………………………..12

5. Installation instructions………..…………………………….14

6. Parts and functions………………………………………….32

7.1Infrared controller …………………………………............33

7.2Wired controller YR-E12.................................................42

9. Electric wiring diagram ........................................................72

10. Electrical data ................................................................74

11. Toubleshooting...............................................................81

12. Performance curves.......................................................89

-2-

13. Noise level.....................................................................94

8. Electrical control functions................................................56

14. Air velocity distribution...................................................96

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

1.DESCRIPTION OF PRODUCTS & FEATURES

1.1. Products code explanation

AS 18 2 A V E R A

Climate type: T1 (see table 1)

Design number (R stands for design sequence, DC inverter

frequency type)

Product type: A stands for heat pump type, refrigerant is R22

B stands for heat pump type, refrigerant is R407C

E stands for heat pump type, refrigerant is R410a

Q stands for cool only type, refrigerant is R410A

V type appearance

Product series: A stands for 1 to 1

Applicable voltage: 2 stands for 220~230V/50Hz,

4 stands for 220V/60Hz，N stand for 380~400VAC/50Hz

Cooling / Heating capacity,18=18000BTU/h

Product type : “B” stands for cassette type, “C” stands for

convertible type, ”D” stands for duct, “S” stands for wall

mounted type, ”Q” stands for chiller system, "E" stands for

ceiling concealed type, “U” stands for outdoor unit

Air Conditioner

1.2 Brief Introduction for T1、T2、T3 working condition

1.3 Operating Range of Air Conditioners

Temp. Mode Rated Maximum Minimum

DB ℃27 32 15

Indoor

WB ℃19 23 14

DB ℃35 43 -5

Cooling

Outdoor

WB ℃24 26 6

DB ℃20 27 10

Indoor

WB ℃14.5 --- --

DB ℃7 23 -10

Heating

Outdoor

WB ℃6 18 ---

Climate type

Type of Air

Conditioner T1 T2 T3

Cooling Only 18 ℃~43℃10℃~35℃21℃~52℃

Heat pump -7℃~43℃-7℃~35℃-7℃~52℃

Electricity Heating ~43℃~35℃~52℃

-3-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

1.4 Product features

Newly designed V- appearance indoor unit

The wall mounted type indoor unit adopts the newly designed V appearance, more fashion, more

beautiful.

Adopt the much friendlier refrigerant R410a

The air conditioner system adopts the greatly friendly refrigerant R410a, which is protective for the

ozone layer and is good to avoid the earth getting warmer. Benefit for the environment.

Adopt the advanced DC inverter technology

The system adopts the advanced DC inverter technology, which can consume less power energy to

realize the equal efficiency, saving money for you.

Smart newly designed infrared remote controller

The unit can be controlled by the newly designed infrared remote controller YR-H49, which can

realizes many functions such as heating, cooling, fan, swing, fresh, health, negative ion. Furthermore,

the remote controller can be fixed with a remote controller holder.

Negative ion function

The unit can realize the negative ion generation function, releasing the healthy negative ion into the

indoor room. You will feel more comfortable, just like in the nature.

Auto–restart function (optional)

All indoor units have auto-restart function. When the power supply cut off suddenly, the unit will

automatically recover the previous running mode once the power supply is on.

Low ambient cooling kit (optional)

Group control function (with a group controller YR-E12)

Central control function, if connected with a central controller

YCZ-A001

Weekly timing function, if connected with a weekly timer YCS-A001

-4-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

1.5 New friendly refrigerant R410A introduction:

■R410A

The working pressure of R410A is approximately 1.6 times higher than R22. Because the oil in the

refrigerant is different, please do not mix them.

Refrigerant R22 (single) R410A (mixed) R407C (mixed)

Oil Mineral oil (SONTEX 200LT) Synthetic oil (POE oil) Synthetic oil (POE oil)

Pressure ratio 1 Approx. 1.6 Approx. 1.1

■Operation flow

1. Calculate the refrigerant additional charging

amount, and charge a suitable amount.

1. Air purging by refrigerant is prohibited seriously

2. Use a special vacuum pump with reverse check

mechanism

1. Charge the nitrogen to the set pressure

2. 24 hours later,check if the pressure in the pipe

has reduced

1. Do not connect the power supply

1. Use piping material of the specified thickness

2. Do not use dirty pipe

3. Always flow nitrogen during welding work

hand over

trial running and adjustment

maintenance panel installation

gas leakage check

additional refrigerant charging

evacuation and drying

leakage test

refrigerant piping connection

outdoor unit installation

outdoor unit foundation work

electric wiring work

remote controller installation

insulation work

duct work

drain piping work

refrigerant piping work

indoor unit installation

operation chart preparation

1. Always inspect the used refrigerant

2. Always use the specified refrigerant

refrigerant inspection

prepare work schedule

-5-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

■Piping material

1. Use the correct refrigerant piping and materials for R410A

2. For the pipe wall thickness, see the table below:

Pipe diameter Φ6.35 Φ9.52 Φ12.7 Φ15.88 Φ19.1

Pipe wall thickness 0.8 0.8 0.8 1.0 1.2

Note: Always observe and comply with the local regulations when installing the refrigerant piping.

■Tools

R410A work requires a number of special tools (* symbol). Since the tools used in R22 work

cannot be used for R410A, provide the tools separately.

Tool name Process and application

Pipe cutter Piping cutting

*Flaring tool Pipe flaring work

*Torque wrench Flare nut connection

Expander Expansion at pipe connection

Pipe bender Pipe bending work

Refrigerant piping work

Nitrogen gas Pipe oxidation prevention

Welder Pipe brazing

Air tightness test

*Gauge manifold

*Charging hose

Vacuum evacuation and refrigerant

charging operation check

Air tightness test

Refrigerant additional

charging

*Vacuum pump (with

adapter)

Vacuum drying

Electronic scale

Gas leakage detector Gas leakage test

Refrigerant additional

charging

■Work precautions

Refrigerant check: Before work, check the used refrigerant and prepare materials matched to the

refrigerant.

Refrigerant piping: Observe the basics of refrigerant piping to avoid the unnecessary problems. In

addition, when performing the welding work, seal in the nitrogen gas to the pipes, and prevent it

from the oxidation.

Leak pressure detection: Perform seal detection and make sure there is no refrigerant leakage.

Vacuum drying: If the vacuum pump has not the reverse flow check mechanism, use the pump

together with a reverse flow check adapter.

Additional refrigerant: Charge a suitable amount of refrigerant with a special R410A gauge

manifold and charging hose.

-6-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

2. SPECIFICATION

Function coolin

heatin

Capacity kW 5.1（1.8---6.0）6.0（2.0---7.1）

Sensible heat ratio 0.75

W1580（550---2650）1650（600---2650）

W 2650 2650

EER or COP W/W 3.23 3.64

Dehumidifying capacity 10‐³×m³/h

Power cable

Power source N, V, Hz

A / A 7.5（3.0---12.0）

12.0 7.8（3.2---12.0）

Start Current A 3A 3A

Circuit breaker A 25A 25A

Unit model (color)

Type × Number

Speed(H-M-L) r/min

Fan motor output power kW

Air-flow(H-M-L) m³/h

Type / Diameter mm

Total Area m²

Temp. scope ℃

External （L×W×H）mm×mm×mm

Package （L×W×H）mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm

Control type (Remote /wired)

Fresh air hole dimension mm

dB(A)

kg / kg

Unit model (color)

Model / Manufacture

Oil model

Oil type

Oil charging

Type

Type × Number

Speed r/min

Fan motor output power kW

Air-flow(H-M-L) m³/h

Type / Diameter mm

Row / Fin pitch

Temp. scope ℃

External （L×W×H）mm×mm×mm

Package （L×W×H）mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm

Refrigerant control method mm/mm

Volume of Accumulator L

Noise level dB(A)

material of reduce noise

crankcase heater power W

kg / kg

Type / Charge g

Recharge quantity g/m

Liquid mm

Gas mm

Connecting Method

MEL56

670ML

flared

Between I.D &O.D MAX.Drop 15

MAX.Pi

len

th 40

Weight (Net / Shipping)

59/66

PIPING

Refrigerant R410A/1850

Pipe 6.35

12.7

Type of Four way valve STF-0218G

main capillary φ1.6*400mm, sub capillary φ

1.6*200mm

Defrosting

AUTO

2.5

Dimension 810*288*680

960*406*760

0.08

2500

Heat exchanger

hydrophilic finned Aluminum foil /φ7

3/1.55

43-60

Indoor unit

AS182AVERA(WHITE)

Outdoor unit

AU182AFERA(WHITE)

Compressor

TNB175FLBM1/MITSUBISHI ELECTRIC

scroll type

Fan

axial×1

860±30

Noise level (H-M-L) 44/----

Weight (Net / Shipping)

870*305*225

962*312*365

12/15

PVC 16/12

Remote

Electricity Heater 0

2-7

Dimension

Heat exchanger

inner grooved pipe/φ7

0.868

Fan

cross flow*1

1250/1150/1050

0.05

760/-----

4.0×3

1, 220--230, 50

Running /Max.Running

item Model AU182AFERA/AS182AVERA

Total power input

Max. power input

-7-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

Function cooling heating

Capacity kW 5.1（1.8---6.0）6.0（2.0---7.1）

Sensible heat ratio 0.75

W1580（550---2650）1650（600---2650）

W2650 2650

EER or COP W/W 3.23 3.64

Dehumidifying capacity 10‐³×m³/h

Power cable

Power source N, V, Hz

A / A 7.5（3.0---12.0）/12.0 7.8（3.2---12.0）/12.0

Start Current A 33

Unit model (color)

Type × Number

Speed(H-M-L) r/min

Fan motor output powe

Air-flow(H-M-L) m³/h

Type / Diameter mm

Total Area m²

Temp. scope ℃

External （L×W×H）mm×mm×mm

Package （L×W×H）mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm

Control type (Remote /wired)

Fresh air hole dimension mm

dB(A)

kg / kg

Type / Charge g

Recharge quantity g/m

Liquid mm

Gas mm

Connecting Method

item Model AD182AMERA

Total power input

Max. power input

Heat exchanger

inner grooved pipe/φ9.52

0.59

4.0×3

1, 220--230, 50

Running /Max.Running current

Dimension

1190*450*220

1281*526*305

Indoor unit

AD182AMERA(WHITE)

Fan

cross flow*1

1150/1050/860/680R/MIN

0.05

850/770/680/600(30PA)

PVC 16/12

wired

2-7

Electricity Heater 0

Noise level (H-M-L) 50/48/45

Weight (Net / Shipping) 24/27

PIPING

Refrigerant

R410A/1850

Pipe

6.35

12.7

flared

Between I.D &O.D

MAX.Drop 15

MAX.Piping length 40

-8-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

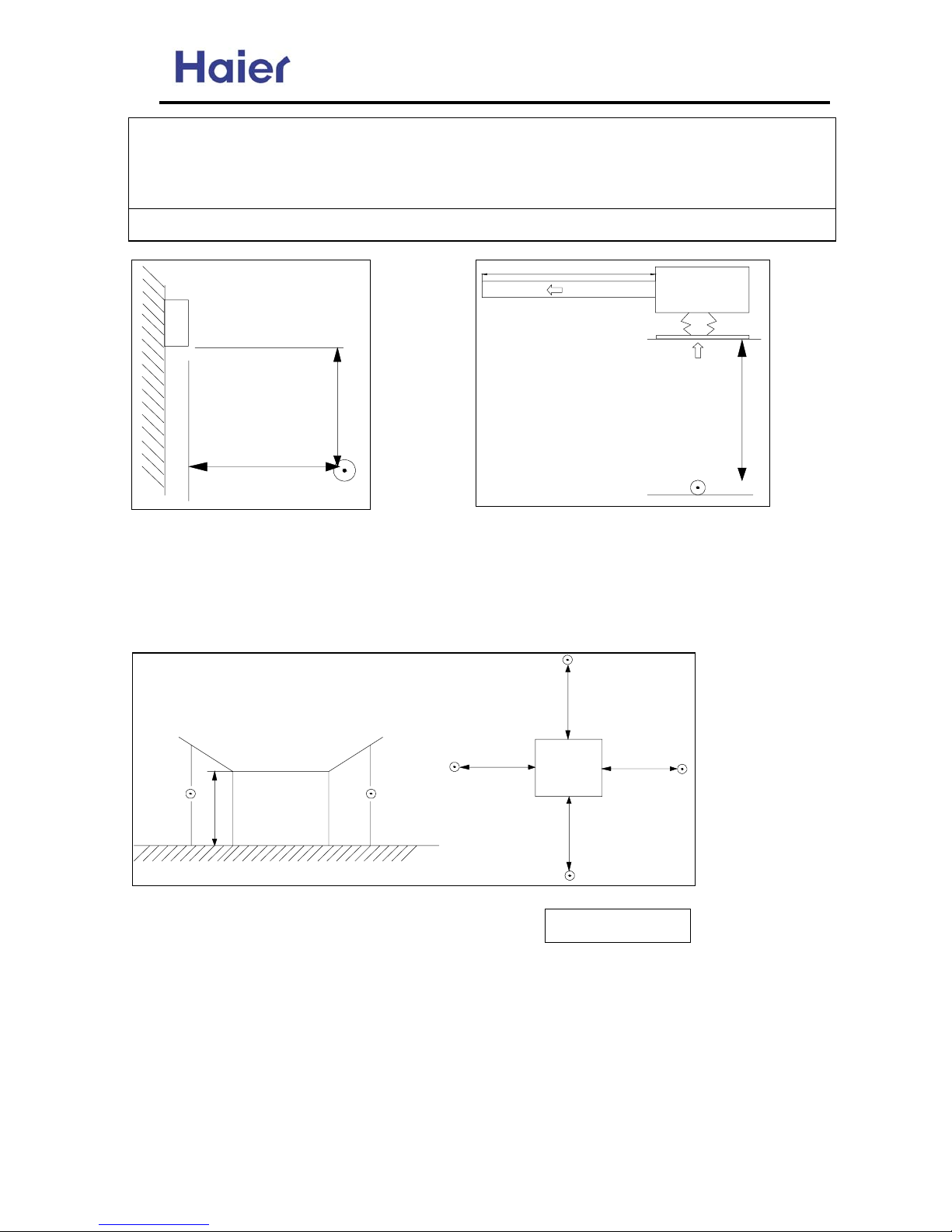

Note: ⊙is the real time

analyser position

oor un

1.air outlet from side: the noise level is the average sound pressure level measured from front, left, right directions.

2.air outlet from top: the noise level is the average sound pressure level measured from front, back, left, right

directions.

measured point:

H ( height to the ground) = (h (unit height) + 1m) /2

and, it is 1m to each side.

mounting-on-wall unit: duct unit without auxiliary duct:

Norminal condition: indoor temperature (cooling): 27 ℃DB/19℃WB, indoor temperature (heating): 20℃DB

Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃WB

The noise level will be measured in the third octave band limited values, using a Real Time Analyser calibrated sound

intensity meter. It is a sound pressure noise level. The detailed method please refer to the following information:

Installation state: the unit should be placed on the flat floor or be mounted in horizontal direction.

Testing method:

0.8m

1.4m

duct

-9-

Commercial Air Conditioner Model: AU182AFERA

AD182AMERA, AS182AVERA

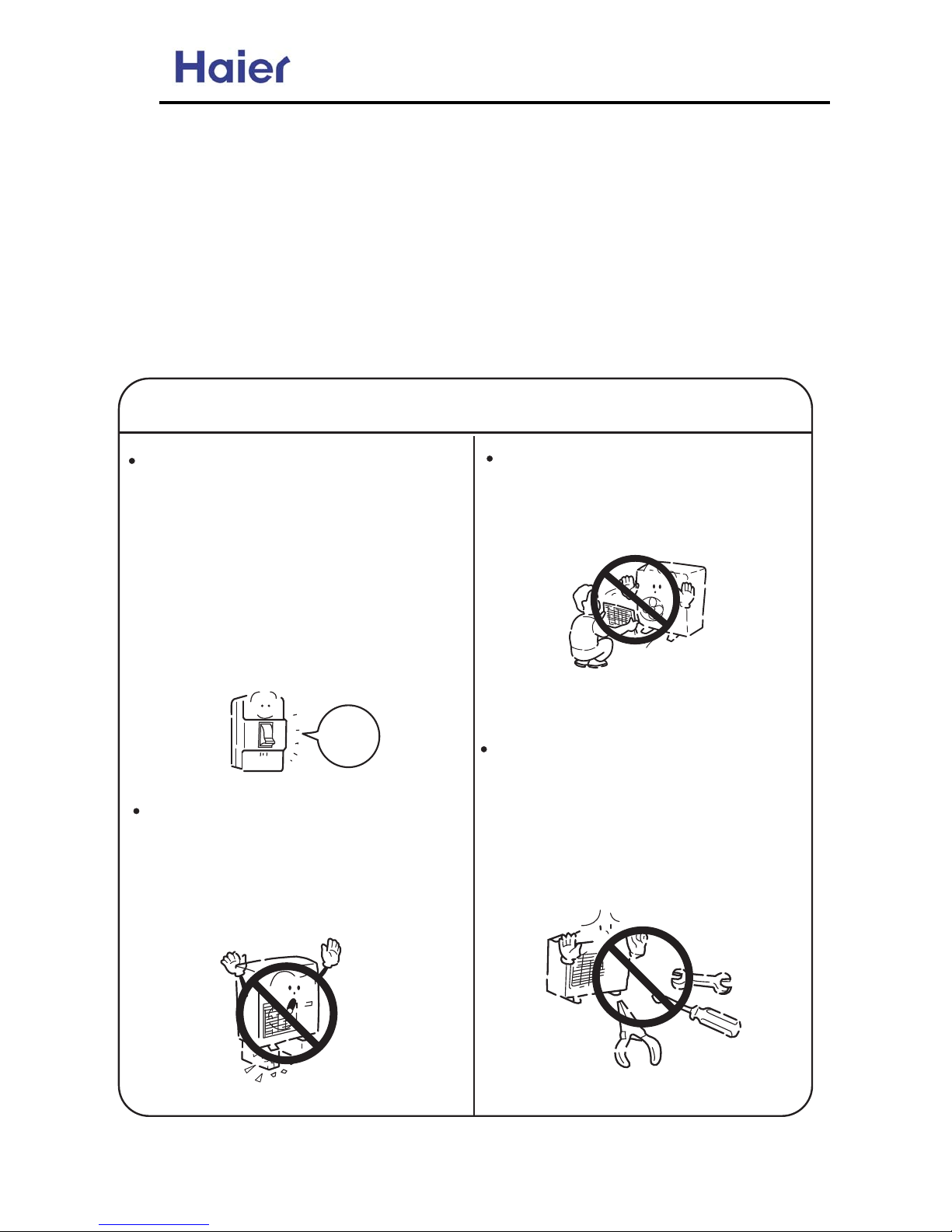

3. Safety precaution

Carefully read the following information in order to operate the airconditioner correctly.

Below are listed three kinds of Safety Cautions and Suggestions.

WARNING!

CAUTION! Incorrect operations may result in injuries or machine damages; in some cases may

cause serious consequences.

Incorrect operations may result in severe consequences of death or serious injuries.

INSTRUCTIONS: These information can ensure the correct operation of the machine.

Be sure to conform with the following important Safety Cautions.

The Safety Cautions should be at hand so that they can be checked at any time when needed.

If the conditioner is transferred to the new user, this manual should be as well transferred to the new user.

WARNING!

If any abnormal phenomena is found

(e. g.smell of firing), please cut off the

power supply immediately, and contact

the dealer to find out the handling

method.

Don't dismantle the outlet of the

outdoor unit.

The exposed fan is very dangerous

which may harm human beings.

switch

off

In such case, to continue using the

conditioner will damage the conditioner,

and may cause electrical shock or fire

hazard.

Incorrect maintenance and repairment

may cause water leak, electrical shock

and fire hazard.

When the unit needs maintenance and

repairment, please call dealer to handle it.

After the unit being used for a long time,

the base should be checked for any

damages.

If the damaged base is not repaired, the

unit may fall down and cause accidents.

-10-

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Haier Klimaanlage Handbücher

Haier

Haier HSU-28HA03/R2 - annexe 1 Bedienungsanleitung

Haier

Haier HWE08XCN Bedienungsanleitung

Haier

Haier HWF05XCPT Bedienungsanleitung

Haier

Haier AB072FDAHA Bedienungsanleitung

Haier

Haier AU302CHBAA Bedienungsanleitung

Haier

Haier HSU-09RS03/R2(SDB) Bedienungsanleitung

Haier

Haier AS26TB1HRA Bedienungsanleitung

Haier

Haier AD142AMAAA Bedienungsanleitung

Haier

Haier AS20S2SF2FA Bedienungsanleitung

Haier

Haier HSU-18H13 Bedienungsanleitung

Haier

Haier ESA405N Bedienungsanleitung

Haier

Haier AS072AZADA Bedienungsanleitung

Haier

Haier CPR09XC7 - 9,000 BTU Portable Room Air... Bedienungsanleitung

Haier

Haier ESA3159 Bedienungsanleitung

Haier

Haier AB182ACBHA Bedienungsanleitung

Haier

Haier Thermocool HW-09CU03 Bedienungsanleitung

Haier

Haier HSU-18CK03 Bedienungsanleitung

Haier

Haier HSU-07HR03 Bedienungsanleitung

Haier

Haier HSU-09HRA03/R2 Bedienungsanleitung

Haier

Haier AB072MRERA Bedienungsanleitung

Haier

Haier 3HUM18HB03-R2 Bedienungsanleitung

Haier

Haier HWV10XC5 Bedienungsanleitung

Haier

Haier HDU-96HTO3/H Bedienungsanleitung

Haier

Haier QPCA09 Sicherheitsleitfaden

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
