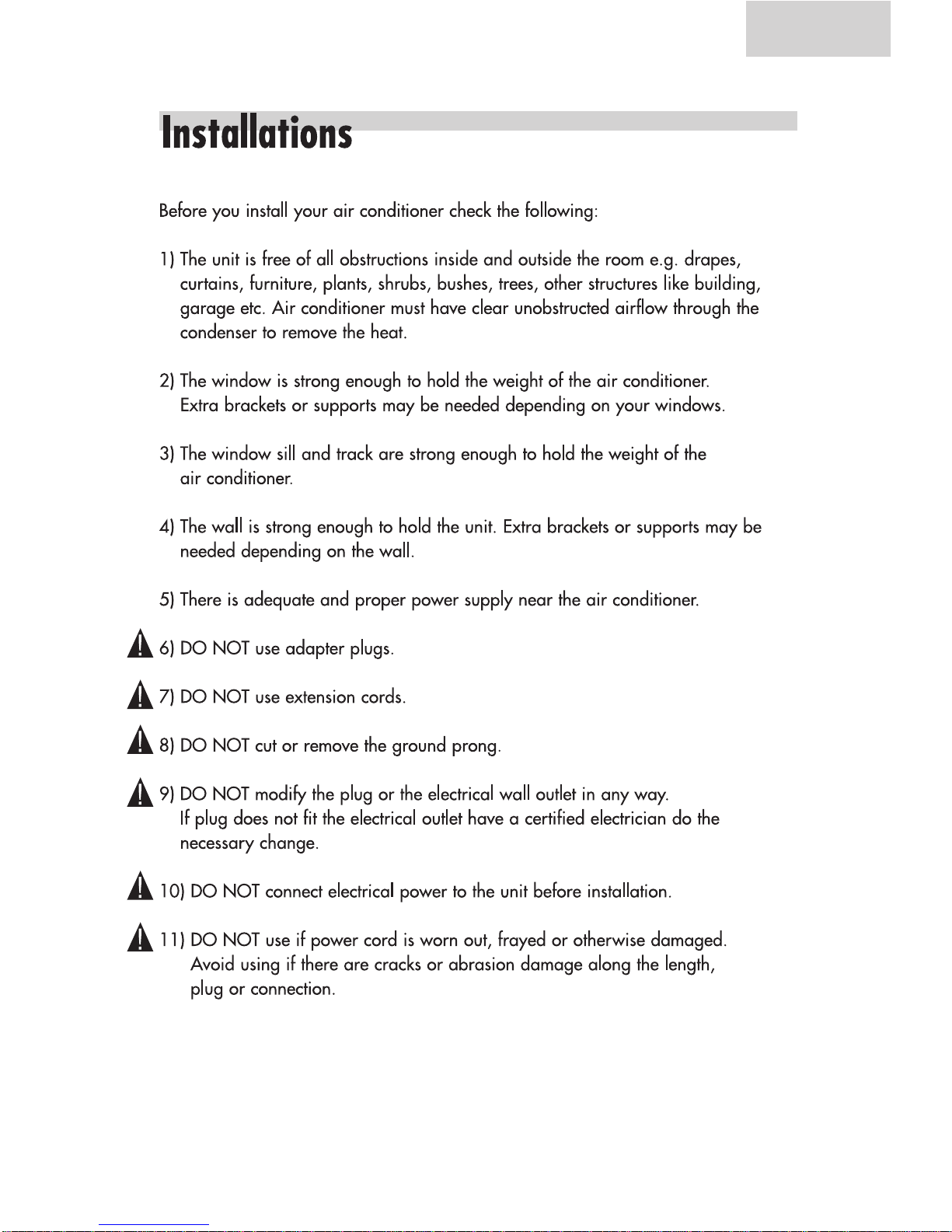

PREPARE

WINDOW FOR

INSTALLATION

Inspect window track, sash, and sill

for its ability to support the weight of

air conditioner.

Measure width between window

moldings to ensure Instant Mount

will fit window frame. Instant Mount

models are designed for windows

wide (the detail See Page 18).

Instant Mount kit supplied with unit

is designed for mounting in most

double-hung windows without

storm windows. For installation in

window frame with storm window,

modify sill by adding wood strips

(not included) to inner and outer sills.

This raises unit and eliminates

interference of storm window frame.

2Mobile home window installation

Add wood strip (at least 1 1/2î wide)

along entire width of window sill.

Thickness of wood strip should match

height of front lip on window frame.

Fasten wood strip to sill with a

minimum of three countersunk wood

screws (not supplied with kit). This

provides a smooth surface for

mounting air conditioner.

Storm window installation

If storm window frame does not allow

adequate clearance below sill (1/2î

required), remove storm window

frame or create clearance by adding

a wood strip (at least 1 1/2î wide)

along entire width of sill. Fasten

wood strip to sill with at least three

countersunk wood screws (not

supplied with kit). This provides a

smooth surface for mounting air

conditioner.

3INSTALL UNIT IN

WINDOW

Place unit in window. Lower sash

until it rests behind front flange of top

rail. Bottom rail must rest behind

window sill.

INSTALL

BASEPAN ANGLE

Back front attachment screw out

several turns and slip Basepan Angle

over screw head. Snug screw with

angle resting on window ledge.

Install Two 31/32" screws through

angle into window ledge. Repeat for

opposite side.

SILL

Wood

Strip

1/2"

Minimum

Storm Window

Frame

1 1/2"

Minimum

1 1/2"

Minimum

Wood

Strip

Window

Frame

Must be a minimum

of 1/2" to clear

bottom rail on unit

Curtain assembly cut

away for clarity.

31/32"

screws Basepan

angle

English

Top rail

Bottom rail

About

5∞

ModelsESA3083,ESA3103,ESA3123

English

ASSEMBLE

CURTAINS/TOP

RAIL

PREPARE

WINDOW FOR

INSTALLATION

Inspectwindow track, sash,and sill

for it sability to supportthe weight of

air conditioner.

Measure width between window

moldings to ensureInstant Mount

will fit window frame. Instant Mount

models are designedfor windows

wide (the detail seepage 18)

Instant Mount kit supplied with unit

is designedfor mounting in most

double-hung windows without

storm windows. Forinstallation in

window frame with stormwindow ,

modify sill by adding wood strips

3Mobile home window installation

Add wood strip (at least 11/2"wide)

along entire width of window sill.

Thicknessof wood strip should match

height of front lip on window frame.

Fastenwood strip to sill with a

minimum of three countersunkwood

screws(not supplied with kit). This

provides a smooth surface for

mountingair conditioner.

Storm window installation

If stormwindow frame does not allow

adequateclearancebelow sill (1/2"

required), remove stormwindow

frame or create clearanceby adding a

wood strip (at least 11/2"wide) along

entire width of sill. Fastenwood strip

to sill with at least three countersunk

wood screws(not supplied with kit).

Thisprovides a smooth surface for

mountingair conditioner.

SI LL

Wood

Str i p

1/2"

Min imum

St orm Wi ndo w

Fram e

11/2"

Min imum

11/ 2"

Minimum

Wood

St rip

Window

Frame

Mus tbe amini mum

of 1/2" to cl ear

botto mrail on unit

(not included)

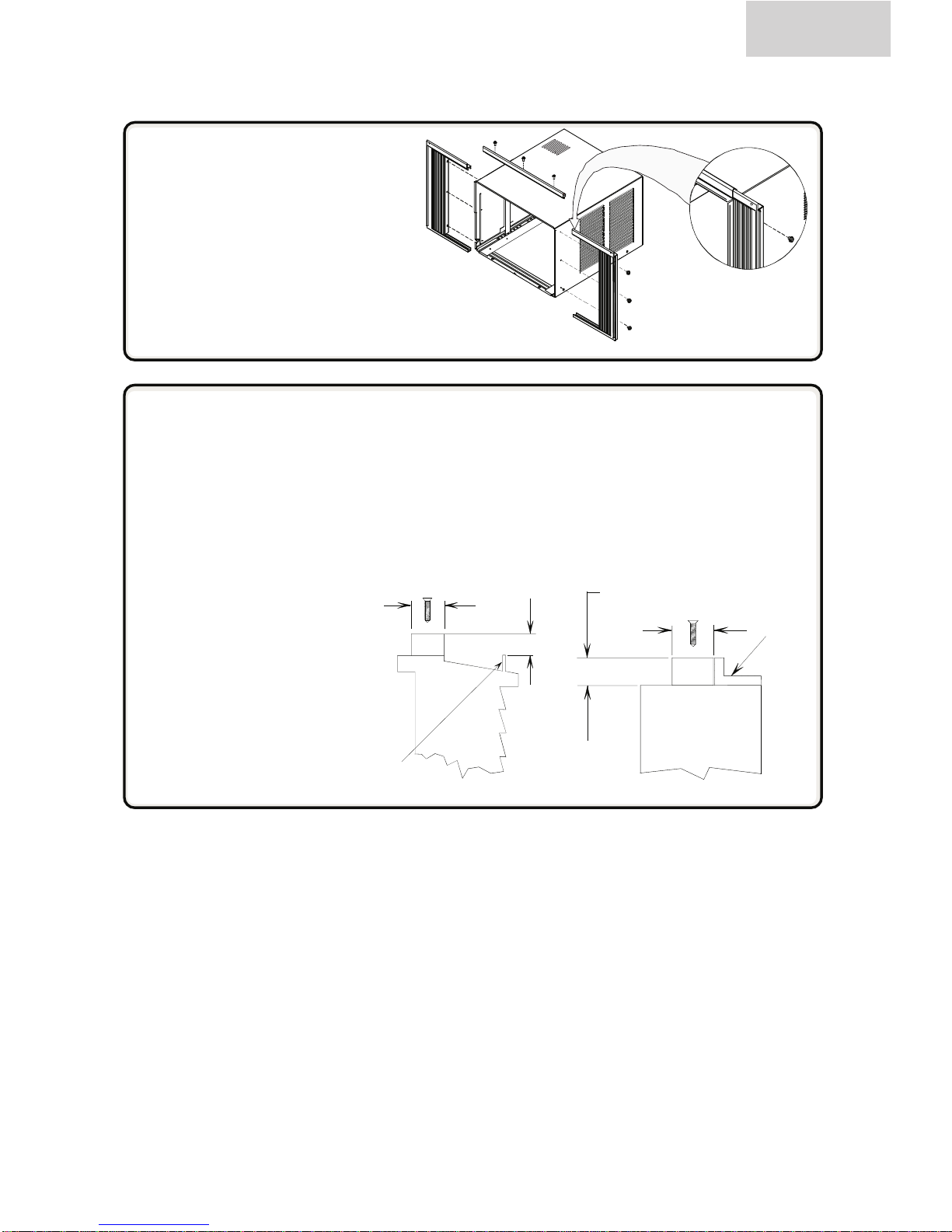

Slide lef t-hand curtain assembly

into leftend of top and bottom

rails. Repeatfor right-hand curtain

assembly.Fastencurtain retainer

stripsto sidesof outer casewith

six13/32" screws.

Install top rail with three 13/32"screws.

stormwindow frame.interferenceof

Thisraises unit and eliminates

inner and outer sills.

English

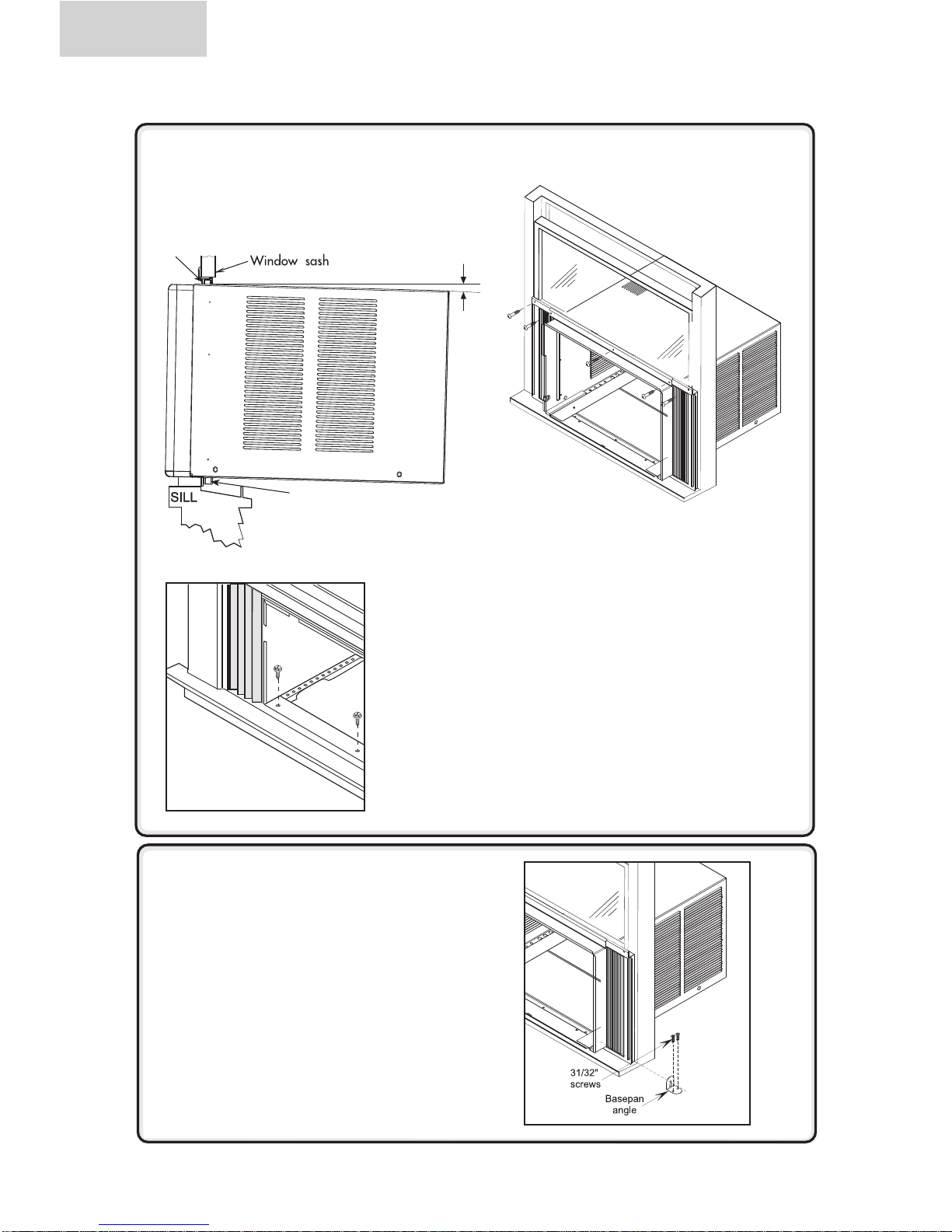

4INSTALLOUTER CASEINWINDOW Placeoutercaseinwindow.Lower sashuntilitrestsbehindfrontflange oftoprail.Bottomrailmustrest behindwindowsill.

Curtainassemblycut awayforclarity.

Usetwocasementtowindowsecurancescrews(1") tofixthecasetowindowssash.

INSTALLBASEPANANGLE 5InstallTwo31/32"screws throughangleintowindowledge. Repeatforoppositeside.

Top rail

Bottom rail

About

5∞

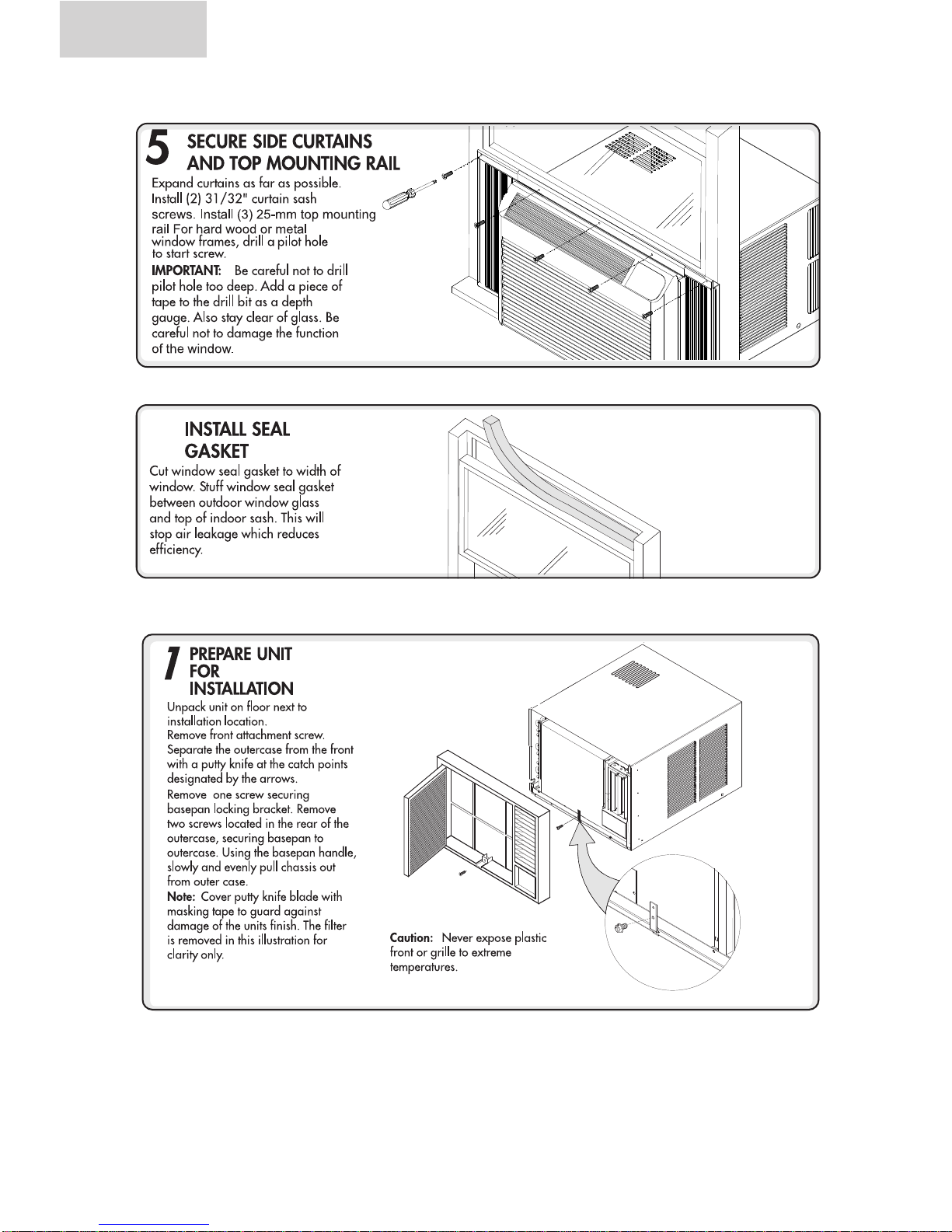

Expandbothcurtainstocontactthe windowframe.Installtwo31/32" screws.Oneineachupperrightand leftcornerofthecurtains.

NOTE: Tomakescrewseasierto drive,drillapilotholeintosash throughclearanceholeincurtains.

Installthree31/32"topmountingrail screws.

English

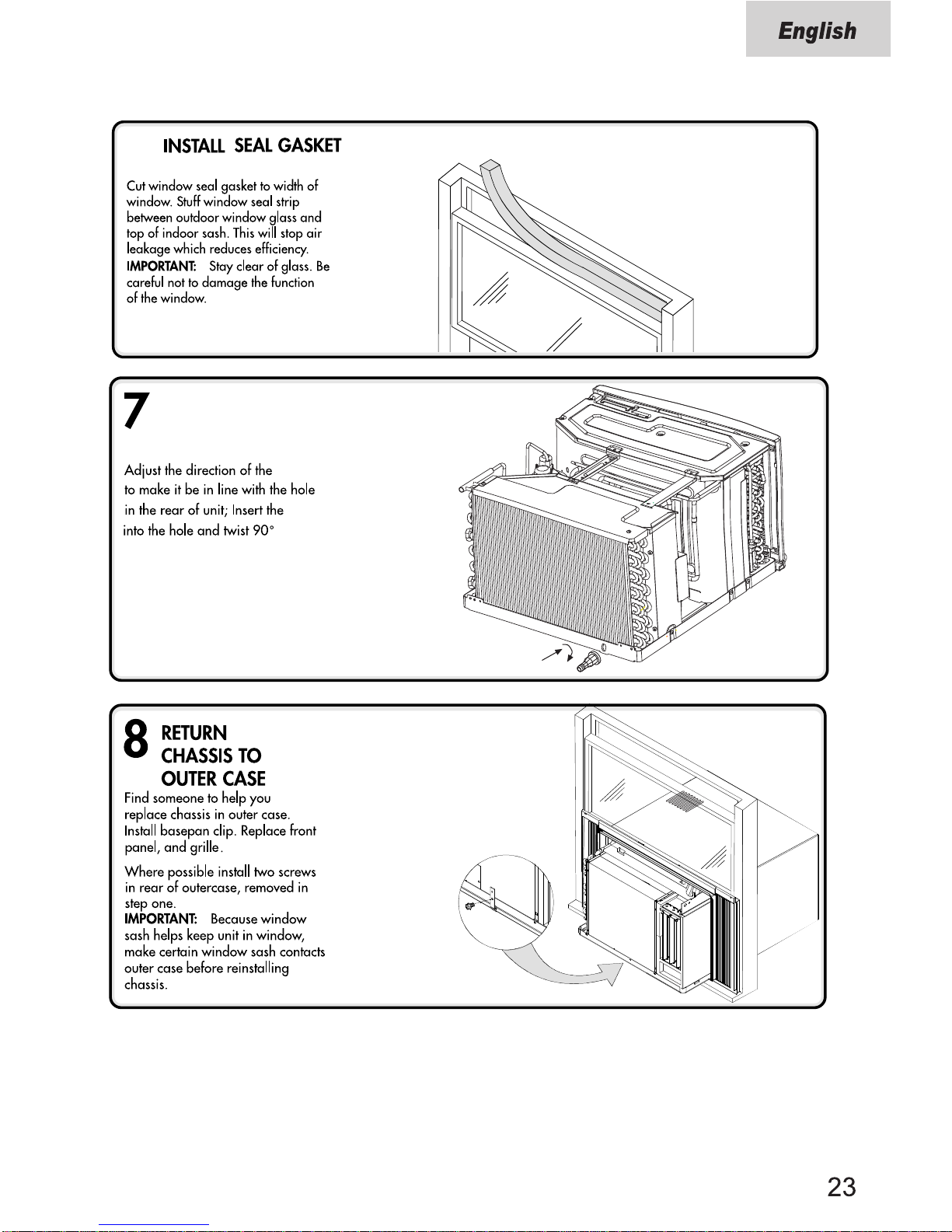

INSTALL

DRAIN ELBOW

drain tube(drain elbow)

English

(For ESA3063, the function is not

available)

English
