Haier HPAC7M Bedienungsanleitung

What The World Comes Home To TM

PORTABLE AIR CONDITIONER

CLIMATISEUR PORTATIF

ACONDICIONADOR DE AIRE PORTATIL

Model#

Modèle#

Modelo#

HPAC7M

A Word From Haier

Product Registration

TABLE

RECEPTACLE AND FUSE TYPES

RATED VOLTS

AMPS

WALL OUTLET

FUSE SIZE

TIME DELAY FUSE

(or circuit braker)

125/60 250/60

15 20 15 20 30

15 20* 15 20* 30

Plug Plug

Plug

Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner.

This manual contains useful information for you to maintain, operate, install and safely use your air

conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide

you with the ultimate level of comfort.

Please read instructions carefully before using the product. Also, do not forget to fill out and mail

the Product Registration Card.

Record Your Model and Serial Number.

For all your service calls during the warranty period the following information will be needed.

Attach the sales receipt to this guide and keep for future reference. This information can be

obtained from the serial plate, which is on your air conditioner.

Model Number: ......................................................................................................................

Serial Number:........................................................................................................................

Date of Purchase: ....................................................................................................................

Dealer’s Name:........................................................................................................................

Dealers Address: ....................................................................................................................

Dealers Phone Number: ..........................................................................................................

(1)

English

SAFETY PRECAUTIONS

WARNING: Following these basic precautions will reduce the risk

of fire, electrical shock, injury or death when using

your air conditioner.

1) Air conditioner must be connected to proper electrical outlet with the correct electrical

supply. (see table)

2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR

REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet

in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be

properly grounded.

3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it

if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions

or is damaged in any manner. Contact an authorized service for examination, repairs or

adjustments.

4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) Do not block airflow around the air conditioner. Also the exhaust hose should be free of any

obstructions.

6) Always unplug the air conditioner before servicing it or moving it.

7) Do not install or use the air conditioner in any area where the atmosphere contains combustible

gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with

your air conditioner.

8) Do not place any object on the top of the unit.

9) Never operate the air conditioner without the filters in place.

10) Do not use the air conditioners near a bathtub, shower or wash basin.

(2)

English

Table Of Contents PAGE

A Word From Haier..................................................................................................................1

Product Registration ................................................................................................................1

Safety Precautions ..................................................................................................................2

Advantages ..............................................................................................................................4

Parts and Features ..................................................................................................................5

Assembly and Installation......................................................................................................6

Operation ..................................................................................................................................7

Product Specification ..............................................................................................................7

Care and Cleaning ..................................................................................................................8

Storage ......................................................................................................................................8

Trouble Shooting ......................................................................................................................9

Warranty Information ..........................................................................................................10

(3)

English

Advantages of this Model

1. This model is easy to operate. The manual control panel has a timer, thermostat, two speed

cooling speeds and two fan speeds.

2. This portable air conditioner does not require water to be added.

3. The unit has a unique design which evaporates the water. Therefore no condensation tank is

necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket

and turn on the unit.

4. Easy to install window kit is included which consists of the exhaust duct, exhaust hose,

hose nozzle and the window panel kit.

5. Full directional adjustable casters are included to help to move the unit to be conveniently used

in almost any area.

6. The filter screen is designed for easy cleaning and is easily accessible.

7. Portable air conditioners are easy to store when not in use.

(4)

English

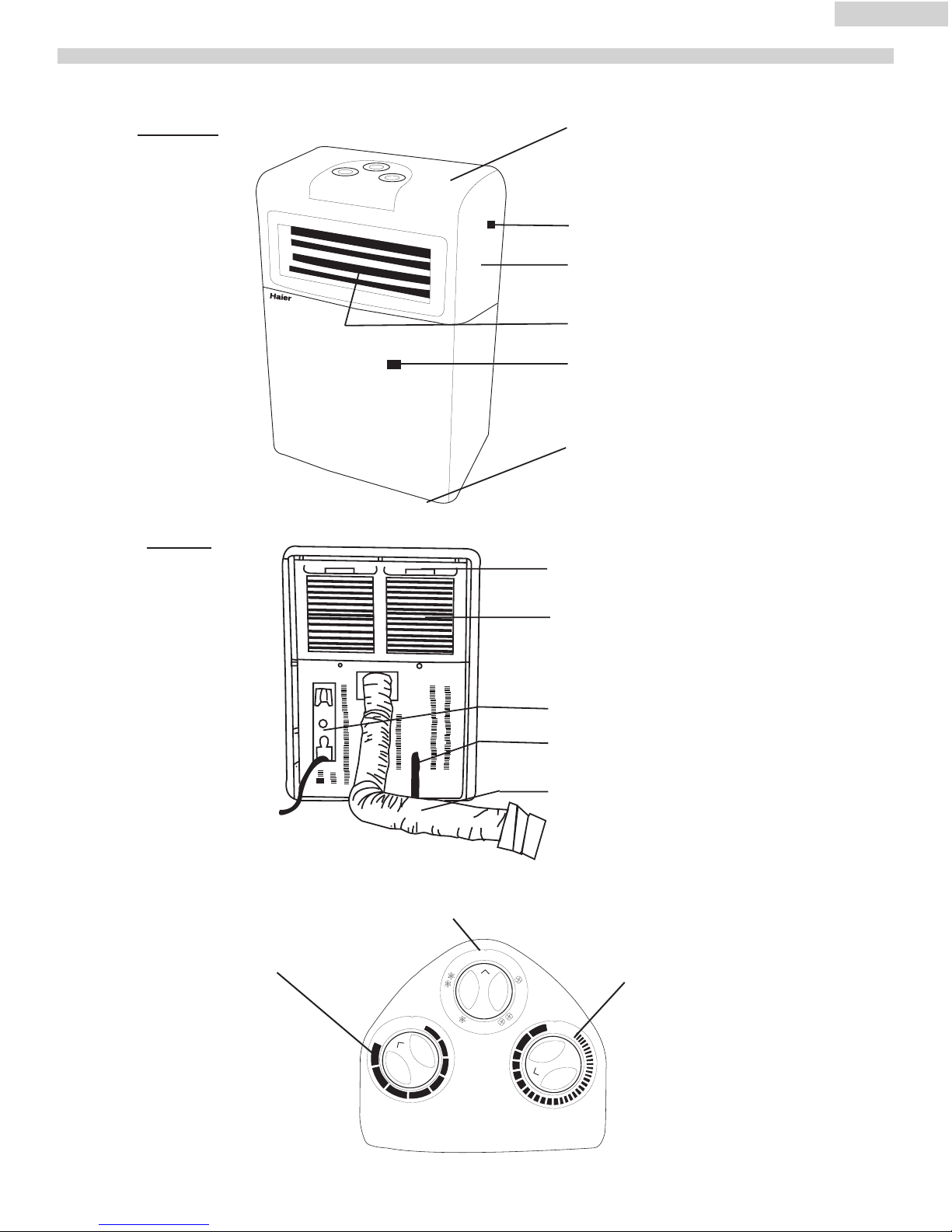

Parts and Features

TOP COVER PLATE

SIDE PLATE

HANDLE

AIR OUTLET

FRONT PANEL

FOUR-WAY MOVEABLE CASTERS

FRONT

FILTER CLOTH

AIR INLET

CORD STORAGE

DRAIN PIPE

HEAT EXHAUST HOSE

REAR

TIMER OFF

OFF

CONT 1

CONT OFF

FAN/COOLING SPEEDS

THERMOSTAT

(5)

English

(6)

English

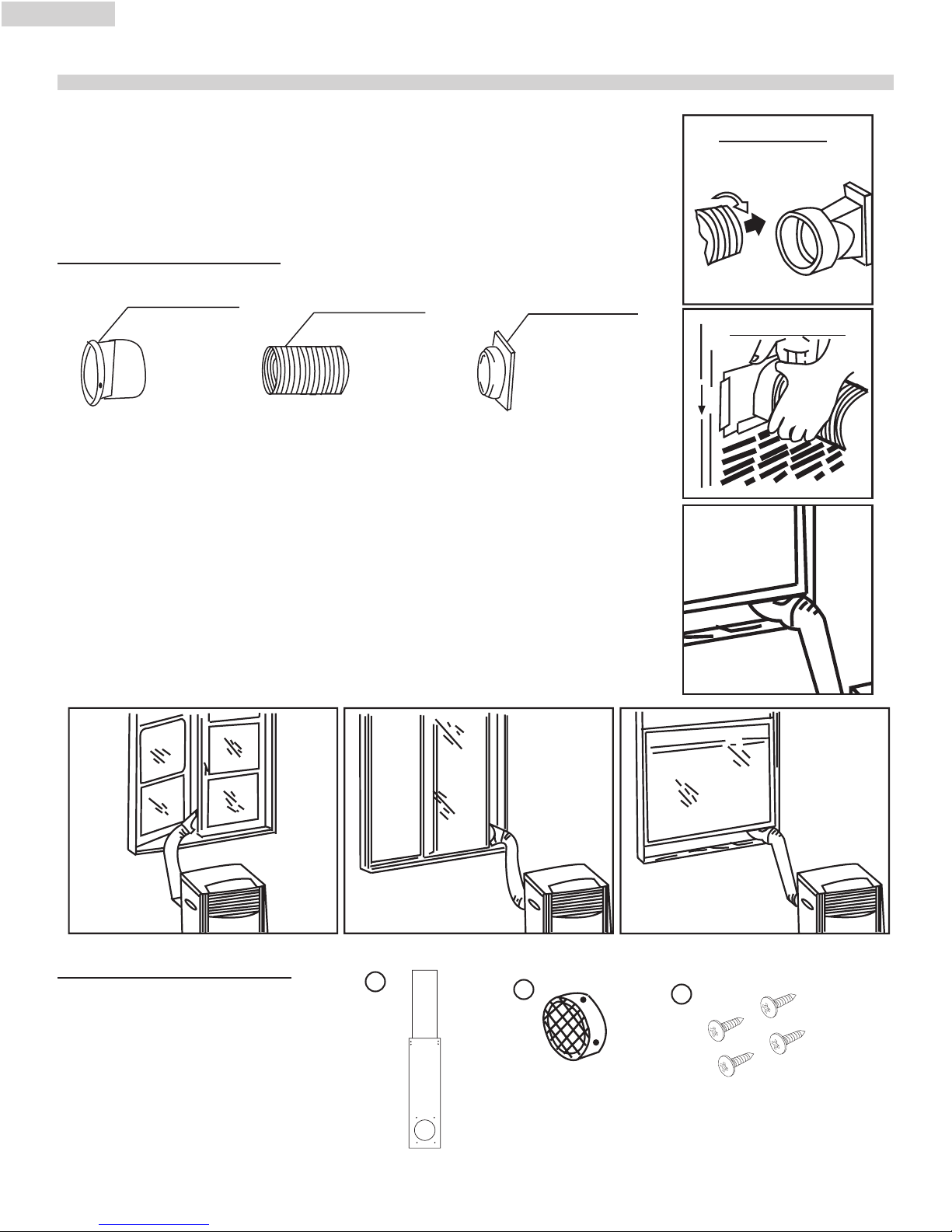

Assembly and Installation

Exhaust Duct Adapter

Exhaust Duct Hose

Air Outlet Nozzle

Exhaust duct

Hose Nozzle

IN DOOR

A. Connect exhaust hose to the back of the unit. Extend hose to desired

length and connect with window kit.

USING EXHAUST DUCT SET

1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust duct “A”

by twisting until it stops.

2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of the unit.

This is achieved by sliding the appropriate connector downwards over

the exhaust outlet ensuring that the lugs on the outlet are engaged with

the grooves on the connector.

3. Extend the Exhaust hose and close the Window as far as possible

trapping the air outlet nozzle.

IN DOOR IN DOOR IN DOOR

USING WINDOW PANEL KIT

1. Plastic panel - 1 piece

2. Nozzle Fitting - 1 piece

3. Screws - 4 pieces

123

Operation

1. Wait 20 minutes before starting the unti to assure that the coolant has leveled off.

2. Wait 3 minutes before restarting the unit after a normal shutdown so as to complete

the compressor cycle.

3. Use an 115 volt 20 amp outlet for the air conditioner. Do not use any other electrical appliances

on this line or you may trip the fuse. Dedicate the electric line for the air conditioner alone.

4. Do not place the air conditioner in direct sunlight or close to any heating appliances.

eg. baseboard heaters, stoves, etc.

5. Operate the unit on a flat surface only.

6. Check the filter at least once a month in order to acheive highest cooling efficiency.

7. If the unit is not being used for a long period of time, please remove the plug to drain pipe and

drain out any condensed water.

Product Specification

Voltage and Frequency 115V / 60Hz

Input Power 950 W

Cooling Capacity 7000 BTU

Moisture Removal (pints/hr) 2.0

Coolant R22

Timer 8 Hours

Operating Temperature Range 64.4˚F - 100˚F

Unit Dimensions (WxDxH) (inches) 20 1/4 x 13 13/32 x 29 13/16

Net Weight lbs. approximate 71.5 lbs.

(7)

English

• Always unplug your air conditioner before cleaning.

• Air filter needs to be cleaned at least once a month for your unit to operate at optimum

efficiency. The filter can be slid out from the back by pulling on the tab. The filter may

be washed or vacuumed. Remove the excess water from the filter by gently shaking the

filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the

filter. DO NOT use your air conditioner without the air filter in place.

• To clean the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine,

bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemi-

cals may dissolve, damage and/or discolor your air conditioner.

• Always use a soft cloth dampened with water or mild soap and water solution to wipe

the front of the cabinet. Wipe dry with a soft cloth.

• To store your air conditioner when not being used for a long period of time, drain

condensed water using the drain pipe. Remove exhaust hose, clean filters, cover with

plastic bag and store away.

Care and Cleaning Guide

Storage

(8)

English

If air conditioner does not operate:

• Check if unit is plugged in. The plug may have come loose.

• Check if the electrical wall receptacle is of proper voltage.

• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.

• Check if the unit is in “Off” mode.

• The fan control may be in “Off” position.

Air conditioner working but room not cooling:

• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.

• Check exhaust hose for proper installation.

• Redirect the airflow. Remove any obstacles.

• All doors and windows need to be closed so cool air does

not escape the room.

• Air filter may be blocked or may need cleaning.

• Unit BTU may be too low for the required cooling area.

• On extreme hot & humid days air conditioners may take a little longer to cool.

Trouble-Shooting

(9)

English
