Air Conditioner

       

Edition:2006/02/07

OPERRATION

Air Conditione

Edition:2006/02/07

FAN SPEED indicator

It indicates the set fan speed.

During AUTO mode , the fan speed

can t be selected. And the indicator is

off during DRY running.

MODE indicator

It indicates the operation mode.

The operation mode indicator selected

by the remote controller will also be on

during AUTO mode.

TIMER indicator

It turns on during TIMER running.

TEMP. / TIMER display

Display room temp. , setting temp.

and timer time.

TEMP. set

ON/OFF button

Air Conditione

Edition:2006/02/07

Operation

Fan

Display

Used to select temp setting

Temp.Set

Timer

Used to set timer setting

ON/OFF

Mode

Used to select operation mode

it again to stop

Press it to start unit and press

Used to select desired fan speed

Time display

signal to the unit

Lights up when sending a

Signal indicator

selected to timer ON/OFF

Temp.indicator

To show temp.setting selected

Operation mode indicator

Fan speed indicator

Timer indicator

To show time mode display

To show mode selected

To show Fan speed selected

To show the number of hour

AUTO COOL DRY FAN

LOW

AUTO

BLANK

TIMER ON

TIMER OFF

SLEEP

Air Conditione

Edition:2006/02/07

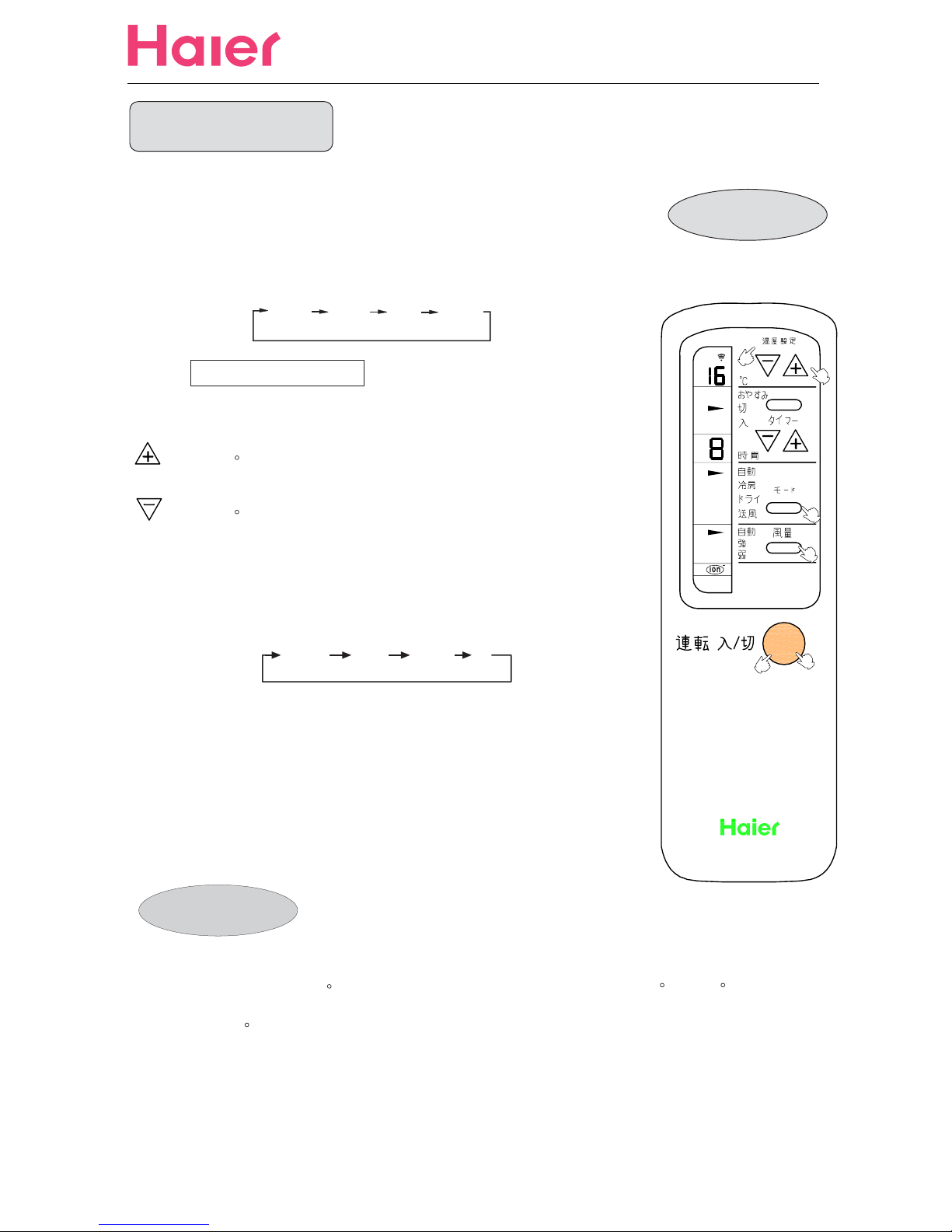

2.Select operation mode

Press FAN button. For each press, fan speed changes as

follows:

Press MODE button. For each press, operation mode

changes as follows:

Remote controller:

Then Select COOL operation

Press TEMP. button

Every time the button is pressed, temp.setting

increase 1oC,if kept depressed, it will increase

rapidly

Every time the button is pressed, temp.setting

increase 1oC,if kept depressed, it will decrease

rapidly

Select a desired temperature.

3.Select temp.setting

5.Unit stop

To protect unit system, don`t restart until 3 minutes have elapsed

When FAN is set to AUTO, the air conditioner

automatically adjusts the fan speed according to room

temperature.

Press ON/OFF button, the unit stops.

1. Unit start

Press ON/OFF on the remote controller, unit starts.

Cool Operation

If the unit has been running under large humidity for a long time, dew might occur

at outlet grating

4.Fan speed selection

Cautions

Remote Controller

AUTO COOL DRY FAN

LOW

AUTO

Air Conditione

Edition:2006/02/07

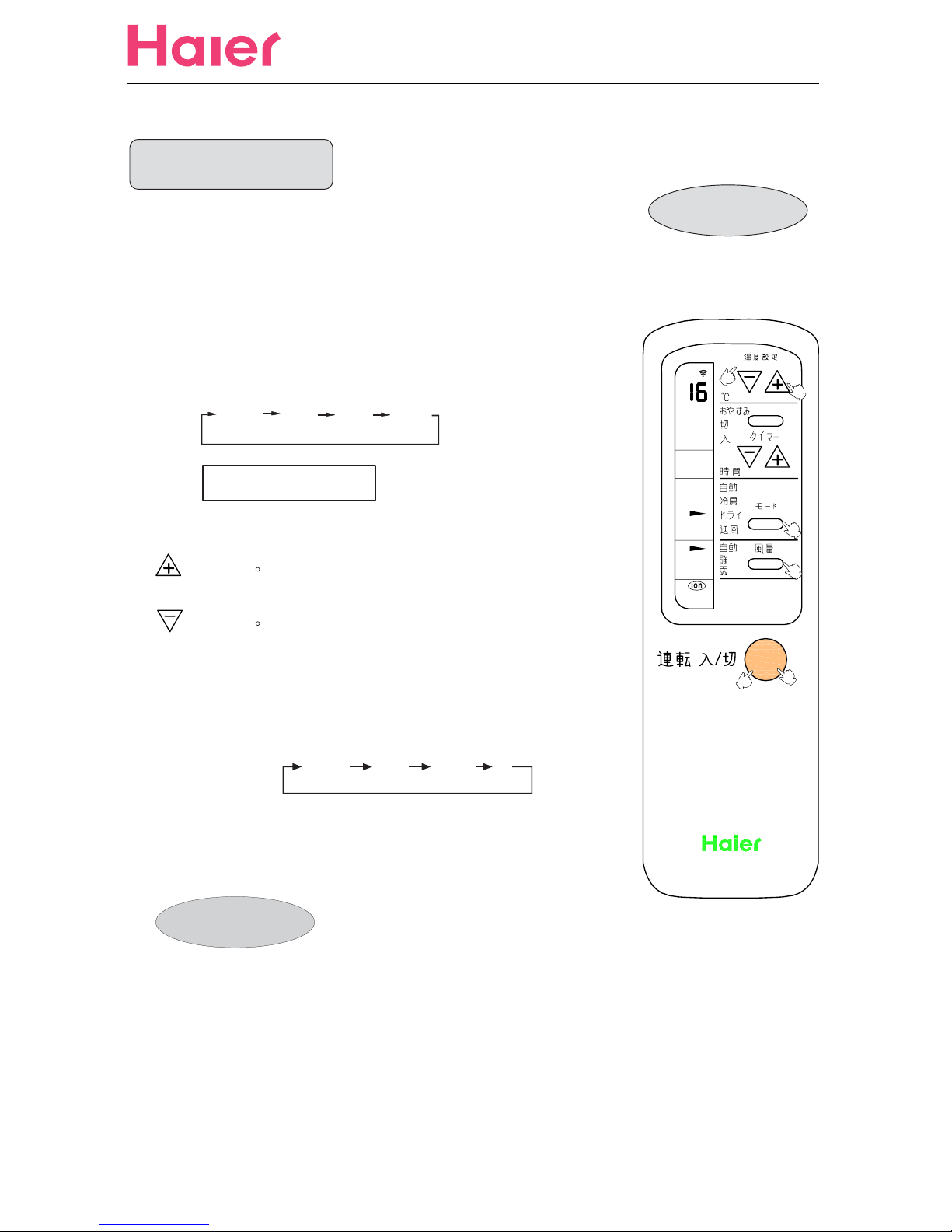

Auto mode

About Auto Operation

Under the mode of auto operation, air conditioner will

automatically select Cool or Heat operation according

to room temperature.

5.Unit stop

Press ON/OFF button, the unit stops.

1. Unit start

Press ON/OFF on the remote controller, unit starts.

2.Select operation mode

Press MODE button.For each press, operation mode

changes as follows:

Remote controller:

Then Select Auto operation

Press FAN button. For each press, fan speed changes as

follows:

Remote controller:

Press TEMP. button

Every time the button is pressed, temp.setting

increase 1 C,if kept depressed, it will increase

rapidly

Every time the button is pressed, temp.setting

increase 1 C,if kept depressed, it will decrease

rapidly

Select a desired temperature.

4.Fan speed selection

3.Select temp.setting

Air conditioner is running under displayed fan speed.

When FAN is set to AUTO, the air conditioner

automatically adjusts the fan speed according to room

temperature.

LOW

AUTO

COOL DRY FAN

AUTO

In Auto mode, the unit will select operation mode automatically according to room temp.

Auto mode:Air conditioner automatically changes between COOL and DRY and from mode.

DRY mode.(more details in DRY operation).

Cautions

when below 22 C, in FAN mode, fan speed automatically changs according to operation mode.

In AUTO mode, no temp. figure is displayed

FAN mode:when air conditioner is only in FAN mode,temp.setting is invalid, fan speed can be set

as desired.

when room, temp. is over 26 C,in COOL mode; when room temp. is between 26 C and 22 C,in

Remote Controller

Air Conditione

Edition:2006/02/07

Timer operation

TIMER function is not available in SLEEP mode.

Cautions

Set clock correctly before starting TIMER operation.

1. After unit starts, select your desired operation mode

Operation mode will be displayed on LCD.

2. Timer mode selection

Press TIMER button to change TIMER mode. Every

time the button is pressed, display changes as follows:

Remote controller:

Then select your desired TIMER mode (TIMER ON or

TIMER OFF).

3.Time setting

Press HOUR button.

Every time the button is pressed, time setting

increases 1 min, if kept depressed, it will increase

rapidly.

Every time the button is pressed, time setting

decreases 1 min, if kept depressed, it will decrease

rapidly.

Time setting is available within 1-12Hrs.

Time displayed shows how many hours later unit

will start of stop

4.Cancel TIMER mode

Just press TIMER button several times until TIMER

mode disappears.

Remote Controller

BLANK

TIMER ON

TIMER OFF

SLEEP

Air Conditione

Edition:2006/02/07

Dry Mode

Air blown out will be very cold at relatively low room temp.

Cautions

Remote Controller

2.Select operation mode

Press MODE button.For each press, operation mode

changes as follows:

Remote controller:

Then Select DRY operation

5.Unit stop

Press ON/OFF button, the unit stops.

AUTO COOL DRY FAN

1. Unit start

Press ON/OFF on the remote controller, unit starts.

Press FAN button. For each press, fan speed changes as

Remote controller:

follows:

Press TEMP. button

Every time the button is pressed, temp.setting

increase 1 C,if kept depressed, it will increase

rapidly

Every time the button is pressed, temp.setting

Select a desired temperature.

increase 1 C,if kept depressed, it will decrease

4.Fan speed selection

rapidly

3.Select temp.setting

Air conditioner is running under displayed fan speed.

LOW

AUTO

DRY mode: When room temp. is higher than set temp. unit will in COOL mode:

When room temp. drops to set temp. compressor runs intermittently ,fan motor

will be in low speed.

Unit will run intermittently in Dry mode with fan speed at "LOW",regardless of its setting.

Air Conditione

Edition:2006/02/07

Fan operation

Hints

Remote Controller

2.Select operation mode

Press MODE button.For each press, operation mode

changes as follows:

Remote controller:

AUTO COOL DRY FAN

1. Unit start

Press ON/OFF on the remote controller, unit starts.

Press FAN button. For each press, fan speed changes as

Remote controller:

follows:

3.Fan speed selection

LOW

4.Unit stop

In FAN operation mode, the unit will not operate in

COOL mode but only in FAN mode ,AUTO is

flow if necessary

not available in FAN mode.And temp.setting is disabled.

In FAN mode,SLEEP operation is not available.

Then Select FAN operation

Press ON/OFF button, the unit stops.

Select desired fan speed. Change air

Air Conditione

Edition:2006/02/07

Sleep operation

Hints

Remote Controller

1. Start unit and confirm its operation mode

2. Select SLEEP function

Press TIMER button to change TIMER mode. Every

Select "SLEEP" function

time the button is pressed, display changes as follows:

Remote controller:

BLANK

TIMER ON

TIMER OFF

SLEEP

Before going to bed, you can simply press the

SLEEP button and unit will operate in SLEEP

mode and bring you a sound sleep.

Use of SLEEP function

After the unit starts, set the operation status,

then press SLEEP button before which the

clock must be adjusted and time being set.

1. In COOL,DRY mode

1 hours after SLEEP mode starts, temp.will

become 1OC higher than temp. setting. After

another 1 hours, temp.rises by 1OC further.

The unit will run for further 6 hours then stops.

Temp. is higher than temp.setting so that room

temperature won't be too Iow for your sleep.

If the wind speed is high or middle before

4.Set the wind speed change when sleeping

setting for the sleep, set for lowing the wind

speed after sleeping.

If it is low wind, no change.

2.In AUTO mode

The unit operates in corresponding sleep

3. In FAN mode

mode adapted to the automatically selected

It has no SLEEP function.

operation mode.

Turn the horizontal guide blade gently to

adjust the upward/downward air direction.

Turn the vertical guide blade gently to

adjust the left/right air direction.

Adjusting of the air direction

Horizontal guide blade

Vertical blade

Vertical guide blade shall be opened to correct position

before use.

Vertical guide blade and horizontal guide blade must be

opened during use

When air outlet long time covered by Vertical guide blade

and horizontal guide blade in COOL or DRY mode,

condensate water might occur.

Air Conditione

Edition:2006/02/07
