Parts Manual

Dishwasher

Model:

HDW6WH HA

Product Code:

61510

61510 - NOVEMBER 2009

Fisher & Paykel Appliances Ltd

78 Springs Road,

East Tamaki,

PO Box 58-732, Botany,

Manukau 2163,

New Zealand

Telephone: 09 273 0600

Facsimile: 09 273 0656

PRODUCT

Brand Haier

Voltage 220-240V, 50Hz

Model HDW6WH HA

Product Code 61510

61510

CONTENTS

CABINET & BASKET AREA .............................................................................................................6

RETICULATION AREA.....................................................................................................................8

DOOR AREA...................................................................................................................................12

61510

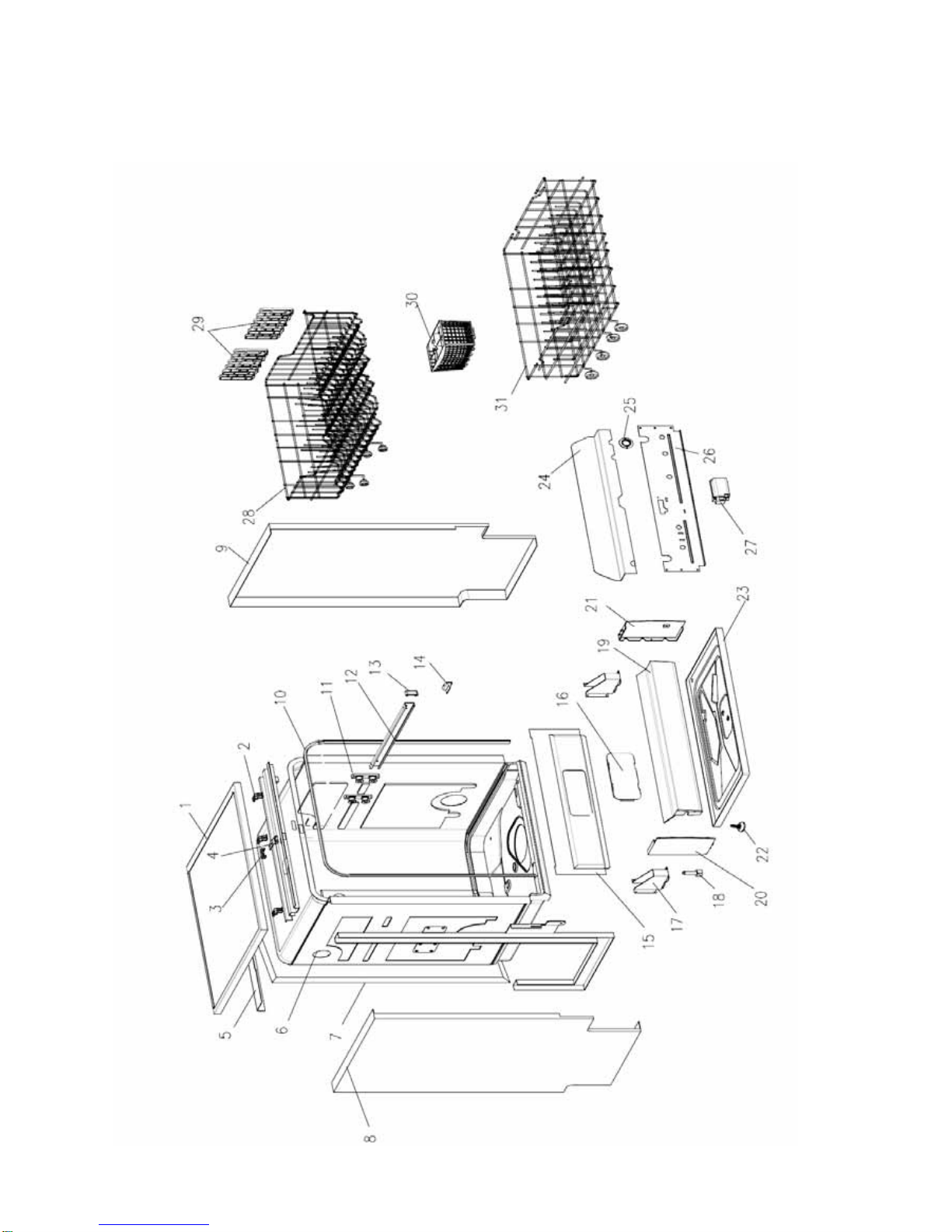

CABINET & BASKET AREA

61510

CABINET & BASKET AREA

REF PART DESCRIPTION

1 H012G9380552 COMPLETE TOP

2 H012G2150035 SHELF FASTENING SMALL BLOCK

3 H0120200251 HOOKING SMALL BLOCK

4 H012G2150036 DOOR HOOK

5 H012G1310010 UPPER REAR CROSSPIECE

6 H0120805887 INSULATED TUB ASSEMBLY

7 H0120503495 CLAPBOARD OF BACK

8 H012G1120032 PAINTED LEFT SIDE PANEL

9 H012G1120027 PAINTED RIGHT SIDE PANEL

10 H012G4050169 TUB GASKET

11 H0120200966 RAIL SUPPORT ASSEMBLY

12 H012G1450619 MOBILE RAIL FOR BASKET

13 H0120200967 BASKET RAIL STOP

14 H012G2150057 UPRIGHTS SMALL BLOCK

15 H012G1310011 LOWER FRONT CROSSPIECE

16 H0120200065 COVER FOR FRONT CROSSPIECE

17 H012G1450622 FOOT SUPPORT

18 H012G1451092 ADJUSTABLE FOOT

19 H012G2130315 BASEBOARD

20 H012G2130316 LEFT BASEBOARD SIDE PLATE

21 H012G2130317 RIGHT BASEBOARD SIDE PLATE

22 H012G1451092 ADJUSTABLE FOOT

23 H012G1390004 TRAY

24 H012G1310012 REAR INTERMEDIATE CROSSPIECE

25 H012G2160204 DRAIN HOSE STOP

26 H012G1310013 LOWER REAR CROSSPIECE

27 H012G2150046 TERMINAL BOX ASSEMBLY

28 H0120801890 UPPER BASKET ASSEMBLY

29 H0120201455 RACK FOR UPPER BASKET

30 H0120201482 CUTLERY BASKET

31 H0120801891 LOWER BASKET ASSEMBLY

61510

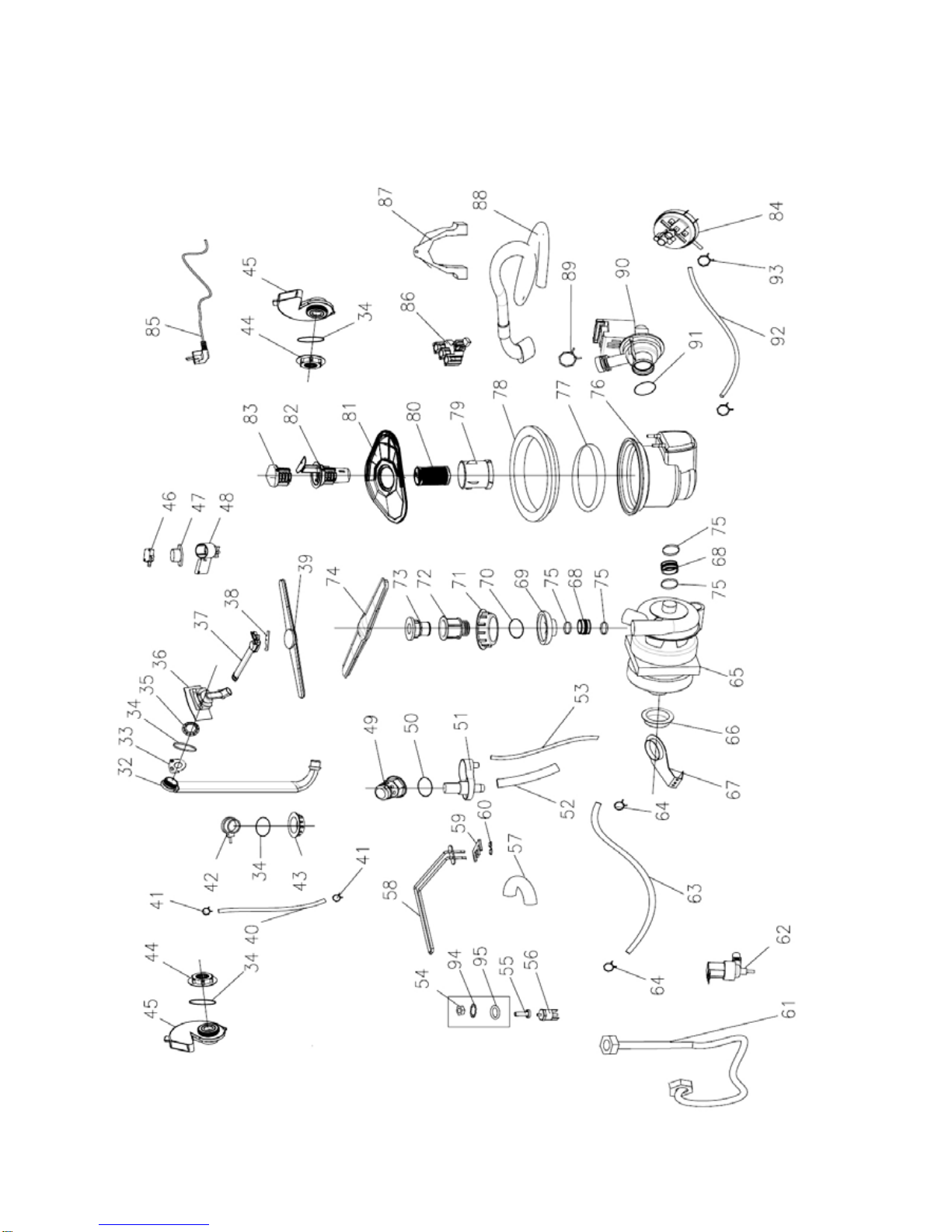

RETICULATION AREA

61510

RETICULATION AREA

REF PART DESCRIPTION

32 H012G2160236 OUTER DUCT

33 H0120201007 BASKET GUIDE HOUSING

34 H012G4050157 O-RING

35 H012G2160194 RING NUT FOR OUTER DUCT FASTENING

36 H0120801832 FEEDING DISPENSER ASSEMBLY

37 H0120201483 INNER DUCT

38 H0120201010 PIN FOR INNER DUCT HOOKING

39 H0120802488 UPPER SPRAYER ASSEMBLY

40 H012G4050166 PVC TUBE + 39% NITRILIC RUBBER

41 H012G1040022 BAND

42 H012G2160200 CONNECTION FOR 3RD SPRAYER

43 H0120201003 3RD SPRAYER

44 H0120201008 BREATHER RING NUT

45 H012G2160197 AIR OUTLET

46 H012G6050040 MICRO SWITCH ELBI TYPE S3

47 H0120503119 FLOAT FOR ACQUASTOP

48 H0120202056 SUPPORT FOR FLOAT

49 H0120201028 OVERFLOW CAP

50 H0120300283 OVERFLOW RING

51 H0120201029 OVERFLOW SEAT

52 H0120300281 OVERFLOW OUTLET PIPE

53 H0120300282 OVERFLOW PROTECTION PIPE

54 H012G8060036 ELASTICITY RETAINER

55 H012G1450902 INDUCTION CONTACT

56 H012G6010008 THERMO LIMITER

57 H012G4050165 DUCT COUPLING

58 H0120800645 HEATING ELEMENT

59 H012G1020032 HEATER SUPPORT BLOCK

60 H012G4050162 HEATER PROTECT

61 422680P HOSE INLET LONG (2M) PKD

62 H012G5060020 1-WAY SOLENOID VALVE

63 H012G4050225 TUBE

64 H012G1040022 BAND

65 H012G9370094 MOTOR PUMP ASSEMBLY

66 H012G4050159 VIBRATION-PROOF RING FOR MOTOR

67 H012G1250031 MOTOR SUPPORT BRACKET ASSEMBLY

68 H012G4050152 RUBBER COUPLING

69 H012G2160193 RING NUT FOR FASTENING OF LOWER SUPPORT

70 H012G4050153 O-TYPE SEALING RING

71 H0120201006 RING NUT FOR LOWER SPAYER FASTENING

72 H0120201293 LOWER MANIFOLD SUPPORT

73 H0120201005 LOWER MANIFOLD

74 H012G1450620 LOWER SPRAYER

75 H012G1040028 BAND

Continued next page

61510

RETICULATION AREA
