Haier HD90-A636 Bedienungsanleitung

User manual

Heat-Pump-Dryer

HD90-A636

Thank you GB

WARNING!

Risk of injury or suocation!

Disconnect the appliance from the mains supply. Cut o the mains cable and dispose

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

Legend

Warning! – Important safety information

General information and tips

Environmental information

Disposal

To protect the environment, please dispose of the

packaging materials in an environmentally friendly

manner.

Do not dispose appliances marked with this symbol

with the household waste. Return the product to your

local recycling facility or contact your municipal oce.

The heat exchanger of the dryer contains the green-

house gas HFKW-134a. This must be disposed of

properly.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

GB Content

Safety information.................................................................................................................................4

Intended use............................................................................................................................................7

Product description............................................................................................................................... 8

Control panel...........................................................................................................................................9

Programmes..........................................................................................................................................13

Consumption ........................................................................................................................................14

Suggestions and tips...........................................................................................................................15

Daily use..................................................................................................................................................17

Care and cleaning.................................................................................................................................21

Troubleshooting ...................................................................................................................................25

Installation..............................................................................................................................................28

Accessories ...........................................................................................................................................29

Technical data .......................................................................................................................................30

Customer Service ................................................................................................................................32

Safety information GB

WARNING!

Before rst use

▶Make sure there is no transport damage.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it is

heavy.

Daily use

▶This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervi-

sion or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

▶Keep away children under 3 years of age from the appliance unless

they are constantly supervised.

▶Children shall not play with the appliance.

▶Do make sure the room is dry and well ventilated. The ambient tem-

perature should be between 5 °C and 35 °C.

▶Do not cover any ventilation openings in the base by a carpet or

similar object.

▶Keep the area around the tumble dryer free of dust and lint.

▶Do make sure that there is only only laundry inside the appliance and

no pets or children before you use it.

▶Only touch the mains plug with dry hands and do not touch or use

the appliance if you are barefoot or have wet or damp hands or feet.

▶Only dry textiles washed in water.

▶Do make sure not to load more than nominal load.

▶Remove all items such as lighters and matches from pockets.

▶Use fabric softeners or similar products as specied by the

manufacturer´s packaging.

▶Do not use ore store any ﬂammable sprays or ﬂammable gas in close

vicinity to the appliance.

▶Do not place heavy objects or sources of heat or damp on top of the

appliance.

▶Hold the plug, not the cable, when unplugging the appliance.

▶Do not touch the rear wall and the drum during operation; they are

hot.

GB Safety information

WARNING!

Daily use

▶Do not dry following items in the appliance:

▶Items which are unwashed.

▶Items which have been contaminated with inﬂammable sub-

stances such as cooking oil, acetone, alcohol, benzine, petrol,

kerosene, spot removers, turpentine, waxes, wax removers

or other chemicals. The fumes can cause a re or explosion.

These items must always be washed rst by hand in hot wa-

ter with an extra amount of detergent and then be dried in the

open air before drying in the appliance.

▶Items which contain padding or llings (e.g. pillows, jackets), as

the lling can get out with the risk of igniting in the dryer.

▶Items which contain a large proportion of rubber, foam rubber

(latex foam) or rubber like materials such as shower caps, wa-

terproof textiles, rubberised articles and items of clothing and

pillows with foam rubber lling.

▶Do not drink the condensed water.

▶Do not use the appliance without the lint lter or condensor lter

in place or with damaged lter.

▶Notice that the last part of the drying cycle occurs without heat

(cool down cycle) to ensure remaining the garments at a temper-

ature which does not damage them.

▶Do not leave the appliance unattended during run time for some

time. If a long absence is intended, the drying cycle have to be

interrupted by switching o the unit and unplugging the mains.

▶Do not switch o the appliance except drying cycle is nished,

unless all items are quickly removed and spread out that the heat

can be released.

▶Switch o the appliance after each drying programme to save

electricity and for safety.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

Safety information GB

WARNING!

Maintenance / cleaning

▶Clean the lint lter and the condenser lter after each pro-

gramme (see CARE AND CLEANING).

▶Do not use water spray or steam to clean the appliance.

▶Do not use industrial chemicals to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its ser-

vice agent or similarly qualied persons in order to avoid a hazard.

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶Ensure a location which allows opening the door fully. Do not in-

stall the tumble dryer behind a lockable door, a sliding door or a

door with hinges on the opposite side of the tumble dryer door

as this limits the full opening of the tumble dryer door.

▶Install the appliance in a well-ventilated, dry place.

▶Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not expose the appliance to any frost, heat or direct sunlight

or in the near of heat sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

▶Only for UK: The appliance’s power cable is tted with 3-cord

(grounding) plug that ts a standard 3-cord (grounded) socket.

Never cut o or dismount the third pin (grounding). After the ap-

pliance is installed, the plug should be accessible.

GB Intended use

Notice

The appliance contains the ﬂuorinated greenhouse gas HFKW-134a (GWP:1430). This

gas is hermetically sealed.

Intended use

This appliance is intended for drying items which have been washed in a water solution and

are marked on the manufacturer‘s care label as being suitable for tumble drying.

It is designed exclusively for domestic use inside the house. It is not intended for commer-

cial or industrial use. Changes or modications to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the correspond-

ing harmonised standards, which provide for CE marking.

Environmentally responsible use

▶Thorough drainage: Spin the laundry with the maximum spin speed.

▶Maximum load: Use the maximum lling amount according to the programme table,

but do not overload the dryer. To take advantage of the maximum load, the laundry

which should be dried „READY to STORE“, can be rst dried easily with „READY to

IRON“. At the programme end remove the laundry which should be ironed and dry the

remaining laundry then to end.

▶Loosen up the laundry: Shake out the laundry before putting them into the dryer.

▶Avoid excess drying: An excessive drying should be avoided. Select the right pro-

gramme and the appropriate dry level.

▶Softener unnecessary: Do not use softener when washing, because the laundry will

become ﬂuy and soft in the dryer .

▶Cleaning of the lint lters: Clean the lint lters after each cycle.

▶Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).

▶Condensed water reuse: The collected condensed water can be used for the steam

iron. Before it should be poured through a ne sieve or coee lter paper. Smallest

parts will be retained by the lter.

Product description GB

VORDERANSICHT

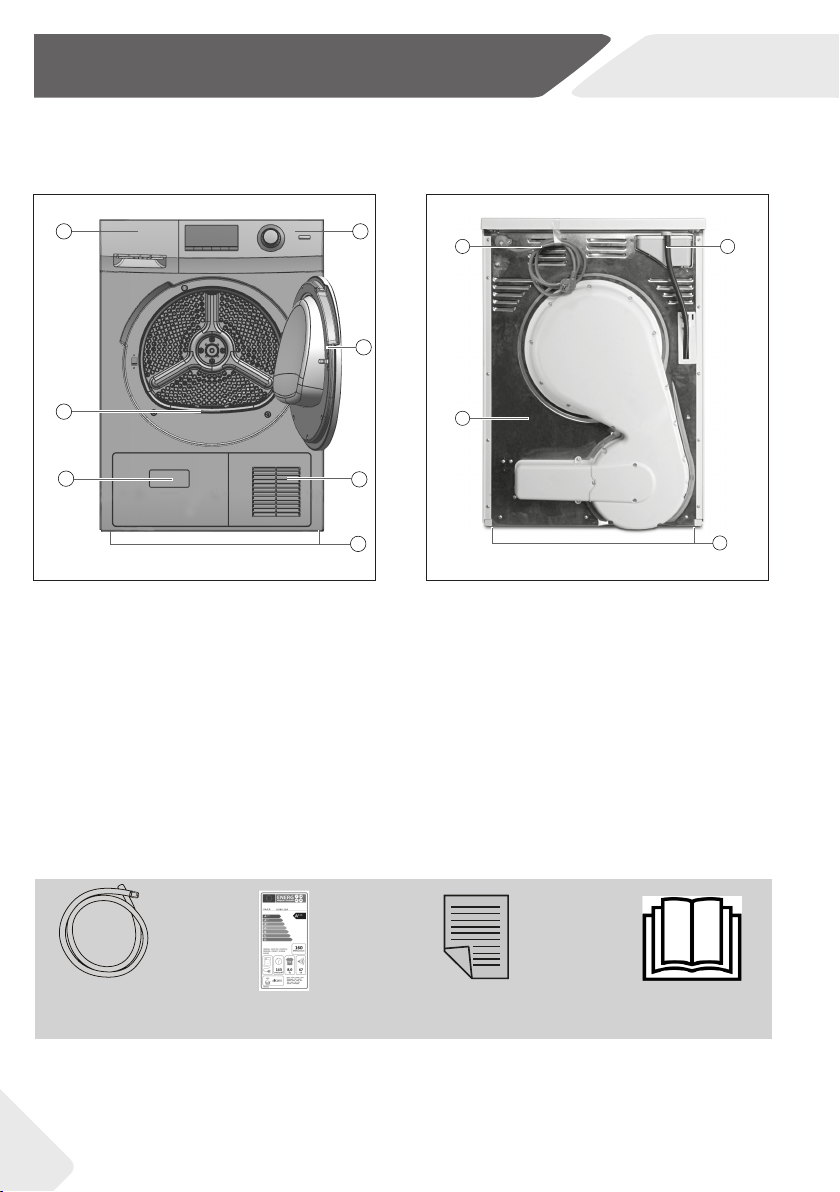

Fig.1: appliance front Fig.2: appliance backside

Fig.3: Accessories

This drawing may be slightly dierent from the layout of the drying machine you have just

purchased.

1 Water tank

2 Rating plate

3 Service ﬂap

4 Control panel

5 Door

6 Ventilation slots

7 Power cord

8 Back cover

9 Drainage outlet

10 Adjustable feet

User manual

Warrant card

Accessories

Check the accessories and literature in accordance with this list.:

Drain hose

(optional) Energy lable

GB Control panel

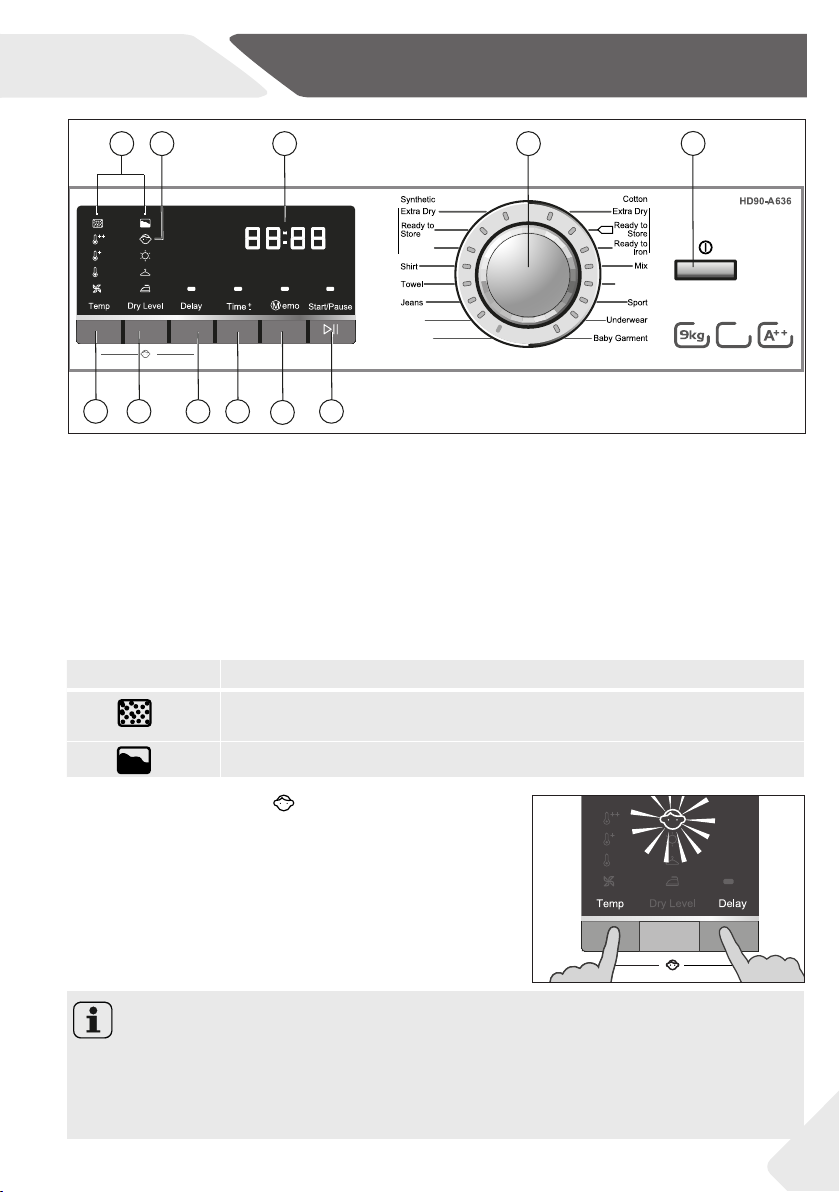

Fig.4: control panel

1-Maintenance indicators

The indicators light up in order to remind that the lter must be cleaned and the water

tank must be emptied (see CARE AND CLEANING).

Meaning of icons:

1 Maintenance indicators

2 Child-lock indicator

3 Display

4 Programme selector

5 On/O button

6 Temperature button

7 Dry Level button

8 Delay button

9 Time ±button

10 Memo button

11 Start/Pause button

Temp.Dry Level Intense Delay Start/Pause

Extra rinse

Bedding

Refresh

Timer

Ready to

Iron

Heat

Pump

1 2 3 4 5

Illuminated LED Meaning

Clean the lint lter in the lling opening and the condenser lter in

the base.

Empty the water tank or check it for correct positioning.

2-Child lock indicator

This option blocks all panel elements against activa-

tion. After starting a programme press simultaneously

“Temp“+“Delay“ for about 3 seconds (g. 5); the child

lock indicator lights up. For unlocking please press

again the two buttons.

The icon ﬂashes if a button will be pressed or the pro-

gramme selector will be twisted, when the child lock is

activated. The change is not running.

Temp.Dry Level Intense Delay

Extra rinse

Notice

▶When the cycle ends or the power supply is interrupted, the function will not be can-

celled automatically.

▶We recommend to switch on this function if there are children in the household.

▶The On/O button can be activated during function child lock is selected.

Control panel GB

5-On/O button

Press this button to switch on or switch o the appli-

ance (g. 8).

4-Programme selector

By turning the knob one of 16 programmes can be se-

lected (g. 7). The default settings will be displayed.

Bedding

Refresh

Timer

Ready to

Iron

Notice

After each switch-on, the appliance suggests the economical programme “Cotton-

Ready to store“ for drying normal wet cotton laundry.

3-Display

During any selection the display (g.:6) shows related

information like

▶Programme cycle time

▶Programme start delay time

▶Error codes (see TROUBLESSHOOTING)

After start of an operation it displays:

▶Remaining time in hours of a delayed programme

starts, e.g. 13:00

▶Remaining programme cycle time in hours + min-

utes, e.g.1:59

While running it may vary due to local conditions and

daily working load.

6-Temp. button

Touch this button (g.9) to select the drying tempera-

ture of the programme. Press sequentially the Temp.

button until the desired symbol ﬂashes on the display.

In conjunction with the “Delay” button, the child lock

function can be switch on/o(see CHILD LOCK INDI-

CATOR).

Temp.Dry Level

Intense

Inhaltsverzeichnis

Andere Haier Trockner Handbücher

Haier

Haier QFT15 Series Originalbetriebsanleitung

Haier

Haier HDY60M Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier CG700AW Bedienungsanleitung

Haier

Haier HLF11PC Bedienungsanleitung

Haier

Haier HLTD600AEW Bedienungsanleitung

Haier

Haier GDZ5-1 Bedienungsanleitung

Haier

Haier I-Pro 5 Series Bedienungsanleitung

Haier

Haier GDZ10-0677 Bedienungsanleitung

Haier

Haier HD90-A3Q979U1 Bedienungsanleitung

Haier

Haier HDY-C70 HA AA Bedienungsanleitung

Haier

Haier HDY-D60 Bedienungsanleitung

Haier

Haier HD90-A636-F Bedienungsanleitung

Haier

Haier GDZ5.0-61WH HA AA Bedienungsanleitung

Haier

Haier HDY-C70 ME Bedienungsanleitung

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Bedienungsanleitung

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier GDE480BW Bedienungsanleitung

Haier

Haier GDZ5-1 Bedienungsanleitung

Haier

Haier Genesis CGDE700AW Bedienungsanleitung

Haier

Haier HLP141E Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier HLF11PC Bedienungsanleitung

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
