Haier BD-103GC Bedienungsanleitung

CAUTION

READ THIS MANUAL CAREFULLY TO

DIAGNOSE TROUBLE CORRECTLY

BEFORE OFFERING SERVICE .

Chest Freezer

SERVICE MANUAL

Features:

1.Deep and quick freezing.

2. Square cabinet and square lid.

3. Mechanical temperature control with power indicator.

4. High pressure foam cover for efficient Temperature preservation.

5. Eximious water disposal device.

6. Wide climate zone design.

MODEL: BD-103GC

Haier Grou

CONTENTS

CONTENTS……………………………………………………………………………………..

SAFTY PRECAUTIONS……………………………………………………………………….

SPECIFICATIONS………………………………………………………………………………

INATALLATION AND ACCESSORY PARTS……………………………………………

PARTS IDENTIFICATIONS…………………………………………………………………….

DISASSEMBLY…………………………………………………………………………………

FUNCTION SCHEDULE………………………………………………………………

SYSTEM FLOW CHART………………………………………………………………………..

SYSTEM FLOW SCENOGRAPH…………………………………………………….

CIRCUIT DIAGRAM……………………………………………………………………………

1.Brief principle diagram……………………………………………………………………

2.Connect diagram…………………………………………………………………………..

NORMAL PROBLEMS ………………………………………………………………

TROUBLE SHOOTING…………………………………………………………………………...

1.Compressor doesn’t start…………………………………………………………………..

2.Poor cooling………………………………………………………………………………..

SAFTY RECAUTIONS

Read all of the instructions before using this appliance. When using this

appliance, always exercise basic safety precautions, including the

following:

1. Use this appliance only for its intended purpose as described in this

uses and care guide.

2. This freezer must be properly installed in accordance with the

installation section. Instructions before it is used, See grounding

instructions in the installation section.

3. Never unplug your freezer by puling on the power cord, Always

grasp the plug firmly and pull straight out from the outlet.

4. Repair or replace immediately, all electric service cords that have

become frayed or otherwise damaged, Do not use a cord that shows

cracks or abrasion damage along its length, the plug or the

connector end.

5. Unplug your freezer before cleaning or before making any repairs,

Note: If for any reason this product requires service, we strongly,

recommend that a certified technician perform the service.

6. If your old freezer is not being used, we recommend that you remove

the door and leave the shelves in place; this will reduce the

possibility of danger to children.

7. This freezer should not be recessed or built-in an enclosed

Cabinet. It is designed for freestanding installation only

8. Do not operate your freezer in the presence of explosive fumes.

9. Do not refreeze foods, which have been thawed completely.

9. Do not use any electrical device or any sharp instrument in

defrosting your freezer.

10.

WARNING : Keep ventilation Openings,in the appliance enclosure or in

the built-in structure,clear of obstruction.

WARNING : Do not use mechanical devices or other means to accelerate

the defrosting process other than those reconnended by the manufacturer

WARNING : Do not damage the refregerant circuit

WARNING : Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type recommended by

the manufacturer

SPECIFICATIONS

CHEST FREEZERS New!!!

Superfast freeze function.

Adjustable temperature control with power

indicator.

High pressure and microbiological foam filled

door for energy conservation.

convenient water drain.

Hi-temp indicator.

castors.

External controls.

0%HFC, 0%CFC.

Comply with RoHS.

Type Model BD-103GC

Commercial brand Haier

Product description Chest Freezer

Type of appliance (FS=free standing / BI= built-in) FS

Energy efficiency class C

Climate class (N=16-32℃ST=16-38℃T=18-43℃) ST

Freezer star rating */***

Approvals (VDE / TÜV / IMQ / NF / ÖVE / DEMKO etc.) CE/GS

Certifications -

Key features

Gross capacity l 104

Total net capacity l 103

Freezing capacity（kg/24h）kg/24h 9

Energy consumption/year kWh/year 240

Max storage time at breackdown h 13

Defrosting (Manual-Automatic) Manual

Kindofcoolant (R134a/R600a) R600a

Foaming components (R141b/C-P) C-P

Technical data

Voltage / frequency V/Hz 220-240~ / 50

Input power / currency W /A 75/0.8

Lenght of cable / incl. plug cm 150/155

Temperature range (from>to) °C ≤-18

DIN 8950 resp. 8953 -

Energy consumption / year kWh/year 240

Energy consumption (EN153) per 24 h kWh/24 h 0.66

Cooling system: (K=Compressor / A=Absorbtion) K

Maximum noise level dB(A) 45

Aesthetics

Door Flat

Chest straight edges

Colours:

Cabinet white

Top white

Door glass -

Door frame white

Fascia panel / Handle (w/b/g/s) white/white(pocket)

Inside door/-drawers (W=white T=transparent) -/-

Equipment & accessories

Product classification (Super eco/Eco/Standard) Standard

Lid (Number/Handle/Lock) 1/●(pocket)/-

Type of lid (Hinge/Counter balanced/Sliding) Hinge(plastic )

Inside walls (Stainless steel/Aluminium/Synthethic

mat.) Aluminium

Insulation Lidthikness cm 7

Wallsthikness cm 6.5

Baskets number n°

1 (metal)

Defrostdrain ●

Interior light -

Calendar -

Adjustable thermostat ●

Fastfreezelamp (yellow) ●

Onlight (green) ●

Breakdown light (red) ●

Fast freeze switch ●

Freezer temperature warning indicator (LED / by sound) -

Thermometer (Outside / In partition) -

Maximum loading level marking -

Adjustable feet (front / rear) n° -(unable adjustable

feet)

Mobility wheels (front / rear) n° -

Flush back skin evaporator -

Product net dimensions

Unitdimensions (H / W / D) cm 84.5/57/55

Height with open lid cm 134.5

Net weight kg 31

Packing dimensions & loadability

Packingdimensions (H / W / D) cm 89/62.5/58.5

Gross weight kg 34

20 ' container load pcs 76

40 ' container load pcs 152

40 ' High cube container load pcs 227

INATALLATION AND ACCESSORY PARTS

Unpacking Your Freezer

1.Remove all packaging material; this includes the foam base and all

adhesive tape holding the freezer accessories inside and outside.

2.Inspect and remove any remains of packing, tape or printed materials

before powering on the freezer.

Adjusting Your Freezer

1.Your freezer is designed for freestanding installation only. It should not be

recessed or built-in.

2.Place the freezer on a floor strong enough to support it fully loaded.

3.When moving the freezer, never tilt it more than a 45-degree angle. This

could damage the compressor and the sealed system.

4.If the freezer is tilted let it stand in an upright position for at least 24 hours

prior to plugging. This is to allow the refrigerant to settle.

·Proper Air Circulation

zTo assure your freezer works at the maximum efficiency it was designed

for, you should install it in a location where there is proper air circulation,

zPlumbing and electrical connections.

zThe following are recommended clearances around the freezer:

Sides…………..2”(50mm)

Top. ……………2”(50mm)

Back…………..2”(50mm)

zDo not over fill freezer for proper internal air circulation.

Electrical Requirement

zMake sure there is a suitable power Outlet with proper grounding to

power the freezer.

zAvoid the use of cutting off the third grounding , this is a dangerous

practice since it provides no effective grounding for the freezer and may

result in shock hazard.

Install Limitations

zDo not install your freezer in any location not properly insulated or heated

e.g. garage etc,

zSelect a suitable location for the freezer on a hard even surfaces away

from direct sunlight or heat source e.g. radiators, baseboard heaters,

cooking appliances etc, Any floor unevenness should be corrected.

Operating Your Freezer

Once the freezer is in its proper place, plug it in an electrical outlet having

230 volts.

Set the temperature, on the temperature contrail knob.”min”being the

warmest and “max”being the coldest. Initially set the temperature

on”medium”. Place food inside the freezer After using the freezer for 24

hours set the freezer to your desired setting.

In case you unplug your freezer or experience an electrical outage, allow 5

Minutes before plugging it back in.

(Note: If the freezer has been placed in a horizontal or tilted position for any

period of time wait 24 hours before plugging the unit in.)

Food Storage Basket

Your Freezer has 1 or 2 removable basket. It allows you to store food more

accessibly or you can remove it if not needed.

Defrosting and Draining The Freezer

·Defrost whenever the frost becomes 5MM thick. Never use a sharp or

metallic instrument to remove the frost as it may damage the cooling

coils.(A punctured coil will void the warranty)

·unplug the unit. For draining, place a tray beneath the outer drain plug.

Pull out the drain dial and rotate it so that the arrow points down ward.

This will let the water flow out into the tray.

·Remove the drain plug from the inside of the freezer. Defrosting

usually takes a few hours. To defrost faster keep the freezer door open.

When done, push the drain dial in and turn the arrow to the up position.

Re-plug the drain plug inside the freezer compartment. Note: monitor

the container under the drain to avoid overflow.

·Wipe the interior of the freezer and replace the electrical plug in the

electrical outlet.

·Rest the temperature control to the desired setting.

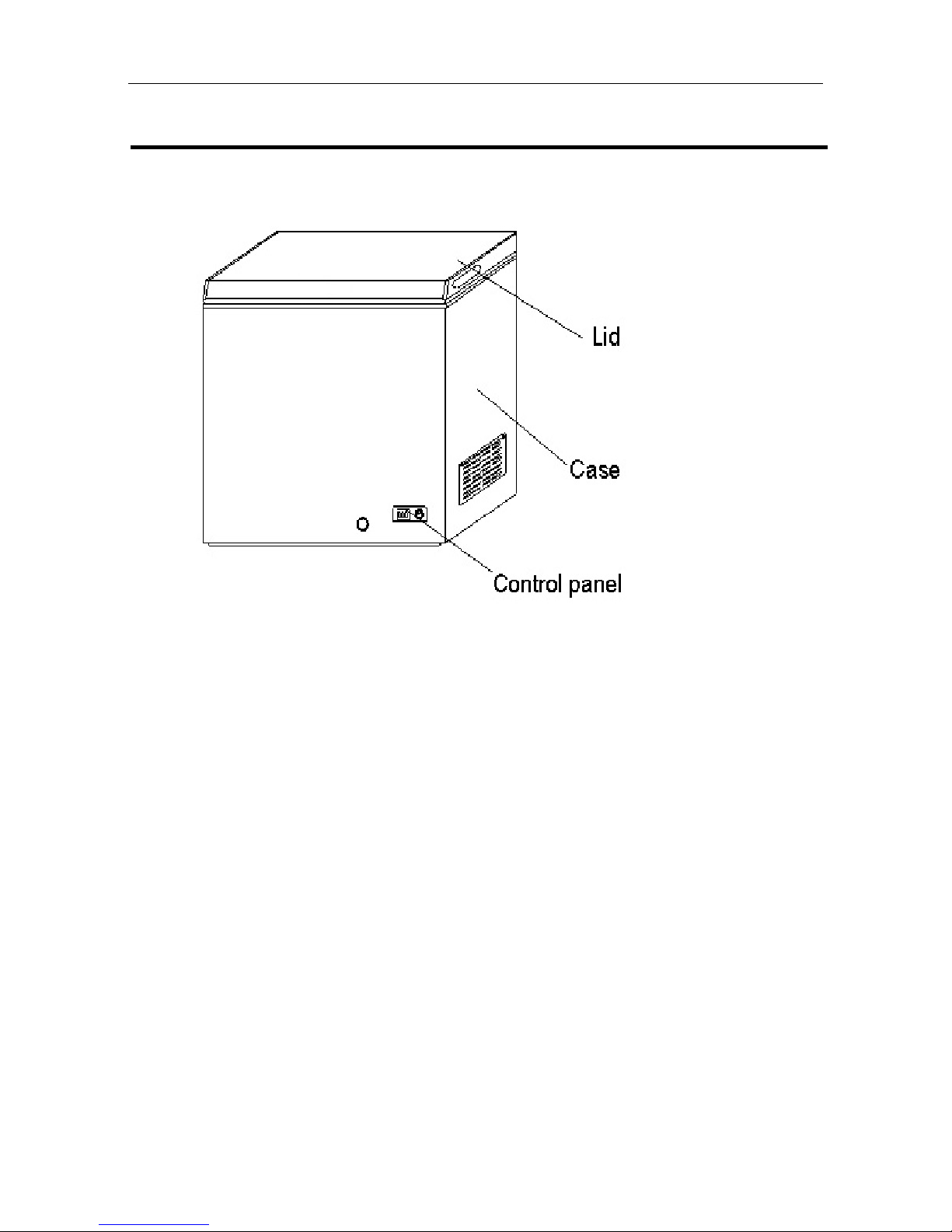

PARTS IDENTIFICATIONS
