Manu a l D e f r o st

Chest Fre e zer

BD-100H

BD-142H

BD-198H

HCF150

HCF210

HCF270

BD-100H

BD-142H

BD-198H

HCF150

HCF210

HCF270

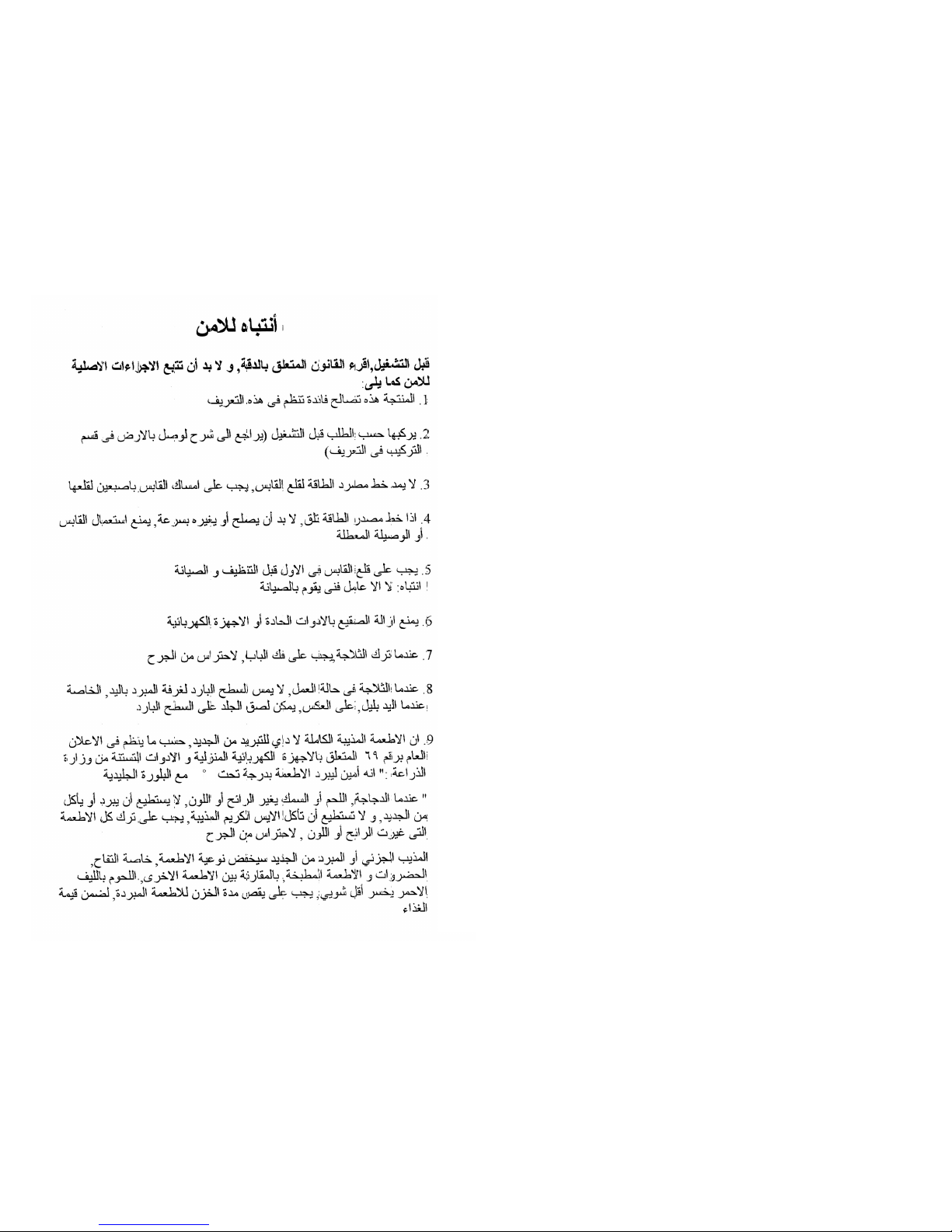

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This freezer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your freezer by pulling on the power cord. Always grasp

the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length,the plug or the connector end.

5) Unplug your freezer before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) Do not use any electrical device or any sharp instrument in

defrosting your freezer.

7) If your old freezer is not being used, we recommend that you remove the

doors. This will reduce the possibility of danger to children.

8) After your freezer is in operation,do not touch the cold surfaces in the

freezer compartment, particularly when hands are damp or wet. Skin may

adhere to these extremely cold surfaces.

9) Do not refreeze foods, which have been thawed completely.

SAFETY PRECAUTIONS

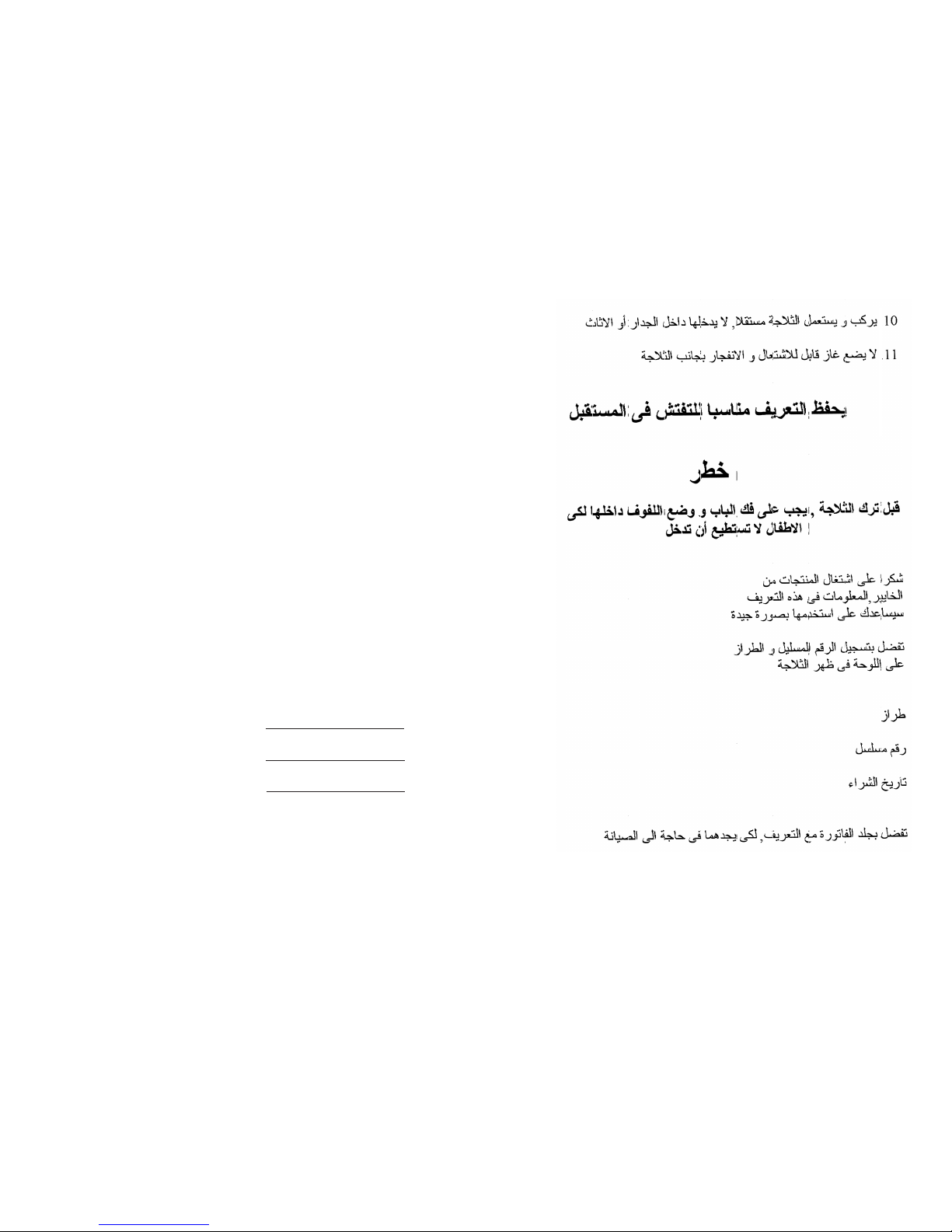

10) This freezer should not be recessed or built-in an enclosed cabinet. It is

designed for freestanding installation only.

11) Do not operate your freezer in the presence of explosive fumes.

12) Use of an extension cord is not recommended.

For Future Reference Please

SAVE THESE INSTRUCTIONS

Risk of child entrapment. Before you throw away your old

freezer, take off the door. Leave the shelves in place so that

children may not easily climb inside.

DANGER

Thank you for using our Haier

product.This easy-to-use manual will

guide you in getting the best use of

your freezer.

Remember to record the model and

serial number. They are on a label in

back of the freezer.

Model number

Serial number

Date of purchase

2 2

Operating Your Freezer

General Features

Fast Freeze ...................................................

Food Storage Baskets.....................................

................................

.........................................................................

..................................................................................

......................................

.......................................

......................................

......................................................................

Safety Precautions

Parts And Features

Installing Your Freezer

................................................................................

..............................................................................

.........................................................................

Table Of Contents

Unpacking Your Freezer .........................................................................

Adjusting Your Freezer ..........................................................................

Proper Air Circulation...........................................................................

Electrical Requirements .........................................................................

Freezer Features And Use ..........................................................

Cleaning and Maintenance ...............................................................

Power Interruptions ...........................................................................

Vacation and Moving Care ................................................................

Proper Freezer Care and Cleaning ..........................................

Troubleshooting....................................................................................

Defrosting And Draining

Lock and Key ..................

Food Storage Information .......................................................................

Normal Operating Sounds......................................................................

PAGE

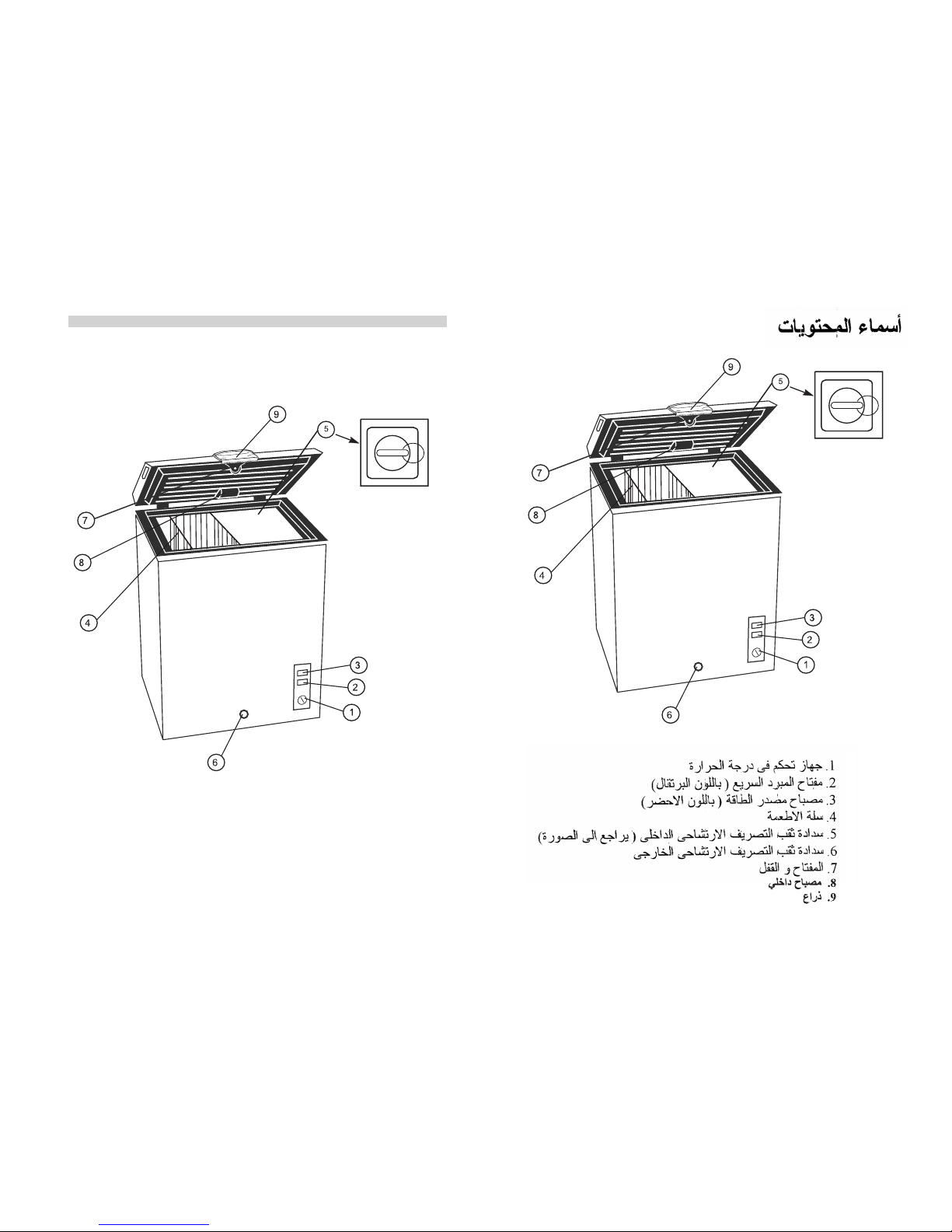

1. Temperature Control Adjustment

2.Fast Freeze Switch (yellow light)

6.Exterior Drain Plug

7.Lock and Key

8.Light

9.Handle

3. Power-On Indicator (green light)

4. VinylCoated Wire Basket

5.Interior Drain Plug (see insert)

Parts And Features

4 4

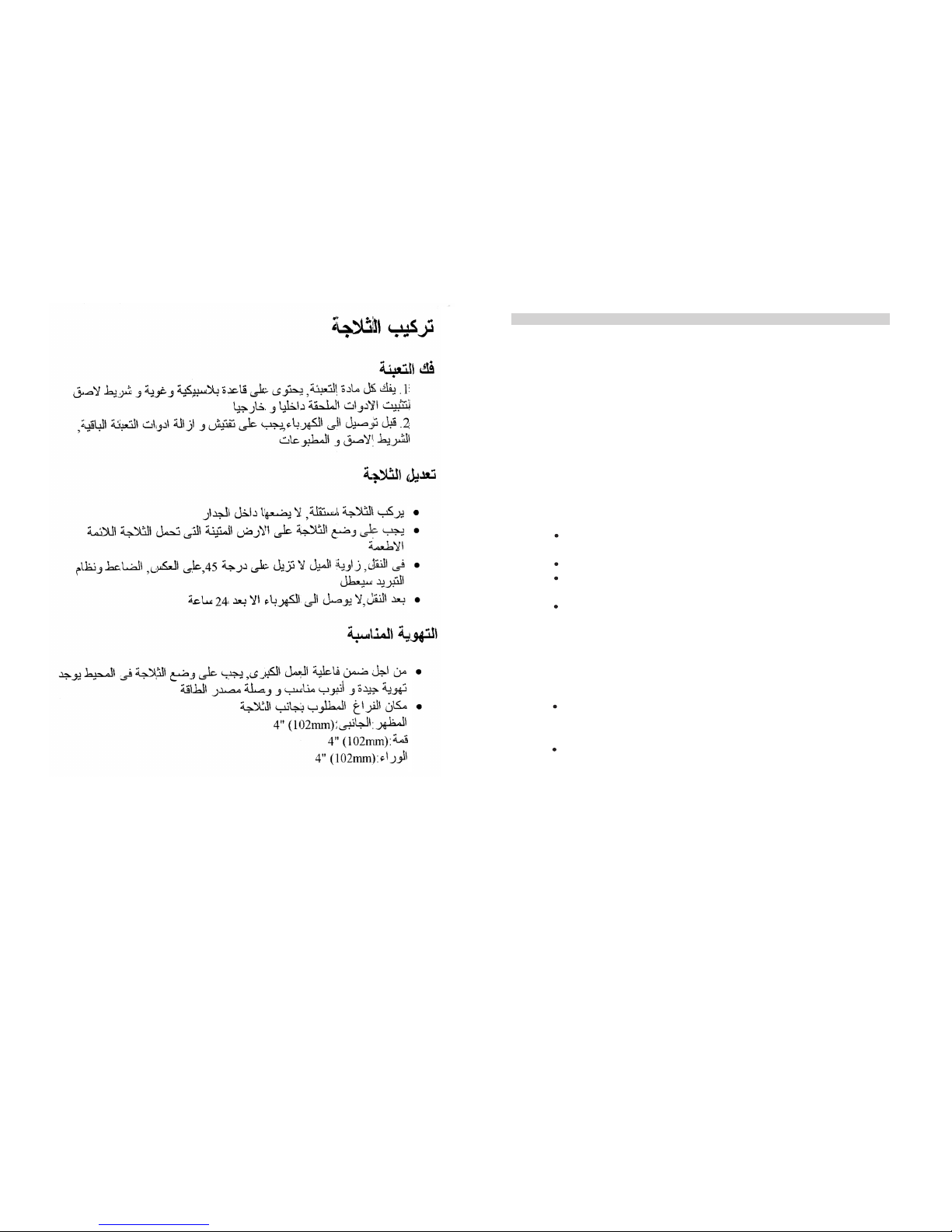

1. Remove all packaging material. This includes the foam base and all

adhesive tape holding the freezer accessories inside and

outside.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the freezer.

Your freezer is designed for freestanding installation only.

It should not be recessed or built-in.

Place the freezer on a floor strong enough to support it fully loaded.

When moving the freezer, never tilt it more than a 45-degree angle.

This could damage the compressor and the sealed system.

If the freezer is tilted let it stand in an upright position for at least 24

hours prior to plugging. This is to allow the refrigerant to settle.

To assure your freezer works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

Thefollowing are recommended clearances around the refrigerator:

Sides................. 4" (102mm)

Top....................4" (102mm)

Back..................4" (102mm)

Proper Air Circulation

Adjusting Your Freezer

Unpacking Your Freezer

Installing Your Freezer

Make sure there is a suitable power Outlet (220 volts, 15 amps outlet)

with proper grounding to power the freezer.

ectrica

Requirement

Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet.This is a dangerous practice

since it provides no effective grounding for the freezer and may result in

shock hazard.

Do not install your freezer in any location not properly insulated or

heated e.g. garage etc. Your freezer was not designed to operate in

temperature settings below 0 .

Select a suitable location for the freezer on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

should be corrected.

Install Limitations

6 6

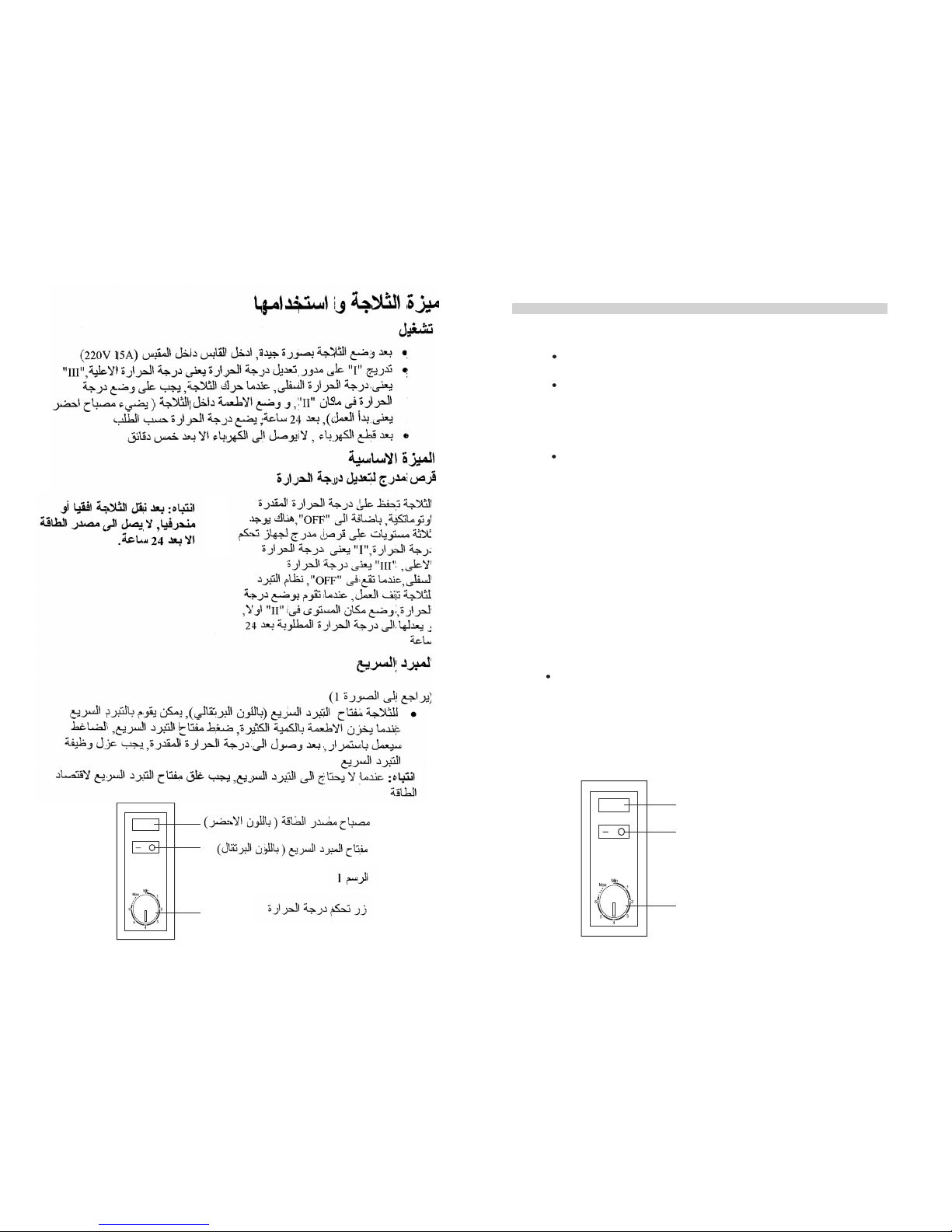

Once the freezer is in its proper place, plug it in an electrical outlet

having 220 volts and 15 amps.

Set the temperature, on the temperature control knob. "1" being the

warmest and "III" being the coldest. Initially set the temperature on "II"

Place food inside the freezer (green light will come on indicating that the

freezer is in operation). After using the freezer for 24 hours set the

freezer to your desired setting.

In case you unplug your freezer or experience an electrical outage,

allow 5 minutes before plugging it back in.

Your freezer is equipped with a Fast Freeze switch (orange switch),

which will allow you to quickly freeze food when you have added a lot

of food at one time. Flip the orange Fast Freeze switch on and the

compressor will run continuously. Turn off the Fast Freeze feature once

food has reached desired temperature.

(see fig. #1)

Do not forget to turn off the fast freeze switch when not required.

Doing so will avoid unnecessary energy use.

:Note

Fast Freeze

Adjustable temperature dial:

General Features

Your freezer will automatically maintain

the temperature level you select. The

temperature control dial has 3 settings

plus OFF. "1" is the warmest, "lll" is the

coldest. Turning the dial to OFF stops

cooling the freezer. Set the dial to "ll"

and allow 24 hours to pass before

adjusting the temperature to your needs.

(Note: If the freezer has been

placed in a horizontal or

tilted position for any period

of time wait 24 hours before

plugging the unit in.)

Freezer Features And Use

Operating Your Freezer

green power-on light

fig. #1

temperature contro dial

yellow fast freeze switch

Defrosting and Draining The Freezer

Defrost whenever the frost becomes1/4" thick. Never use a sharp or

metallic instrument to remove the frost as it may damage the cooLing

coils. (A punctured coil will void the warranty)

Turn the temperature control to OFF position and unplug the unit.

For draining, place a tray beneath the outer drain plug. Pull out the

drain dial (see fig. #2a) and rotate it so that the arrow points down

ward. This will let the water flow out into the tray.

Remove the drain plug from the inside of the freezer (see fig. #2b).

Defrosting usually takes a few hours. To defrost faster keep the

freezer door open. When done, push the drain dial in and turn the

arrow to the up position. Re-plug the drain plug inside the freezer

compartment. monitorthe container under the drain to avoid

overflow.

Note:

Wipe the interior of the freezer and replace the electrical plug in

the electrical outlet.

Reset the temperature control to the desired setting.

Foo

Storage Bas

Your freezer has 1 or 2 removable basket. It allows you

to store food more accessably or you can remove it if not needed.

(see fig. # 1)

fig. # 1

fig. # 2a fig. # 2b
