Haier 34FV6H Bedienungsanleitung

34FV6H34FV6H

COLOUR TELEVISION

OPERATING

INSTRUCTIONS

◆Digital I C bus control

◆Auto search tuning & 250 programs stored

◆Full infrared remote control

◆Multi-picture modes selection

◆Multi-function timer, appointing program

0090508165

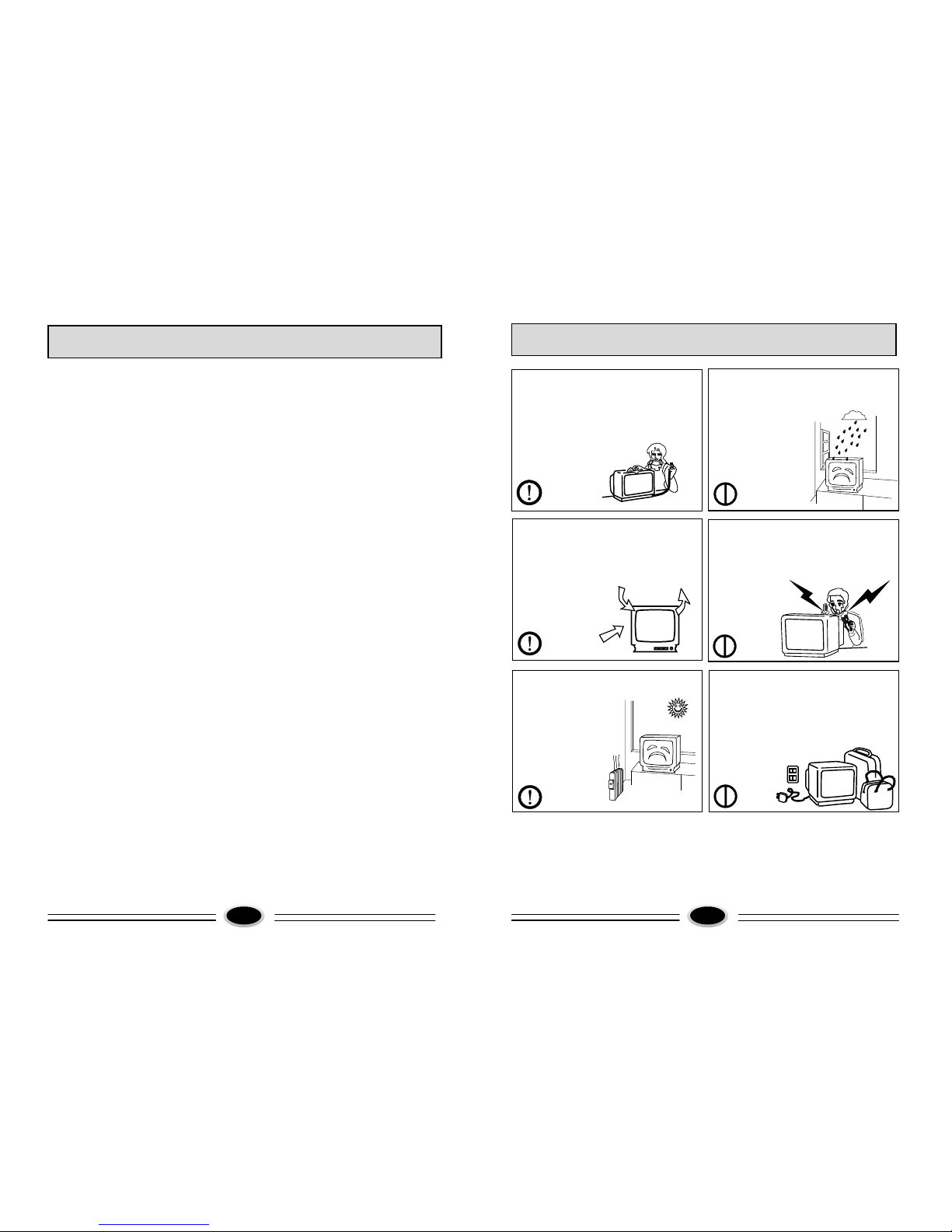

WARNING AND CAUTIONS

1. When you clean the TV set, please pull

out the power plug from AC outlet.

Or may result in electric shock, fire or

damage to the TV set. Don't clean the

cabinet and the screen with benzene,

petrol and other chemicals.

4. Do not place the TV set near rain

or moisture as it may cause an electric

shock, or the TV set to catch fire. The TV

set must only be used

in dry indoor location.

2. In order to prolong the using life of the

TV set, please place it at a well ventilated

location.

5. The back cover must only be removed

by a registered electrical service person.

Removing the back cover may result in

electric shock, fire or damage to

the TV set.

3. Don't place the TV

set in direct sunlight

or near heat source.

6. If the TV set is not going to be used for

a long time, or there is a severe thunder &

lightening storm, it is recommended that

the TV set be disconnected from the AC

power outlet and the aerial plug

removed.

Explanation on the display tube

When the picture tube requires cleaning, please disconnect the power and use a

dry soft cotton cloth. Do not use any cleaner or abrasive cloth.

CONTENTS

Contents.................................................................................................................................1

Warning and Cautions...........................................................................................................2

Basic Feature.........................................................................................................................3

Technical Specifications........................................................................................................3

Function Buttons and External Sockets.................................................................................4

AV Connection.......................................................................................................................5

Remote Controller .................................................................................................................6

Control Your TV.....................................................................................................................7

Tuning Procedure.................................................................................................................10

Menu Operation...................................................................................................................11

Teletext Operation...............................................................................................................14

Television Installation.........................................................................................................17

Connecting Other External Devices....................................................................................18

Trouble Shooting ................................................................................................................19

BASIC FEATURE

◆Digital I C bus control

◆Auto search tuning & 250 programs stored

◆Full infrared remote control

◆Multi-Picture modes selection

◆Multi-function timer, appointing program

TECHNICAL SPECIFICATIONS

1.POWER SUPPLY: See rating plate

2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)

3.AUDIO SYSTEM: B/G D/K

4.CRT: 29

5.ANTENNA INPUT : 75Ω Standard Coaxial Cable

6.SOUND OUTPUT POWER: 5W+5W

7.POWER CONSUMPTION: See rating plate

8.NET WEIGHT(kg): .

9.NET DIMENSION(mm):

64 5

898 x 567 x 669

Supplied accessories:

Infrared remote control handset 1

Battery(AA) 2

Operating instruction 1

Design and specifications are subject to change without notice.

FUNCTION BUTTONS AND EXTERNAL SOCKETS

2. The rear panel

1.Front panel

(1)Remote sensor: let the remote

controller aim here, the TV set

can receive remote control signal.

(2)Power switch: press the button to

turn on the TV set ,press the button

again to turn off the TV set.

(3)Power indicator: the indicator lights

in standby status .The indicator

glints when you use remote

controller.

(4)Menu button

(5)Program up/down button

(6)Volume up/down button

(7)TV/AV switch button

(4)

(7)

(6)

(5)

(3)

(2)

(1)

MENU - +VOL

TV/AV

-CH+

VIDEO

AUDIO

REMOTE CONTROLLER

TV/AV Select

(P8)

Sound Volume

Up/Down

（Ref. P7 ）

Power/Standby

(Ref. P7 )

Program Up/Down

（Ref.

.）

(Ref.P11.)

Mute

(Ref.P

)

Child Lock

(Ref.P9)

Call

(Ref.P8)

Direct Access Numeric

Keys

(Ref.P7)

Quick View

(Ref.P8)

ZOOM/Teletext

(Ref.P7/Ref.P15)

-/--

1 3

4 5 6

7 8 9

0 QV

MIX CANCEL

V+

V-

P+

P-

TEXT

TV/AV

Teletext

(Ref.P14, 15)

Ref.

INPUT AND OUTPUT TERMINALS

AV CONNECTION

TIMER SOUND

SUBCODE


REVEAL HOLD

Teletext

(Ref.P14)

Picture Effect

(Ref.P9)

It can be connected to the following appliances:

video-tape recorder, video camera, tape recorder

and audio amplifier, etc......

*Please keep AC cord unplugged when connecting

TV system.

VIDEO

AUDIO

You can select your video source

by the [TV/AV] key.

7. MUTE

By pushing this key, sound

output will be muted.

Push [MUTE] again or Volume

Up/Down, and sound Volume

will return.

8. Quick View

9. CALL

Program No.

Colour system

Clock

Sleep

TV/AV MODE

This key will call the on

screen display.

Push again to remove the

on screen display.

Menu MODE

Pressing the [?]key,

current menu will

exit directly.

7 8

TV/AV

6. TV/AV Selection

MUTE

PAL

B/G

15:15

SLEEP 120

CONTROL YOUR TV

1. Power/Stand-By ON/OFF

With Mains status On, you can also turn off using Remote Control Hand Set.

This status is called Stand-By mode. In this mode, You can also turn on the

TV bu pushing the Channel Up/Down keys on the front controls.

There is an Automatic Power OFF function in the TV. With No

Signal condition,

the TV will automatically turn off after 10 minutes.

2. Program Up/Down

Push [P+] key to change Program Up.

Push [P-] key to change Program Down.

CONTROL YOUR TV

VOLUME 15

|||||||------------

V-

V+

P+

P-

-/--

1 3

4 5 6

7 8 9

V- V+

P+

P-

Direct Access Tuning

Using the numeric keys on Remote

Control Hand Piece, channel can be

selected directly from 0 to 249 channels.

Or repeatedly press the -/-- button to

select the desired mode then press numeric buttons.

“-” 1 digit mode

“ ”-- 2 digit mode

“--- ” 3 digit mode(Max Ch. 249)

Volume Control

Push [V+] key for Volume Up.

Push [V-] key for Volume Down.

ZOOM

Push [ZOOM] key to change as follows:

NORMAL WIDE ZOOM

W ID E p icture height is reduce, ZOOM picture height is expand.

“ ”

TV Mode: Program will quick

back to the previous

program being watched.

AV Mode: Back to TV channel.

EURO AV

CONTROL YOUR TV

10. Picture Effect

By repeatedly pushing this key, picture effects will change as follows.

DYNAMIC USER

MILD STANDARD

TINT setting is not included user is the last setting made by

you.

11. LOCK

By pushing the [ ] key, ----

will appear on the screen.

Pressing the password the

digits that you defined yourself

correctly, the lock menu will appear.

A. Select each function by using the

[P+] [P-] keys.

B. Each value can be changed by the

[V+] [V-] keys.

C. When general lock is on, other locks

may be locked.

D. Child lock will be locked or unlocked

for current program.

E. AV LOCK will be locked or unlocked

for AV function.

F. VOL LIMIT SW will be switched on or off.

G. When you will change the password, you may be selected

NEW PASSWORD item, then push [V+] [V-] keys, the

CHANGE PASSWORD menu will appear

NEW PASSWORD: input 4 digits you like.

CONFIRM: again input above new password 4 digits correctly.

H. Press the [ ] key or [?] key, lock menu will disappear.

Note:

The tune menu will not appear when any program would be locked.

After new password was set, the basic password 7038 still is available.

STANDARD

“ ”

CHANGE PASSWORD

NEW PASSWORD 0 0 0 0

CONFIRM - - - -

LOCK

GENERAL LOCK ON

PROGRAM NO. 25

CHILD LOCK ON

AV LOCK ON

VOL LIMIT SW ON

VOL LIMIT 32

CHANGE PASSWORD

- -- -

TUNING PROCEDURE

1. AUTO SEARCH Function: Automatic Search and Memory (ASM) is

available for program installation from

Antenna input.

Using [MENU] key on the front or

[MENU] key on the Remote for ASM.

A. Push [MENU] key repeatedly to

select TUNE.

B. Push [P+] or [P-] key to select

AUTO SEARCH.

C. Push [V+] or [V-] key to start ASM

and memorize into program list (0~249).

D. Wait until function has finished.

2. SEARCH Function: Manual Search for Antenna input.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key, select PROGRAM. Using [V+] or [V-] key or numeric

keys to change Program Number.

C. Push [P+] or [P-] key to select BAND. Push [V+] or [V-] key to

change BAND.

D. Push [P+] or [P-] key to select SEARCH.

E. Push [V+] or [V-] key to start search.

F. Wait until function has finished.

G. Push [P+] or [P-] key to select STORE. Push [V+] or [V-] key to store.

3. FINE TUNING Function: Fine Tuning for current setting.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key to select PROGRAM. Using [V+] or [V-] key to change

Program Number.

C. Using [P+] or [P-] key to select FINE TUNE.

D. Using [V+] or [V-] key to adjust for best tuning.

E. Push [P+] or [P-] key to select STORE. Push [V+] or [V-] key to store.

4. SKIP Function: Use to SKIP channels. After setting to ON, the channel will

not be selected by channel up/down keys.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key to select PROGRAM. Using [V+] or [V-]

key to change

Program Number.

TUNE

BAND UHF

SKIP OFF

PROGRAM 3

FINE TUNE

STORE

AUTO SEARCH

MENU OPERATION

EXCHANGE

PROGRAM1 10

PROGRAM2 14

EXCHANGE

TIME

CLOCK --:--

ON TIME --:--

ON PROG 2

OFF TIME --:--

SLEEP TIMER 0

REMIND TIME --:--

REMIND PROG 1

11 12

5. EXCHANGE Function: number and channel exchange.

A. Push [MENU] key repeatedly to select EXCHANGE.

B. Using [P+] or [P-] key to select

PROGRAM 1. Using [V+] or [V-]

key to change Program 1 Number.

C. Using [P+] or [P-] key to select

PROGRAM 2. Using [V+] or [V-]

key to change Program 2 Number.

D. Using [P+] or [P-] key to select

EXCHANGE. Using [V+] or [V-] key,

exchange is over.

MENU OPERATION

1. [MENU] key

Push [MENU] key continually to scroll through the MENU selection as

follows:

PICTURE SOUND TIME SETUP TUNE EXCHANGE

2. PICTURE MENU Function: Brightness, Contrast, Colour, Sharpness, Tint

A. Select each function using the [P+]

or [P-] key.

B. Each value can be controlled by the

[V+] or[ V-] key.

C. Repeat any functions if required.

NOTE: TINT control will be appeared

only if a NTSC signal is being

received.

3. SOUND MENU Function: Volume

A. Press SOUND menu, the volume will appear.

B. Each value can be controlled by the [V+]or [V-]

key .

C. Using [P+] or [P-] key to select SKIP. Using [V+] or [V-] to

select ON or OFF. 4. TIME MENU Function: Time and Timer setting

A. Select TIME with the [MENU] key.

Using the [P+] or [P-] key to select

the item.

B. Using the [P+] or [P-] key to select

CLOCK, ON-TIME, OFF-TIME,

SLEEP TIMER or REMIND TIME.

C. Press [P+] or [P-] key to select minutes,

then using [V+] or [ V-] key, minutes

will change from 00 to 59. Press [P+] or

[P-] key to select hours, then using

[V+] or [ V-] key, hours will change

as follows: 0,1,..23--:--.

D. For ON-TIME, OFF-TIME or

REMIND TIME setting, using [P+]

or [P-] key to select ON PROG,

using [V+] or [ V-] key to change

On-Program number.

E. Using [P+] or [P-] key to select

SLEEP TIME, Using [V+] or [ V-] key,

sleep timer will change as follows:

0 10 20 30 40 ...160 170 180 0

5. SETUP Function: other function setting.

A. Using the [P+] or [P-] key to select

the item.

Using the [V+] or [V-] key to change

the item.

B. Using the [P+] or [P-] key to select

the COLOR SYS.

Using the [V+] or [V-] key, color sys

will change as follows:

AUTO PAL NTSC3.58 NTSC4.43 SECAM

C. Using the [P+] or [P-] key to select the AVL, AVL is auto volume level.

Using the [V+] or [V-] key, AVL will be turned OFF and ON.


BRIGHTNESS 48

CONTRAST 48

COLOUR 32

SHARPNESS 32

TINT

SOUND

VOLUME 20

MENU OPERATION

SETUP

LANGUAGE ENGLISH

COLOR SYS AUTO

SOUND SYS DK

BLUE BACK ON

BLACK STRETCH ON

AVL ON

EURO RGB

TEX LANGUAGE W-TR

CALENDAR

GAME

.............

13 14

D. Using the [P+] or [P-] key to select

the TEXT LANGUAGE.

Using the [V+] or [V-] key, TEXT

LANGUAGE will change as follows:

W-TR EAST1 EAST2

E. Using the [P+] or [P-] key to select

the CALENDAR.

Using the [V+] or [V-] key,

CALENDAR will appear.

After CALENDAR is appeared on the

screen:

Using the [P+] or [P-] key to change

the month.

Using the [V+] or [V-] key to change

the year.

F. Using the [P+] or [P-] key to select the GAME.

Using the [V+] or [V-] key, GAME will be appeared.

In game mode, the box will be moved to specific dot.

Push [P+] or [P-] key to move the box for up or down.

Push [V+] or [V-] key to move the box for right or left.

Push [?] key to exit game.

TELETEXT OPERATION

1. SELECT TELETEXT MODE

Select the program which is broadcasting the TELETEXT you want to watch.

Press [TEXT] key on the remote controller and enter to TELETEXT mode.

By this key, mode will be changed as

TV TELETEXT

The overview station page or the last page viewed (in case you already watched

TELETEXT at this channel previously) appears.

If you need to return to TV mode, press again the [TEXT] key on the remote

controller.

2. PAGE SELECTION

You can enter directly desired page number with the remote controller numeric

keys 0...9 buttons.

You can sequentially select page by pressing [P+] or [P-] key.

3. HOLD

Some TELETEXT information is contained on more than one page, the pages

automatically changing after a given reading time.

Press [HOLD] key to stop the page changing (the symbol will appear on the

page heading).

Press [HOLD] key again to allow the page to change (the symbol will appear).

4. REVEAL

Some TELETEXT pages contain quiz or game question with hidden answers.

Press the [REVEAL] key to see the answers.

Press the [REVEAL] key again to hide the answers.

- - - - - - - - - - - - - - -

2004 1

Su Mo Tu We Th Fr Sa

1 2 3

4 5 6 7 89 10

11 12 13 14 15 16 17

18 19 20 21 22 23

25 26 27 28 29 30 31

- - - - - - - - - - - - - - -

MENU OPERATION

5. ZOOM(T/B/F Top/Bottom/Full)

To enable easier reading (larger display).

Press the [ ] key to display the TOP HALF of the page.

Press again to display the BOTTOM HALF of the page.

Press again to return to a FULL PAGE display.

Note: Changing pages reverts to a FULL PAGE display.

6. CANCEL

When a page is selected in TELETEXT mode it may take some time before it

become available, pressing the [CANCEL] key will switch to the TV mode.

When the required page is found, the page number will appear at the top of the

TV picture, press the [CANCEL] key to return to the selected TELETEXT page.

Note: You cannot change TV program while in this mode.

7. TIME

TELETEXT broadcasts sometimes transmit certain pages of information at

particular times.

To automatically display these pages when they are transmitted , select the

required page number then press [ ] key the symbol T**** are displayed

at the top of the screen, now enter the time of the broadcast Timed Page.

Example: - for 3:30 PM select 1-5-3-0 in order (24HR clock)

Press the [CANCEL] key to view a normal TV picture.

When the timed page is transmitted (15:30) it automatically displays the selected

page in the TV picture.

Note: To cancel, press [ ] key.

8. FAST TEXT (For possible future reference)

The RED, GREEN, YELLOW & CYAN keys are used for quick access to color

coded pages transmitted by FAST TEXT broadcast.

TELETEXT OPERATION

Example:- RED selects CITY INFORMATION

CYAN selects TRAVEL INFORMATION

GREEN selects WEATHER INFORMATION

YELLOW selects TV PROGRAMING

9. SUBCODE

Periodically revised NEWS FLASHES can be obtained from TELETEXT

broadcasts.

Select the NEWS FLASH page in TELETEXT mode then press the

[SUBCODE] key.

You can now watch the TV program and every time the News Flash page

is updated it will be automatically displayed in the TV picture.

Press the [SUBCODE] key to cause the news flash to disappear.

※ Teletext is option.

15 16

TELEVISION INSTALLATION

Connect antenna or video facility

1. Use 75 coaxial cable plug or 300-75 impedance converter to plug in antenna

input terminal on the rear of the cabinet.

2. Connect the video facility to the radio, video in jack on the rear of the cabinet.

Battery installation and replacement for remote control unit

The remote control uses two 1.5V AA

batteries. For installation and replacement

are as following:

1 Turn the remote control unit upside

down. Press down the grip of battery

compartment and slide the color in

the direction of the arrow.

2 Install two new batteries, make sure

that battery polarity matches with the

+,- marks inside the battery. Or not it

could damage the unit.

3 Close the battery compartment covers.



VHF antenna UHF antenna

Mixer 75 Co-axis cable Input terminal of antenna

Co-axis antenna plug

Antenna in jack 75 Co-axis antenna plug



CONNECTING OTHER EXTERNAL DEVICES

To connect signal from the player,

scart-cable would be connected

correspondingly. The device may

be to provide RGB or VIDEO or

Y/C output, you must change

EURO signal setting

correspondingly on setup menu.

VCR or DVD player or other

device for playing

SETUP

LANGUAGE ENGLISH

COLOR SYS AUTO

SOUND SYS DK

BLUE BACK ON

BLACK STRETCH ON

AVL ON

EURO RGB

TEX LANGUAGE W-TR

CALENDAR

GAME

Andere Haier Fernseher Handbücher

Haier

Haier HTN13R12 Bedienungsanleitung

Haier

Haier HTN13R12 Bedienungsanleitung

Haier

Haier LE24P610 Bedienungsanleitung

Haier

Haier LE20F6500 Bedienungsanleitung

Haier

Haier L32K30B Bedienungsanleitung

Haier

Haier LY26R3A Bedienungsanleitung

Haier

Haier L37A6A-A1 Bedienungsanleitung

Haier

Haier ROHS-L20AV6-A0 Bedienungsanleitung

Haier

Haier HTAF2918 Bedienungsanleitung

Haier

Haier HT-2599 Bedienungsanleitung

Haier

Haier LEC24B3320 Bedienungsanleitung

Haier

Haier 21FA18-T Bedienungsanleitung

Haier

Haier 29T9B Bedienungsanleitung

Haier

Haier 15F6B Bedienungsanleitung

Haier

Haier 21F99 Bedienungsanleitung

Haier

Haier 29F9B-P Bedienungsanleitung

Haier

Haier HT-2599 Bedienungsanleitung

Haier

Haier LE32C430 Bedienungsanleitung

Haier

Haier HL19R - 19" LCD TV Bedienungsanleitung

Haier

Haier LET24T3CW Bedienungsanleitung

Haier

Haier 21FA12-AM Bedienungsanleitung

Haier

Haier LE55B7500U Bedienungsanleitung

Haier

Haier LT32R3B Bedienungsanleitung

Haier

Haier 21F7A-P Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
