Haier L22T6 Bedienungsanleitung

Operation Instructions

Contents

Important safety notes…………………………………………….1

Preparations……………………………………………………….3

Rear signal source interface……………………………………….6

Control System……………………………………………………8

Descriptions of remote control function…………………………..9

TV Menu Operation instructions………………………………….10

Troubleshooting…………………………………………………..13

Glossary……………………………………………………………14

Labeling requirements of China RoHS Regulation……………15

Specication Parameter…………………………………………..17

Thank you for choosing Haier LCD Televion Set. You are recommended

to the Contents of this manual carefully before installing and turning on

the TV set. Keep this manual for future reference.

For your safety

Read this manual carefully before operating the TV set. Keep this manual for future

reference.

Important safety notes

Read these notes before operating the TV set.

1. Read these notes.

2. Follow these notes.

3. Take notice of all warning information.

4. Operate as per all instructions.

5. Do not use the device near to water.

6. Only use dry cloths to clean the device.

7. Do not block any heat fans and install the device pursuant to the instruction of the

manufacturer.

8. Do not install the device near to heat sources as electric heaters, radiators, ovens

or other radiating devices including loud speakers.

9. Do not damage the safety design of the plug. Contact the electrician to obtain the

proper socket when the plug supplied fails to work.

10. Do not step on or extrude the power cord, especially that at the outlet of the plug,

connection socket and equipment.

11. Only use accessories designated by the manufacturer.

12. Only use the device with the cart, base, tripod, support or table designated by the

manufacturer or sold with the device. Move cart/device cautiously when a cart is

used to avoid overturning.

13. Use the power type for the power supply indicated on the label.

Consult the distributor or local power company if you are not sure about the power

type used in your home.

14. Unplug the TV set if there is lightning or if it will not be used for a long time.

15. All maintenance work must be conducted by professional maintenance personnel.

When the TV set, the power cord or plug is damaged, liquid or foreign articles

have entered into the TV set or the TV set wet and can not operate normally or has

crashed, it must be repaired.

16. Damages requiring maintenance: Professional maintenance personnel shall carry

out maintenance in case of one of the following circumstances:

A. The power cord or plug is damaged.

B. Foreign articles or liquid enter into the TV set.

C. The TV set has been rained on.

D. The TV set seems to be abnormal or it changes signicantly.

E. The TV set crashes or its casing is damaged.

17. Obliquity/stability- All TV sets must conform to recommended international

standards in terms of casing design obliquity and stability.

· Do not push the TV set in front of the casing or from the top of the casing, which

may make the TV set overturn.

· In addition, do not put electronic devices/toys on the casing, as these articles may

fall from the TV set by accident, resulting in product damage or personal injury.

18. Wall or ceiling mounted: Follow the suggestions of the manufacturer when

mounting the device on the wall or ceiling.

19. Power cords: Outdoor antenna shall be kept far away from the power cord.

20. Outdoor antenna grounding: If outdoor antenna are connected to the receiver, the

antenna system is grounded, which can protect the antenna from surge and

electrostatic accumulation.

Antenna grounding case pursuant to state power regulations

Notes for users installing CATV system: Users installing CATV system shall take notice

of NEC Article 820-40, which species the principles for correct grounding. Cable

grounding shall be connected to the grounding system of the building and be as close

to an antenna connection point as possible.

21. Foreign articles and liquid: Do not allow foreign articles or liquid to enter the

casing through the slot hole.

Preparations

1.Connection and preparation of TV set

Parts list

Base installation

Take the TV set and the base out of the carton and assemble them in the

parts box, as shown in the gure below:

1. Put the front of the TV set down on a soft cloth or pad on the table.

Put the base on stable surface.

2. Insert the base into the slot at the bottom of the TV set.

Remote control

Power cord

User Guide

Quick Set Up Guide

Put the TV set on a stable surface.

1. Ensure the position for the TV set has good ventilation condition without

blocking the fans on the cover.

2. Ensure four sides of the LCD TV set have a 15cm clearance to ensure proper

ventilation.

3. Do not place the LCD TV set near to the radiator or other power supplies.

4. Keep ames, such as candles, away from the TV set to prevent accidents.

5. Keep it away from high temperatures, direct sunlight, rain or splashes.

Installing the TV set on the wall

The TV set shall conform to the wall-mounted VESA standard. Refer to the

product specications as prescribed in the instructions for details.

To ensure your safety and the safety of the TV set, use the specied wallmounted

bracket. Installation by professional personnel is required for it to be mounted to

the wall.

If you want to hang the TV on the wall, all connection lines must be inserted

to the interface of the TV set.

At least 6cm of clearance between the TV set and the wall must be left to ensure

all interfaces have enough space to be inserted.

Ensure the air can ow freely through the ventilation slot wherever the TV set is

placed or hung.

Do not place the TV set in a conned space.

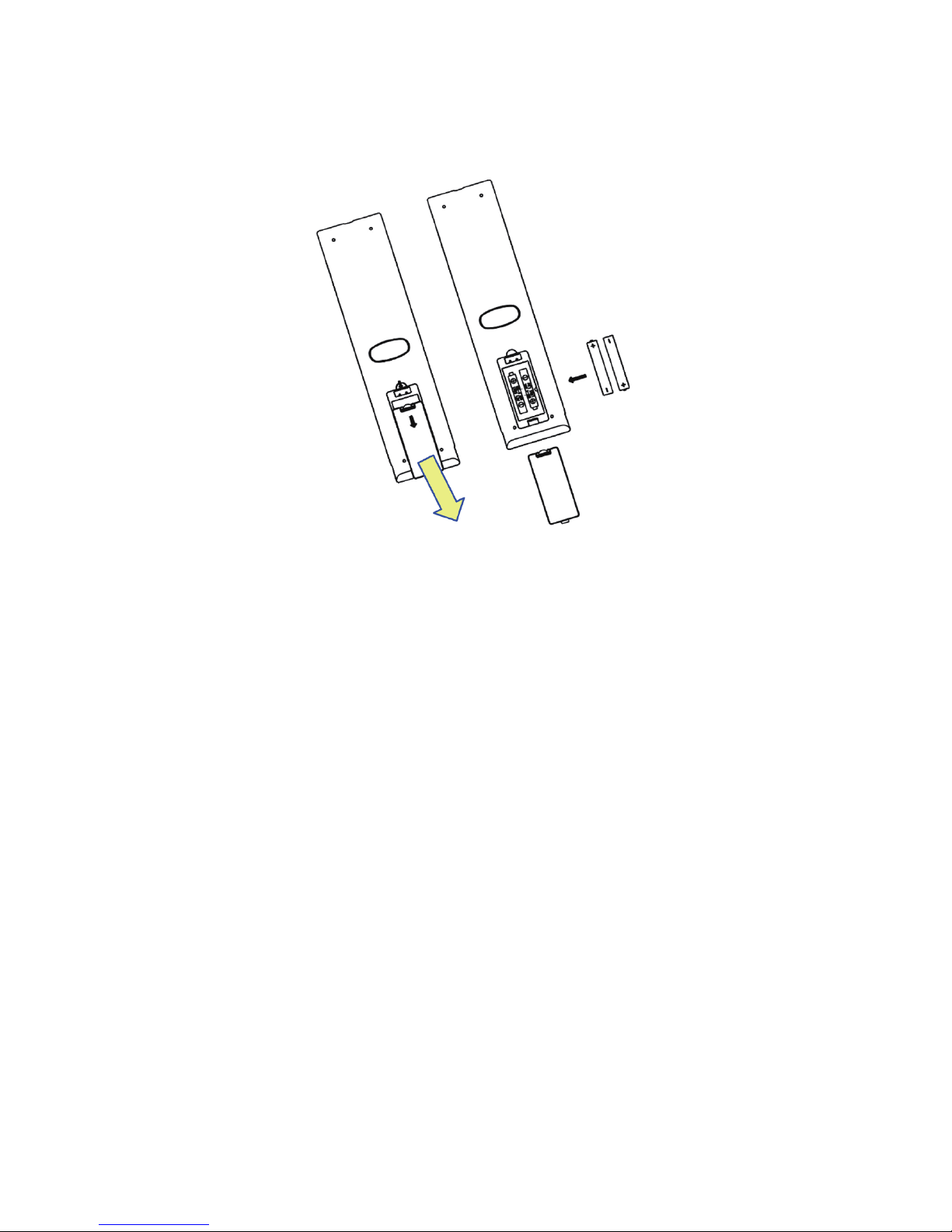

2. Remote control

Remove the cover of the battery slot and insert the battery into the battery

holder. (AAA1.5V).

3. Power supply connection

Insert one end of the power cord into the Power Input jack at the lower part of the

TV set and the other end to the outlet of the 220V urban power.

Never place the TV set on AC power cord. Otherwise, it may result in a re or

lightning stroke.

The TV set consumes power in standby mode.

Unplug the TV set from the outlet if it will not be used for a long time.

4. Turn on the TV set:

Press the power button at the side of the TV set to turn on the TV set.

① .Its indicator is blue under normal operation conditions.

② .Its indicator is red under standby operation conditions.

Rear signal source interfaceRear signal source interface

22”

COMPONENT

YPb Pr

HDMI

AUDIO

VGA

VIDEO L R

AV 1 IN

L R

COMPONENT

YPb Pr

HDMI

AUDIO

VGA

VIDEO L R

AV 1 IN

L R

VIDEO

AV 2 IN

AC power input jack

Rear signal source interfaceRear signal source interface

24”

AC power input jack

VGA

YPb Pr

AUDIO

HDMI

COMPONENT

YPb Pr L R

VIDEO L

AV 1 IN

VGA

YPb Pr

AUDIO

HDMI

COMPONENT

YPb Pr

L R

VIDEO L

AV 1 IN

VIDEO

AV 2 IN

Control systemControl system

Control panel buttons functions

IR Receiver / Indicator

Descriptions of remote control function

POWER

Press to turn the LCD TV On or off

VIDEO BUTTON

Press the button to select AV 1,

AV 2 (S-VIDEO does not work)

HDMI/COMP BUTTON

Press to select YPbPr, HDMI

Press the button to select PC source

TV BUTTON

Press the button to select TV source

NUMBER BUTTON

1. Press the number buttons for

direct access to the TV channels.

2. For 2 digit channel, enter the 2nd

digit after enter 1st digit

3. For 3 digit channel, Press “100”

button rst then follow Point 2.

PRE CH

It is only used in TV mode to go back to

the previously watched TV channel.

SLEEP BUTTON

Press to set the LCD TV to turn itself off

within a certain time

SOUND BUTTON

Press this button, you can choose 4

smart mode: personal, speech, music,

Standard.

When in personal mode, you can

choose Bass, Treble.

NICAM

The key does not work.

FREEZE BUTTON

The key does not work.

WIDE BUTTON

Press to switch aspect ratio.

MUTE BUTTON

Press to eliminate or restore the

LCD TV sound. Mute will appear on

the screen when the sound is muted

DISPLAY BUTTON

Press to see the current channel

information on the TV screen

VOL+/-

Press + or - to adjust the volume

CH +/-

Press to adjust the channel up or

down

Press menu to activate on screen

menu on/off

SOURCE BUTTON

Press to select the video input

source: TV, AV 1, AV 2,

YPbPr, HDMI, VGA.

OK BUTTON

Press the button to conrm your

selection

EXIT BUTTON

Press the button to exit OSD menu

PICTURE BUTTON

Press this button, you can choose

standard, vivid, movie, personal,

enco.

TELETEXT (The key does not work.)

MIX (The key does not work.)

SIZE (The key does not work.)

SUBPAGE (The key does not work.)

INDEX (The key does not work.)

SUBTITLE (The key does not work.)

HOLD (The key does not work.)

REVEAL (The key does not work.)

R/G/Y/B(Colour button)

(The key does not work.)

Using remote control

Note:Pressing most buttons once will activate the assigned function. Pressing a second time will de-activate it.

When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item

in the list. The list will be removed automatically after three seconds or press OK to remove immediately.
