OPERATING INSTRUCTIONS
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
100W SOLAR PANEL
THANK YOU
We appreciate your business and would like to thank you
for choosing HALO!
Your safety is important to us.
Please read the instructions carefully and utilize the proper
precautions before operating this equipment.
Included Items..........................................................................................................2
Operating Instructions...........................................................................................3
Connecting a HALO Solar Panel in Parallel....................................................4
Connecting 3 HALO Solar Panels in Serial....................................................5
Charging Electronic Devices...............................................................................6
Specifications..........................................................................................................7
Safety Precautions................................................................................................8
FCC Compliance......................................................................................................9
Warranty and Contact Information.................................................................10
TABLE OF CONTENTS
1POWER YOUR LIFE

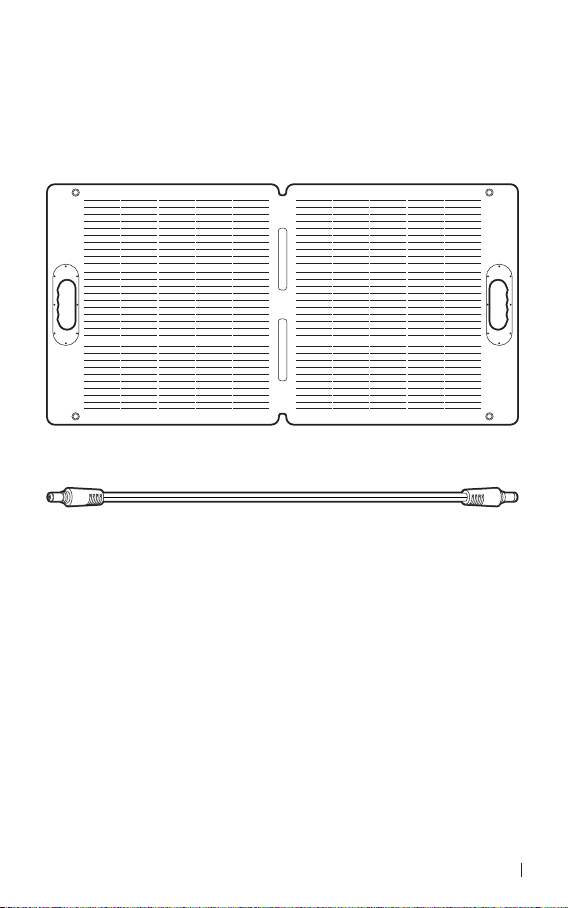

INCLUDED ITEMS
• HALO 100W SOLAR PANEL
• 10Ft. DC5525 CABLE
POWER YOUR LIFE 2
D
C
D
C
OPERATING INSTRUCTIONS
1. Unfold the solar panels.
2. Adjust the kick stand. For optimal solar radiation, please angle the
solar surface and the sunlight at 90°F.
3. Connect the DC5525 to DC5525 cable to the DC Input port
on the powerstation.
3POWER YOUR LIFE
RIGHT-ANGLE
90°
MORNING OR WINTER
RIGHT-ANGLE
90°
NOON OR SUMMER
DC5525 to DC5525
(Included)
M
M
F
F F
F
MFMF
D
C
D
C
D
C
MM
CONNECTING HALO SOLAR
PANELS IN PARALLEL
Two or more HALO 100W Solar Panels can be connected together
for higher output power. Up to six solar panels can be connected
in a serial/parallel configuration.
2 Panel Parallel Kit (sold separately).
• One MC4 MMF Y-Cable
• One MC4 FFM Y-Cable
• Three MC4 to DC5525 Connecting Cables
POWER YOUR LIFE 4
MC4 to DC5525
MC4 to DC5525 MC4 to DC5525
MC4 FFM Y-Cable MC4 MMF Y-Cable
M
F
M
F
MF
M
F
A
D
C
D
C
D
C

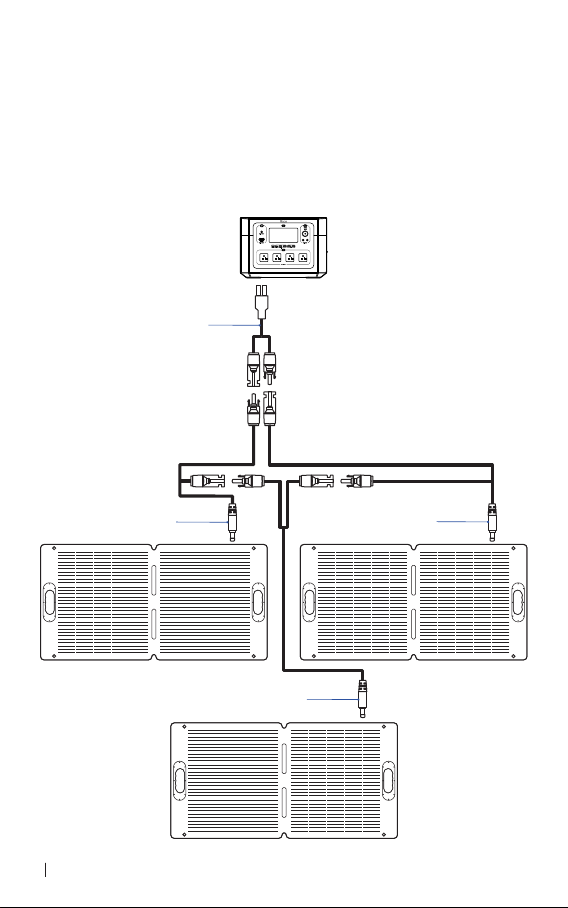

CONNECTING 3 HALO
SOLAR PANELS
3 Panel Serial Kit (sold separately).
• One MC4 to Anderson Connecting Cable
• Three MC4 to DC5525 Connecting Cables
5POWER YOUR LIFE
MC4 to Anderson
MC4 to DC5525
MC4 to DC5525
MC4 to DC5525
CHARGING YOUR ELECTRONIC DEVICES
DIRECTLY USING YOUR HALO SOLAR PANEL
Your electronic devices may be charged directly from the HALO Solar
Panel. To charge your electronic devices, locate the output box
located on the back of the solar panel. The appropriate USB cable
(not included) can be used to charge your electronic devices. The
DC5525 port is used to connect to the power station.
TROUBLESHOOTING
Is the HALO 100W Solar Panel waterproof?
While the product is designed to be outdoors, avoid getting the solar
panels wet to extend the life of the product. Do not use the solar
panels in extreme weather conditions. For optimal solar charging
efficiency, use with the recommended operating temperature (14°F -
158°F) to expand the life of the unit.
Why is my powerstation or electronic device charging slowly?
Charging speed will vary based on a number of factors including
weather, obstructions and solar angle positioning. For optimal use,
follow the instructions carefully and use in direct sunlight. Keep the
solar panels clean and free of dirt and debris. There will be lower
power generation on cloudy and rainy days.
Can I connect one or more solar panels together?
Yes. 2 or more solar panels may be connected with the appropriate
accessories. This will provide faster charging speeds for
your powerstation.
POWER YOUR LIFE 6
DC5525USB-C PD27WLED USB-A QC3.0
SPECIFICATIONS
HALO 100W Solar Panel
Model................................................................................................................SE502
Max Power (Pmax).........................................................................................100W
Open Circuit Voltage...................................................................................20.52V
Maximum Working Voltage (Voc)................................................................17.1V
Short Circuit Current (Isc)...........................................................................6.14A
Maximum Working Current (Ismp)..........................................................5.84A
DC Output...........................................................................12V-20.52 100W Max
USB-A Output............................................5V/3A, 9V/2A, 12V/1.5A 18W Max
USB-C Output...............................................5V/9V/3A, 12V/2.25A 27W Max
Folded Dimensions.........................................................23.5 x 23 x 1.4 inches
Unfolded Dimensions...............................................46.1 x 23.5 x 0.19 inches
Weight...............................................................................................................9.7 lbs
Operating Temperature Range..........................14°F - 158°F (-10°C - 70°C)
7POWER YOUR LIFE
SAFETY PRECAUTIONS / MOVING
AND STORAGE INSTRUCTIONS
CAUTION - Read all safety information before using this product.
Failure to follow these instructions may result in electrical shock,
explosion, fire which may result in serious injuries, death or property
damage.
• Read all instructions before using the product.
• Misusing or incorrectly connecting your HALO 100W Solar Panel
may cause electric shock to users and damage equipment.
• Do not expose your HALO 100W Solar Panel to moisture,
water, rain, or snow. Do not immerse in water.
• Keep your HALO 100W Solar Panel away from heat sources,
including open flames, radiators, stoves, ovens, and any
other devices that produce heat.
• Do not expose to heat above 212°F (100°C) or incinerate.
• Do not disassemble your HALO 100W Solar Panel.
• Do not bend, puncture, crush or subject to mechanical shock.
• The HALO 100W Solar Panel, along with its accessories, are not
toys and should be kept away from children.
• Do not clean your HALO 100W Solar Panel with harsh chemicals,
soaps or detergents.
• Do not attempt to charge an automotive battery
directly with the solar panels.
• Solar panels should be recycled or disposed of as per
state and local guidelines.
POWER YOUR LIFE 8
