Hamilton/Buhl SpectraVR 360 Bedienungsanleitung
Instruction Manual
Model SVRC-BK
SpectraVR 360° Camera and Camcorder
80 Little Falls Road • Fairfield, NJ 07004
800-631-0868 • Fax: 800-398-1812
www.HamiltonBuhl.com
1
From your iPhone or Android phone, go to the
App Store and download/install the UV720 App.
1. Powering On and Pairing
2
1. Insert the SD card. Press the power key for 3
seconds to turn the camera on. The blue power
light will appear and you will hear two beeps.
2. Click on the WiFi button; the blue Wi-Fi light will
flash indicating you are in pairing mode.
Powering On and Pairing (continued)
3

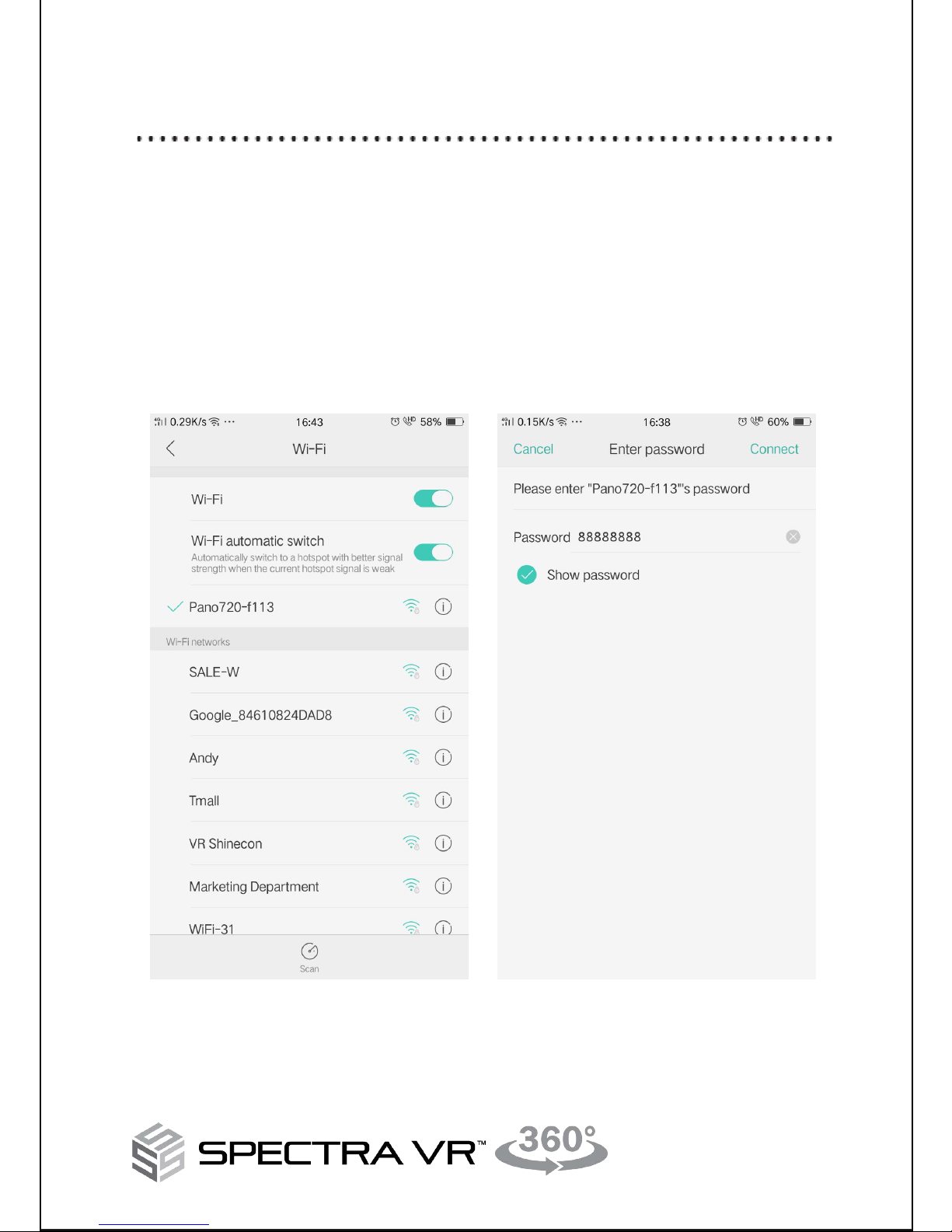

Turn on the Wi-Fi on your smartphone. On the list
displayed, find SSID: pano720-XXXX and enter
the default password: 88888888. The phone will
indicate the Wi-Fi is connected. When connected,
the light on the camera will become bright and
flash.
Powering On and Pairing (continued)
3.
4
Powering On and Pairing (continued)
4. For Android systems, go to the
Wi-Fi connection option then
press "Connect" button at the bottom
Smartphone
Rotation
Mode On/Off
Settings
Muti-Mode
Main Menu (For Android Systems)
Turn Over
5
Powering On and Pairing (continued)

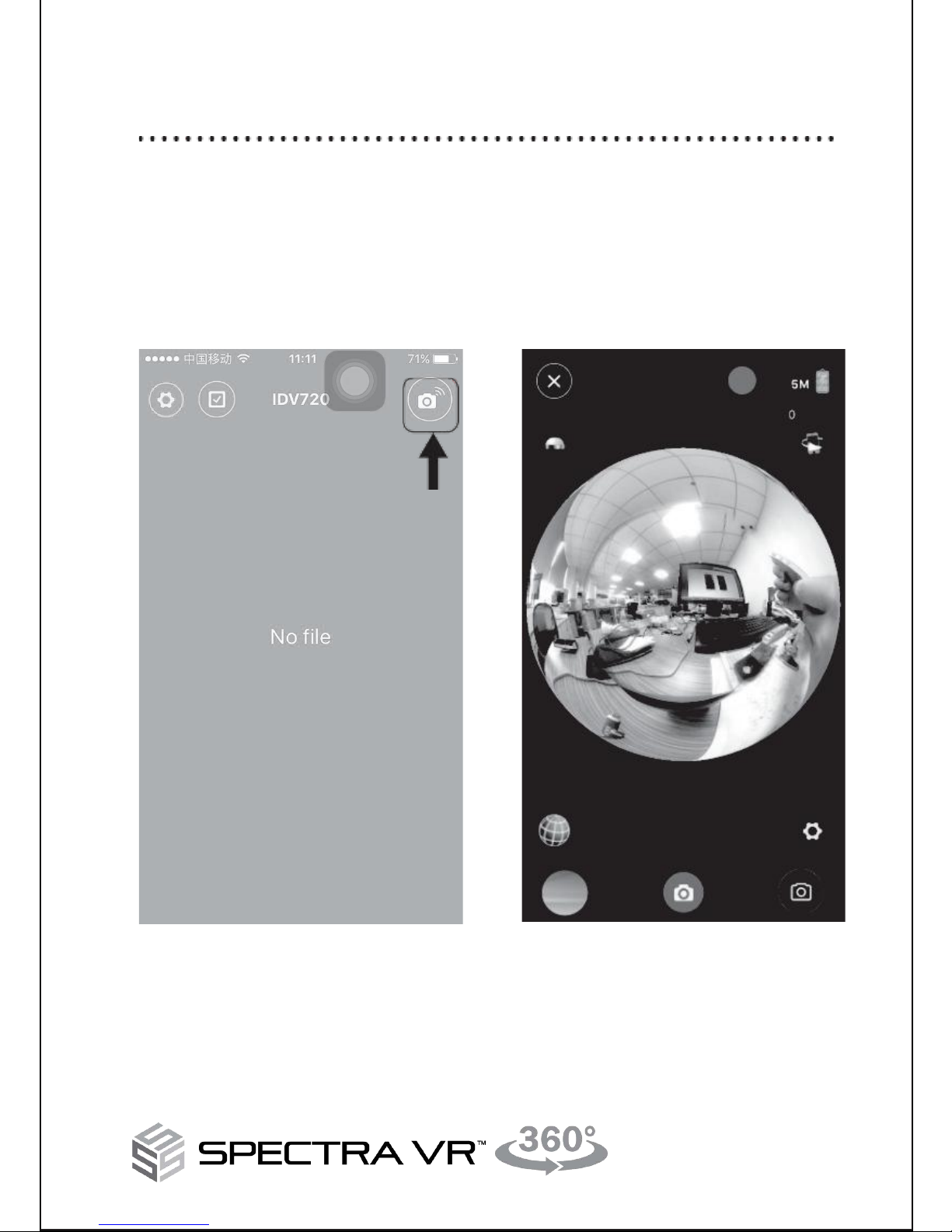

For iOS systems, click the camera icon to connect to
SpectraVR 360 Camera. The operations of the SpectraVR
360 camera are the same between iOS and Android.
6
iOS System
Powering On and Pairing (continued)
7
2. Photo and Video Modes
1. Click on the Mode Switch button to switch to Photo Mode.
The photo light will appear. Click on the Shutter button and
the camera will take a photo when the Shutter light flashes
once and the buzzer prompts – indicating the photo will be
saved on the SD card.
2. Click on the Mode Switch button to switch to Video Mode.
The Video light will appear. Click on the Shutter button and
the camera will begin recording when the Shutter light
flashes and the buzzer prompts – click on the Shutter
button to stop recording and save the video on the SD card.
8
3. Photo and Video Sharing
How to access Preview Mode
1. Select the Preview Mode to view all
contents (SD Card/Camera or Smartphone)
2. Preview images on the camera
3. Preview images on your phone
4. Download or delete photo
5. Return to Camera Mode
9
Photo and Video Sharing (continued)
Select a video or photo to be shared from the Preview
Mode, when the interface displays as follows:
Click on the Download icon to download. When download is
complete, click on the upper left icon to return to the
browsing display. Select the Preview Mode to view all
contents (SD Card/Camera or Smartphone) document and it
will display the following:
