HAMPTON BAY HG35-NG1 Kurzanleitung

01/09/14

Direct Vent Gas Fireplace

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any

appliance

Do not touch any electri-

cal switch: do not use any

phone in your building.

Immediately call your gas

supplierfromaneighbour's

phone. Follow the gas sup-

plier's instructions.

If you cannot reach your

gas supplier, call the ﬁre

department.

WARNING:

Improper installation, adjustment, altera-

tion, service or maintenance can cause

injury or property damage. Refer to this

manual. For assistance or additional in-

formation consult an authorized installer,

service agency or the gas supplier.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂam-

mable vapours and liquids in the vicinity of

this or any other appliance.

Installation and service must be performed

byanauthorizedinstaller,serviceagencyor

the gas supplier.

PLEASE KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Owners &

Installation

Manual

LISTINGS AND CODE APPROVALS

Thesegasapplianceshavebeentested

in accordance withAS4553-2000, NZS

5262 and have been certiﬁed by the

Australian Gas Association for instal-

lation and operation as described in

these Installation and Operating In-

structions.

Yourunitshouldbeservicedannually

by an authorised service person.

918-647a

Models: HG35-NG1

HG35-LPG1

2 Hampton HG35-1 Direct Vent Freestanding Gas Stove

HAMPTON

Direct Vent Freestanding Gas Stove

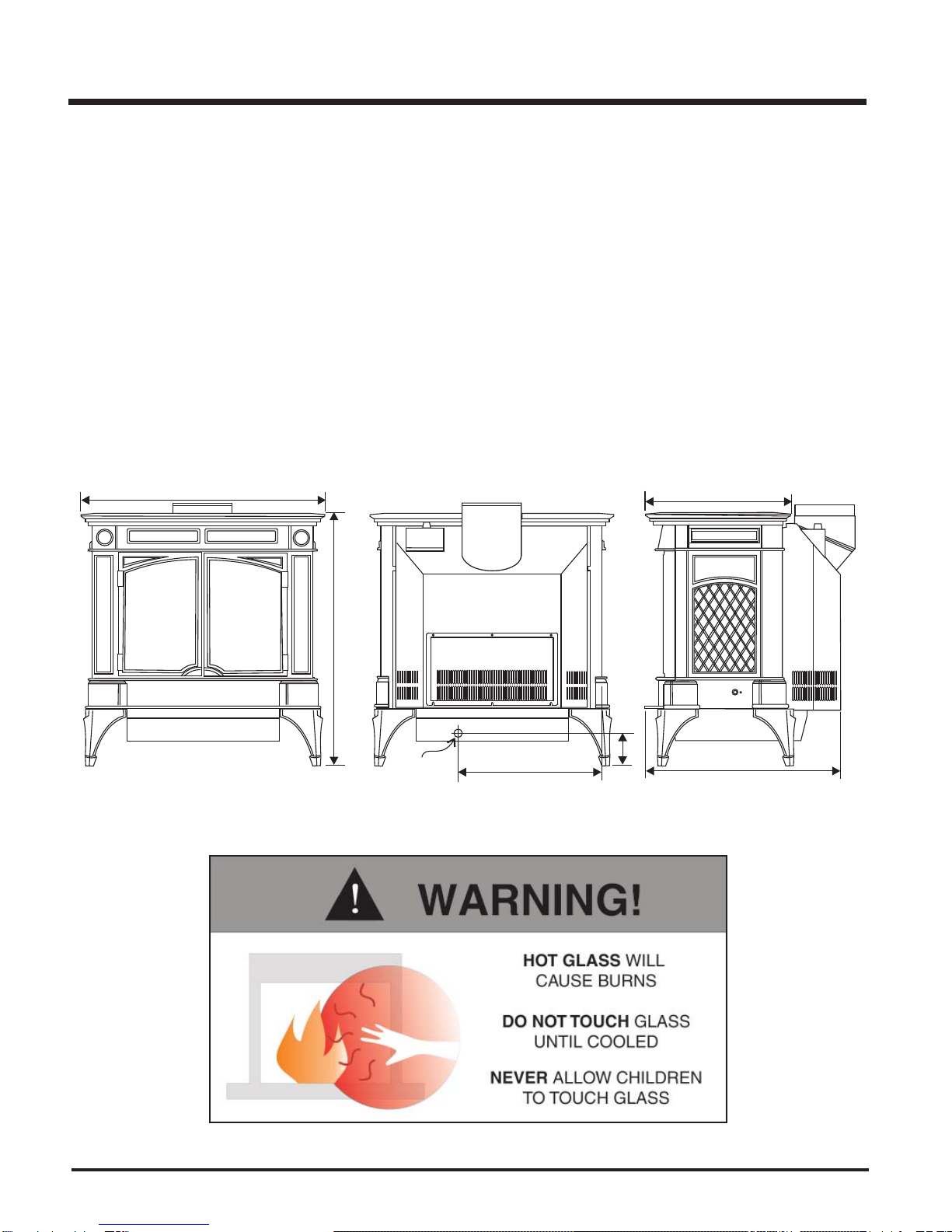

UNIT DIMENSIONS

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Hampton Gas Stove by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.

The HG35 has been designed to provide you with all the warmth and charm of a wood ﬁreplace. As it also bears our own mark,

it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now

to acquaint yourself with these instructions and the many features of your Hampton Stove.

28" (710mm)

27" (685mm)

21" (533mm)

15" (381mm)

3.5" (89mm)

16" (406mm)

Gas Line

Hampton HG35-1 Direct Vent Freestanding Gas Stove 3

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

Operating Instructions ................................................29

Lighting Instructions....................................................29

Resetting the Unit.......................................................29

Shutdown Instructions................................................29

First Fire .....................................................................29

Fan Operation.............................................................30

Adjusting Flame Height ..............................................30

Final Check.................................................................30

Summary of Controls..................................................30

Pilot Adjustment..........................................................30

Copy of Lighting Plate Instructions.............................31

Automatic Convection Fan Operation.........................31

Normal Operating Sounds of Gas Appliances............32

MAINTENANCE

Maintenance Instructions............................................32

General Flue Maintenance.........................................33

Log Replacement .......................................................33

Glass Replacement....................................................33

Fan Maintenance .......................................................34

PARTS LIST

Electronic Components List........................................35

Main Assembly ..........................................................36

Burner & Log Assembly..............................................38

WARRANTY

Warranty.....................................................................39

SAFETY LABEL

Safety Label................................................................. 4

INSTALLATION

Speciﬁcations ...............................................................5

Before You Start ...........................................................5

General Safety Information...........................................6

Installation Checklist.....................................................6

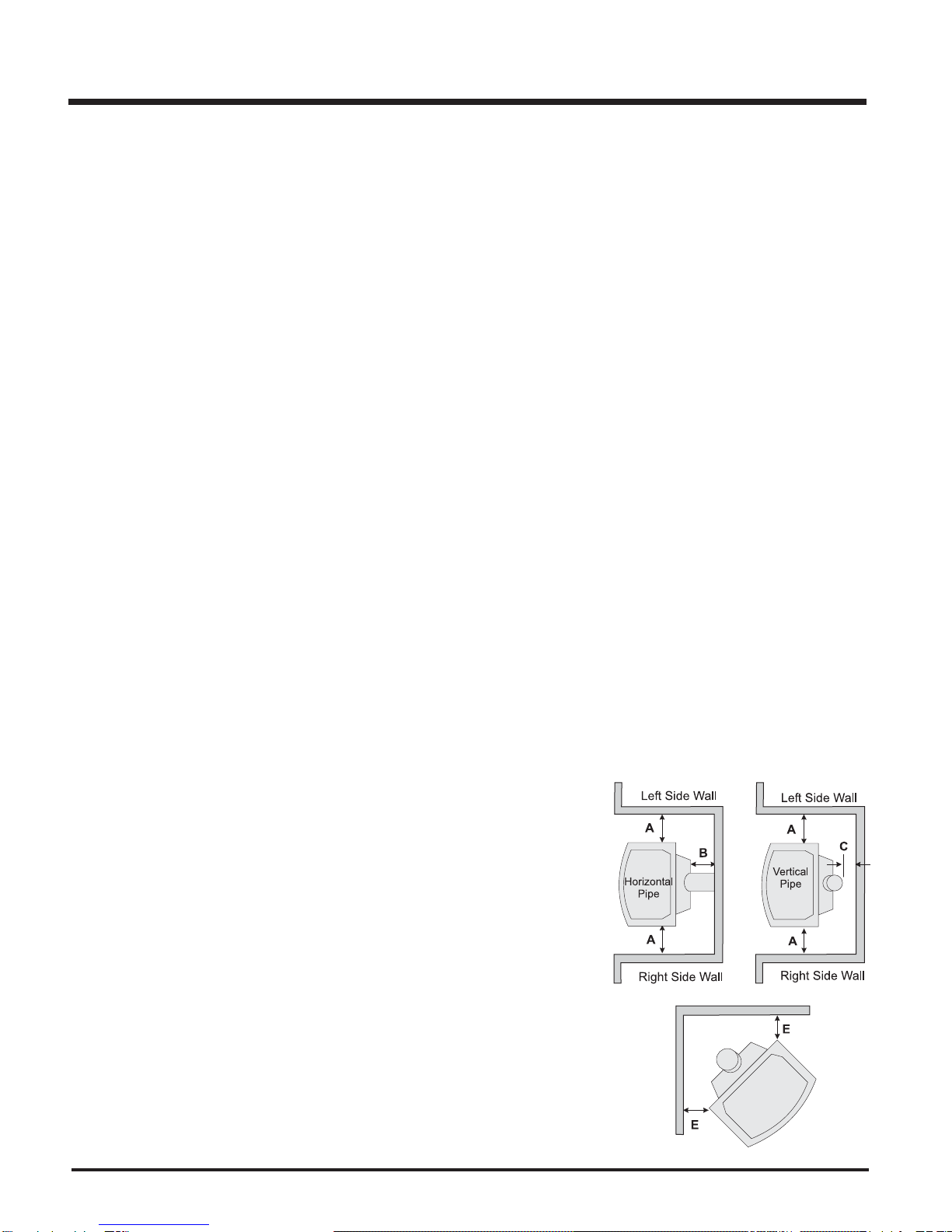

Clearances to Combustibles.........................................6

Locating Your Gas Stove.............................................7

Manufactured Mobile Home Requirements..................7

Combustion and Ventilation Air.....................................7

Flueing Introduction......................................................8

Installation Precautions ................................................8

Safety Precautions for the Installer...............................8

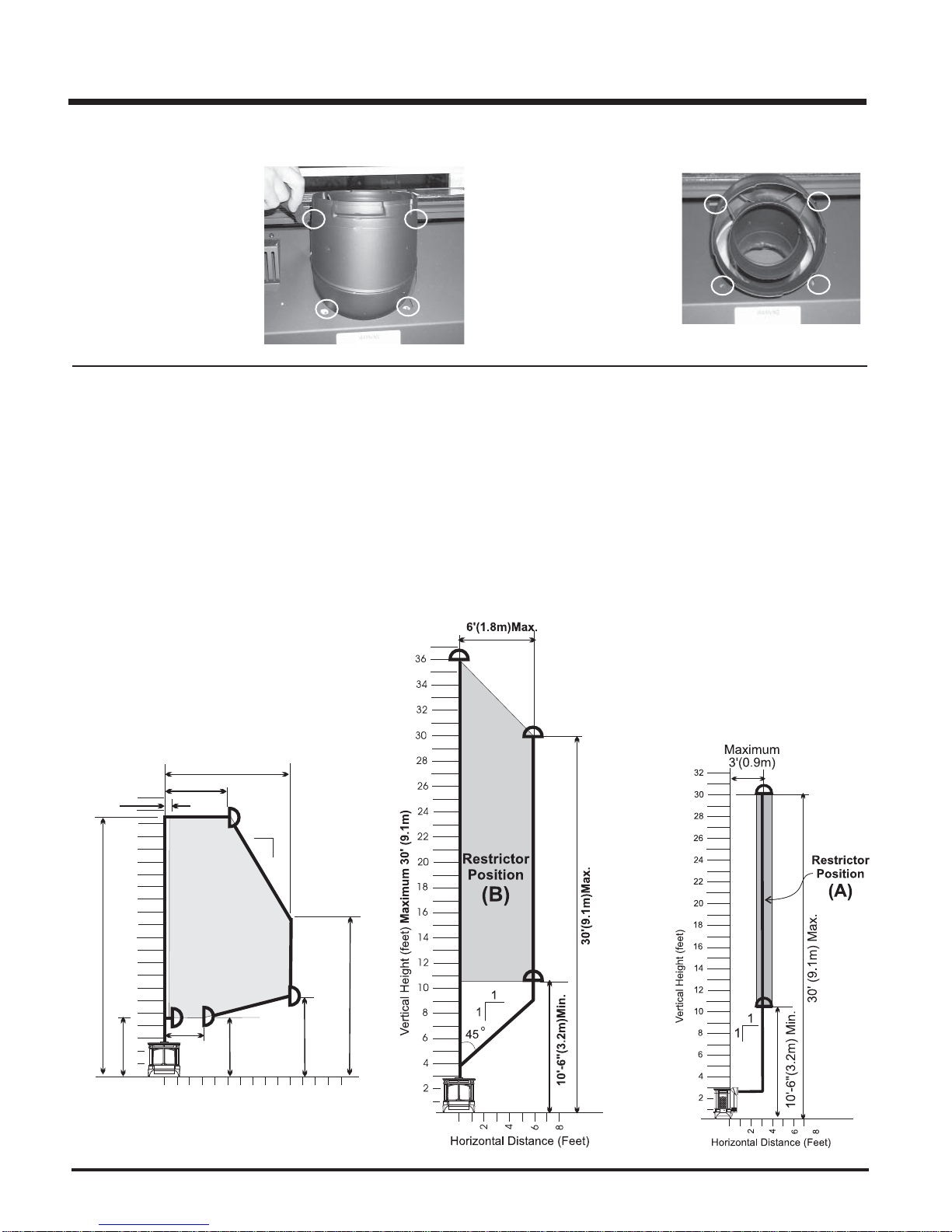

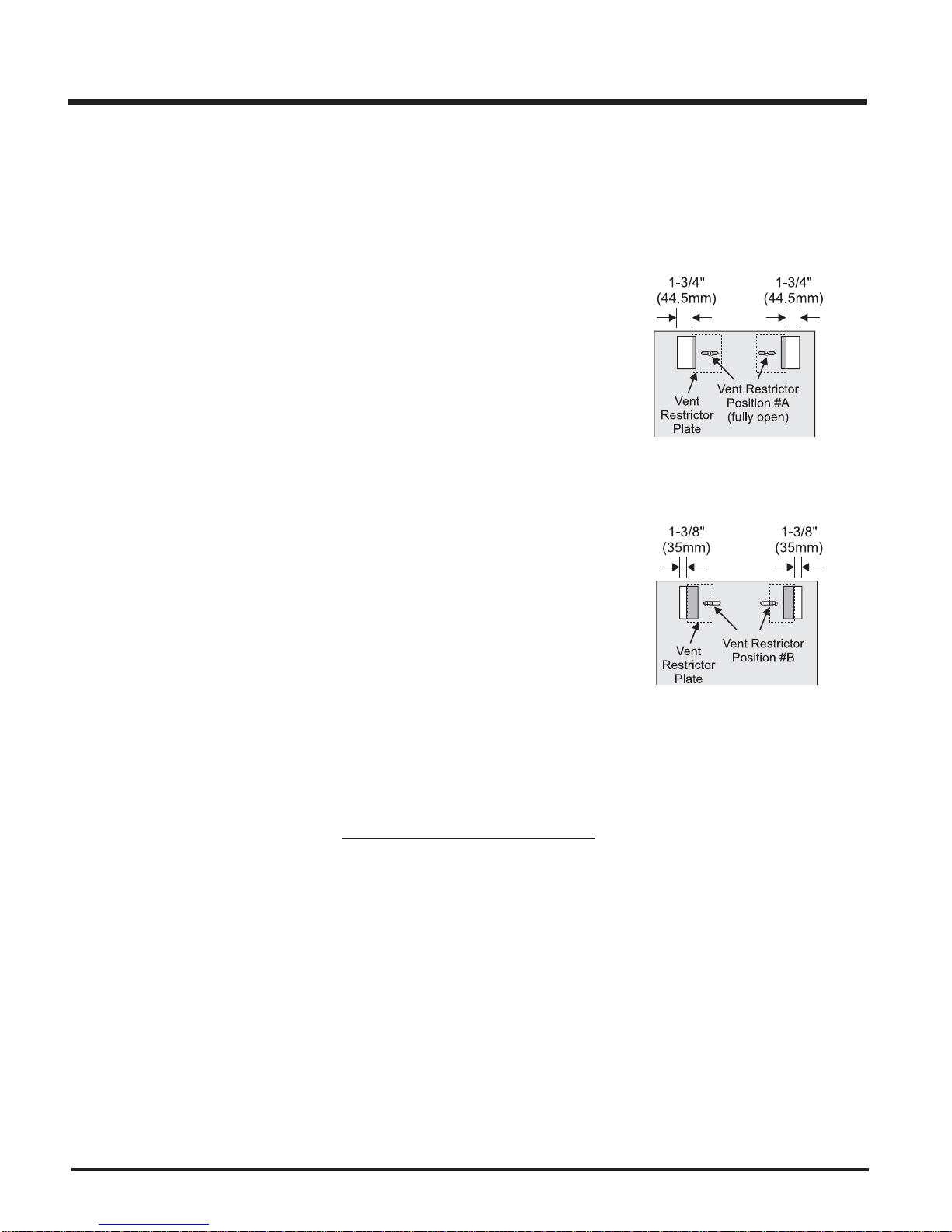

Flue Restrictor Position ................................................8

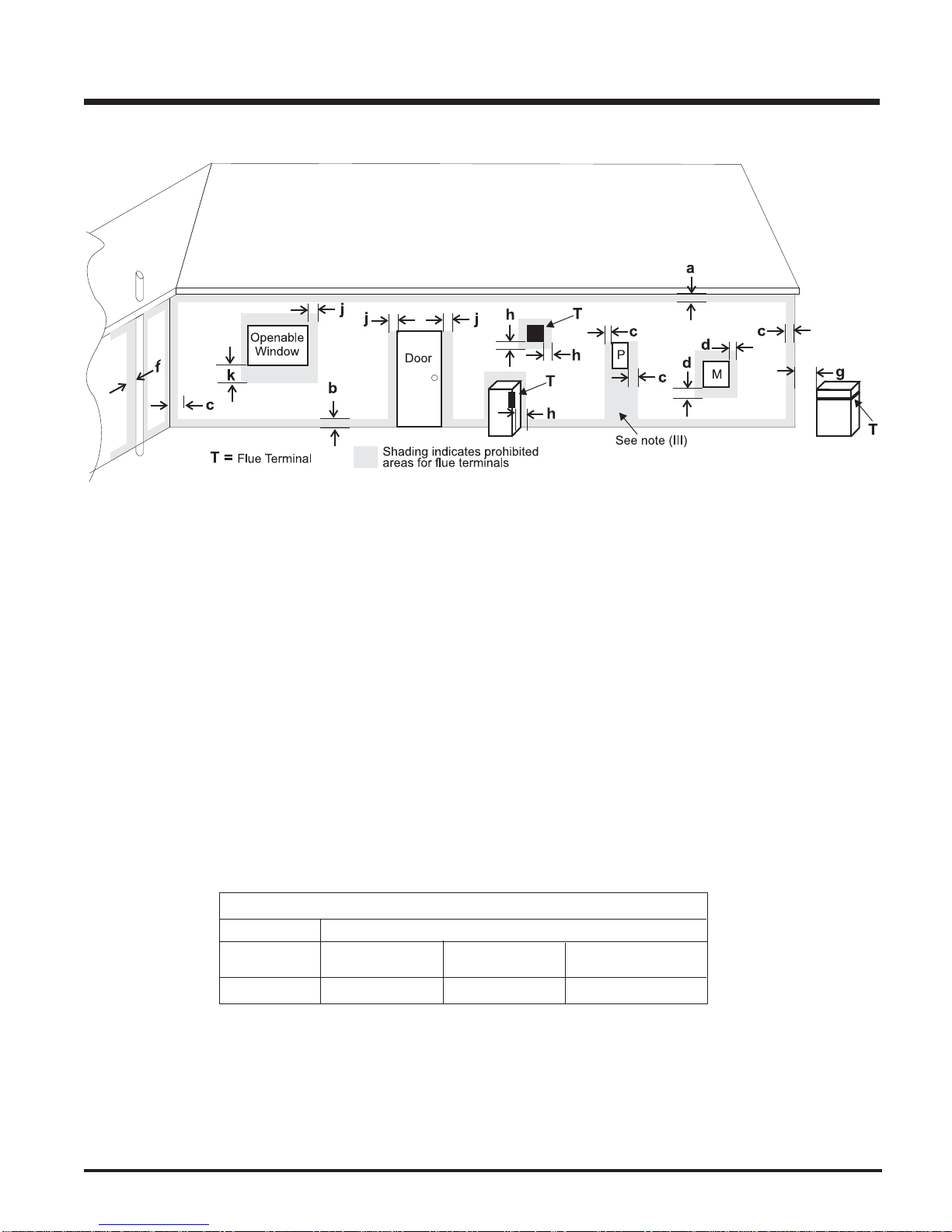

Exterior Flue Terminal Locations..................................9

Rotating Elbow for Horizontal Terminations................10

Flueing Arrangements - Horizontal Terminations .......10

Flueing Arrangements - Vertical Terminations............10

Vertical Termination with Co-linear Flex System ........12

DV Stove Horizontal Flue Kit......................................13

DV Stove Horizontal Flue Kit Installation....................13

Dura-Vent Termination Kits.........................................15

Dura-Vent Flueing Components ................................16

Dura-Vent Horizontal Installation................................16

Dura-Vent Vertical Termination Installation.................17

Offset Chart................................................................18

Cathedral Ceiling .......................................................19

Support Extension - Round or Square........................19

Gas Connection..........................................................19

System Data...............................................................19

Aeration Adjustment ...................................................20

Gas Pipe Pressure Testing.........................................20

S.I.T. Valve Description...............................................20

Conversion from NG to LPG.......................................21

Conversion to Lower BTU ..........................................23

Log Set Installation.....................................................24

Optional Double Door Installation...............................26

Decorative Door Grill Installation................................26

Tile Inset Installation...................................................26

Door Hinge Removal..................................................27

Wiring Diagram...........................................................28

Optional Remote Control Installation..........................29

4 Hampton HG35-1 Direct Vent Freestanding Gas Stove

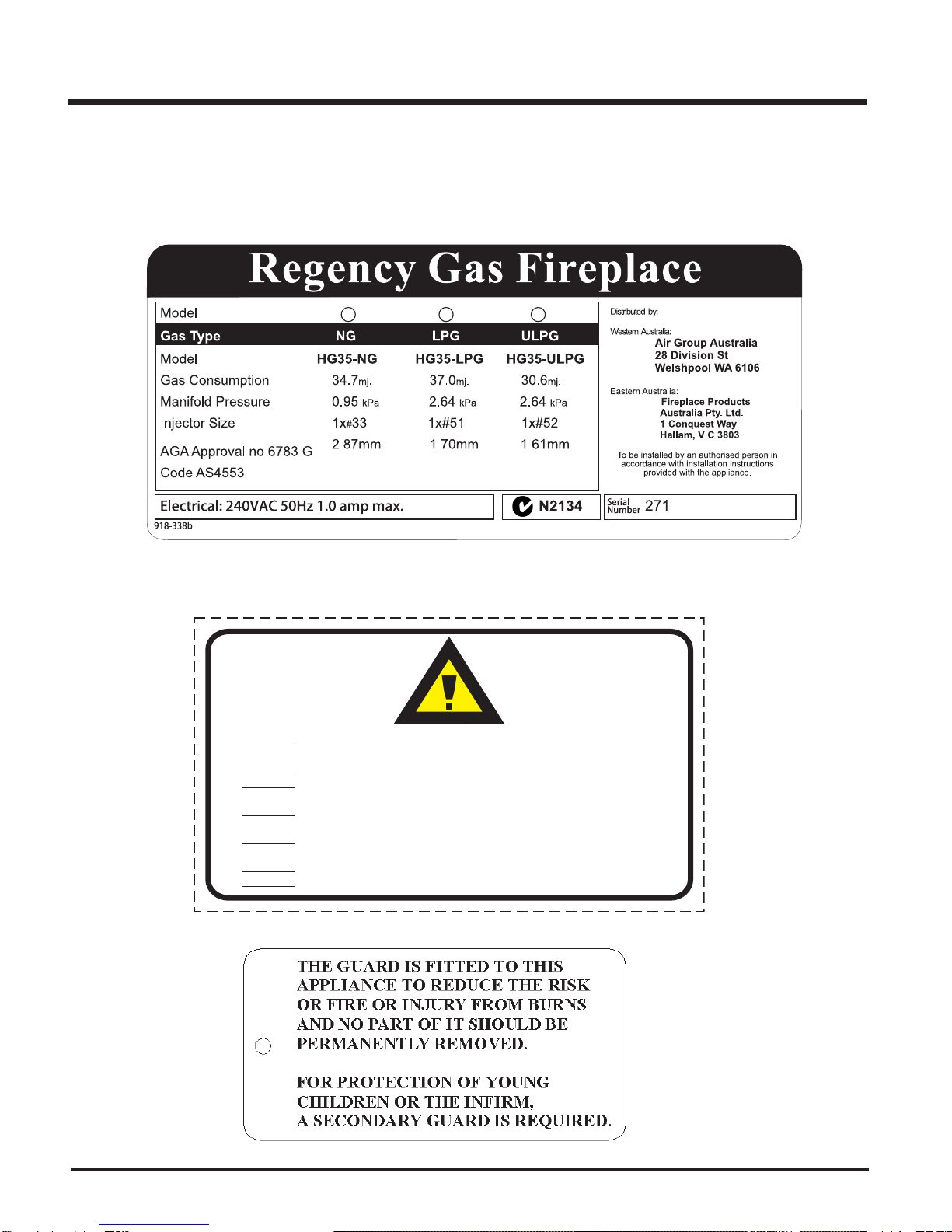

SAFETY LABEL

Thisisacopyofthelabelthataccompanieseach

HamptonGasFireplace.Wehaveprintedacopy

of the contents here for your review.

NOTE: Hampton units are constantly being im-

proved. Check the label on the unit and if there is a

difference, the label on the unit is the correct one.

DO NO T

OPERATE THIS APPLIANCE BEFORE READING THE

INSTRUCTIONS BOOKLET.

PLACE ARTICLES ON OR AGAINST THIS APPLIANCE

STORE CHEMICALS OR FLAMMABLE MATERIALS

SPRAY AEROSOLS IN THE VICINITY OF THIS

APPLIANCE WHILE IN OPERATION.

OPERATE WITH PANELS, COVERS OR GUARDS

REMOVED FROM THIS APPLIANCE.

ENCLOSE THIS APPLIANCE.

MODIFY THIS APPLIANCE.

NEAR THIS APPLIANCE.

DO NO T

908-602a

(Australia Only)

Hampton HG35-1 Direct Vent Freestanding Gas Stove 5

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The Direct Vent Freestanding Gas Stove must

be installed in accordance with these instruc-

tions. Carefully read all the instructions in this

manual ﬁrst. Consult the building authority

having jurisdiction to determine the need for a

permit prior to starting the installation.

Note: Failure to follow the instructions

could cause a malfunction of the

heater which could result in death,

serious bodily injury, and/or prop-

erty damage. Failure to follow these

instructions may also void your ﬁre

insurance and/or warranty.

Note: These instructions take precedence

over Simpson Dura-Vent instruc-

tions.

SPECIFICATIONS

Fuels: HG35-NG is approved for use with

natural gas.

HG35-LPG is approved for use with

liqueﬁed petroleum gases (LPG).

HG35-ULPGisapprovedforusewith

a propane butane mixture (ULPG).

Electrical: 240V A.C. system.

Circulation Fan: Two Speed, 125/75.

Log Sets: Ceramic ﬁbre, 7 per set.

Flue System: Coaxial (6-5/8" outer / 4" inner

liner) rigid ﬂue and termination cap.

The efﬁciency rating of the appliance is a

product thermal efﬁciency rating determined

under continuous operating conditions and

was determined independent of any installed

system.

INSTALLATION

INSTALLATION AND REPAIRS

SHOULD BE DONE BY A QUALI-

FIED SERVICE PERSON. THIS AP-

PLIANCESHOULDBEINSTALLED,

REPAIRED, INSPECTED BEFORE

USEANDAT LEASTANNUALLYBY

A QUALIFIED SERVICE PERSON.

MOREFREQUENTCLEANINGMAY

BEREQUIREDDUETOEXCESSIVE

LINTFROMCARPETING,ETC. ITIS

IMPERATIVE THAT THE CONTROL

COMPARTMENT, BURNERS AND

CIRCULATINGAIRPASSAGEWAYS

OF THE APPLIANCE BE KEPT

CLEAN.

BEFORE YOU START

The HG35 gas stove must be installed in ac-

cordancewiththeseinstructions.Carefullyread

all the instructions in this manual ﬁrst. Consult

the authority having jurisdiction if you require

a permit.

DUE TO HIGH TEMPERATURES,

THE APPLIANCE SHOULD BE

LOCATED OUT OF TRAFFIC AND

AWAY FROM FURNITURE AND

DRAPERIES.

WARNING: FAILURE TO INSTALL

THIS APPLIANCE CORRECTLY

WILLVOIDYOURWARRANTYAND

MAY CAUSE A SERIOUS HOUSE

FIRE.

CHILDRENANDADULTS SHOULD

BEALERTEDTOTHEHAZARDSOF

HIGHSURFACETEMPERATURES,

ESPECIALLY THE FIREPLACE

GLASS,ANDSHOULD STAYAWAY

TO AVOID BURNS OR CLOTHING

IGNITION.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN

THEYAREINTHESAMEROOMAS

THE APPLIANCE.

CLOTHING OR OTHER FLAM-

MABLE MATERIAL SHOULD NOT

BE PLACED ON OR NEAR THE

APPLIANCE.

1) Provide adequate clearances for servicing,

properoperationandaroundtheairopenings

into the combustion chamber.

2) The appliance must be installed on a ﬂat,

solid,continuoussurface(e.g.wood,metal,

concrete).Thismaybetheﬂoor,or itcanbe

raiseduponaplatformtoenhanceitsvisual

impact. The appliance may be installed on

carpeting, tile, wood ﬂooring or other com-

bustible material, because the appliance's

baseextends the full width and depth of the

appliance. The Direct Vent Freestanding

GasStove canbeinstalled in awidevariety

of ways and will ﬁt nearly any room layout.

It may be installed in a recessed position,

framed out into the room, or across a cor-

ner.

3) The DirectVentFreestandingGasStove is

approvedforalcoveinstallations,whichmeet

the clearances listed on page 6. This unit

is approved for manufactured home instal-

lations, see page 7 and pages 9 and 10 for

the required ﬂue arrangements. If installed

into a manufactured home the unit must be

bolted down to the ﬂoor.

4) This appliance is Listed for bedroom instal-

lations when used with a Listed Millivolt

Thermostat. Some areas may have further

requirements, check local codes before

installation.

5) This appliance is Listed for Alcove installa-

tions,maintainminimumAlcove clearances

asfollows, minimumwidthof40"(1016mm),

a maximum depth of 36" (914mm), and

minimum ceiling height of 64" (1626mm)

from ﬂoor to ceiling.

6) We recommend that you plan your instal-

lation on paper using exact measurements

for clearances and ﬂoor protection before

actually installing this appliance. Have a

qualiﬁedbuildinginspectorreviewyourplans

before installation.

6 Hampton HG35-1 Direct Vent Freestanding Gas Stove

INSTALLATION

CHECKLIST

1) CheckClearancestoCombustibles,location

of unit and ﬂueing requirements.

2) Set ﬂue restrictors.

3) Install ﬂueting: Check all ﬂueing require-

ments. Vertical Termination with Co-linear

Flex System. Horizontal Termination Kits.

Dura-Vent Termination Kits.

4) Make gas connections. Test the pilot.

Convert to LPG if desired.

5) Test Gas Pressure.

6) Install logs and embers.

7) Install optional Remote Control.

8) Final check.

Before leaving this unit with the customer, the

installer must ensure that the appliance is ﬁr-

ing correctly and operation fully explained

to customer.

This includes:

1) Clockingtheappliancetoensurethecorrect

ﬁringrate(ratenoted onlabel)after burning

appliance for 15 minutes.

2) Ifrequired,adjustingtheprimaryairtoensure

that the ﬂame does not carbon. First allow

the unit to burn for 15-20 min. to stabilize.

CAUTION:Any alterationto theproduct that

causes sooting or carboning that results

in damage is not the responsibility of the

manufacturer.

CLEARANCES TO

COMBUSTIBLES

Theclearanceslisted are MINIMUM distances.

Measure the clearance to both the appliance

and the chimney connector. The farthest

distance is correct if the two clearances do

not coincide.

Forexample, ifthe applianceisset asindicated

in one of the ﬁgures but the connector is too

close,movethestoveuntilthecorrectclearance

to the connector is obtained.

This appliance may be installed only with the

clearances as shown in the situations pictured.

Donotcombineclearancesfromonetypeof

installation with another in order to achieve

closer clearances.

Thisunitcanbeinstalledonasolidcombustible

surface like a wood ﬂoor. This unit can also be

installed directly on carpeting or vinyl.

Use the minimum clearances shown in the

diagrams below:

HG35-NG, HG35-LPG

& HG35-ULPG Clearances

A Side Wall to Unit 6-1/2" / 165 mm

B Back Wall to Unit 6" / 152 mm

C Vertical Flue Pipe to Back Wall

2" / 50 mm

E Unit Corner to Wall 2" /50 mm

Unit Top to Alcove Ceiling 36" / 914 mm

Minimum ceiling height is 36" /914 mm from

top of unit.

GENERAL SAFETY

INFORMATION

1) The appliance shall be installed in accord-

ance with the manufacturer's installation

instructions,local gas ﬁtting regulations,

municipal building codes, water supply

regulations,electricalwiringregulations,with

AS5601-2004 (AGA gas installation code)

NZS 5261 (New Zealand)

2) Installation and repair should be done

ONLY by an authorised person.

3) DO NOT CONNECT TO MASONARY

FLUE.

4) Thisappliance must be connectedto the

speciﬁed ﬂue and termination cap to the

outside of the building envelope. Never

ﬂueto anotherroom or insidea building.

Make sure that the ﬂue is ﬁtted as per

Flueing instructions.

5) Inspecttheﬂueingsystemannuallyforblock-

age and any signs of deterioration.

6) Flueing terminals shall not be recessed into

a wall or siding.

7) Anysafetyglassremovedforservicingmust

be replaced prior to operating the appli-

ance.

8) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the

ﬁreplace.

9) Wearglovesandsafetyglassesforprotection

while doing required maintenance.

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for

termination.

11) Under no circumstances should this ap-

pliance be modiﬁed. Parts that have to be

removed for servicing should be replaced

prior to operating this appliance.

12) Installationandanyrepairstothisappliance

should be done by an authorised service

person.Anauthorisedservicepersonshould

be called to inspect this appliance annually.

Make it a practice to have all of your gas

appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.)

be used in this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and

other ﬂammable vapours and liquids).

Hampton HG35-1 Direct Vent Freestanding Gas Stove 7

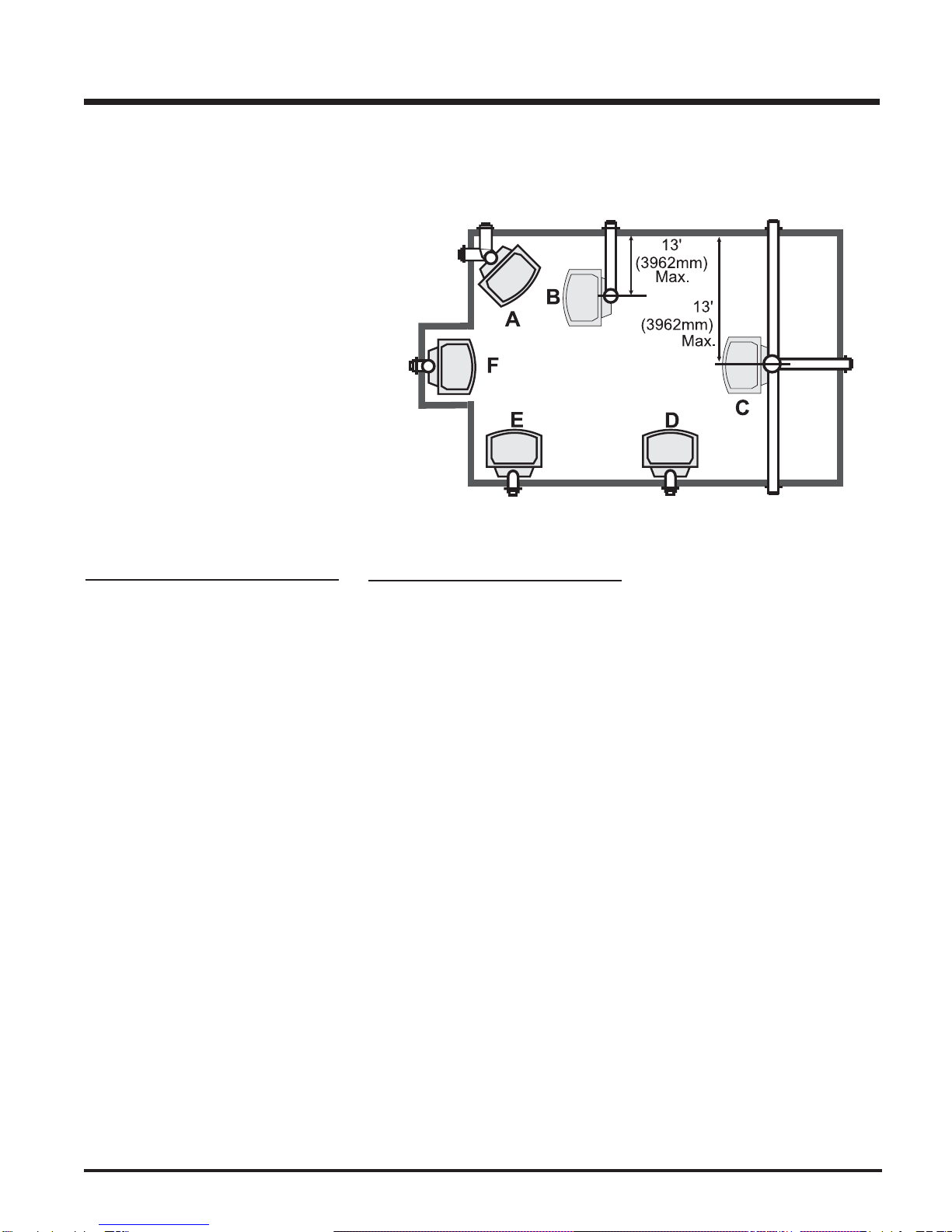

LOCATING YOUR

GAS STOVE

A) Cross Corner

B) Room Divider

C) Island

D) Flat on Wall

E) Flat on Wall Corner

F) Flush with Wall/Alcove

Refer to "Exterior Flue Terminal Locations"

section for ﬂue termination requirements.

Whenselectingalocationforyourstove,ensure

thattheclearanceslistedaboveare metaswell

asensuringthat there is adequate accessibility

for servicing and proper operation.

INSTALLATION

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided.

3) Appliance must be anchored to the ﬂoor

with the supplied anchoring methods.

COMBUSTION AND

VENTILATION AIR

Thecombustionairfromthisapplianceisdrawn

fromoutside thebuildingthrough the outerﬂue.

Extraprovisionforcombustionairinsidethe

room is not required.

8 Hampton HG35-1 Direct Vent Freestanding Gas Stove

INSTALLATION

PRECAUTIONS

Theseﬂueingsystemsareengineeredproducts

thathavebeendesignedandtestedforusewith

the HG35-NG, HG35-LPG, and HG35-ULPG.

The warranty will be voided and serious ﬁre,

health or other safety hazards may result from

any of the following actions:

1) Installation of any damaged Direct Vent

component

2) UnauthorizedmodiﬁcationoftheDirectVent

System

3) Installationofanycomponentpartnotmanu-

facturedorapprovedbySimpsonDura-Vent

or FPI Fireplace Products International

Ltd.

4) InstallationotherthanasinstructedbySimp-

son Dura-Vent and FPI Fireplace Products

International Ltd.

WARNING: Always maintain re-

quired clearances (air spaces) to

nearby combustibles to prevent a

ﬁre hazard. Do not ﬁll air spaces

with insulation.

Besure to check the ﬂuetermination clearance

requirementsfromdecks, windows, sofﬁts, gas

regulators,airsupplyinletsandpublicwalkways

as speciﬁed in the Exterior Flue Terminal Loca-

tions section and in your local building codes.

The gas appliance and ﬂue system must be

ﬂued directly to the outside of the building,

and never be attached to a chimney serving

a separate solid fuel or gas-burning appli-

ance. Each direct vent gas appliance must use

it's own separate ﬂue system. Common ﬂue

systems are prohibited.

SAFETY

PRECAUTIONS FOR

THE INSTALLER

1) Wear gloves and safety glasses for protec-

tion.

2) Exercise extreme caution when using lad-

ders or on roof tops.

3) Be aware of electrical wiring locations in

walls and ceilings.

FLUEING

INTRODUCTION

TheHorizontalTerminationKitandtheSimpson

Dura-Vent Direct Vent System Model DV-GS

venting systems, in combination with the

Direct Vent Freestanding Gas Stoves, HG35-

NG, HG35-LPG, and HG35-ULPG have been

tested and listed as direct ﬂue heater systems

by AGA.

Theseunitsusethe"balanced ﬂue" technology

Co-Axial system. The inner liner ﬂues products

ofcombustiontotheoutsidewhiletheouterpipe

draws outside combustion air into the combus-

tion chamber thereby eliminating the need to

use heated room air for combustion and losing

warm room air up the chimney.

Note: These ﬂue pipes must not be

connected to any other appliance.

Thegasapplianceandﬂuesystemmustbeﬂued

directly to the outside of the building, and never

beattachedtoachimneyservingaseparatesolid

fuel or gas burning appliance. Each direct vent

gas appliance must use it's own separate ﬂue

system. Common ﬂue systems are prohibited.

IMPORTANT

Readallinstructionscarefullybeforestartingthe

installation. Failure to follow these instructions

maycreateaﬁreorother safetyhazard,andwill

void the warranty. Be sure to check the ﬂueing

and clearance to combustible requirements.

Consult your local building codes before begin-

ning installation.

Thelocationoftheterminationcapmustconform

totherequirementsintheExteriorFlueTerminal

Locations diagram.

FLUE RESTRICTOR

POSITION

To set the Flue restriction as indicated in the

Flueing Arrangement diagrams on page 10,

simply loosen the screws and push the ﬂue

restrictor plate to the correct position. Tighten

the screws.

Horizontal Termination:

Flue Restrictor setting at 36,000 Btu/h

Vertical Termination:

Flue Restrictor setting at 36,000 Btu/h

Hampton HG35-1 Direct Vent Freestanding Gas Stove 9

INSTALLATION

EXTERIOR FLUE TERMINAL LOCATIONS

Minimum clearances required for balanced ﬂue terminals or

the ﬂue terminals of outdoor appliances

according to AS5601-2004 (AGA gas installation code) or NZS 5261 (New Zealand)

Minimum

Clearance (mm)

a Below eaves, balconies or other projections:

- Appliances up to 50 MJ/h input 300

- Appliances over 50 MJ/h input 500

b From the ground or above a balcony 300

c From a return wall or external corner 500

d From a gas meter (M) 1000

e From an electricity meter or fuse box (P) 500

f From a drain or soil pipe 150

g Horizontal from any building structure (unless appliance is approved

for closer installation) or obstruction facing a terminal 500

h From any other ﬂue terminal, cowl or combustion air intake 500

j Horizontally from an openable window, door, or non-mechanical air inlet, or

any other opening into a building, with the exception of sub-ﬂoor ventilation

(see also Note (I)):

- Appliances up to 150 MJ/h input 500

- Appliances over 150 MJ/h input 1500

k Vertically below an openable window, door, or non-mechanical air inlet,

or any other opening into a building, with the exception of sub-ﬂoor ventilation

(see also Note (I)): see table below

Clearance 'k' in mm

Space Heaters All Other Appliances

Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input

input to 150 MJ/h input

150 500 1000 1500

NOTES:

(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.

(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.

(III)Prohibited area below electricity meter or fuse box extends to ground level.

(IV)A ﬂue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides

and a free ﬂow of air at the appliance is achieved.

10 Hampton HG35-1 Direct Vent Freestanding Gas Stove

INSTALLATION

Offset to Vertical Terminations

FLUEING ARRANGEMENTS

Vertical Terminations Using

Dura-Vent Flueing System for

Residential Manufactured and Mobile Homes

Theshadedareainthediagrambelowshowsallallowablecombinationsofstraightverti-

cal and offset to vertical runs with vertical terminations. Maximum two 45oelbows.

If the ﬂue is ENCLOSED in a chase (min. size 9" (229mm) x 9" (229mm)) maintain a 1-1/4"

(32mm) clearance to combustibles.

May be installed in Manufactured (Mobile) Homes after ﬁrst sale.

Horizontal Terminations for All

Flueing Systems

Theshadedareasin thediagrambelowshow

all allowable combinations of vertical runs

with horizontal terminations. Maximum one

90Oelbow (two 45o elbows equal one 90o

elbow).

ULPG,LPG and Natural Gas:

Residential, Manufactured and

Mobile Homes Installations

The ﬂueing arrangements diagrammed below,

haveamin.of75%(ﬂueloss)efﬁciencywithFan

Off,asrequiredformanufacturedhomes.(Actual

efﬁciency may be as high as 85%)

May be installed in Manufactured (Mobile)

Homes after ﬁrst sale.

ROTATING 45OELBOW FOR STRAIGHT HORIZONTAL TERMINATIONS

1)Removeall4screwsthatsecure

the elbow to the unit using a 1/4"

magnetic nut driver.

2) Rotate the elbow 180o

3) Secure the elbow by securing

it with the 4 screws.

Remove all 4 screws

and washers

Horizontal Run (Feet)

4'9-3/4"(1.47m)Min.

6'(1.8m)

4'9-3/4"

(1.5m)

5'(1.5m)

3’

(0.9m)

Min.

1'(0.3m)

10'(3.0m)Max.

13"(4.0m)

Vertical Height (feet)

20'-6"(6.2)Max.

Restrictor

Position

(A)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HAMPTON BAY Kamin im Innenbereich Handbücher

HAMPTON BAY

HAMPTON BAY H15 Kurzanleitung

HAMPTON BAY

HAMPTON BAY H27-NG10 Kurzanleitung

HAMPTON BAY

HAMPTON BAY 23WM9083-PT85 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 75959 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY H27U-NG Kurzanleitung

HAMPTON BAY

HAMPTON BAY 80380/23WM9083-NB75 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY H35-10 Kurzanleitung

HAMPTON BAY

HAMPTON BAY H35E-11 Kurzanleitung

HAMPTON BAY

HAMPTON BAY 25-791-68-Y Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY M313 series Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 23MM6072-O128 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HI1155 Kurzanleitung

HAMPTON BAY

HAMPTON BAY Hampton H15-NG Kurzanleitung

HAMPTON BAY

HAMPTON BAY Wood Insert HI200 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY H15-NG10 Kurzanleitung

HAMPTON BAY

HAMPTON BAY HI300 Kurzanleitung

HAMPTON BAY

HAMPTON BAY SF103-18H Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY DFI030ARU Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY H15 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HI1150 Kurzanleitung

HAMPTON BAY

HAMPTON BAY HI300 Kurzanleitung

HAMPTON BAY

HAMPTON BAY Hampton H25-NG Kurzanleitung

HAMPTON BAY

HAMPTON BAY H35-LP1 Kurzanleitung

HAMPTON BAY

HAMPTON BAY DERRY GLF-2002 Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
