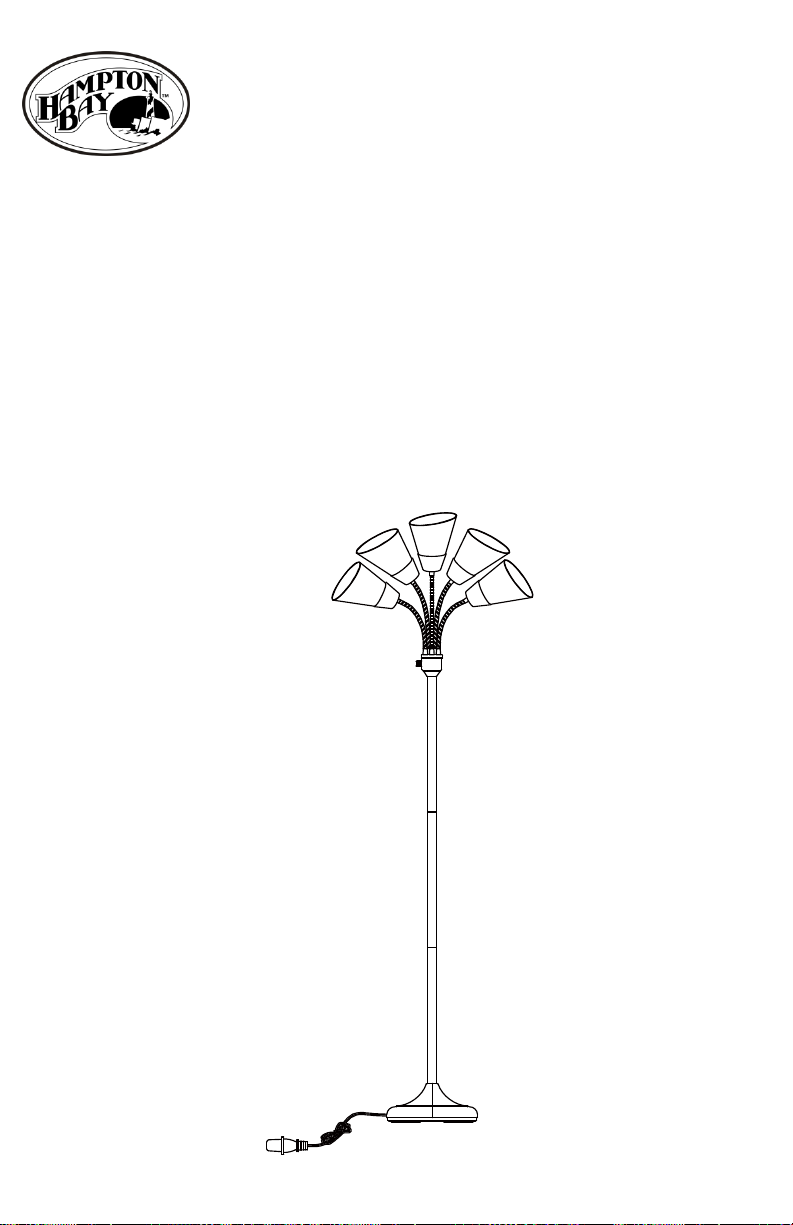

INSTRUCTION MANUAL

Floor Lamp with CFL Bulbs

Home Depot SKU 536 579

(UPC 798919079179)

Page 2

Thank you for purchasing this Hampton Bay interior

portable luminaire. This product has been manufactured

to the highest standards of safety and quality. The

durable finish and shade design provide for care-free

maintenance.

FEATURES:

1. Five gooseneck arms allow for maximum light

direction.

2. Lamp holder may be fitted with a CFL equivalent

energy-saving bulb(s).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local Home Depot, please call

our Customer Service Team at 1-877-527-0313 or visit

www.homedepot.com. Please reference your SKU

536 579 (UPC 798919079179) Floor Lamp with CFL

bulbs when speaking to a Customer Service agent.

CAUTION:

1. Before starting to assemble your portable luminaire,

spread all parts out on a clean flat surface. Inspect each

part for defects that may have occurred during shipping.

Be careful when unpacking the lamp since the wires are

connected. If the wires are pulled out of their connectors,

it may result in a bad connection.

Page 3

Important: Inspect the wire insulation for any cuts,

abrasions or exposed copper that may have resulted

during shipping. If there is a defect in the wire, DO NOT

continue the assembly operation. Please call our

Customer Service Team at 1-877-527-0313.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU

HAVE ANY ELECTRICAL QUESTIONS.

3. Keep your receipt and these Instructions for Proof of

Purchase.

4. This portable lamp has a polarized plug (one blade is

wider than the other) as a safety feature to reduce the risk

of electric shock. This plug will fit in a polarized outlet

only one way. If the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit, contact a qualified

electrician. Never use with an extension cord unless plug

can be fully inserted. Do not alter the plug. CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT AND FULLY

INSERT.

Page 4

PARTS INCLUDED FOR ASSEMBLY (parts are not

to scale):

1 ea –

Base (A)

3 ea –

Pole

(B-D)

1 ea –

Shade

holder (E

& H)

5 ea-

Shades

(F)

5 ea –

Socket

Ring (I)

5 ea-

13 W

CFL

Bulb

Page 5

ASSEMBLY INSTRUCTIONS:

1. Begin assembly at the bottom of the lamp.

2. Insert lamp pole (B) into base (A) and turn

clockwise to tighten.

3. Insert lamp pole (C) into lamp pole (B) and turn

clockwise to tighten.

4. Insert lamp pole (D) into lamp pole (C) and turn

clockwise to tighten.

5. Insert shade holder (E) into lamp pole (D) and turn

clockwise to tighten. Gently pull any excess cord

from point (G) so that the parts fit.

6. Put shade (F) on holder (H) and turn the socket ring

(I) clockwise to tighten. Repeat this step with the

other shades.

7. Install (5) 13W maximum CFL bulbs (included) or

(5) 60W maximum Type A bulbs (not included). Do

not use 3-way bulbs or halogen bulbs in this fixture.

Page 6

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean simply wipe with a soft dry cloth.

2. Do not use any cleaners with chemicals, solvents or

harsh abrasives.

Possible

Cause

Corrective Action

Bulb will

not light.

1. Bulb is burned

out.

1. Replace light

bulb.

2. Power is off.

2. Make sure power

supply is on.

3. Cord not plugged

in.

3. Make sure cord

is plugged into the

outlet.

4. Circuit breaker

off.

4. Make sure circuit

breaker is to the

„on‟ position.

Fuse

blows or

circuit

breaker

trips

when

light is

turned on.

1. Exposed wire

1. Discontinue use.

Unplug unit from

the wall and contact

a qualified

electrician or call

the Home Depot

Customer Service

Team at

1-877-527-0313.

Page 7

LIMITED WARRANTY

The manufacturer warrants this portable luminaire to be free

from defects in materials and workmanship for a period of one

(1) year from date of purchase. This warranty applies only to the

original consumer purchaser and only to products used in normal

use and service. If this product is found to be defective, the

manufacturer‟s only obligation, and your exclusive remedy, is

the repair or replacement of the product at the manufacturer‟s

discretion, provided that the product has not been damaged

through misuse, abuse, accident, modifications, alterations,

neglect or mishandling. This warranty shall not apply to any

product that is found to have been improperly installed, setup, or

used in any way not in accordance with the instruction supplied

with the product. This warranty shall not apply to a failure of the

product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating

to faulty material or workmanship. This warranty shall not apply

to the finish on any portion of the product, such as surface and/or

weathering, as this is considered normal wear and tear. The

manufacturer does not warrant and specially disclaims any

warranty, whether express or implied, of fitness for a

particular purpose, other than the warranty contained

herein. The manufacturer specifically disclaims any liability

and shall not be liable for any consequential or incidental

loss or damage, including but not limited to any labor /

expense costs involved in the replacement or repair of said

product.

Page 8

Page 9

MANUAL DE INSTRUCCION

Lámpara de Pie con Bombillos CFL

Home Depot SKU 536 579

(UPC 798919079179)

Page 10

Gracias por comprar esta luminaria de interiores portátil

Hampton Bay. Este producto ha sido fabricado con los

estándares más altos de seguridad y calidad. El acabado

duradero y el diseño de la pantalla aseguran un

mantenimiento despreocupado.

CARACTERISTICAS:

1. Cinco brazos flexible de cuello de ganso permiten que

la luz sea dirigida al máximo.

2. El portalámparas puede ser encajado con un bombillo

CFL que ahorra energía.

PREGUNTAS, PROBLEMAS, PARTES FALTANTES:

Antes de devolver a su tienda local de Home Depot, por

favor llame a nuestro Equipo de Servicio al Cliente al 1-

877-527-0313 o visite www.homedepot.com. Cuando

hable con un agente de Servicio al Cliente por favor

refiérase a su SKU 536 579 (UPC 798919079179)

Lámpara de Pie con Bombillos CFL.

PRECAUCIÓN:

1. Antes de comenzar a ensamblar su luminaria portátil,

extienda todas las partes en una superficie plana y limpia.

Inspeccione cada parte para defectos que pueden haber

ocurrido durante el envio. Tenga cuidado al desempacar

la lámpara ya que los cables están conectados. Si los
