HAMPTON BAY STONEHAM Bedienungsanleitung

Item #1005 316 960

1005 173 849

Model # 2195FPA-1-34

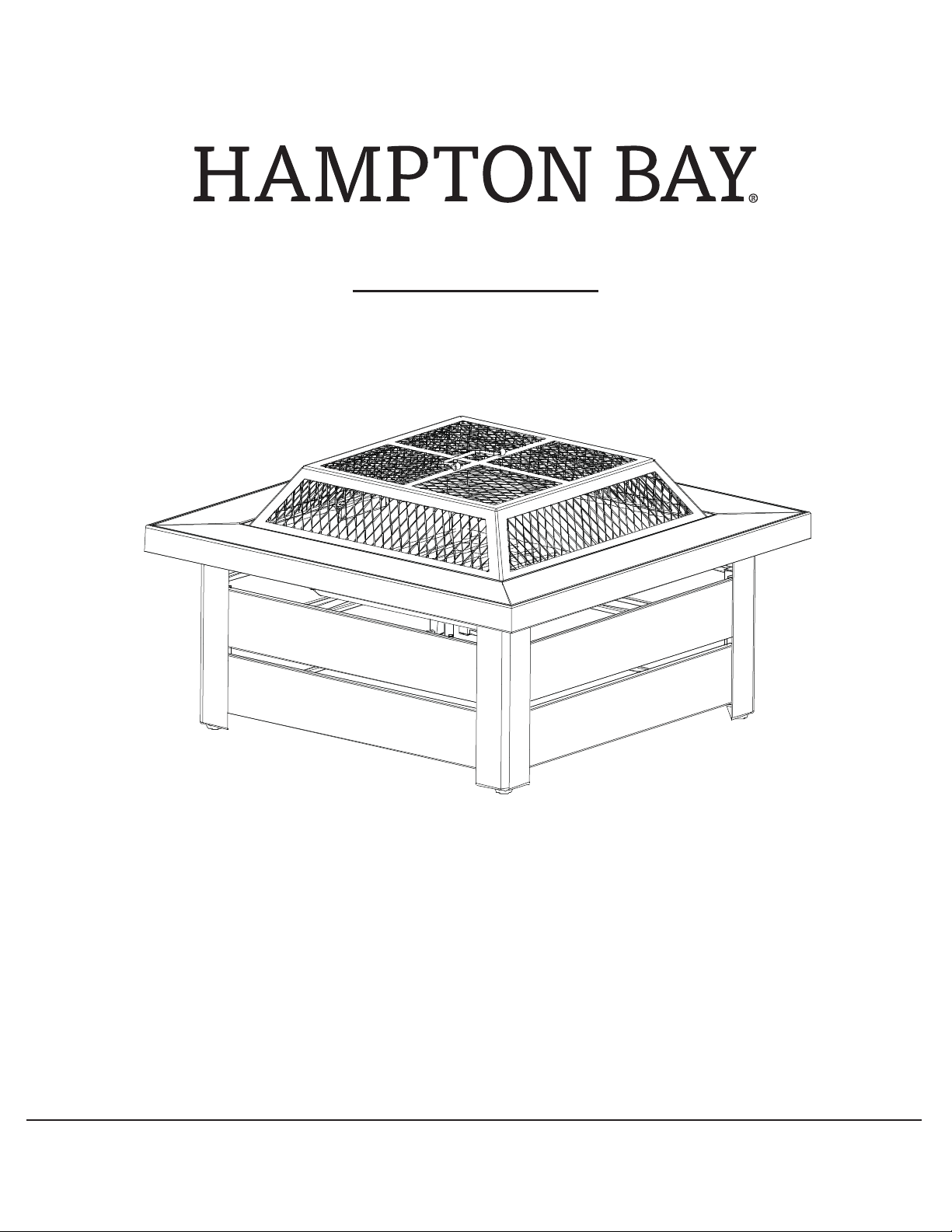

STONEHAM 34” SQUARE STEEL TILE WOOD FIRE PIT

USE AND CARE GUIDE

THANK YOU

We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this table. we strive to

continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Hampton Bay!

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Table of Contents

Table of Contents ................................... 2

Important Safety Instructions ........................ 2

Read All Instructions Before Use ...................... 2

Save These Instructions.............................

What is Covered...................................

What is Not Covered................................

Warranty .......................................... 3

Planning Assembly.................................

Tools and hardware required.........................

Tending the re ...................................

Extinguishing the re ..............................

Hardware included.................................

Pre-assembly ..................................... 3

Pre-assembly ...................................... 4

Inspecting ....................................... 7

Assembly.......................................... 5

Operation ......................................... 6

Maintenance ...................................... 7

Cleaning and Storage ................................ 7

Important Safety Instructions

SAVE THESE INSTRUCTIONS

WARNING: This table was made for the explicit purpose of providing outdoor functions and is not to be used as a toy.

This product is intended for normal outdoor use; however, the manufacturer recommends storing and / or covering this set

when any formidable / severe weather is approaching.

WARNING: Do not locate this product near open ames. Do not use this product as a support. Do not shake, lean or climb on the

product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is

NOT intended for commercial use. Commercial use will void the warranty.

READ ALL INSTRUCTIONS BEFORE USE

WARNING: When not in use, secure the product in a

cool and covered location.

WARNING: This table unit is heavy, and may require

two adults for safe assembly.

CAUTION: Do not locate the product near any

heat source.

To reduce the risk of injury to persons:

Close supervision is necessary when this product is used by or

near children, or disabled persons, if applicable.

Use this furnishing only for its intended use as described in these

instructions. Do not use attachments not recommended by the

manufacturer.

Please keep children out of the assembly area during assembly.

This table is not intended to support an umbrella. Umbrella must

have a suitable base or stand.

□

WARNING: Do not place heavy objects on the table.

3 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Pre-assembly

PLANNING ASSEMBLY

TOOLS AND HARDWARE REQUIRED

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

NOTE: More than one person may be required

to assemble this product.

Part Description Quantity

AA Bolt 4

BB Gasket 12

CC Nut 8

DD Allen key 1

Wrench 1

2 YEAR FRAME WARRANTY

WHAT IS COVERED

We warrant the frame to be free of manufacturing defects to the original purchaser for two years.

WHAT IS NOT COVERED

It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover

commercial use, hardware, acts of nature, re, freezing and abusive use. In addition, purchased parts are not covered under this warranty.

We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit HAMPTONBAY.COM.

NOTE: Read all instructions before assembly. To avoid

damaging this product, assemble it on a soft,

non-abrasive surface such as carpet or cardboard.

DD EE

BB CC

Warranty

Pre-assembly (continued)

PACKAGE CONTENTS

Part Description Quantity

A Table top 1

B Legged panel 2

C Legless panel 2

D Fire bowl 1

E Log grid 1

Fire poker

Mesh cover

A B C

DE F G

Attach the Legless panels(C) to the Legged panels(B) with nut(CC) & gasket(BB) onto screwpin.

□

5 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Assembly

□Place the table top(A) upside down on a soft surface.

□Attach legged panel(B)to the table top(A) with bolt(AA) & gasket(BB).

Don't tighten fully at this step.

NOTE: loosely tighten all bolts and nuts using allen key(DD) and wrench(EE) provided.

1 Attaching the legged panels to the table top

2 Attaching the legless panel to legged panel

□

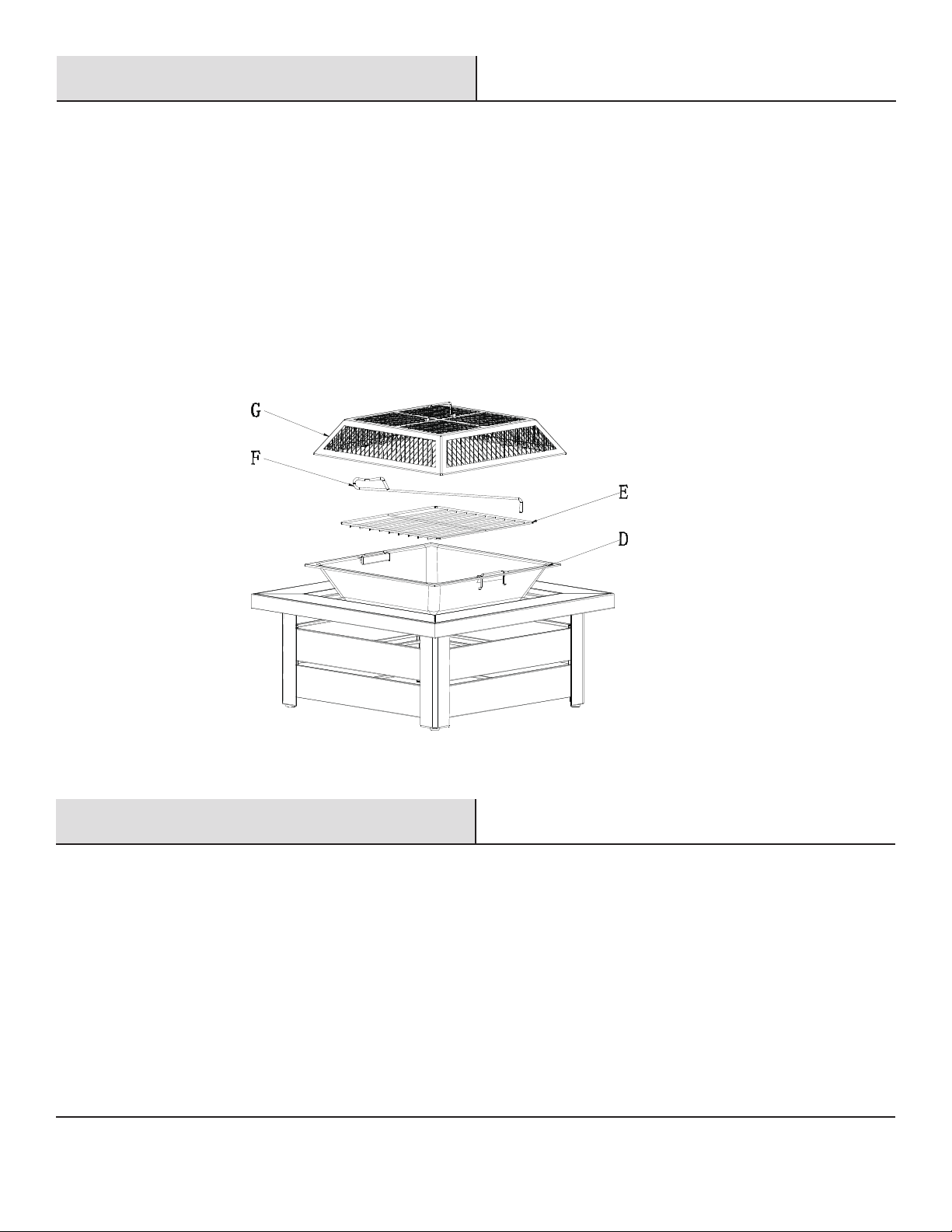

Once all of the bolts are in place, fully tighten the bolts.

□

Turn the table right side up.

□

Place all part on the table top(A).

□

Ensure that the table is tightly assembled and stable before use.

□

Assembly (continued)

Operation

TENDING THE FIRE

DO NOT add gasoline, kerosene, diesel fuel, lighter uid or alcohol to relight or enhance an existing re.

Use a match to light the kindling or re-starter.

Wait until glowing coals have developed before adding any additional wood. If additional wood is required,place the wood on top of

the coals, taking care not to shift the ashes.

EXTINGUISHING THE FIRE

Let the re burn itself out.

DO NOT use water to extinguish the re. Such action is dangerous and can cause irreversible damage to the re pit.

3 Tightening the bolts

□

7 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Maintenance

Cleaning and Storage

INSPECTING

If damage to any component is detected, DO NOT use the re pit until repairs are properly performed.

This re pit should be inspected on a regular basis to ensure product safety and longer product life. DO NOT attempt to inspect this re

pit until the re is COMPLETELY out and the re pit has COMPLETELY cooled. Check components for any signs of damage or rust.

□Wipe exterior surfaces with a mild dishwashing detergent or baking soda.

For stubborn surfaces, use a citrus-based degreaser and a nylon scrubbing brush.

Rinse and clean with water.

Remove built-up residue from components with a chimney cleaning product.

DO NOT move or store this re pit until the re is COMPLETELY out and the re pit is cool to the touch.

Once the re is out, the coals have completely cooled and the re pit can be safely handled, remove and properly dispose of the ashes.

Store the re pit in a clean and dry location to maximize product life.

Store the re pit assembled in a safe location away from children and pets.

□

WARNING: FUELS USED IN WOOD OR CHARCOAL BURNING

APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS,

CAN EXPOSE YOU TO CHEMICALS INCLUDING CARBON BLACK, WHICH

IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND

CARBON MONOXIDE, WHICH IS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE

HARM. For more information go to: www.P65Warnings.ca.gov.

NOTE: This re pit should be cleaned on a regular basis to promote safer experiences and longer

product life. After repeated use, a slight discoloration of the nish may occur. DO NOT attempt to clean this

re pit until the re is COMPLETELY out and the re pit has COMPLETELY cooled. DO NOT use oven cleaner

or abrasive cleaners as they will damage this product. DO NOT clean any part of this re pit in a self-cleaning

oven as this may damage the nish.

□

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Retain this manual for future use.
