Congratulations!

You have just purchased a TCO'99 approved and labeled product! Your

choice has provided you with a product developed for professional use.

Your purchase has also contributed to reducing the burden on the

environment and also to the further development of environmentally

adapted electronics products.

Why do we have environmentally labeled computers?

In many countries, environmental labeling has become an established

method for encouraging the adaptation of goods and services to the

environment. The main problem, as far as computers and other electronics

equipment are concerned, is that environmentally harmful substances are

used both in the products and during their manufacture. Since it is not so

far possible to satisfactorily recycle the majority of electronics equipment,

most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy

consumption levels, that are important from the viewpoints of both the work

(internal) and natural (external) environments. Since all methods of

electricity generation have a negative effect on the environment (e.g.acidic

and climate-influencing emissions, radioactive waste), it is vital to save

energy. Electronics equipment in offices is often left running continuously

and thereby consumes a lot of energy.

What does labeling involve?

This product meets the requirements for the TCO'99 scheme, which

provides for international and environmental labeling of personal computers.

The labeling scheme is developed as a joint effort by the TCO (The

Swedish Confederation of Professional Employees), by Svenska

Naturskyddsforeningen (The Swedish Society for Nature Conservation),

and by Statens Energimyndighet (The Swedish National Energy

Administration).

Approval requirements cover a wide range of issues: environment,

ergonomics, usability, emission of electric and magnetic fields, energy

consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use

of heavy metals, brominated and chlorinated flame retardants, CFCs

(freons) and chlorinated solvents, among other things. The product must be

prepared for recycling and the manufacturer is obliged to have an

environmental policy which must be adhered to in each country where the

company implements its operational policy.

The energy requirements include a demand that the computer and/or

display, after a certain period of inactivity, shall reduce its power

consumption to a lower level in one or more stages. The length of time to

reactivate the computer shall be reasonable for the user.

Labeled products must meet strict environmental demands, for example, in

respect of the reduction of electric and magnetic fields, physical and visual

ergonomics and good usability.

On the Back page of this folder, you will find a brief summary of the

environmental requirements met by this product. The complete

environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: +46 8 782 92 07

Email (Internet): [email protected]

Current information regarding TCO'99 approved and labeled products

may also be obtained via the Internet, using the address:

http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires,

casings and housings. Their purpose is to prevent, or at least to delay the

spread of fire. Up to 30% of the plastic in a computer casing can consist of

flame retardant substances. Most flame retardants contain bromine or

chloride, and those flame retardants are chemically related to another

group of environmental toxins, PCBs. Both the flame retardants containing

bromine or chloride and the PCBs are suspected of giving rise to severe

health effects, including reproductive damage in fish-eating birds and

mammals, due to the bio-accumulative*processes. Flame retardants have

been found in human blood and researchers fear that disturbances in

foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing

more than 25 grams must not contain flame retardants with organically

bound bromine or chlorine. Flame retardants are allowed in the printed

circuit boards since no substitutes are available.

Cadmium

Cadmium is present in rechargeable batteries and in the color-generating

layers of certain computer displays. Cadmium damages the nervous

system and is toxic in high doses. The relevant TCO'99 requirement states

that batteries, the color-generating layers of display screens and the

electrical or electronics components must not contain any cadmium.

Mercury

Mercury is sometimes found in batteries, relays and switches. It damages

the nervous system and is toxic in high doses. The relevant TCO'99

requirement states that batteries may not contain any mercury. It also

demands that mercury is not present in any of the electrical or electronics

components associated with the labeled unit.

*Bio-accumulative is defined as substances which accumulate within living

organisms

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may

be used during the manufacture and assembly of the product. CFCs (freons)

are sometimes used for washing printed circuit boards. CFCs break down

ozone and thereby damage the ozone layer in the stratosphere, causing

increased reception on earth of ultraviolet light with e.g. increased risks of

skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors.

Lead damages the nervous system and in higher doses, causes lead

poisoning. The relevant TCO´99 requirement permits the inclusion of lead

since no replacement has yet been developed.

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color

monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide proper protection against harmful interference to a

residential installation. This monitor generates, uses, and can radiate radio

frequency energy. Harmful interference to radio communication may be led

as a result if it‘s not properly installed and used. However, there is no

guarantee that interference will not occur in a particular installation. If this

monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to

correct interference by doing one or more of the following:

 Reorient or relocate the receiving antenna.

 Move the monitor and the receiver further away from each other.

 Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

 Consult your local dealer or an qualified technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded

power supply cord and the provided shielded video interface cable with

bonded ferrite cores. Also, any unauthorized changes or modifications to

this monitor would void the user‘s authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be

used to meet the emission level limits.

Content

Safety Precautions.............................................................................1

First Setup .........................................................................................2

Quick Installation................................................................................2

Front View of the Product ..................................................................3

Rear View of the Product...................................................................3

Using On Screen Display (OSD) Functions .......................................4

Supporting Timing Modes..................................................................7

Technical Information.........................................................................8

Care and Maintenance.......................................................................9

Troubleshooting .................................................................................9

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s

safety comes first. However, improper use or installation may result danger

to the monitor as well as to the user. Carefully go over the following

WARNINGS before installation and keep this guide handy.

WARNINGS:

 This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of

the power supply in your residence, consult your local dealer or power

company.

 Do not try to repair the monitor yourself as it contains no

user-serviceable parts. The monitor should only be repaired by a

qualified technician.

 Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power

cord is disconnected .

 Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

 Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

 Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not

directly onto the glass screen.

 Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

 Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories :

 Power cable.

 Audio cable.

 User guide.

Quick Installation

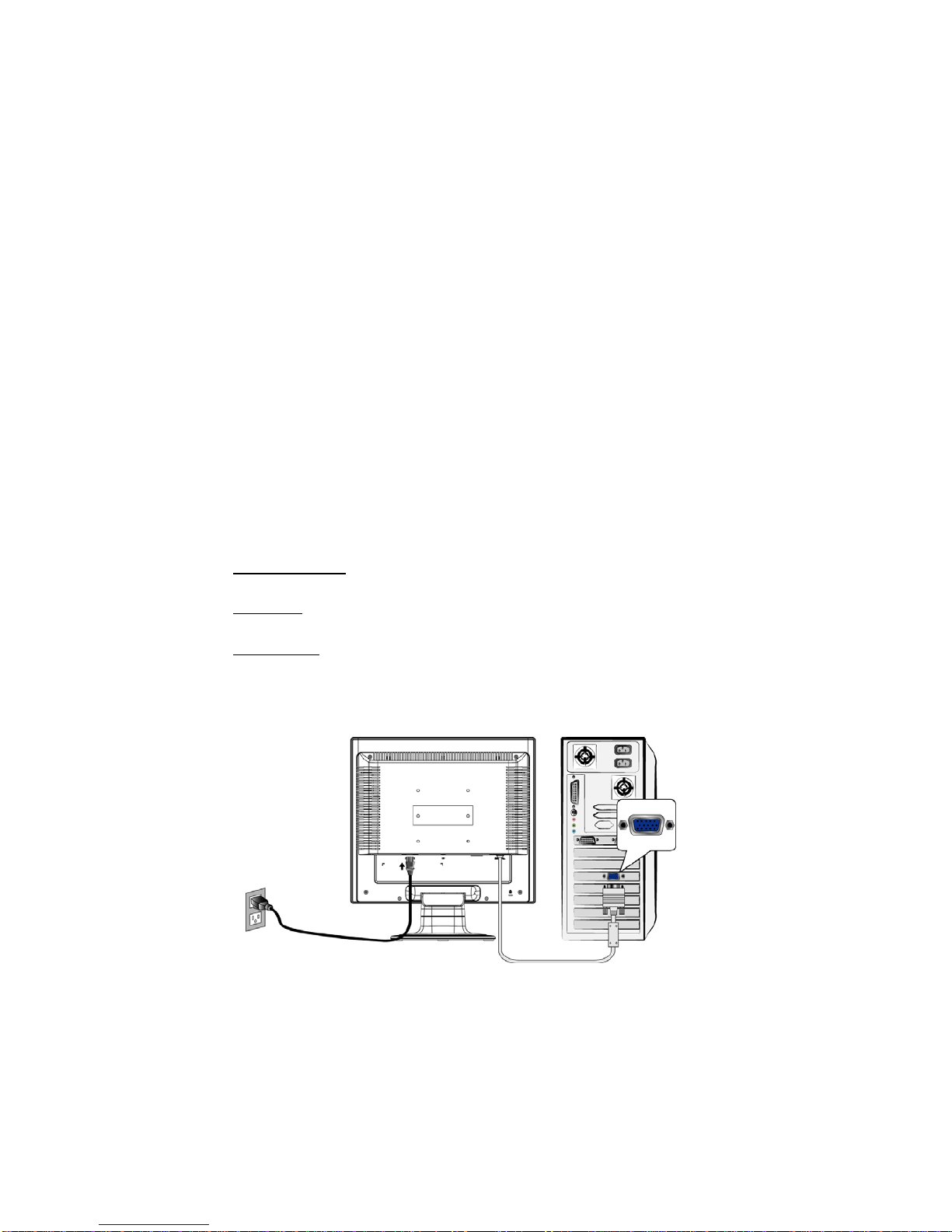

1. Connect video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video

cable ( D-Sub cable) to the computer.

2. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

3. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

4. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1280 x 1024 @ 60 Hz

Resolution Right-click on the Windows desktop > Properties > Settings >

“Desktop Area”. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for

instructions.

Example:

Power cable

D-Sub cable

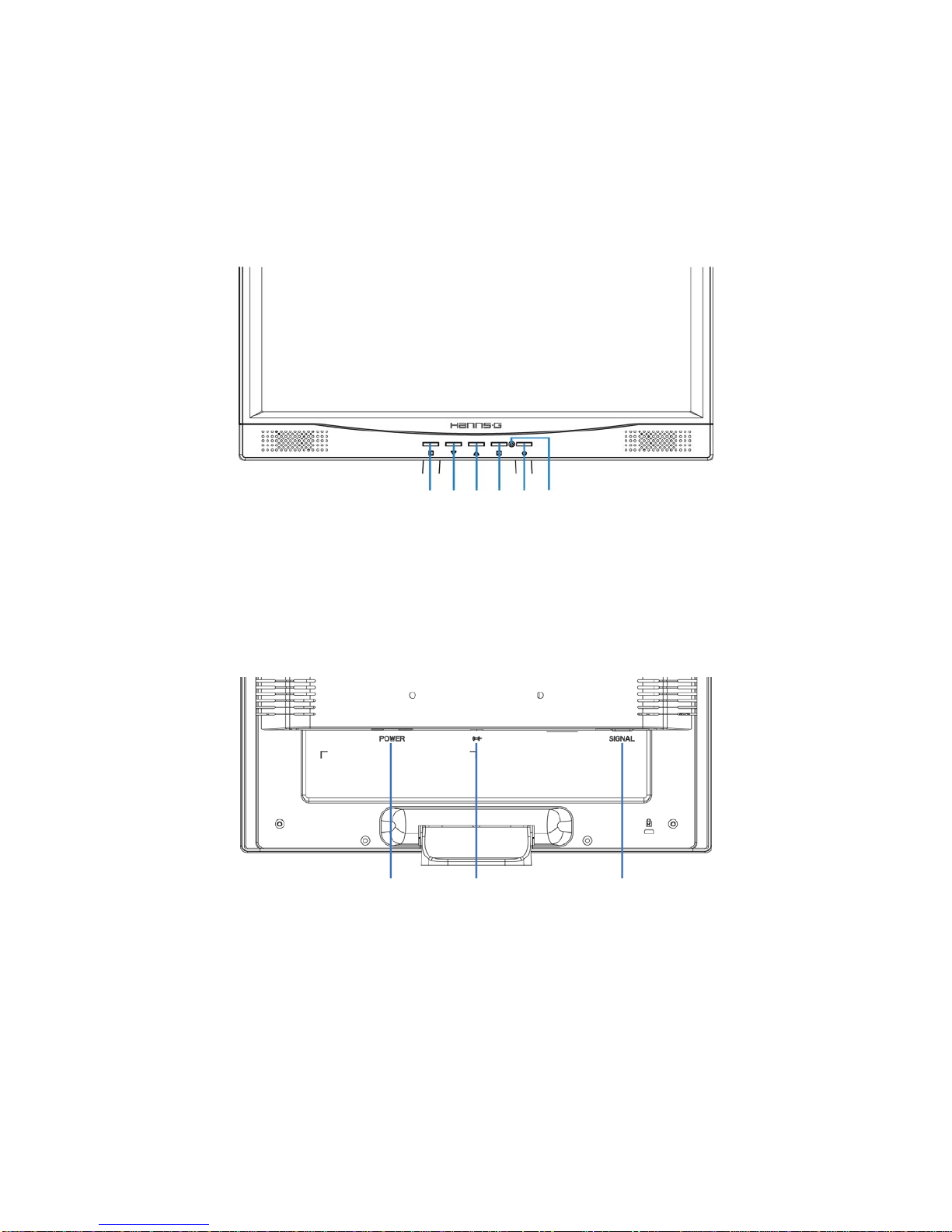

Front View of the Product

➊ ➋ ➌ ➍ ➎ ➏

➊ OSD TURN ON/OFF ➍ CONFIRMSELECTION

➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF

➌ SCROLL UP/INCREASE ➏ LED INDICATOR

Rear View of the Product

➐ ➑ ➒

➐ POWER INPUT ➒ VGA CABLE (D-SUB 15 PIN)

➑ AUDIO INPUT

Using On Screen Display (OSD) Functions

Display main menu.1

Exit from OSD menu.

Auto adjust the image when not in main menu.2

Confirm the selection.

Select the desired item when in OSD menu.▲or ▼

When not in OSD menu, it is to immediately activate Contrast/

Brightness. It should be change to Contrast/ Brightness by pressing

button 2.

▼+ ▲Recall both of Contrast and Brightness.

1 + ▼Power Lock (when not in OSD menu)

1 + ▲OSD Lock (when not in OSD menu)

Main Menu

Inhaltsverzeichnis

Andere Hanns.G Monitor Handbücher

Hanns.G

Hanns.G HQ191 Bedienungsanleitung

Hanns.G

Hanns.G AG172DP Bedienungsanleitung

Hanns.G

Hanns.G HH241DPB Bedienungsanleitung

Hanns.G

Hanns.G HU171D Bedienungsanleitung

Hanns.G

Hanns.G HG191 Bedienungsanleitung

Hanns.G

Hanns.G JW199D Bedienungsanleitung

Hanns.G

Hanns.G AG172D Bedienungsanleitung

Hanns.G

Hanns.G HB-175APB Bedienungsanleitung

Hanns.G

Hanns.G HG-216DPB Bedienungsanleitung

Hanns.G

Hanns.G HW-173ABB Bedienungsanleitung

Hanns.G

Hanns.G HL225 Bedienungsanleitung

Hanns.G

Hanns.G HX-191DPB Bedienungsanleitung

Hanns.G

Hanns.G HP205DJB Bedienungsanleitung

Hanns.G

Hanns.G HW Series Bedienungsanleitung

Hanns.G

Hanns.G HG221AP Bedienungsanleitung

Hanns.G

Hanns.G HE195 Bedienungsanleitung

Hanns.G

Hanns.G JC171DP Bedienungsanleitung

Hanns.G

Hanns.G HG-171DPB Bedienungsanleitung

Hanns.G

Hanns.G HZ201HPB Bedienungsanleitung

Hanns.G

Hanns.G HW191AP Bedienungsanleitung

Hanns.G

Hanns.G HH281 Bedienungsanleitung

Hanns.G

Hanns.G HC194D Bedienungsanleitung

Hanns.G

Hanns.G HA192 Bedienungsanleitung

Hanns.G

Hanns.G HE195ABB Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
