Harman Kardon HKB 6 Bedienungsanleitung

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Nominal Impedance 8Ω

•Max Amp Power 150 watts*

•Frequency Response 55Hz – 20kHz

•Sensitivity 89dB (2.83V @ 1 meter)

•Crossover Frequency 2,800Hz

SYSTEM COMPONENTS:

•Cabinet HKB 6

(Not for Sale)

•Grille 339782-001

•Low-Frequency Transducer 6" (152mm) Polymer-coated

cone, shielded

339788-001

DC Resistance 4.6 ohms ±10%

•High-Frequency Transducer 3/4" (19mm) Titanium-laminate

dome, shielded

338035-001

DC Resistance 3.0 ohms ±10%

•Crossover Network 339801-003

AURAL SWEEP TEST SPECIFICATIONS:

•System Aural Sweep Test 6.0V Input 50Hz to 20kHz

•L.F. Aural Sweep Test 5.0V Input 50Hz to 3kHz

•H.F. Aural Sweep Test 2.83V Input 2kHz to 20kHz

PHYSICAL SPECIFICATIONS:

•Dimensions 15" x 8-1/2" x 9-1/4"

(H x W x D) (381mm x 216mm x 235mm)

•Weight 32 lb (14.6kg) Sold in Pairs

WARRANTY:

•Refer to Warranty Statement packed with each product.

*The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

Technical Manual

HKB 6

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

Legend on Page 2

1 2

.250

.205

INPUT

0.066mH

1.8mH

12uf

100V

.110

L.F.

H.F.

9uf

100V

3.6ohm

10W

—

.205

CROSSOVER NETWORK

339801-003

HIGH-FREQUENCY

TRANSDUCER

338035-001

LOW-FREQUENCY

TRANSDUCER

339788-001

15" GRN

15" GRN/BLK

15" YEL/BLK

15" YEL

YEL/BLK

YEL

+— GRN/BLK

GRN

—

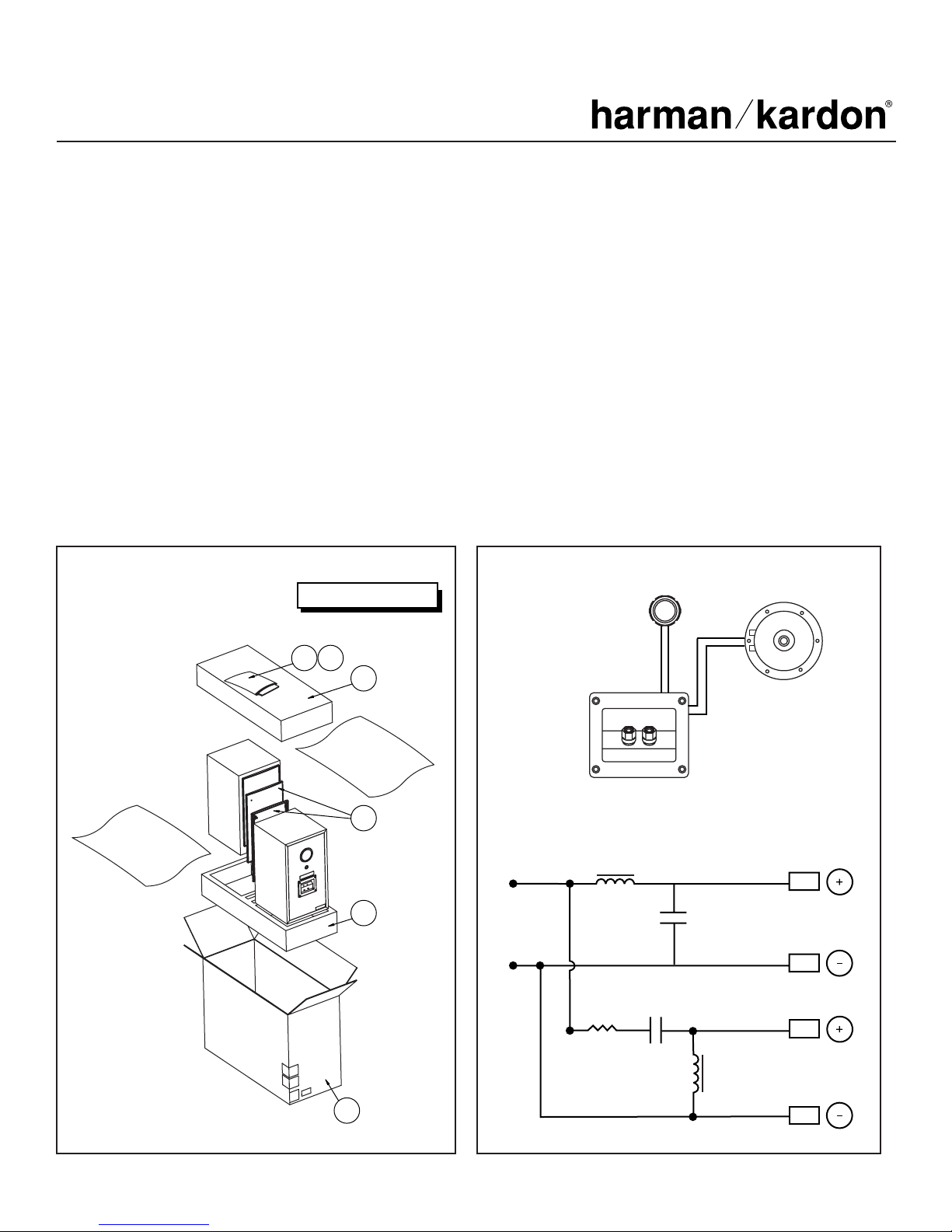

PACKAGING HKB 6 WIRING DIAGRAM

HKB 6 SCHEMATIC

HKB 6 Cabinet – Not for Sale

5616

1513

(6)

(4)

(6)

HKB 6

Technical Manual

HKB 6

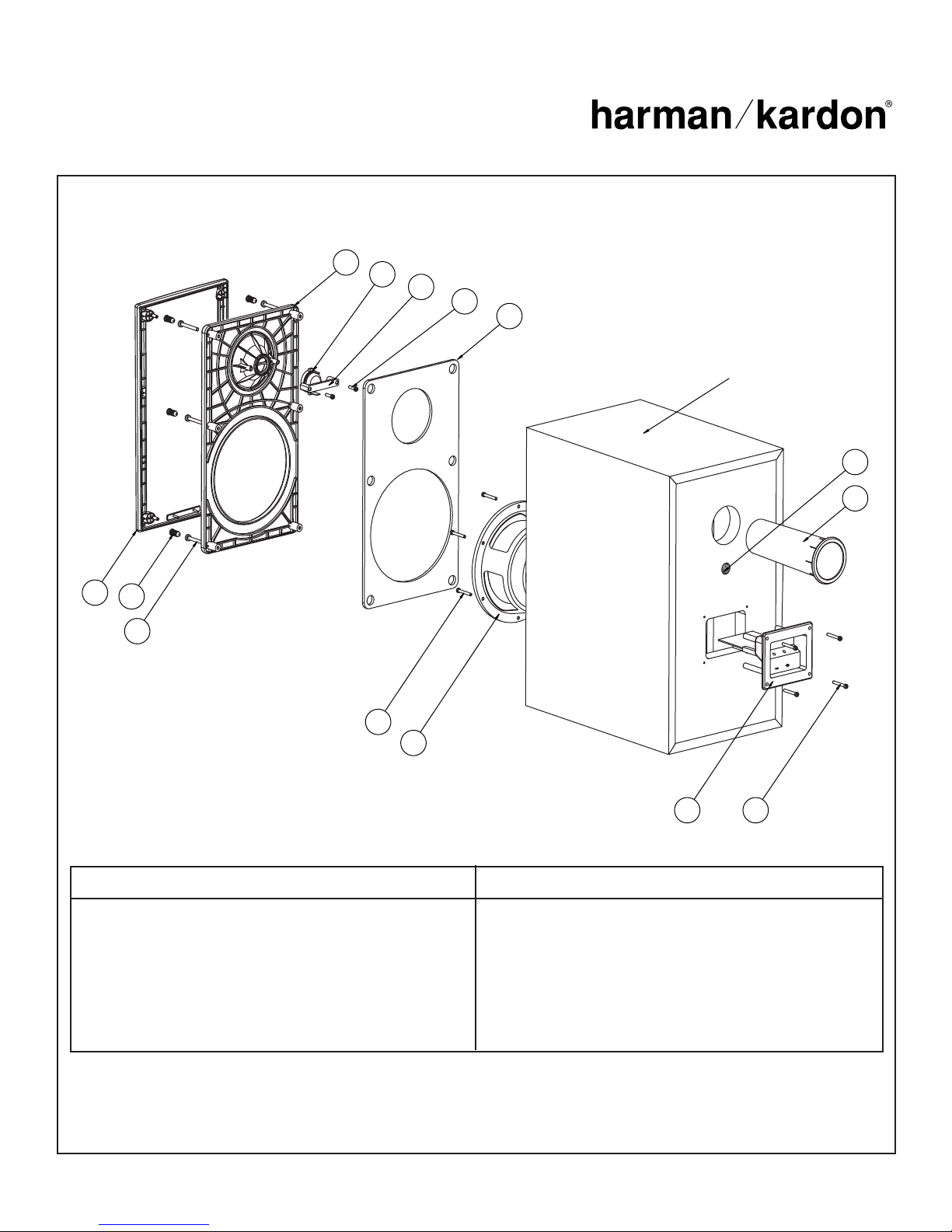

EXPLODED VIEW

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

TO SERVICE THE HKB 6

1. Remove the grille.

2. Remove all (6) rubber grille retainers; this can be accomplished by carefully pulling them out of their cavities with long-nosed pliers or similar tool.

3. Remove the (6) Phillips screws that are now exposed.

4. Carefully separate the front baffle, with tweeter attached, from the cabinet.

ITEM

NO. DESCRIPTION QTY. PART NO.

1. Owner’s Manual 1 339777-001

2. Warranty Card 1 339778-001

3. Top & Bottom Pads 2 339785-001

4. Outer Carton 1 339784-001

5. Tweeter 1 338035-001

6. Tweeter Hold-Down Bar 1 338059-001

7. Front Baffle 1 350348-001

8. Baffle Gasket 1 339773-001

9. Woofer 1 339788-001

10. Grille 1 339782-001

ITEM

NO. DESCRIPTION QTY. PART NO.

11. Grille Retainer 6 338535-002

12. Port Tube 1 70515-01

13. Crossover Network 1 339801-003

14. Screw (front baffle) PB PPH M4 x 20mm 6 910501-020

15. Screw (6 woofers, 4 network) 10 903401-012

PB PPH #6 x .75 BLK

16. Screw (tweeter) MS PHH H/L 2 905402-010

6-19 x 5/8 ZNC

17. Threaded Insert 1/2 - 20 1 339820-001
