1.0 Introduction
950mx analog console overview v1.5 Page 3
The heart of analog - with a modern aesthetic - built with today’s music studio in mind
Analog Mi ing - The 950mx sports a history rich analog design incorporating the same high-end modular
design elements found across the spectrum of Harrison console models from eras past such as the 32
Series, R Series, S10, S12 and LPC. The 950mx provides a superior analog “mixing” platform designed
specifically to complement today’s high performance music studio where powerful DAW’s and high-end
specialized outboard gear are plentiful.
High Performance Design - The 950mx incorporates key high quality design criteria. Double sided
PCB’s, manual PCB layout techniques providing specific trace placement and robust ground plane design,
linear power distribution, gold Euro-card module connectors, gold plated switches, conductive plastic
potentiometers, 100% through-hole design (no surface mount components) and summing busses carried
via PCB’s (no ribbon cable summing busses) all combine to provide the highest performance possible in
analog console design.

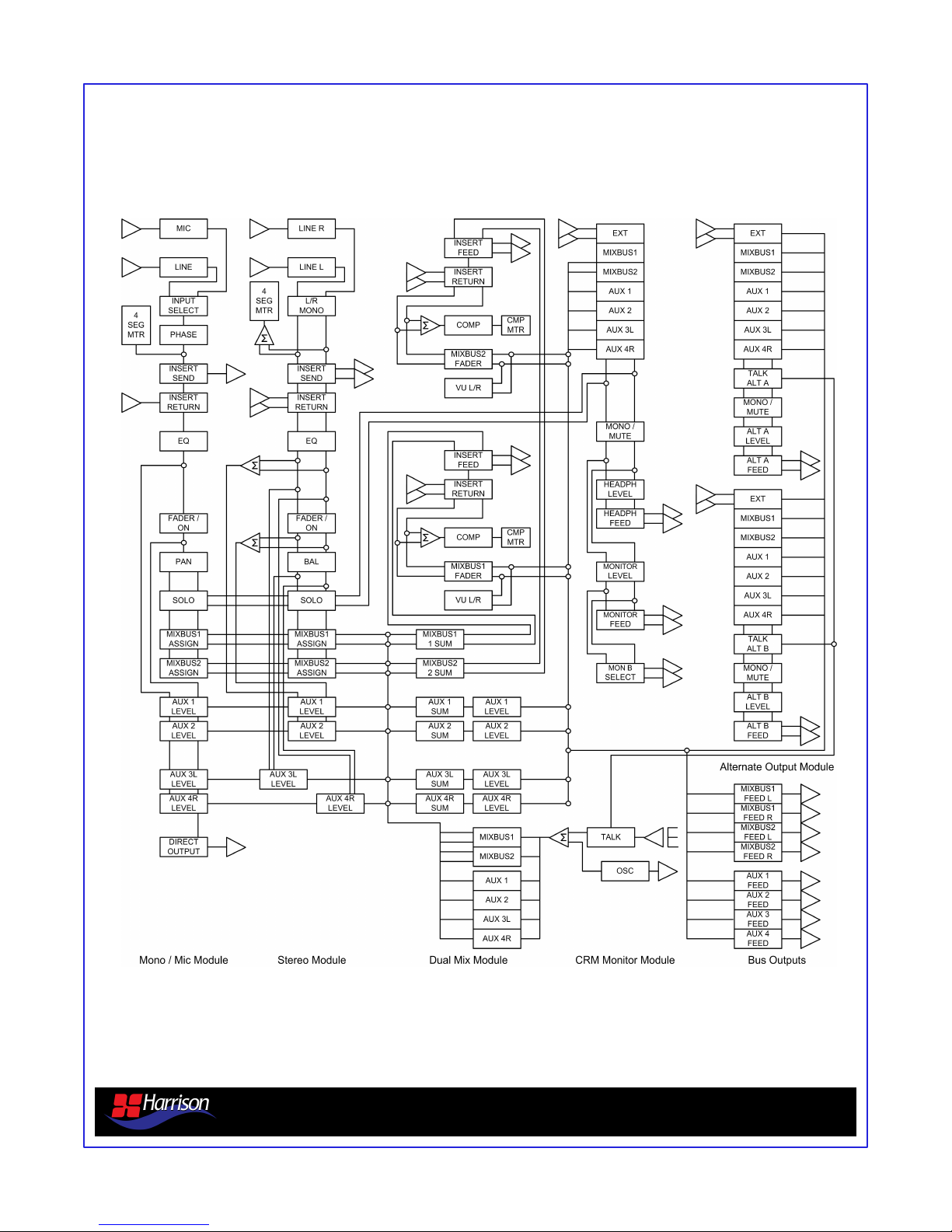

Dual Stereo Mi Bus Design – The 950mx provides two distinctly different and independent mix bus
choices. Each channel can route to either or both of the stereo mix busses. The “RED” bus or ix Bus 1
(indicated by the red assignment switch on each channel and the red master fader in the master section)
provides a transformer balanced stereo output stage reminiscent of Harrison’s vintage console models (32
Series and early R Series). The “BLACK” bus or ix Bus 2 (indicated by the black bus assignment
switch on each channel and the black master fader in the master section) provides an electronically
balanced stereo output stage reminiscent of Harrison’s more recent analog console models (S10, S12 and
LPC).
Mono Mic/Line Channels – 4 ono ic/Line Channels are also included in each standard configuration
(custom configurations available upon request) offering a high performance Harrison mic preamplifier, 3
band variable EQ with variable HP and LP filters, with design characteristics found in the S10, S12 and
LPC consoles along with a switchable Line input and balanced insert point ready for your favorite
outboard preamp or other processing gear and a direct output for recording.
Stereo Channels – Unlike traditional analog music console designs the Harrison 950mx provides Stereo
Input Channels as standard equipment.
These precision designed stereo channels are ideally suited for use with today’s typical ‘stereo stem’ track
layout preference of DAW power users. An ample supply of stereo channels in each standard
configuration allows many more tracks to be more efficiently mixed using a smaller more cost effective
console footprint.
DAW Compatible Frame Design – The 950mx frame design is rugged and unique. It is specifically
designed to solve some of the more basic yet troubling ergonomic issues in today’s studio environment.
“Where do I put my keyboard and mouse or trackball?” and “Where do I put my computer monitor/s?” The
950mx solves those issues by providing a 2-tiered front bolster which is wide and deep enough to
comfortably locate your DAW keyboard and mouse/trackball (with sufficient cable access) along with a
generous ‘flat’ top ideal for locating DAW monitor/s and/or small speakers etc. depending on frame size.

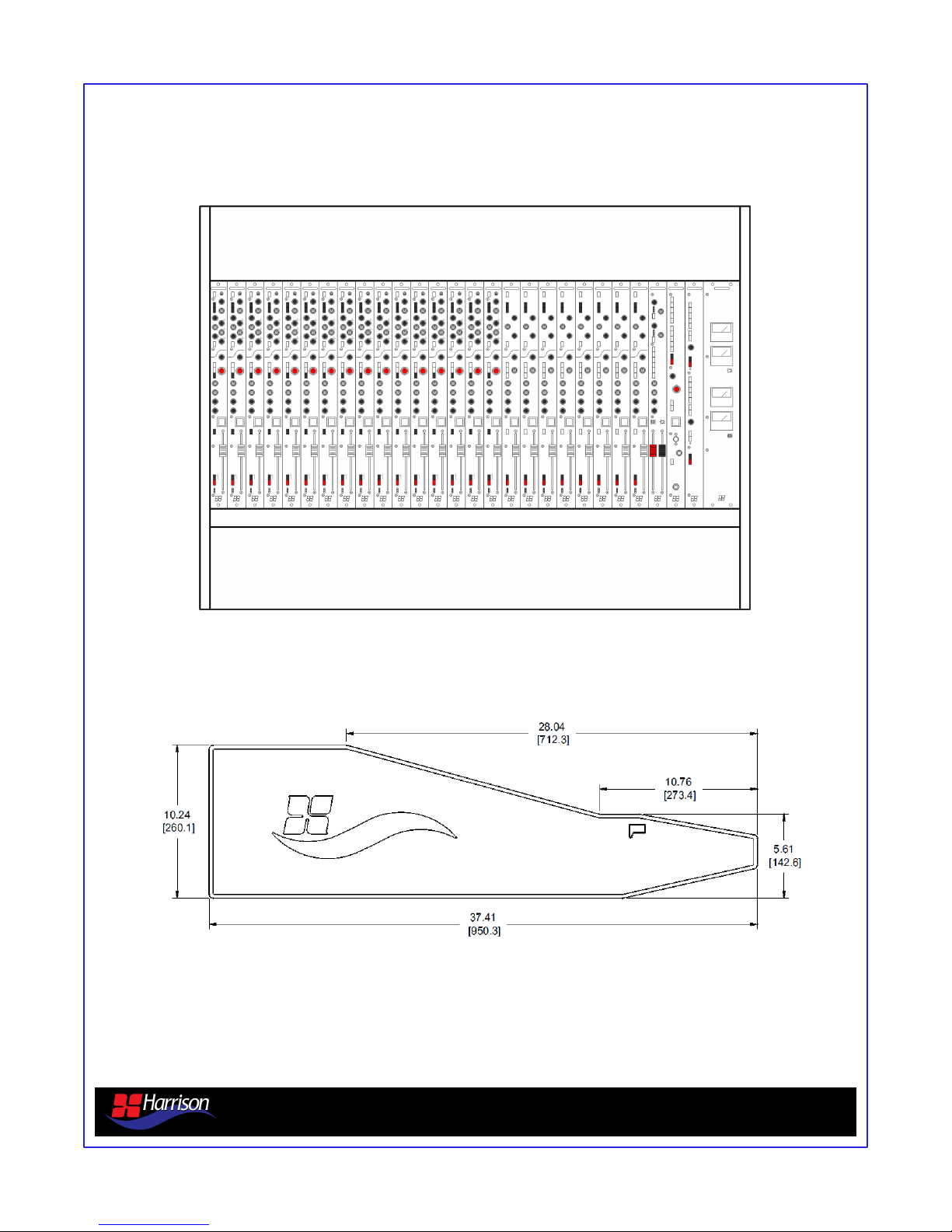

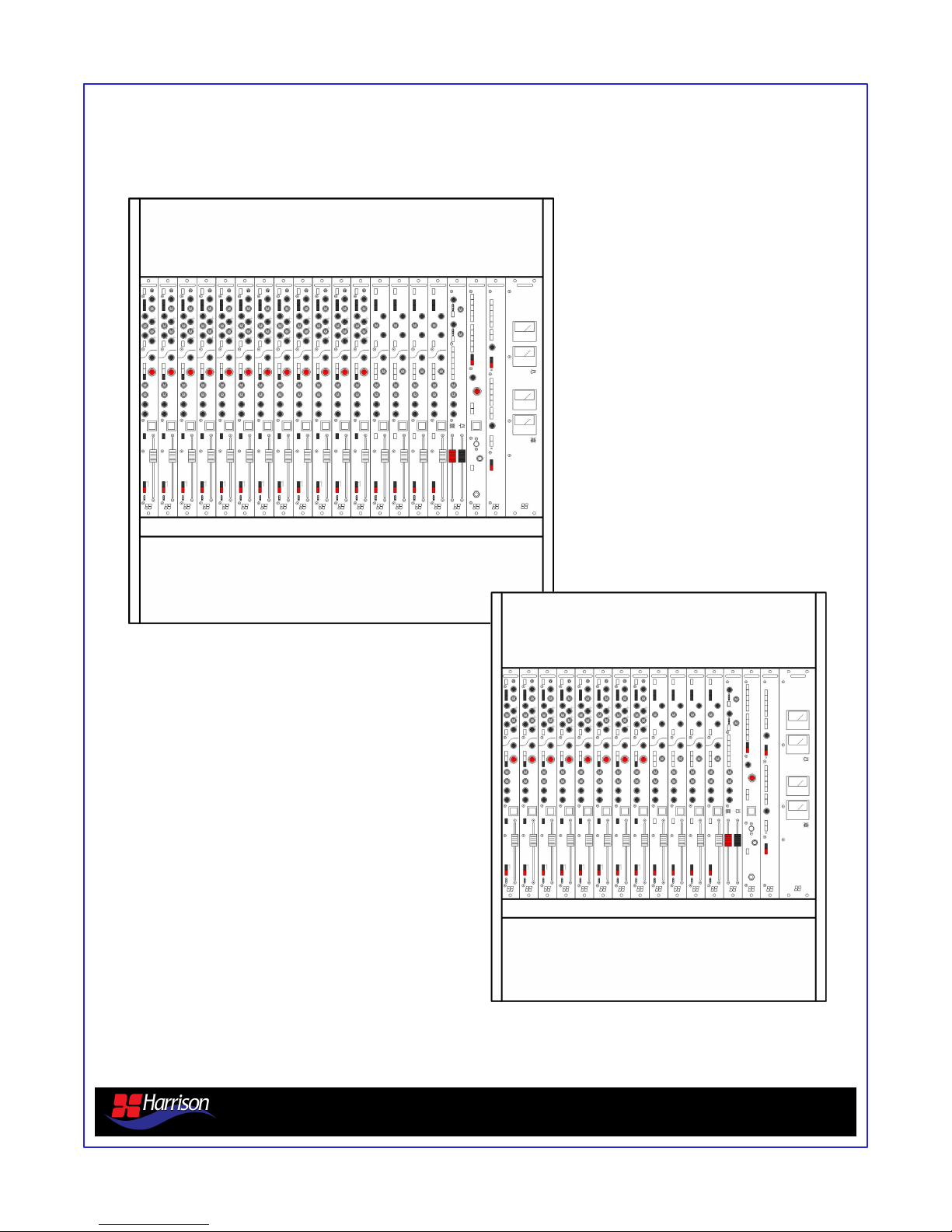

Configurations – The 950mx is available in 3 standard configurations featuring 12 channels (4 ono, 8
Stereo), 16 channels (4 ono, 12 Stereo) and 24 Channels (4 ono, 20 Stereo) options. Custom
configurations are available upon request.
Summary – The 950mx is a true ‘blast-from-the-past’ but made for today’s top-end music studios. With its
premium analog circuit designs based on 35 years of expertise, specific ‘DAW friendly’ design criteria and
rugged modular construction, this console is built to last. By focusing on specific analog mixing
requirements of today’s music studio environment Harrison can offer a powerful, high-quality solution at
an affordable price.
