INSTRUCTIONS FOR INSTALLATION AND USE
English
REMOTE START system
Table of Contents
1. About this instruction manual 3
2. Important information for your safety 4
2.1. Intended use 4
2.2. Safety information 4
3. Product description 6
3.1. Scope of delivery 6
3.2. Optional accessories 6
3.3. Product features 6
4. Installation 6
5. Connection diagram 7
5.1. ConnectiontoXenioCX110C,XarCS110C 8
5.2. ConnectiontoXenioCX170,XarCS170 8
5.3. Connection to Pro-Serie (Pro B2/3, Pro C2/3, Pro D) 9
5.4. Connection to home.com4 9
5.5. Connection to Dampfgenerator SGH und HGD 10
6. Commissioning 11
7. Operation 12
8. Solução de problemas 14
9. Maintenance 14
10. Disposal 14
11. Technical data 15
EN
Instructions for installation and use p. 3/15
1. About this instruction manual
Read these instructions for installation and use carefully and keep them within
reach of the device. This ensures that you can refer to information on safety and
operation at any time.
Symbols used for warning notices
In these instructions for installation and use, a warning notice located next to
an activity indicates that this activity poses a risk. Always observe the warning
notices. This prevents damage to property and injuries, which in the worst case
may be fatal.
The warning notices contain keywords, which have the following meanings:
DANGER!
Serious or fatal injury will occur if this warning notice is not observed.
WARNING!
Serious or fatal injury can occur if this warning notice is not observed.
CAUTION!
Minor injuries can occur if this warning notice is not observed.
NOTE!
This keyword is a warning that damage to property can occur.
Other symbols
This symbol indicates tips and useful information.
Read the operating instructions
Instructions for installation and use p. 4/15
2. Important information for your safety
The remote start system has been produced in accordance with the
applicable safety rules and regulations. However, hazards may arise
during use. Therefore adhere to the following safety information and
thespecicwarningnoticesintheindividualchapters.
2.1. Intended use
The remote start system allows the remote start feature of a sauna
control unit or steamgenerator to be activated using devices such
as a smartphone, tablet, Alexa, Google Home etc.
The remote start system may only be used for activating a sauna
heater that passes the combustion test described in paragraph 19.101
of EN 60335-2-53. Alternatively, a corresponding safety shutdown
device must be installed in the heater and/or a door contact switch.
Any use exceeding this scope is considered improper use. Improper
use can result in damage to the product, severe injuries or death.
EN
Instructions for installation and use p. 5/15
2.2. Safety information
●Installationmayonlybeperformedbyaqualiedelectricianor
similarlyqualiedperson.
●Installation and connection of the control unit may only be per-
formed when the power supply is disconnected.
●Also comply with the regulations applicable at the installation
location.
●The device must not be used by children under 8 years of age.
●The device may only be used by children over 8 years of age,
by persons with limited psychological, sensory or mental capa-
bilities or by persons with lack of experience/knowledge under
the following conditions:
– They are supervised.
– They have been shown how to use the device safely and
are aware of the hazards that could occur.
● Makesurethatnoammableobjectshavebeenplacedonthe
sauna heater before the sauna control unit is switched on.
●Forhealthreasons,donotusethesaunawhenundertheinuence
of alcohol, medication or drugs.
●For your own safety, consult your supplier in the event of prob-
lemsthatarenotexplainedinsucientdetailintheinstallation
instructions.
Instructions for installation and use p. 6/15
3. Product description
3.1. Scope of delivery
●Remote start system
●Brief instructions
3.2. Optional accessories
●Door sensor system (1-052-722 / SAB00102)
●Door sensor set (1-052-723 / SAB00103)
●Veiligheidsuitschakeling (SFE-xxxxx)
3.3. Product features
The remote start system allows the remote start feature of a sauna control unit
or steamgenerator to be activated using devices such as a smartphone, tablet,
Alexa, Google Home etc.
Compatible control units:
● SaunacontrolunitsXenio,Xar,Pro-Serieundhome.com4
●Steamgenerator SGH and HGD
An app is used for operation, which is available free of charge for Android
(Google Play Store) and for IOS (App Store).
4. Installation

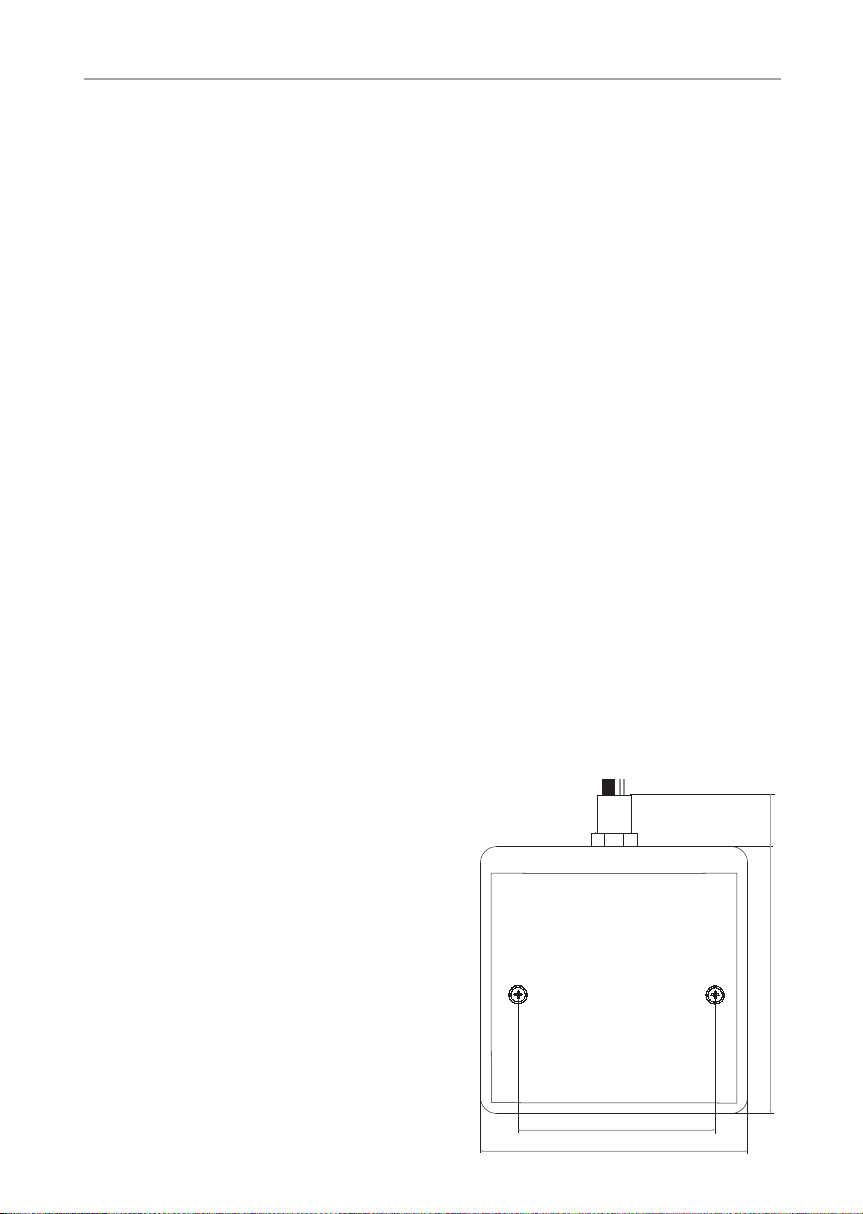

During installation observe the technical data on Page 15:
ENABLE
N
~V032
~V032
INPUT
LL NPE
55 mm
85 mm
85 mm 12 mm
●The remote start system features
protection class IP65
●The ambient temperature must be within
a range spanning -40 °C to +40 °C.
●The cables must be temperature-
resistant up to 150 °C if they are
routed in the cabin wall (extend power
supply using silicone cable)
EN
Installation instructions, only for experts p. 7/15
5. Connection diagram
Observe the following points when connecting the power to the sauna control unit:
●Connection work may only be performed when the power has been discon-
nected.
●Observe the assembly instructions for the respective control unit
black – K1, ST1 ...........
brown – L1, L3, L2 .......
grey – N .......................
red – S, X14 (remote start)
red – B, X15 (remote start)
Remove the pre-assembled cable lugs depending on the controller
used.
With 4and 5:
●Polarity not relevant
1
2
3
4
5
ATTENTION!!
Damage to the unit!
The installation of the APP and the settings (see “6. Commissioning” and
“7. Operation”) must be completed before the sauna controller is switched on.
Installation instructions, only for experts p. 8/15
5.2. Connection to Xenio CX170, Xar CS170
5.1. Connection to Xenio CX110C, Xar CS110C
1
23
4
5
1234
5
6Safety shutdown / Door sensor
●When connecting the safety shutdown / door sensor, observe the instruc-
tions for the respective device
●The DOOR function must be set to ON in the settings.
●The DOOR function must be set to ON in the settings.
x19
x23
XT2020
X15
X16
X14
6
NU1 U2 N
N NN N L1 L2 L3 K2 W
K1 V U
XT2001
X16
X14
X15
6
EN
Installation instructions, only for experts p. 9/15
Wm
1
2
3
6
1 2 3 45
5.3. Connection to Pro-Serie (Pro B2/3, Pro C2/3, Pro D)
5.4. Connection to home.com4
ST2
N
ST1
RS1 24VDC
6
45
●Make the setting in the technician menu under menu item Mode RS1.
Connection to S/B....Remote start sauna operation / User program 1
Connection to C/B....Remote start combi operation / User program 2
4
4
Installation instructions, only for experts p. 10/15
5.5. Connection to Dampfgenerator SGH und HGD
Main switch
Hauptschalter
A2
A1
K1
K2
K2
K1
L
NN
L
L
N
L
NN
LL
N
L1 L2 L3
N N
Out1 Out2
N
L3 L2 L1
A2
A1
1234
1234
1234
1234
12 3
54
●In the settings, the function „Selection of the remote start function“ must be
set to I-O
