2 of 6
ASSEMBLY
CAREFULLY REMOVE THE CONTENTS FROM THE CARTON.KEEP THE CARTON FOR FUTURE STORAGE.DO NOT FORCIBLY REMOVE CONTENTS.
Step 1: Locate the TREE STAND.Rotate the legs until the three (3) holes on the inner and outer walls
of the hub align, and the stand forms an “X” shape (see Fig. 1). There are three (3) screws with the
stand. Insert the screws into the holes, but do not turn all the way in. Leave space inside the hub
for the tree pole to slide down. Place the stand where you are going to set up the tree. THIS
PRODUCT IS SUITABLE FOR INDOOR USE ONLY. IMPORTANT: DO NOT PLACE THE TREE WHERE
IT IS LIKELY TO WOBBLE DUE TO UNEVEN FLOORS OR THICK CARPETING. PLACE THE TREE ON A
LEVEL SURFACE.
Step 2: Find TREE SECTION A, tagged with the letter “A”. Remove the green pole cap (see Fig. 2) that is covering
the bottom of the pole. It is a protective cover only and can be kept for storage if desired. Insert TREE SECTION A
into the TREE STAND. Do not force the pole. It will slide down to its correct position. Make sure the pole is seated
firmly in the stand. Turn all three screws evenly until they touch the pole. If Tree Section A is not sitting
straight, then simply loosen the screws, adjust the tree pole, and retighten the screws. Allow the branches to
fall into place. The branches are connected to the tree pole by metal hinges (see Fig. 3). NOTE:SOME BRANCHES
MAY CATCH ON ONE ANOTHER.IF THAT OCCURS,SLOWLY PRESS DOWN ON EACH BRANCH UNTIL IT FALLS INTO PLACE.
Step 3: Locate TREE SECTION B, tagged with the letter “B”. Insert TREE SECTION B into TREE SECTION A. Make sure
the section is sitting securely and allow the branches to fall into place.
Step 4: Locate TREE SECTION C, tagged with the letter “C”. Insert TREE SECTION C into TREE SECTION B. Make sure
the section is sitting securely. NOTE:THE TOP,INNER PART OF THE POLE TO TREE SECTION BHAS A GREEN POLE ADAPTER
INSIDE.THIS POLE ADAPTER IS NOT TO BE REMOVED.TREE SECTION BHAS A GREEN STEM COMING OFF THE
BOTTOM OF ITS POLE WHICH FITS SNUGGLY INTO THIS ADAPTER AND GIVES STABILITY TO YOUR TREETOP.The
branches are not hinged to the pole in this section, so you will need to pull the branches
down slightly by hand.
Step 5: Connect the light set plug(s) from each tree section into the section below securely.
To find the connections easier, the light sets have a male/female plug with a colored barbell
label. For the connection from Section A to B, there will be a red barbell label with the
number one . For the connection from Section B to C, there will be a yellow barbell label
with the number two . Further secure the plug connection by screwing the outer cover into place.
Step 6: In TREE SECTION A, there is a power adapter that is to be guided down through the tree section to
the floor. Insert it into a power outlet in your home or into a U.L. approved power strip (not included).
Tap the foot pedal (see Fig. 4) to turn the lights on. Your tree should now be lit. If some bulbs do not light,
please go to the section on TROUBLESHOOTING FOR LIGHTS.
SHAPING
1. The branches have been condensed to fit into the box and can be easily reshaped to their original fullness by bending and
separating each of the branches in a more realistic manner.
2. Please reference the image on the cover of this instruction manual to see what the tree should like.
3. Plug in the lights as you are shaping the tree.
4. Shape by section and layer, starting at the top of the tree and working your way down (or vice versa) to ensure coverage of
the whole tree.
5. This tree has a downswept style. DO NOT style the outer branches in an up or outswept fashion.
6. On each branch, begin with the leaves closest to the pole and work your way to the end of the branch.
7. The leaves at the back of the branch (with less snow) should be fanned out to the left and right. Offset the tip from the tip
before to hide the tree’s pole and fill spaces.
8. The leaves at the end of the branch (with more snow) should be shaped downward. Gently pull the branches downward
and spread apart the leaves.

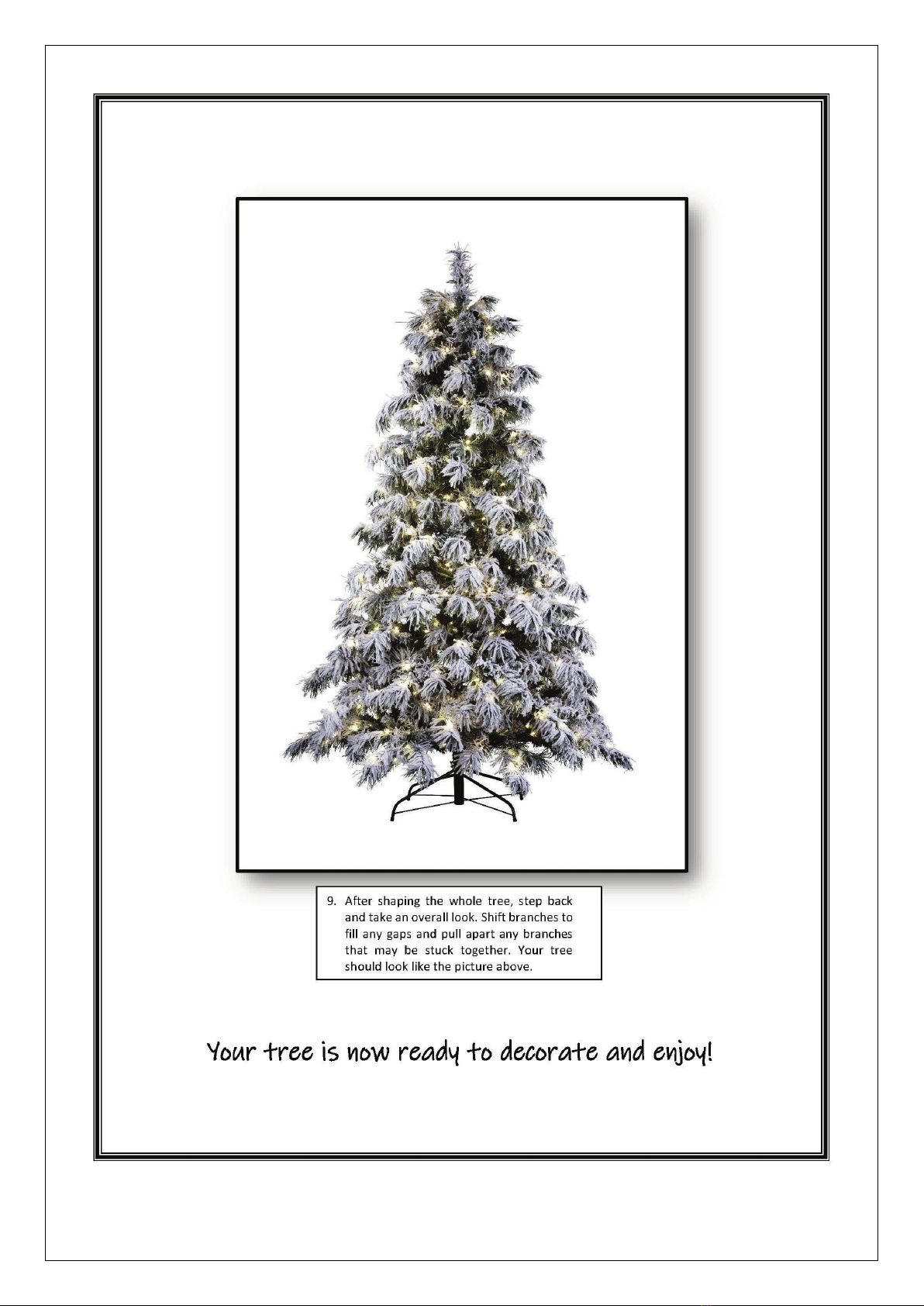

9. After shaping the whole tree, step back and take an overall look. Shift branches to fill any gaps and pull apart any branches
that may be stuck together. Your tree is now ready to decorate and enjoy!

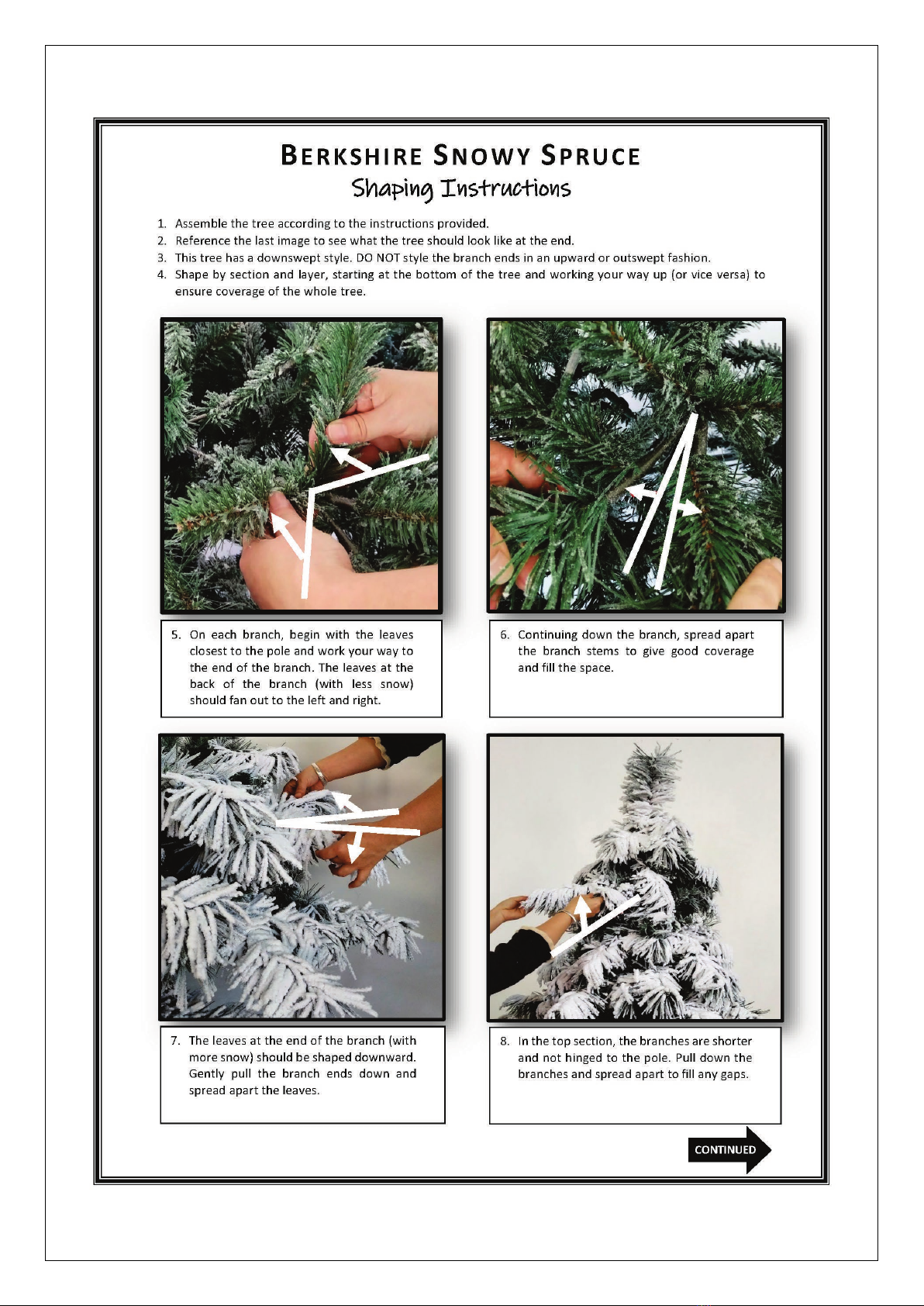

PLEASE FIND DETAILED SHAPING INSTRUCTIONS WITH PHOTOGRAPHS AT THE END OF THIS DOCUMENT
CLEANING &CARE
AS YOU WILL BE USING THE TREE EVERY YEAR,FOLLOWING ARE TIPS TO KEEP IT IN GOOD CONDITION AND MAINTAINED:
•Dust gently using a soft cloth or fabric duster. Do NOT use any chemicals or solvents to clean.
•Handle the light sets gently. Do NOT pull or tug light sets as this may inadvertently loosen the bulb.
O NOT
REMOVE THE BARBELL LABELS
ON YOUR LIGHT SETS.THEY
WILL HELP YOU TO EASILY FIND
THE PLUGS AND CONNECT THE
FOLLOWING YEAR
