Havis Ledco Installations- und Betriebshandbuch

www.havis.com

1-800-524-9900

Compatible with any Panasonic Toughbook CF-30 and CF-29

Improves productivity

By reducing downtime with onboard diagnostics allowing remote troubleshooting.

Smallest Footprint

And lightest weight of any comparable product, taking up less cabin space

than any other dock currently available.

Tested to the highest standards

In the industry, including MIL-STD-810F shock and vibration tests and

a 30 mph crash test (SAE J1455).

The Industry's First Intelligent Dock

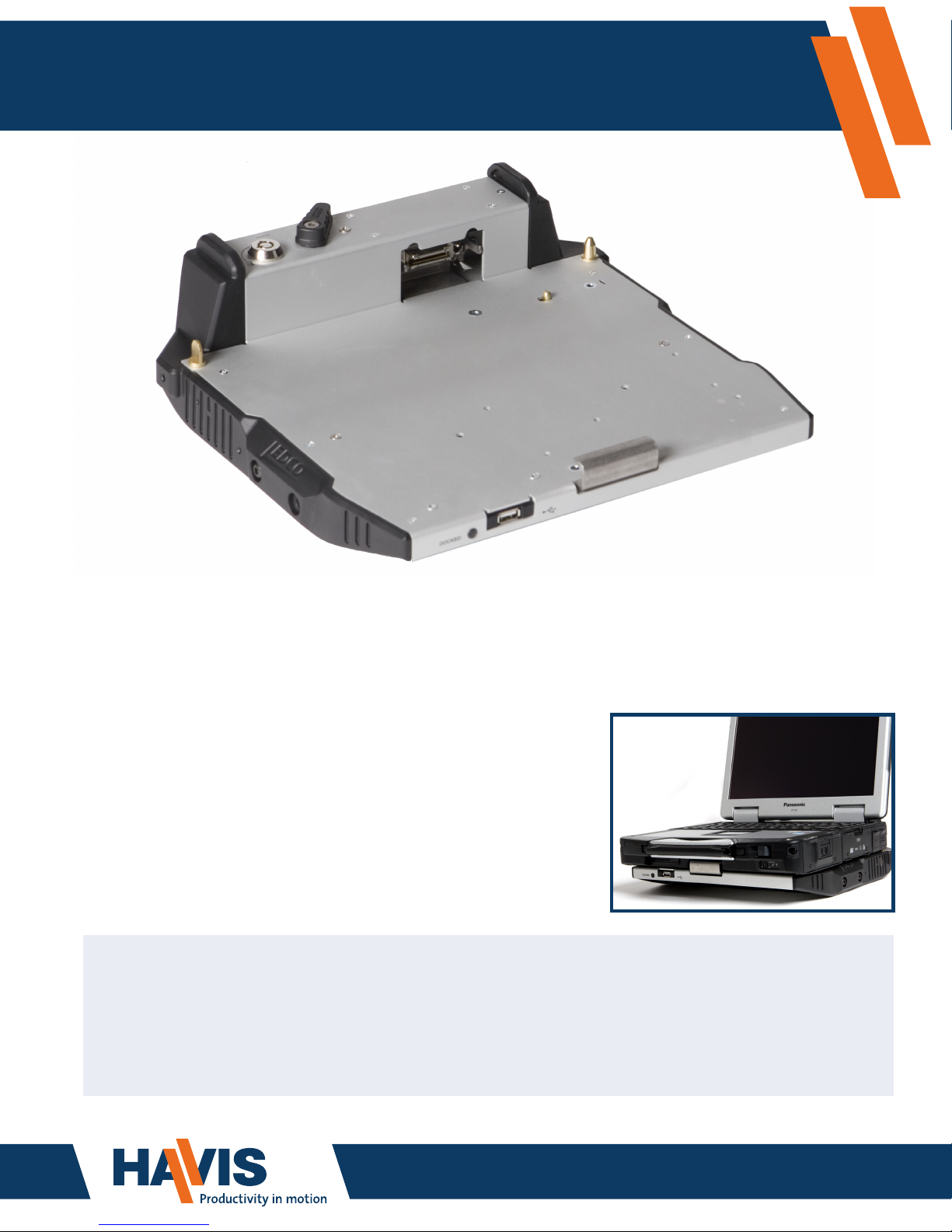

The new Havis® Ledco® Docking Station for Panasonic CF-30 and CF-29 is the most

intelligent, lightest, strongest Panasonic compatible dock on the market providing

the safest, most reliable solution for mobile computing applications.

Specifications (Part # DS-PAN-102)

Height: 3.8” (9.5 cm)

Width: 12.4” (31.5 cm)

Depth: 11.9” (29.9 cm)

Weight: 4.5 lbs (2.04 kg)

Construction: Aircraft grade aluminum uni-body with

reinforced nylon impact resistant plastic side rails

Certifications

•Vibration Testing: MIL-STD 810F 514.5

•30 MPH Crash Test (SAE J1455)

•-23° to +60° C Operating Test

•Electro Magnetic Compatibility Compliant

• Cycle Test: Latch Handle & Docking/Connectors Mechanism

tested to 30,000 cycles

Havis Ledco Docking Station

for Panasonic CF-30 and CF-29

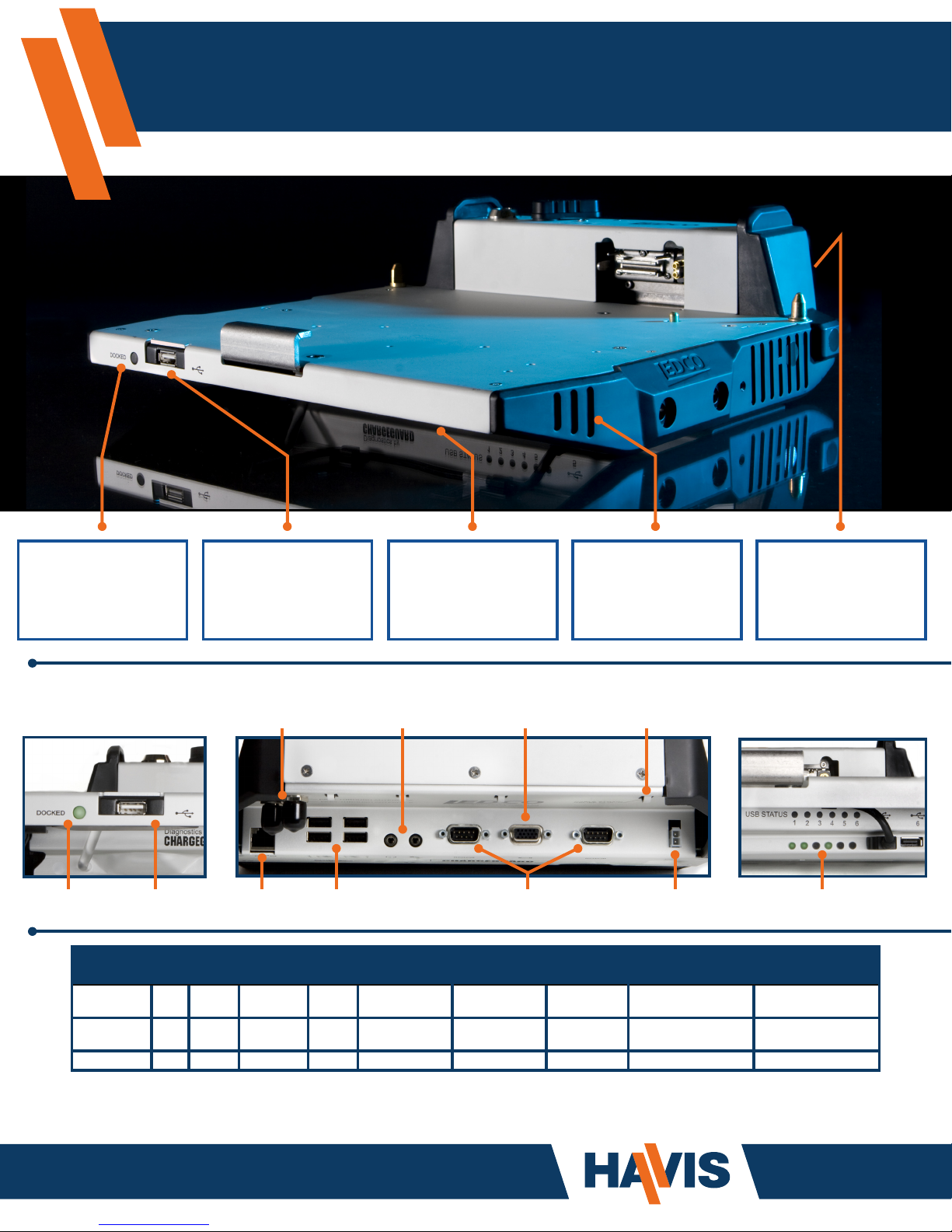

Diagnostics Front Facing USB USB LED’s Lightweight Additional USB’s

Front LED blinks green or

red to display error codes,

resulting in increased

uptime through remote

trouble shooting.

Front facing USB port

is conveniently located

so using temporary USB

devices is easy.

Six LED’s on the front of

the dock lets you know the

status of each USB port.

At 4.5 lbs the DS-PAN-102

is the lightest Panasonic

approved CF-30 Docking

Station currently on

the market.

Four rear USB ports let you

expand your connectivity,

so adding a printer or card

reader is no problem.

4 USB 2.0 Ports

Speaker/Mic

Single or Dual Hi-Gain Antenna

On Board Power Supply

(12 VDC input required)

VGA

RJ45

Ethernet DB9 Serial Ports 6 LED's for USB Status

LED Dock Diagnostics Front USB 2.0 Port

Integrated Cable Strain Relief Clips

New Features

Port Replication (Part # DS-PAN-102-2 shown)

Part # USB

2.0

DB9

Serial

RJ45

Ethernet

VGA LED Dock

Diagnostics

LED for

USB Status

Cable

Exiting

Antenna:

Single Hi-Gain

Antenna:

Dual Hi-Gain

DS-PAN-102 6 2 1 1 Yes Yes Rear Optional

(DS-PAN-102-1)

Optional

(DS-PAN-102-2)

DS-PAN-101 4 2 1 1 Limited No Front Optional

(DS-PAN-101-1)

Optional

(DS-PAN-101-1)

DS-PAN-103 - - - - No No -No No

www.havis.com

1-800-524-9900

DS-PAN-102_NPR_9-09

•On-site eet audits and installation training •Standard Three-Year Warranty on all units

• Demo equipment programs and presentations •Extended Plus Warranty available

•Dedicated customer service

Havis Ledco Docking Station

for Panasonic CF-30 and CF-29
