SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 2FREMONT, CA

CONGRATULATIONS ON YOUR PURCHASE OF THE FINEST MOTORCYCLE AUDIO EQUIPMENT AVAILABLE.

WE’RE PLEASED YOU’VE CHOSEN OUR PRODUCT, AND WELCOME YOU TO OUR FAMILY. AT HAWG WIRED,

WE STRIVE TO BRING YOU THE ULTIMATE RIDE EXPERIENCE THROUGH QUALITY SOUND. WITH YEARS OF

ENGINEERING, CRAFTSMANSHIP, AND A WHOLE LOT OF TRIAL AND ERROR, WE BELIEVE WE’VE GOTTEN

THIS STUFF NAILED DOWN RIGHT. WE SINCERELY HOPE YOU ENJOY OUR QUALITY PRODUCTS ON ALL

OF YOUR MOTORCYCLE JOURNEYS.

THANKS!

THE HAWG WIRED TEAM

PLEASE RECORD THE MODEL AND SERIAL NUMBER[S] OF YOUR EQUIPMENT IN THE SPACE PROVIDED

BELOW AS YOUR PERMANENT RECORD. THE NUMBERS ARE ON THE BOTTOM OF EACH COMPONENT.

THIS WILL HELP WITH YOUR FACTORY WARRANTY COVERAGE AND MAY BE USEFUL IN RECOVERING YOUR

AUDIO SYSTEM IN THE UNFORTUNATE EVENT THAT IT’S STOLEN.

MODEL NUMBER[S]:

SERIAL NUMBER[S]:

INTRODUCTION ......................................................................................................... 3

KIT CONTENTS .......................................................................................................... 3

INSTALLATION INSTRUCTIONS ................................................................................... 4

SPEAKER WIRING CHART ........................................................................................... 6

SYSTEM DIAGRAMS ................................................................................................... 7

SPECIFICATIONS....................................................................................................... 8

WARRANTY INFORMATION .......................................................................................... 9

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 3FREMONT, CA

THIS MANUAL PROVIDES INFORMATION FOR THE OWNER, SALESPERSON, AND INSTALLER. FOR THOSE

OF YOU LOOKING FOR QUICK INSTALLATION INFORMATION FOR THIS PRODUCT, PLEASE PROCEED TO

THE INSTALLATION SECTION OF THIS MANUAL.

HERE AT HAWG WIRED, WE WORK HARD MAKING SURE ALL OF THE INFORMATION IN THIS MANUAL IS

CORRECT AND CURRENT, BUT DUE TO OUR CONSTANT EFFORT TOWARDS IMPROVING OUR PRODUCTS,

THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE CHECK OUR WEB SITE

REGULARLY FOR THE LATEST NEWS, TIPS, AND CHANGES TO THIS DOCUMENTATION.

THIS KIT INCORPORATES THE FOLLOWING KEY FEATURES SPECIFICALLY DESIGNED FOR MOTORCYCLES:

qMODULAR DESIGN MAKES IT EASY TO FIT IN TIGHT SPACES

qALL DIGITAL CIRCUITRY MAKES IT EFFICIENT IN POWER USAGE AND HEAT DISSIPATION

qCREATES MORE POWER WITHOUT TAXING THE BATTERY OR CHARGING SYSTEM

qELIMINATES COOLING OR MOUNTING CONCERNS SINCE VERY LITTLE HEAT IS GENERATED

qCOMPLETE WIRING KIT MAKES FOR A PROFESSIONAL, QUICK, AND EASY INSTALLATION

THIS KIT HAS BEEN DESIGNED TO WORK WITH BOTH THE BATWING AND SHARK-NOSE HARLEY-

DAVIDSON® FAIRINGS, AND CAN ALSO BE INSTALLED IN MOST AFTERMARKET FAIRINGS WITH MINOR

MODIFICATION TO THE WIRING KIT.

1 –SC1502 CONTROLLER MODULE

2 –CT75 AMPLIFIER MODULES

2 –18” CONTROL CABLES

1 –6’ POWER CABLE WITH ATC FUSE HOLDER & BLACK SLEEVE

1 –24” GROUND CABLE

1 –REMOTE POWER CABLE

1 –HIGH LEVEL INPUT CABLE

1 –36” RCA CABLE

1 –24” SPEAKER WIRE EXTENSION

2 –AMPLIFIER MOUNTING BRACKETS

4 –LARGE ZIP TIES

2 –SMALL VELCRO PADS

1 –LARGE VELCRO PAD

1 –INSTALLATION HARDWARE KIT

1 –25 AMP ATC FUSE

6 –18 AWG BUTT CONNECTORS

4 –SMALL ZIP TIES

1 –PACKET OF DIELECTRIC GREASE

3 –PACKETS OF ALCOHOL CLEANING PADS

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 4FREMONT, CA

1. TURN OFF THE IGNITION AND REMOVE THE SEAT.

TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.

2. DISCONNECT THE BATTERY.

TIP: ALWAYS DISCONNECT THE NEGATIVE SIDE FIRST, POSITIVE SECOND.

3. REMOVE THE FRONT FAIRING COVER.

TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.

4. PLACE A SMALL AMOUNT OF DIELECTRIC GREASE ON EACH CONTROL CABLE CONNECTOR, THE

CONTROLLER MODULE, AND ON EACH AMPLIFIER MODULE, FOCUSING ON THE ELECTRICAL

CONTACTS.

5. WITH BOTH AMPLIFIER CONTROL CABLES ATTACHED, MOUNT1THE CONTROLLER MODULE; TYPICAL

BATWING MOUNTING GOES ON TOP OF THE RADIO, WHILE THE SHARK-NOSE FAIRING REQUIRES

SIDE MOUNTING ON THE FLAT AREA UNDERNEATH THE GLOVE BOX.

TIP: ON 2006 BATWING MODELS: IF ONE OF THE TWO MODULES (XM SATELLITE RADIO OR CB COMMUNICATIONS) IS

INSTALLED ON TOP OF YOUR RADIO, YOU WILL NEED TO INSTALL OUR HKA150 ADAPTER BRACKET IN THE BLANK

MODULE SLOT. IF BOTH MODULES ARE INSTALLED, MOUNT THE CONTROLLER ON TOP OF THE MODULES. IF

NEITHER MODULE IS INSTALLED, CUT THE LARGE VELCRO® PIECE IN HALF IN ORDER TO PLACE ONE PIECE ON

EACH SIDE OF THE RIB DOWN THE CENTER OF THE RADIO, THEN MOUNT THE CONTROLLER ON TOP OF THE RADIO.

IN ALL INSTALLATION SITUATIONS, ENSURE THAT THE CONTROLLER IS POSITIONED AS FAR BACK AS POSSIBLE.

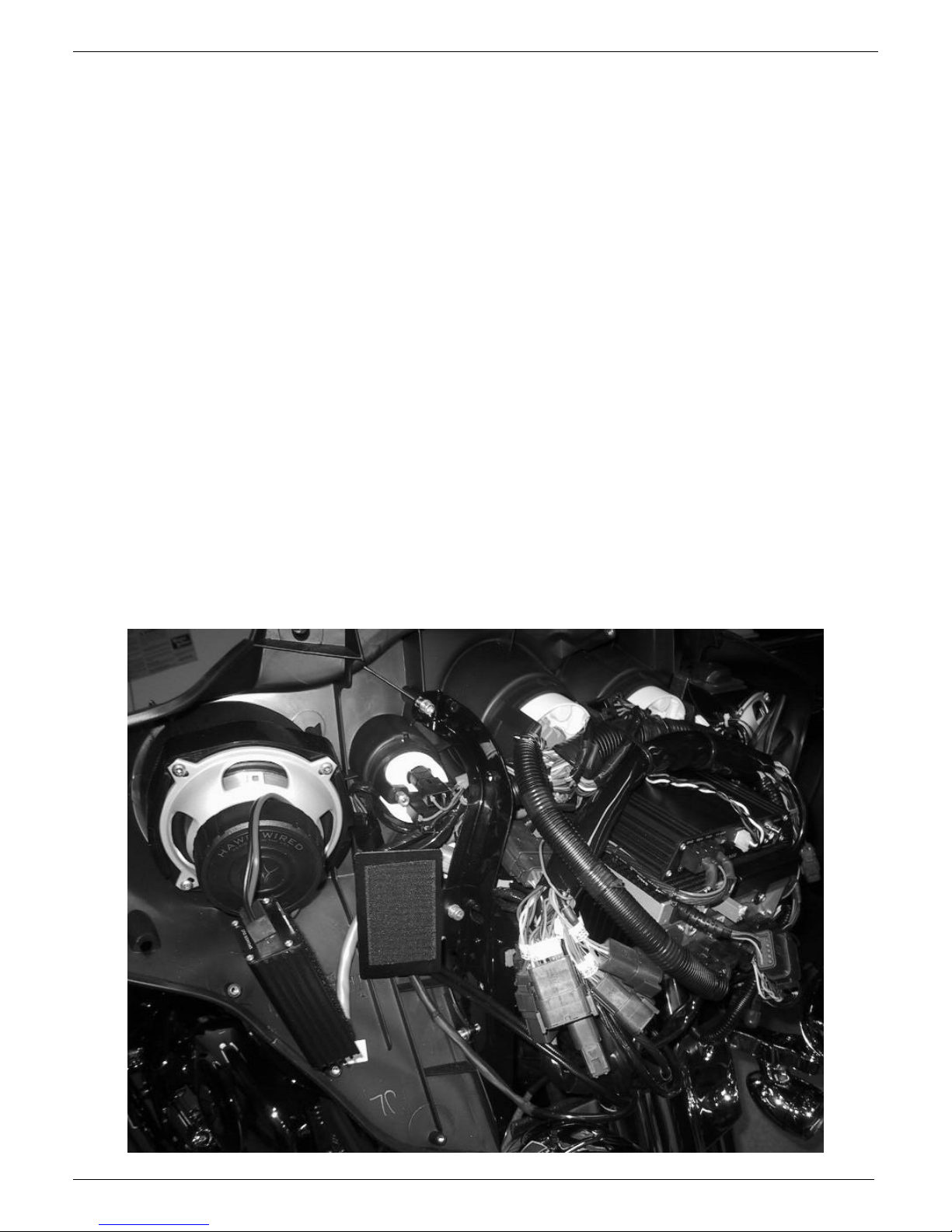

6. ON BATWING MODELS, REMOVE BOTH SPEAKER BRACKETS AND INSTALL THE AMPLIFIER MOUNTING

BRACKETS USING THE FACTORY HARDWARE. NOW MOUNT1YOUR AMPLIFIERS TO THE BRACKETS

USING THE VELCRO®PATCHES PROVIDED.

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 5FREMONT, CA

[

]

7. ON SHARK-NOSE MODELS, MOUNT1ONE AMPLIFIER IN FRONT OF CONTROLLER, AND ONE AMPLIFIER

BEHIND CONTROLLER USING THE VELCRO®PATCHES PROVIDED.

8. CONNECT THE CONTROL CABLES TO EACH OF THE AMPLIFIER MODULES.

NOTE: NEVER CONNECT OR DISCONNECT CONTROL CABLES WHILE POWER IS ON. THIS CAN CAUSE DAMAGE TO THE

AMPLIFIER MODULES AND WILL VOID YOUR WARRANTY.

9. RUN THE BATTERY WIRE (WITHOUT THE FUSE INSTALLED) FROM THE +BATTERY TERMINAL, UNDER

THE GAS TANK, THROUGH THE FAIRING, AND CONNECT TO THE CONTROLLER TERMINAL LABELED

PWR. THE BLACK SLEEVE SHOULD END UP BETWEEN THE GAS TANK AND THE FAIRING.

TIP: DO NOT CONNECT THE BATTERY WIRE TO THE BATTERY UNTIL THE INSTALLATION IS COMPLETE.

10. INSTALL THE GROUND WIRE FROM THE CONTROLLER TERMINAL LABELED GND TO CHASSIS

GROUND.

TIP: TYPICALLY YOU CAN UTILIZE AN EXISTING SCREW OR NUT ON THE FRAME, PREFERABLY WHERE A FACTORY

GROUND STRAP ALREADY EXISTS. IT IS IMPORTANT TO VERIFY THAT THE POINT SELECTED FOR GROUNDING IS A

TRUE AND CLEAN CONNECTION TO THE CHASSIS. MANY PROBLEMS ARE THE RESULT OF A POOR GROUND.

11. INSTALL THE REMOTE TURN-ON WIRE FROM THE CONTROLLER TERMINAL LABELED REM TO DESIRED

+12V TURN-ON SOURCE.

TIP: WITH FACTORY RADIOS, USE THE CIGARETTE LIGHTER METHOD (PASS THROUGH LUGS INCLUDED AND

INSTALLED ON REMOTE WIRE). WITH AFTERMARKET RADIOS, REFER TO YOUR RADIO SPECIFIC WIRING DIAGRAM TO

DETERMINE THE REMOTE TURN-ON LEAD TO CONNECT TO THE CONTROLLER MODULE.

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 6FREMONT, CA

[

]

12. INSTALL INPUT WIRES. IF USING STOCK HARLEY®RADIO, CONNECT HIGH-LEVEL CABLE TO WIRES

REMOVED FROM SPEAKERS (REFER TO WIRING CHART FOR STOCK HARLEY®RADIO).

NOTE: IF AN AFTER MARKET RADIO IS BEING INSTALLED, USE RCA LOW LEVEL OUTPUT IF AVAILABLE. IF LOW-LEVEL

IS NOT AVAILABLE, SEE RADIO MANUAL TO DETERMINE HIGH-LEVEL CONNECTION.

13. RE-CONNECT THE BATTERY.

TIP: ALWAYS CONNECT THE POSITIVE SIDE FIRST, NEGATIVE SECOND.

14. INSTALL 25 AMP ATC FUSE INTO THE FUSE HOLDER ON THE POWER CABLE.

TIP: THIS IS A GOOD TIME TO RE-CHECK ALL CONNECTIONS JUST BEFORE INSTALLING THE FUSE. ALSO MAKE SURE

THAT THE CONTROL CABLES ARE COMPLETELY SEATED AND LATCHED INTO THEIR RESPECTIVE SOCKETS.

15. PERFORM A SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY THAT ALL

FUNCTIONS WORK AS EXPECTED. ONCE THE SYSTEM IS OPERATIONAL AND FUNCTIONING

PROPERLY, SET THE GAIN SO THAT THE SYSTEM PERFORMS AT OPTIMAL VOLUME WITH THE RADIO

AT ABOUT ¾ VOLUME.

NOTE: DO NOT SET THE GAIN TOO HIGH. THIS CAN LEAD TO DAMAGING THE SPEAKERS.

16. TURN THE IGNITION OFF.

17. INSTALL THE FAIRING COVER.

TIP: REFER TO MANUFACTURE INSTRUCTIONS IF NECESSARY.

18. INSTALL THE SEAT.

TIP: REFER TO MANUFACTURE INSTRUCTIONS IF NECESSARY.

19. PERFORM A FINAL SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY THAT

ALL FUNCTIONS STILL WORK AS EXPECTED.

20. PERFORM A TEST DRIVE AND AGAIN VERIFY THAT THE SYSTEM IS OK.

NOTE1: BE SURE TO CLEAN ALL MOUNTING SURFACES WITH THE INCLUDED ALCOHOL PADS BEFORE

ATTACHING THE ADHESIVE VELCRO®PATCHES.

MODEL/PART LEFT

SPEAKER

(+)

LEFT

SPEAKER

(-)

RIGHT

SPEAKER

(+)

RIGHT

SPEAKER

(-)

1998 –2006

STOCK HARLEY HEAD

UNIT

WHITE /

ORANGE

LIGHT GREEN

/ WHITE

GRAY / RED LIGHT GREEN

/ BLACK

HIGH-LEVEL INPUT

CABLE

WHITE BLACK

(TWISTED W/

WHITE WIRE)

RED BLACK

(TWISTED W/

RED WIRE)

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 7FREMONT, CA

ADCBEF

Front

Back

Front

Back

AGROUND TERMINAL GGAIN ADJUSTMENT KNOB MPOWER INDICATOR

BREMOTE TERMINAL HLEFT LOW LEVEL INPUT NCONTROL CABLE INPUT

CPOWER TERMINAL IRIGHT LOW LEVEL INPUTONEGATIVE SPEAKER OUTPUT (-)

D10AMP FUSE JRIGHT CONTROL CABLE OUT PPOSITIVE SPEAKER OUTPUT (+)

EPOWER INDICATOR KLEFT CONTROL CABLE OUT

FHIGH LEVEL INPUT LHIGHLY RECOMMENDED

BATTERY

CONTROL

MODULE

AMP

RADIO

pwr gnd

rem

LIGHTER

high level

(speaker wires)

-OR-

low level

(rca cable)

control

cables

speaker

out

speaker

out

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 8FREMONT, CA

SYSTEM MODEL NUMBER:.................................................................................................... SC1502

NOMINAL OUTPUT IMPEDANCE: ............................................................................................ 4 OHMS

NOMINAL POWER OUTPUT (WATTS RMS):........................................................ 75 WATTS PER CHANNEL

FREQUENCY RESPONSE: .............................................................................................. 10HZ-50KHZ

CASE DIMENSIONS:

CS1502 CONTROL MODULE................................................................... 6.75” W X 4.50” D X 1.25” H

CT75 AMPLIFIER MODULE...................................................................... 3.00” W X 4.00” D X 1.25” H

OUR AMPLIFIER TECHNOLOGY FEATURES CLASS-T®DIGITAL AMPLIFIERS BY TRIPATH

"UNCOMPROMISED SOUND QUALITY" TYPICALLY: .......................................... 0.005% THD+N @ 70W 4O

............................................................................................................. 10.0% THD+N @ 117W 4O

DYNAMIC RANGE = 103DB

OVER-CURRENT AND OVER-TEMPERATURE PROTECTION

TURN-ON AND TURN-OFF POP SUPPRESSION

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

SC1502 AUDIO SYSTEM INSTALLATION GUIDE

HAWG WIRED, INC. PAGE 9FREMONT, CA

HAWG WIRED OFFERS A LIMITED WARRANTY ON HAWG WIRED PRODUCTS ON THE FOLLOWING TERMS:

• LENGTH OF WARRANTY

1 YEAR ON AUDIO SYSTEMS AND 6 MONTHS ON SPEAKERS (RECEIPT REQUIRED).

• COVERAGE

THIS WARRANTY COVERS ONLY THE ORIGINAL PURCHASER OF A HAWG WIRED PRODUCT PURCHASED

FROM AN AUTHORIZED HAWG WIRED DEALER IN THE UNITED STATES. IN ORDER TO RECEIVE SERVICE,

THE PURCHASER MUST PROVIDE HAWG WIRED WITH A COPY OF THE RECEIPT STATING THE CUSTOMER

NAME, DEALER NAME, PRODUCT PURCHASED AND DATE OF PURCHASE.

• DEFECTIVE PRODUCTS

PRODUCTS FOUND TO BE DEFECTIVE DURING THE WARRANTY PERIOD WILL BE REPAIRED OR REPLACED

(WITH A PRODUCT DEEMED TO BE EQUIVALENT) AT HAWG WIRED'S DISCRETION.

• WHAT IS NOT COVERED

DAMAGE CAUSED BY ACCIDENT, ABUSE, IMPROPER OPERATIONS, WATER, THEFT

ANY COST OR EXPENSE RELATED TO THE REMOVAL OR REINSTALLATION OF PRODUCT

SERVICE PERFORMED BY ANYONE OTHER THAN HAWG WIRED OR AN AUTHORIZED HAWG WIRED SERVICE

CENTER

ANY PRODUCT WHICH HAS HAD THE SERIAL NUMBER OR TAMPER LABELS DEFACED, ALTERED, OR

REMOVED

SUBSEQUENT DAMAGE TO OTHER COMPONENTS

ANY PRODUCT PURCHASED OUTSIDE THE U.S.

ANY PRODUCT NOT PURCHASED FROM AN AUTHORIZED HAWG WIRED DEALER

• LIMIT ON IMPLIED WARRANTIES

ANY IMPLIED WARRANTIES INCLUDING WARRANTIES OF FITNESS FOR USE AND MERCHANTABILITY ARE

LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. SOME STATES

DO NOT ALLOW LIMITATIONS ON THE LENGTH OF AN IMPLIED WARRANTY, SO THIS LIMITATION MAY NOT

APPLY. NO PERSON IS AUTHORIZED TO ASSUME FOR HAWG WIRED ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE OF THE PRODUCT.

• HOW TO OBTAIN SERVICE

PLEASE CALL 1-510-894-2999 FOR HAWG WIRED CUSTOMER SERVICE. YOU MUST OBTAIN A RETURN

MATERIAL AUTHORIZATION NUMBER (RMA) TO RETURN ANY PRODUCT TO HAWG WIRED. YOU ARE

RESPONSIBLE FOR SHIPPING CHARGES OF RETURNED PRODUCTS TO HAWG WIRED.

• MADE IN THE USA

THIS PRODUCT WAS PROUDLY DESIGNED, DEVELOPED AND BUILT IN THE USA. THE MAJORITY OF THE

COMPONENTS USED IN THE CONSTRUCTION OF THIS PRODUCT ARE PRODUCED BY AMERICAN

COMPANIES. HOWEVER, DUE TO THE GLOBAL NATURE OF MODERN MANUFACTURING AND THE

ELECTRONICS INDUSTRY IN GENERAL, SOME PARTS MAY BE MANUFACTURED IN OTHER COUNTRIES.

HAWG WIRED, INC.

FREMONT, CA

GENERAL INFORMATION –info@hawg-wired.com

SALES AND MARKETING –sales@hawg-wired.com

TECHNICAL SUPPORT –techsupport@hawg-wired.com

MAIN 510.894.2999

EFAX 510.217.6994

Inhaltsverzeichnis

Andere Hawg Wired Autoempfänger Handbücher

Hawg Wired

Hawg Wired DK470 Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
