hawksweep HS-C3000 Plus Bedienungsanleitung
Protect Your Privacy, Prevent Leakage Of Confidence
C3000-Plus is a professional anti-stealing recorded wireless
handheld device. It can monitor and identify all wireless
videotaping equipment that indoor and in-car quickly and
efficiently , no matter how those videotaping equipments to
camouflage themselves as anything(clothes, buttons, bags, mugs,
books, etc.), even if the device hidden in the couch, on the ceiling
and cement wall, they would be located accurately.
C3000-Plus can switch cell phone signal test mode to search the
signal only through the multifunction key; another test mode is
broadband model which can test 0-10GMHz wireless signals;
10-3000MHz wireless signal can search record-frequency mode. It
can measure the frequency of any digital, switches and analog
signals, such as mobile phone, wireless remote control, digital
radio, car key, intercom, 1.2G/2.4G wireless camera, wireless
microphone, WIFI, WMAX and so on. Easy to operate, LCD screen
display.
C3000-Plus with built-in lithium battery. The intelligent
charging system makes battery in the best performance.
Design of aircraft-grade aluminum casing, ensuring high
performance and durability of the equipment. Machine and
accessories are integrated into military-grade carrying cases
which can protect equipment, it also very easy to carry.

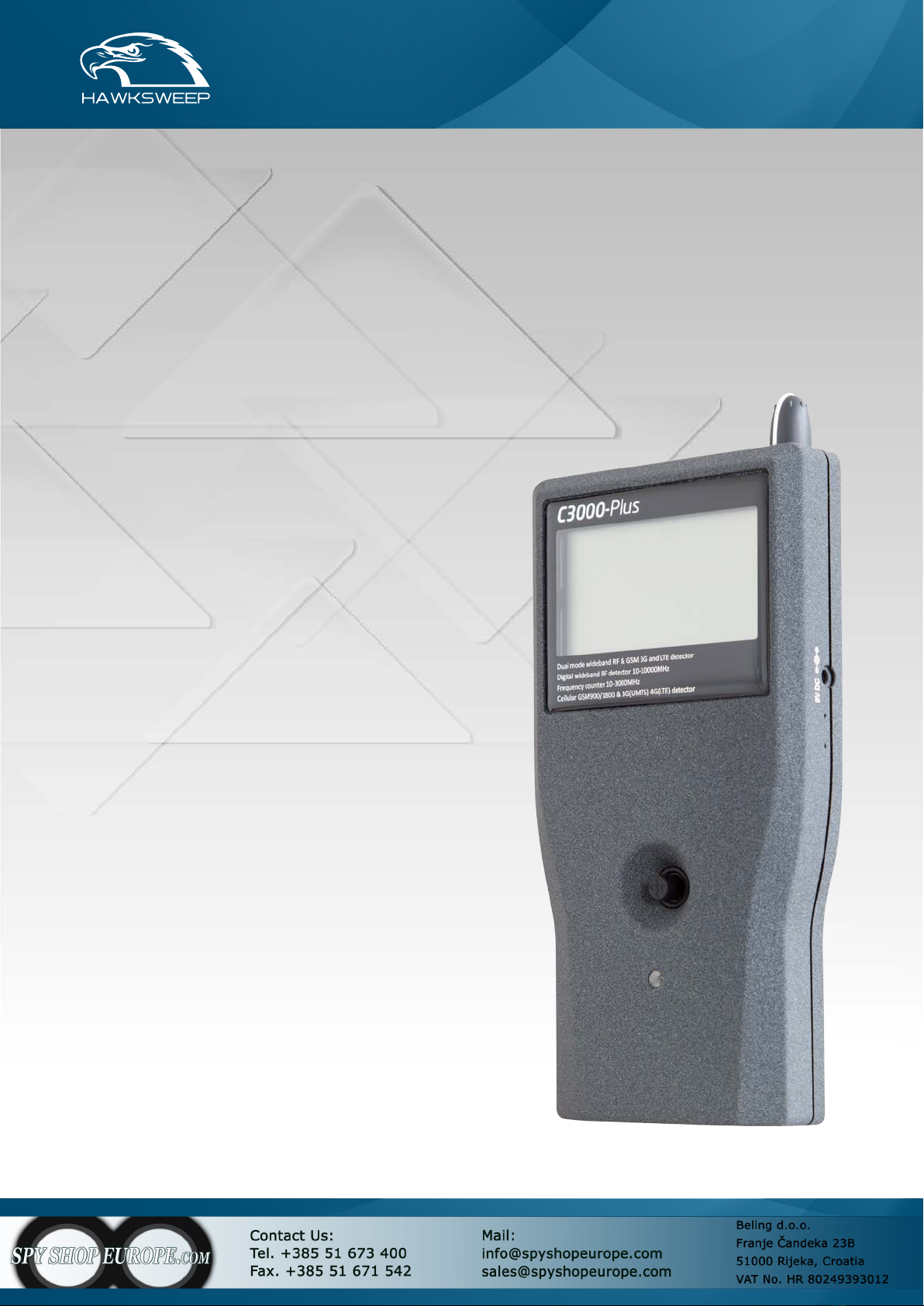

HS-C3000 Plus
Anti- stealing recorded wireless handheld device
Wireless investigate and obtain evidence handheld device
Multi-function Handheld Digital Frequency Counter
Protect Your Privacy, Prevent Leakage Of Confidence
Features:
1.8 bit LCD display
2. Multi-functional navigation key operation and the function mode is optional
3.This machine can measure the frequency of any digital and analog signal
4.20 extrasensory synchronous RF signal strength indicator , sound and light vibrate silent alarm is optional
5.Squelch adjustment
6.2 hour Low-power lithium battery
7.High, medium and low battery LCD display
8.LED charge status indicator
9.Configured with full-band antenna and charging adapter
Protect Your Privacy, Prevent Leakage Of Confidence
Record-frequency Mode Specification:
Resolution: 10 KHz ( digital signal ) 1 KHz ( analog signal )
Impedance: 50 Ohms (MCX connector )
Frequency range: 10 MHz - 3 GHz
Sensitivity: -35 dBm Maximum Input: 15 dBm
Cellphone signal Mode Specification:
Impedance: 50 Ohms (MCX connector )
Frequency range: U.S. BANDS
LTE 700 CDMA 800 GSM1900 CDMA2000
LTE2300 WIFI 2400
EURASIAN BANDS
LTE 800 GSM900 GSM1800 WCDMA2000
LTE2600 WIFI 2400
Sensitivity: -60 dBm Maximum Input: 15 dBm
Broadband Wirless Signal Mode Specification:
Detection Frequency: 0-10GHz
Detection sensitivity: -65dBm
Audible alarm and mute function
Operation:
1. SQL Knob : Adjusting the received signal strength
2. Multi-functional navigation key:Press the button for 2 seconds to change the working mode , the test frequency
range can be changed by up or down button in frequency meter mode multifunction key : 500MHz bandwidth can
measure the range of 10 MHz to 0.5 GHz ; 3000 MHz bandwidth can measure the range of 500 MHz to 3 GHz; Right or
left button can change the vibration , sound and light and mute warning display ; clicking multifunction key to keep
count. Cell phone signal test mode function keys can change the sensitivity ( high, medium and low ) by up or down
button . Right or left button can change the vibration , sound and light and mute warning display. Wideband wireless
signal test multi-function up or down button can change the sensitivity , there is 20 level can be selected, press the
left and right direction can change the vibration, sound and light and mute warning display.
Protect Your Privacy, Prevent Leakage Of Confidence
Precautions:
1. Battery: digital frequency meter C3000-Plus is the use of rechargeable NiCd battery, on the premise of full battery , it can
be used 3 hours;Please use the appendant charger when charging, the charging time is about 4 hours . In order to preserve
battery life, please take the battery recharged after the electric quantity running out , which can prevent the memory
effect to extend battery life. For ease of use the recommendation is to use backup battery for replacement.
2. Signal input: In order to prevent damage to the machine, the singal input cannot be higher than the maximum
frequency.When the frequency count installed the antenna, there may be some unknown frequency because the machine
would get some of the weaker signals due to the large signal gain , once the signal reaches the normal standard of signal
strength and frequency will be stable display .
3. Antenna selection: Full-band antenna can cover more bands , such as HF, VHF, UHF, CDMA, GSM, WCDMA, LTE, WIFI.
4. Test distance: Because there is a variety of RF signal from all around , resulting in the meter read the frequency value is
not determined, the impact factors including : transmit power, signal strength, antenna matching , barrier or a different
location under test may be affected.
Standard Configuration:
Device Host, Battery, 3 Antenna, 3 Interchangeable plugs, Charging adapter.
Quality Assurance:
Our company provides product warranty within three years from the
date of purchase. Under normal use during the warranty period, if the
equipment fails, we will provide free warranty, but not including self-
modifying, non- approved replacement, damage caused by strong
signal input that exceed the specification, failure caused by misuse,
abuse or external damage. The company will charge the fee which is
out of warranty.
· This warranty does not include anything other than the machine itself
· This warranty does not include the cost generated by transport
· The Company does not provide warranty service beyond the scope of
those warranty
· The Company reserves the right to modify the specification
