Operating Manual
English Deutsch
K3607
2A0833-3.1 HBM: public K3607
1 Safety instructions 3........................................
2 Symbols on the product 6...................................
3 Fields of application 7......................................
4 Connections 8..............................................
5 Calibrating the measurement chain 9........................
6 Works calibration of the K3607 10............................
7 Effect of cable resistance 11..................................
8 Pin assignement 12..........................................
Safety instructions
K3607 A0833-3.1 HBM: public 3
1 Safety instructions
Approbiate use
The K3607 calibration instrument is to be used exclusively for measurement
tasks and directly related control tasks. Use for any purpose other than the
above shall be deemed to be not in accordance with the regulations.
In the interests of safety, the instrument should only be operated as described
in the Operating Manual. It is also essential to comply with the legal and safety
requirements for the application concerned during use. The same applies to
the use of accessories.
Conditions on site
SProtect the device from direct contact with water.
SProtect the device from moisture and humidity or weather conditions such
as rain, snow.
SDo not expose the device to direct sunlight.
SPlease observe the permissible maximum ambient temperatures and
humidity stated in the specifications.
SThe device must not be modified from the design or safety engineering
point of view except with our express agreement. Any modification shall
exclude all liability on our part for any damage resulting therefrom.
In particular, any repair or soldering work on motherboards is prohibited.
When exchanging complete modules, use only original parts from HBM.
SInstall the device so that it can be disconnected from the supply voltage at
any time without difficulty.
SThe device is maintenance-free.
SBefore cleaning, disconnect all connections.
SClean the housing with a soft, slightly damp (not wet!) cloth. You should
never use solvents, since these could damage the labeling.
SWhen cleaning, ensure that no liquid gets into the module or connections.
SIn accordance with national and local environmental protection and material
recovery and recycling regulations, old equipment that can no longer be
Safety instructions
4A0833-3.1 HBM: public K3607
used must be disposed of separately and not with normal household
garbage.
Qualified personnel
Qualified personnel means persons entrusted with the installation, assembly,
commissioning and operation of the product, who possess the appropriate
qualifications for their function.
This includes people who meet at least one of the three following requirements:
SKnowledge of the safety concepts of automation technology is a require
ment and, as project personnel, you must be familiar with these concepts.
SAs automation plant operating personnel, you have been instructed how to
handle the machinery. You are familiar with the operation of the equipment
and technologies described in this documentation.
SAs commissioning engineers or service engineers, you have successfully
completed the training to qualify you to repair the automation systems. You
are also authorized to activate, ground and label circuits and equipment in
accordance with safety engineering standards.
It is also essential to comply with the legal and safety requirements for the
application concerned during use. The same applies to the use of accessories.
The device must only be installed by qualified personnel, strictly in accordance
with the specifications and with the safety requirements and regulations listed
below.
Maintenance and repair work on an open device with the power on may only
be carried out by trained personnel who are aware of the dangers involved.
Working safety
SMaintenance and repair work on an open device with the power on may
only be carried out by trained personnel who are aware of the dangers
involved.
Safety instructions
K3607 A0833-3.1 HBM: public 5
SAutomation equipment and devices must be installed in such a way that
adequate protection or locking against unintentional actuation is provided
(e.g. access checks, password protection, etc.).
Additional safety precautions
Additional safety precautions must be taken in plants where malfunctions could
cause major damage, loss of data or even personal injury. In the event of a
fault, these precautions establish safe operating conditions.
The scope of supply and performance of the device only covers a small area of
measurement technology. In addition, equipment planners, installers and
operators should plan, implement and respond to the safety engineering
considerations of measurement technology in such a way as to minimize
remaining dangers. On-site regulations must be complied with at all times.
There must be reference to the remaining dangers connected with
measurement technology.
General dangers of failing to follow the safety instructions
The device is a state of the art unit and as such is reliable. The module may
give rise to dangers if it is inappropriately installed and operated by untrained
personnel.
Safety instructions
6A0833-3.1 HBM: public K3607
2 Symbols on the product
CE mark
The CE mark enables the manufacturer to guarantee that
the product complies with the requirements of the rele
vant EC directives (the declaration of conformity is avail
able at http://www.hbm.com/HBMdoc).
Statutory marking requirements for waste disposal
National and local regulations regarding the protection of
the environment and recycling of raw materials require
old equipment to be separated from regular domestic
waste for disposal.
For more detailed information on disposal, please contact
the local authorities or the dealer from whom you pur
chased the product.
Fields of application
K3607 A0833-3.1 HBM: public 7
3 Fields of application
The K 3607 calibration instrument can be used to calibrate measuring ampli
fiers or measurement chains without imposing a mechanical quantity on the
SG transducers belonging to the measurement chain.
For this purpose the calibration instrument is equipped with a high‐precision
resistance network in star configuration, designed to simulate 350‐SG
full‐bridge transducers.
The extremely low self‐capacitance and self‐inductance of the inbuilt precision
resistors place the calibration instrument in accuracy class 0.025.
When an appropriate measuring amplifier is used, the calibration instrument
can be operated in six‐wire circuit for balancing the ohmic and capacitive
effects of long measurement cables.

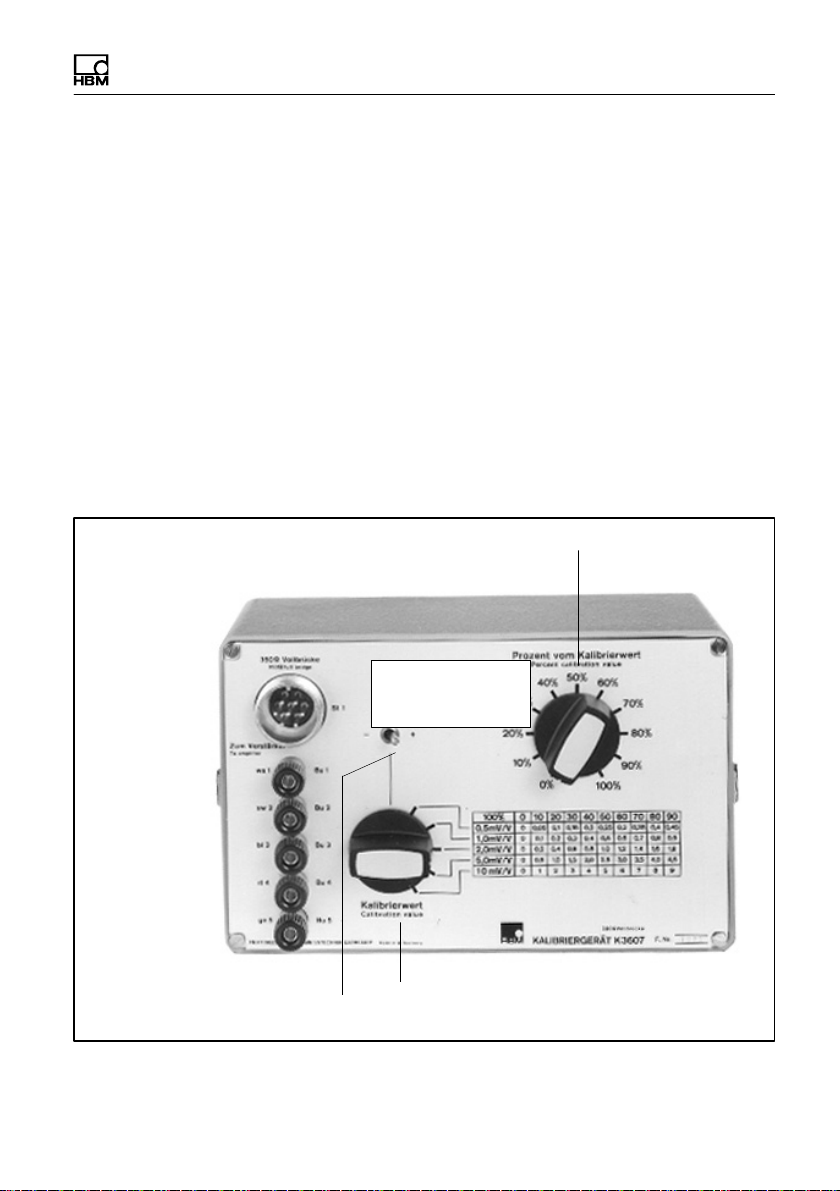

K 3607 Front panel
S1
S2
S3
Calibration valid at
end of cable
(KAB0238A−3).
S1 = polarity switch
S2 = calibration step switch
S3 = calibration value switch
Connections
8A0833-3.1 HBM: public K3607
4 Connections
The connector cable between the calibration instrument and the measuring
amplifier is connected either to the 7‐pin Amphenol connector MS 3102
A16S‐1P (St1) or to the 5‐pin S3 (Bu 1 . . . Bu 5).
The contact assignment is shown in Fig. 6.1. The Amphenol connection is pro
vided for a six‐wire circuit. If the intention is to connect a six‐wire circuit to the
pin terminals, connections C and F on the measuring amplifier must both be
connected to Bu3 on the calibration instrument, and connections B and G must
both be connected to Bu2.
