iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

www.healtech-electronics.com 1/5

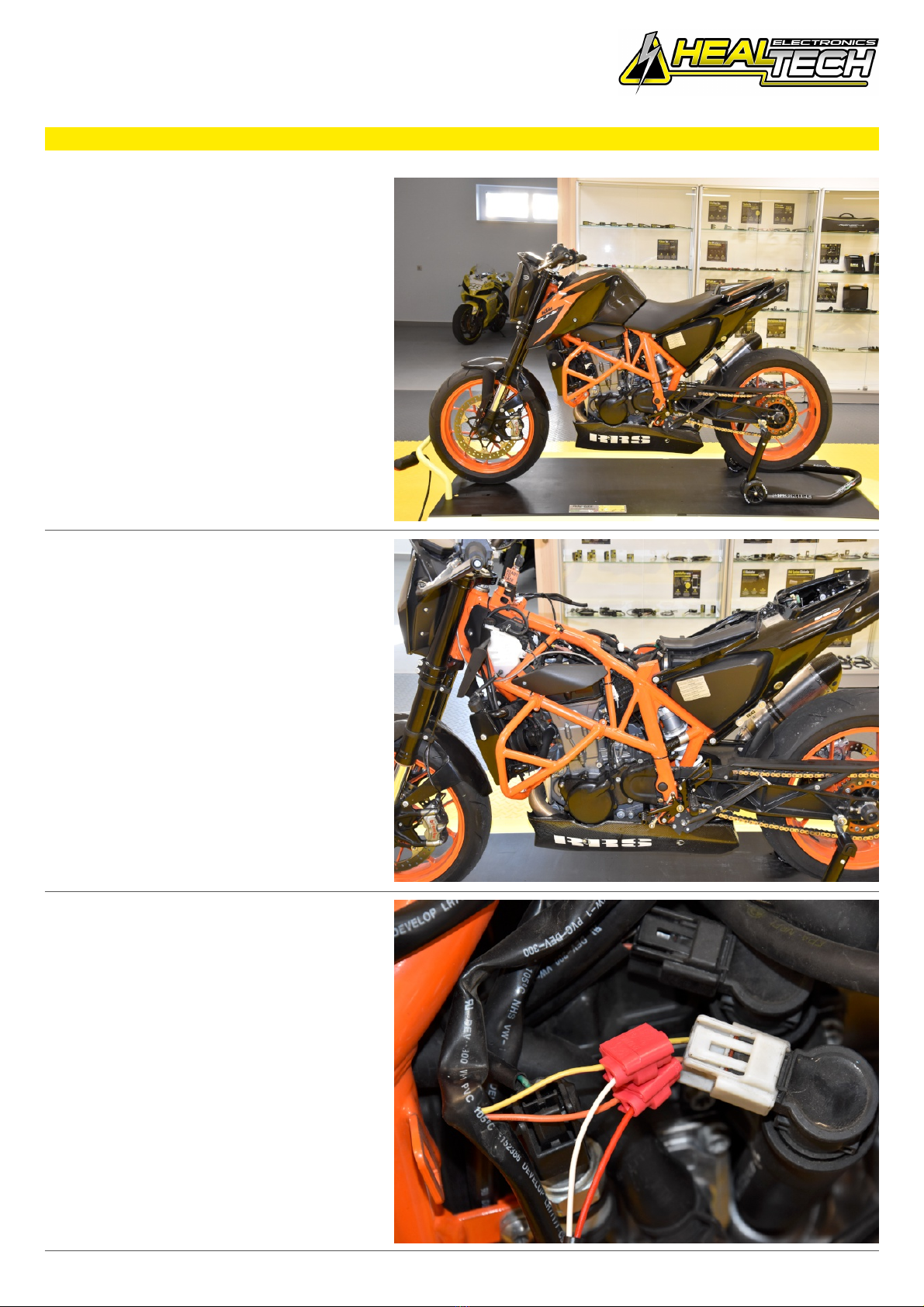

Secure the bike on a stand.

Remove the seats.

Remove the plastic covers from the fuel

tank.

Remove the fuel tank.

Connect the iLE-H-PWR Red wire to the

Orange wire of the ignition coil

connector. (Switched +12V)

Connect the iLE-H-PWR White wire to

the Yellow/Violet wire of the ignition coil

connector.(RPM)

iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

www.healtech-electronics.com 2/5

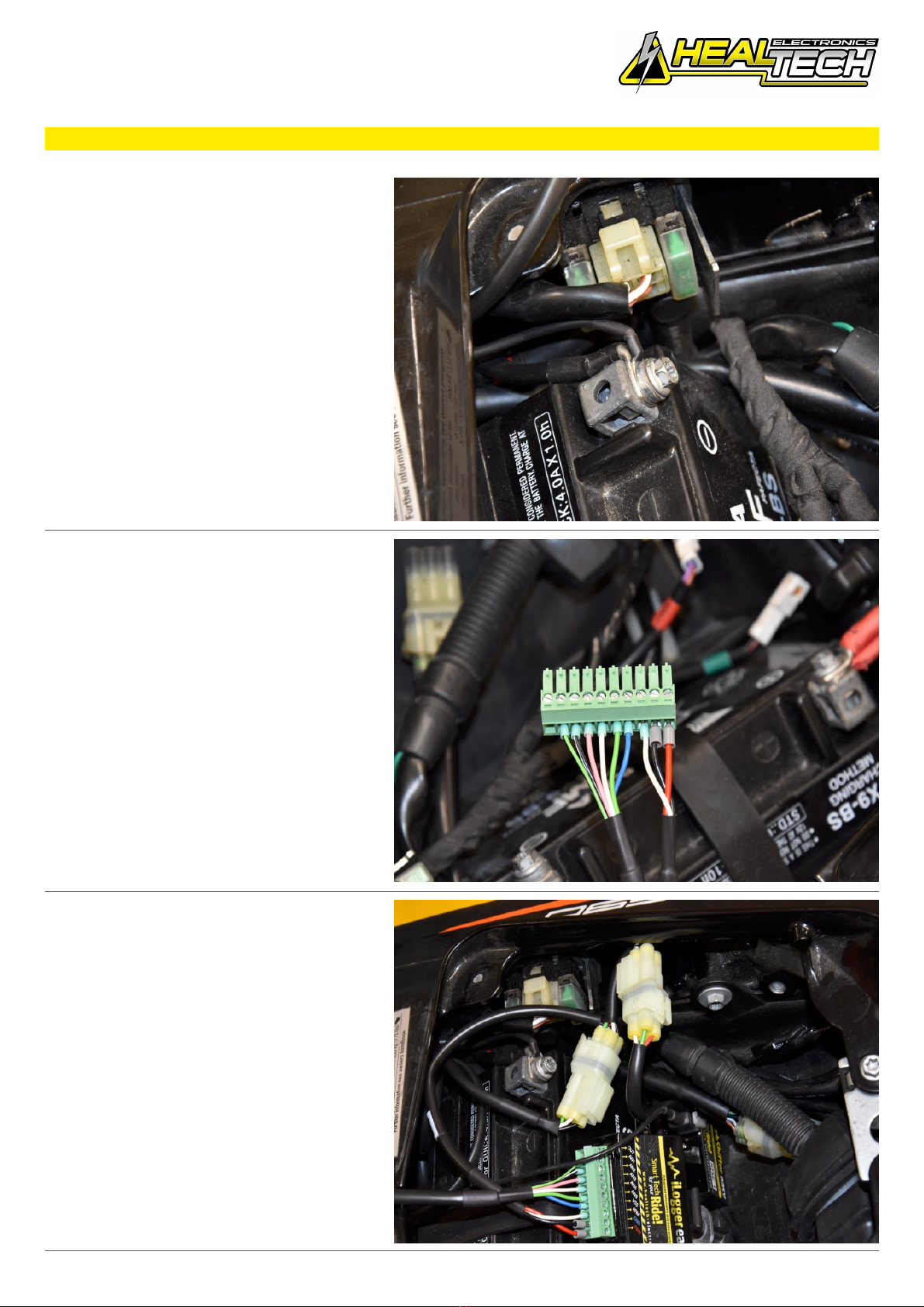

Connect the iLE Black wire terminal to

the battery negative terminal.

Connect the Red, Black and White wires

to the green terminal block as show on

the photo.

If the iLE is used together with the iQSE

quickshifter, plug the iLE-H-iQSE

connectors in-line with the 4-pole iQSE

connectors, then connect the Red, Black

and White wires to the green terminal

block as show on the photo.

iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

www.healtech-electronics.com 3/5

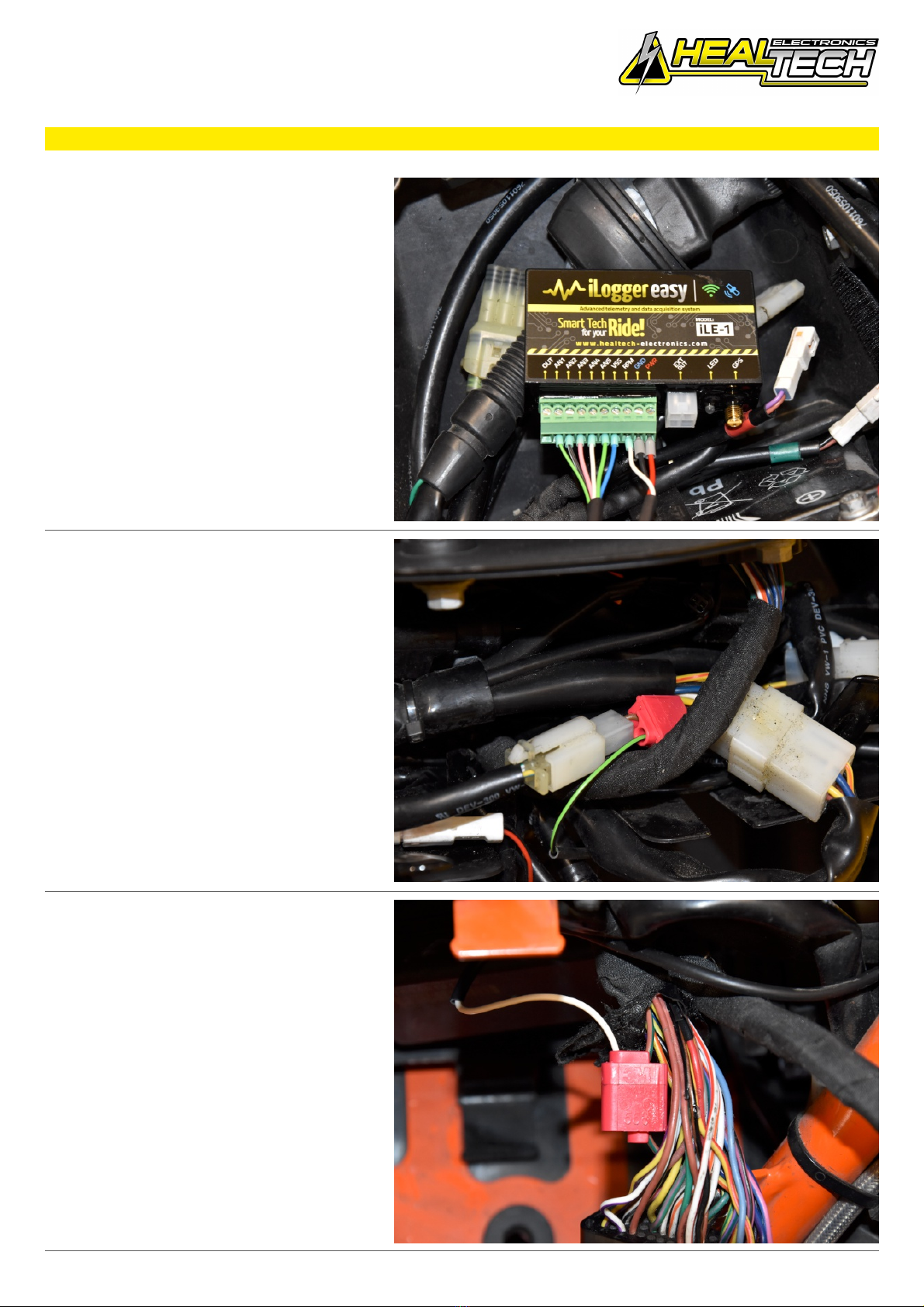

Connect the green terminal block to the

iLE modul.

Optional:

Connect the iLE Black/Green wire to the

Brown wire of the Front brake switch

under the headlight.

(Transparent, 2-pole connector)

Optional:

Connect the iLE White wire to the

Brown/Green wire of the Gear position

sensor at the ECU connector.

iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

www.healtech-electronics.com 4/5

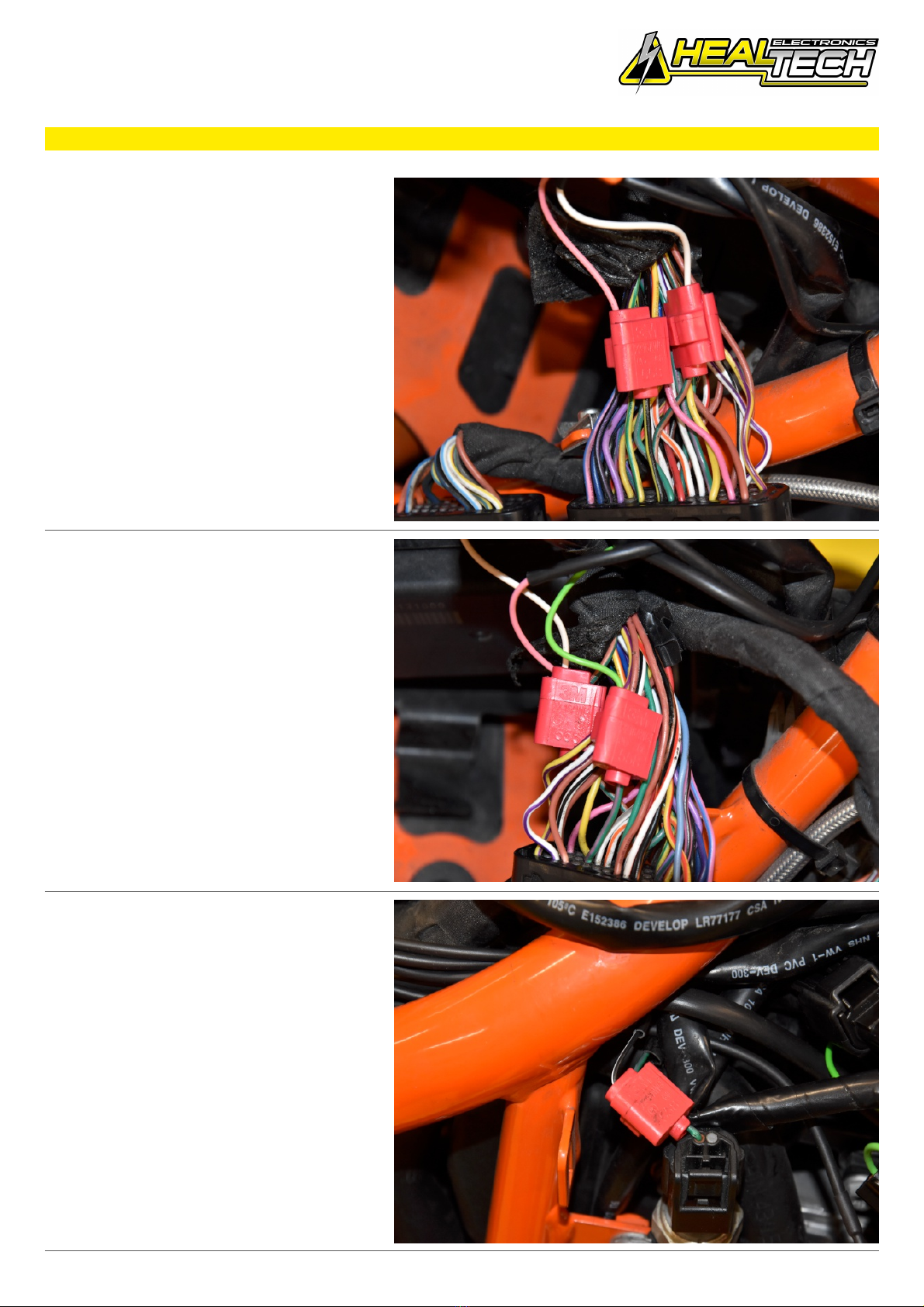

Optional:

Connect the iLE Pink wire to the

Black/Yellow wire of the Engine coolant

temperature sensor at the ECU

connector.

Optional:

Connect the iLE Green wire to the

Green/Pink wire of the Throttle position

sensor at the ECU connector.

Optional:

Connect the iLE Black/White wire to the

Green/Grey wire of the Oil pressure

switch under the fuel tank.

iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

www.healtech-electronics.com 5/5

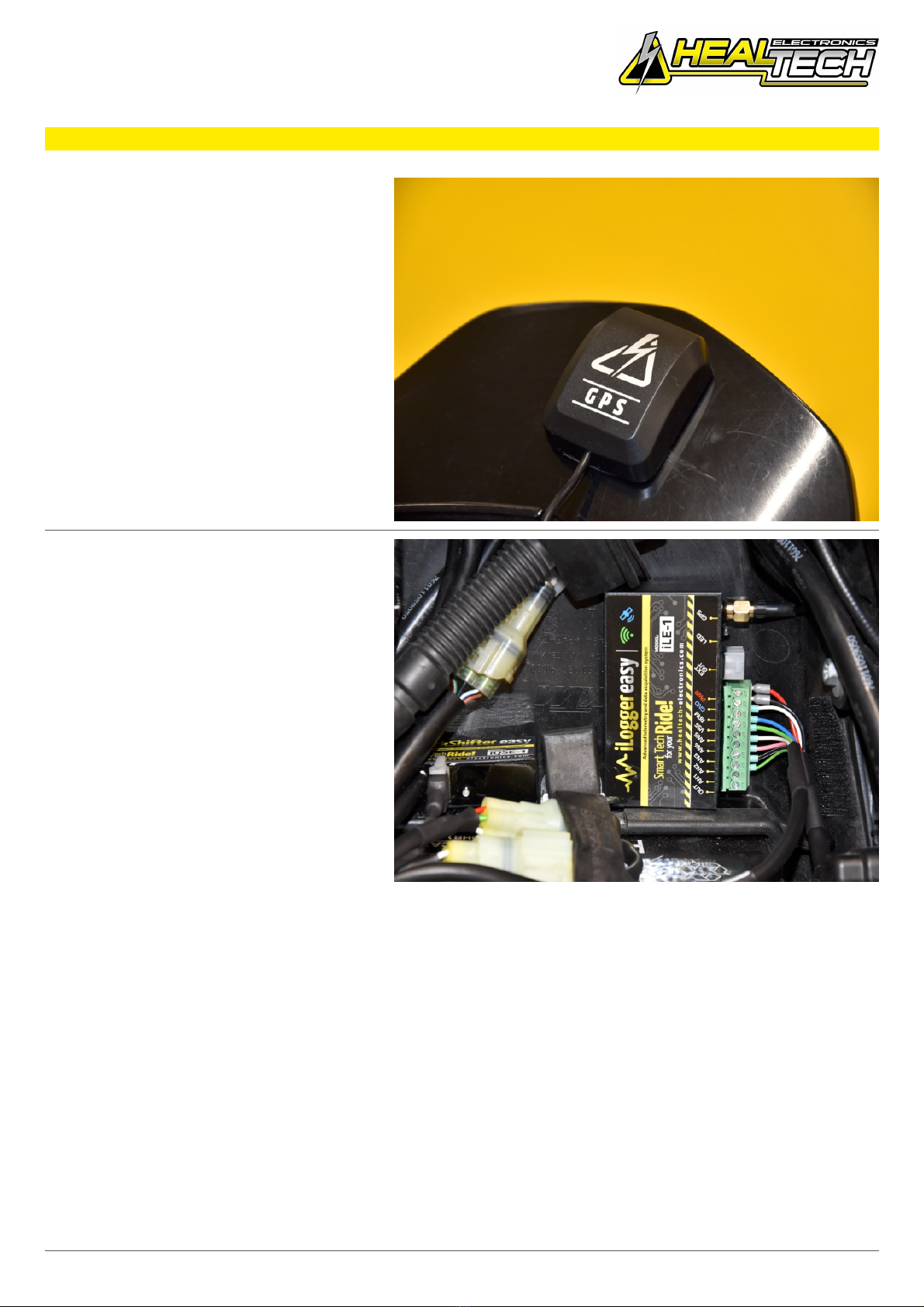

Mount the GPS receiver on the tail

fairing.

Connect the GPS connector to the iLE

module.

Typical position for the iLE module.

Secure the unit properly.
