Hearth and Home Technologies SFE-CDLB3530PP Montageanleitung

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

TUV Listed as Model SFE-35C

Model:

SFE-CDLB3530PP CORTLAND Plug & Play

SFE-MKLB3530PP MACKINTOSH Plug & Play

INSTALLER/CONSUMER SAFETY

INFORMATION

PLEASE READ THIS MANUAL BEFORE

INSTALLING AND USING APPLIANCE.

WARNING!

IF THE INFORMATION IN THIS

MANUAL IS NOT FOLLOWED

EXACTLY, AN ELECTRICAL SHOCK

OR FIRE MAY RESULT, CAUSING

PROPERTY DAMAGE, PERSONAL

INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS

AND LIQUIDS IN THE VICINITY OF

THIS OR ANY OTHER APPLIANCE.

SERVICE MUST BE PERFORMED BY

A QUALIFIED SERVICE AGENCY.

Homeowner’s Installation & Operating Manual

Note: The device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

ANSI / UL 2021. Fixed or location dedicated electric room heater.

Installer: do not discard this manual -- leave for home owner

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

Congratulations!

Congratulations on selecting a Simplifyre electric ﬁreplace.

The unit you have selected is designed to provide the

utmost in safety, reliability and efﬁciency.

As the owner of a new ﬁreplace, you’ll want to read and

carefully follow all of the instructions contained in this

owner’s manual. Pay special attention to all cautions and

warnings.

This owner’s manual should be retained for future

reference. We suggest you keep it with your other

important documents and product manuals.

Please read the installation & operation instructions before

using this appliance.

The information contained in this owner’s manual unless

noted otherwise, applies to all models.

Your new Simplifyre electric ﬁreplace will give you years of

durable use and trouble-free enjoyment.

Welcome to the Hearth & Home Technologies family of

ﬁreplace products!

Table of Contents

1Important Instructions 3

A. Unpacking the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

B. Locating Your Electric Fireplace . . . . . . . . . . . . . . . . . 4

C. Electrical Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . 4

D. Cord Electrical Connection . . . . . . . . . . . . . . . . . . . . . 4

E. Wall Switch and Thermostat Connections. . . . . . . . . . 4

2 Cabinet Dimensions 5

3 Operating Instructions 6

A. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

B. Remote Control Initialization . . . . . . . . . . . . . . . . . . . . 6

C. Control Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Electrical Wiring 7

5 Service Instructions 7

A. Replacing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . 7

B. Screen Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

C. Maintenance of Motors . . . . . . . . . . . . . . . . . . . . . . . . 7

D. Resetting the Temperature Cutout Switch . . . . . . . . . . 7

6 Replacement Parts List 8

7 Warranty 9

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

When using electrical heaters, basic precautions should always be followed to reduce the risk of ﬁre, electric shock and

injury to persons, including the following:

• To prevent a possible ﬁre, do not block air intakes or

exhaust in any manner.

• A heater has hot and arcing or sparking parts inside. Do

not use it in areas where gasoline, paint, or ﬂammable

liquids are used or stored.

• Use this heater only as described in this manual. Any

other use not recommended by the manufacturer may

cause ﬁre, electric shock, or injury to persons.

• Always use properly grounded, fused and polarized

outlets.

• Always use ground fault protection where required by

electrical code.

• Always disconnect power before performing any cleaning,

maintenance or relocation of the heater.

• To prevent a possible ﬁre, do not burn wood or other

materials in this heater.

• To prevent electric shock or ﬁre, always use a certiﬁed

electrician should new circuits or outlets be required.

• When transporting or storing the heater, keep in a dry

place free from excessive vibration and store to avoid

damage.

• Avoid the use of an extension cord because the extension

cord may over heat and cause a risk of ﬁre. However,

if you have to use an extension cord, the cord shall be

No. 16 AWG minimum size and rated not less than 1875

watts.

• SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE.

• Read all instructions before using this heater.

• This heater is hot when in use. To avoid burns do not let

bare skin touch hot surfaces. If provided, use handles

when moving this heater. Keep combustible materials,

such as furniture, pillows, bedding, papers, clothes and

curtains away from sides and rear of heater, and at least

36 in. (914 mm) from the front.

• Extreme caution is necessary when any heater is used

by or near children or invalids and whenever the heater

is left operating and unattended.

• Always unplug heater when not in use.

• Do not operate any heater with a damaged cord or plug

or after the heater malfunctions, has been dropped or

damaged in any manner. Return heater to authorized

service facility for examination, electrical or mechanical

adjustment, or repair.

• Do not use outdoors.

• This heater is not intended for use in bathrooms, laundry

areas and similar indoor locations. Never locate heater

where it may fall into a bathtub or other water container.

• Do not run cord under carpeting. Do not cover cord with

throw rugs, runners, or the like. Arrange cord away from

trafﬁc areas and where it will not be tripped over. Do not

coil cord.

• To disconnect heater, turn controls to “OFF” then remove

plug from outlet.

• Do not insert or allow foreign objects to enter any

ventilation or exhaust opening as this may cause an

electric shock or ﬁre, or damage the heater.

Important Instructions

WARNING! Risk of Fire!

DO NOT:

• install or operate damaged heater

• modify heater

• operate the heater without fully assembly all

components

The following actions are strictly prohited:

• Installation other than as instructed by Herath & Home

Technologies Inc.

• Installation and/or use of any component part not

approved by Hearth & Home Technologies Inc.

Hearth & Home Technologies Inc. disclaims any responsibility

for, and the warranty and agency listing will be voided by the

above actions.

WARNING! Improper installation, adjustment, altera-

tion, service or maintenance can cause injury or prop-

erty damage. Refer to the owner’s information manual

provided with this heater. For assistance or additional

information consult a qualiﬁed installer, service agency or

your dealer.

NOTICE! This ﬁreplace is not intended for use as a primary

heat source and should not be factored as such in residential

heating calculations.

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

The Optional Wall Switch 4050-309 contains two single pole switches. (LEVITON 5634 Series or equal)

The Optional Wall Thermostat is a low voltage mechanical type. (Columbus Electric RK120EAA or equal)

Maximum run distance is 30 ft. (9.14 m) with 20 gauge solid copper low voltage thermostat wire. Connect per the elec-

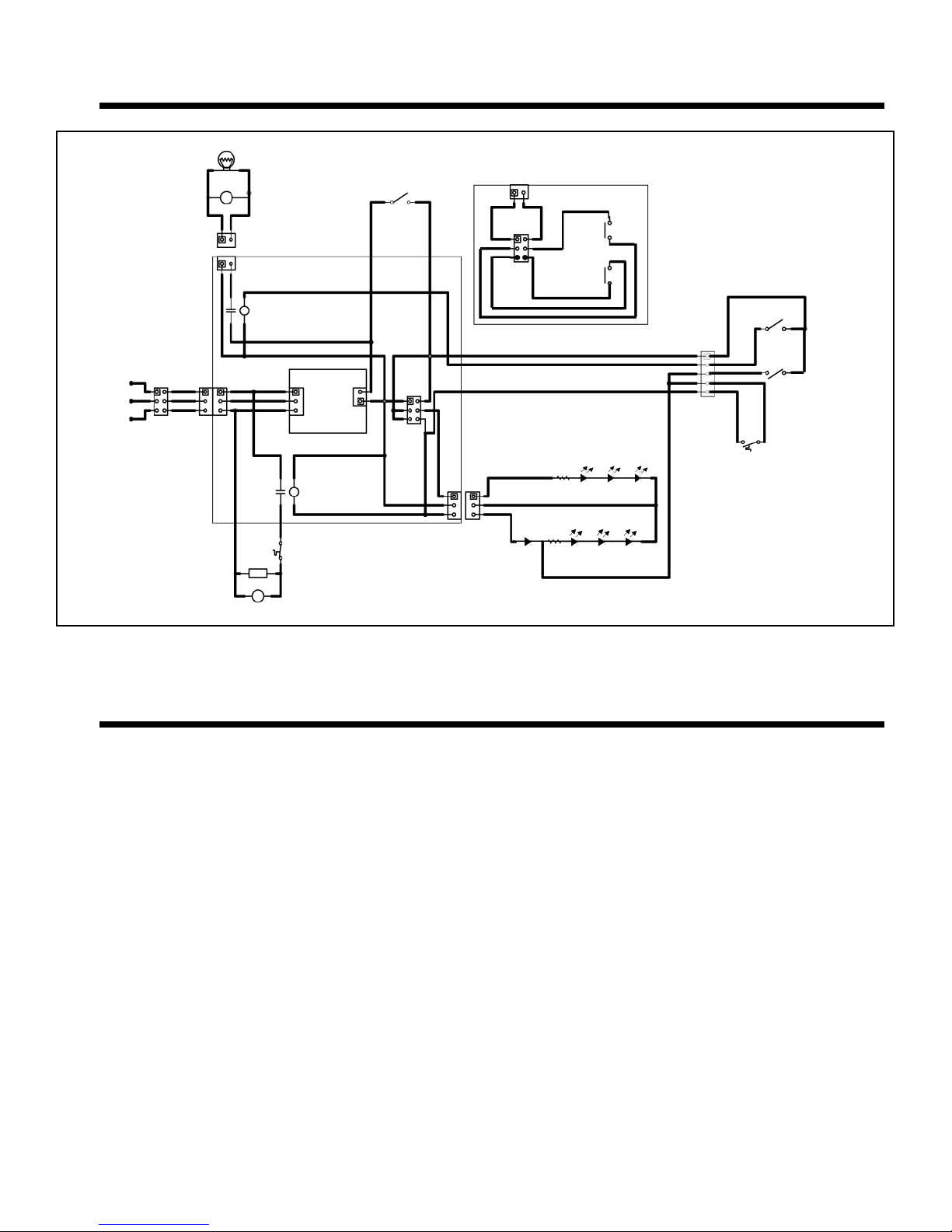

trical wiring diagram on page 7.

WARNING! Do NOT connect the optional low voltage switch and/or thermostat to 120 volt branch circuit.

E. Cord Electrical Connection

WARNING! Electrical wiring must comply with local

building codes and other applicable regulations to

reduce the risk of ﬁre, electrical shock and injury.

D. Electrical Speciﬁcations

Voltage . . . . . . . . . . . . . . . . . . . . . . 120 V AC, 60 Hz

Total Amps . . . . . . . . . . . . . . . . . . . . . . . . . .9.6 AMP

Total Watts . . . . . . . . . . . . . . . . . . . . . . . 1050 Watts

Heater Rating: . . . . . . . . . . . .1000 Watts/3415 BTU

B. Locating Your Electric Fireplace

Your new electric ﬁreplace may be installed virtually anywhere in your home. However, when choosing a location ensure

that the general instructions are followed. For best results, install out of direct sunlight.

Carefully remove packaging from the unit. The front screen is held in place with four Phillips head screws. To remove the

screen, extract the screws. Grasp the screen frame and pull out.

WARNING! Do NOT use this appliance if any part has been under water. Immediately call a qualiﬁed service techni-

cian to inspect and to replace any part of the electrical system if necessary.

A. Unpacking the Unit

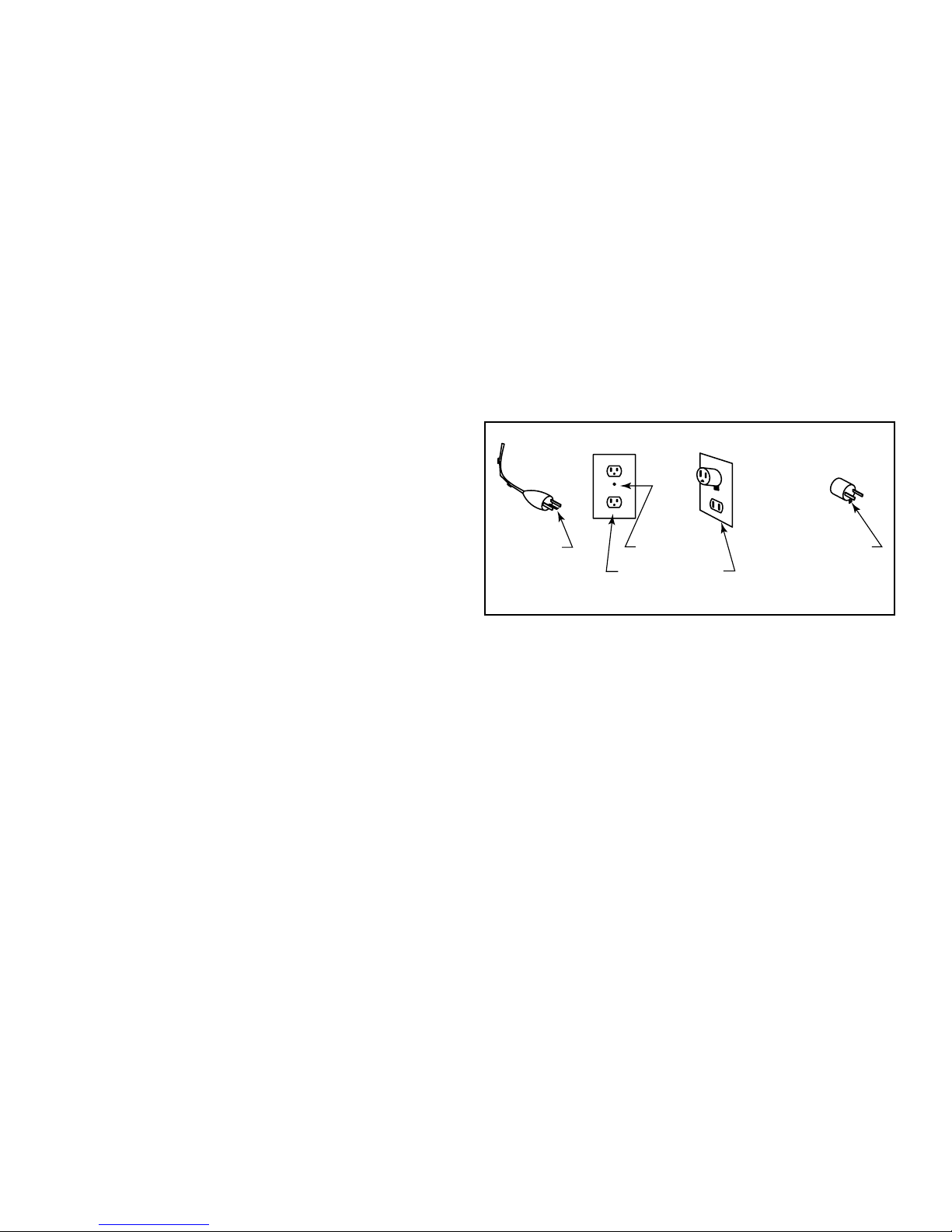

Figure 1.1 Cord Electrical Connection

Grounding

Metal Screw

Cover of Grounded

Outlet Box

Grounding

Head

CBA

F. Wall Switch and Thermostat Connections

A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably the ﬁreplace will be on a

dedicated circuit. Other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the

heater is in operation. The unit comes with a 6 ft. (152.4 mm) long three wire 16 AWG IEC-320 power cord. Plug in the

IEC connector to the rear upper corner of the appliance then connect the cord to the wall socket.

The ﬁreplace power cord has a three pin NEMA-5-15P plug (Figure 1A). An adapter is available for connecting to a two-

slot receptacle (Figure 1C). The green grounding wire extending from the adapter must be connected to a permanent

ground such as a properly grounded outlet box. The adapter should not be used if a three slot grounded receptacle is

available.

C. Framing

• Choose a ﬁreplace location and frame as shown in Figure

2.1.

• Provide a properly gounded, 120 volt, 60 Hz, 15 AMP

circuit as shown in Figure 2.1.

G. Finishing

• The ﬁreplace can now be positioned in the opening.

• Level it with shims if necessary.

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

12"

39"

Alcove finished dimensions 39" H x 39" W x 12" D

2 Fireplace Dimensions

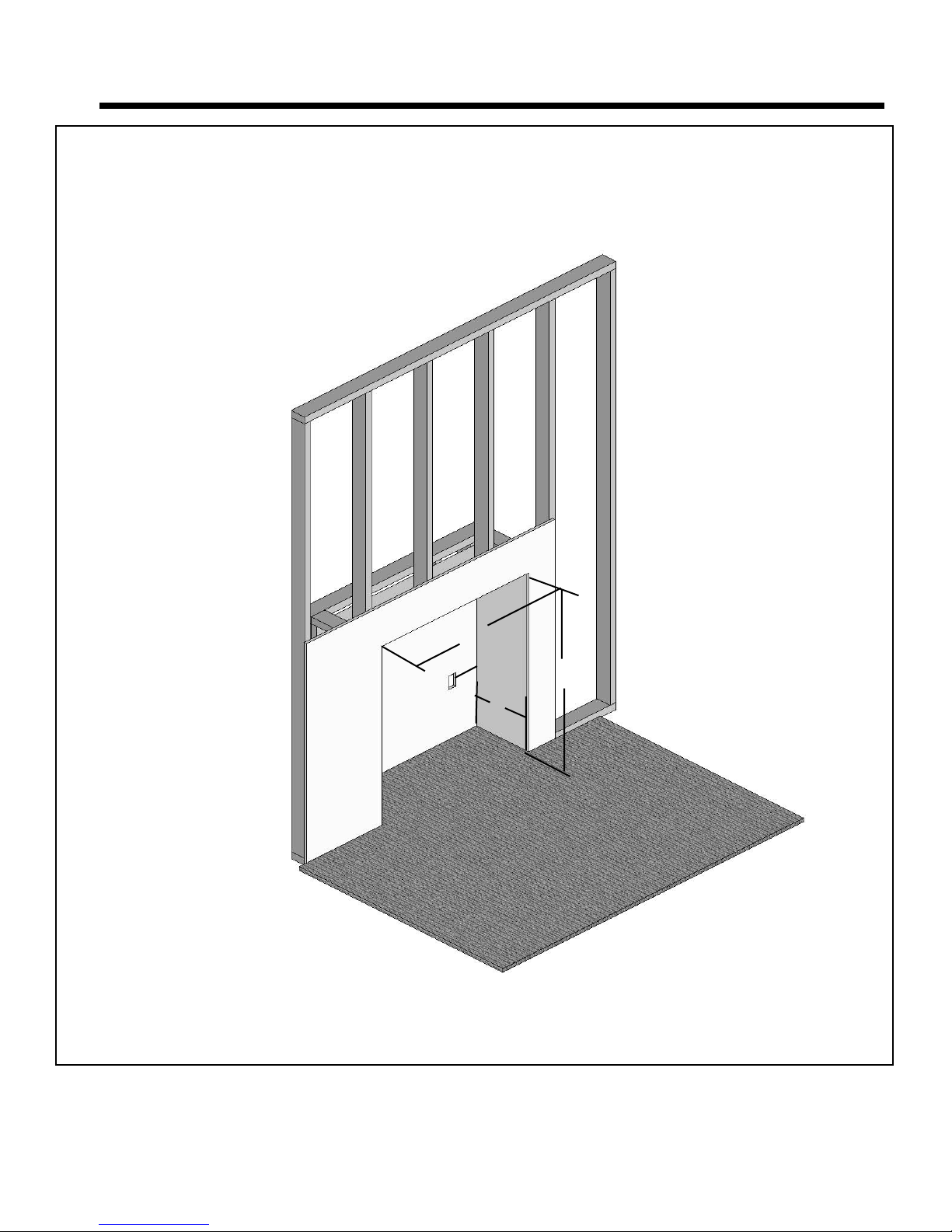

Figure 2.1 Framing Dimensions

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

Ensure the appliance is connected to a properly grounded electrical outlet on a minimum 15 AMP circuit. If a new outlet is

required, it should be installed by a qualiﬁed electrician according to applicable building codes.

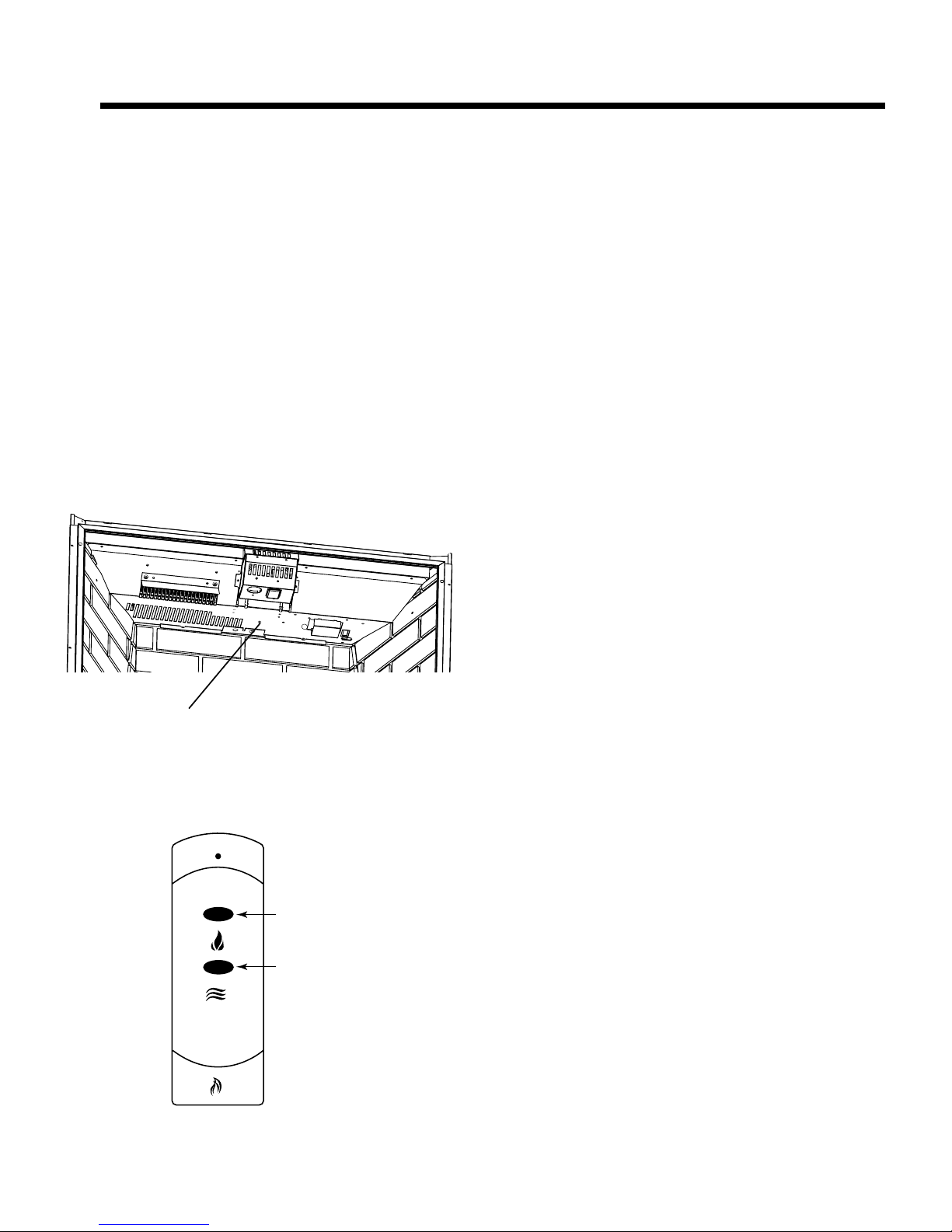

A. Remote Control

Note: If the ﬁreplace does not respond to the hand held control see “Remote Control Initialization” below.

This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installa-

tion. This equipment generates and uses, and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

C. Control Usage

The controls operate the ﬁreplace modes.

• The ﬂame effect and backlog/embers are turned ON/OFF

by alternate action of the FLAME button on the remote

transmitter.

• The heater/blower and front embers are turned ON/OFF

by alternate action of the HEATER button on the remote

transmitter.

• The optional wall FLAME switch provides manual operation

(ON/OFF) of the ﬂame effect.

• The optional wall HEAT switch controls the front embers

and activates the optional remote wall thermostat.

• Set the thermostat to the desired room temperature.

The optional wall switches/thermostat are in parallel with

the remote control relays. The wall switches MUST be OFF

for the Remote Transmitter to control the ﬁreplace.

Note: While the heater is ON the embers in front will glow.

Ensure the heater is OFF when unattended.

Learn Button

FLAMES

HEATER

3 OPERATING INSTRUCTIONS

B. Remote Control Initialization

This procedure is required only when the unit is installed or

the transmitter is replaced and is not affected by the loss of

power.

• Ensure that power is supplied through main service

panel.

• Place fresh batteries in the transmitter.

• Access the LEARN button by removing the front screen.

• Press and hold down the learn button. You will hear a

beep.

• Press a button on the hand-held transmitter.

• Release the learn button when you hear the long beep.

• This completes the remote control receiver/transmitter

initialization.

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

4 Electrical Wiring

Projector

Lamp

Motor

Interlock on

Media Cabinet only

Power Supply Module

Hot Line

Ground

Neutral

Branch Circuit

12 VOC

Power

Supply

Heater

Motor

Hi Limit

Heater-Blower Heat Indicator

LED LED LED

Ember Bed & Back Log

4050-310

Wall Thermostat

4050-309

Wall Switch

Flame

Heat

Terminal Strip ON

Remote Receiver

Flame

Heat

NEMA-5 IEC 320 C13/C14

5 Service Instructions

A. Replacing the Light Bulb

This appliance uses a single 12 Volt, 35 Watt, MR-16 bulb.

The bulb is located behind the smoke shield.

A spare is provided with the unit. Replacement bulbs (Part

No. 4050-123) are available through your Simplifyre dealer.

• Turn off power to the unit at the main service panel.

• Let the ﬁreplace cool if it has been operating.

• Release the spring pins and remove the upper shield.

• Remove the two screws on the projector basket.

• Rotate the housing down to access the bulb.

• Remove the screws holding the bulb and socket.

• Unplug the bulb from the socket.

• Replace the bulb.

• Re-assemble in the reverse order.

B. Screen Cleaning

During shipment, installation, handling, etc., the screen

surface may collect dust particles; these can be removed

by lightly wiping with a clean, dry cloth.

C. Maintenance of Motors

The motors used on the fan and ﬂame projector assembly

are pre-lubricated for extended bearing life and require no

further lubrication. However, periodic cleaning/vacuuming of

the fan/heater unit is recommended.

D. Resetting the Temperature Cutout Switch

The heater on this ﬁreplace is protected with a safety

device to prevent overheating. Should the heater overheat,

an automatic cutout will turn OFF the heater/blower. The

switch is reset by turning the unit OFF, waiting 10-15

minutes and switching the unit back ON.

WARNING! Disconnect power at circuit breaker before at-

tempting any maintenance or cleaning to reduce the risk of

ﬁre, electrical shock or personal injury.

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

E. Optional Wall Switch / Thermostat Wiring

Connections instructions

The optional wall switch and thermostat wiring is low

voltage and must be separated from power wiring. Do not

connect the switches or thermostat to house power.

To control ﬂames/ember bed with a switch, and

control the heater with a thermostat:

• Switch 1 - turns ﬂames/ember bed ON/OFF

• Switch 2 - turns front embers ON/OFF indicating the

heater/fan is being controlled by the thermostat (UL

requirement)

• Thermostat turns heater/fan ON/OFF as room temperature

requires it

• Switch 1 between terminal 1 and 2

• Switch 2 between terminal 1 and 3

• Thermostat between terminal 4 and 5

To control ﬂames/ember bed with one switch and

heater/front embers with another switch:

• Switch 1 - turns ﬂames/ember bed ON/OFF

• Switch 2 - turns heater/front embers ON/OFF

• Switch 1 between terminal 1 and 2

• Switch 2 between terminal 1 and 3

• Jumper wire between terminal 4 and 5

To control the ﬁreplace with a single switch:

(ﬂames/ember bed and heater/front embers all on or all off)

• Switch between terminal 1 and 2

• Jumper wire between terminal 2 and 3

• Jumper wire between terminal 4 and 5

Hearth & Home Technologies Inc. • Plug & Play • 4050-317 Rev A • 04/08

7 Warranty

Warranty

Hearth & Home Technologies Inc. (HHT) Electric Fireplaces are tested and inspected prior to shipment and are

guaranteed from defect to the purchaser of each new product. Any part which proves to be defective in material or

workmanship under normal use within one year will be repaired or replaced without charge.* The Company will not

be responsible for any expense incurred for installation, removal from service, or transportation costs. Any such

defect should be brought to the attention of the Dealer where the product was purchased and is authorized to repair

or replace within the terms of this warranty.

The Company’s only obligation under this warranty will be at its sole option to repair or replace any part proving

defective or to refund the purchase price thereof.

The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or

damage arising out of the use of or inability to use the product.

The warranty will not apply if, in the sole judgement of the Company, damage or failure has resulted from accident,

alteration, misuse, abuse, incorrect installation, or operation on an incorrect power source.

The foregoing is in lieu of all other warranties expressed, implied, or statutory, and the Company neither assumes,

nor authorizes any person to assume for it any other obligation, or liability in connection with said product.

*Light bulbs are not covered in the warranty.

How to Obtain Service.

To obtain service under this warranty you must:

1. Send written notice of the claimed condition to Heatilator Technical Service Department, Hearth & Home Technologies

Inc., 1915 W. Saunders St., Mt. Pleasant, IA 52641.

2. Provide proof of purchase, model number, serial number, and manufacturing date code to HHT.

3. Provide HHT reasonable opportunity to investigate the claim, including reasonable opportunity to inspect the

appliance prior to any repair or replacement work and before the Appliance or any component of the Appliance has

been removed from the place of original installation.

4. Obtain HHT’s consent to any warranty work before the work is done.

ADDITIONAL INFORMATION. If you would like information on current HHT products or want to locate a dealer in

your area, call 1-800-927-6841

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hearth and Home Technologies Kamin im Innenbereich Handbücher

Hearth and Home Technologies

Hearth and Home Technologies Outdoor Lifestyles ODPLAZA-L24S-B Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies VERMONT CASTINGS MONTP-II-CB Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies BE-32 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies outdoor lifestyles LUM-OD-NM Betriebsanleitung

Hearth and Home Technologies

Hearth and Home Technologies Quadra-Fire EXPEDITIONII-AU Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies AZTEC Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies DV3732 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies QV32E (120V) Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies B36S-AU Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies Outdoor Lifestyles ODLANAIG-48 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies 350TRSI-AUF Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies Accelerator 4 14-1/8 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies Simplifyre SFE-26 Montageanleitung

Hearth and Home Technologies

Hearth and Home Technologies PVK-80 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies Simplifyre SFE-35 Montageanleitung

Hearth and Home Technologies

Hearth and Home Technologies outdoor lifestyles Dakota 42-CE Montageanleitung

Hearth and Home Technologies

Hearth and Home Technologies 36-EBU Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies CFL-18NG-C Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies QV32B-A Montageanleitung

Hearth and Home Technologies

Hearth and Home Technologies Heatilator Dynasty FD36 Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies GO24MTCH Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies 6000BE Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies 350TRSI-AUF Bedienungsanleitung

Hearth and Home Technologies

Hearth and Home Technologies MEZZO Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
